Description
Specifications
Product features
Speaker connections XLR input, out / link / thru
Active or passive active
Tweeter diameter 1.5 inches
Woofer diameter 15 inches
Weight per speaker 21 kg
Built-in equaliser no
Built-in limiter yes
Maximum SPL 130 dB – 139 dB
Maximum frequency 20 – 20.9 kHz
Minimum frequency 50 – 59 Hz
Peak power in watts 750 – 999 watts
RMS power in watts 1,500 – 3,000 W
Locking speaker connectors no
Power adapter Europlug, Schucko or CEE 7/7 plug
Weight and dimensions including packaging
Weight (incl. packaging)21.0 kg
Dimensions (incl. packaging)73.4 x 44.2 x 33.8 cm
Product specifications

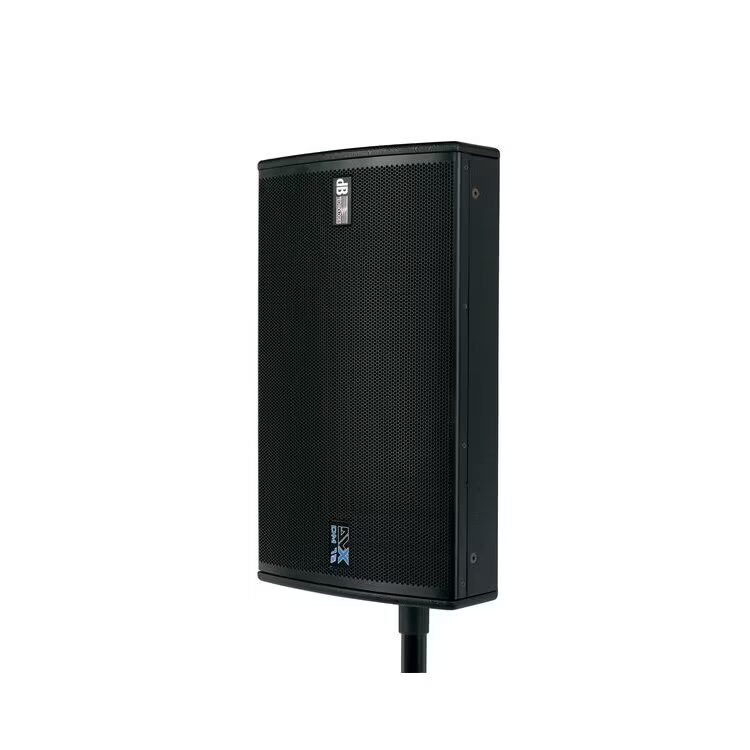

2-way active speaker
frequency response at -10 dB from 50 to 20,000 Hz
frequency response at 3 dB from 59 to 19,000 Hz
maximum sound pressure: 132 dB (SPL)
1.4-inch RCF neodymium compression-driven speaker for HR, with 2.5-inch titanium voice coil
directivity: 60 x 40 degrees
rotating aluminium CD horn
15-inch RCF neodymium speaker for LF, with 3.5-inch voice coil
Digipro amplification technology
class D amplifier
HF amplification 250 watts
LF amplification 500 watts
convection cooling
DSP controller 24 bit / 48 kHz
flat and monitor system presets
RMS, peak, thermal and multi-band limiters
crossover frequency MF-HR 1,320 Hz
curve MF-HF 24 dB / octave
symmetrical XLR female input and symmetrical 6.3mm jack input
input sensitivity -00 max. -30 dBu
symmetrical XLR male output and symmetrical 6.3mm jack output
locking input for power
inconspicuous black finish
multiplex birch housing with textured acrylic lacquer
1 hand grip per side
suited for 36mm speaker stands
35-degree positioning for use as monitor
1.5mm metal front grille, backed with acoustic foam
6x M8 mounting points
3 flytracks on top and 3 on bottom
power supply: 240 V
dimensions: 734 x 338 x 442 mm (W x H x D)
weight: 21 kg
