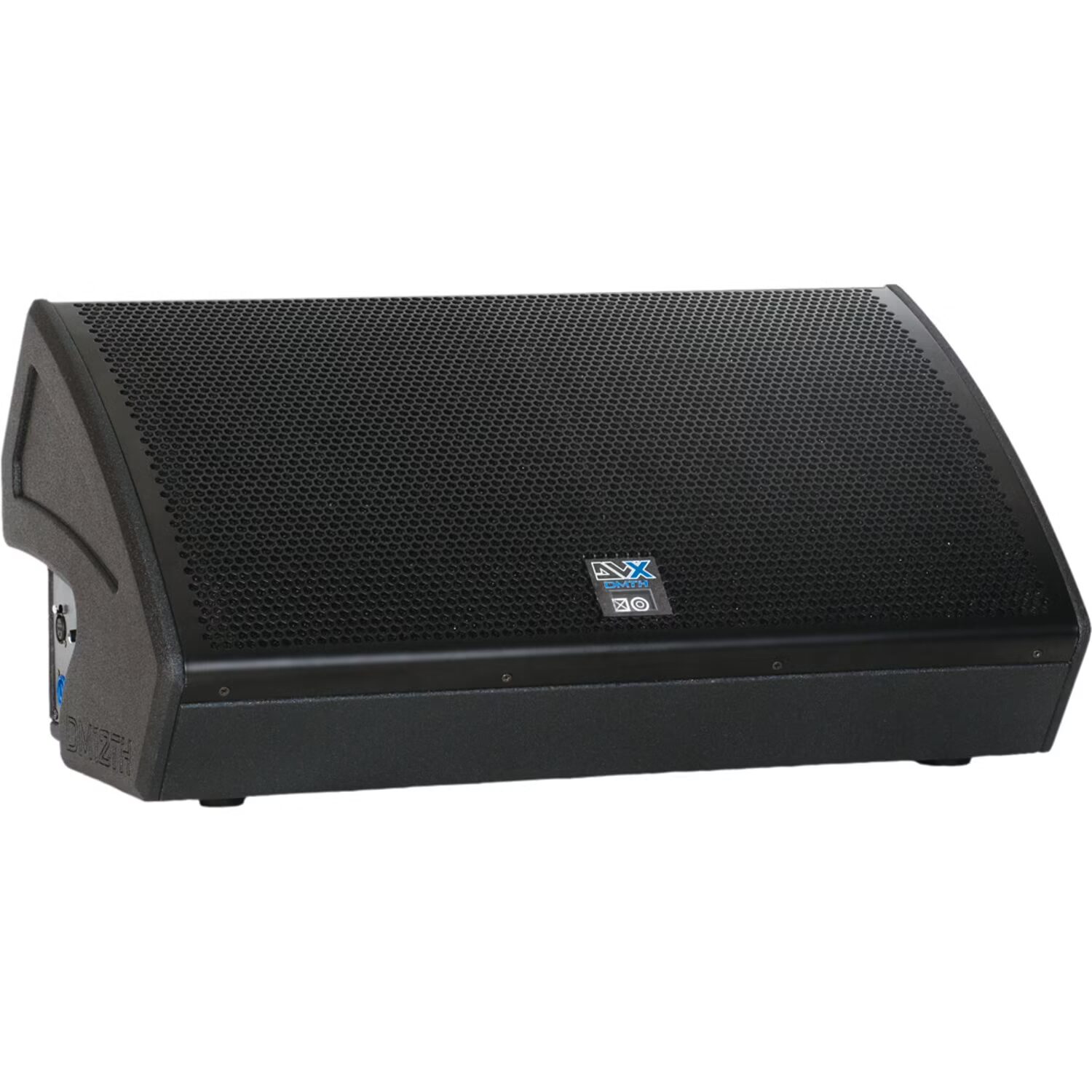

dB Technologies DVX DM15 TH active two-way monitor

Name: dB Technologies DVX DM15 TH active two-way monitor
SKU: 11590
Availability: InStock

Original price was: €1,800.Current price is: €1,350.

The DVX DM15 TH is a sturdy monitor with a 15-inch woofer that is great for use in the professional audio world. With this monitor, bad stage sound will be a thing of the past. The monitor’s angle and the pickup pattern ensure that performers will always get optimal sound from the monitor. Two different amplifiers – one for the trebles and one for the bass – produce 1,500 watts of power, and are driven by a DSP engine which makes it possible to adjust the sound to suit the environment.

dB technologies DVX DM15 TH: professional stage sound

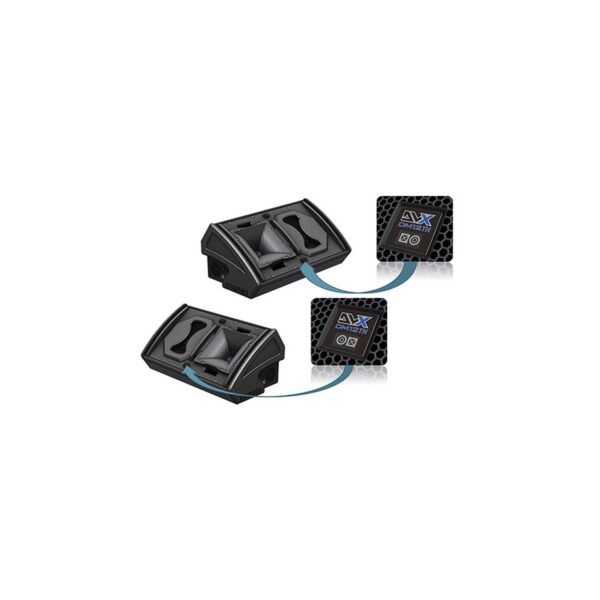

A unique feature of this monitor is the option of rotating the front. This means you are able to create left and right versions, and that it’s possible to have a stereo set that doesn’t suffer from comb filter effects. Additionally, you can also adjust the EQ via the built-in DSP, and you can make use of the limiter to be sure the monitor won’t overload and prevent sudden loud noises. Furthermore, the classic design of the DVX DM15 TH ensures that the sound will be properly dispersed toward the performer. Moreover, it’s a perfect way to define the edges of the stage.

Categories: Floor Monitors, Pro Audio, Speakers Tag: dB Technologies

Description

Description

Specifications

Product features
Speaker connections XLR input, out / link / thru
Active or passive active
Tweeter diameter 1.4 inches
Woofer diameter 15 inches
Weight per speaker 25 kg
Built-in equaliser yes
Built-in limiter yes
Maximum SPL 140 dB – 149 dB
Maximum frequency 18 – 18.9 kHz
Minimum frequency 40 – 49 Hz
Peak power in watts> 3,000 watts
RMS power in watts 1,500 – 3,000 W
Locking speaker connectors no
Power adapter Europlug, Schucko or CEE 7/7 plug
Weight and dimensions including packaging
Weight (incl. packaging)15.2 kg
Dimensions (incl. packaging)84.0 x 54.0 x 45.0 cm
Product specifications
two-way active monitor
uniquely designed housing for optimal sound
front panel with rotating speakers for optimal sound
woofer: 15-inch, 4-inch voice coil, Neodymium, 750 Watt RMS, 4 ohms
driver: 1.4-inch, 3-inch voice coil, Neodymium, 375 Watt RMS, 8 ohms
dispersion angle: 90 x 40 degrees
frequency range: 55 Hz – 16 kHz (+/- 6 dB)
frequency range: 47 Hz – 18 kHz (+/- 10 dB)
amplifier: Digipro G2, class D
power: 1,500W RMS, 3,000W peak
DSP: 56-bit floating point
ADA: 24-bit, 48kHz
DSP functions: EQ, limiter
housing: multiplex, polyuria top layer
monitor angle: 35 or 55 degrees
handles: 1x left, 1x right
dimensions: 735 x 355 x 447 mm (28.9 x 14 x 17.6 inch)
weight: 25.8 kg (62.8 lbs)
