Description
Specifications
Product features
Speaker connections XLR input
Active or passive active
Tweeter diameterribbon
Woofer diameter 2 x 7 inches + 1 x 4 inches
Maximum frequency 40 – 50 kHz
Minimum frequency 30 – 34 Hz
Monitor sets ingle speaker
RMS power in watts 750 – 1,499 W
Type of studio monitor 3-way (tweeter + midrange + woofer)
Weight and dimensions including packaging
Weight (incl. packaging)31.8 kg
Dimensions (incl. packaging)70.0 x 48.5 x 46.0 cm
Product specifications

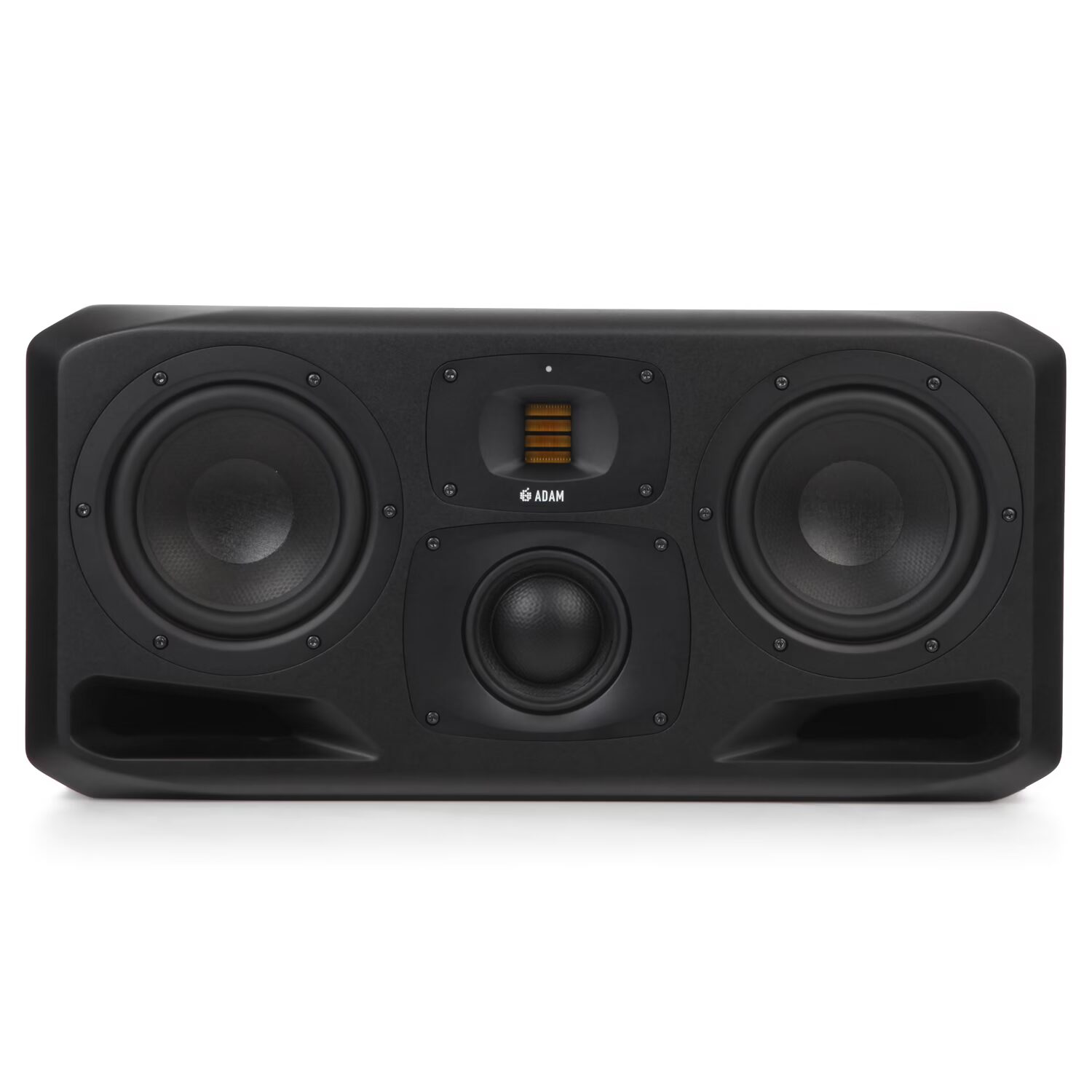

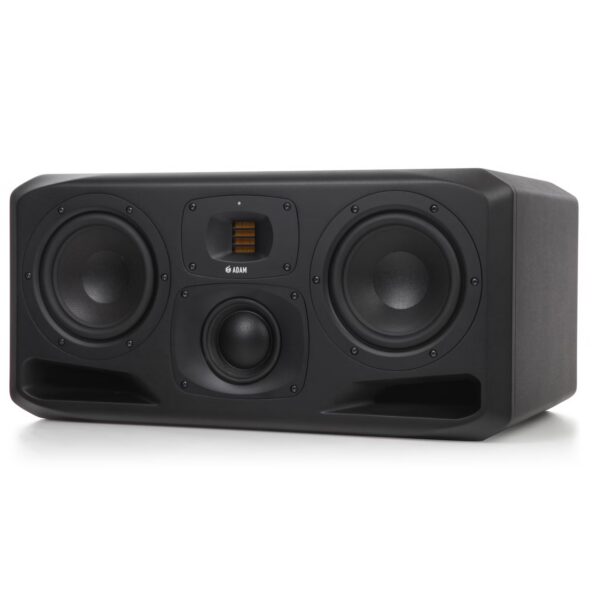

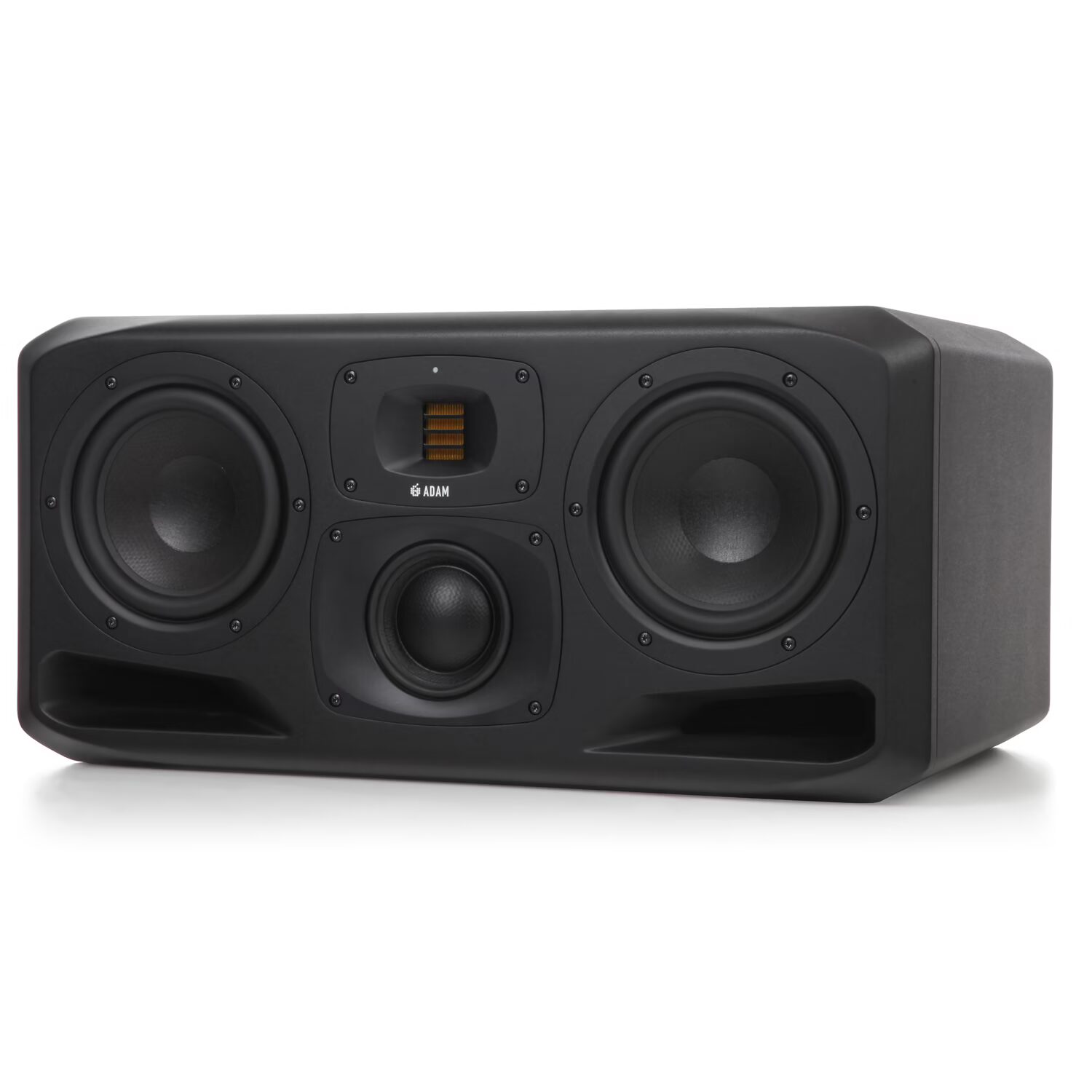

Adam S3H
active studio monitor
target group: demanding high-end studios
tweeter: 4-inch S-ART ribbon with HPS waveguide (manufactured by hand in Germany)
mid: 4-inch carbon composite
woofer: 2x 7-inch HexaCone
amplification: 1350W RMS
frequency response: 32 Hz – 50 kHz
crossover: 250 Hz, 3 kHz
SPL per set @ 1m: +/- 126dB SPL
accurate audio with tight high tones
digital characteristics:
crossover
equalizer
can be optimised for acoustic space
limiter
AES3 in + out
connectors for expansions
USB for software upgrades
analogue input: XLR
display for settings with rotate/push button
including power cable and manual
dimensions: 536 x 293 x 380 mm
weight: 26.6 kg
