Description
Specifications
Product features
Connectors External speaker(s), Footswitch
Number of channels 2
Number of speakers 2
Amp modellin gno
Effects loop yes
Weight 30 – 34.9 kg
Built-in tuner no
Built-in effects reveb (analogue), tremolo (analogue)
Colour black
Speaker diameter 12 inches
Power attenuator no
Type of power amp tube EL84
Amplifier type tube
Power in Watts 21 – 30 Watts
Can be powered by battery no
Weight and dimensions including packaging
Weight (incl. packaging)35.0 kg
Dimensions (incl. packaging)82.0 x 66.0 x 39.0 cm
Product specifications

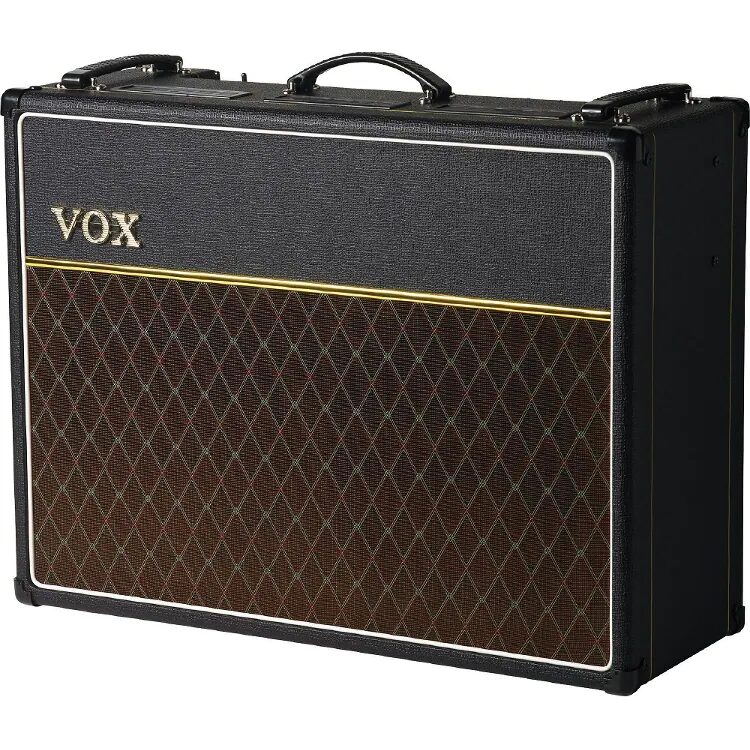

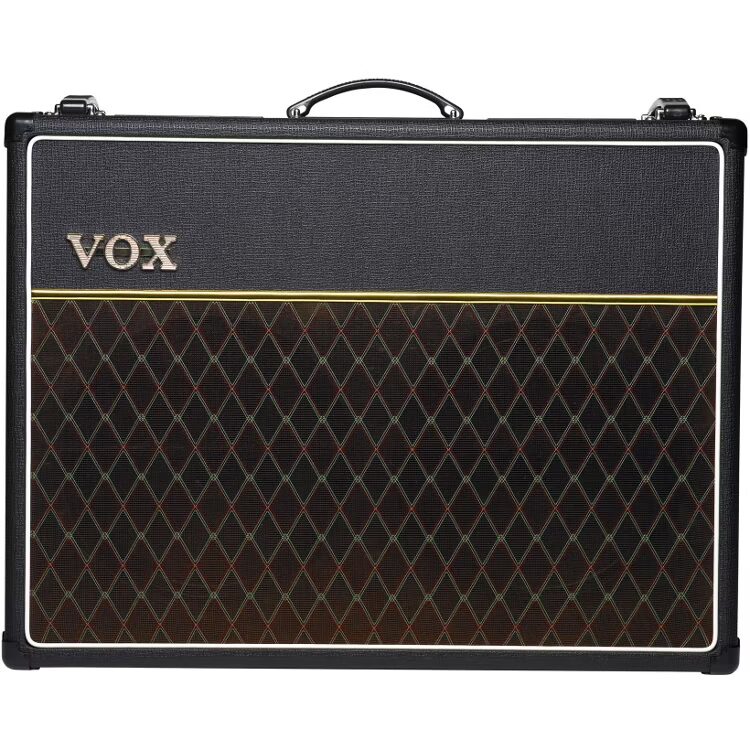

classic tube combo guitar amp

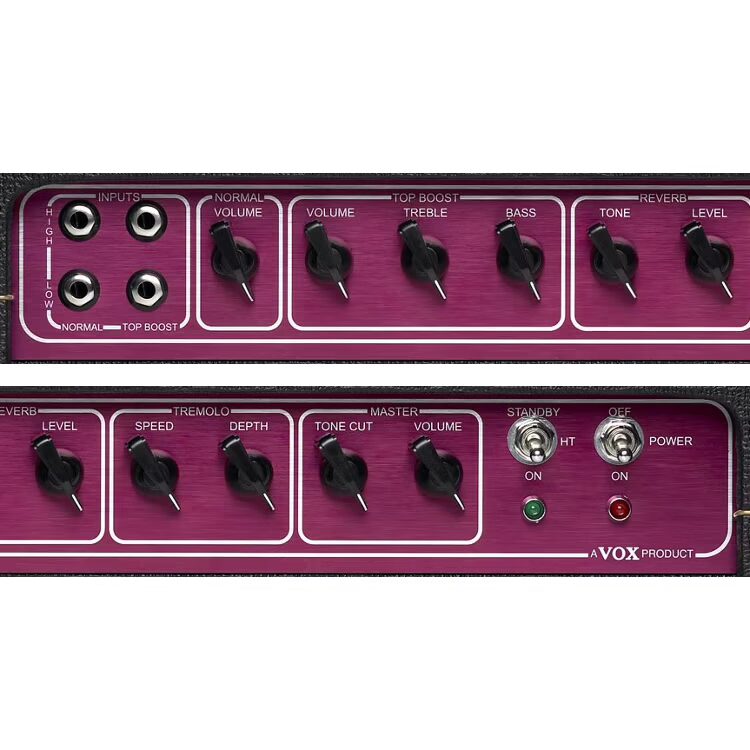

channels: Normal and Top Boost
effects: reverb and tremolo
reverb controls: tone and level
tremolo controls: speed and depth
effects can be turned on and off with the optional VFS2A foot switch
power: 30 W RMS at 16 ohms
speakers: 2x 12-inch 8-ohm Celestion Alnico Blue Bulldog
tubes: 3x 12AX7 (preamp) 4x EL84 (power amp)
instrument inputs: 4x 1/4-inch (6.35mm) mono jack (high and low input per channel)
foot switch input: 1/4-inch (6.35mm) stereo jack
external speaker output: 1/4-inch (6.35mm) mono jack, 16 ohms (switches internal speaker off)
speaker expansion output: 1/4-inch (6.35mm) mono jack (8/16 ohm switchable)
effect loop: 2x 1/4-inch (6.35mm) mono jack (send and return)
true-bypass switch removes effect loop from the signal
dimensions: 702 x 265 x 556 mm (WxDxH)
weight: 33.4 kg
included: power cable and user manual
optional: VOX VFS2A double foot switch
