Description
Specifications
Product features
Number of microphones 1 microphone
Battery type AA, SB 900 lithium-ion
Battery life (approx.)9 hours
Frequency suitable for Belgium yes, licence required
Frequency suitable for Netherlands yes, licence required
Frequency suitable for UK yes, with UK wireless microphone licence
World wide frequency use no
Frequency band Shure K51 (606 – 670 MHz)
Channel3 8 (606 – 614 MHz), 39 (614 – 622 MHz), 40 (622 – 630 MHz), 41 (630 – 638 MHz), 42 (638 – 646 MHz), 43 (646 – 654 MHz), 44 (654 – 662 MHz), 45 (662 – 670 MHz)
Maximum SPL 150 dB – 159 dB
Maximum frequency 20 – 20.9 kHz
Minimum frequency 50 – 59 Hz
Polar pattern cardioid, super cardioid
Switchable frequencies yes
Analogue audio output type unbalanced line out (TS jack), balanced line out (XLR), balanced microphone out (XLR)
Type of frequency band 600 – 699 MHz
Transmission power 10 mW
Power adapter ungrounded flat Europlug
Weight and dimensions including packaging
Weight (incl. packaging)4.1 kg
Dimensions (incl. packaging)50.0 x 44.0 x 11.0 cm
Product specifications

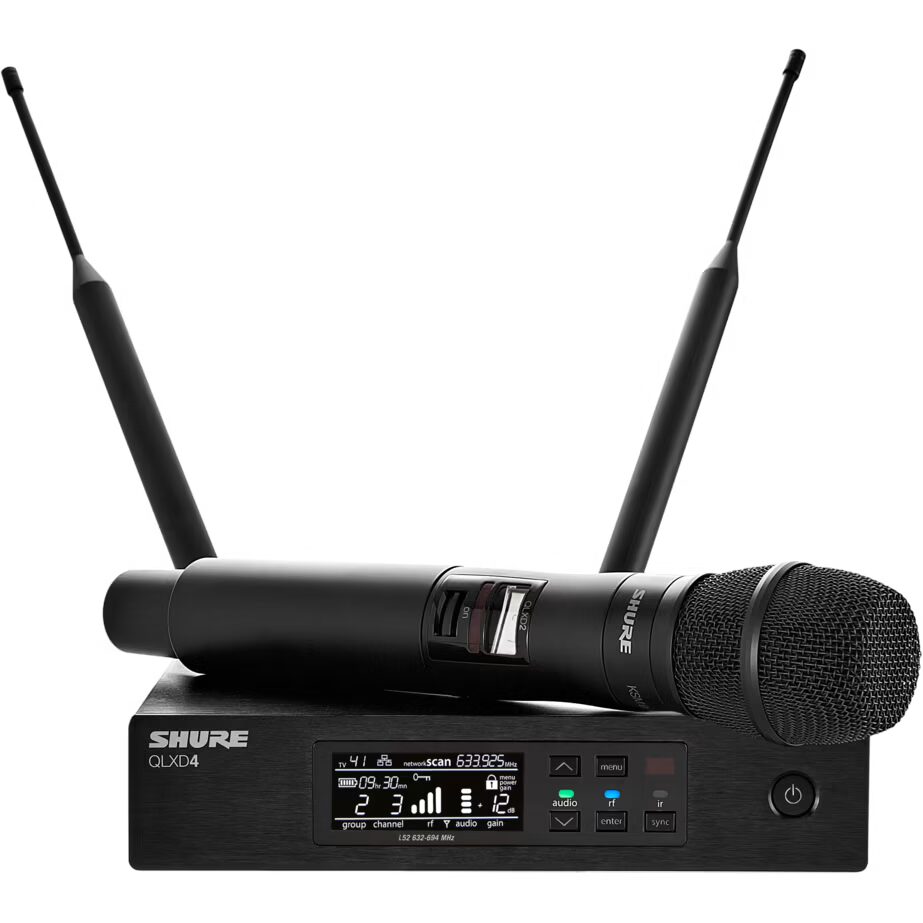

wireless handheld microphone system
frequency band: K51 (606-630 MHz)
consists of:
handheld microphone (KSM9)
receiver (QLXD4)
digital system
ideal for medium to large-sized events
easy installation and use
22 systems per 8MHz channel
selectable frequencies: up to 2,880
easy synchronisation of transmitter and receiver
over 60 pre-set channels per frequency band (region-dependent)
Automatic Channel Scan, Network Scan and infrared synchronisation
AES-256 encryption
tuning bandwidth: 64 MHz
predictive digital diversity switch
frequency range: 20 Hz – 20 kHz (microphone dependent)
Ethernet communication for multiple receivers
compatible with Shure Wireless Workbench 6 software (PC/Mac)
monitoring and controls with mobile iOS devices via Shure Plus Channels app
includes:
power adapter
manual
rack mount kit
2x BNC bulkhead adapter
2x BNC cable
2x AA battery

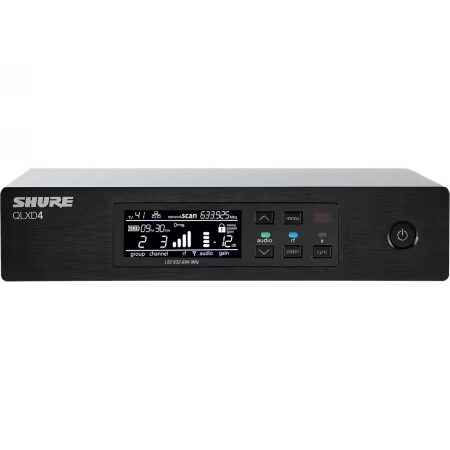

QLXD4 receiver
backlit LCD display
LED meters for audio and RF signals with peak indication
detachable antenna

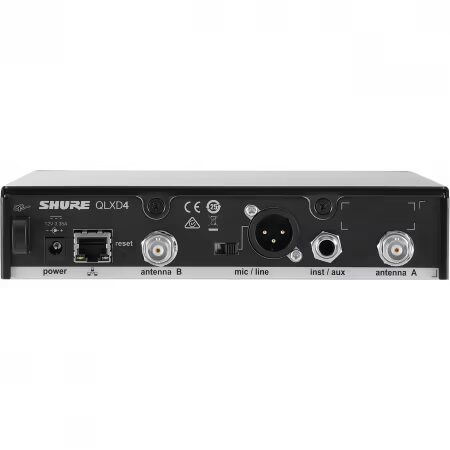

outputs: XLR and 1/4” (6.3mm) jack
robust housing, brushed aluminium
19-inch rack-mountable (half-rack size)
2 antenna connectors (antennas included)
Ethernet connector
power supply: PS23E (included)

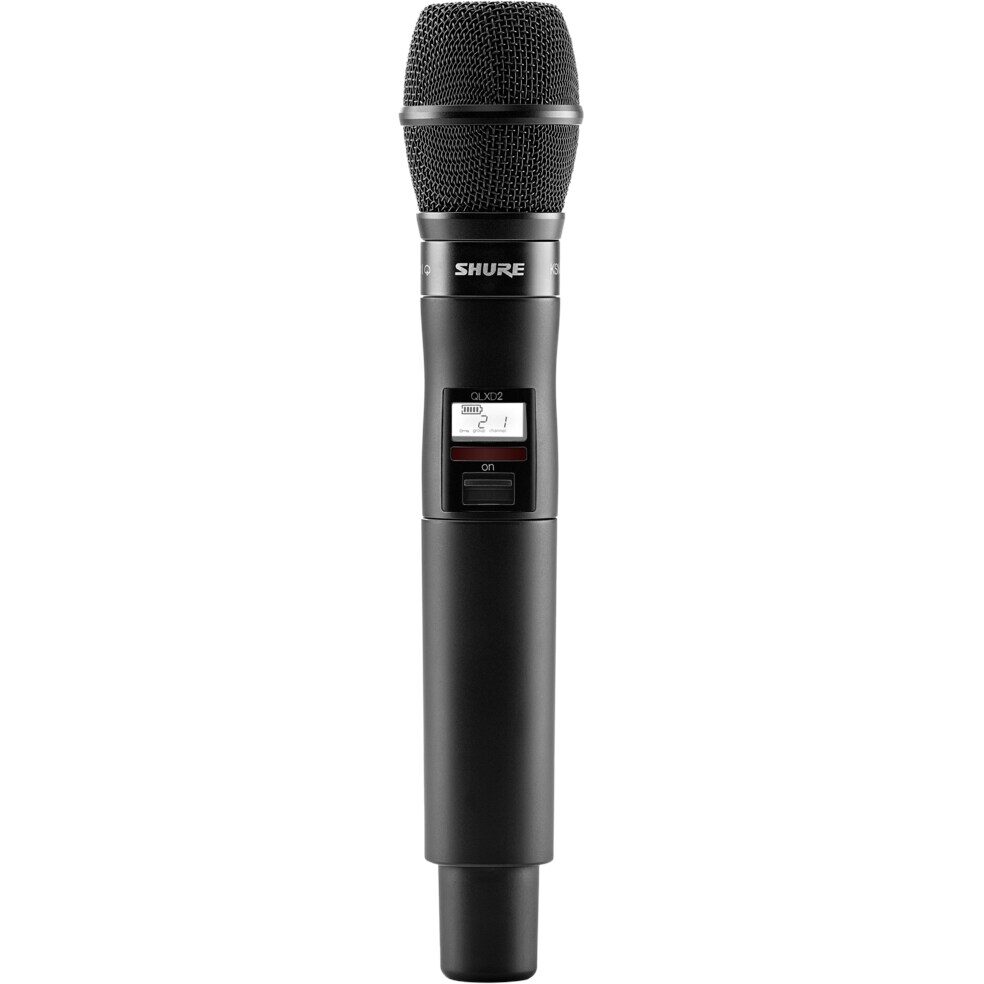

KSM 9
pickup pattern: cardioid & super-cardioid
capsule: condenser
24-bit audio quality
frequency range: 50 Hz – 20 kHz
easy to link via infrared
rugged metal housing
backlit LCD display for easy navigation
