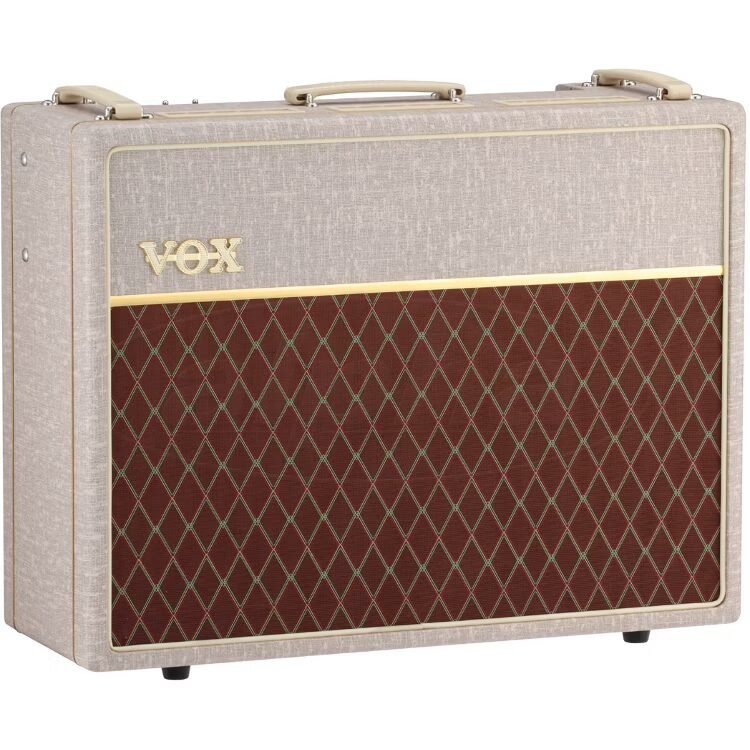

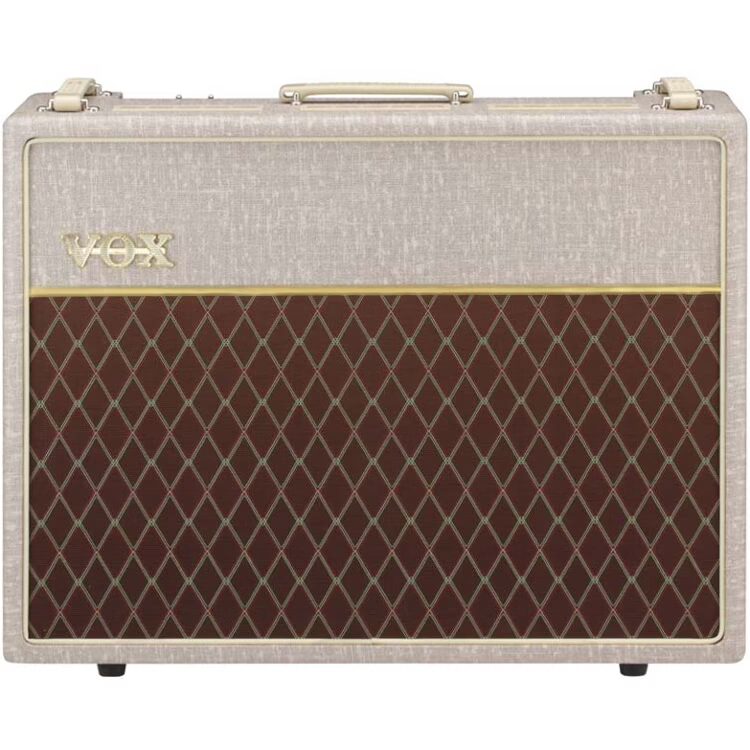

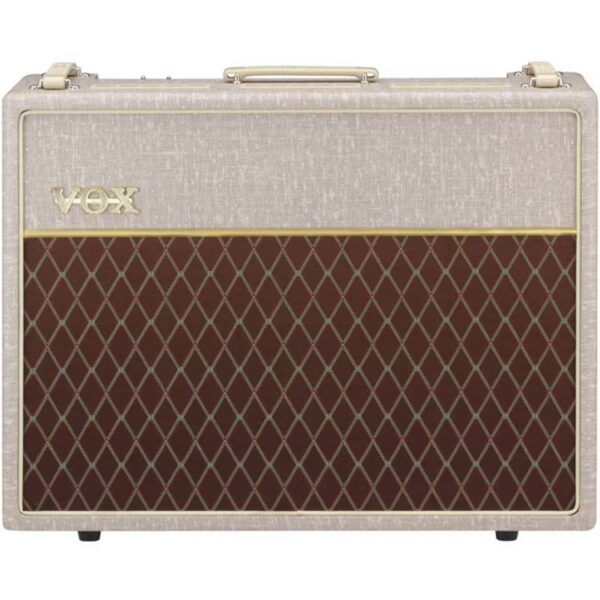

VOX AC30HW2 hand-wired 30W 2×12-inch tube guitar amplifier

Name: VOX AC30HW2 hand-wired 30W 2x12-inch tube guitar amplifier
SKU: 7024
Price: 1190 EUR
Availability: InStock

Original price was: €1,550.Current price is: €1,190.

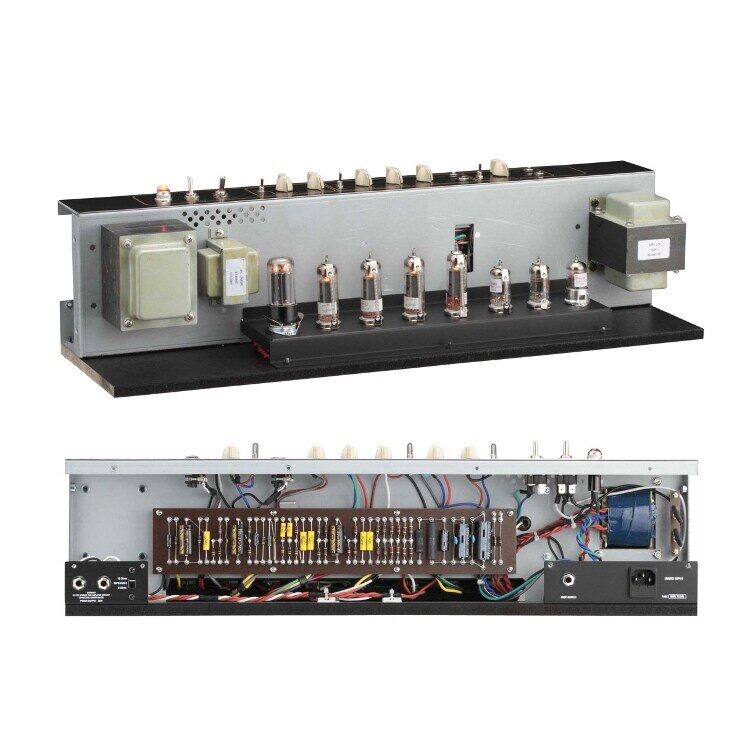

The AC30HW2 is comparable to the VOX AC15HW1, except when it comes to speakers and power. It is equipped with two Celestion G12M Greenback speakers, and with 30 Watts of power it’s a great choice for stage use. This full-tube guitar amp is made of superior hand-wired components so you can enjoy a pure guitar sound with excellent transparency and dynamics. The Greenback speakers are known for their punchy mids and mild trebles, which is ideal for chords and solos alike.

Two-channel design: Top Boost and Normal
When you plug into the Normal channel, you’ll get a pure sound that you can adjust with a single volume control and an extra Bright option. The Top Boost channel on the other hand, offers you more adjustment options in the form of volume, bass and treble controls. If you’d like an extra gain boost, then you can switch from COOL to HOT. This option can also be controlled with the included VFS1 foot switch. Both channels are equipped with high and low inputs for respectively more or less gain.

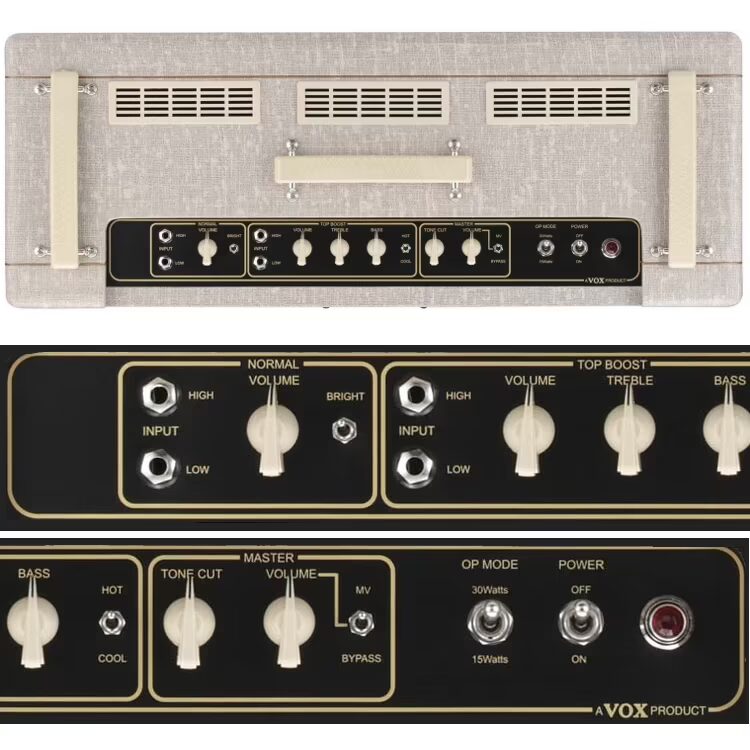

Master section for expansive setting options
A new feature on the AC30HW2, and one that is quite unique for a hand-wired amp, is the master volume. What that means for you is that you don’t have to put the amp on full blast to get the overdrive effect. If you’d rather operate the amp like the classic VOX AC amplifier, then you can circumvent the master volume with the MV Bypass switch. The OP mode switch decreases the power from 30 to 15 Watts so the tubes create distortion sooner.

Categories: Combo Amp, Guitar Amplifier, Guitars Tag: VOX

Description

Description

Specifications

Product features
Connectors External speaker(s), Footswitch
Number of channels 2
Number of speakers 2
Amp modelling no
Effects loop no
Weight 30 – 34.9 kg
Built-in tuner no
Built-in effects none
Colour beige
Speaker diameter 12 inches
Power attenuator yes
Type of power amp tube EL84
Amplifier type tube
Power in Watts21 – 30 Watts
Can be powered by battery no
Weight and dimensions including packaging
Weight (incl. packaging)38.0 kg
Dimensions (incl. packaging)83.0 x 68.5 x 39.5 cm
Product specifications
hand-wired guitar tube amp combo
power: 30 W RMS at 8 and 16 Ohms

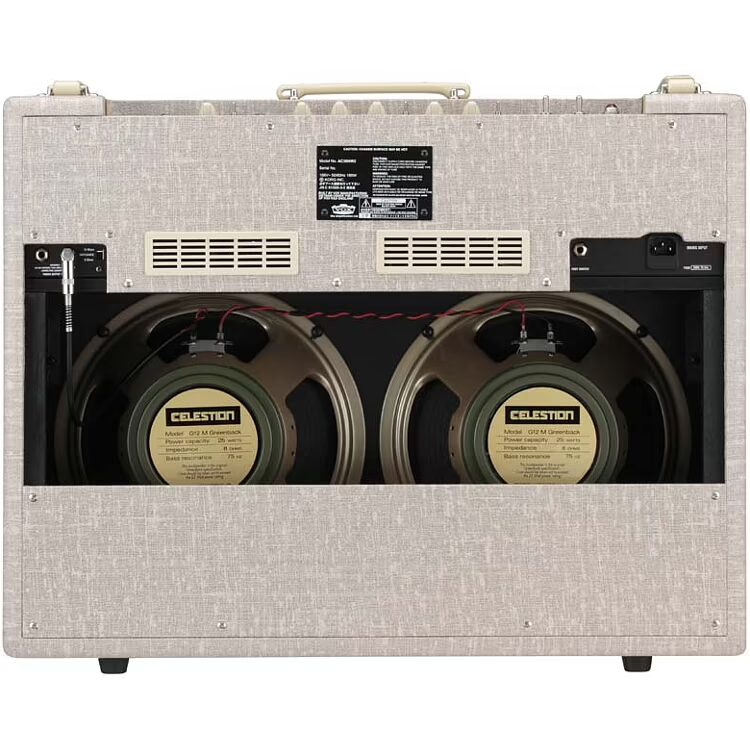

speaker: 2x 12-inch Celestion G12M Greenback, 8 Ohms
channels: Normal and Top Boost
Normal channel controls: volume, bright switch
Top Boost controls: volume, treble, bass, hot/cool switch
master section controls: tone cut, volume, master volume/bypass switch
MV Bypass switch takes the master volume out of the circuit
30/15W power switch (OP mode)
Normal inputs: 2x 1/4-inch (6.35mm) mono jack (high and low)
Top Boost inputs: 2x 1/4-inch (6.35mm) mono jack (high and low)
foot switch input: 1/4-inch (6.35mm) mono jack
external speaker output: 1/4-inch (6.35mm) mono jack, 16 ohms (switches internal speaker off)
speaker expansion output: 1/4-inch (6.35mm) mono jack (8/16 ohm switchable)
tubes: 3x 12AX7 (preamp), 4x EL84 (power amp), 1x GZ34 (rectifier)
construction: high-quality birch multiplex with solid reinforcement bars
dimensions: 705 x 260 x 550 (WxDxH)
weight: 30.8 kg
included: power cable, user manual, VFS1 foot switch, protective cover
