Description
Specifications
Product features
Includes pickup no
Colour black
Line output no
Phono output yes
Pitch range +/-8%, +/-16%
Speed 33 / 45 / 78
Type of turntable direct drive
USB port no

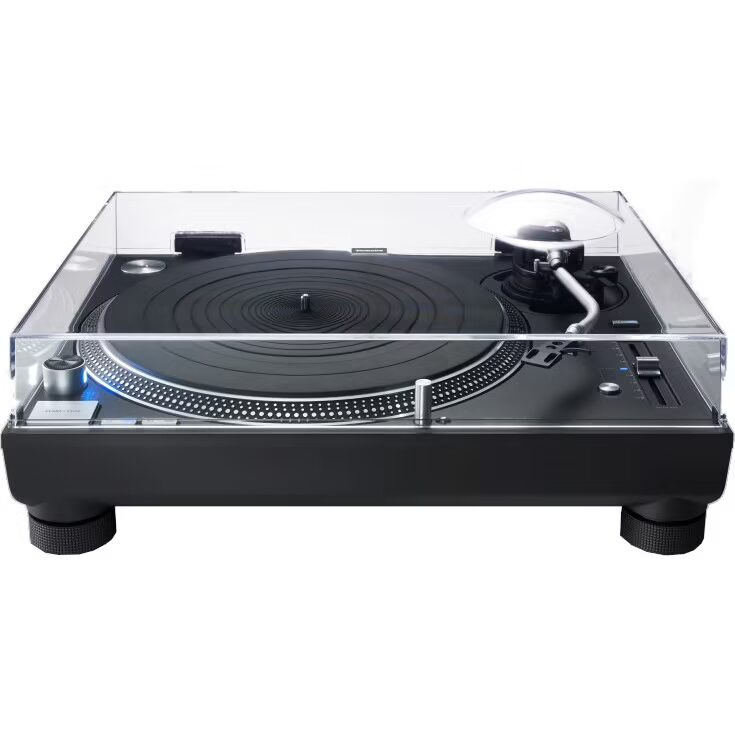

With dust cover yes
Power adapter ungrounded flat Europlug
Weight and dimensions including packaging
Weight (incl. packaging)14.0 kg
Dimensions (incl. packaging)50.0 x 45.0 x 30.0 cm
Product specifications

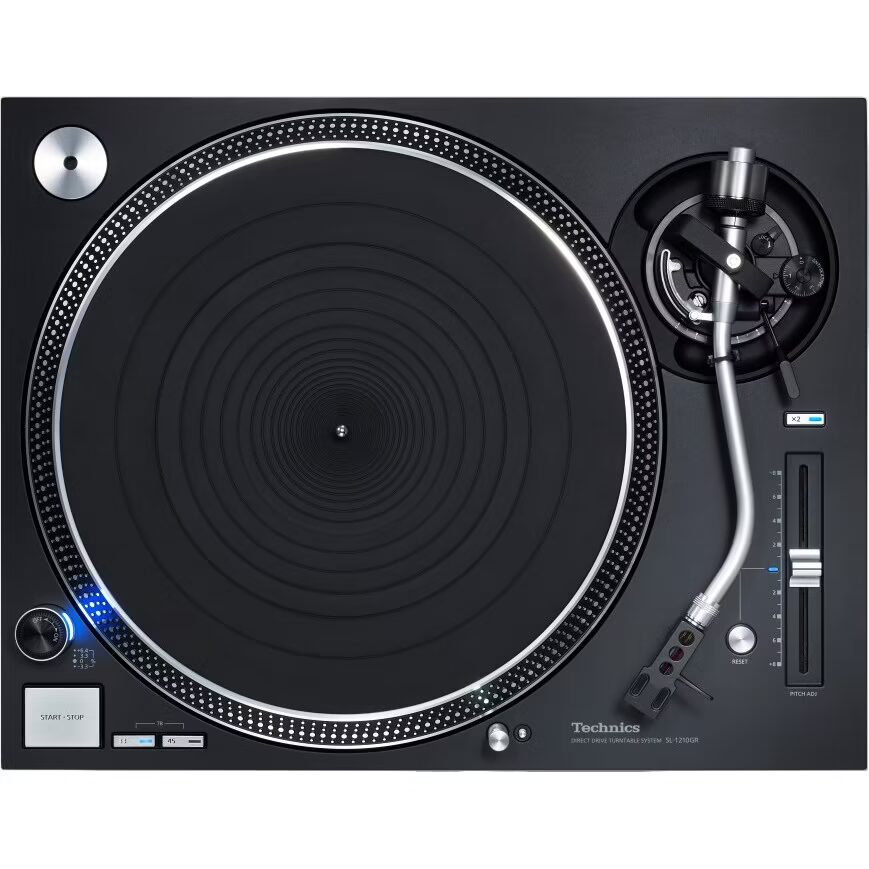

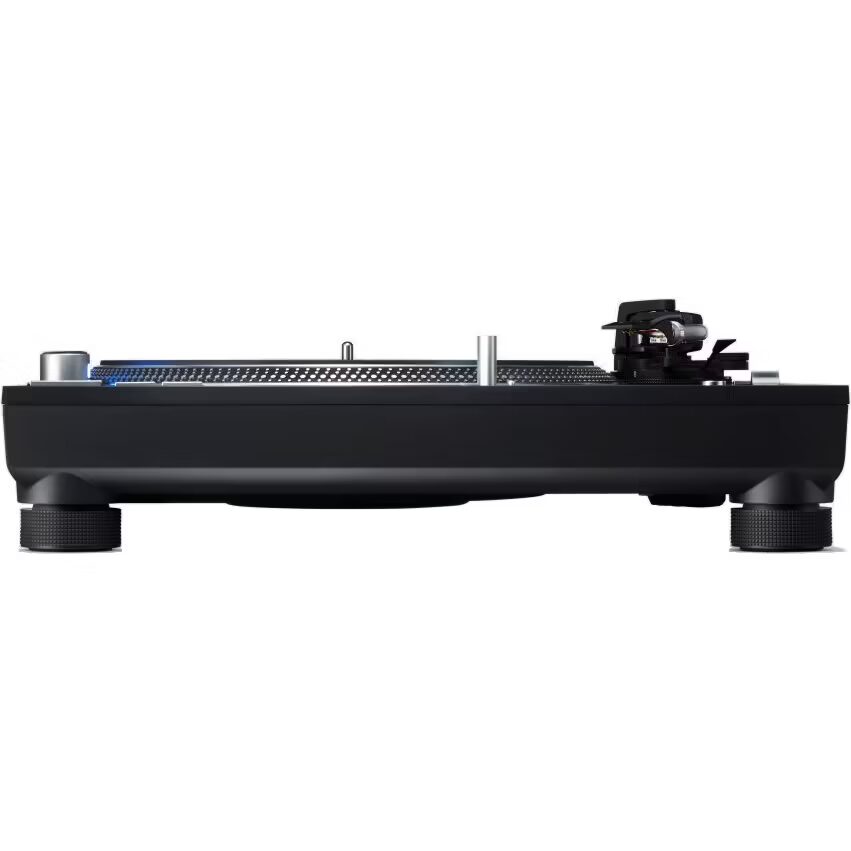

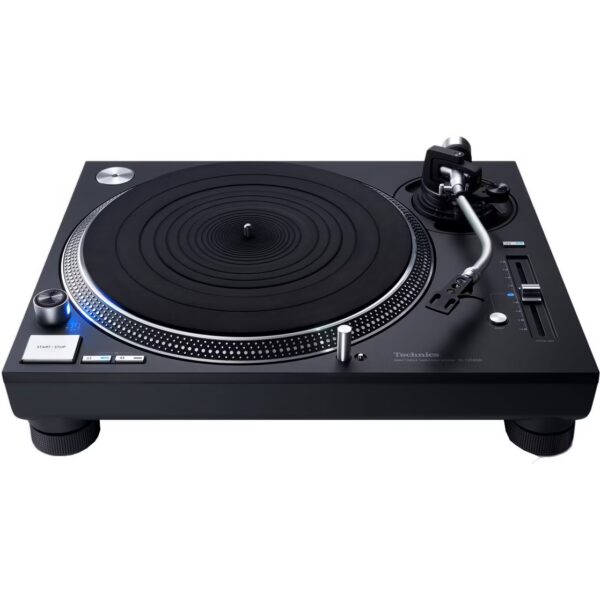

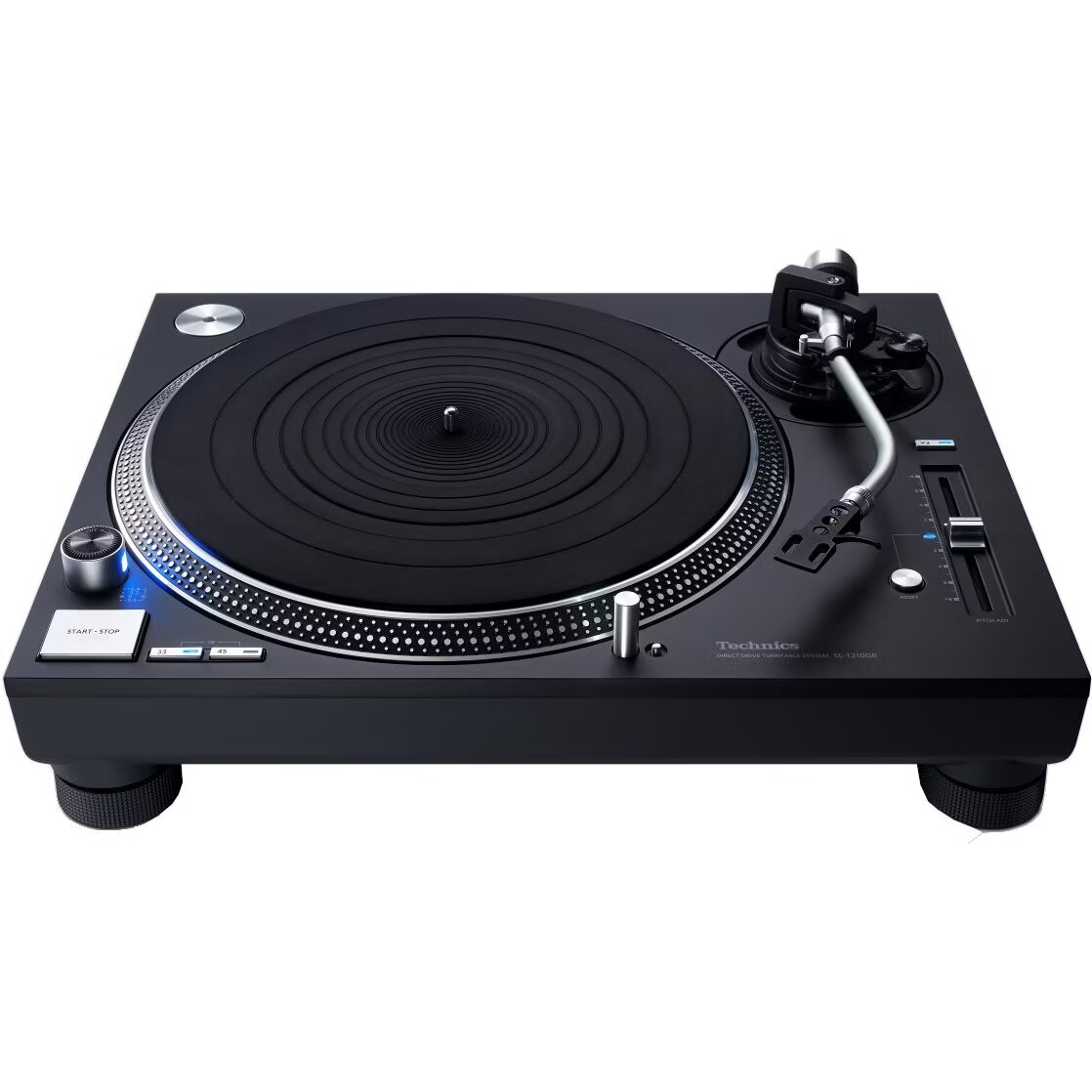

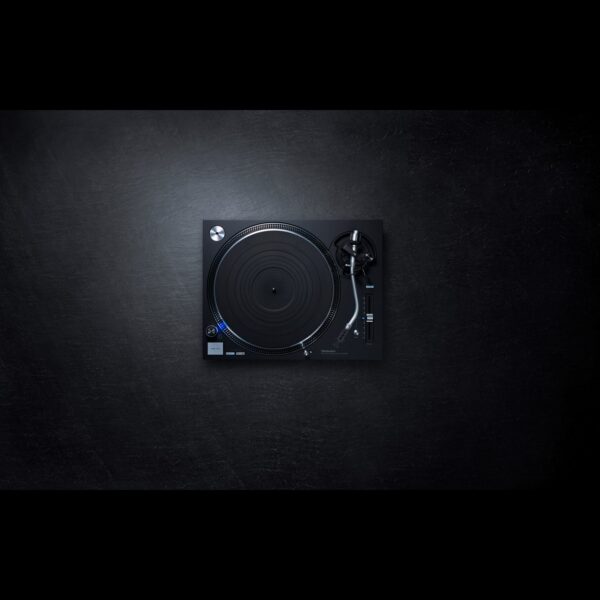

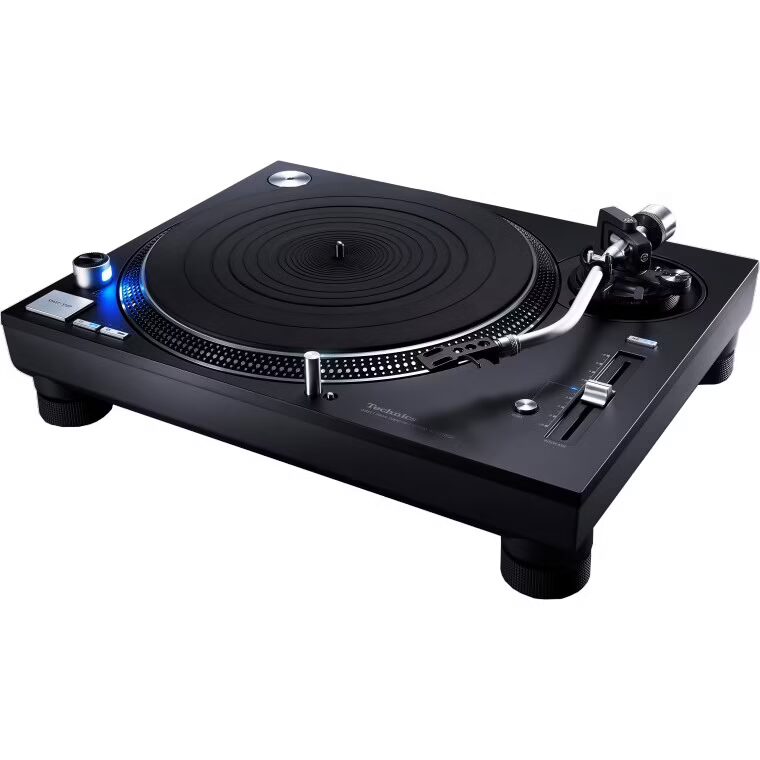

Technics SL-1210 GR turntable
coreless direct-drive motor
S/N ratio virtually zero
extremely accurate motor controller
high-dampening platter
rugged construction borrowed from previous models
manual operation
platter: die-cast aluminium with dampening rubber
diameter: 332 mm
weight: 2.5 g
speeds: 33â…“, 45 78 rpm
pitch range: +/- 8%, +/- 16%
start power: 2.2 kg/cm
start time: 0.7 seconds (at 33â…“ RPM)
wow & flutter: 0.025% WRMS
rumble: 78 dB

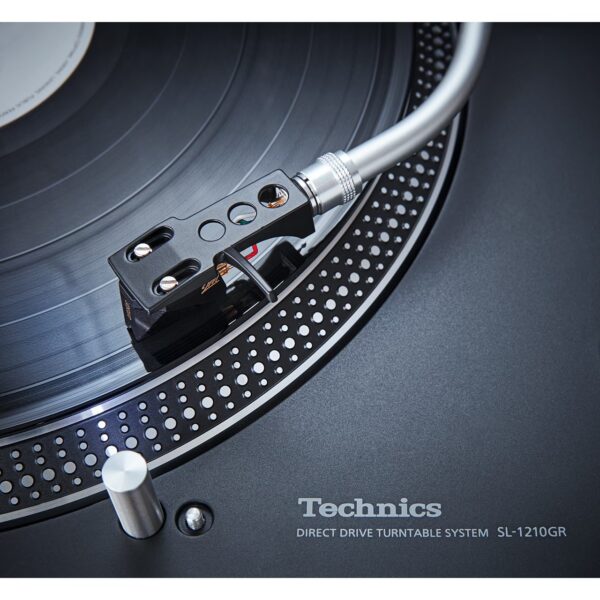

tone arm: static balanced, S shape
length: 230 mm
over hang: 15 mm
tracking deviation: 2° (outer groove), 0° (inner groove)
offset angle: 22°
tone arm height: 0 – 6 mm
tracking force adjustment range: 0 – 4 g
head shell weight: 7.6 g
cartridge weight
without extra weight: 5.6 – 12 g (incl. head shell: 14.3 – 20.7 g)
with extra weight: 10 – 16.4 g (incl. head shell: 18.7 – 25.1 g)
cartridge mounting size: JIS 12.7 mm (head shell: 1.2 mm in diameter, 4-pin terminal)

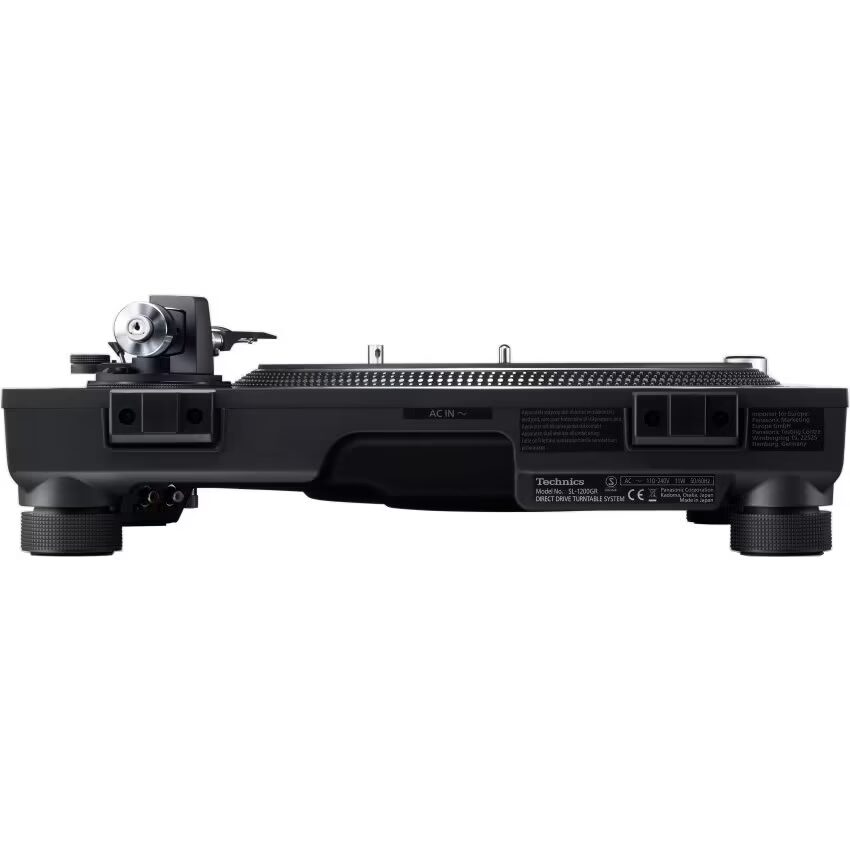

connectors: RCA (phono), earth terminal (both gold-plated)
colour: black
dimensions: 453 x 372 x 173 mm (WxLxH)
weight: 11.2 g
included: 45 RPM adapter, counterweight, dust cover, platter, RCA/GND cable and user manual
