Description
Tips or comments about this product
Since 2021, this product also supports MPE, or MIDI Polyphonic Expression: one of the most essential recent MIDI developments. If you want to upgrade the operating system of this product with this new function, see: https://www.sequential.com/updating-ob-6-os/
Specifications
Product features
19-inch rack size not applicable
Number of keys 49
Arpeggiator/sequencerarpeggiator, sequencer
Computer integration none
Controlsustain (input), expression (input), switch pedal (input), aftertouch
Synthesizer inputs none
Sound sourcean alogue
MIDI & CV/gate MIDI in, MIDI out, MIDI thru, MIDI over USB
Synthesizer outputs line out jack, headphone
Type of keys weighted
Synthesizer type keyboard
Weight and dimensions including packaging
Weight (incl. packaging)12.6 kg
Dimensions (incl. packaging)96.5 x 47.0 x 22.0 cm
Product specifications
analogue synthesizer
polyphony: 6 voices
gorgeous retro look
authentic warm sound

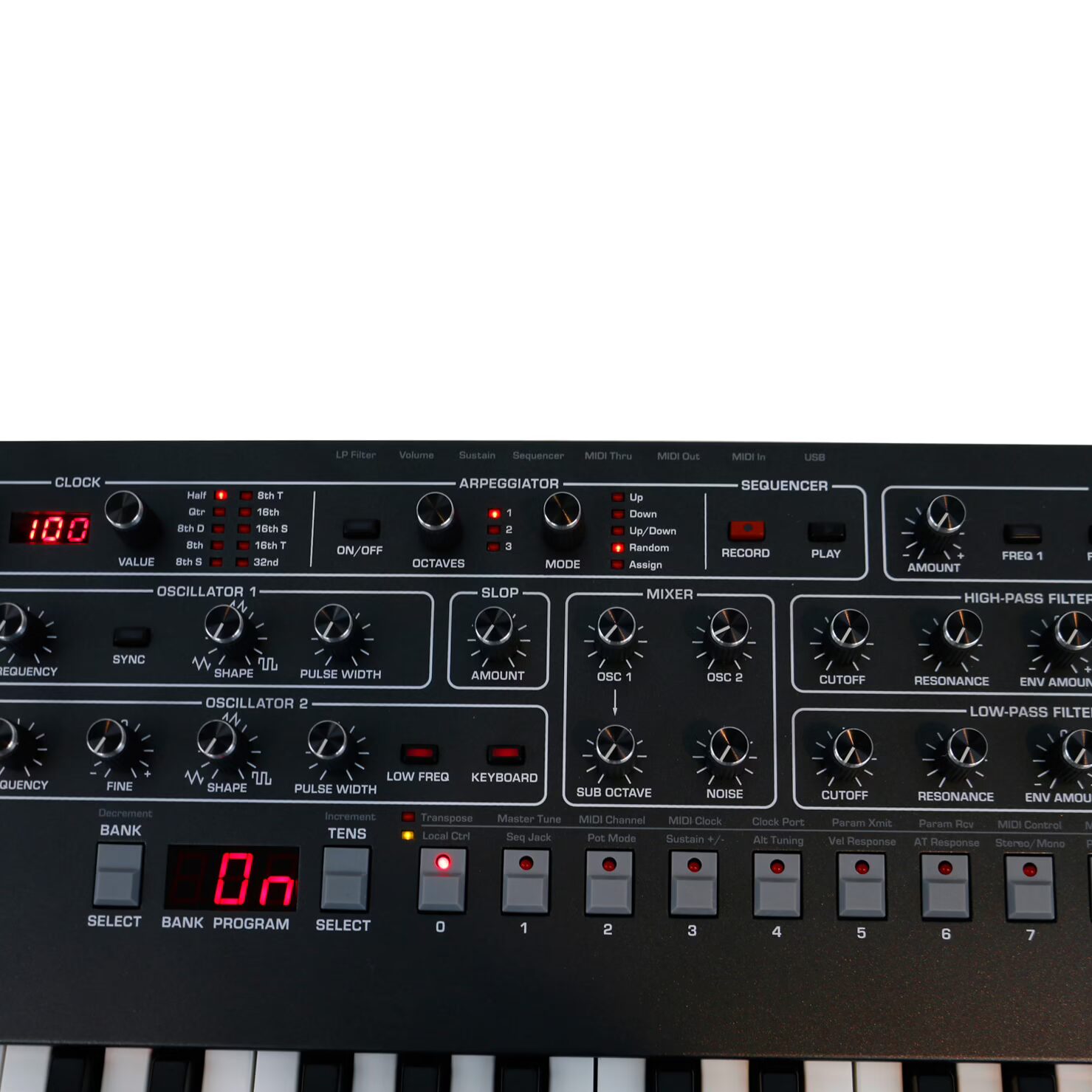

oscillators: 2 per voice + sub octave + white noise
wave shapes: triangle, saw, square, pulse (+ width)
hard sync
Osc slop (conscious frequency drift system)
high-pass filter
low-pass filter, based on the Prophet 5 filter
filter envelope (ADSR)
amp envelope (ADSR)
LFO: triangle, saw, reverse saw, square, random (S&H)
New Graphical Arp provides visual display of Arp patterns.
sequencer (64 step)
analogue distortion
effects: reverb, delay, chorus, phase shifter (24-bit, 48kHz)
analogue stereo distortion
keyboard: 49 semi-weighted velocity-sensitive keys with aftertouch

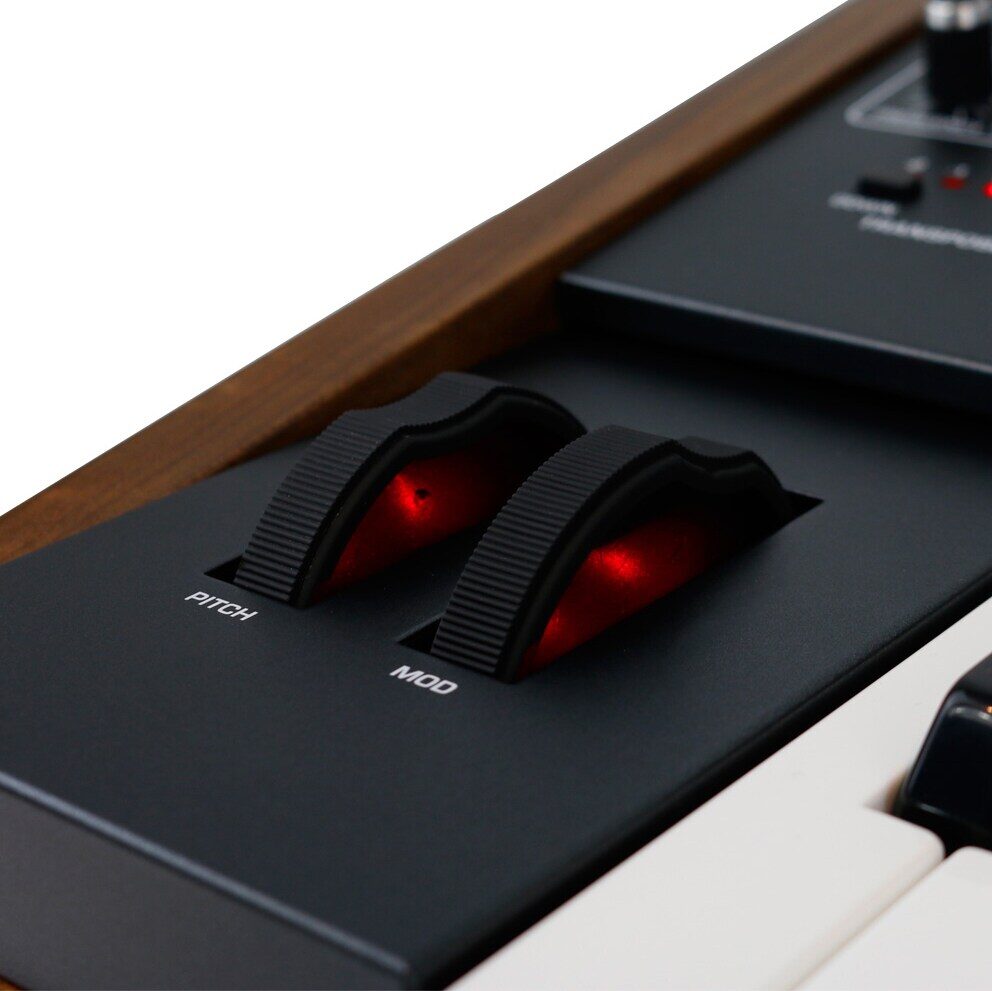

pitch wheel and mod wheel, backlit
transposing buttons (in total 8-octave range)
portamento
unisono mode
preset memory: 500 factory, 500 user
wooden side panels: walnut
dimensions: 813 x 323 x 117mm
weight: 9.5kg
colour: black/natural wood

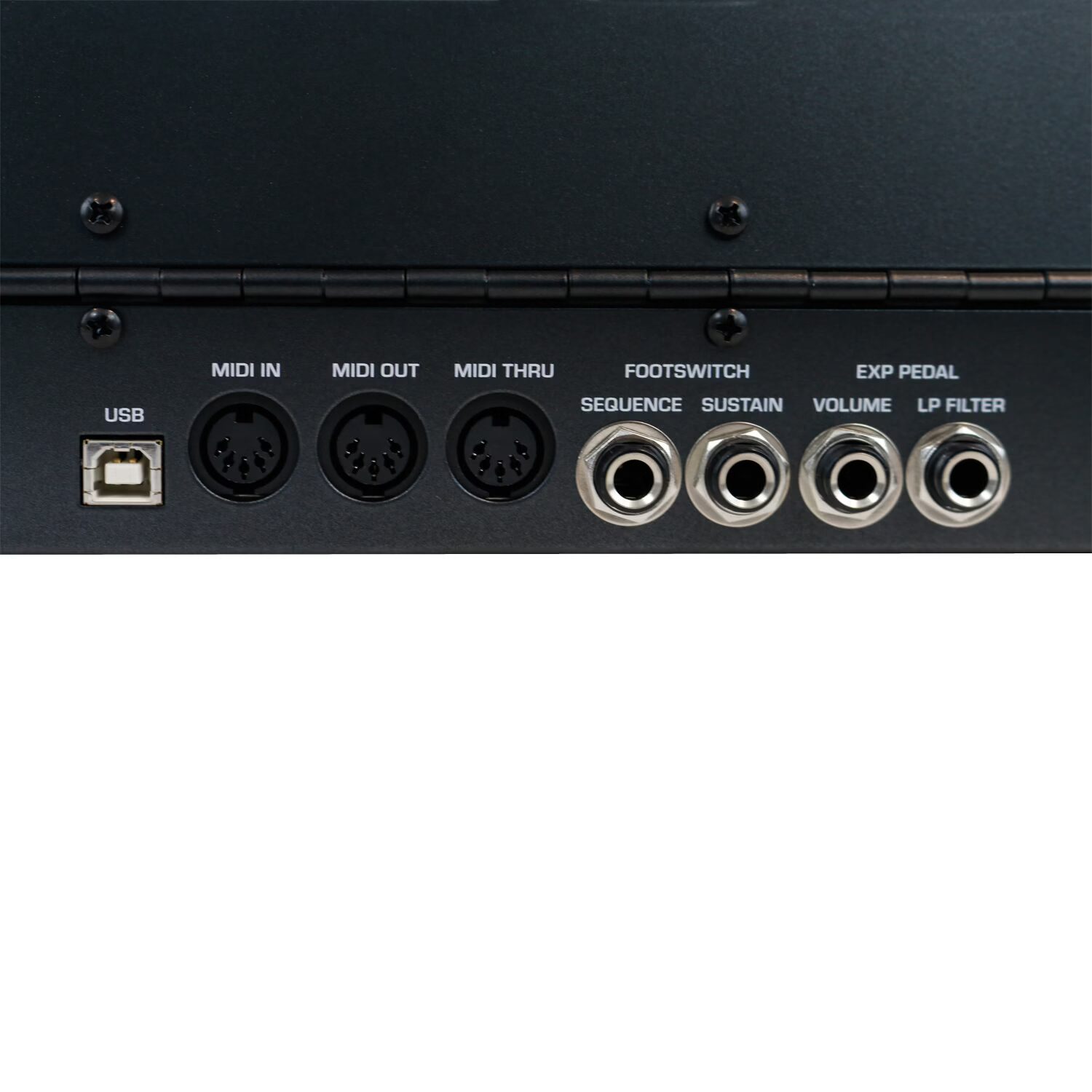

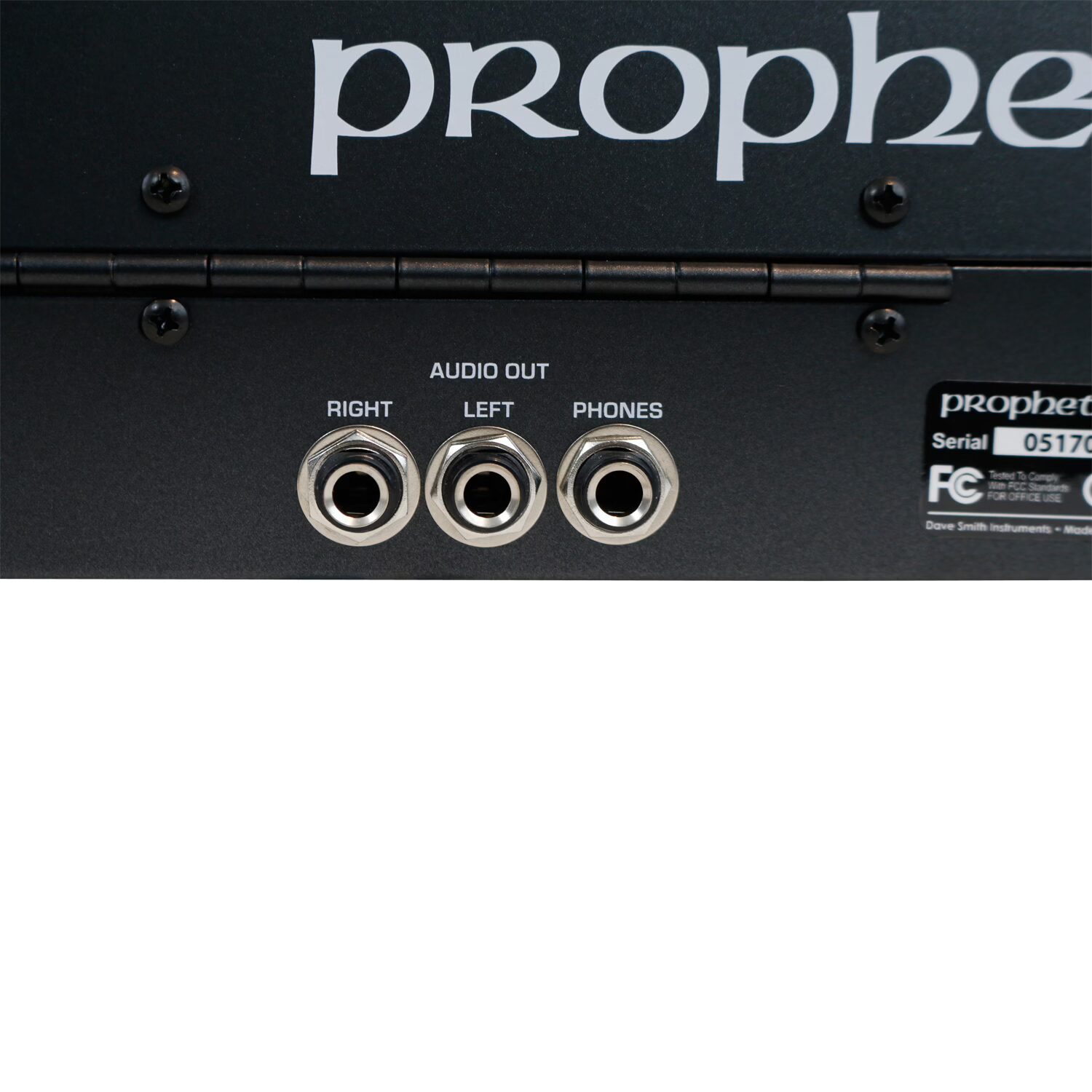

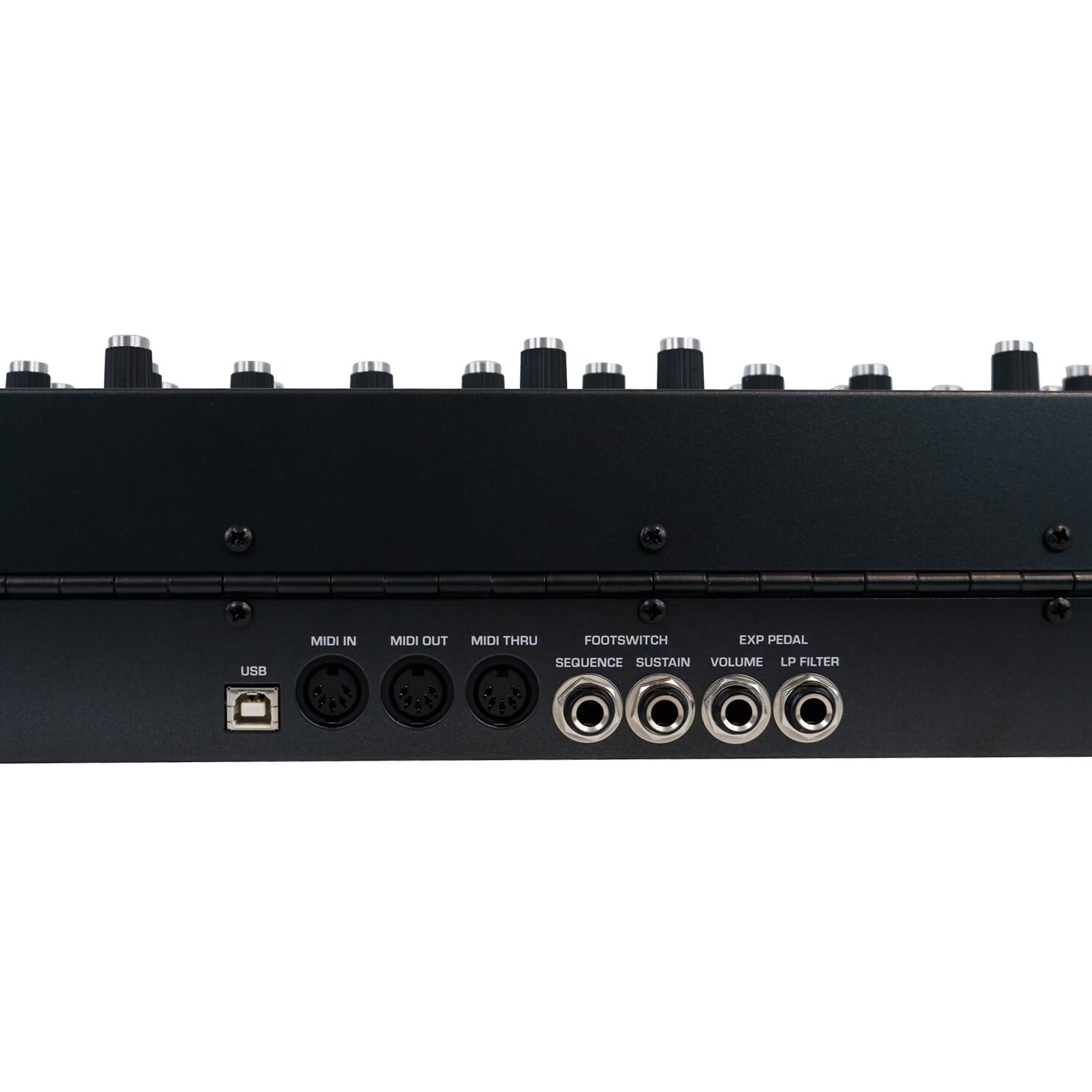

connectors:

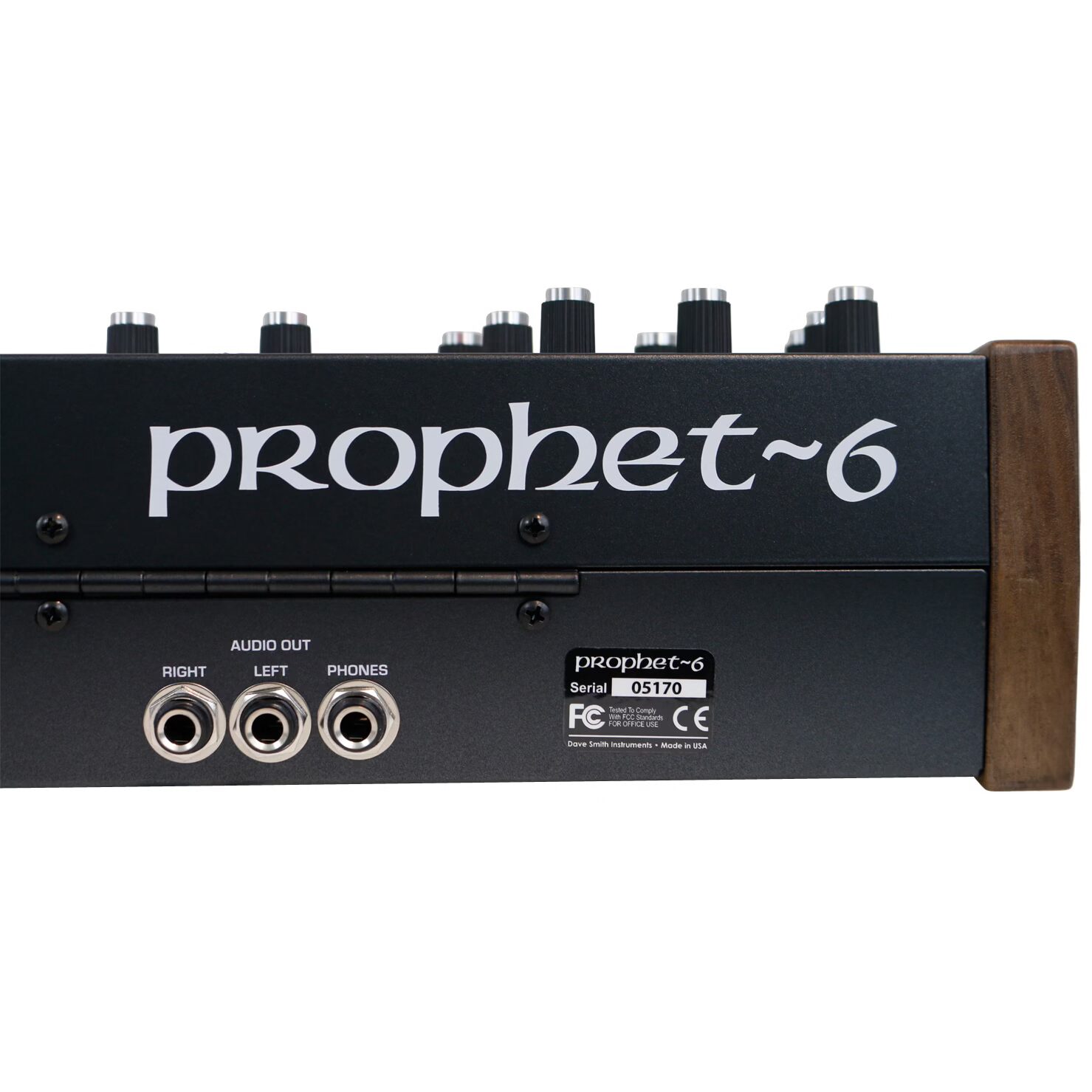

outputs: 2x 6.3mm jack
headphone connector: 6.3mm jack
MIDI in, out, thru
USB MIDI
expression pedal input for low-pass filter
volume pedal input
sustain pedal input
foot switch for sequencer start/stop
