Description
Specifications
Product features
Speaker connections XLR input, out / link / thru
Woofer diameter 18 inches
Weight per speaker 45 kg
Maximum SPL 130 dB – 139 dB
Maximum subwoofer frequency not applicable
Minimum frequency 30 – 34 Hz
RMS power in watts 750 – 1,499 W
Locking speaker connectors no
Power adapter Europlug, Schucko or CEE 7/7 plug
Weight and dimensions including packaging
Weight (incl. packaging)50.0 kg
Product specifications

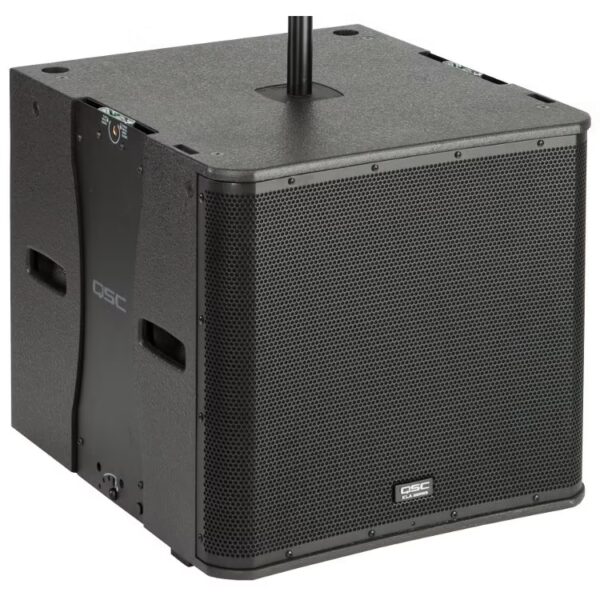

18-inch active line array subwoofer
woofer: 18-inch cone transducer
frequency response (-6 dB): 38 Hz – crossover
frequency range (-10 dB): 33 Hz – crossover
amplifier bass: 1,000 Watts continuous, class D digital
max. SPL: 135 dB
amplifier protection: Guardrailâ„¢ system

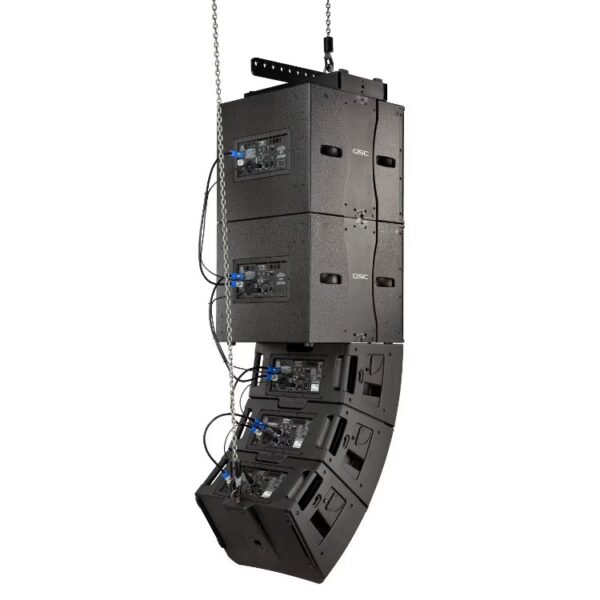

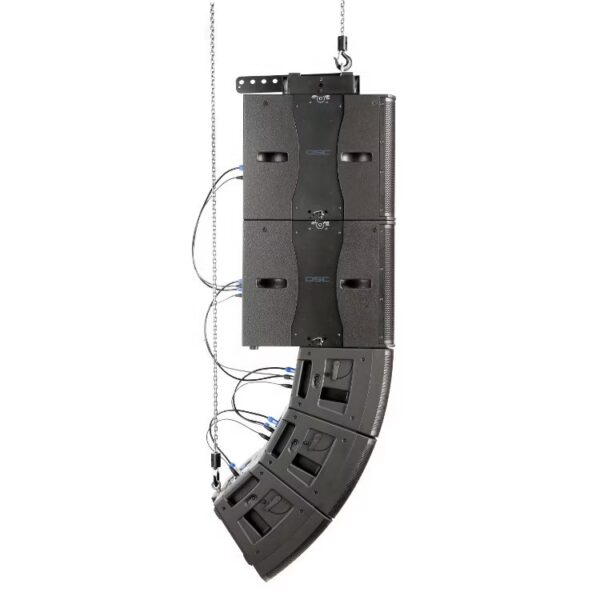

SOLOâ„¢ rigging system for easy rigging
Ar-Qâ„¢ frequency optimisation

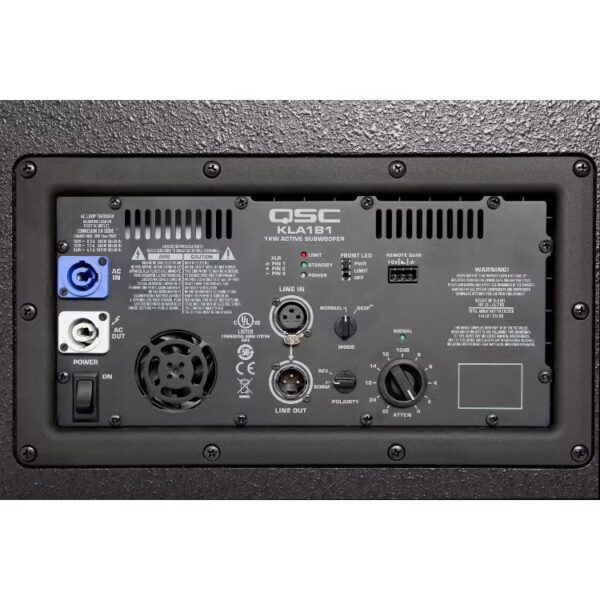

connectors: balanced XLR (can be daisy-chained)
PowerCon connector (can be daisy-chained)
subwoofer setting: standard, Deepâ„¢
phase reverse
durable plywood housing
dimensions: 21.5 x 23.1 x 24.9 inches (547 x 586 x 633 mm)
weight: 99.9 lbs (45 kg)
