Description
Specifications
Product features
Speaker connections XLR input, XLR / TRS combi input
Woofer diameter 18 inches
Weight per speaker 47 kg
Maximum SPL 130 dB – 139 dB
Maximum subwoofer frequency 110 Hz
Minimum frequency 35 – 39 Hz
RMS power in watts 1,500 – 3,000 W
Locking speaker connectors no
Weight and dimensions including packaging
Weight (incl. packaging)56.5 kg
Dimensions (incl. packaging)89.5 x 75.0 x 58.0 cm
Product specifications

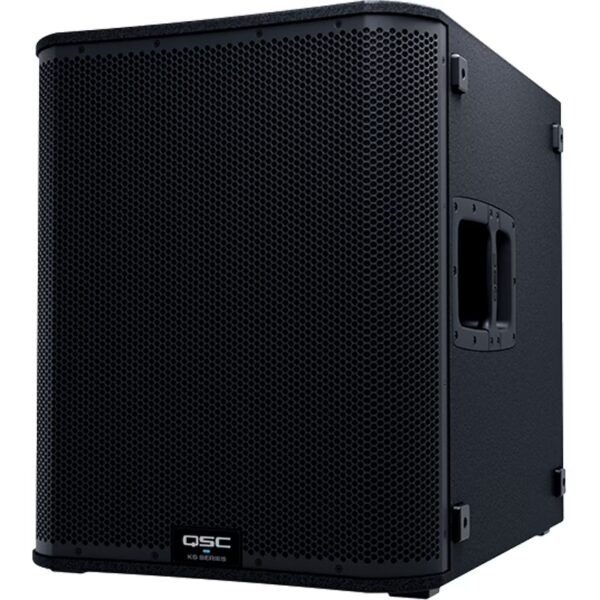

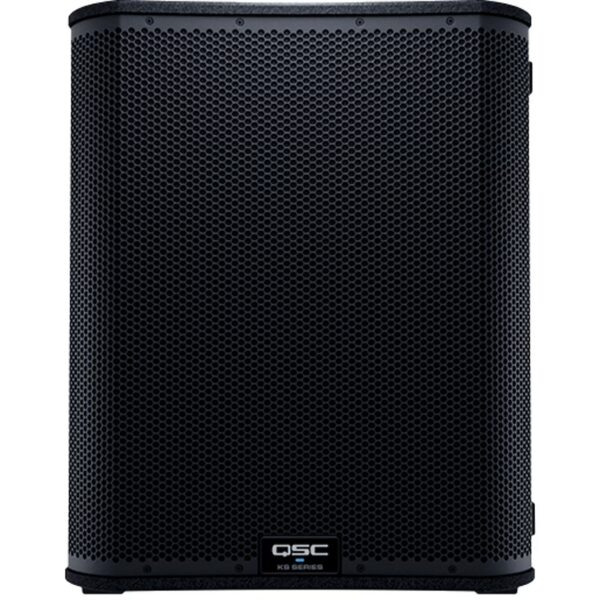

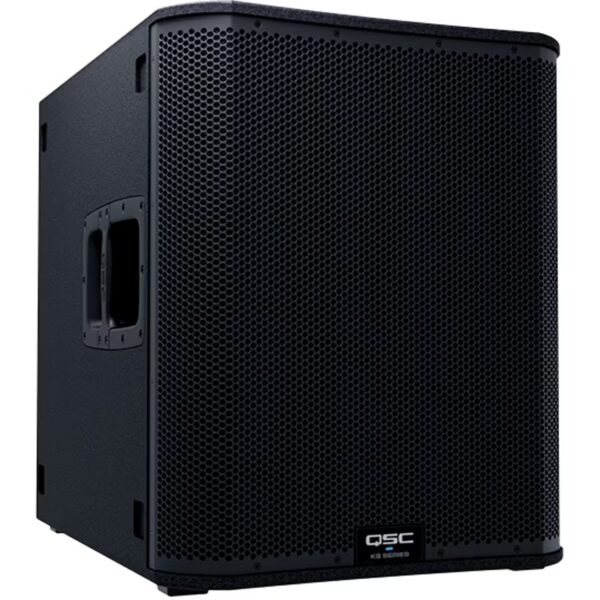

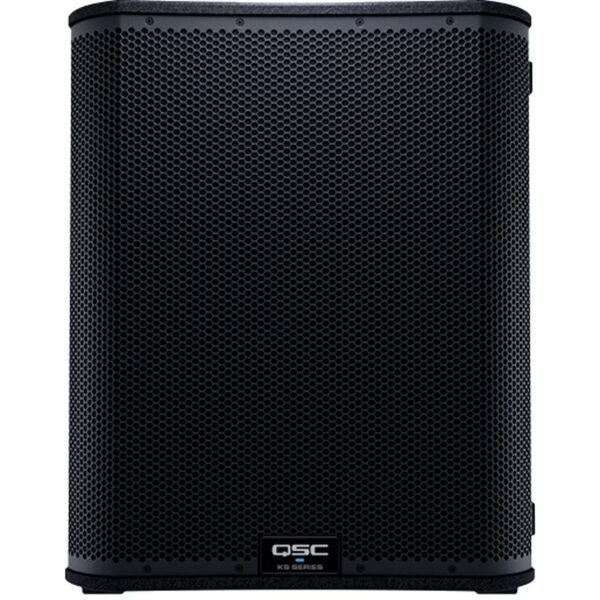

QSC KS118
Active Subwoofer
Configuration: ‘direct radiating’
LF-transducer: 18-inch (460 mm), cone
Frequency range: (-6 dB): 41 – 98 Hz
Frequency range: (-10 dB): 35 – 111 Hz
Nominal angle of coverage: omni-directional or cardioid radiation modes (cardioid requires a minimum of 2 units)
Maximum SPL: 136 dB @ 1 m (peak)
Amplifier: Class D
Peak capacity: 3600W (peak)
Cooling: low noise ventilator with variable speed
Controls: Power On / Off, x2 selection knobs
Indicators: 2 x Power LED (before and after)
Input signal: LED limiter, active LED

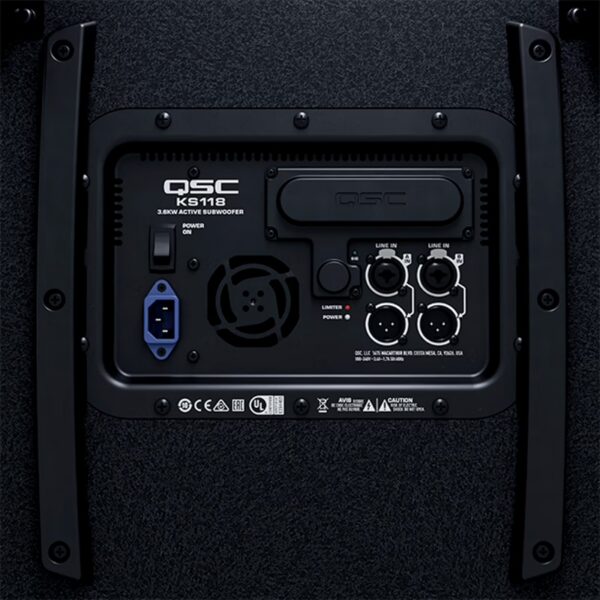

Connectors:
2x lockable XLR / jack combo
2x XLR / M (loop-thru-output)
1x lockable IEC power connector
Alternating current input: universal power 100 – 240 VAC, 50 – 60 Hz
18mm birch plywood
Colour: black (RAL 9011)
Housing: 16-gauge, powder coated steel, black
Dimensions: 640 x 520 x 785 mm (D x W x H incl. wheels)
Weight: 47 kg (incl. wheels)

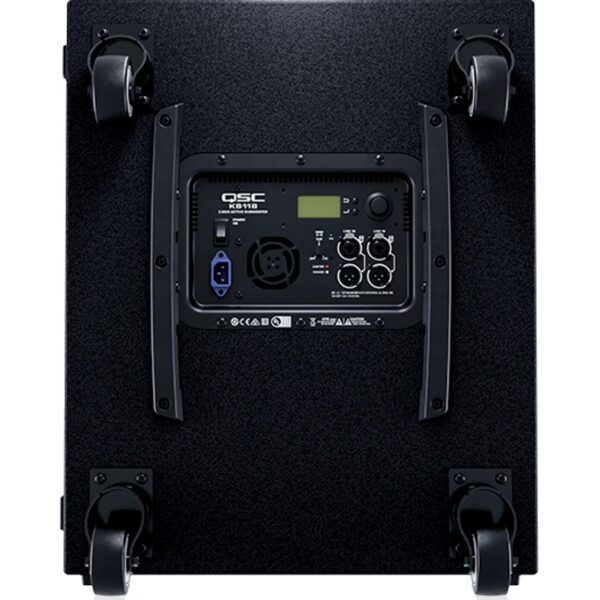

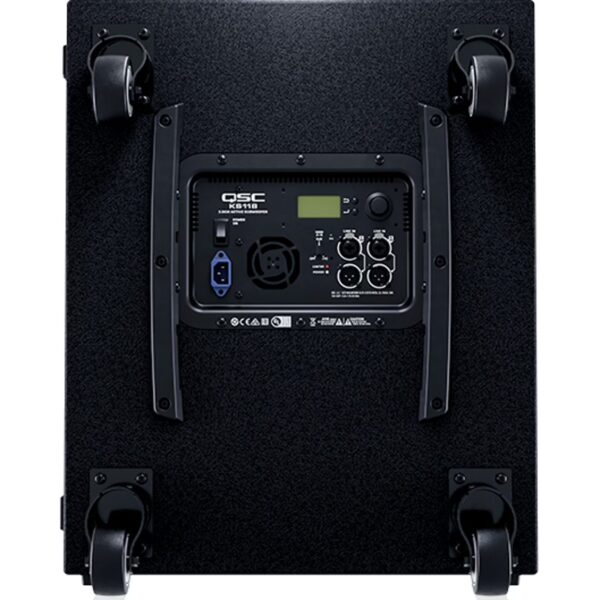

Included accessories: x4 low-noise wheels
