Description
Specifications

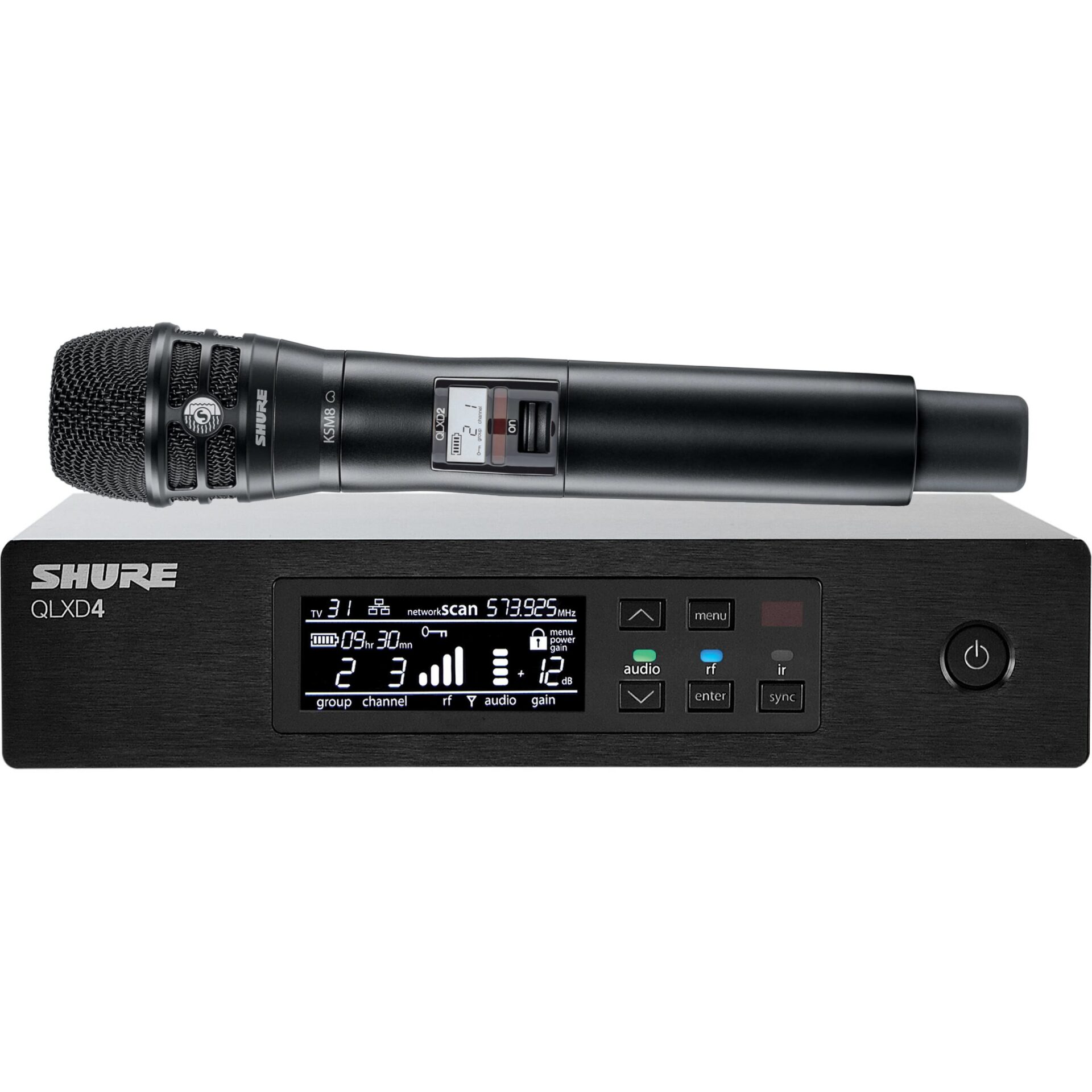

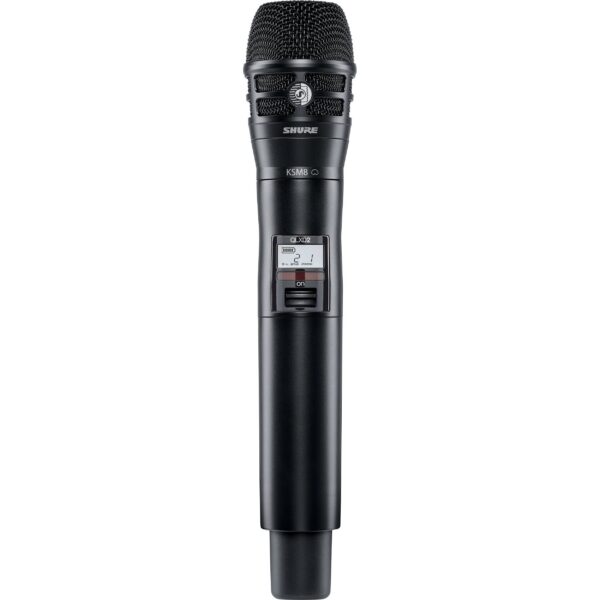

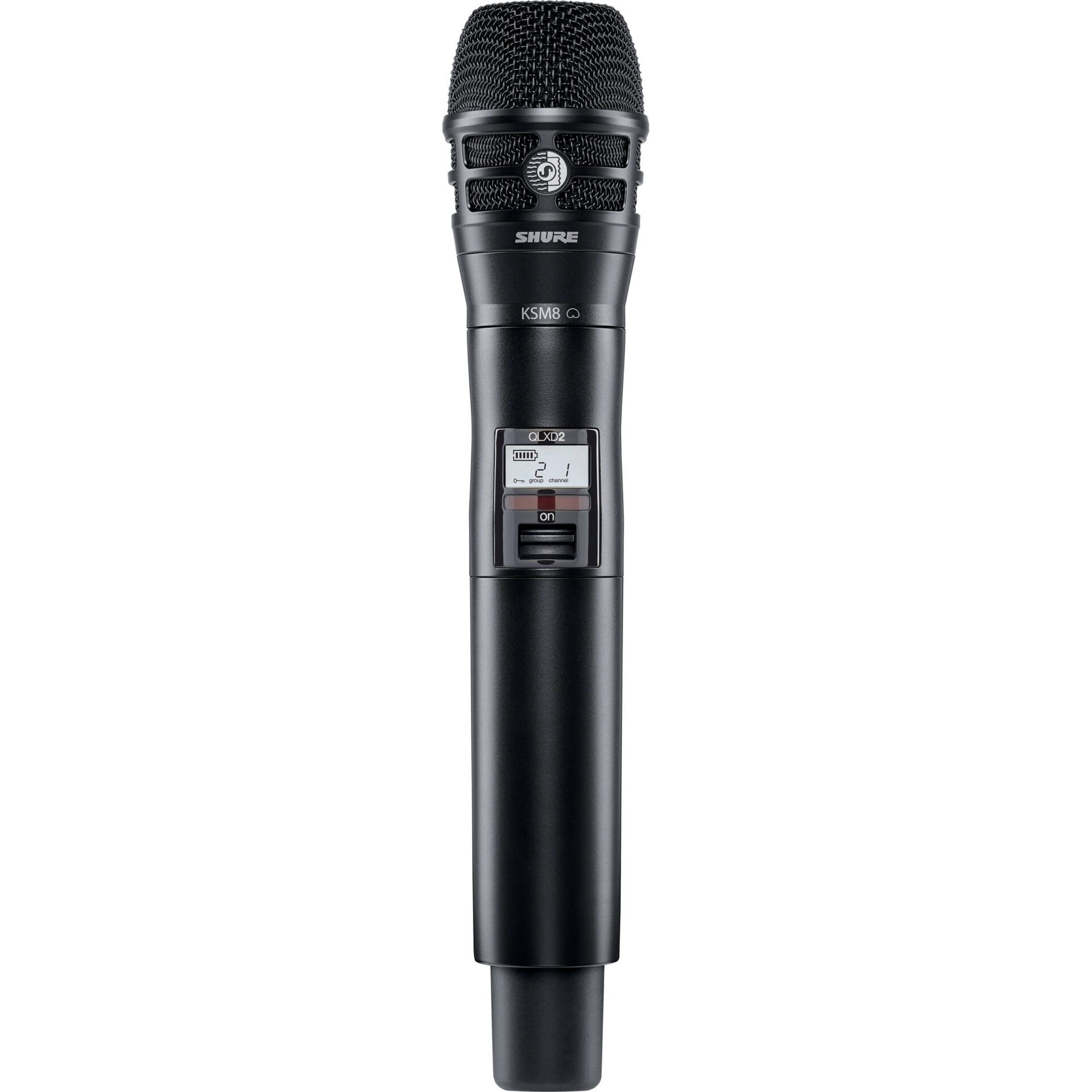

Shure QLXD2K8B QLXD transmitter with dynamic KSM8 capsule (black) 1x Shure QLXD2K8B QLXD transmitter with dynamic KSM8 capsule (black)
Product features
Battery type AA
Battery life (approx.)9 hours
Frequency band Shure K51 (606 – 670 MHz)
Channel 38 (606 – 614 MHz), 39 (614 – 622 MHz), 40 (622 – 630 MHz), 41 (630 – 638 MHz), 42 (638 – 646 MHz), 43 (646 – 654 MHz), 44 (654 – 662 MHz), 45 (662 – 670 MHz)
Maximum SPL not specified
Maximum frequency 16 – 16.9 kHz
Minimum frequency 40 – 49 Hz
Polar pattern cardioid
Type of frequency band 600 – 699 MHz
Transmission power 10 mW
Weight and dimensions including packaging
Weight (incl. packaging)700 gr
Dimensions (incl. packaging)32.0 x 13.0 x 10.0 cm

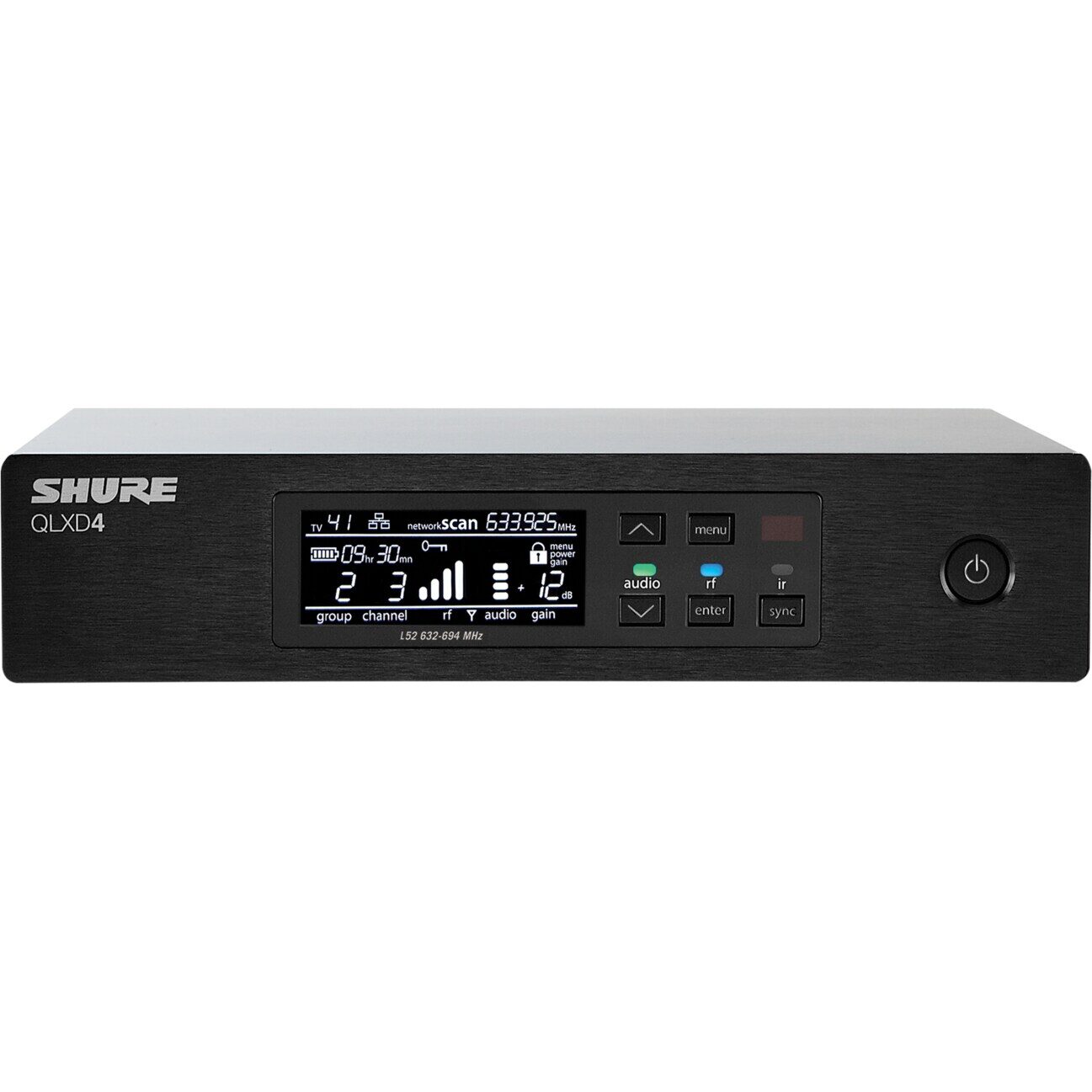

Shure QLXD4 (K51, 606-670 MHz) wireless receiver 1x Shure QLXD4 (K51, 606-670 MHz) wireless receiver
Shure’s QLXD4 digital wireless receiver (K51, 606-670 MHz) is part of the QLX-D series. Connect it to a suitable transmitter, and you can rely on a powerful signal.
Product features
19-inch rack size1U
Automatic frequency search functionyes
Battery life (approx.)not applicable
Energy sourceAC
Frequency bandShure K51 (606 – 670 MHz)
Built-in equaliserno
Channel38 (606 – 614 MHz), 39 (614 – 622 MHz), 40 (622 – 630 MHz), 41 (630 – 638 MHz), 42 (638 – 646 MHz), 43 (646 – 654 MHz), 44 (654 – 662 MHz), 45 (662 – 670 MHz)
Switchable frequenciesyes
Type of frequency band600 – 699 MHz
Output connectorjack (6.3 mm), XLR (3-pin)
Volume controlno
Power adapterungrounded flat Europlug
Weight and dimensions including packaging
Weight (incl. packaging)4.1 kg
Dimensions (incl. packaging)50.0 x 44.0 x 11.0 cm

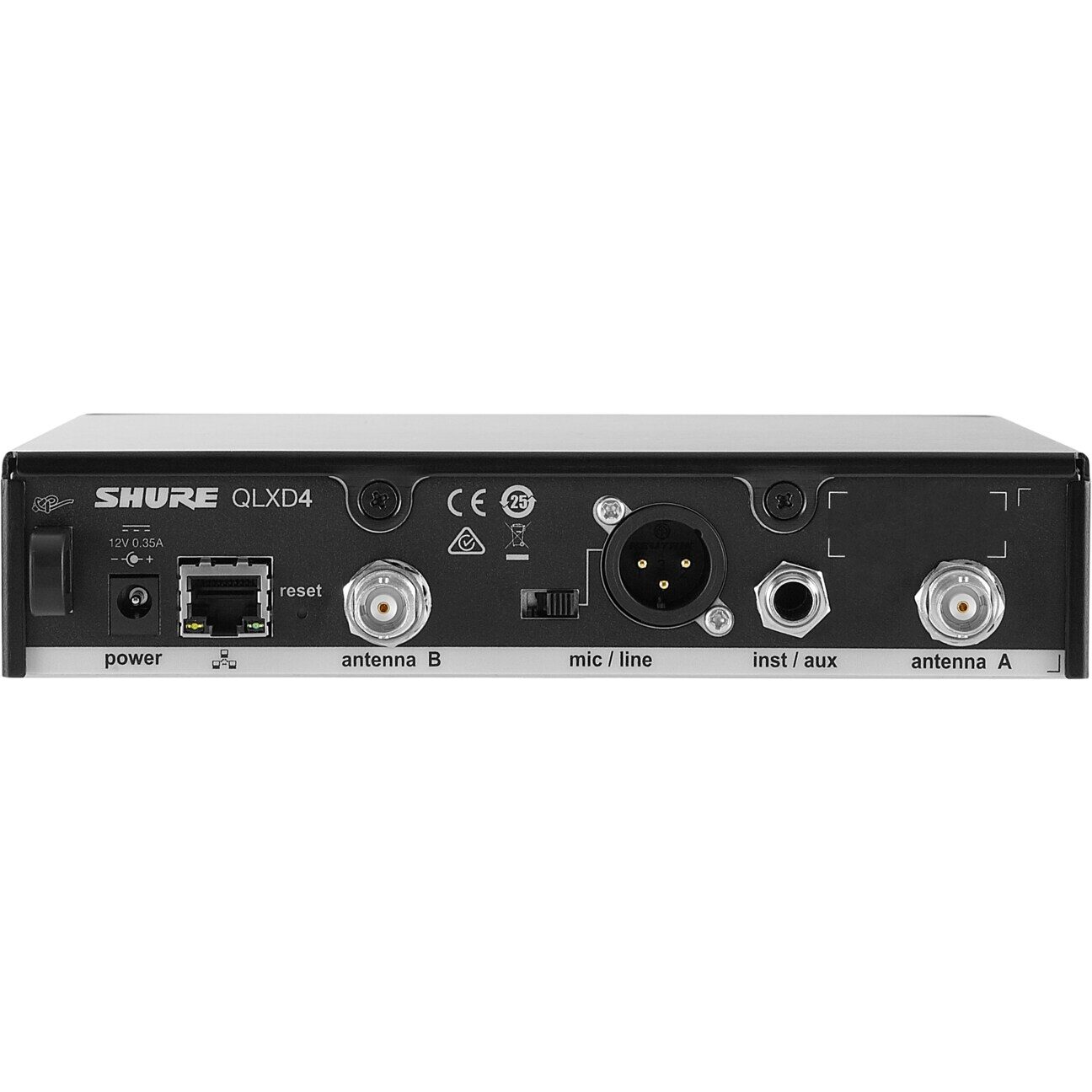

Product specifications
wireless receiver
frequency band: K51 (606-670 MHz)
backlit LCD display
audio and RF signal LED meters with peak indicators
detachable antenna
outputs: XLR and jack
synchronises with a transmitter via infrared
rugged housing, brushed aluminium
19″ rack-mountable (half-rack size)
2 antenna connectors (antennas included)
Ethernet connector
power supply: PS23E (included)
included:
rack mounting materials
power supply
2x antenna
2x BNC cable
2x BNC bulkhead adapter
manual
dimensions: 41 x 197 x 151 mm
weight (antennas not included): 777 g
