Description
Specifications
Product features
Number of microphones 1 microphone
Battery type AA
Battery life (approx.)8 hours
Frequency suitable for Belgium yes, no licence required
Frequency suitable for Netherlands yes, no licence required
Frequency suitable for UK yes, with standard licence
Worldwide frequency use no
Frequency band Sennheiser AW+ (470 – 558 MHz)
Channel 21 (470 – 478 MHz), 22 (478 – 486 MHz), 23 (486 – 494 MHz), 24 (494 – 502 MHz), 25 (502 – 510 MHz), 26 (510 – 518 MHz), 27 (518 – 526 MHz), 28 (526 – 534 MHz), 29 (534 – 542 MHz), 30 (542 – 550 MHz), 31 (550 – 558 MHz)
Maximum SPL 140 dB – 149 dB
Maximum frequency 20 – 20.9 kHz
Minimum frequency 40 – 49 Hz
Polar pattern cardioid, super cardioid
Switchable frequencies yes
Analogue audio output type unbalanced line out (TS jack), balanced microphone out (XLR)
Type of frequency band 470 – 499 MHz, 500 – 599 MHz
Transmission power 10 mW + 30 mW + 50 mW
Power adapter ungrounded flat Europlug
Weight and dimensions including packaging
Weight (incl. packaging)3.1 kg
Dimensions (incl. packaging)41.0 x 35.0 x 7.5 cm
Product specifications

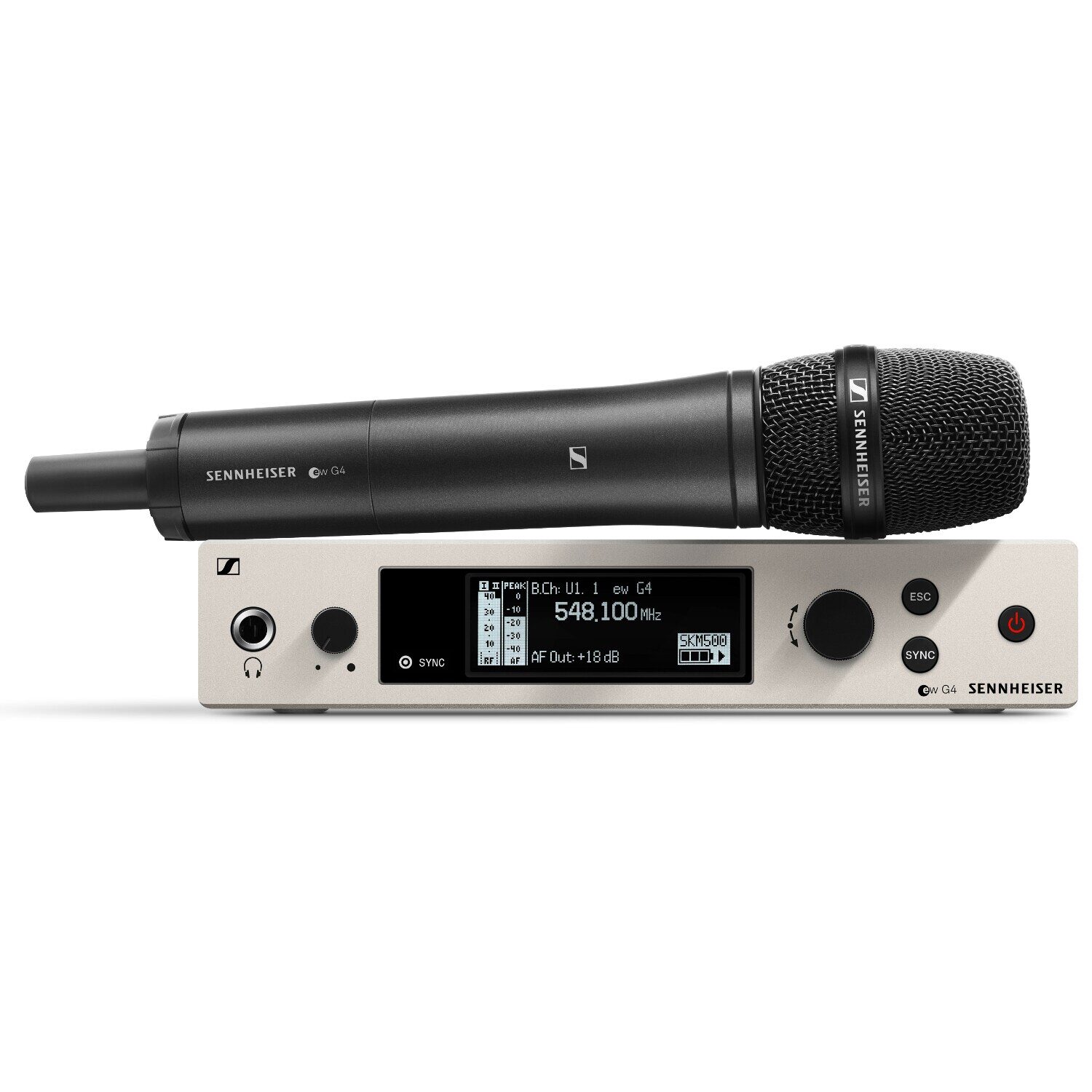

Sennheiser ew 500 G4-965-AW+
wireless vocal set
frequency band A: 470 – 558 MHz
system:
bandwidth: 88 MHz
range: max. 100 m
number of channels: 32

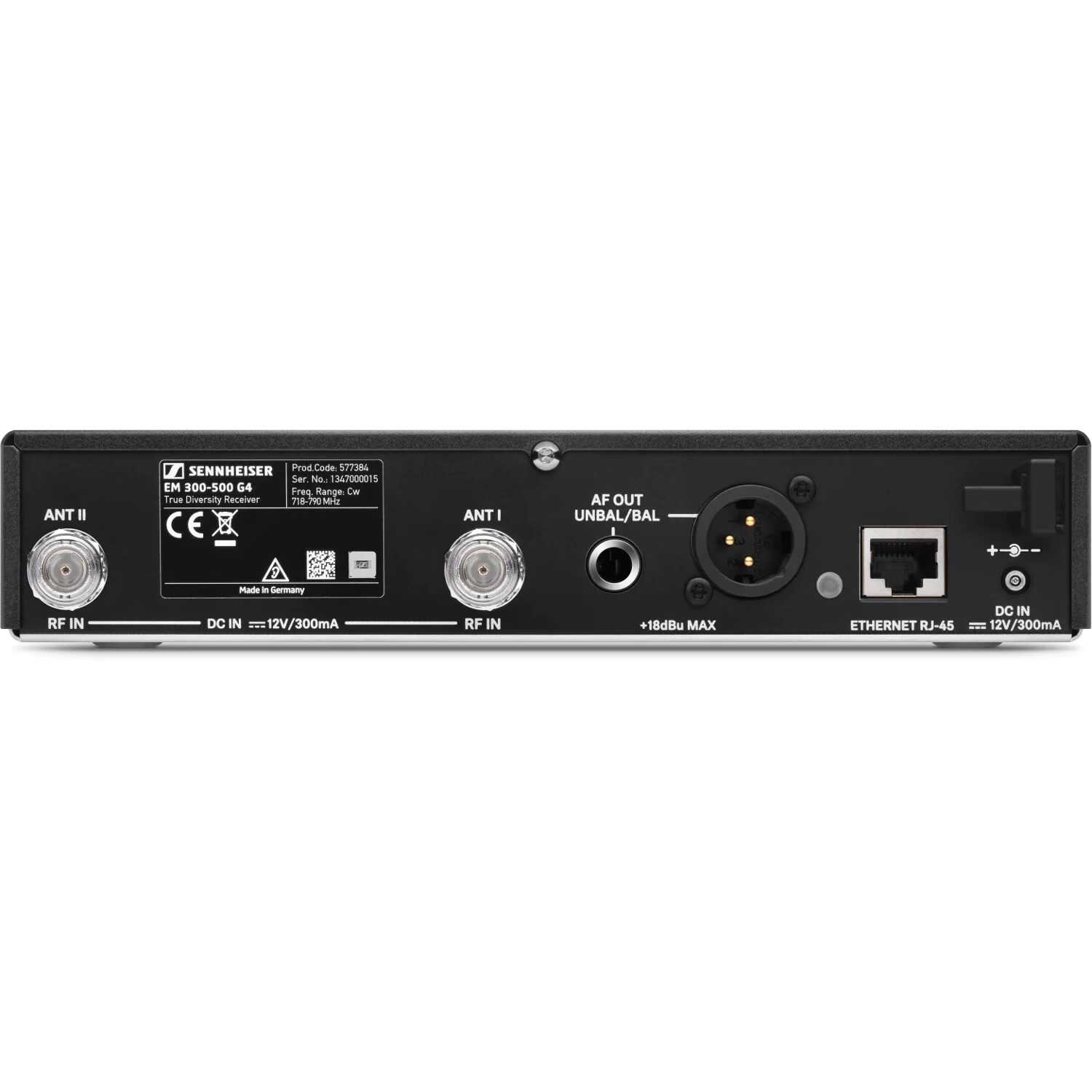

EM 300 G500 receiver:
outputs: XLR (balanced) jack (balanced or unbalanced)
Ethernet connection for frequency management
4x equalizer presets
dimensions: 202 x 212 x 43 mm
weight: 980 g

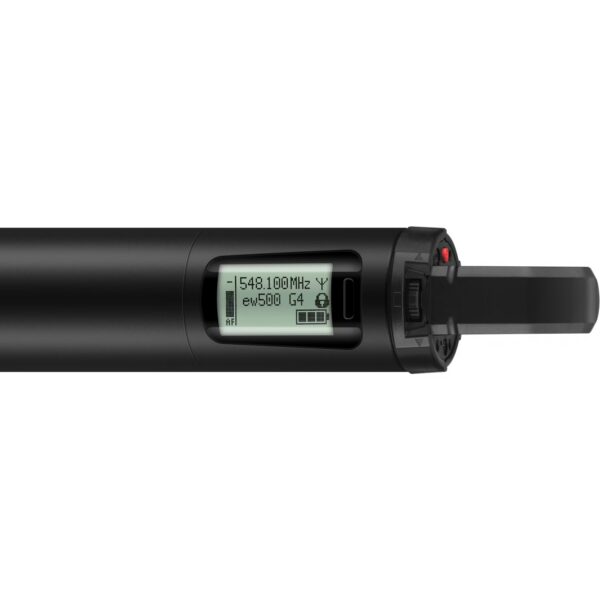

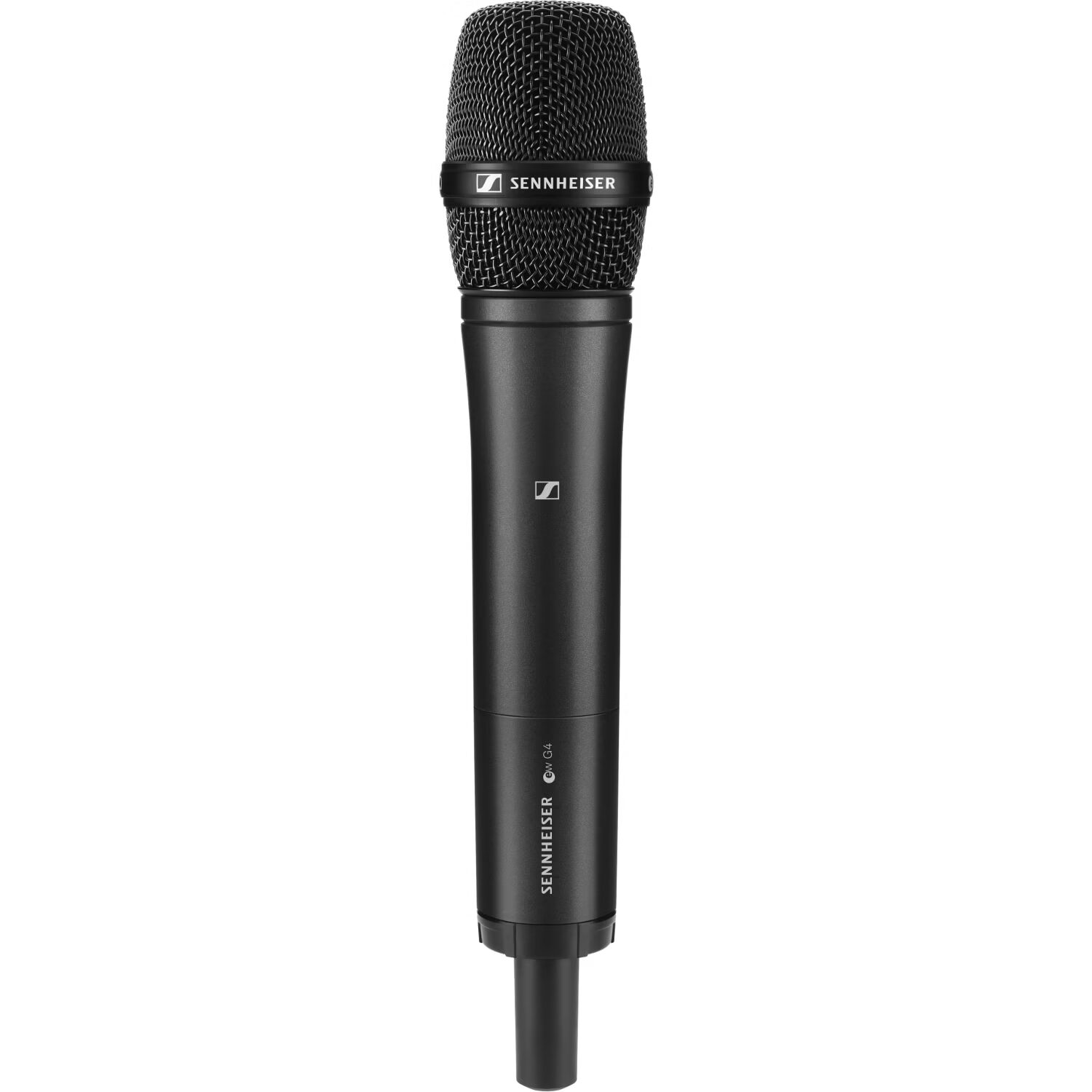

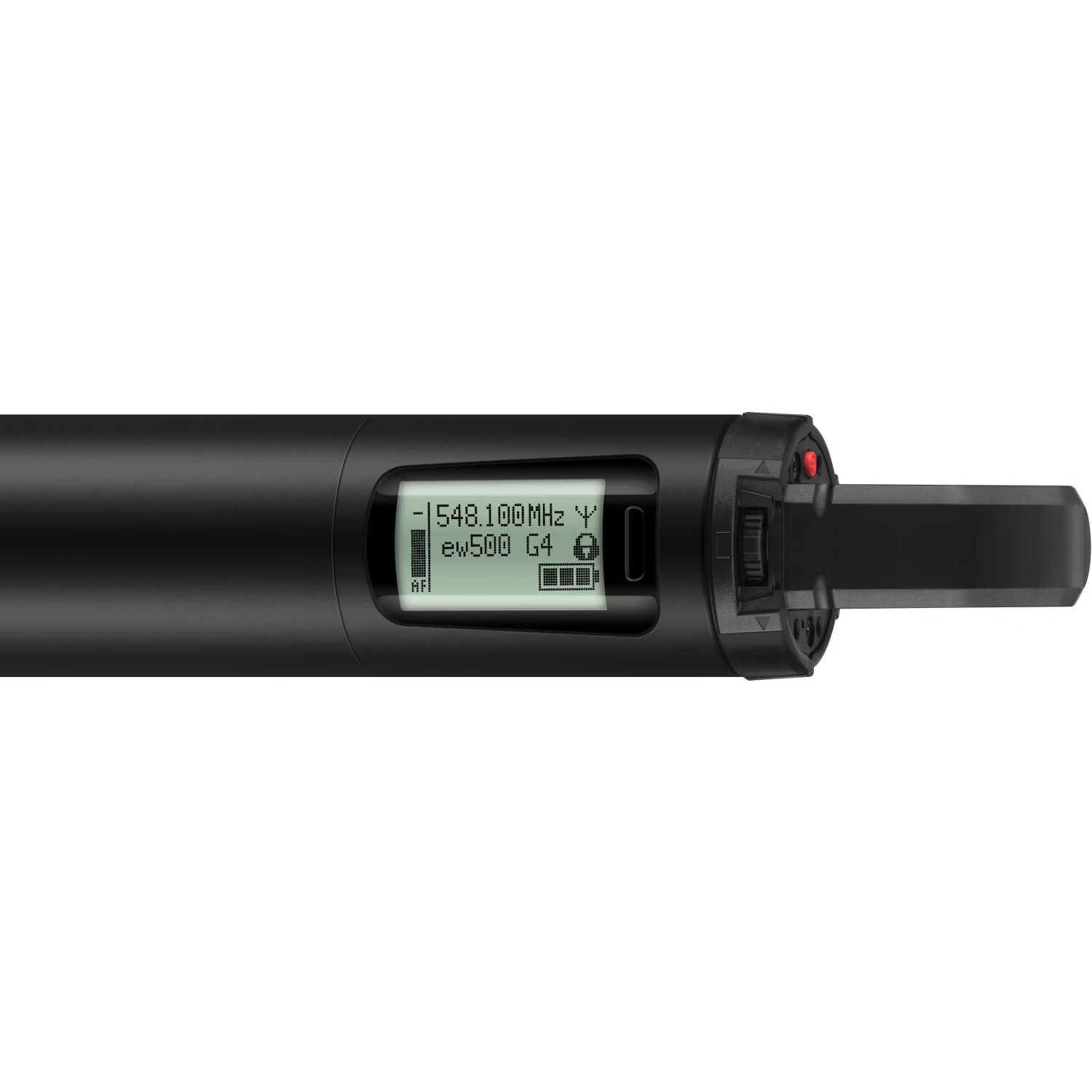

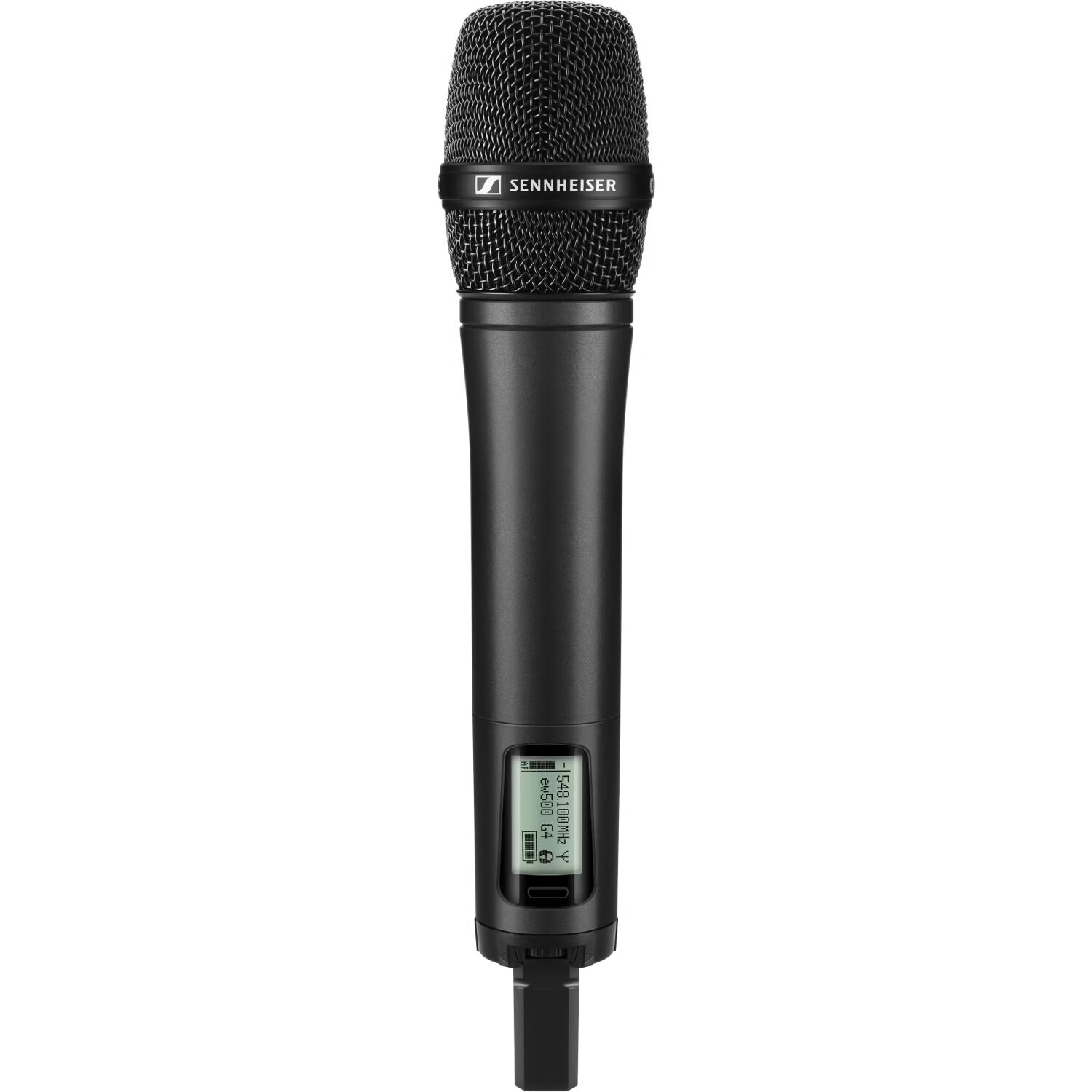

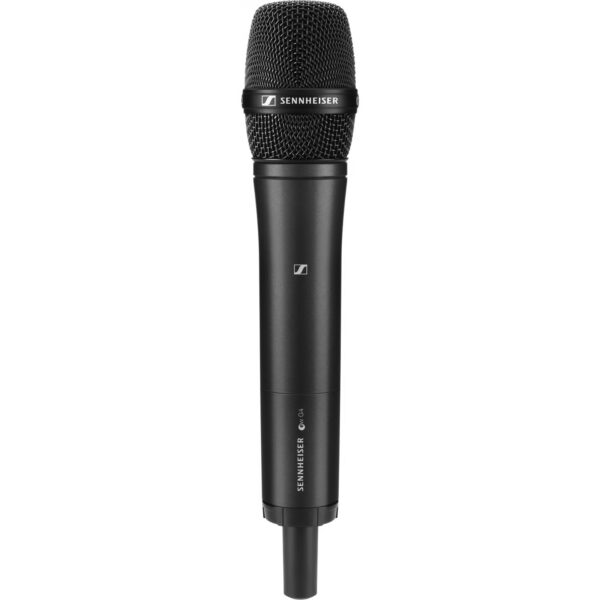

SKM 500 G4 handheld transmitter
MMD 965-1 capsule
frequency response: 40 Hz – 20 kHz
pickup pattern: can be switched between cardioid and super-cardioid
max. transmission capacity: 50 mW
equipped with mute button
power supply: 2x AA batteries or BA 2015 rechargeable battery
dimensions: 50 x 265 mm
weight: 450 g
included:
GA 3 rack mount set
MZQ 1 mic clip
mains power adapter for receiver
2x AA batteries
2x antennas
