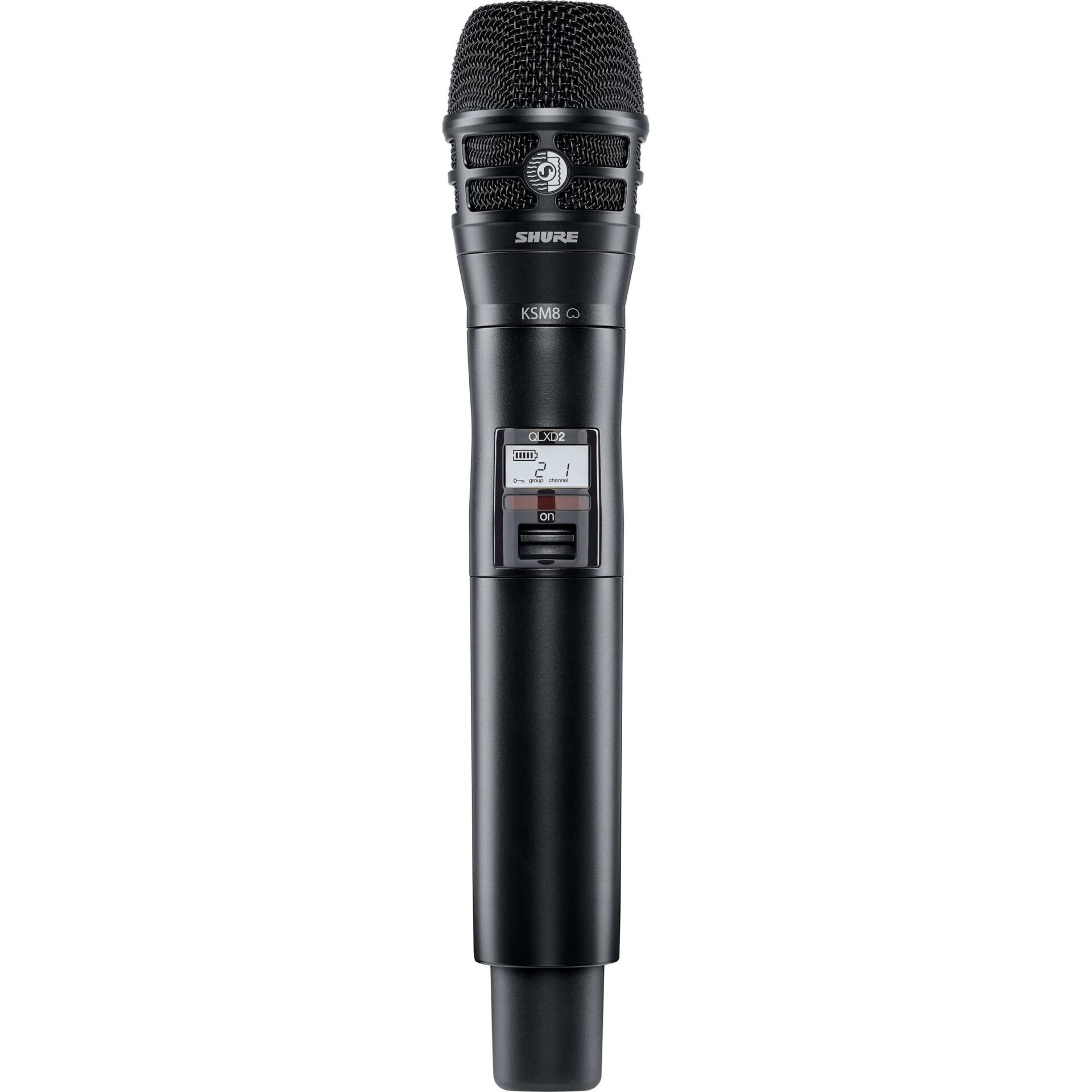

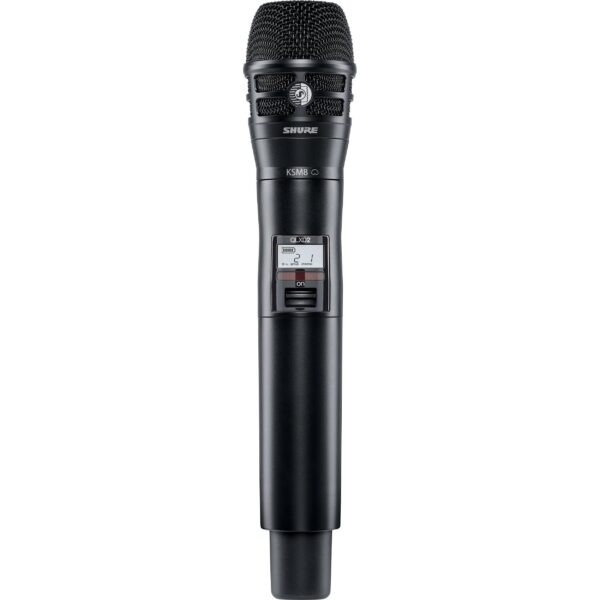

Shure QLXD2/K8B-H51 Wireless Handheld Microphone (534-598 MHz) 1x Shure QLXD2/K8B-H51 Wireless Handheld Microphone (534-598 MHz)
Product features
Battery type AA
Battery life (approx.)9 hours
CategoryMicro phone
Frequency band Shure H51 (534 – 598 MHz)
Channel 28 (526 – 534 MHz), 29 (534 – 542 MHz), 30 (542 – 550 MHz), 31 (550 – 558 MHz), 32 (558 – 566 MHz), 33 (566 – 574 MHz), 35 (582 – 590 MHz), 36 (590 – 598 MHz)
Maximum SPL not specified
Maximum frequency 16 – 16.9 kHz
Minimum frequency 40 – 49 Hz
Polar pattern cardioid
Type of frequency band 500 – 599 MHz
Transmission power 10 mW
Weight and dimensions including packaging
Weight (incl. packaging)700 gr
Dimensions (incl. packaging)32.0 x 13.0 x 10.0 cm

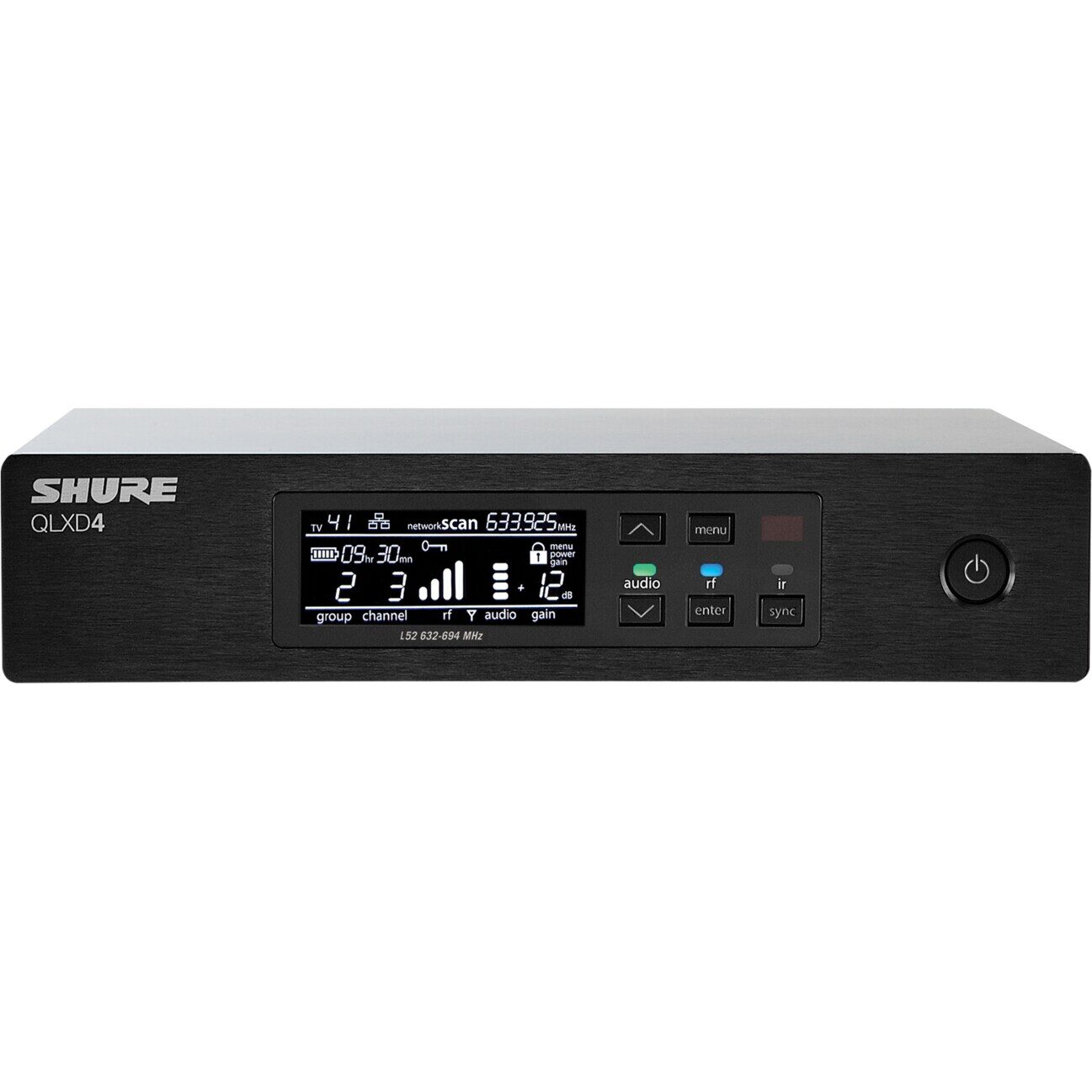

Shure QLXD4 (H51, 534-598 MHz) wireless receiver 1x Shure QLXD4 (H51, 534-598 MHz) wireless receiver
The H51 version of the Shure QLXD4 uses the 534-598 MHz frequency band.
Product features
19-inch rack size1U
Automatic frequency search functionyes
Battery life (approx.)not applicable
Energy sourceAC
Frequency bandShure H51 (534 – 598 MHz)
Built-in equaliserno
Channel29 (534 – 542 MHz), 30 (542 – 550 MHz), 31 (550 – 558 MHz), 32 (558 – 566 MHz), 33 (566 – 574 MHz), 34 (574 – 582 MHz), 35 (582 – 590 MHz), 36 (590 – 598 MHz)
Switchable frequenciesyes
Type of frequency band500 – 599 MHz
Output connectorjack (6.3 mm), XLR (3-pin)
Volume controlno
Power adapterungrounded flat Europlug
Weight and dimensions including packaging
Weight (incl. packaging)4.1 kg
Dimensions (incl. packaging)50.0 x 44.0 x 11.0 cm

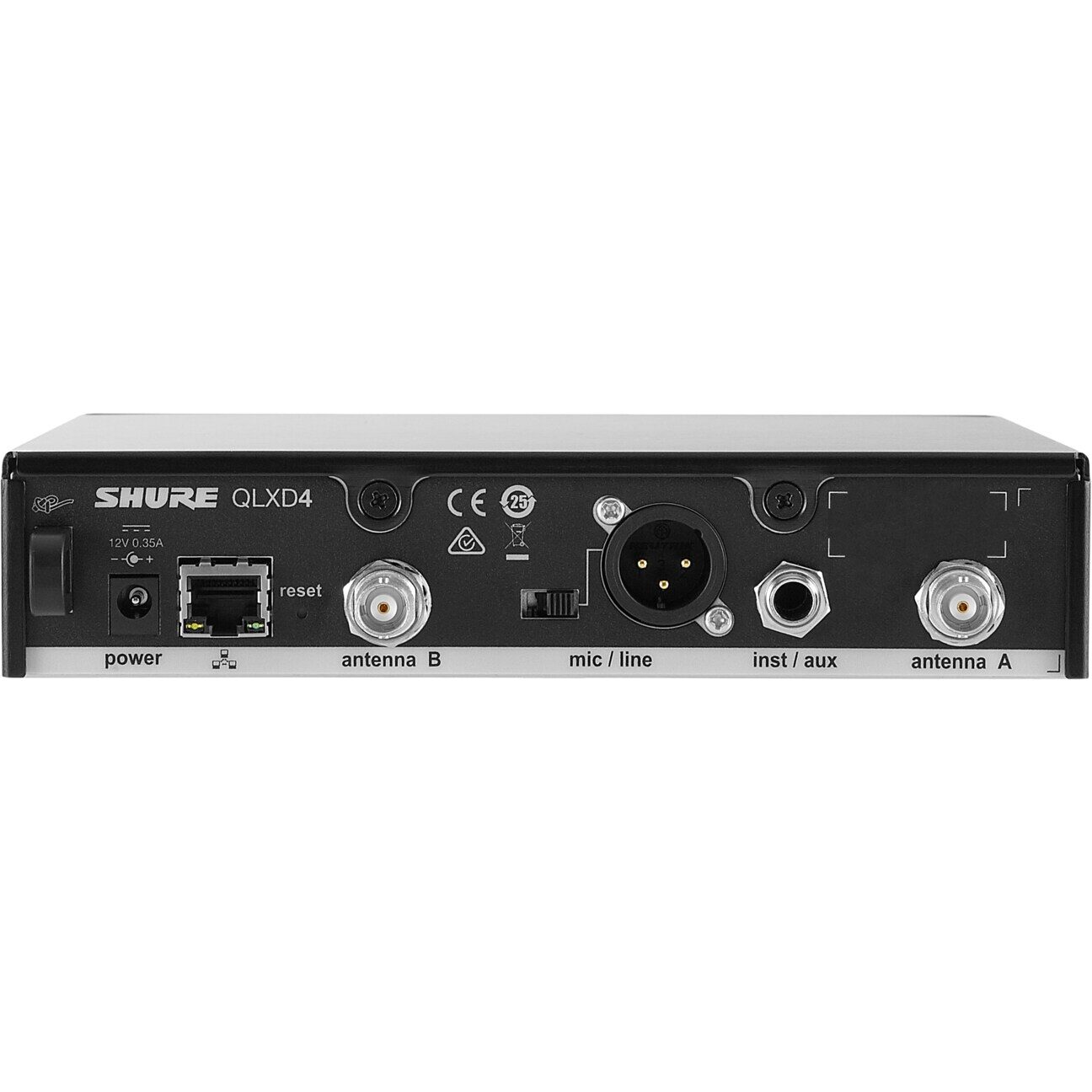

Product specifications
wireless receiver
frequency band: K51 (534-598 MHz)
backlit LCD display
LED indicators for audio and RF signals with peak indication
detachable antenna
outputs: XLR and 6.3mm jack
connect to transmitter via infrared
robust housing, brushed aluminium
19-inch rack-mountable (half-rack size)
2 antenna connectors (antennas included)
Ethernet connector
power supply: PS23E (included)
includes:
rack mount materials
power adapter
2x antenna
2x BNC cable
2x BNC bulkhead adapter
manual
dimensions: 1.63 x 7.75 x 5.94 inches (41 x 197 x 151 mm)
weight (antennas excluded): 777 g (1.71 lbs)
