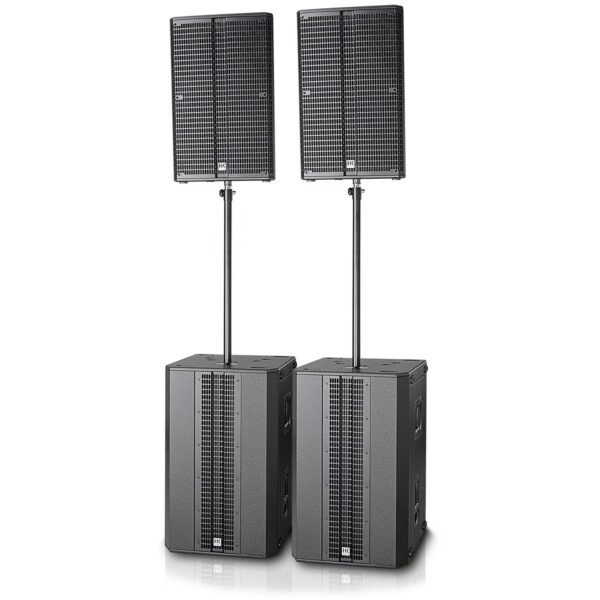

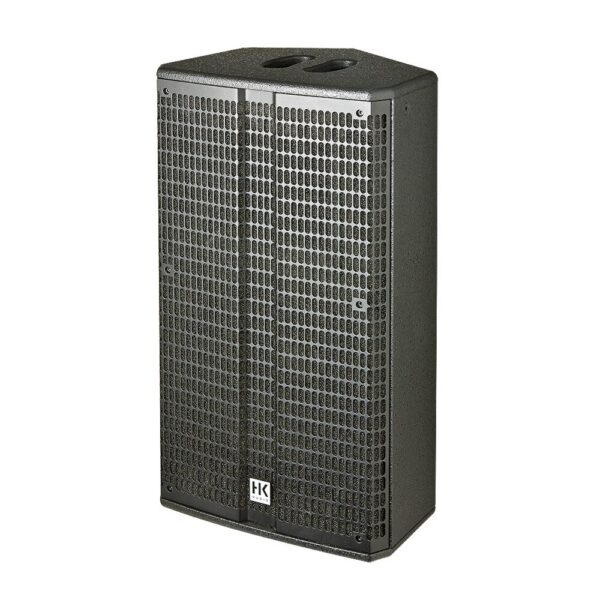

HK Audio Linear 5 L5 112 XA active speaker 2x HK Audio Linear 5 L5 112 XA active speaker
HK Audio gives us the Linear 5 system, a multifunctional line of products suitable for numerous applications. The L5 112 XA is an active speaker that can be used as a floor monitor.
Product features
Bluetooth no
Tweeter diameter 1 inch
Woofer diameter 12 inches
Suitable as monitor yes
Weight per speaker 21 kg
Built-in equaliser yes
Maximum SPL 130 dB – 139 dB
Maximum frequency 20 – 20.9 kHz
Minimum frequency 60 – 79 Hz
RMS power in watts 750 – 1,499 W
Analogue audio input type balanced line in (TRS jack), microphone input (XLR)
Analogue audio output type thru (XLR)
Passive speaker output no
Weight and dimensions including packaging
Weight (incl. packaging)22.0 kg
Dimensions (incl. packaging)72.5 x 44.5 x 38.7 cm
Product specifications
Powerful active speaker
Also suitable as a floor monitor
Frequency range (-3 dB): 100 to 18,000 Hz
Frequency range (-10 dB): 72 to 20,000 Hz
Sensitivity high: 110 dB full-space, 116 dB half-space
Sensitivity low: 98 dB full-space, 104 dB half-space
Maximum sound pressure at 10% distortion: 129 dB
Maximum sound pressure peak at 10% distortion: 135 dB
Maximum sound pressure in theory: 138 dB
Amplifier: class-D
Amplifier power: 1,000W
Power high: 350 watts at 4 ohms
Power low: 650 watts at 4 ohms
Protected from low power, thermal protection, short-circuit, too much power
Subsonic 24 dB/octave filter peak limiter
Power consumption: 3A at 230V
Connectors: 2x XLR in, 2x XLR through, 1x XLR Mix Out
Woofer: 1 inches with 2.5-inch coil
Driver: 1x 1-inch with 1,75-inch coil
Horn projection: 60 x 40 degrees, rotatable
Built-in crossover: 1,650 Hz, 24 dB/octave
Built-in flange: DuoTilt 3/7
Rigging points: 3x M8
Safety circuit with PTC and light
2 integrated handles
Rugged housing: birch plywood / MDF
Grille: 2mm steel grille with speaker foam on the inside
Scratch-proof black lacquer
Dimensions: 370 x 668 x 300 mm
Weight: 21.1 kg

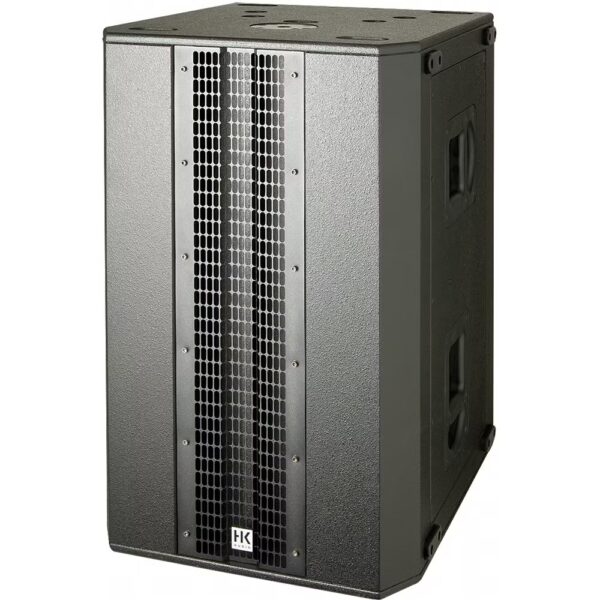

HK Audio Linear 5 L Sub 2000 A active subwoofer 2x HK Audio Linear 5 L Sub 2000 A active subwoofer
HK Audio’s L Sub 2000 A is a high-quality subwoofer. The speakers from the Linear 5 series are easy to chain, allowing you to create both small and large setups to suit any situation.
Product features
Speaker connectionsXLR / TRS combi input, out / link / thru
Woofer diameter2 x 12 inches
Weight per speaker46 kg
Maximum SPL130 dB – 139 dB
Maximum subwoofer frequency120 Hz
Minimum frequency35 – 39 Hz
RMS power in watts750 – 1,499 W
Locking speaker connectorsno
Weight and dimensions including packaging
Weight (incl. packaging)50.0 kg
Dimensions (incl. packaging)87.5 x 69.5 x 59.0 cm
Product specifications
active 1,200W subwoofer
2x 12-inch
Frequency range (-3 dB): 49 Hz -crossover
frequency range (-10 dB): 39 Hz – crossover
Sensitivity low: 98 dB full-space, 104 dB half-space
Maximum sound pressure at 10% distortion: 132 dB
Maximum sound pressure peak at 10% distortion: 133 dB
Maximum sound pressure in theory: 135 dB
Amplifier: class-D
Amplifier power: 1,200W
Power low: 1,200 watts at 4 ohms
Protected from low power, thermal protection, short-circuit, too much power
Subsonic 24 dB/octave filter peak limiter
Power consumption: 3.3A at 230V
Connectors: 2x XLR in, 2x XLR through, 2x XLR Mix Out
Woofer: 2x 12-inch with 2.5-inch voice coil featuring Advanced Cooling
Built-in crossover: 100 Hz, 120 dB/octave
Built-in stand adapter: M20
4 integrated handles
Housing: birch plywood
Grille: 2mm steel grille
Scratch proof black lacquer
Dimensions: 506 x 806 x 610 mm
Weight: 46.2 kg
HK Audio Linear 5 112 XA active speaker cover 2x HK Audio Linear 5 112 XA active speaker cover
HK Audio enables you to protect your Linear 5 112 XA with this special cover. It guards against wind and rain but also scratches during transportation.
Product features
Suitable for during useno
Speaker protection type12 inch speaker (specific brand/type)
Method of transportnot applicable
Weight and dimensions including packaging
Weight (incl. packaging)2.1 kg
Dimensions (incl. packaging)67.0 x 42.0 x 5.0 cm
Product specifications
cover for the HK Audio Linear 5 112 FA active speaker
protects your speaker
HK Audio Linear 5 L Sub 2000 (A) cover 2x HK Audio Linear 5 L Sub 2000 (A) cover
The Linear 5L Sub 2000 (A) cover by HK Audio protects your Linear 5 subwoofer against damaging and the elements. It fits both the passive Linear 5L Sub 2000 as the active Linear 5L Sub 2000 A subwoofer.
Product features
CategorySound & PA
Suitable for during useyes
Speaker protection type12 inch subwoofer (specific brand/type)
Method of transportnot applicable
Weight and dimensions including packaging
Weight (incl. packaging)2.0 kg
Dimensions (incl. packaging)80.6 x 61.0 x 50.6 cm
Product specifications
cover for the passive HK Audio Linear 5L Sub 2000 and the active Linear 5 L Sub 2000 A subwoofer
protects your speaker
Konig & Meyer KM21367 M20 distance rod with Ring Lock and adjustable height 2x Konig & Meyer KM21367 M20 distance rod with Ring Lock and adjustable height
This distance rod is ideal if your subwoofer has an M20 screw adapter and if your satellite cabinets need to be placed relatively high for an optimal sound balance.
Product features
Speaker pole mountM20 screw thread
Distance rod weight capacitynot specified
Height adjustableyes
Maximum height of stand130 – 139 cm
Setno
Weight and dimensions including packaging
Weight (incl. packaging)2.7 kg
Dimensions (incl. packaging)102.5 x 13.0 x 7.0 cm
Product specifications
– distance rod with Ring Lock system on one end
– speakers are secured from the inside by means of an expanding mandrel system
– offers stability for your sound system
– resonance-free connection
– bottom is fitted with an M20 screw thread
– adjustable in height by means of a locking screw and safety pin
– height: 900 to 1380 mm
– weight: 2.5 kg
