-18%

HK Audio Linear 5 Rock Pack PA system

Name: HK Audio Linear 5 Rock Pack PA system
SKU: 11934
Price: 4990 EUR
Availability: InStock

Original price was: €6,100.Current price is: €4,990.

The Linear 5 series by HK Audio consists of strong, great-sounding full-range speakers and subwoofers. If you’re ready to invest in great audio for live performances, this Rock Pack is a great choice. It consists of two full-range speakers, two active and two 2 passive subwoofers for an impressive wall of sound that can entertain an audience of about 300 people.

Full-range power
De The mid and high frequencies are well-represented by the two Linear 5 L5 112 FA active full-range speakers which have a 12-inch woofer and a 1-inch cone tweeter. The built-in amplifier has a whopping 1000 watts of power in reserve and can handle a high SPL. What’s more, the speaker’s slanted rear edges make it suitable for use as a floor monitor as well.

Powerful sub low
A professional PA system is nothing without a good foundation. This HK Audio set consists of four subwoofers, two of which are active and two are passive. The Linear 5 L Sub 1200 A is the active model and features a 1200-watt amplifier. Sub basses as low as 38 Hz are delivered with finesse and the two 10-inch woofers can reach a maximum of 130 Hz with a variable crossover. The passive Linear 5 L Sub 1200 has the same components except the built-in amp, and can be powered via the speaker output. Naturally, all components are equipped with short-circuit, overloading and thermal protection.

Complete and road-ready
When you take this PA system with you on the road, you can be sure of its reliability thanks to a sturdy birch plywood construction and protective black coating. To keep the components in great condition optically and technically, there are protective covers included that fit the full-range speakers and subs perfectly. This Rock Pack also includes two tilt adapters so you can set the speakers at an angle for optimal audio dispersion. With a combined output capacity of 4400 watts, this is a potent PA that bands, DJs and venues are sure to appreciate!

Categories: Pro Audio, Speaker Systems, Speakers Tag: HK Audio

Description

Description

Specifications

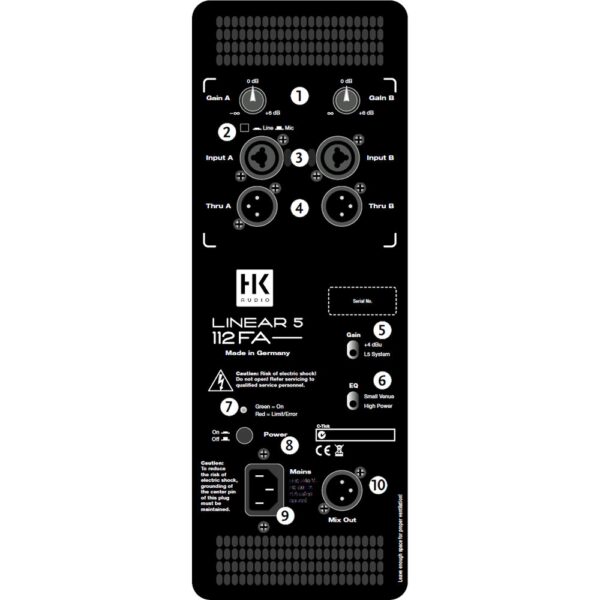

HK Audio Linear 5 L5 112 FA active speaker 2x HK Audio Linear 5 L5 112 FA active speaker
The L5 112 FA is a powerful active speaker well-equipped to function as a full-range device. It can also be used alongside a subwoofer as a satellite.
Product features
Bluetooth no
Tweeter diameter 1 inch
Woofer diameter 12 inches
Suitable as monitor yes
Weight per speaker 24 kg
Built-in equaliser yes
Maximum SPL 130 dB – 139 dB
Maximum frequency 20 – 20.9 kHz
Minimum frequency 50 – 59 Hz
RMS power in watts 750 – 1,499 W
Analogue audio input type balanced line in (TRS jack), microphone input (XLR)
Analogue audio output type thru (XLR)
Passive speaker output no
Weight and dimensions including packaging
Weight (incl. packaging)26.0 kg
Dimensions (incl. packaging)72.0 x 44.0 x 44.0 cm
Product specifications
Powerful active speaker
Also suitable as a floor monitor
Frequency range (-3 dB): 64 to 18,000 Hz
Frequency range (-10 dB): 57 to 20,000 Hz
Sensitivity high: 110 dB full-space, 116 dB half-space
Sensitivity low: 98 dB full-space, 104 dB half-space
Maximum sound pressure at 10% distortion: 127 dB
Maximum sound pressure peak at 10% distortion: 134 dB
Maximum sound pressure in theory: 138 dB
Amplifier: class-D
Amplifier power: 1,000W
Power high: 350 watts at 4 ohms
Power low: 650 watts at 4 ohms
Protected from low power, thermal protection, short-circuit, too much power
Subsonic 24 dB/octave filter peak limiter
Power consumption: 3A at 230V
Connectors: 2x XLR in, 2x XLR through, 1x XLR Mix Out
Woofer: 1 inches with 2.5-inch coil
Driver: 1x 1-inch with 1,75-inch coil
Horn projection: 60 – 90 x 55 degrees, rotatable
Built-in crossover: 1,650 Hz, 24 dB/octave
Built-in flange: DuoTilt 3/7
Rigging points: 3x M8
Safety circuit with PTC and light
2 integrated handles
Rugged housing: birch plywood / MDF
Grill: 2mm steel grill with speaker foam on the inside
Scratch proof black lacquer
Dimensions: 370 x 668 x 365 mm
Weight: 23.9 kg

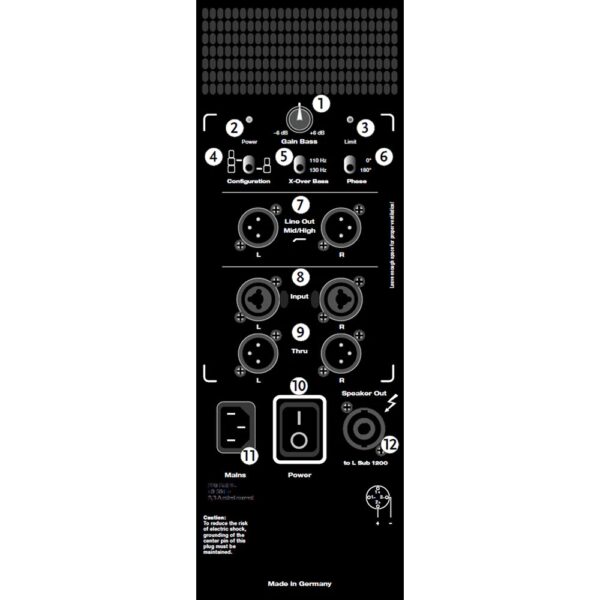

HK Audio Linear 5 L Sub 1200 A Active Subwoofer 2x HK Audio Linear 5 L Sub 1200 A Active Subwoofer
HK Audio’s Linear 5 L Sub 1200 A active amplifier has a beefy heart in the form of a 1,200W class D amplifier. Moreover, its housing is light of weight and relatively compact for added ease of use.
Product features
Speaker connectionsXLR / TRS combi input, out / link / thru
Woofer diameter2 x 10 inches
Weight per speaker31 kg
Maximum SPL130 dB – 139 dB
Maximum subwoofer frequency130 Hz
Minimum frequency35 – 39 Hz
RMS power in watts750 – 1,499 W
Locking speaker connectorsyes
Weight and dimensions including packaging
Weight (incl. packaging)32.0 kg
Dimensions (incl. packaging)66.8 x 56.0 x 38.0 cm
Product specifications
powerful active subwoofer
compact, light housing
built-in 1,200W class-D amplifier
perfect as a part of a band’s PA setup
frequency range (-3 dB): 55 Hz -crossover
frequency range (-10 dB): 38 Hz -crossover
sensitivity low: 95 dB full-space, 101 dB half-space
amplifier: class-D
amplifier power: 1,200 W
protected from low power, thermal protection, short-circuit, too much power
maximum sound pressure at 10% distortion: 128 dB half-space
maximum sound pressure peak at 10% distortion: 130 dB half-space
theoretical maximum sound pressure: 131 dB half-space
power consumption: 3.3A at 230V
connectors: 2x XLR in, 2x XLR through, 2x XLR Mix Out
woofer: 2 inches with 2-inch coil
impedance: 8 ohms
built-in crossover: 100 Hz, 130 dB/octave
built-in stand adapter
4 integrated handles
housing: birch plywood
grille: 2mm thick metal
scratch-proof black lacquer
dimensions: 380 x 668 x 560 mm (W x D x H)
weight: 30.7 kg

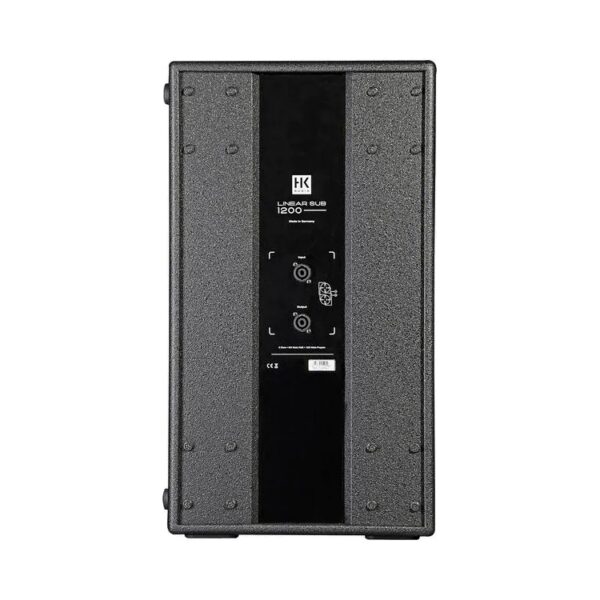

HK Audio Linear 5 L Sub 1200 passive subwoofer 2x HK Audio Linear 5 L Sub 1200 passive subwoofer
The HK Audio Linear 5L Sub 1200 passive subwoofer has a beautiful, lightweight and compact housing that is fitted with two 10-inch woofers for a crisp, tight bass reproduction.

Product features
6.3mm TRS connectorno
Woofer diameter2 x 10 inches
Wire clamp outputsno
Sensitivity101 dB
Weight per speaker29 kg
Maximum SPL130 dB – 139 dB
Maximum subwoofer frequency120 Hz
Minimum frequency35 – 39 Hz
Nominal impedance8 ohms
Peak power in watts1,500 – 3,000 watts
RMS capacity in watts500 – 749 W
Locking speaker connectorsyes
Weight and dimensions including packaging
Weight (incl. packaging)36.1 kg
Dimensions (incl. packaging)72.0 x 62.0 x 45.0 cm
Product specifications
passive subwoofer
compact, light housing
bass-reflex principle
perfect as a part of a band’s PA setup
frequency range (-3 dB): 55 Hz -crossover
frequency range (-10 dB): 38 Hz -crossover
power: 700W RMS
program: 1,400W
peak: 2,800W
maximum sound pressure at 10% distortion: 128 dB half-space
maximum sound pressure peak at 10% distortion: 130 dB half-space
connectors: 2x locking speaker connectors
woofer: 2 inches with 2-inch coil
impedance: 8 ohms
no built-in crossover
built-in stand adapter
4 integrated handles
housing: birch plywood
grille: 2mm thick metal
scratch-proof black lacquer
dimensions: 380 x 668 x 560 mm (W x D x H)
weight: 29 kg

HK Audio Linear 5 112 FA active speaker cover 2x HK Audio Linear 5 112 FA active speaker cover
This HK Audio cover was designed specially for their Linear 5 112 FA active speaker. The cover protects against damaging during transport and bad weather conditions.

Product features
Suitable for during useno
Speaker protection type12 inch speaker (specific brand/type)
Method of transportnot applicable
Weight and dimensions including packaging
Weight (incl. packaging)659 gr
Dimensions (incl. packaging)66.8 x 37.0 x 36.5 cm
Product specifications
cover for the HK Audio Linear 5 112 FA active speaker
protects your speaker
front unzips

HK Audio Linear 5 L Sub 1200 (A) cover 4x HK Audio Linear 5 L Sub 1200 (A) cover
HK Audio’s Linear 5L Sub 1200 (A) cover protects your subwoofer against numerous potential threats. The cover fits both the standard Linear 5L Sub 1200 and the A version of the subwoofer.

Product features
Suitable for during useyes
Speaker protection type12 inch subwoofer (specific brand/type)
Method of transportnot applicable
Weight and dimensions including packaging
Weight (incl. packaging)1.5 kg
Dimensions (incl. packaging)66.8 x 56.0 x 38.0 cm
Product specifications
cover for the passive HK Audio Linear 5L Sub 1200 and the active Linear 5 L Sub 1200 A subwoofer
protects your speaker
front unzips

HK Audio Linear 5 speaker tilt adapter 2x HK Audio Linear 5 speaker tilt adapter
This tilt adapter was designed specifically for HK Audio’s Linear 5 speakers. However, it’ll also fit the L Sub 1200 A, L Sub 2000 and the L Sub 2000 A subwoofers.

Weight and dimensions including packaging
Weight (incl. packaging)100 gr
Dimensions (incl. packaging)20.0 x 3.0 x 3.0 cm
Product specifications
tilt adapter for HK Audio Linear 5 speakers
screws in
weight: 1 kg (15 lbs)
