Description
Specifications
Product features
Number of subwoofers 2
Number of speakers 2
Active or passive active
Speaker set including speaker pole(s), covers / cases
Weight and dimensions including packaging
Weight (incl. packaging)150.0 kg
Dimensions (incl. packaging)113.0 x 112.0 x 71.0 cm
Product specifications
HK Audio L3 Compact Venue Pack
speaker set
total power: 4800 W
2x L3 112 FA 12-inch active speaker
woofer: 12 in
tweeter: 1 in, horn-loaded (90 x 55 degrees)
power capacity: 1200 W
frequency range: 58 Hz to 18 kHz
max. SPL: 135 dB
inputs: 2x XLR/TRS combo, 1x RCA
outputs: 2x XLR thru, 1x XLR mix out
dimensions: 367 x 360 x 660 mm
weight: 21.5 kg
2x L Sub 1500 A 15-inch active subwoofer
woofer: 15 in
power capacity: 1200 W
frequency range: 49 Hz – crossover
max. SPL: 129 dB
inputs: 2x XLR/TRS combo
outputs: 1x XLR thru, 1x XLR mid/high out
dimensions: 595 x 485 x 485 mm
weight: 29.8 kg

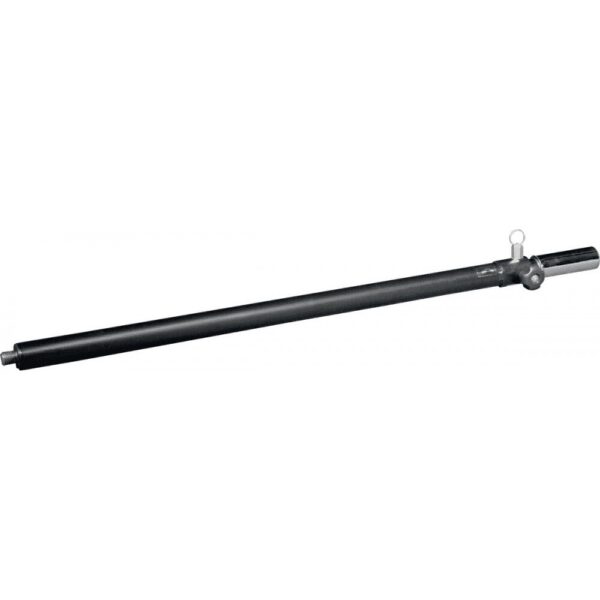

2x MAT-KM20 speaker pole
top screw flange: 35 mm
bottom screw flange: 35 mm
max. load: 40 kg
adjustable length: 90 – 150 cm
weight: 2.3 kg

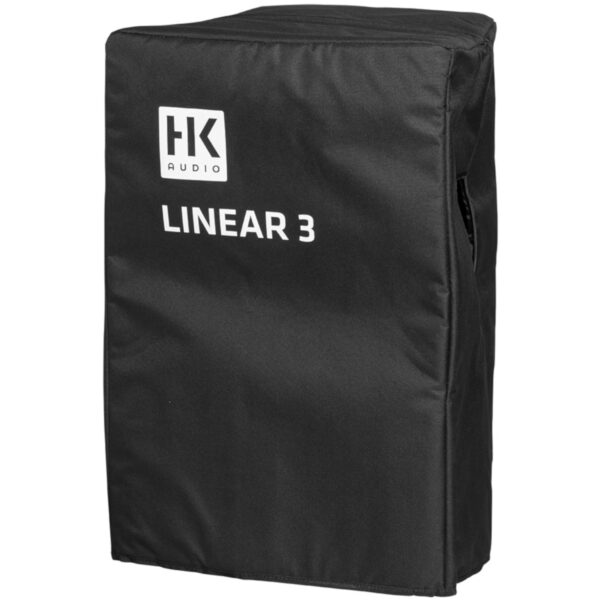

2x Linear 3 112 FA cover
material: nylon
openings for handles

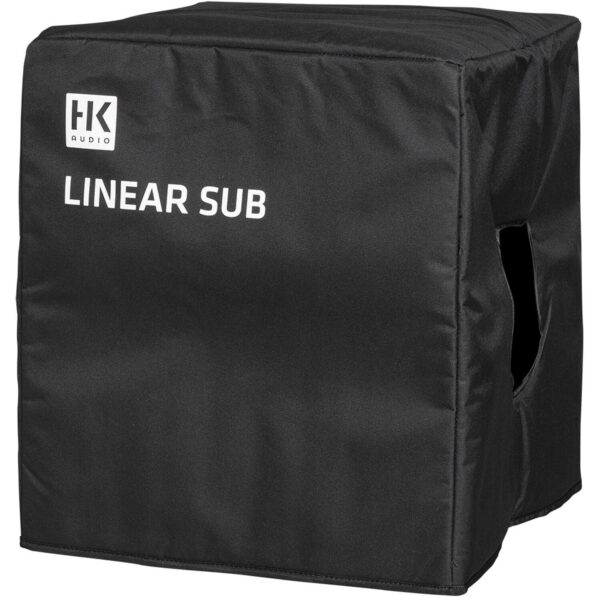

2x L Sub 1500 cover
material: nylon
openings for handles
