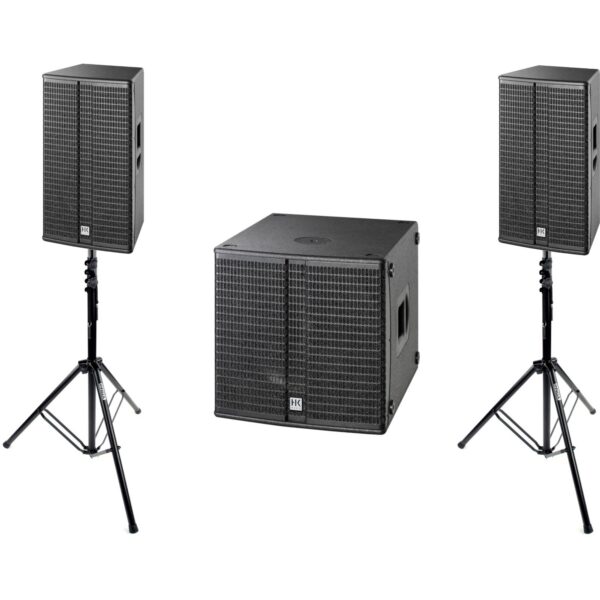

HK Audio L3 112 FA active 12-inch full-range active speaker, 1200 W 2x HK Audio L3 112 FA active 12-inch full-range active speaker, 1200 W
HK Audio’s L3 112 FA is a full-range active speaker that’s suitable for use by amateurs and professionals alike. It’s packed with modern features including advanced DSP technology, intelligent limiters, and filters.
Product features
Bluetoothno
Tweeter diameter 1 inch
Woofer diameter 12 inches
Suitable as monitor no
Weight per speaker 22 kg
Built-in equaliser yes
Maximum SPL 130 dB – 139 dB
Maximum frequency 18 – 18.9 kHz
Minimum frequency 50 – 59 Hz
RMS power in watts 500 – 749 W
Analogue audio input type unbalanced line in (RCA/cinch), balanced line in (TRS jack), microphone input (XLR)
Analogue audio output type thru (XLR), balanced mix out (XLR)
Passive speaker output yes
Weight and dimensions including packaging
Weight (incl. packaging)25.6 kg
Dimensions (incl. packaging)72.0 x 44.0 x 44.0 cm
Product specifications
HK Audio L3 112 FA full-range speaker
max. SPL: 135 dB
frequency response: 58 Hz – 18 kHz
power capacity: 1200 W
amplifier: Class D, bi-amped
active protection: under-voltage, thermal, short circuit, over-current, subsonic filter, look ahead temperature control, peak, RMS and multiband limiters
LF speaker: 12 in
HF driver: 1 in
HF horn: 90° x 55° rotatable CD horn
active cut-off frequency: 2.3 kHz FIR X-Over with 72 dB/oct
connectors:
2x XLR/TRS combo input (balanced)
1x RCA input
2x XLR thru (balanced)
1x XLR Mix out
input sensitivity: +4 dBu @ Gain
voicing:
2x EQ switch: Bass Boost/Flat (LF) and Flat (MHF)/Contour
pole mount: HK Audio DuoTilt 3/7
rigging points: 4x M8
handles: 2x HK Audio MultiGrip, integrated
housing: 16 mm MDF
grille: 2 mm metal grille with black acoustic foam
dimensions: 36 x 66 x 36.7 cm
weight: 21.5 kg
HK Audio L Sub 1500 A active subwoofer 1x HK Audio L Sub 1500 A active subwoofer
HK Audio’s L SUB 1500 A is an active subwoofer that is compact, powerful and versatile. It’s the perfect addition to HK Audio’s Linear 3, Linear 5 and Elements series speakers.
Product features
Speaker connectionsXLR / TRS combi input, out / link / thru
Woofer diameter15 inches
Weight per speaker29 kg
Maximum SPL120 dB – 129 dB
Maximum subwoofer frequency120 Hz
Minimum frequency40 – 49 Hz
RMS power in watts750 – 1,499 W
Locking speaker connectorsno
Weight and dimensions including packaging
Weight (incl. packaging)35.6 kg
Dimensions (incl. packaging)67.0 x 56.0 x 54.0 cm
Product specifications
HK Audio L Sub 1500 A
active subwoofer
compact, lightweight housing
technical information
amplifier: Class D, 1200 W
woofer: 15 in
frequency response: 49 Hz – crossover (-3 dB), 45 Hz – crossover (-10 dB)
cut-off frequency: 100/120 Hz variable with 24 dB/octave
max SPL: 129 dB (half-space)
connectors:
2x XLR/TRS combo
2x XLR thru
2x XLR mid/high out
power cable
cabinet:
built-in pole mount: 1x M20
2 integrated MultiGrip handles
housing: 16 mm MDF
grille: 2 mm metal grille backed with black acoustic foam
black scratch-proof finish
dimensions: 485 x 595 x 485 mm
weight: 29.8 kg
Innox INA S-12 Heavy Speaker/Lighting Stand 2x Innox INA S-12 Heavy Speaker/Lighting Stand
The Innox INA S-12 is a heavy-duty yet lightweight stand that’s built to support either speakers or lighting gear. This secure stand boasts a wide and stable footprint and a maximum height of 275cm.
Product features
Stand weight capacity30 kg
Maximum height of stand270 – 279 cm
Setno
Light stand typestraight
Weight and dimensions including packaging
Weight (incl. packaging)7.5 kg
Dimensions (incl. packaging)121.0 x 17.0 x 15.0 cm
Product specifications
lightweight speaker and lighting stand
dual telescopic tube
equipped with safety pins for both telescopic tubes
maximum load: 30kg
diameter: 35mm
colour: black
construction: steel
minimum height: 1.35m
maximum height: 2.75m
foot diameter: 35mm
weight: 7kg
