Description
Specifications
Product features
19 inches no
Number of auxiliaries 5 – 6
Number of microphone inputs 9 – 12
Number of mono channels 12
Number of stereo channels 4
Number of submasters none
Phantom power yes
Headphone output yes
Built-in audio interface USB (4×4 I/O)
Built-in audio playe rno
Built-in effects yes
Built-in mixer effectsreverb/delay/modulation, master EQ
Insert connectors yes, only mono channels
Type of mixer inputs microphone input (XLR), balanced line input (TRS jack)
Type of mixer studio / PA mixer
Type of mixer outputs balanced line output (XLR), balanced line output (TRS jack)
Volume control knobs, faders, faders + knobs
Weight and dimensions including packaging
Weight (incl. packaging)20.5 kg
Dimensions (incl. packaging)72.5 x 64.0 x 25.0 cm
Product specifications

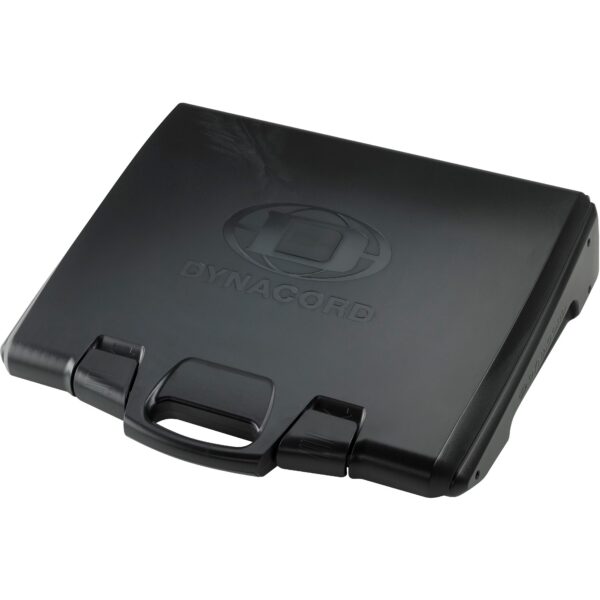

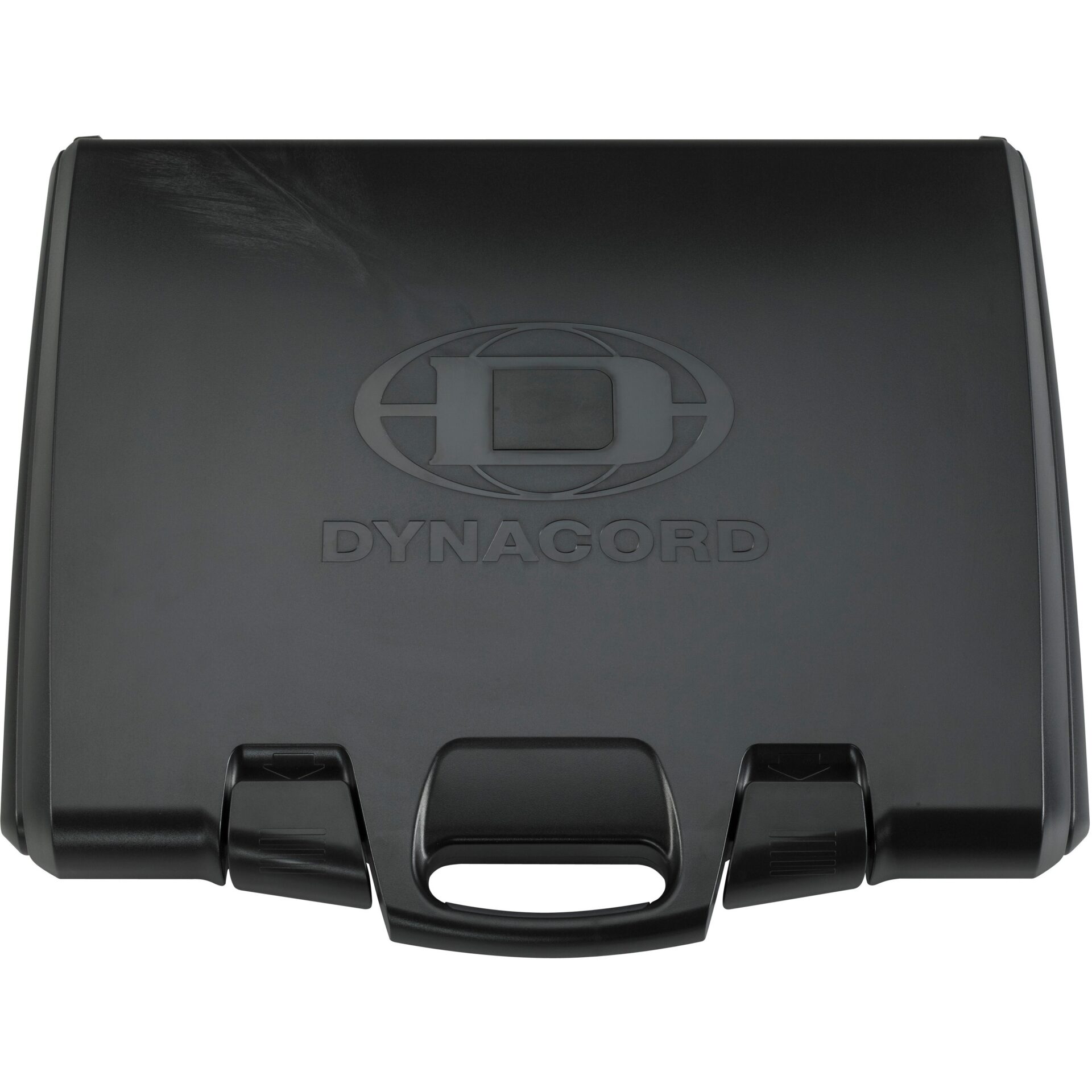

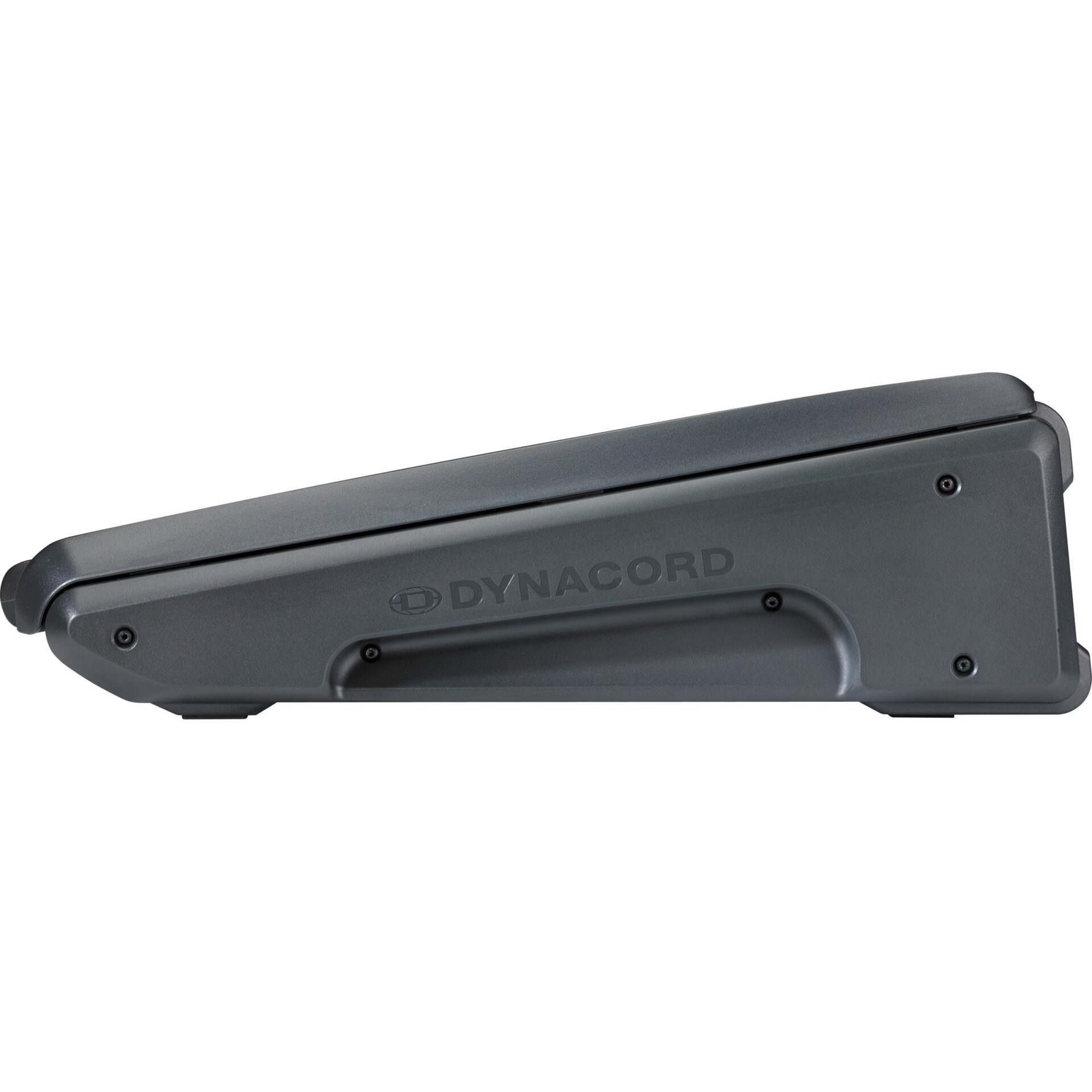

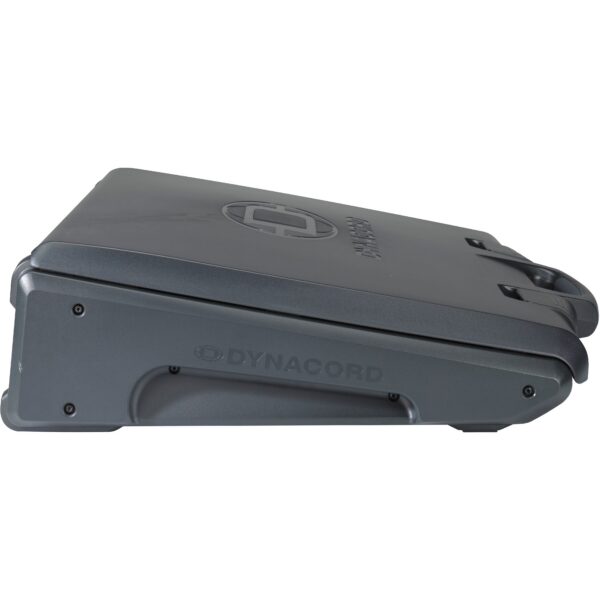

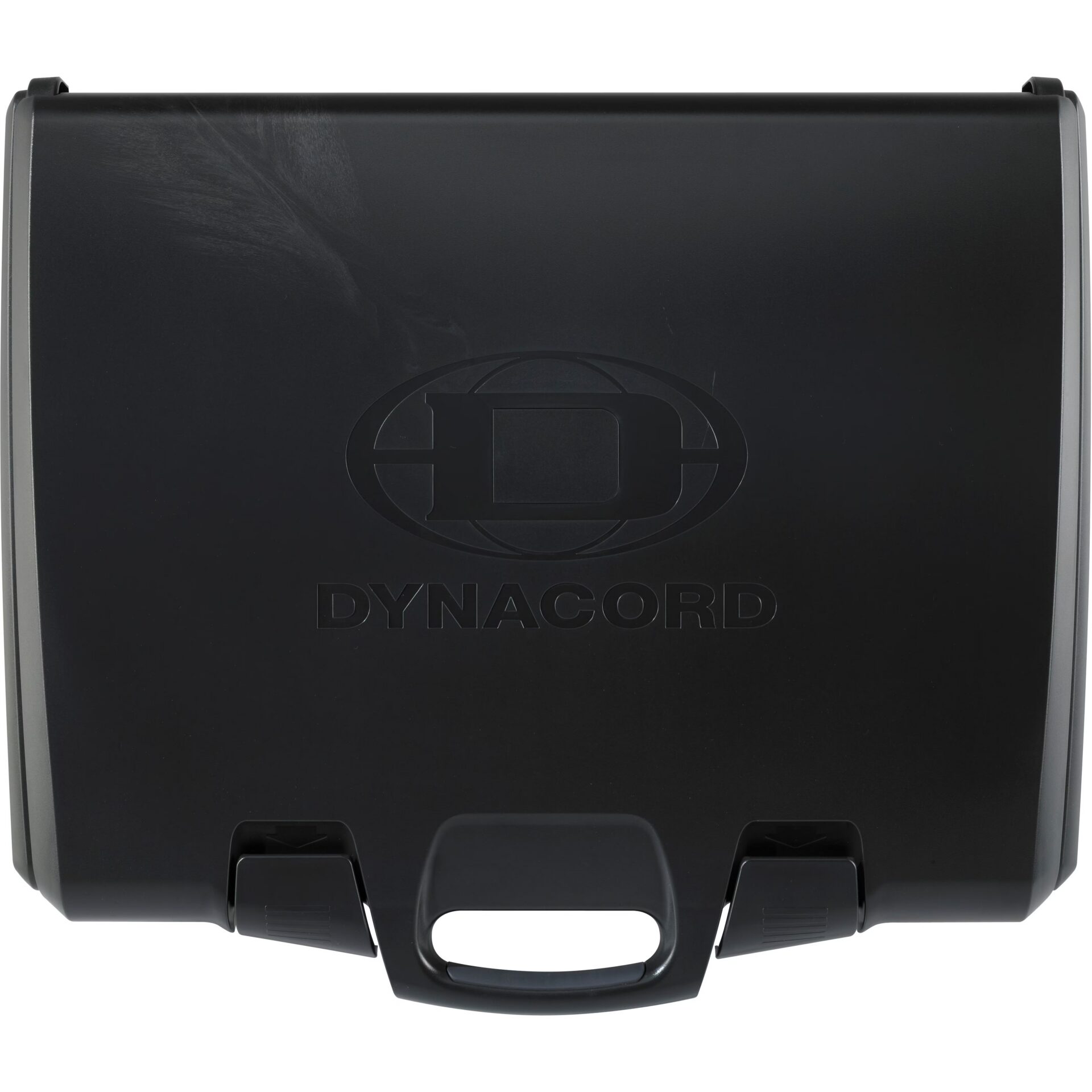

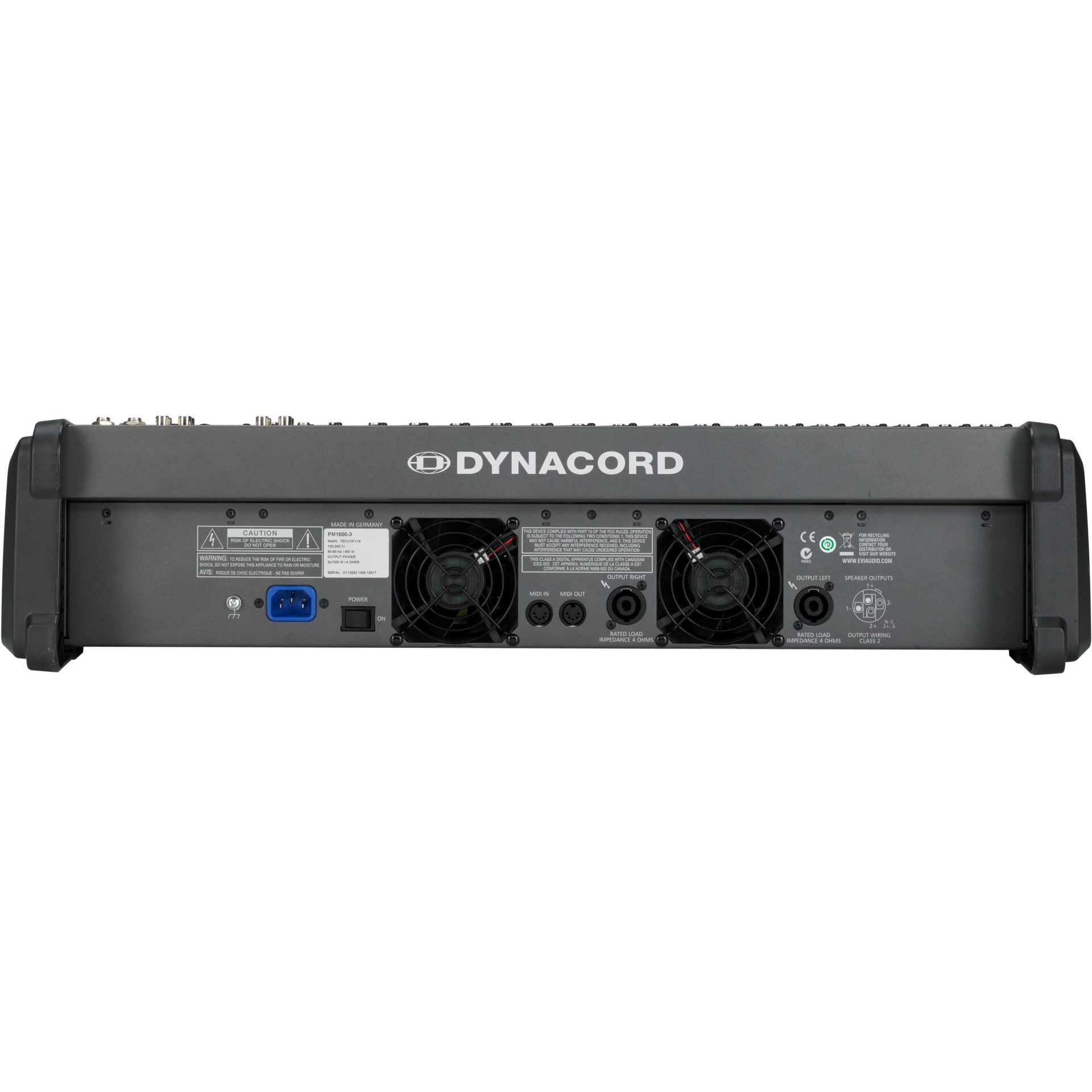

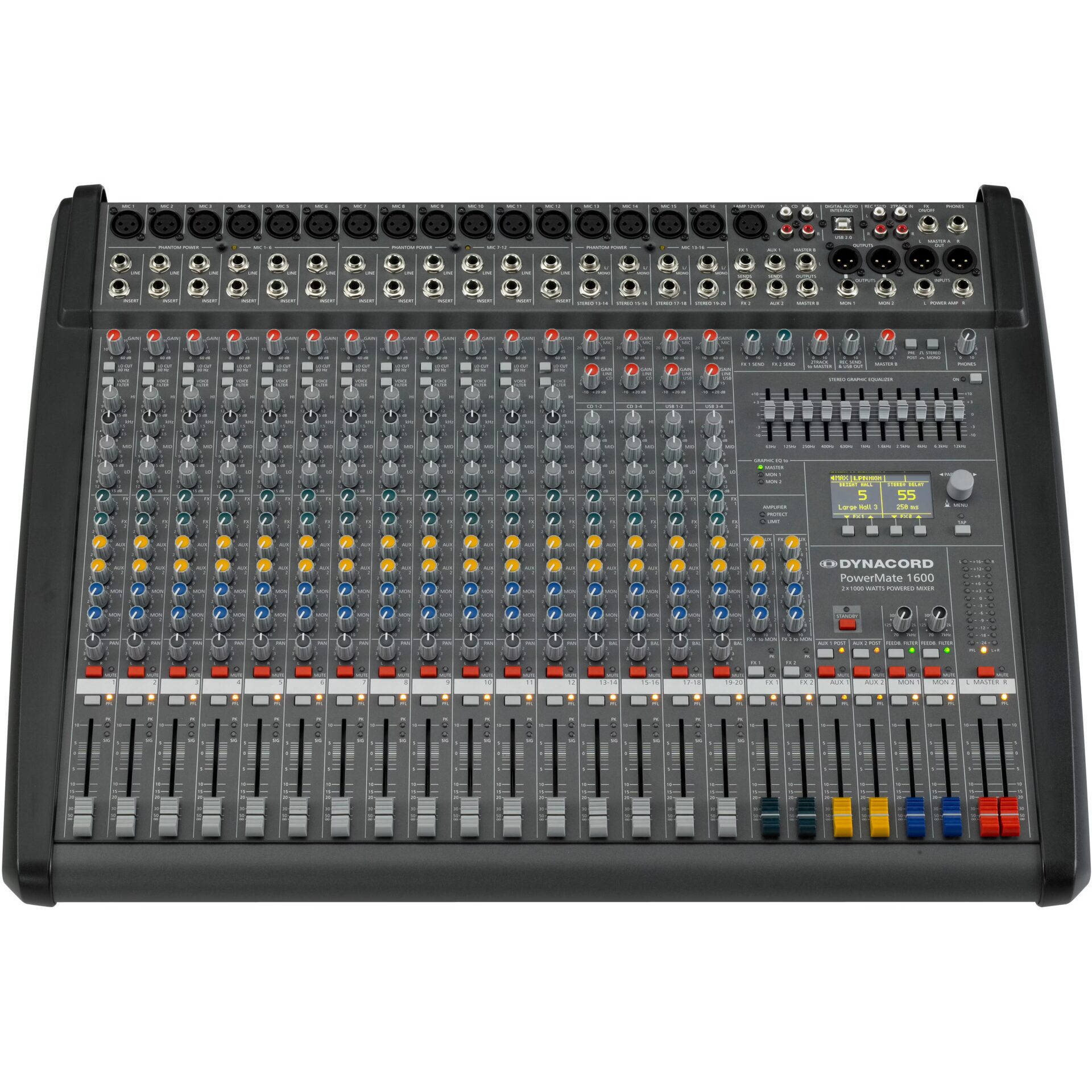

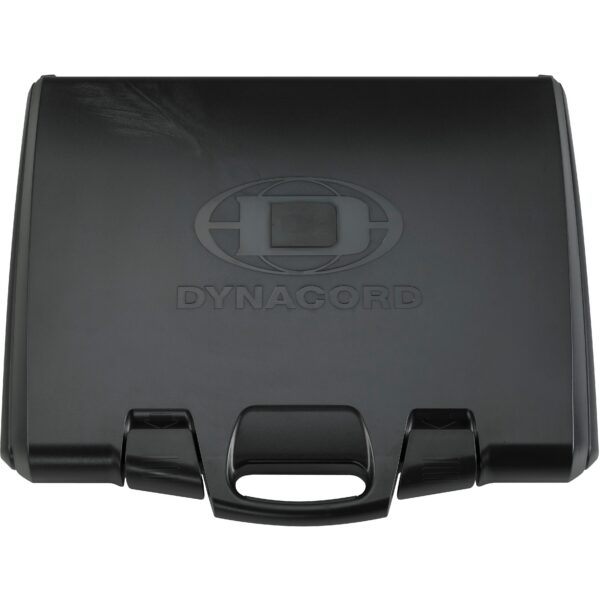

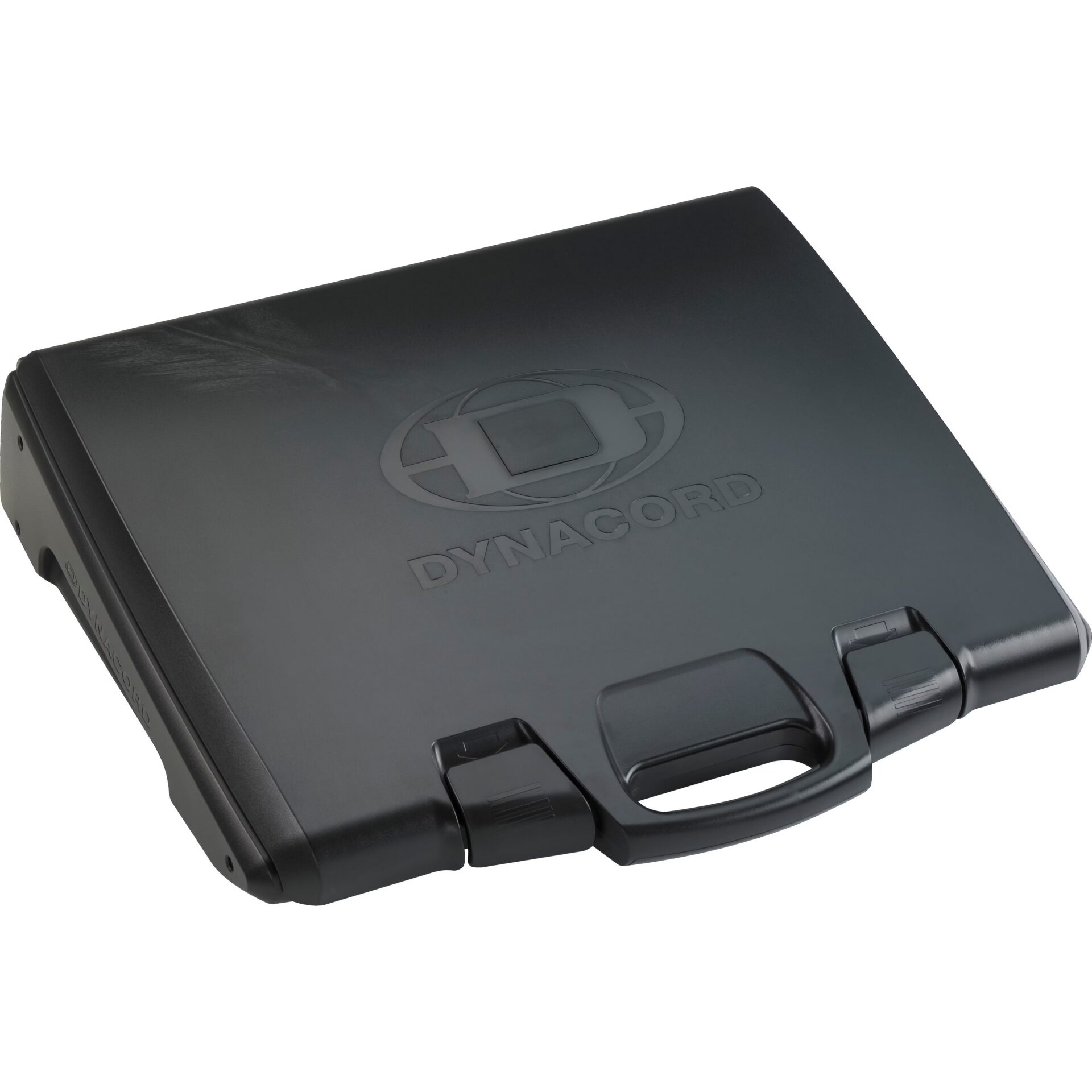

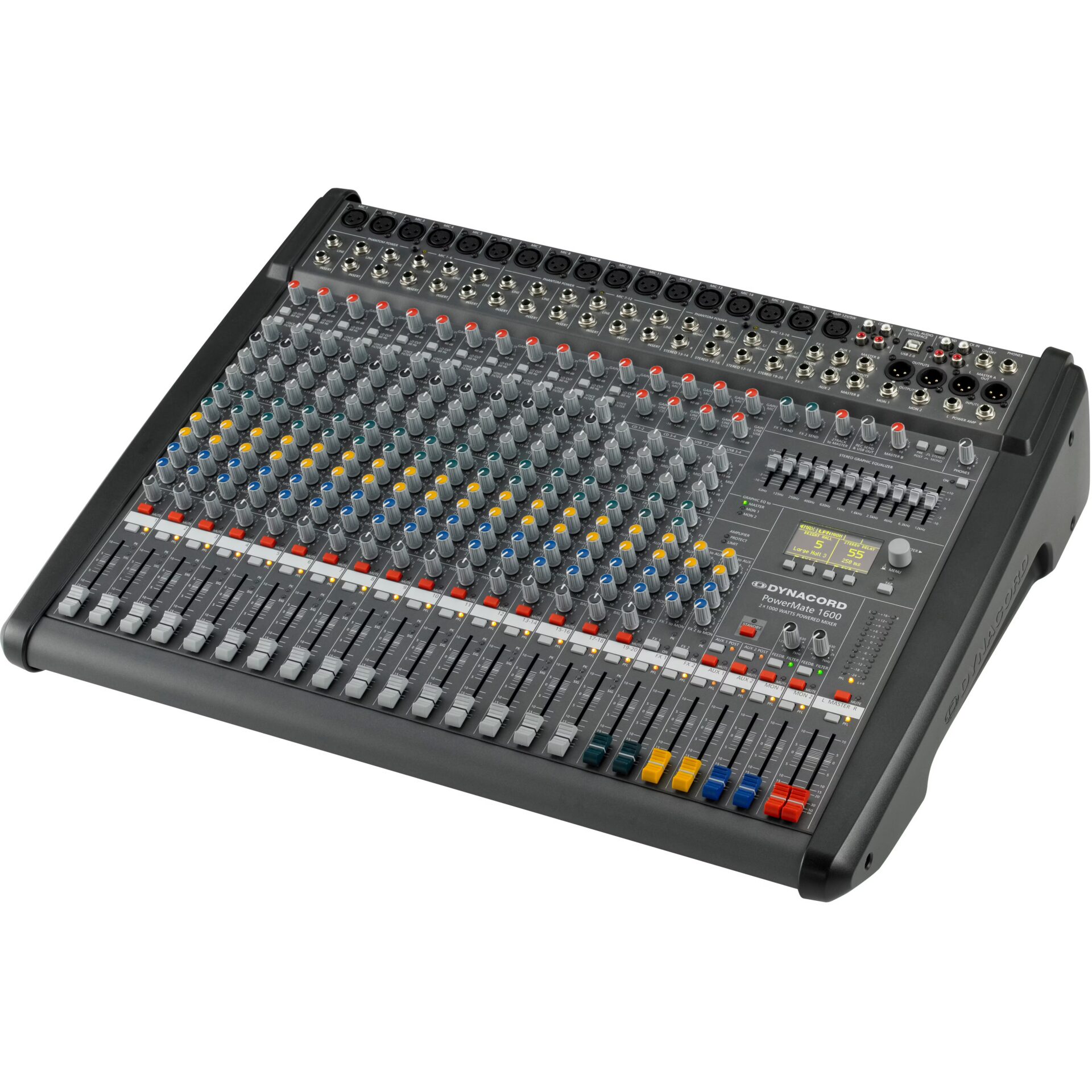

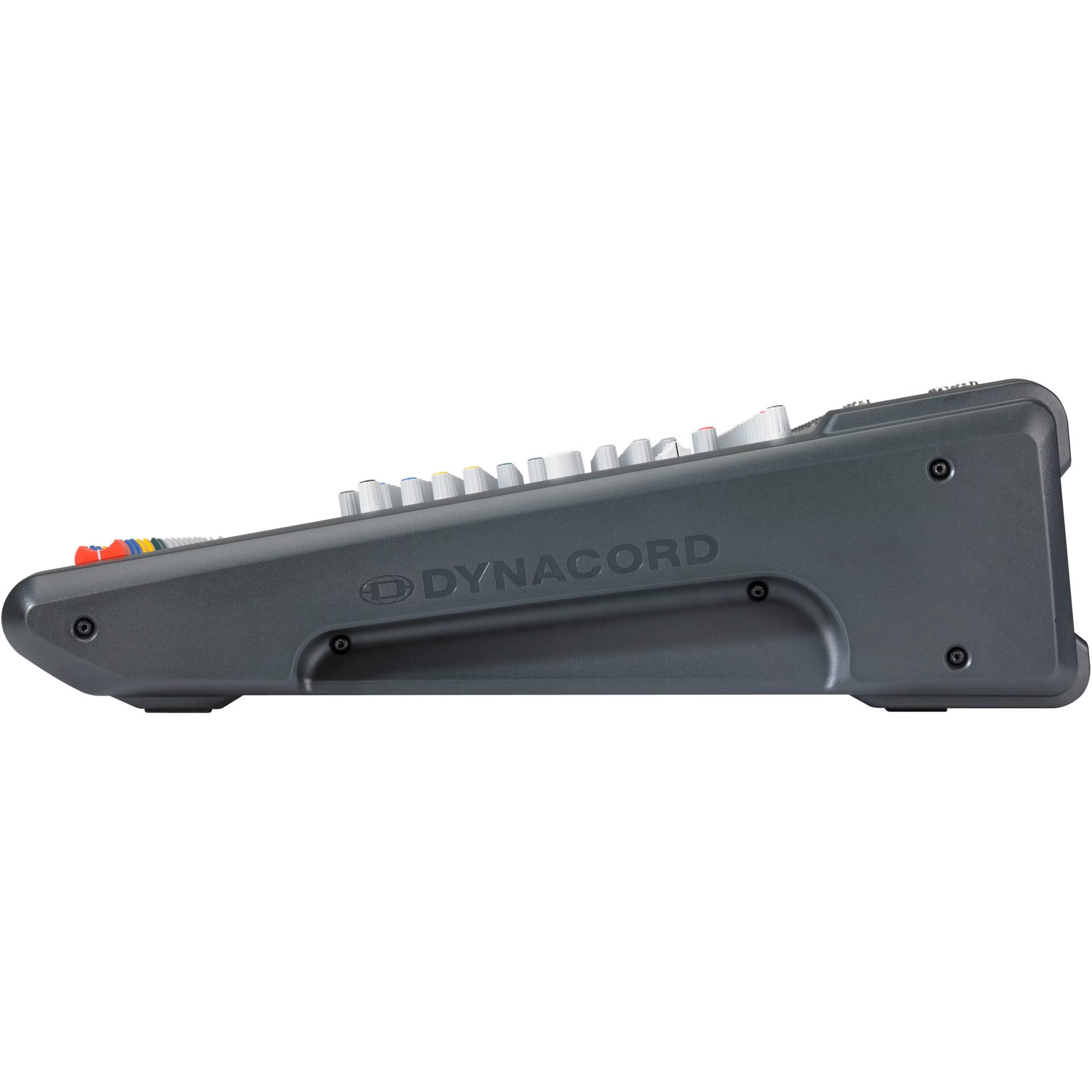

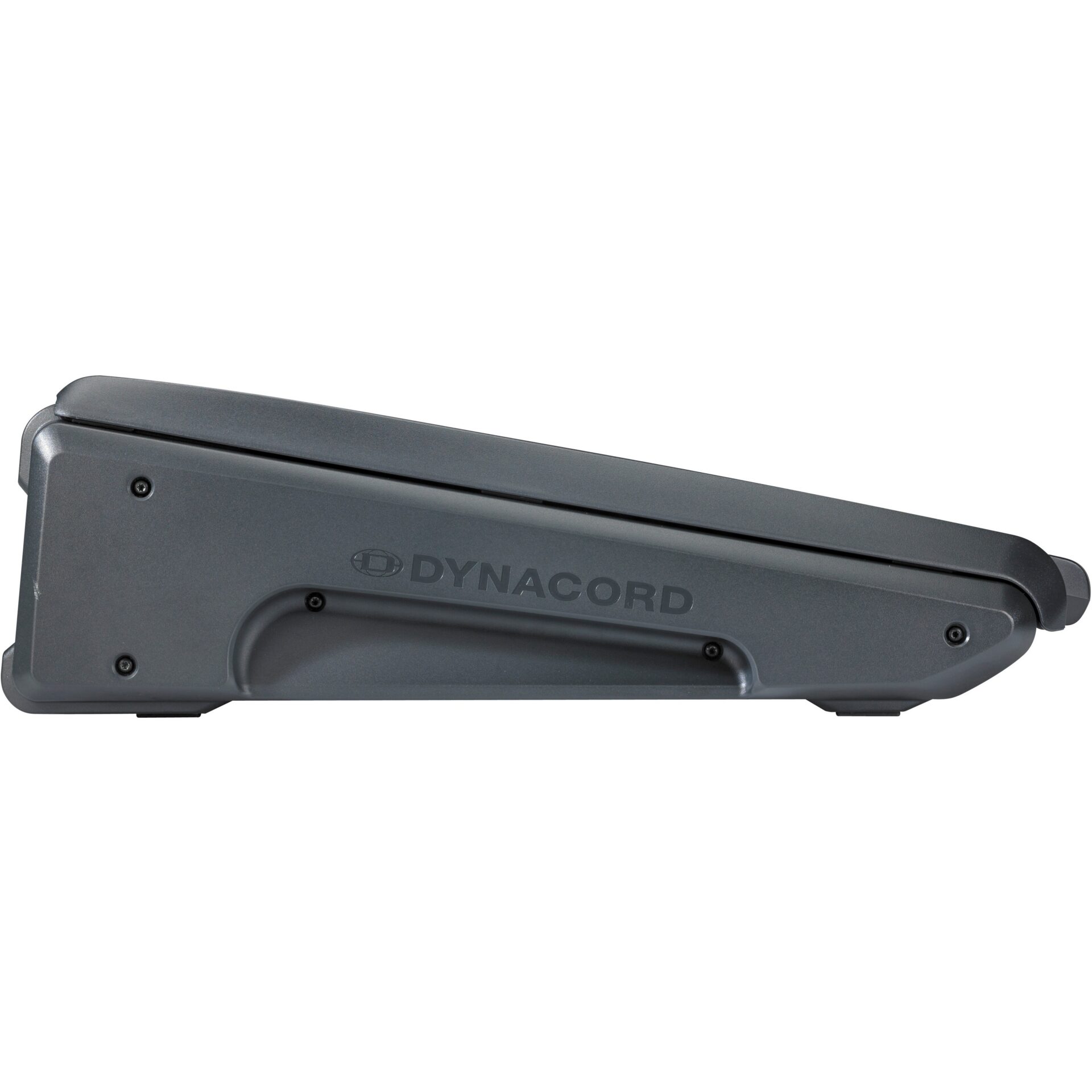

Dynacord Powermate 1600-3 16 Channel Power Mixer
16 input channels:
12x Mic/Line
4x Mic/Stereo-Line
6x AUX: 2 Pre, 2 post, 2 Pre/Post switch
Class D amplifier: 2x 1000W @ 4 Ohm (2x 1350W @ 2.7 Ohm)
2x FX-processoren: 100 factory and 20 user presets
USB interface:
4×4 24-bit/96 kHz
recording software
MIDI interface for fx
stereo EQ: main
OLED display
dimensions: 165 x 664 x 572mm
weight: 20 kg
