Description
Specifications
Product features
19 inches no
Number of auxiliaries 1 – 2
Number of microphone inputs 17 – 32
Number of mono channels 18
Number of stereo channels 4
Number of submasters none
Phantom power yes
Headphone output yes
Built-in audio interface USB (4×4 I/O)
Built-in audio player USB
Built-in effects yes
Built-in mixer effects reverb/delay/modulation, channel EQ, master EQ
Insert connectors 18 channels
Type of mixer inputs microphone input (XLR), balanced line input (TRS jack), unbalanced line input (RCA), Hi-Z input (TS jack)
Type of mixer studio / PA mixer
Type of mixer outputs balanced line output (XLR), balanced line output (TRS jack), unbalanced line output (RCA), stereo headphone output (TRS jack or mini jack)
Volume control knobs, faders, faders + knobs
Weight and dimensions including packaging
Weight (incl. packaging)17.5 kg
Dimensions (incl. packaging)86.0 x 64.0 x 26.0 cm
Product specifications

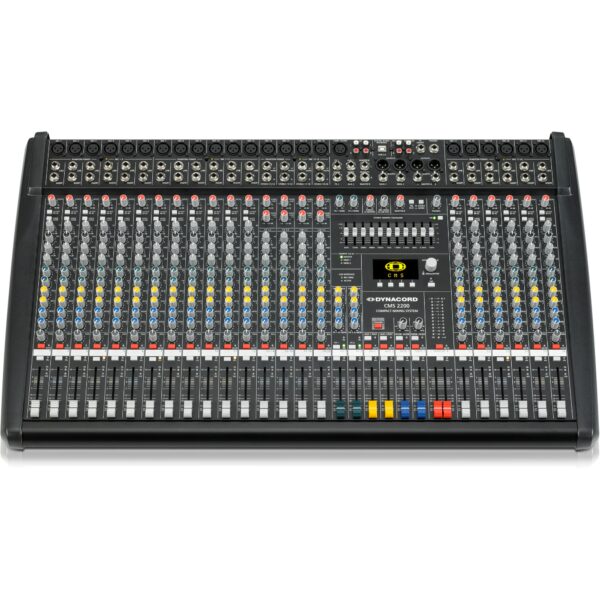

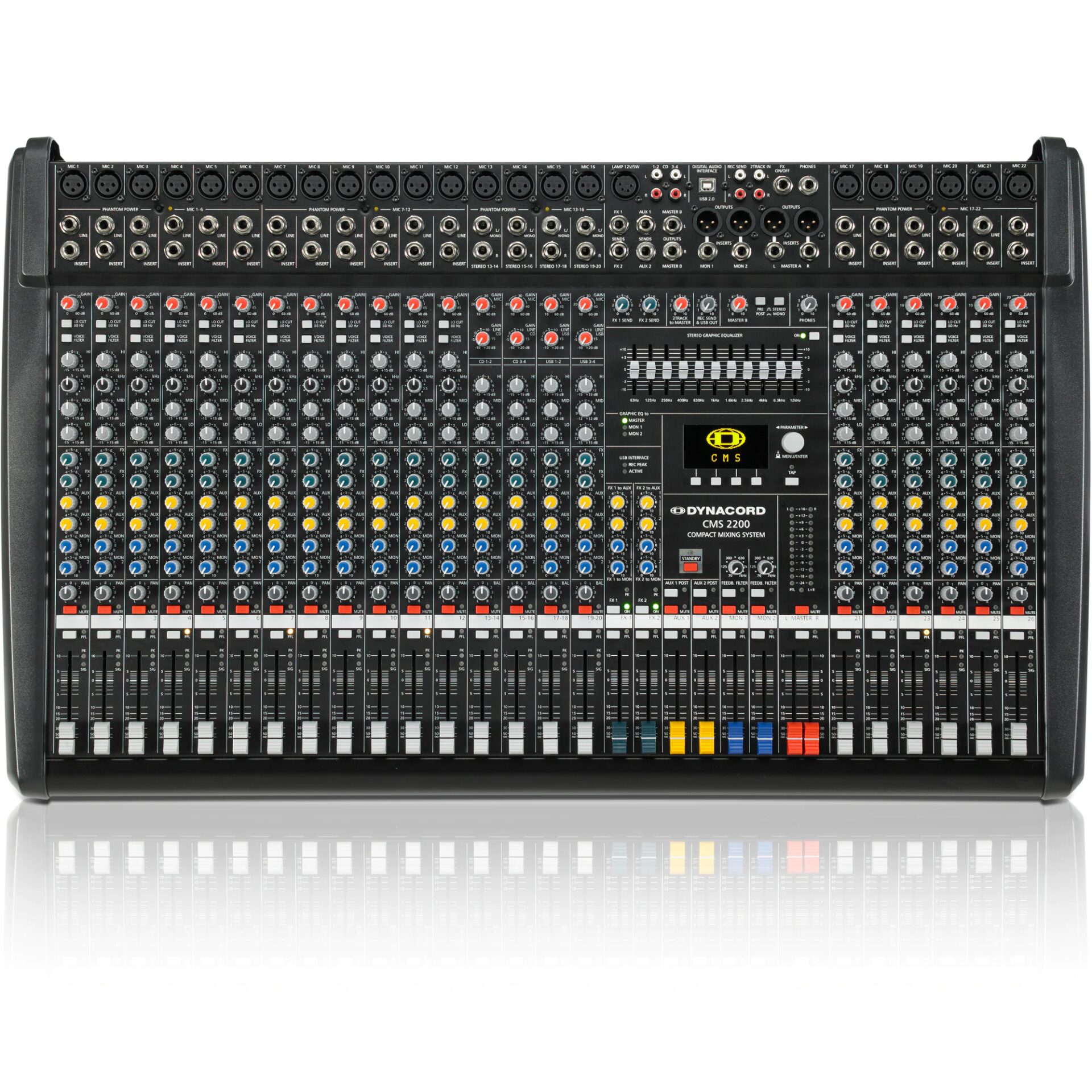

Dynacord CMS 2200-3
22-channel analogue mixer
OLED display (128 x 64 pixels)
equipped with +48V phantom power
24/48-bit multi-effects processor
11-band graphic EQ
USB interface for recording
connectors:
22x mic in (XLR, CH1 – 22)
18x line in (jack, CH1 – 12 and 17 – 22)
18x insert (jack, CH1 – 12 and 17 – 22)
8x stereo in (jack, L/R, CH 13 – 20)
2x FX in (jack, 1/2 sends)
2x AUX in (jack, 1/2 sends)
4-pin XLR (lamp, 12V/5W)
2x CD in (RCA, L/R 1 – 4)
REC send (RCA, L/R)
2Track in (RCA, L/R)
USB B
footswitch (jack)
headphones (jack)
8x output (4x XLR, 4x jack, L/R)
2x monitor out (jack, 1/2)
technical information
frequency response: 15 Hz – 70 kHz
THD: < 0.005%
interface: 24-bit, 44.1/48/88.2/96 kHz
dimensions: 498.5 x 818.5 x 155 mm
weight: 14.5 kg
