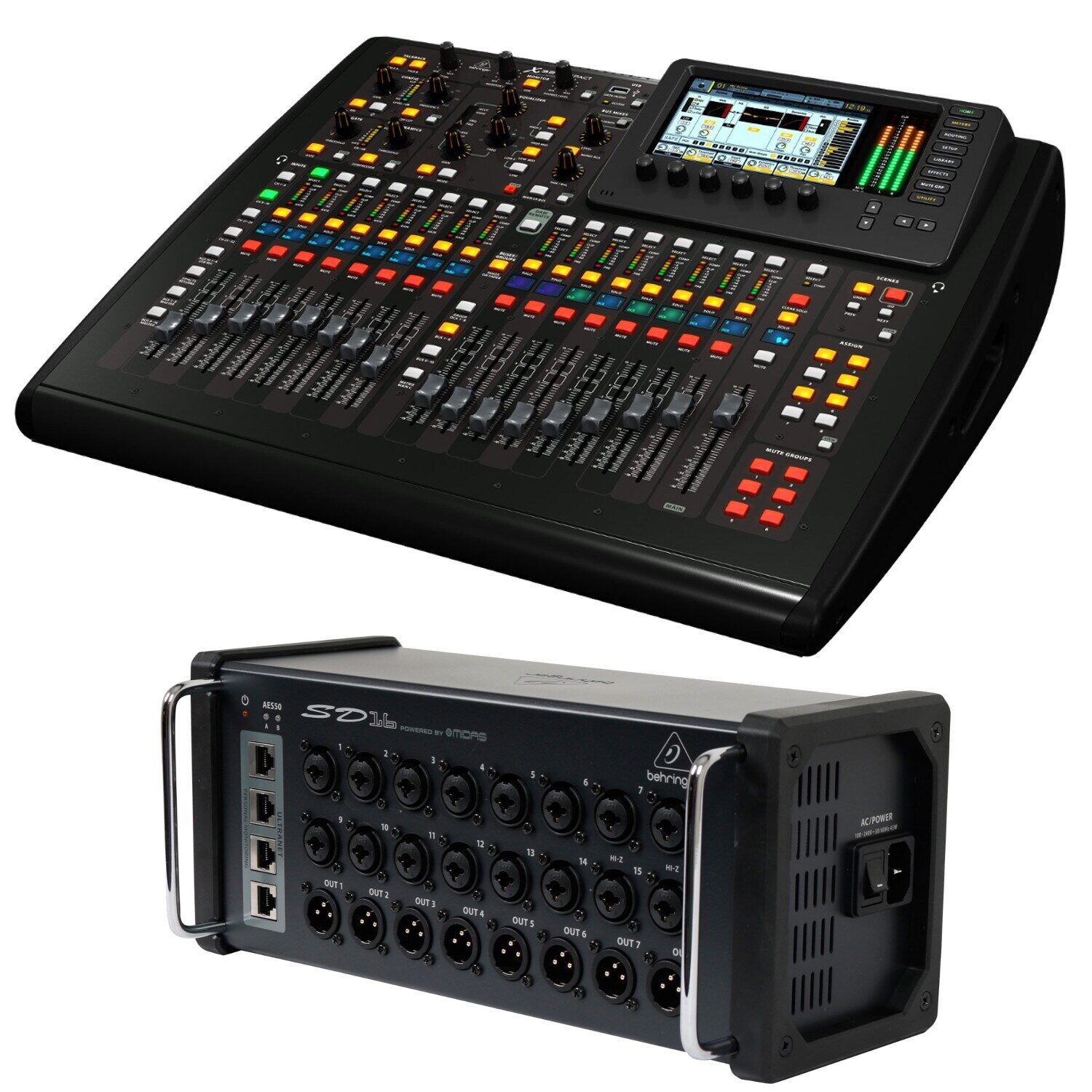

Behringer X32 Compact Digital Mixer 1x Behringer X32 Compact Digital Mixer
The smaller sibling of the ever popular Behringer X32, the Behringer X32 Compact might offer a few less faders, but bears a more slimline housing and the same processing power – perfect for space-poor studios and mobile engineers.
Product features
19 inches no
Number of analogue input channels 9 – 16
Number of analogue output channels 8
Number of channels 17-32
Number of microphone inputs 13 – 16
Category Sound & PA
Digital inputs AES50
Digital snake yes, available separately
Digital outputs AES/EBU (AES3), AES50, Ultranet
Dynamics compressor, gate
Equalizer 4-band with parametric mids, Master EQ
Input connector jack (6.3 mm), RCA, XLR
Built-in audio interface USB (multi track)
Built-in audio player USB
Built-in effects yes
Insert connectors no
Input level meters LED VU meter, via built-in display
Remote control via iPad, via iPhone, via Ethernet, via Wi-Fi
Connector position back
Type of display TFT, colour
Expansion possibilities ADAT expansion card, DANTE expansion card, MADI expansion card, USB interface expansion card, digitale snake, personal monitoring system
Output connector jack (6.3 mm), RCA, XLR (3-pin), XLR AES/EBU
Mixer power power cable
Volume control motorised faders
Weight and dimensions including packaging
Weight (incl. packaging)20.0 kg
Dimensions (incl. packaging)76.0 x 64.0 x 33.0 cm
Product specifications
Behringer X32 COMPACT digital mixer
number of channels:
32x input channels
8 aux channels
8 FX return channels
16x aux buses
6 matrices
main LRC
internal effects stereo/mono: 8/16
number of scenes (inc. preamp and Fader): 100
signal processing: 40-bit
A/D-D/A conversion: 24-bit at 44.1 / 48 kHz, 114dB dynamic range
local latency: 0.8 ms
network latency: 1.1 ms
connections:
XLR inputs: 16x (programmable MIDAS preamps)
XLR Talkback-input: 1x
RCA inputs/outputs: 2/2x
XLR outputs: 8x
TRS monitors: 2x (balanced)
TRS aux inputs/outputs: 6/6x
TRS headphone: 2x
AES/EBU output, XLR: 1x
AES50 SuperMAC: 2x
expansion slot: 32 channel audio input/output
P-16 Ultranet: 1x
MIDI inputs/outputs: 1/1x
RJ45 Ethernet: 1x
USB-A for audio and data: 1x
USB-B for system updates: 1x
microphone ports:
MIDAS preamp
max. input level: 23 dBu
phantom power, switchable: 48V
equivalent input noise level: -128dBu
frequency response: 10Hz – 22kHz
display:
display screen: 7 inch, 800 x 480, 262k colour TFT
channel LCD screen: 128 x 64, LCD with RGB colour backlight
Main-meter: 24-segments (-57dB to clip)
power: 100-240V (50/60Hz)
power consumption: 120W
operating temperature: 5°C – 40°C (41°F – 104°F)
dimensions (W x D x H): 62.5 x 51.0 x 21.5cm
weight: 15.4 kg
Behringer SD16 Digital Snake I/O multi 1x Behringer SD16 Digital Snake I/O multi
The Behringer SD16 I/O stage box is for operating remote-controlled Midas preamps at a distance. It has 8 outputs, an EAS50 network connection and an Ultranet personal monitoring hub.
Product features
19-inch rack size4U
Number of analogue input channels9 – 16
Number of analogue output channels8
Weight and dimensions including packaging
Weight (incl. packaging)4.3 kg
Dimensions (incl. packaging)38.4 x 21.1 x 19.0 cm
Product specifications
I/O box
16x remote-controlled Midas preamps
8x analogue XLR outputs
2x AES-3 network ports (AES/EBU)
remote operation up to 100m via CAT-5E cable (not included)
AES50 port
Klark Teknik SuperMAC for low latency
4-port Ultranet distribution hub
USB connector for system updates via PC
very robust housing
full-metal chassis
digital audio and control connectivity for Turbosound IQ speaker system
rack handles and shockproof bumpers for installation and mobile applications
