Description
Specifications

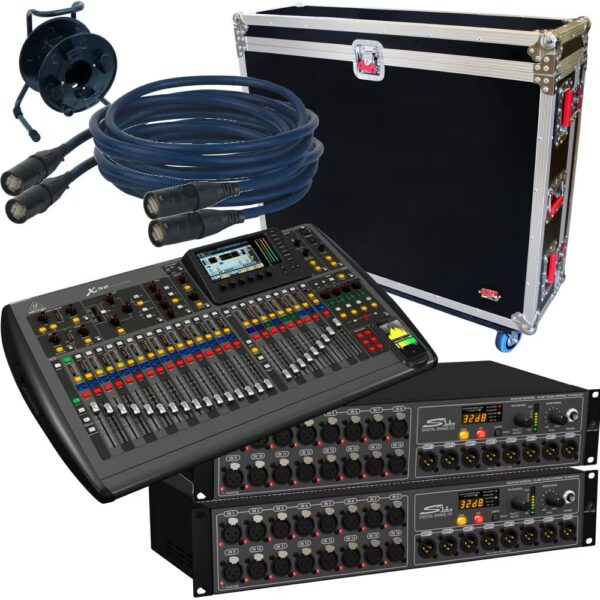

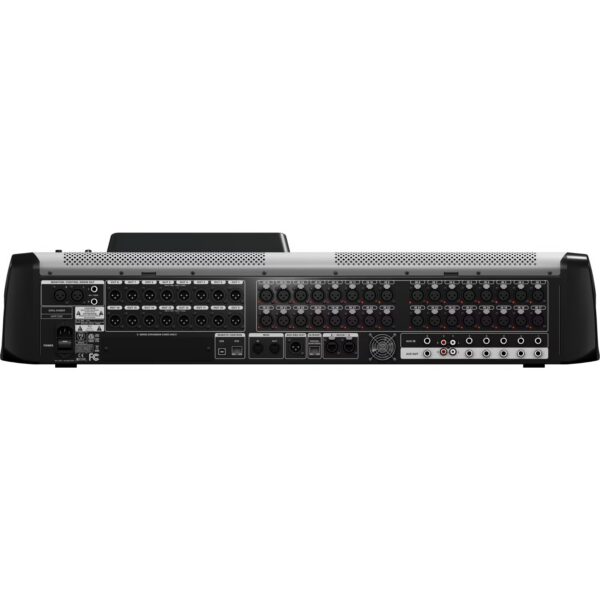

Behringer X32 digital mixer and USB MIDI controller 1x Behringer X32 digital mixer and USB MIDI controller
The Behringer X32 is a 32-channel, 16-bus, digital mixer for studio and live purposes. It has everything you desire: 32 analogue inputs, 6 aux, motorized faders, and more. It also functions as a MIDI controller.
Product features
19 inches no
Number of analogue input channels 25 – 32
Number of analogue output channels 17 – 24
Number of channels 17-32
Number of microphone inputs 17 – 32
Digital inputs AES50
Digital snake yes, available separately
Digital outputs AES/EBU (AES3), AES50, Ultranet
Dynamics compressor, expander, gate
Equalizer 4-band parametric, Master EQ
Input connector jack (6.3 mm), RCA, XLR
Built-in audio interface USB (multi track), FireWire
Built-in audio player USB
Built-in effects yes
Insert connectors no
Input level meters LED VU meter, via built-in display
Remote control via iPad, via iPhone, via Ethernet, via Wi-Fi
Connector positiontop
Type of display TFT, colour
Expansion possibilities ADAT expansion card, DANTE expansion card, MADI expansion card, USB interface expansion card, digitale snake, personal monitoring system
Output connector jack (6.3 mm), RCA, XLR (3-pin), XLR AES/EBU
Mixer power power cable
Volume control motorised faders
Weight and dimensions including packaging
Weight (incl. packaging)28.7 kg
Dimensions (incl. packaging)102.0 x 66.0 x 32.0 cm
Product specifications
– digital mixer
– 32 channels
– fully programmable high-end microphone preamplifiers
– 16 mix buses, configurable as sub groups
– main LCR and all 16 mix buses feature inserts and 6-band parametric EQs
– dynamics processing per mix bus including main LCR
– 16 analogue XLR outputs plus 6 additional line in- and outputs
– 2 headphone outputs
– talkback section with integrated or external microphone
– suited for 48-channel digital snake via AES50 ports
– Klark Teknik’s SuperMAC networking capability
– built-in expansion slot for Firewire/USB/ADAT card
– suited for 16-channel stand-alone recorder or other networking interfaces
– virtual effect rack with 8 stereo FX slots
– high-grade simulations of famous external gear
– Klark Teknik DN780 and EMT250 simulations included
– 40-bit floating-point DSP with ‘unlimited’ dynamic range
– AD/DA conversion: 24-bit (44.1/48 kHz)
– no internal overload and near-zero latency between in- and outputs
– 6 mute groups and 8 DCA groups on 8 assigned 100 mm motorised faders
– user-friendly interface and assigned channel strip section
– direct access to all buttons for intuitive use
– 7-inch coloured TFT with high resolution
– associated buttons and individual RGB-illuminated graphic LCDs for every channel
– 25 motorised 100 mm faders
– elaborate channel strip plus assigned, user-definable control section
– USB flash connector for file storage of uncompressed recordings
– show presets and system updates via USB
– connectivity for Behringer Powerplay 16
– AES/EBU stereo digital output
– MIDI
– 6 independent matrix mix buses with inserts, 6-band parametric EQ
– dynamic processing on the matrix mix buses
– adjustable line delays available for every physical in- and output
– network control or show setups with Remote Editor software via USB and Ethernet (included)
– powerful scene management for simplifying complex productions
– power consumption: 120 watts
– weight: 20.6 kg
Behringer Digital Snake S16 digital IO break-out box 2x Behringer Digital Snake S16 digital IO break-out box

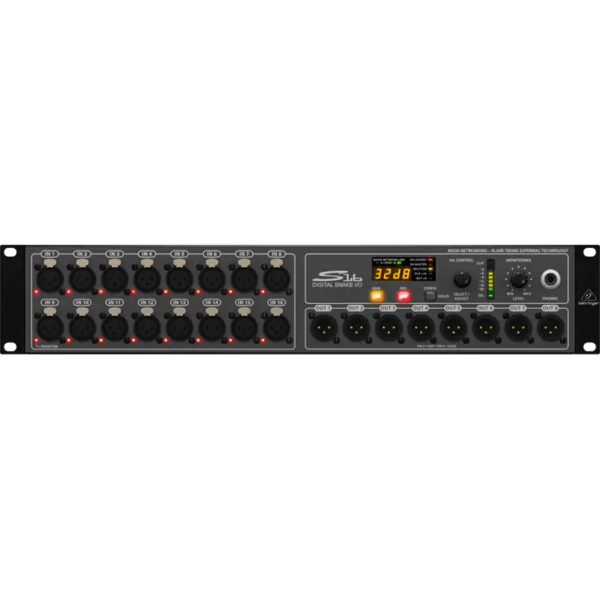

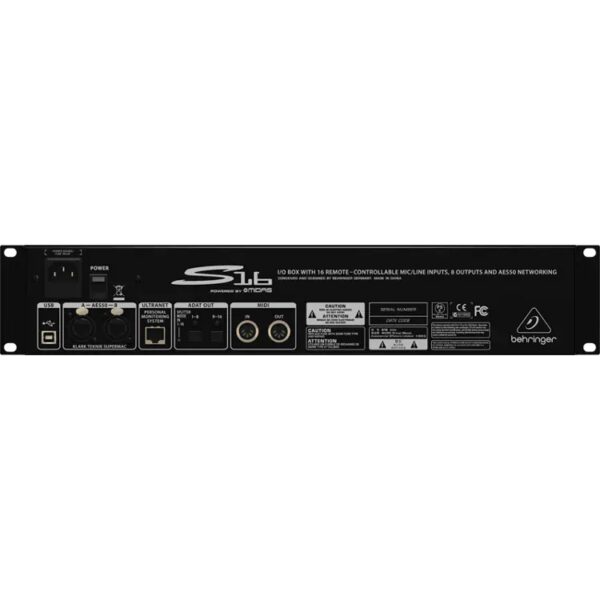

The Behringer S16 Digital Snake is a digital break-out box with which signals can be transferred to a stable, disturbance-free network connection via AES50. It has 16 inputs and 8 outputs!
Product features
19-inch rack size2U
Number of analogue input channels9 – 16
Number of analogue output channels8
Weight and dimensions including packaging
Weight (incl. packaging)5.9 kg
Dimensions (incl. packaging)54.6 x 30.6 x 15.0 cm
Product specifications
– digital snake for the X32 mixer, among others
– works via AES50 protocol
– 16 input with microphone preamps, remote-controllable
– 8 output, servo-balanced
– AES50 protocol via Klark Teknik SuperMac technology
– very low latency (fit for in-ear monitoring)
– distances of up to 100 metres achievable via CAT-5e
– no routers required, extra outputs for several S-16 or AES50 devices
– several S-16 snakes can be used simultaneously (for 32 in, 16 out applications)
– precise LED VU meter for on-stage signal checking
– headphones output, assignable to each of the 8 outputs
– equipped with connector for Behringer P-16 system
– double ADAT outputs for use in splitter mode and stand-alone multi-core use
– MIDI in and output for bidirectional communication between FOH console and MIDI equipment
– USB connector for system updates via computer
– ‘Planet earth’ switching power supply, 100-240V AC, noise-free, stable, energy efficient
– robust housing
– 19-inch, 2U build-in height
Gator Cases G-TOUR X32 Flight Case for X32 1x Gator Cases G-TOUR X32 Flight Case for X32

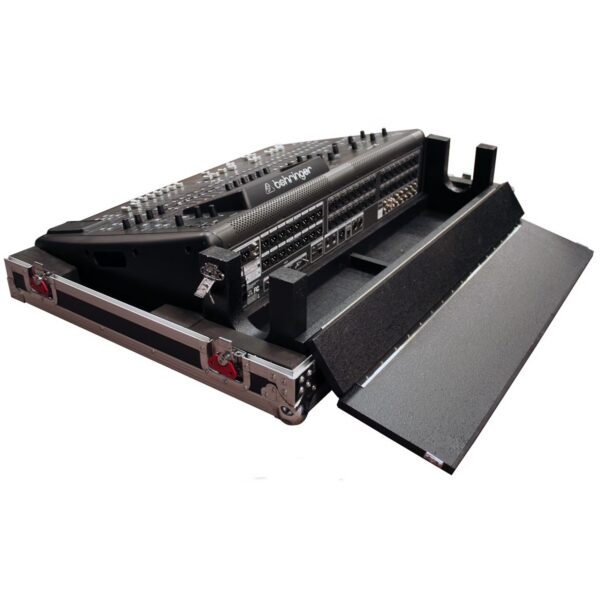

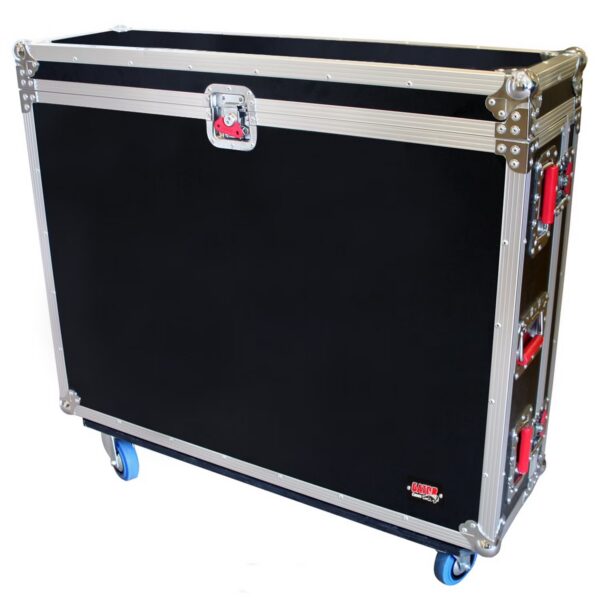

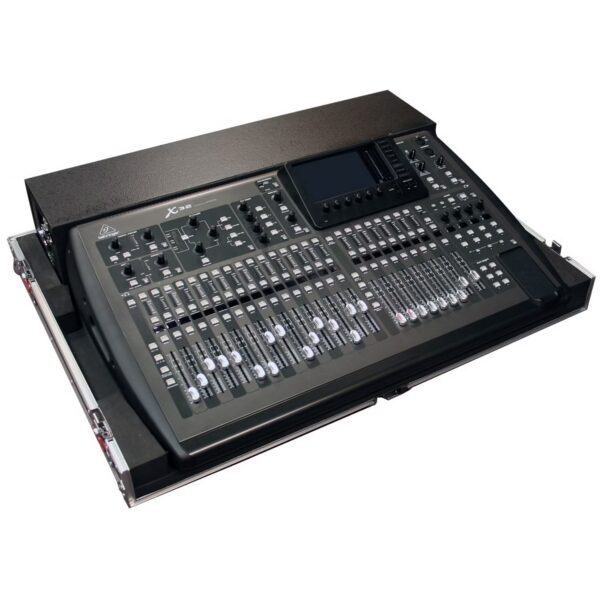

The highly durable Gator G-TOUR X32 is a safe haven for your valuable Behringer X32 digital mixer. This sizeable flight case is made-to-measure, highly robust and fitted with wheels.
Weight and dimensions including packaging
Weight (incl. packaging)45.1 kg
Dimensions (incl. packaging)106.0 x 87.5 x 38.0 cm
Product specifications
durable flightcase for Behringer X32
perfect fit
housing of 9mm plywood
rear can be folded open to connect cables
supply rotating wheels for easy transport
interior with soft Ultra-Dur EVA foam
colour: black
interior dimensions: 902 x 531 x 203 mm
exterior dimensions: 927 x 1008 x 279 mm
weight: 44.45 kg
DAP CAT5e cable 20 m 1x DAP CAT5e cable 20 m

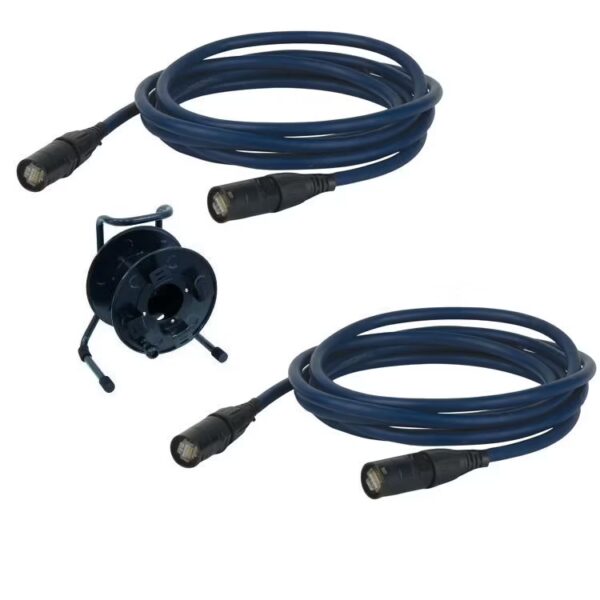

CAT5e cable by DAP Audio – 20m long, professional Ethernet cable with Neutrik Ethercon connectors.
Product features
Length20.00 m
Type of data connectorRJ-45 EtherCON (not the regular RJ45!)
Type of UTP cableCAT5e
Weight and dimensions including packaging
Weight (incl. packaging)300 gr
Dimensions (incl. packaging)17.0 x 17.0 x 6.0 cm
Product specifications
CAT5e
Ethernet cable
with Neutrik Ethercon connectors
length: 20 metres
colour: blue
DAP CAT5e cable 6 m 1x DAP CAT5e cable 6 m
CAT5e cable by DAP Audio, 6m long.
Product features
Length6.00 m
Type of data connectorRJ-45 EtherCON (not the regular RJ45!)
Type of UTP cableCAT5e
Weight and dimensions including packaging
Weight (incl. packaging)267 gr
Dimensions (incl. packaging)20.0 x 20.0 x 20.0 cm
Product specifications
CAT5e
Ethernet cable
with Neutrik Ethercon connectors
6 m
colour: blue
DAP empty cable drum including mounting panels black 1x DAP empty cable drum including mounting panels black
The quality of your cabling is essential for the quality of your installation. To ensure great cabling, DAP have developed these empty cable drums that you can fill as you please. They will help you keep your cabling in pitch-perfect order!
Weight and dimensions including packaging
Weight (incl. packaging)5.5 kg
Dimensions (incl. packaging)40.0 x 40.0 x 30.0 cm
Product specifications
black exterior
durable iron frame
4 mounting panels (to make custom-size multi-cables)
brake system, prevents unintentional unwinding
rubber feet prevent sliding
smooth rolling system
colour: black
2 carrying handles
diameter: 27 cm
weight: 4.4 kg
dimensions: 300 x 250 x 375 mm
