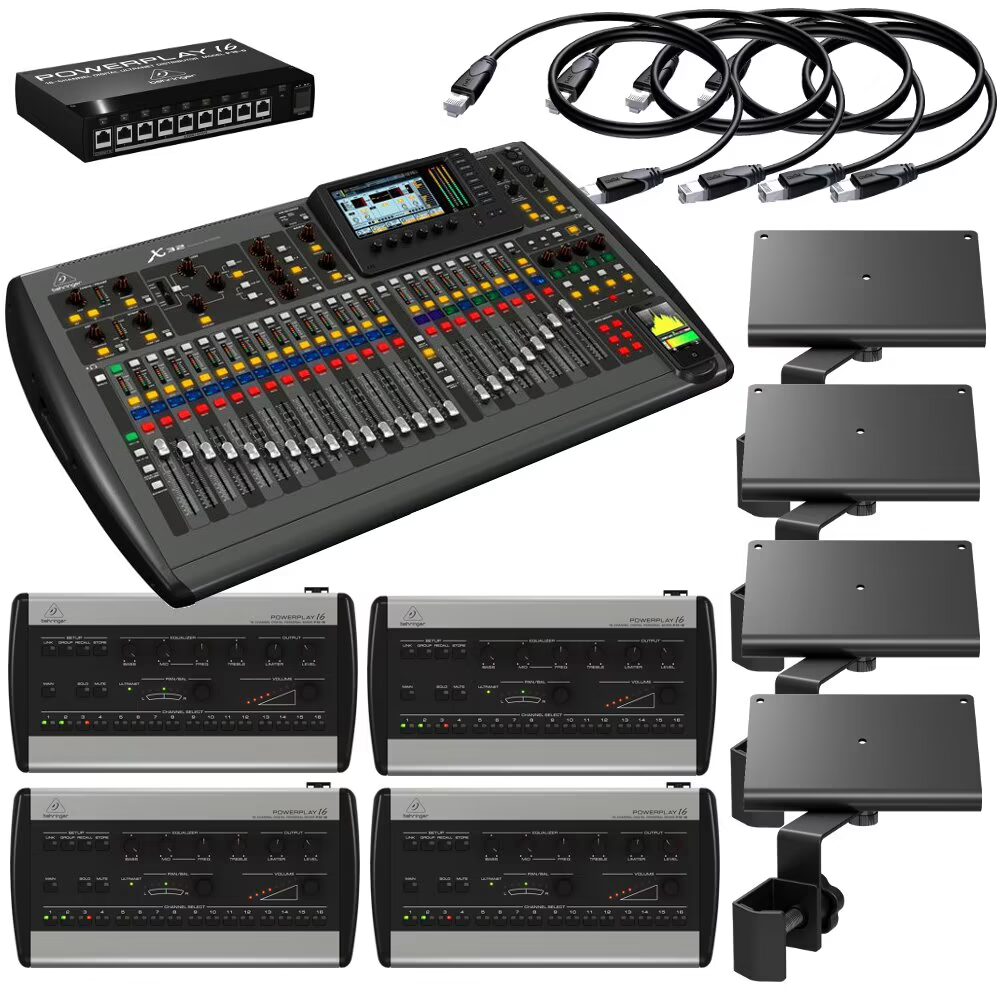

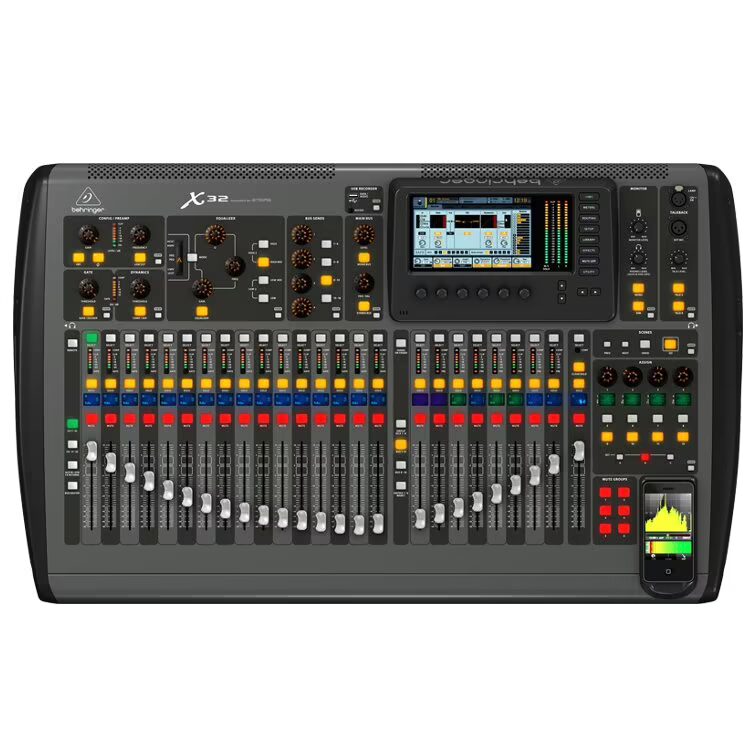

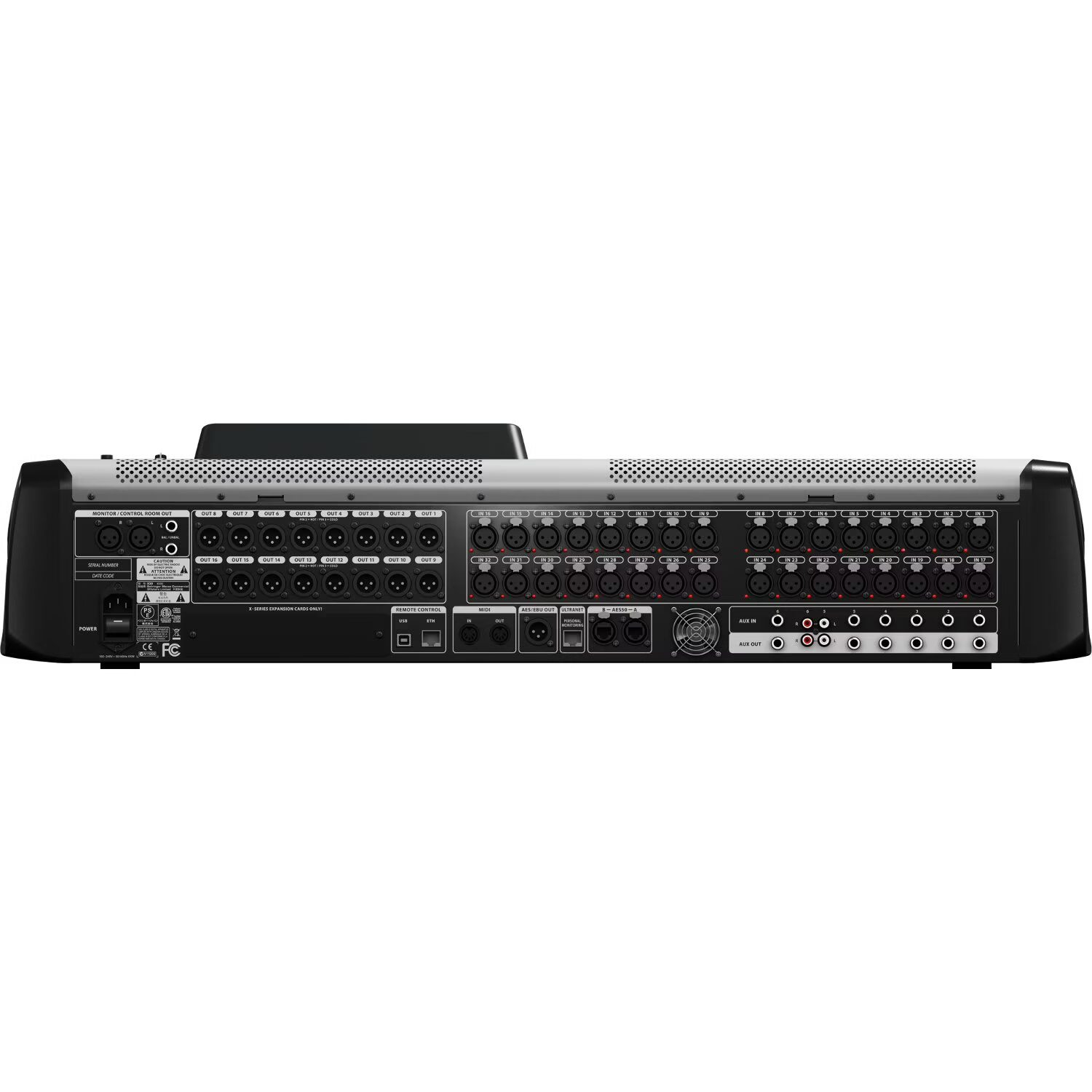

Behringer X32 digital mixer and USB MIDI controller 1x Behringer X32 digital mixer and USB MIDI controller
The Behringer X32 is a 32-channel, 16-bus, digital mixer for studio and live purposes. It has everything you desire: 32 analogue inputs, 6 aux, motorized faders, and more. It also functions as a MIDI controller.
Product features
19 inches no
Number of analogue input channels 25 – 32
Number of analogue output channels 17 – 24
Number of channels 17-32
Number of microphone inputs 17 – 32
Digital inputs AES50
Digital snake yes, available separately
Digital outputs AES/EBU (AES3), AES50, Ultranet
Dynamics compressor, expander, gate
Equalizer 4-band parametric, Master EQ
Input connector jack (6.3 mm), RCA, XLR
Built-in audio interface USB (multi track), FireWire
Built-in audio player USB
Built-in effects yes
Insert connectors no
Input level meters LED VU meter, via built-in display
Remote control via iPad, via iPhone, via Ethernet, via Wi-Fi
Connector positiontop
Type of display TFT, colour
Expansion possibilities ADAT expansion card, DANTE expansion card, MADI expansion card, USB interface expansion card, digitale snake, personal monitoring system
Output connector jack (6.3 mm), RCA, XLR (3-pin), XLR AES/EBU
Mixer power power cable
Volume control motorised faders
Weight and dimensions including packaging
Weight (incl. packaging)28.7 kg
Dimensions (incl. packaging)102.0 x 66.0 x 32.0 cm
Product specifications
– digital mixer
– 32 channels
– fully programmable high-end microphone preamplifiers
– 16 mix buses, configurable as sub groups
– main LCR and all 16 mix buses feature inserts and 6-band parametric EQs
– dynamics processing per mix bus including main LCR
– 16 analogue XLR outputs plus 6 additional line in- and outputs
– 2 headphone outputs
– talkback section with integrated or external microphone
– suited for 48-channel digital snake via AES50 ports
– Klark Teknik’s SuperMAC networking capability
– built-in expansion slot for Firewire/USB/ADAT card
– suited for 16-channel stand-alone recorder or other networking interfaces
– virtual effect rack with 8 stereo FX slots
– high-grade simulations of famous external gear
– Klark Teknik DN780 and EMT250 simulations included
– 40-bit floating-point DSP with ‘unlimited’ dynamic range
– AD/DA conversion: 24-bit (44.1/48 kHz)
– no internal overload and near-zero latency between in- and outputs
– 6 mute groups and 8 DCA groups on 8 assigned 100 mm motorised faders
– user-friendly interface and assigned channel strip section
– direct access to all buttons for intuitive use
– 7-inch coloured TFT with high resolution
– associated buttons and individual RGB-illuminated graphic LCDs for every channel
– 25 motorised 100 mm faders
– elaborate channel strip plus assigned, user-definable control section
– USB flash connector for file storage of uncompressed recordings
– show presets and system updates via USB
– connectivity for Behringer Powerplay 16
– AES/EBU stereo digital output
– MIDI
– 6 independent matrix mix buses with inserts, 6-band parametric EQ
– dynamic processing on the matrix mix buses
– adjustable line delays available for every physical in- and output
– network control or show setups with Remote Editor software via USB and Ethernet (included)
– powerful scene management for simplifying complex productions
– power consumption: 120 watts
– weight: 20.6 kg

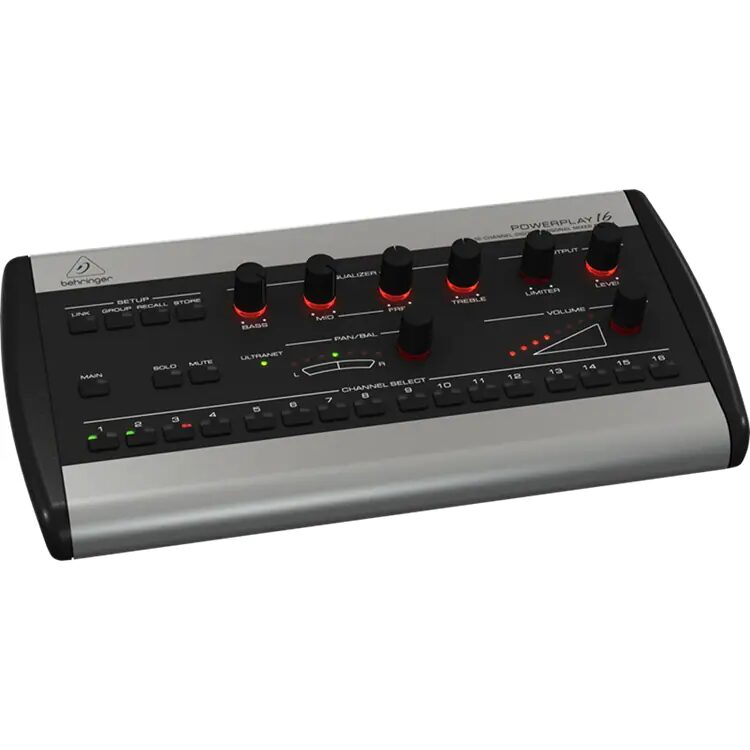

Behringer Powerplay16 P16-M mixer 4x Behringer Powerplay16 P16-M mixer
The P16-M Behringer is part of the Powerplay 16 series. With this 16-channel digital mixer a musician can adjust his or her own sound.
Product features
Number of headphone outputs1
Netwrok functionyes
Type of personal mixer inputsnot applicable
Type of personal mixer outputsdual mono line (2x TRS), mono line (TRS)
Can be powered by batteryno
Power adapterungrounded flat Europlug
Weight and dimensions including packaging
Weight (incl. packaging)1.5 kg
Dimensions (incl. packaging)37.0 x 18.0 x 10.0 cm
Product specifications
16-channel stereo mixer for your personal monitor mix
intuitive ‘analogue’ technology with complete recall and 16 presets
high-quality 24-bit D/A converters for premium sound quality
16-channel Channel Select buttons with double LEDs
Level and Pan/Spread buttons per channel with LED meter
3-band EQ per channel with midband frequency regulation
Solo and Mute functions per channel
Global Level and EQ regulations plus PanicMute function
high-capacity and drum-resistant headphone output
completely adjustable limiter protects your ears and headphones
extra mono/stereo input for active monitor speakers
MIDI IN port for real-time configuration of all channels with external MIDI devices
standard CAT5e connection provides power and 16 signals to each P-16M
Ultranet-connector in order to daisy-chain up to 48 P16-Ms in large systems
very low system latency, less than 1 millisecond
power via external PSU (included) or P16-I/P16-D
easy to attach to a microphone stand with the optional P-16MB

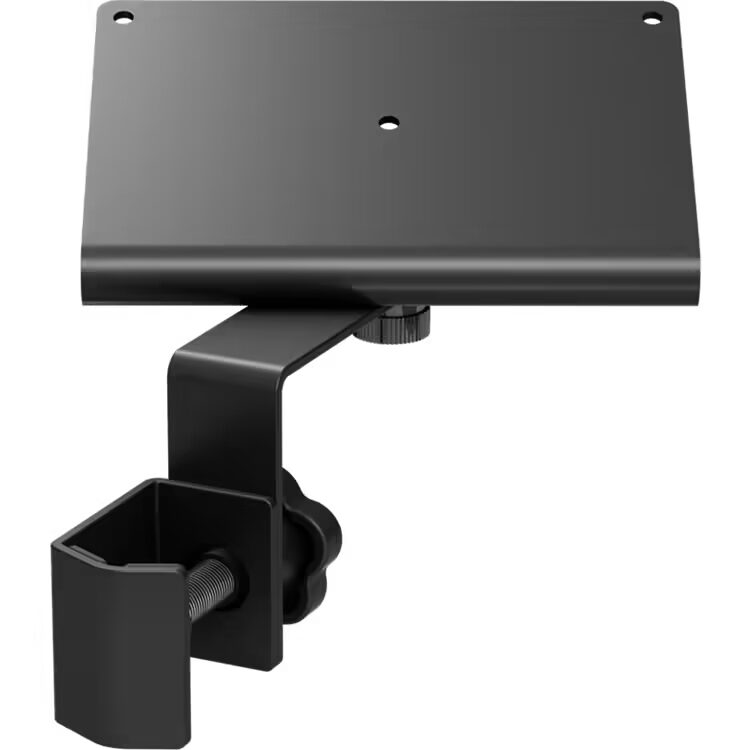

Behringer Powerplay 16 P16-MB mounting bracket
4x Behringer Powerplay 16 P16-MB mounting bracket
The P16-MB is part of Behringer’s Powerplay 16 series. It is a mounting bracket that enables you to mount the P16-M on a mic stand, for instance.
Weight and dimensions including packaging
Weight (incl. packaging)854.5 gr
Dimensions (incl. packaging)23.0 x 15.0 x 6.0 cm
Product specifications
mounting bracket
suited for the P-16M
can be mounted on any microphone, music or drum stand

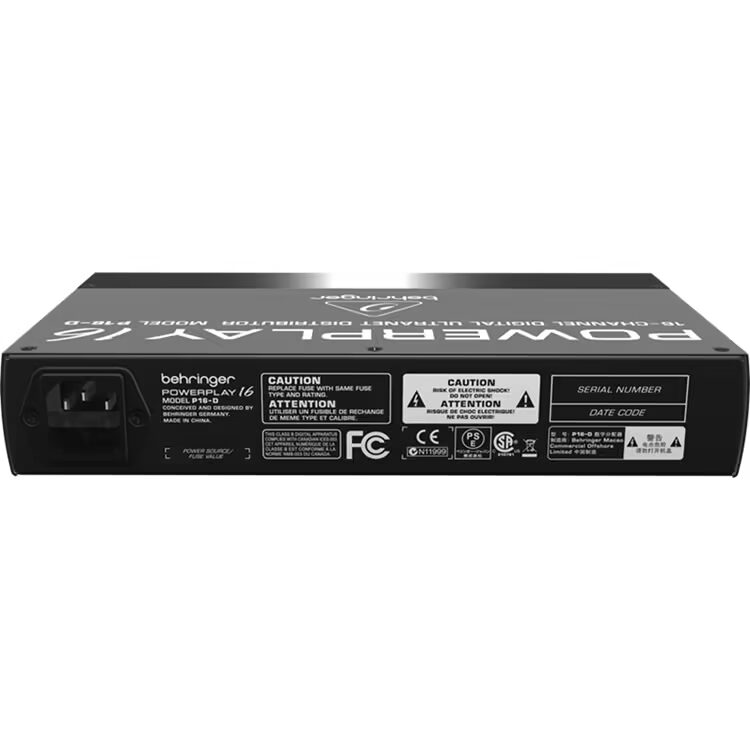

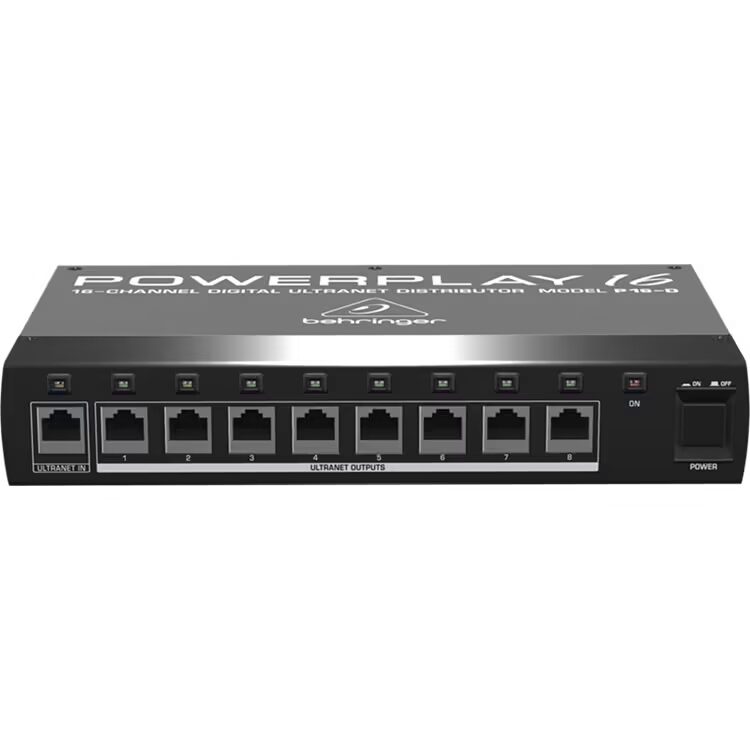

Behringer Powerplay 16 P16-D Ultranet distributor 1x Behringer Powerplay 16 P16-D Ultranet distributor
Behringer’s P16-D is a 16-channel digital Ultranet distributor from the the Powerplay 16 line.
Product features
Number of headphone outputs0
Netwrok functionyes
Type of personal mixer inputsnot applicable
Type of personal mixer outputsnot applicable
Can be powered by batteryno
Weight and dimensions including packaging
Weight (incl. packaging)1.8 kg
Dimensions (incl. packaging)30.5 x 25.5 x 10.0 cm
Product specifications
Ultranet distributor
distribution hub for P16-I
1 Ultranet input feeds 8 Ultranet outputs
bus power and 16-channel signal overview for all 8 outputs
can combine up to 6x P16-Ds for up to 48x P-16Ms
LED status indicators for 1x RJ-45 input and 8x outputs
internal auto range power (100~240)

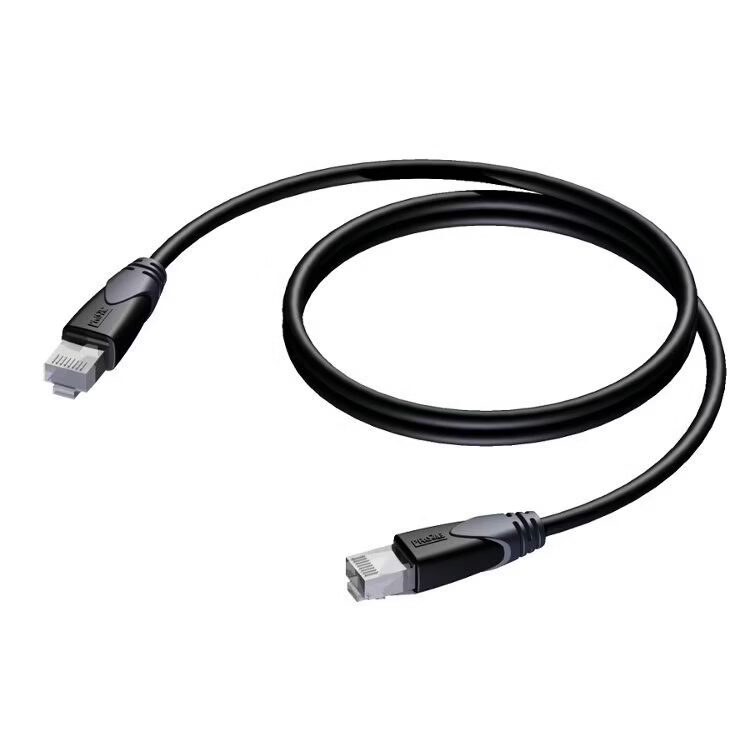

Procab CLD500 CAT5 UTP cable 10 m 5x Procab CLD500 CAT5 UTP cable 10 m
This Procab cable is suitable for various network applications. Data transfer and Ethernet connections are no problem for the CLD500. It features universal RJ45 plugs.
Product features
Length10.00 m
Type of data connectorRJ-45 / Ethernet / EtherCON
Type of UTP cableCAT5
Weight and dimensions including packaging
Weight (incl. packaging)400 gr
Dimensions (incl. packaging)23.0 x 16.0 x 7.0 cm
Product specifications
UTP data cable
suitable for internet applications and data transfer
connectors: RJ45
cable type: CAT50B
cable length: 10 m
colour: black
