Speaker connections XLR input
Active or passive active
Tweeter diameter 1 inch
Woofer diameter 1 x 8 inches + 1 x 4 inches
Maximum frequency 21 – 21.9 kHz
Minimum frequency 35 – 39 Hz
Monitor set single speaker
RMS power in watts 200 – 349 W
Type of studio monitor 3-way (tweeter + midrange + woofer)
Weight and dimensions including packaging
Weight (incl. packaging)16.2 kg
Dimensions (incl. packaging)58.0 x 40.0 x 37.0 cm
Product specifications
Right version

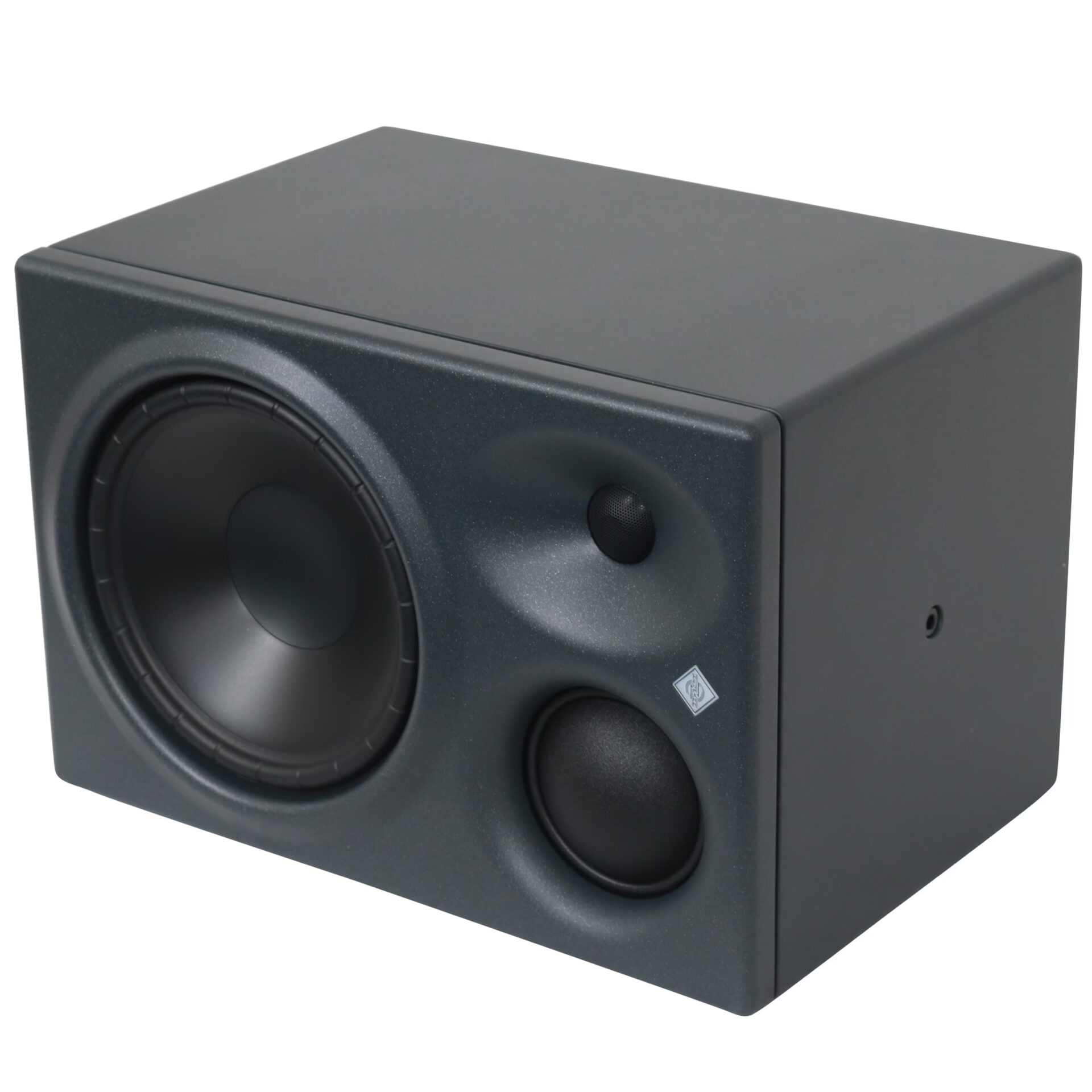

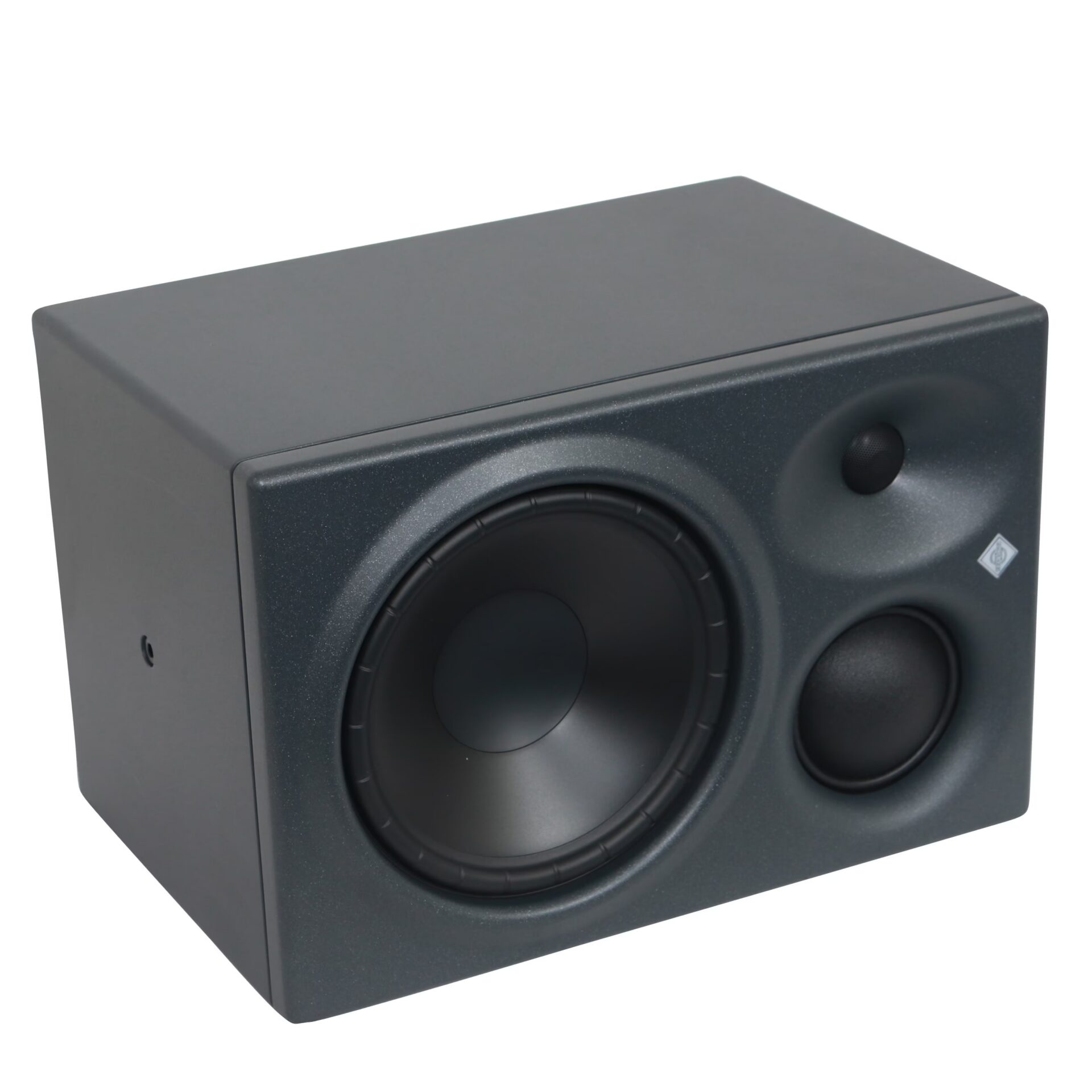

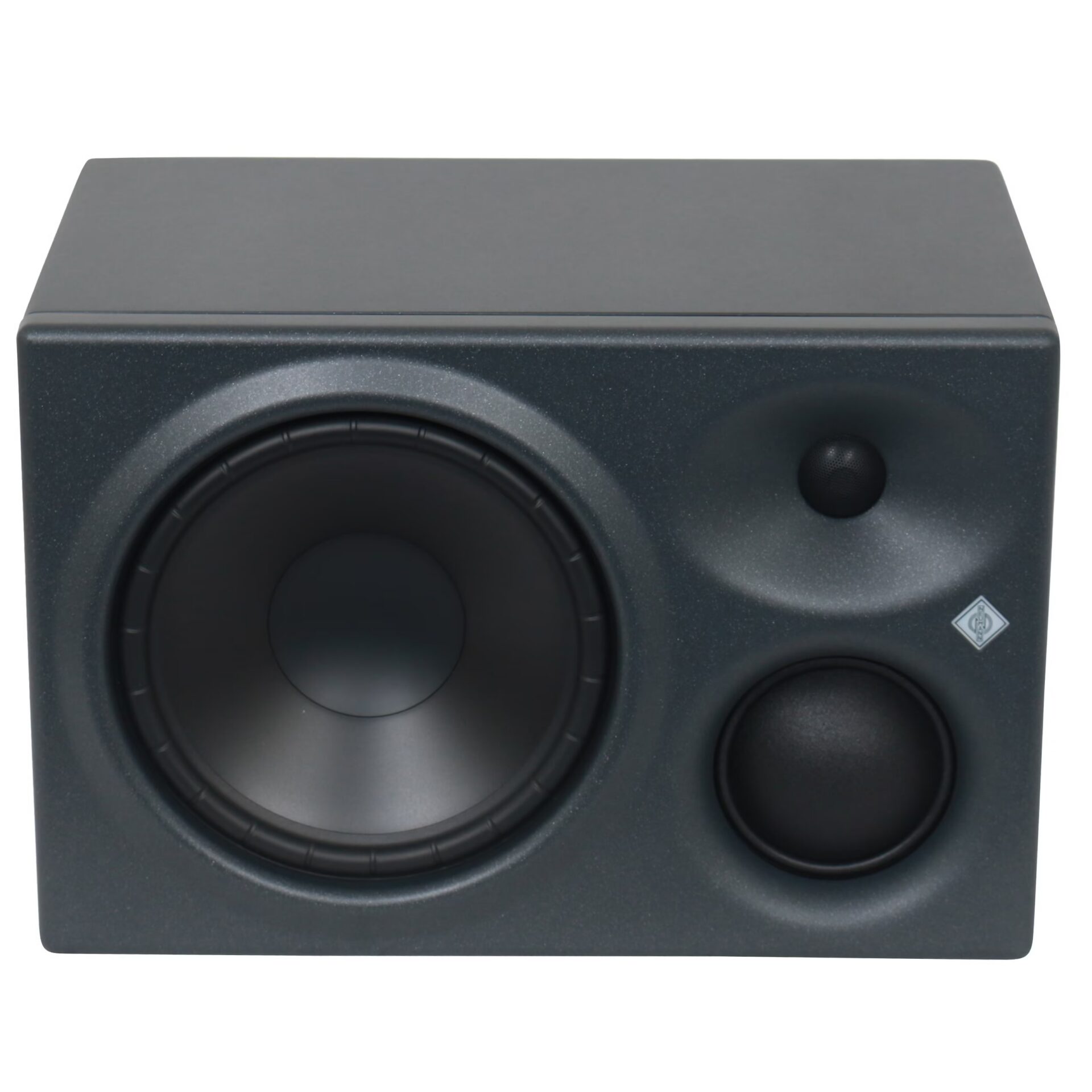

Active studio monitor with 3-way speaker system

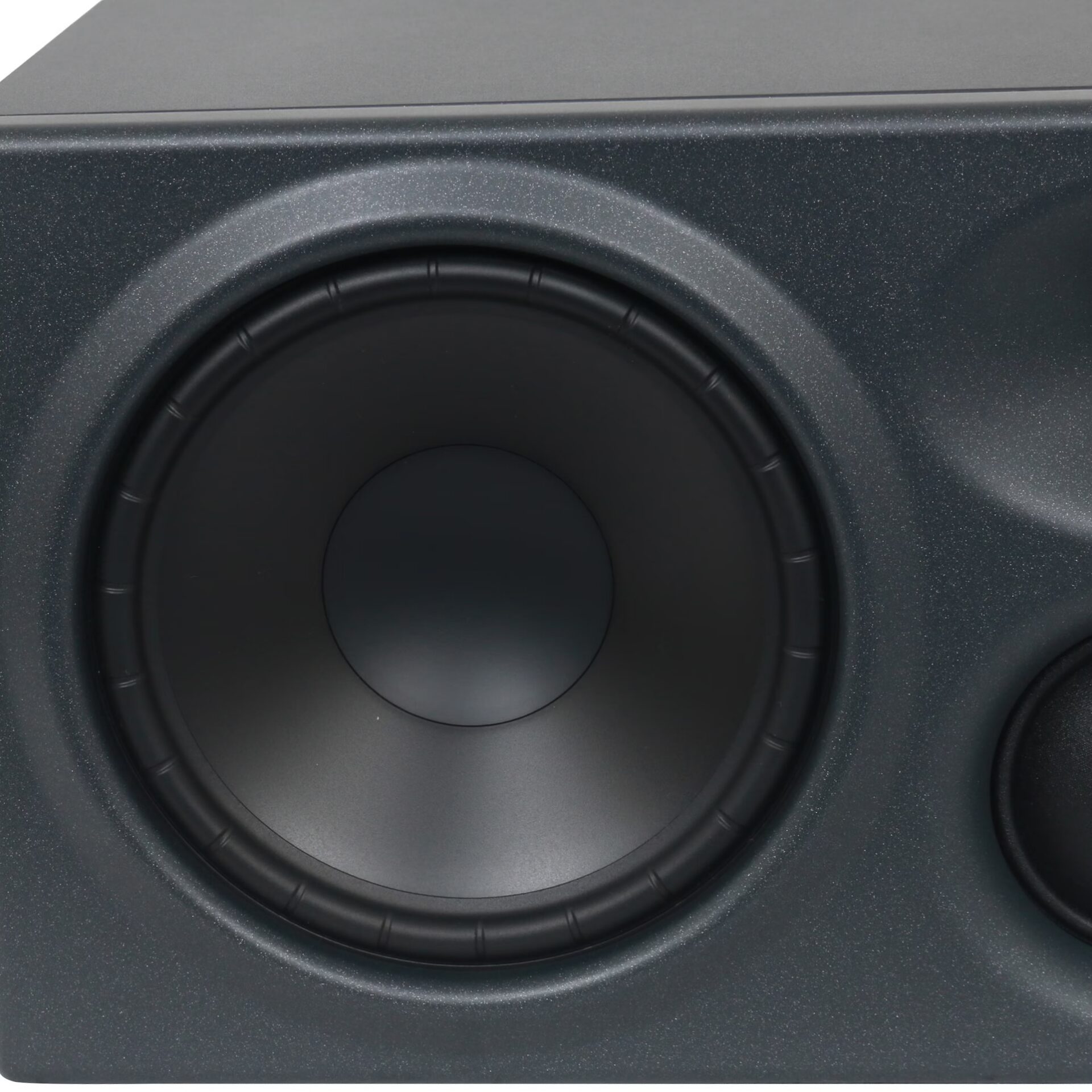

8¼-inch woofer with composite sandwich-diaphragm construction

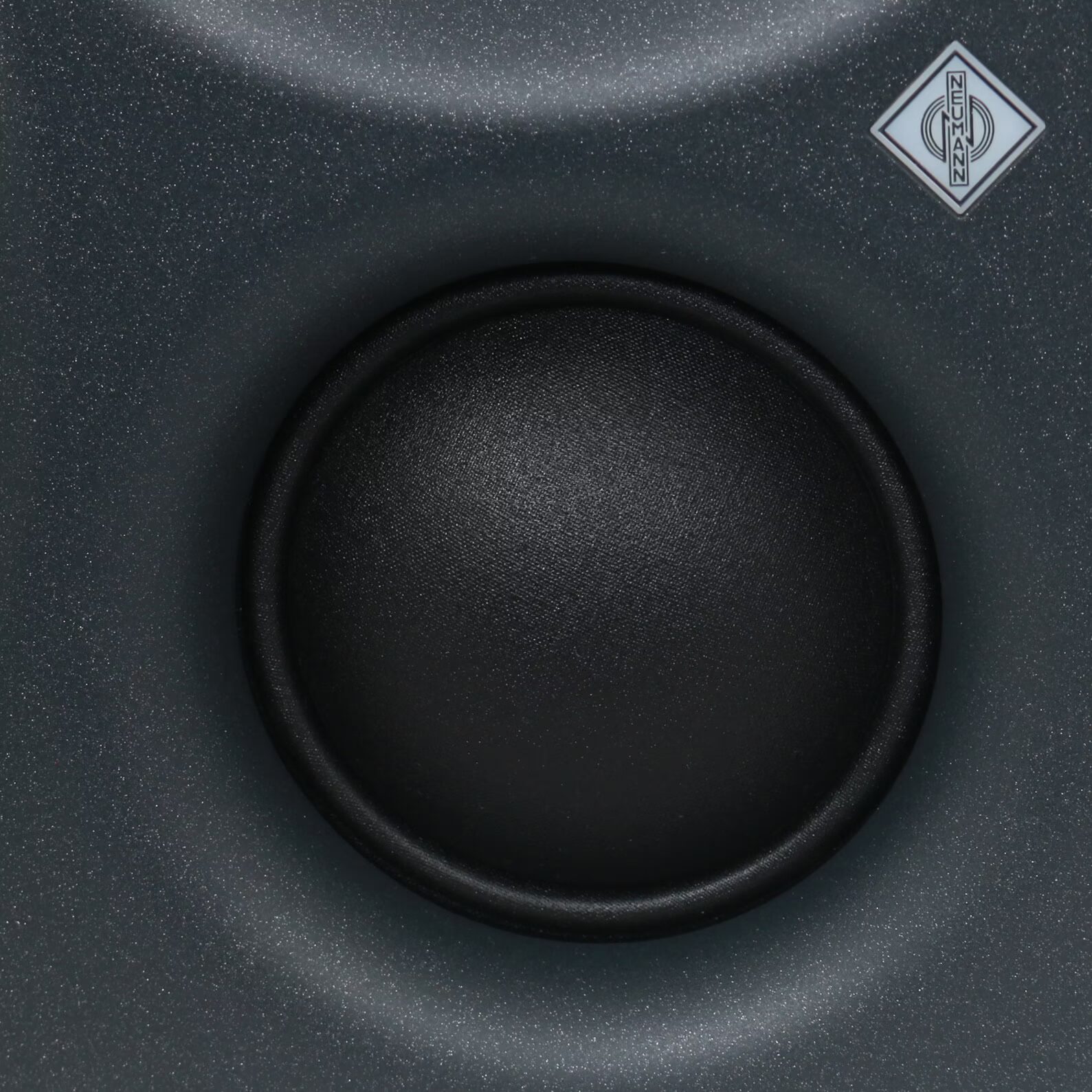

3-inch soft dome mid-range driver

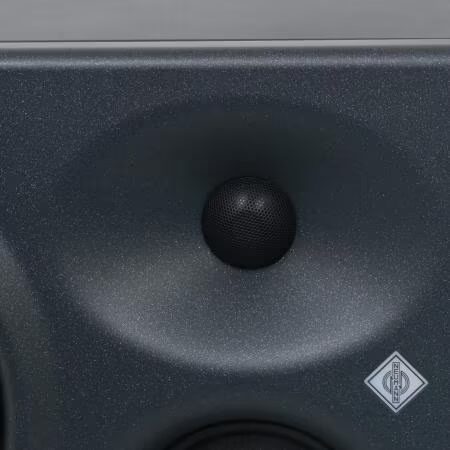

1-inch alloy fabric dome tweeter
Die-cast housing with integrated wave guide in the front baffle
Fourth-order, three-way active crossover

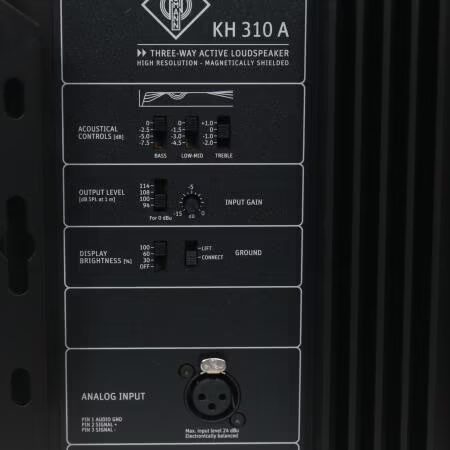

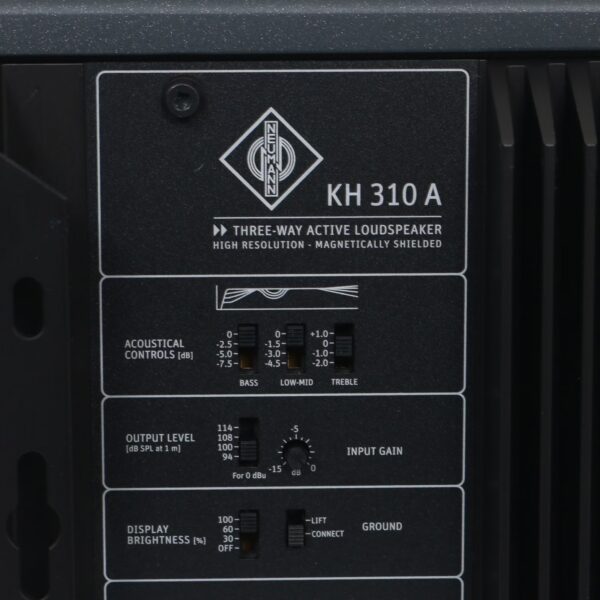

4-position bass, low-mid and treble acoustical controls
Independent thermal limiters for every individual component
Soft clip limiter for the woofer
Excursion limiters

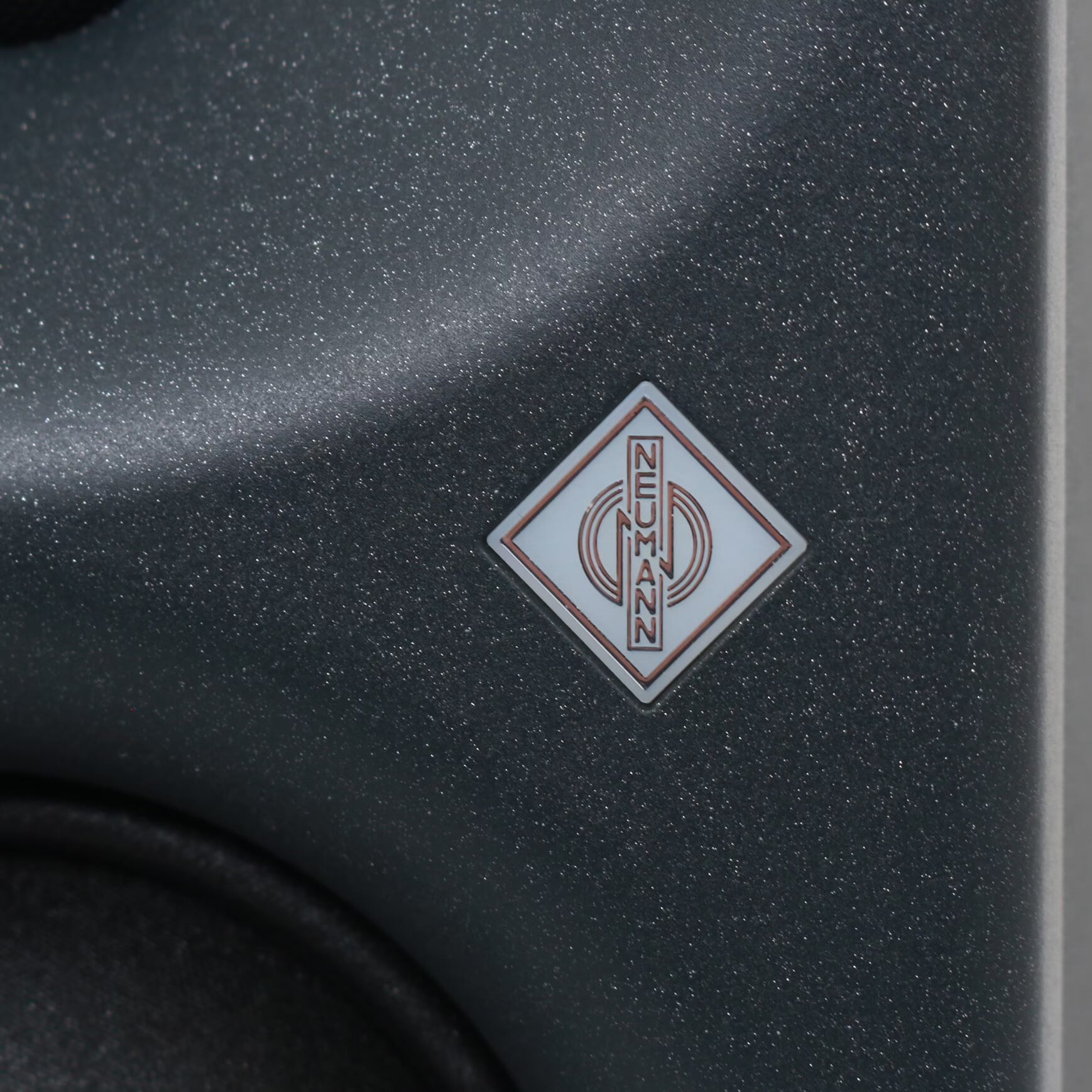

LED status indicator incorporated into the logo, dimmable in multiple steps
Dimensions: 253 x 383 x 292 mm
Construction volume: 16.2 L internal, 28.3 L external
Weight: 13 kg
Acoustic properties:
Free-field frequency response: 34 to 21,000 Hz, +/- 3 dB
Pass band free-field frequency range: 36 to 20,000 Hz, +/- 3 dB
Self-generated noise (with input gain set to 100 dB for 0 dBu): < 20 dB at 10 cm
Total harmonic distortion < 0.5 % at 95 dB SPL at 1 m: > 85 Hz
Maximum SPL in full space at 3% THD at 1 m: 114.2 dB SPL (averaged between 100 and 6,000 Hz)
Maximum SPL in full space calculated at 3% THD at 1 m: 120.2 dB SPL (averaged between 100 and 6,000 Hz)
Maximum SPL bass reproduction in half space at 3% THD at 1 m: 111.3 dB SPL (averaged between 100 and 6,000 Hz)
Max. short term SPL with IEC-weighted noise (IEC 60268-5) at 1 m, in typical listening conditions: 113 dB(C) SPL
Max. short term SPL with music material at 2.3 m, in typical listening conditions (pair): 100 dB(C) SPL full range, 107 dB(C) SPL with subwoofer
Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single): 93 dB(C) SPL (full range) 99 dB(C) SPL (with subwoofer)
Max. long term SPL with pink noise at 2.3 m, in typical listening conditions per pair: 94 dB(C) SPL (full range), 100 dB(C) SPL (with subwoofer)
Electronics:
Amp power bass / midrange / treble continuous: 150 / 70 / 70 watts
Amp power bass / midrange / treble peak: 210 / 90 / 90 watts
Class A/B amplifier circuit
Controller design: analogue, active
Crossover frequencies: 650 Hz, 2,000 Hz
Crossover curve: 24 dB/octave, fourth order
Equalizer bass: 0, -2.5, -5, -7.5
Equalizer low mid: 0, -1.5, -3, -4,5
Equalizer treble: +1, 0, -1, -2
Protection circuitry: independent thermal limiters per component
Woofer soft clip and excursion limiter
Infrasonic filter – frequency; slope: 15 Hz, 6 dB/octave

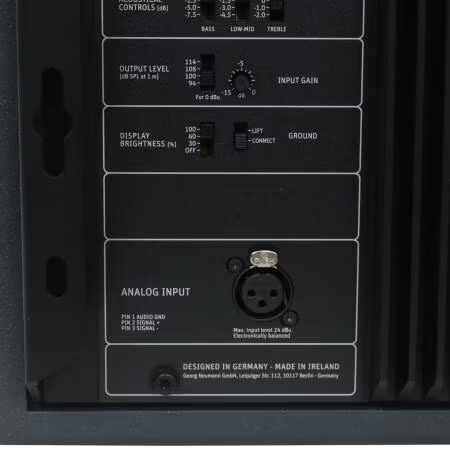

Input: XLR, analogue electronically balanced
Impedance: 10 kOhm at 94 dB/108 dB SPL, 20 kOhm at 100/114 dB SPL at 1 metre
Sensitivity input gain: 0 dBu – 15 dBu
Output level control: 94/100/108/114 dB SPL
Display and power supply:
Power on: white backlit logo
Limiter/clip: red backlit logo

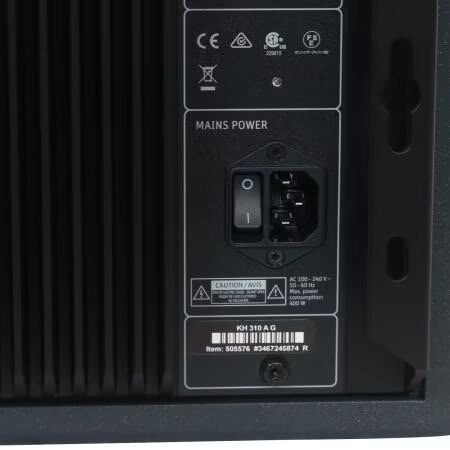

Power supply: 100-240V AC 50/60Hz
Power consumption idle: 24 watts
Power consumption full output: 300 watts
Mechanics:
Cabinet construction with wooden and polyurethane construction, anthracite (RAL 7021)

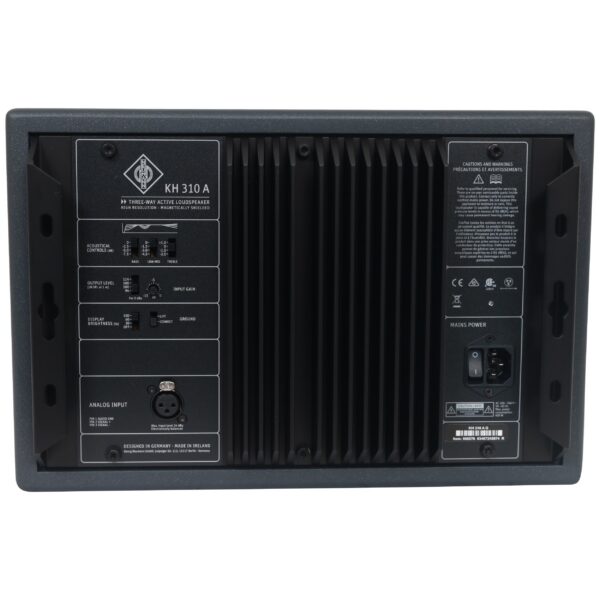

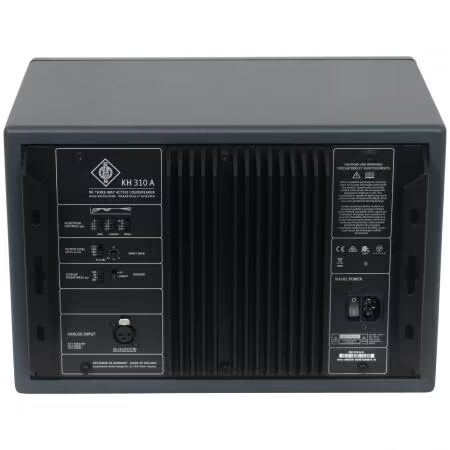

Aluminium connector panel, black
Detachable grille
Operating temperature: -10 to +40 degrees Celsius
Transport and storage temperature: -25 to +70 degrees Celsius
Drivers: magnetically shielded
Woofer: 210 mm (8¼ inches)
Midrange driver: 75 mm (3 inches)
Tweeter: 25 mm (1 inch)

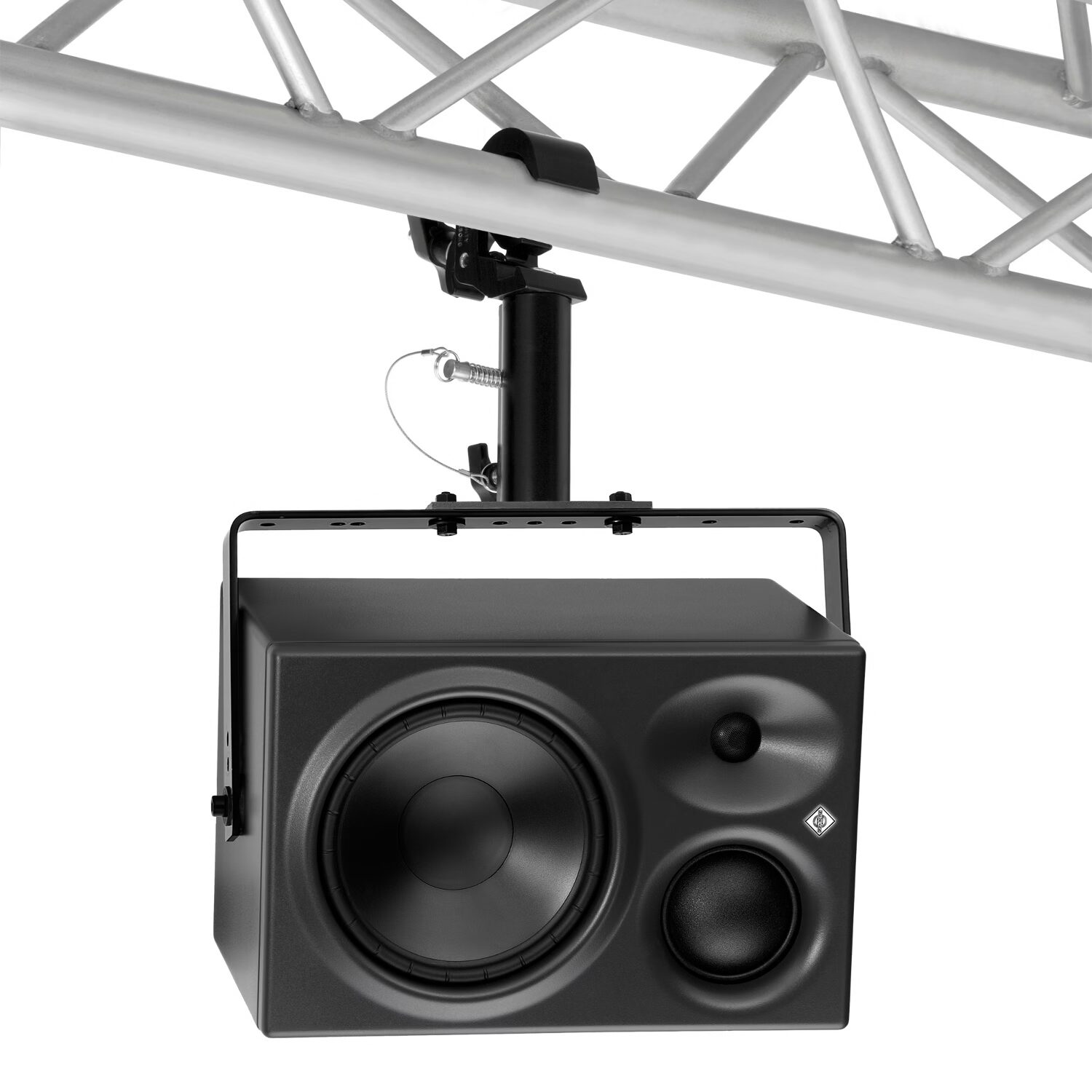

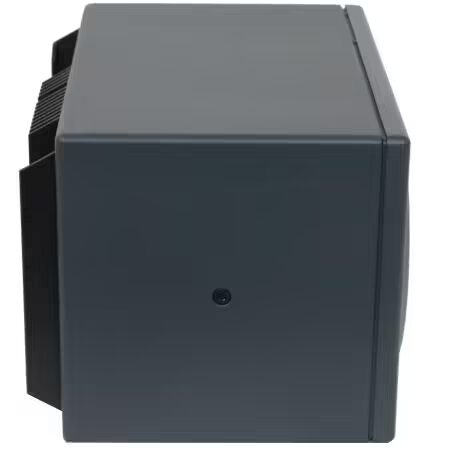

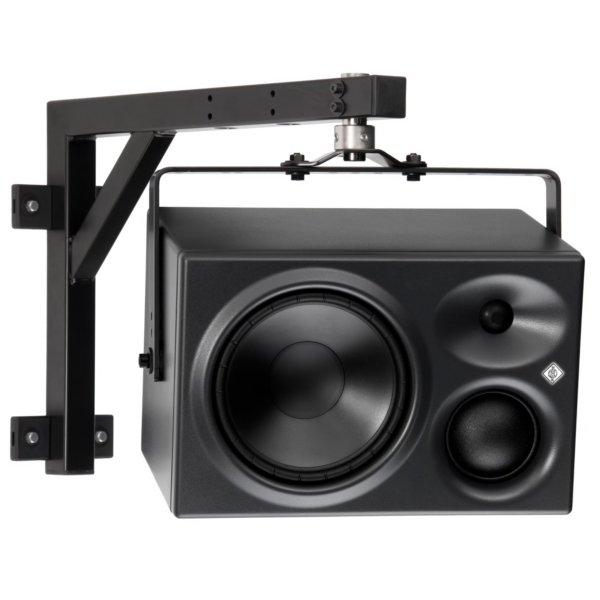

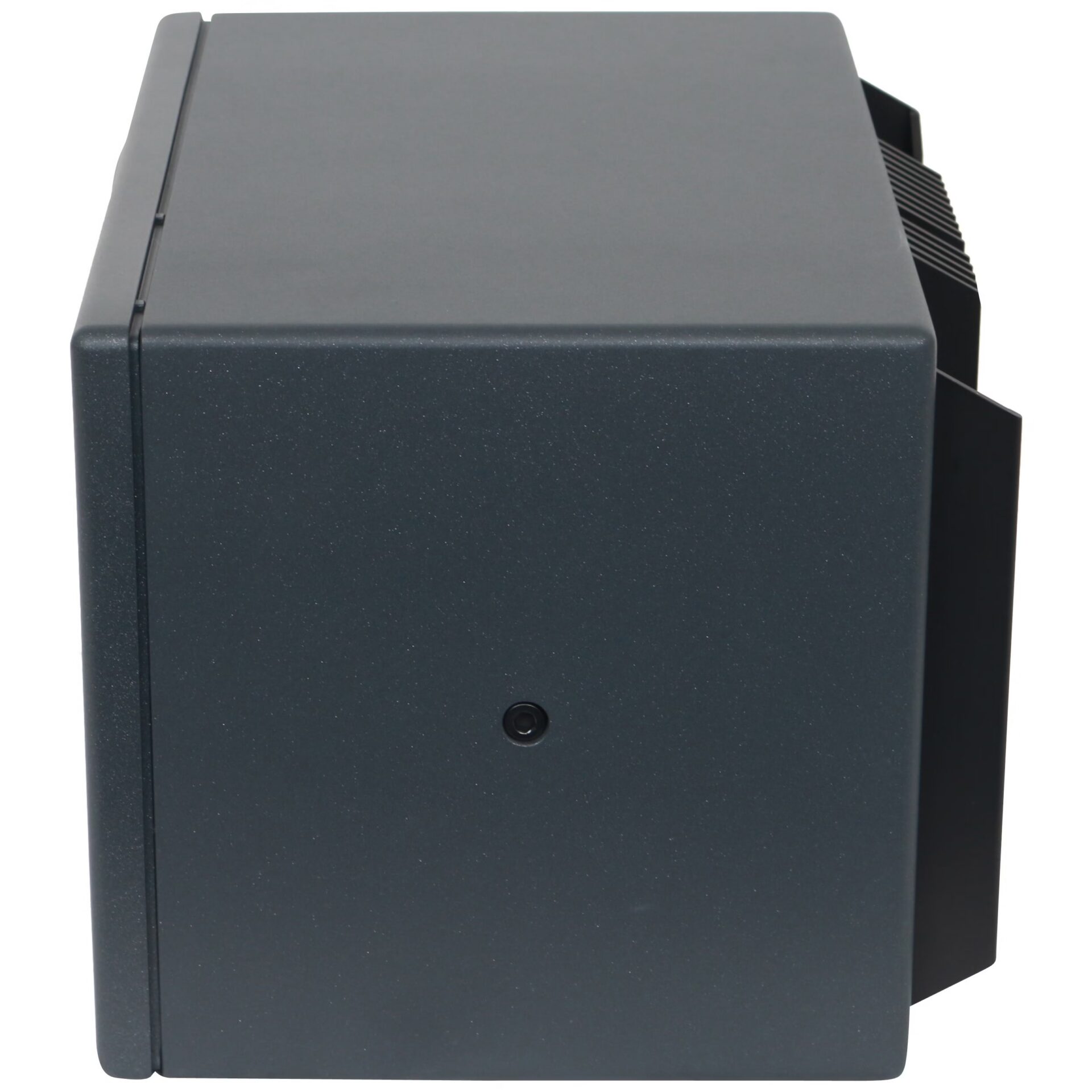

Mounting points: 2x M8 (1 at each side, 1 inch deep), rear fitted with brackets for LH 41 mounting panel
