Description
Specifications
Product features
19-inch rack size not applicable
Number of keys 88
Arpeggiator/sequence rarpeggiator, sequencer
Computer integration functions as DAW controller
Control sustain (input), expression (input), switch pedal (input), ribbon, aftertouch
Synthesizer inputs line in
Sound sourcesample player, FM
MIDI & CV/gate MIDI in, MIDI out, MIDI thru, MIDI over USB
Synthesizer outputs line out jack
Type of keys keyboard action
Synthesizer type keyboard
Weight and dimensions including packaging
Weight (incl. packaging)35.0 kg
Dimensions (incl. packaging)165.0 x 60.0 x 30.0 cm
Product specifications

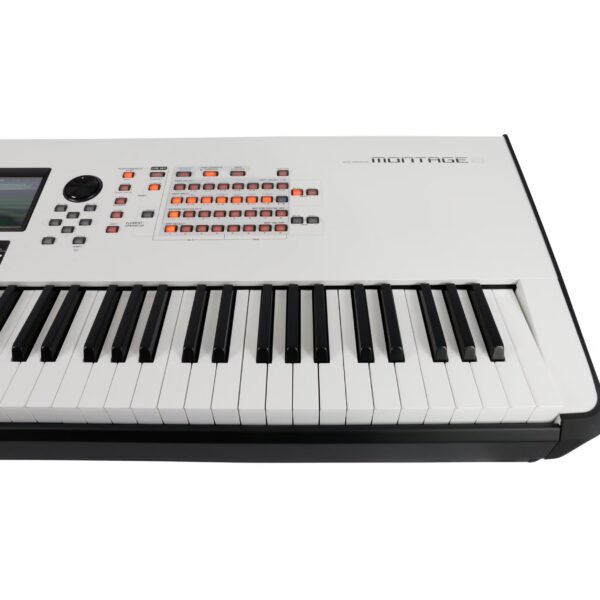

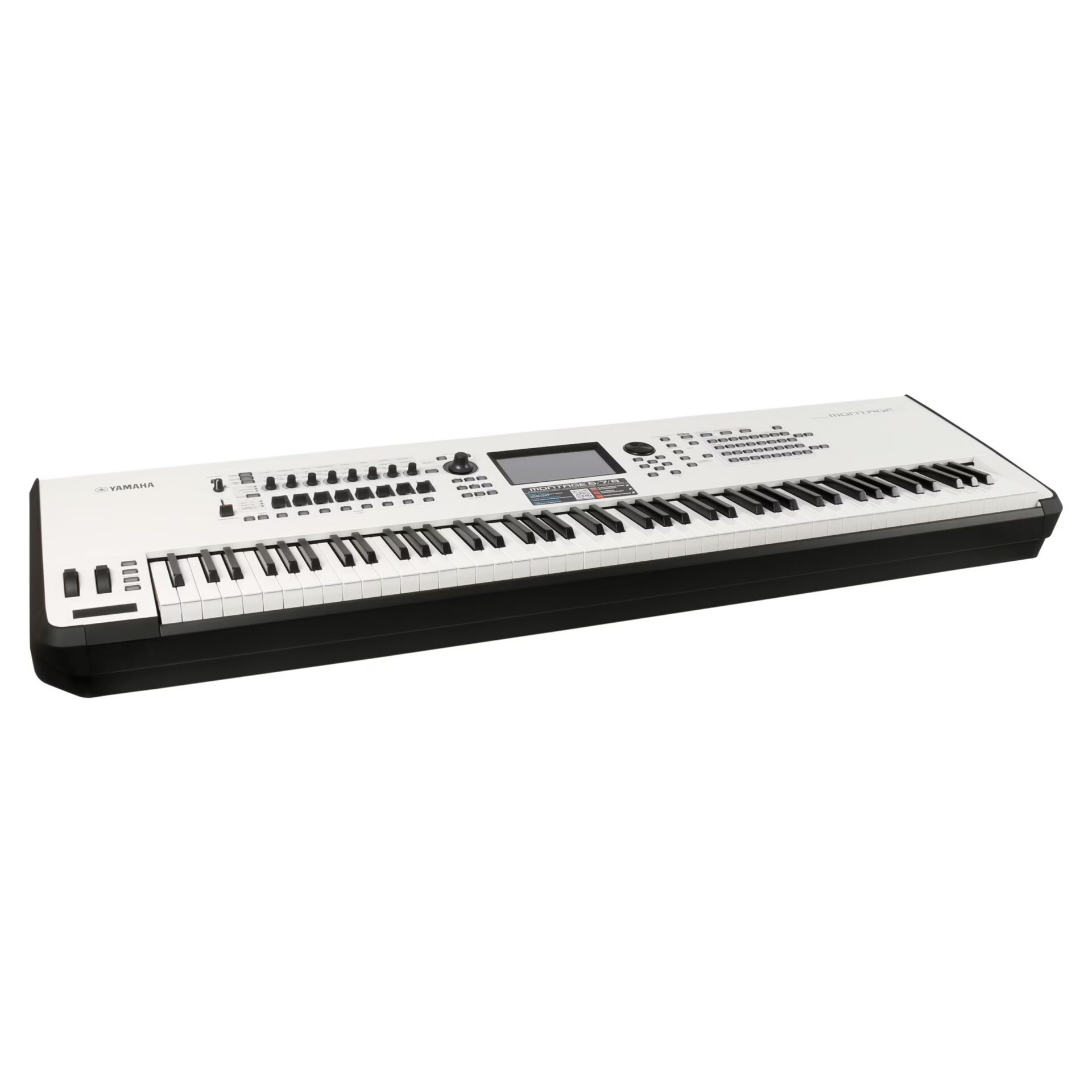

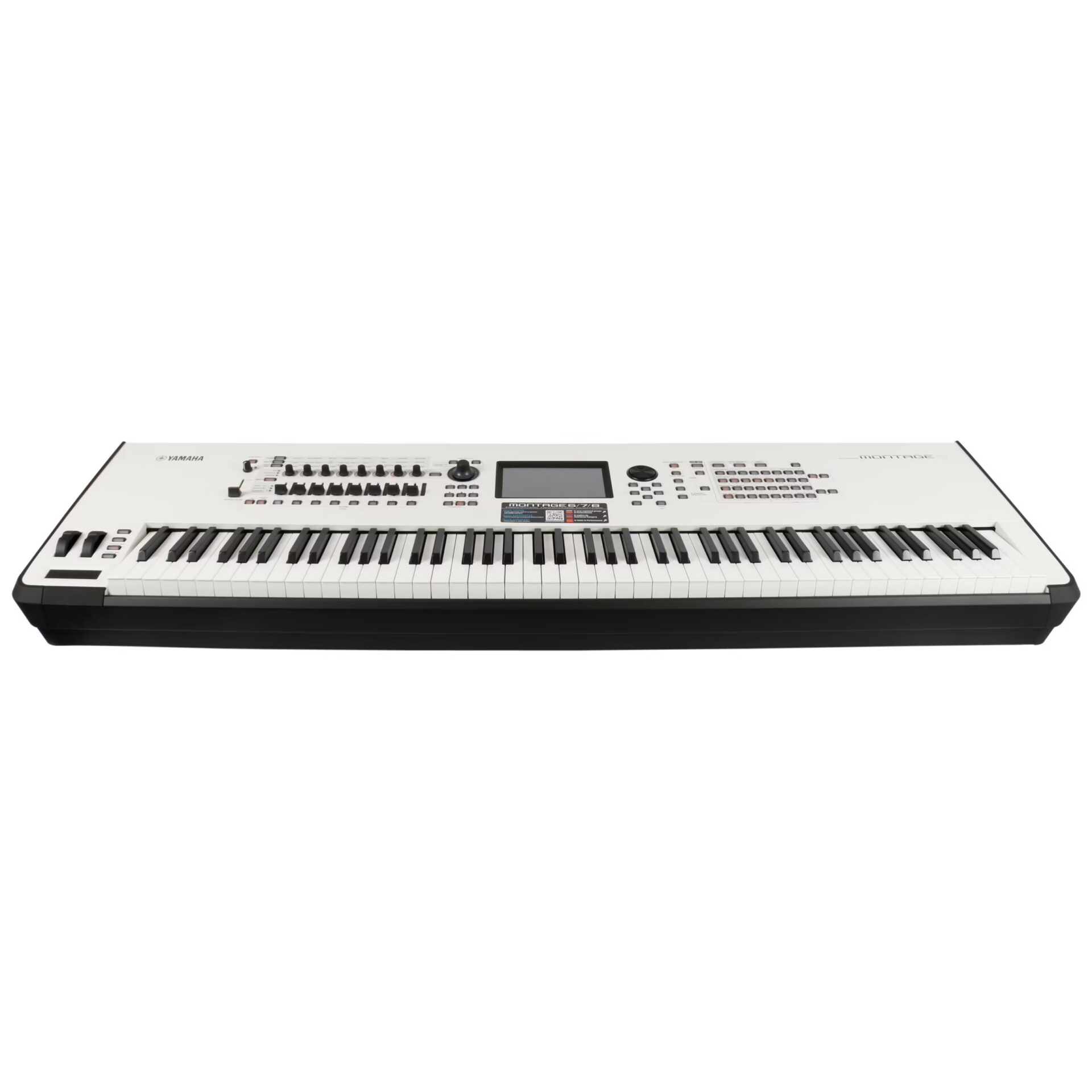

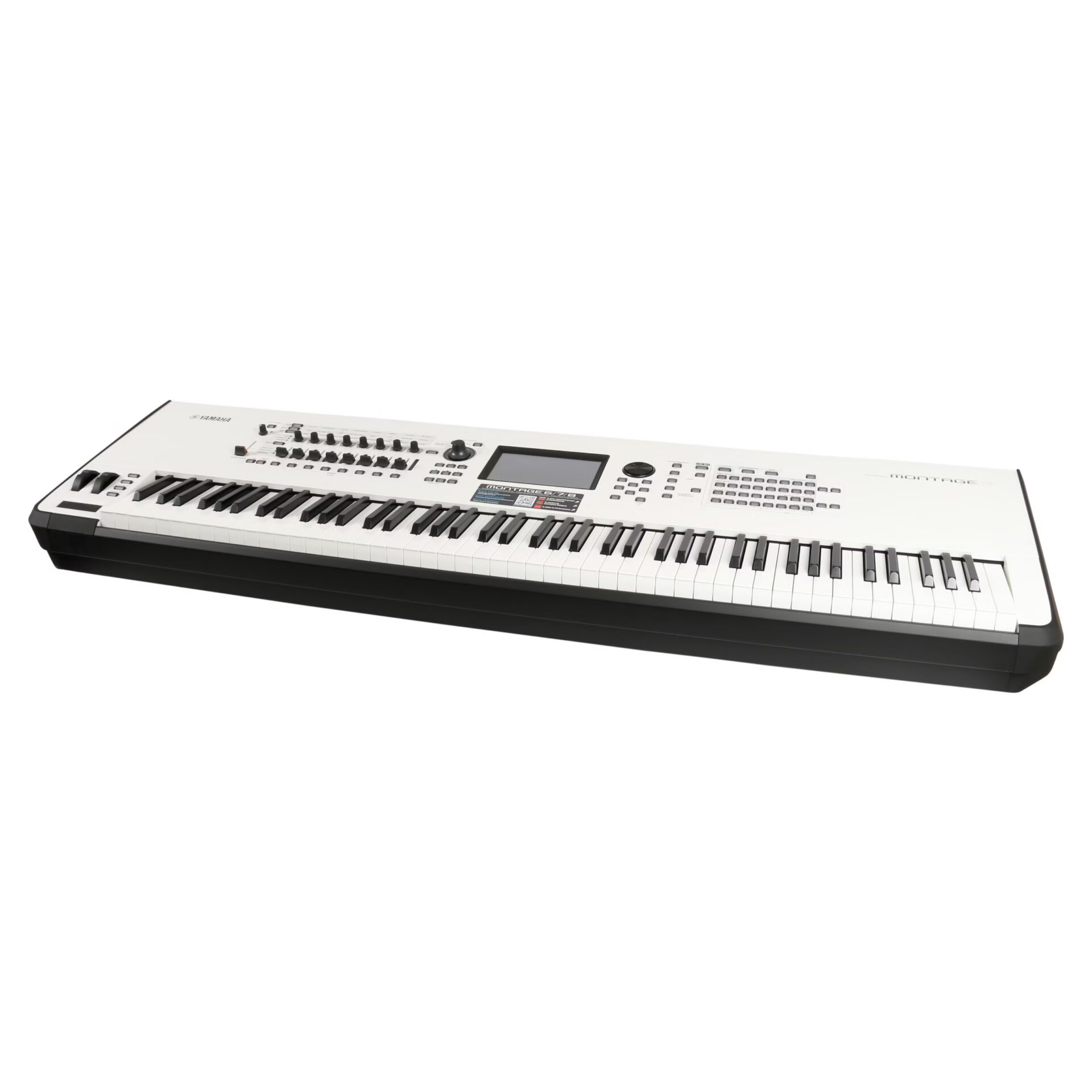

Yamaha Montage 8
synthesizer
keyboard:
Balanced Hammer Effect keyboard
number of keys: 88
initial touch
aftertouch
sound generator:
AWM2
preset waves: 5.67 GB
user waves: 1.75 GB
polyphony: 128
FM-X
8 operators
88 algorithms
polyphony: 128
multitimbral: 16x + audio input parts (A/D, USB)
performances: +/- 1,900
effects section:
reverb: 12 types
variation: 76 types
insert (A,B): 76 types
master effect: 15 types
A/D part insert: 71 types
master EQ: 5 bands
filters: 18 types

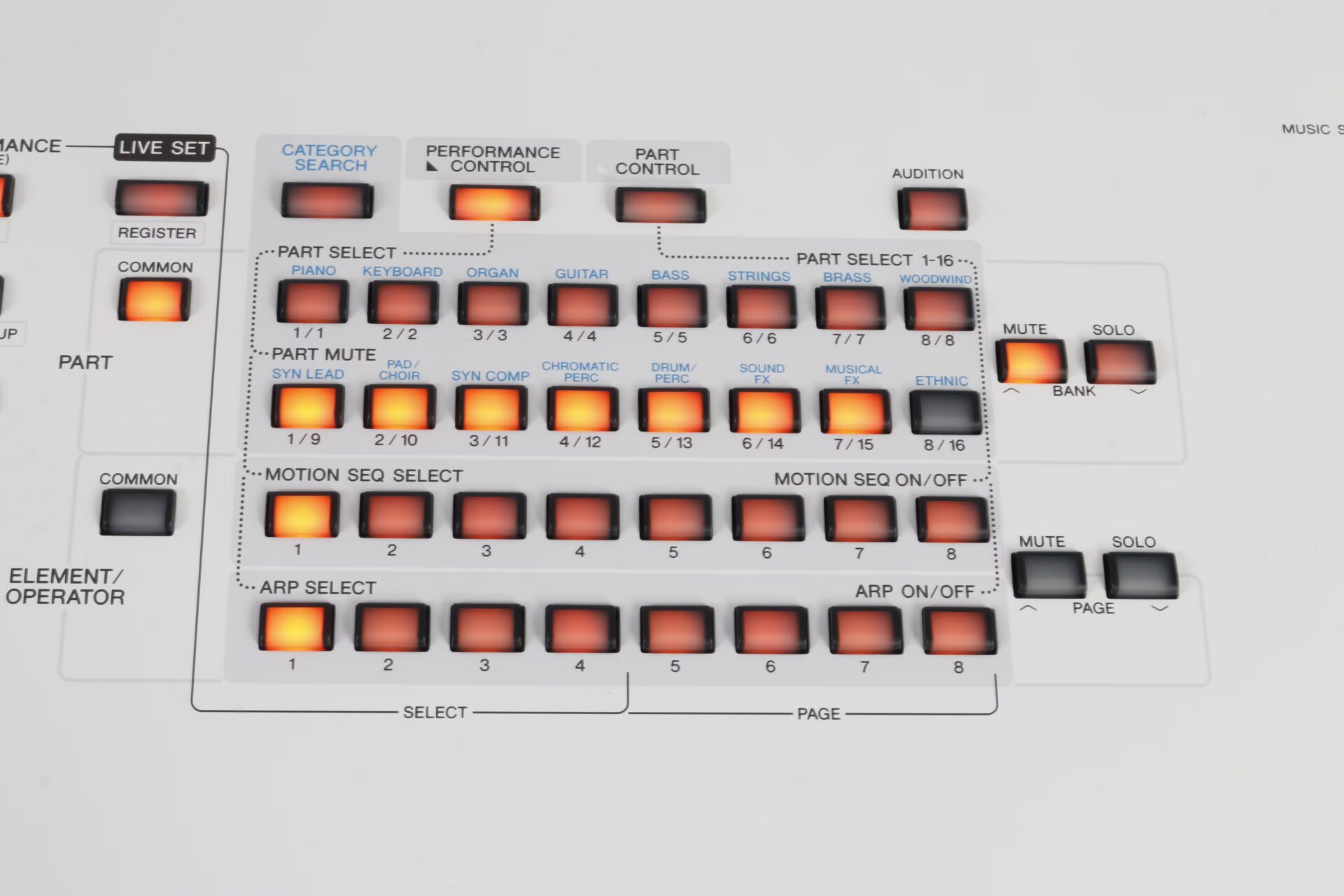

Motion Control

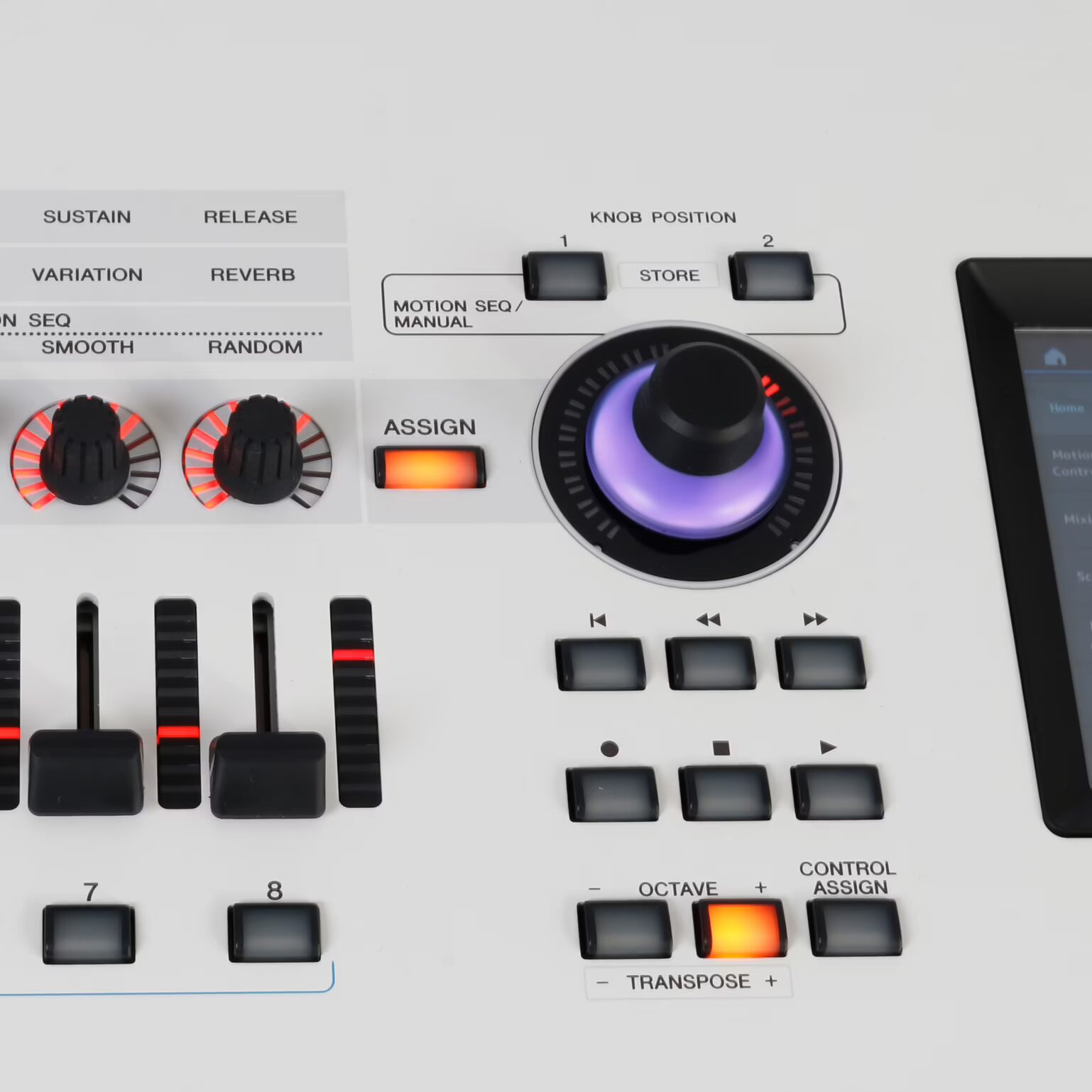

super knob (macro controller)
tempo-sync control sequences
envelope follower (converts audio to controller data)

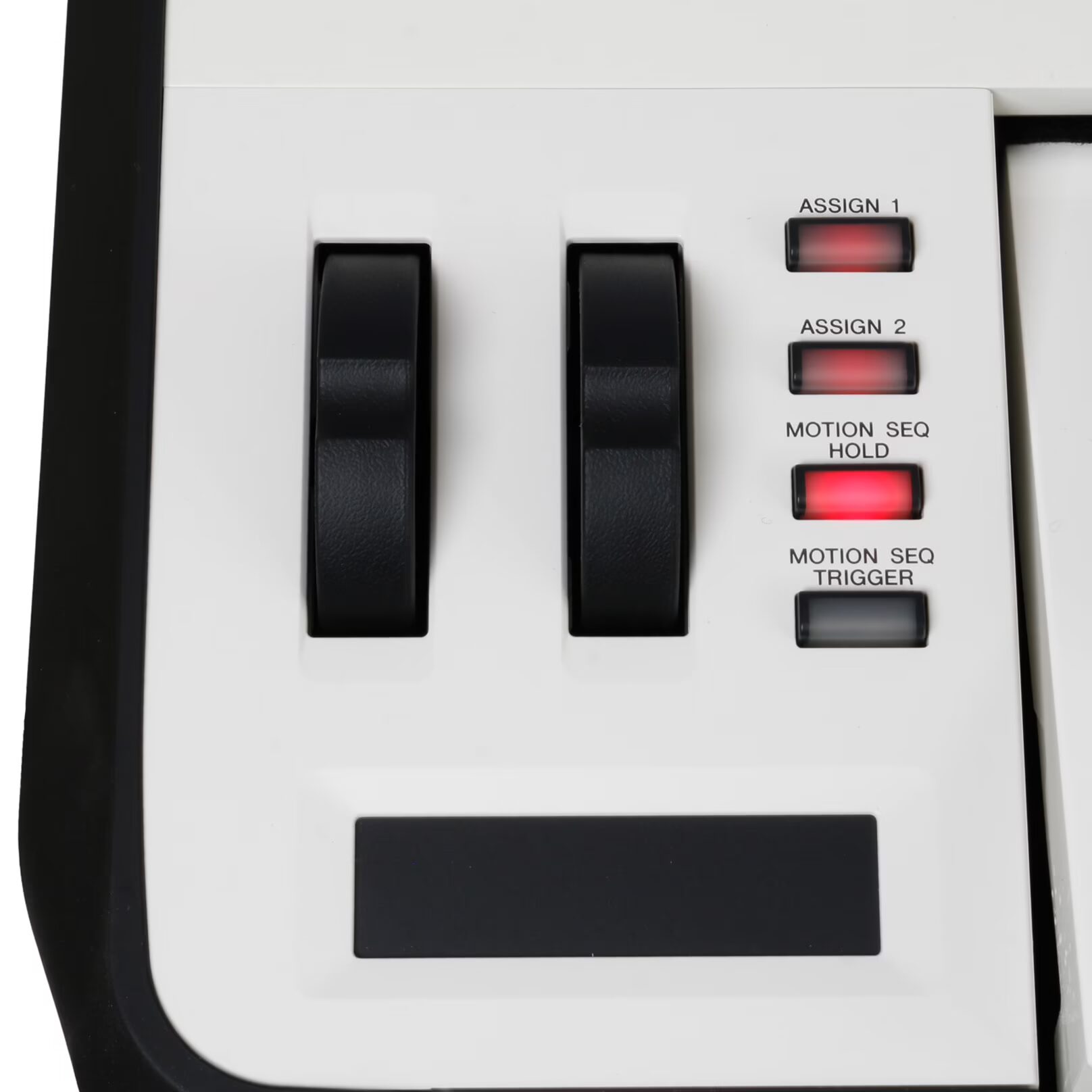

pitch bend wheel
modulation wheel
ribbon controller

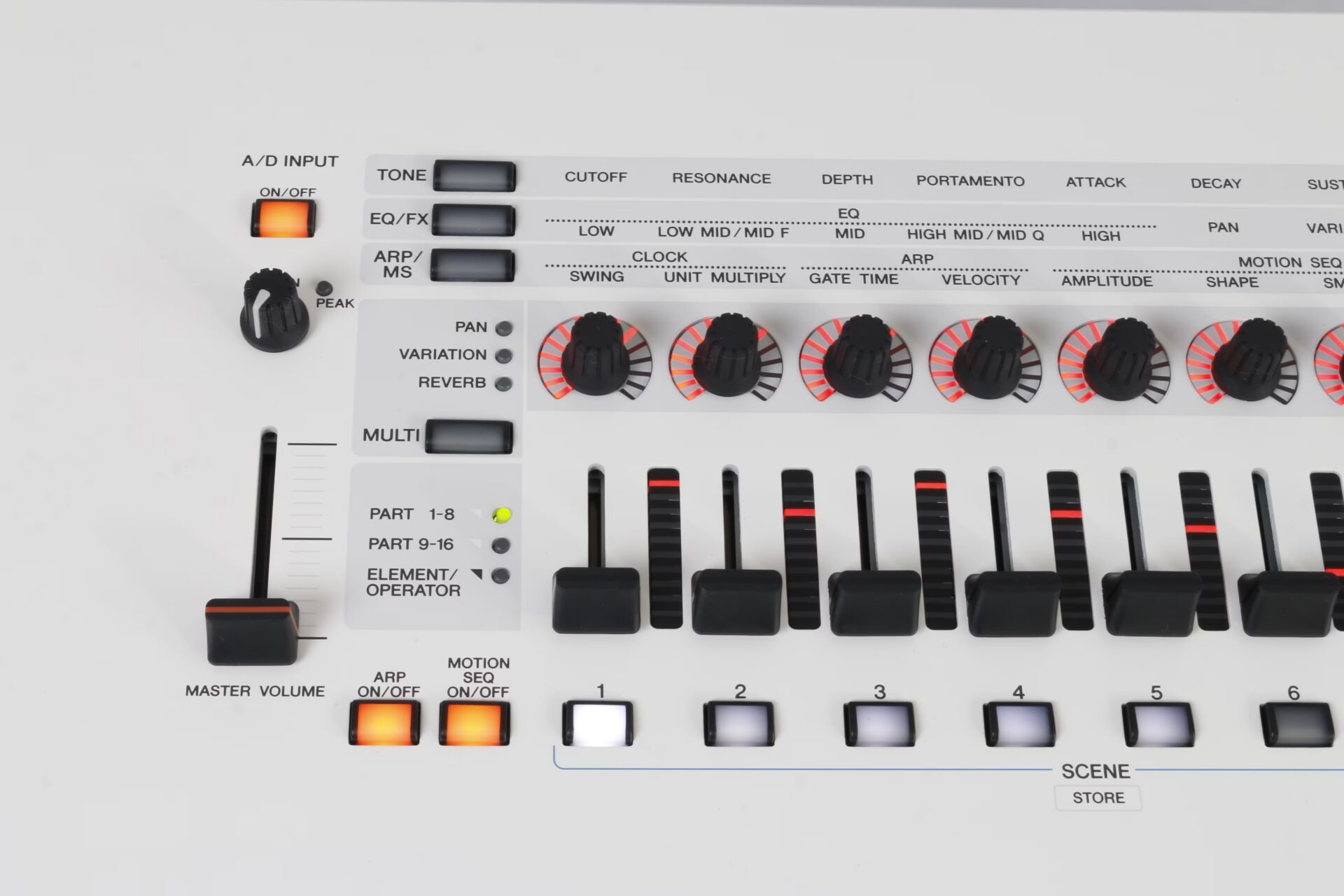

control sliders 8x with LED strip
control knobs 8x with LED ring

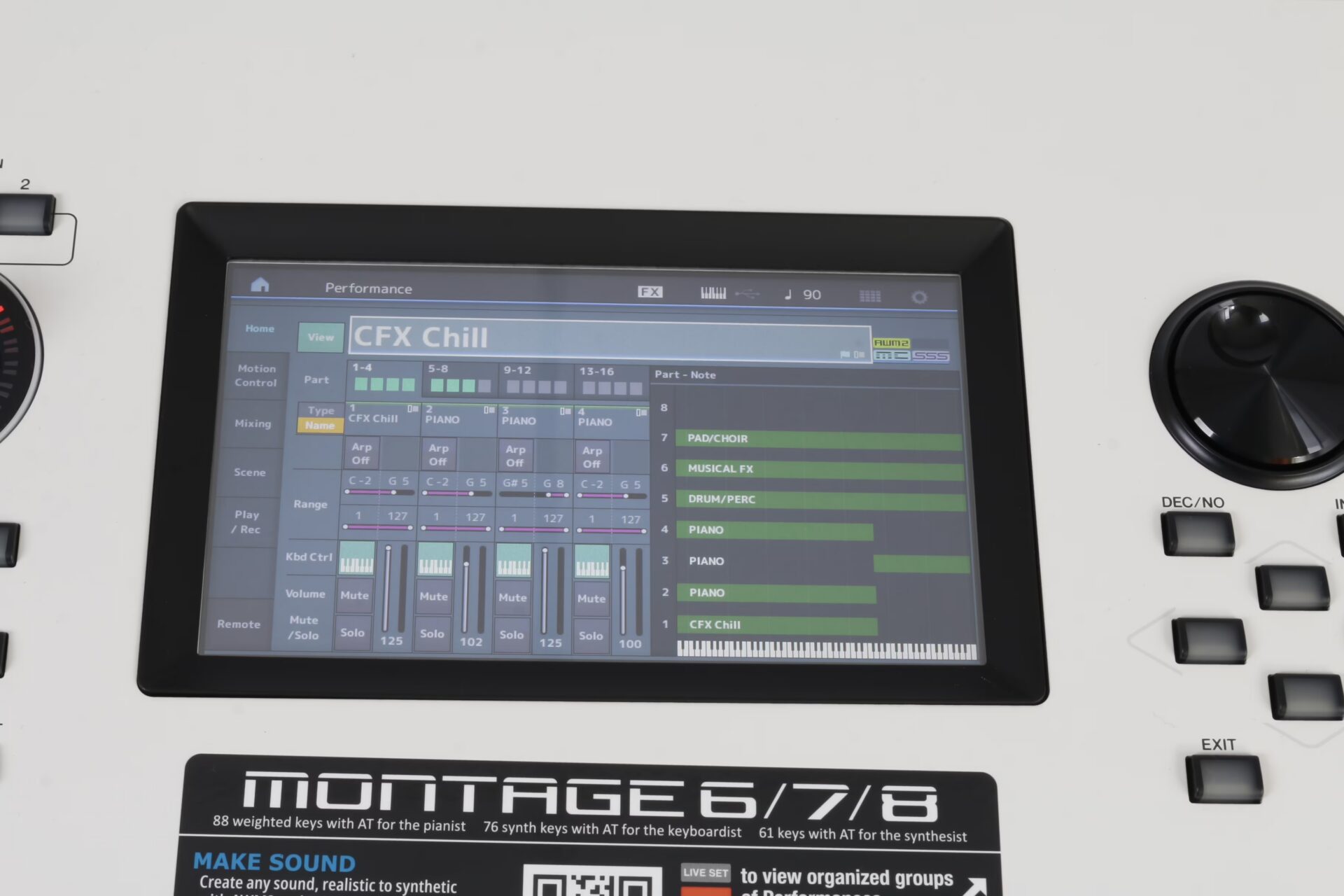

display: 7″ TFT, colour, touch screen
recorder:
16 tracks
tempo track
scene track
capacity: +/- 130,000 notes
64 songs
arpeggio
power consumption: 27 W
includes:

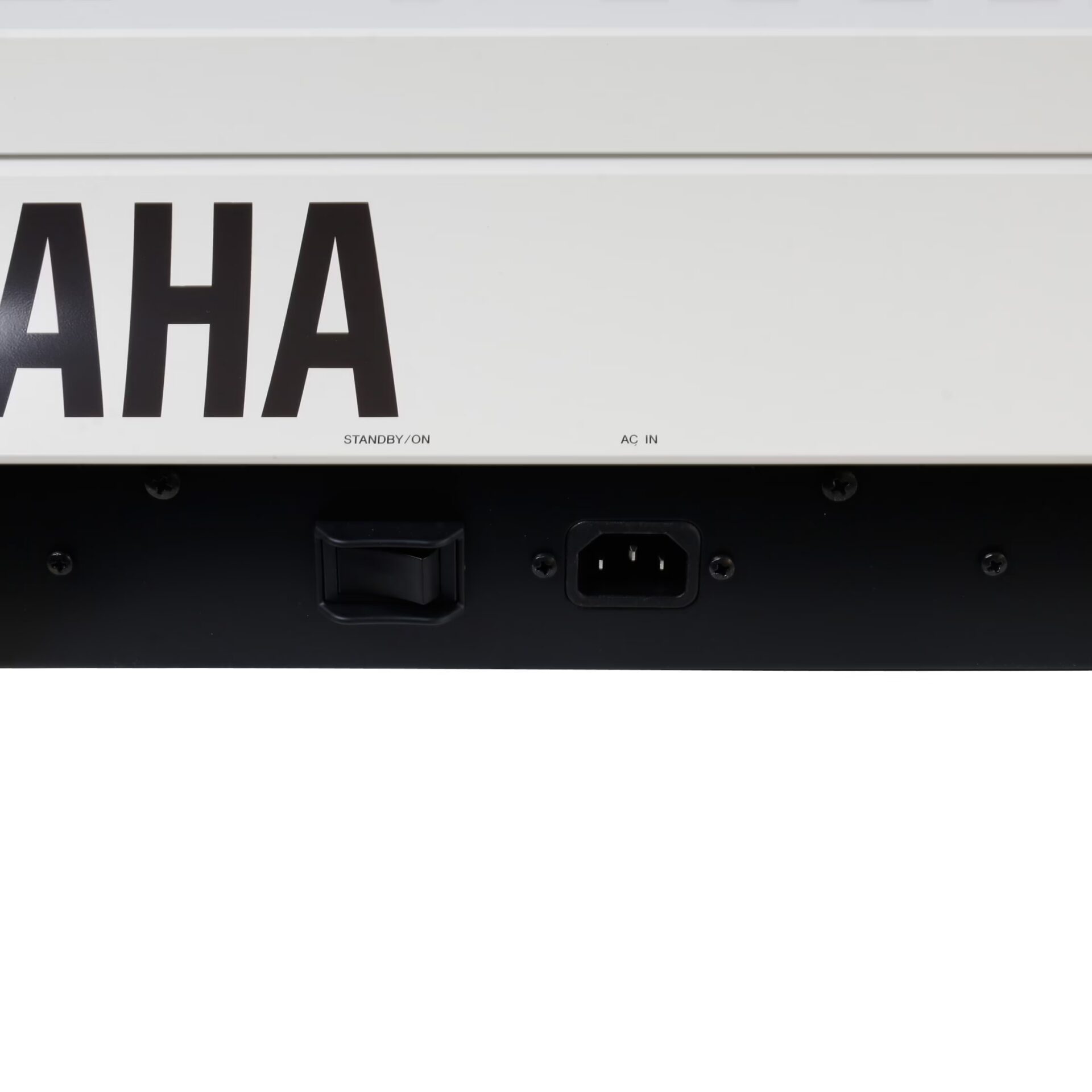

power cable
user manual
Cubase AI (download)
connectors:

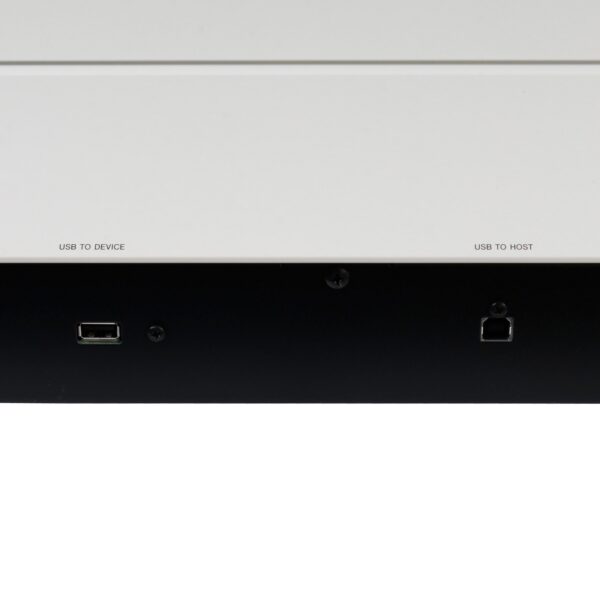

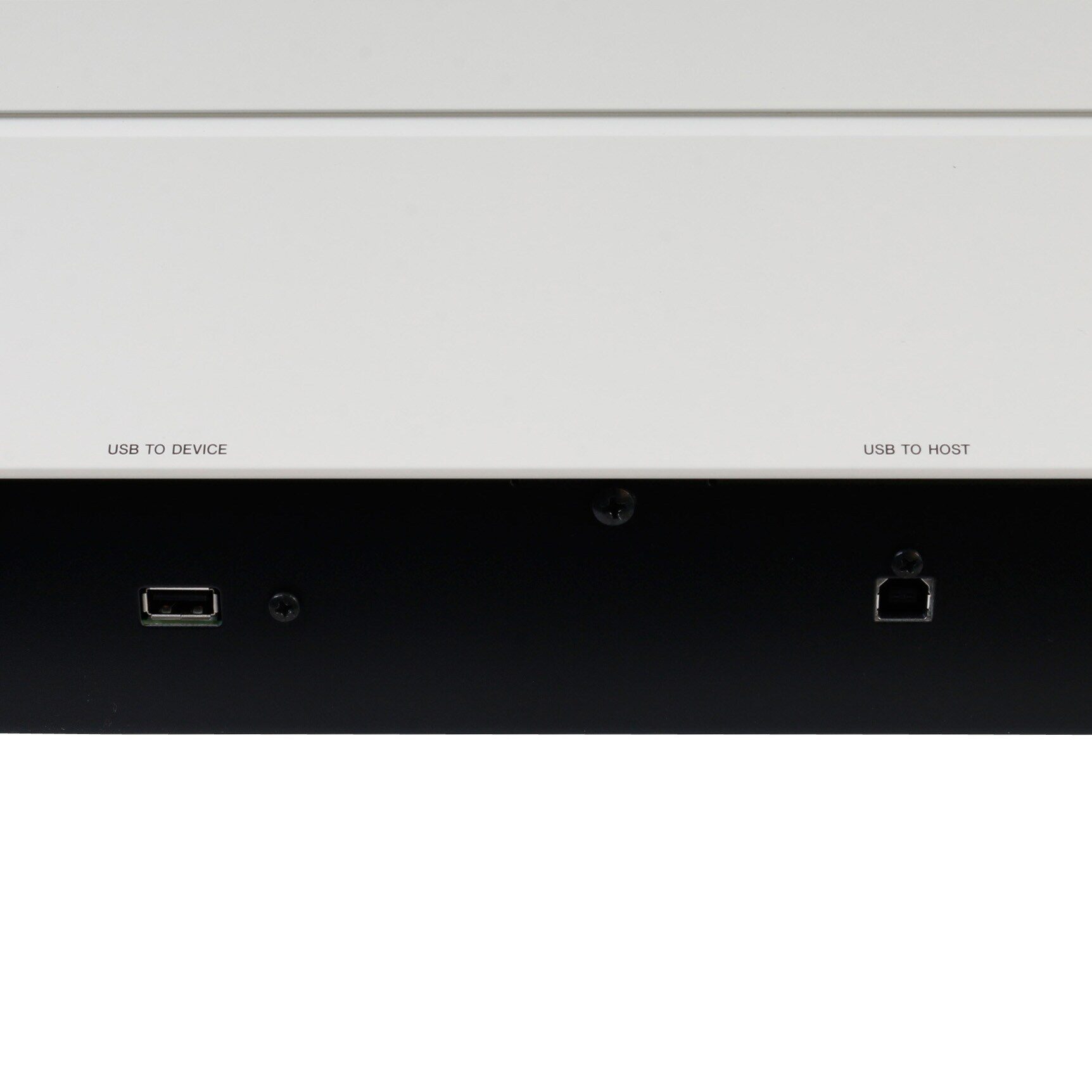

USB (stick)
USB MIDI

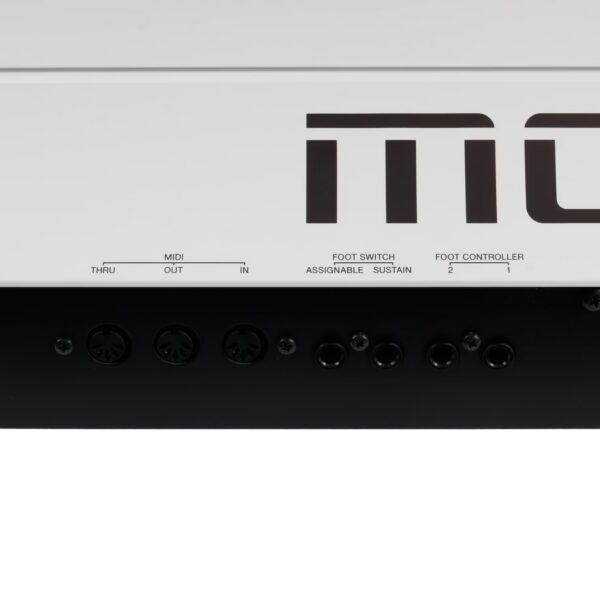

MIDI I/O/THRU
foot controller 1/2
foot switch assignable/sustain

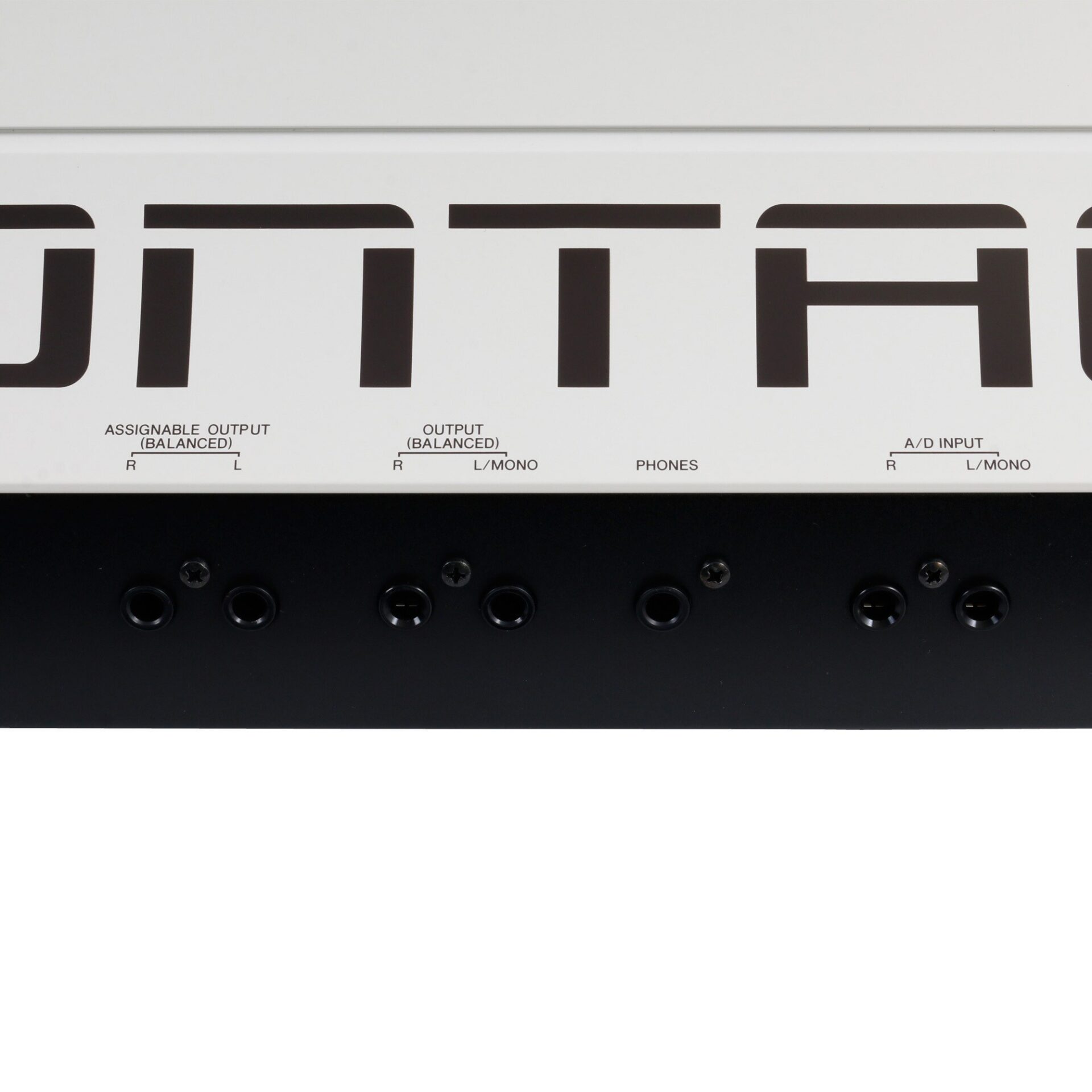

jack outputs balanced
assignable outputs: jack balanced
headphone jack
A/D inputs: jack
dimensions: 1450 x 160 x 470 mm
weight: 29 kg
colour: white
