Description
Specifications

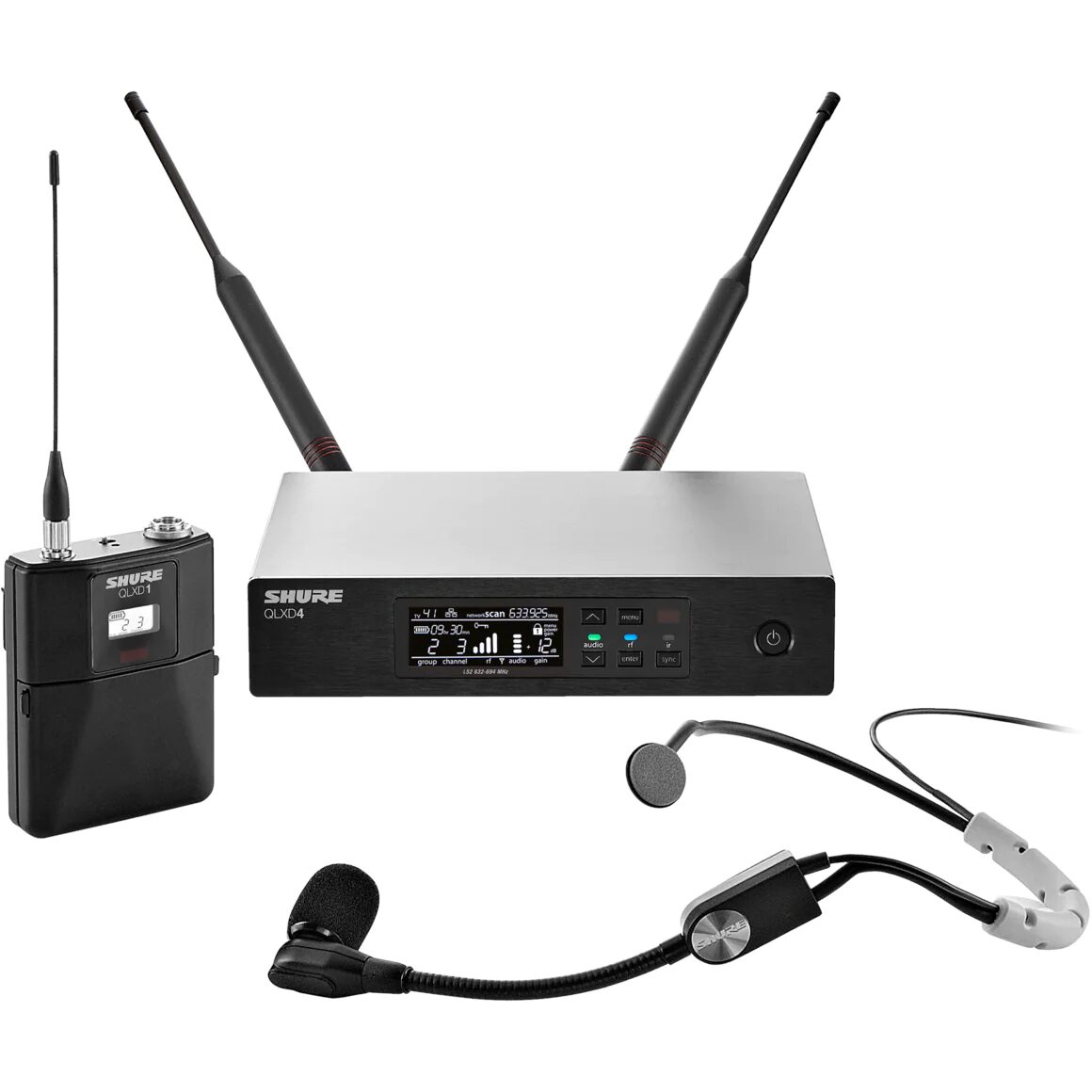

Shure QLXD1 (K51, 606-670 MHz) bodypack transmitter 1x Shure QLXD1 (K51, 606-670 MHz) bodypack transmitter

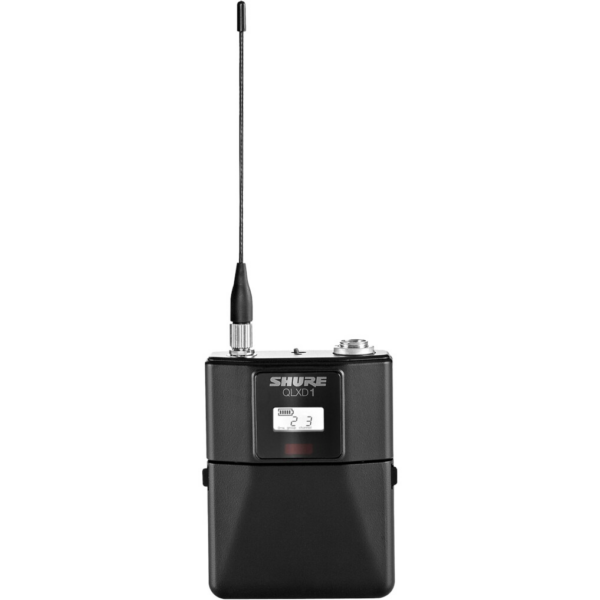

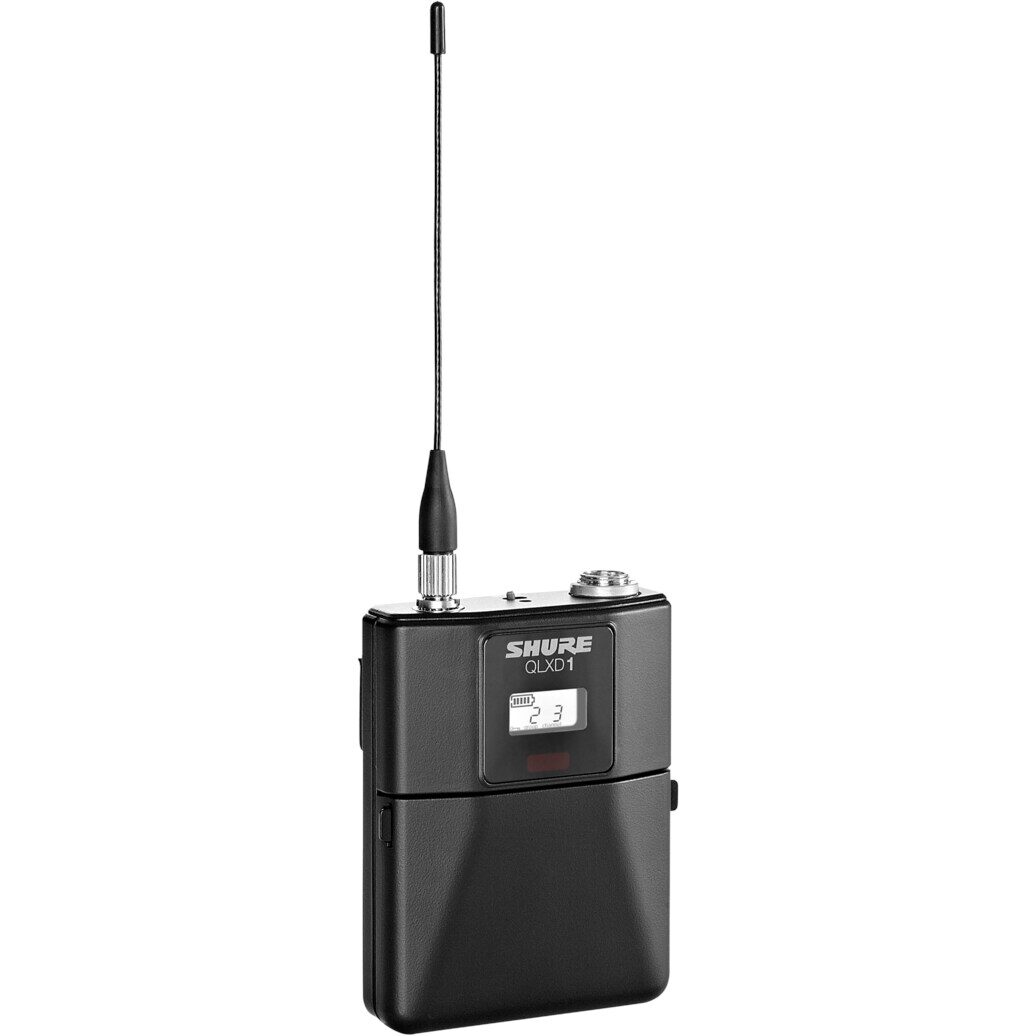

Shure’s QLXD1 bodypack transmitter (K51, 606-670 MHz) is part of the digital QLX-D series, and can easily be hooked up to a headset, instrument cable or lavalier microphone with a TA4F connector.
Product features
Microphone connection TA4F/TQG (4 pin)
Battery type AA, SB900 lithium-ion
Battery life (approx.)9 hours
Frequency band Shure K51 (606 – 670 MHz)
Channel 38 (606 – 614 MHz), 39 (614 – 622 MHz), 40 (622 – 630 MHz), 41 (630 – 638 MHz), 42 (638 – 646 MHz), 43 (646 – 654 MHz), 44 (654 – 662 MHz), 45 (662 – 670 MHz)
PAD switch yes
Type of frequency band 600 – 699 MHz
Volume control no
Equipped with display yes
Weight and dimensions including packaging
Weight (incl. packaging)700 gr
Dimensions (incl. packaging)33.0 x 13.0 x 9.0 cm
Product specifications
bodypack transmitter
frequency band: K51 (606-670 MHz)
range: up to 100 m
dynamic range: 120 dB
power supply: 2x AA batteries (included) or SB900 rechargeable battery (sold separately)
battery life: up to 9 hours (2 AA batteries), or up to 10 hours (rechargeable SB900 battery)
external charging contacts for dock chargers
backlit LCD display
user-friendly menus
connector: 4-pole male mini connector (TA4M)
synchronises with receiver via infrared
rugged metal housing
detachable lambda antenna
frequency and power lockout
dimensions: 86 x 65 x 23 mm
weight (batteries not included): 138 g
2 AA batteries, pouch and manual included
Shure QLXD4 (K51, 606-670 MHz) wireless receiver 1x Shure QLXD4 (K51, 606-670 MHz) wireless receiver

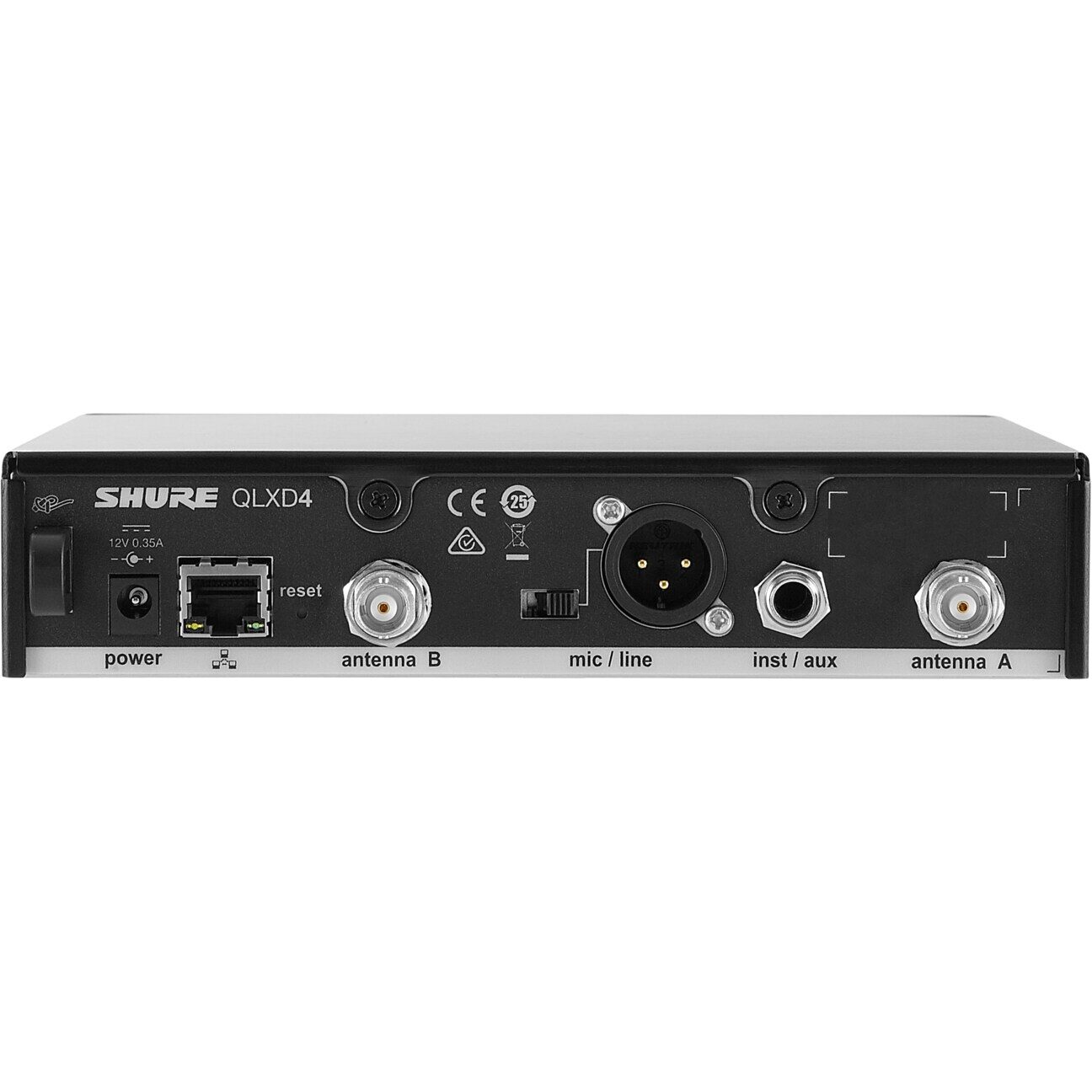

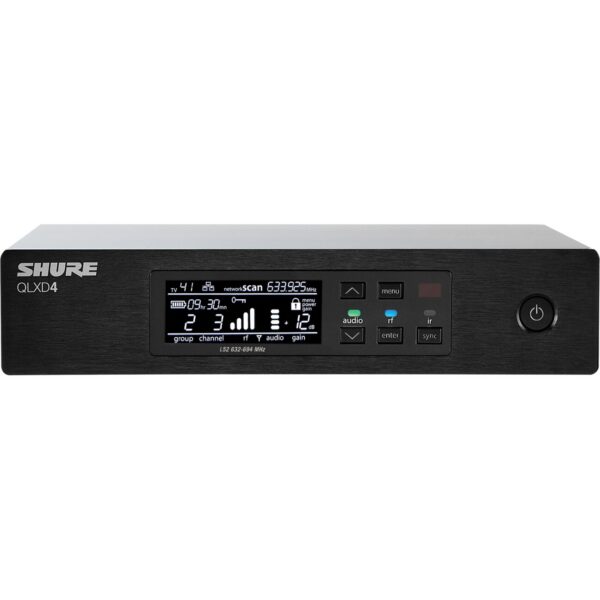

Shure’s QLXD4 digital wireless receiver (K51, 606-670 MHz) is part of the QLX-D series. Connect it to a suitable transmitter, and you can rely on a powerful signal.
Product features
19-inch rack size1U
Automatic frequency search functionyes
Battery life (approx.)not applicable
Energy sourceAC
Frequency bandShure K51 (606 – 670 MHz)
Built-in equaliserno
Channel38 (606 – 614 MHz), 39 (614 – 622 MHz), 40 (622 – 630 MHz), 41 (630 – 638 MHz), 42 (638 – 646 MHz), 43 (646 – 654 MHz), 44 (654 – 662 MHz), 45 (662 – 670 MHz)
Switchable frequenciesyes
Type of frequency band600 – 699 MHz
Output connectorjack (6.3 mm), XLR (3-pin)
Volume controlno
Power adapterungrounded flat Europlug
Weight and dimensions including packaging
Weight (incl. packaging)4.1 kg
Dimensions (incl. packaging)50.0 x 44.0 x 11.0 cm
Product specifications
wireless receiver
frequency band: K51 (606-670 MHz)
backlit LCD display
audio and RF signal LED meters with peak indicators
detachable antenna
outputs: XLR and jack
synchronises with a transmitter via infrared
rugged housing, brushed aluminium
19″ rack-mountable (half-rack size)
2 antenna connectors (antennas included)
Ethernet connector
power supply: PS23E (included)
included:
rack mounting materials
power supply
2x antenna
2x BNC cable
2x BNC bulkhead adapter
manual
dimensions: 41 x 197 x 151 mm
weight (antennas not included): 777 g
Shure SM35 headset condenser microphone 1x Shure SM35 headset condenser microphone

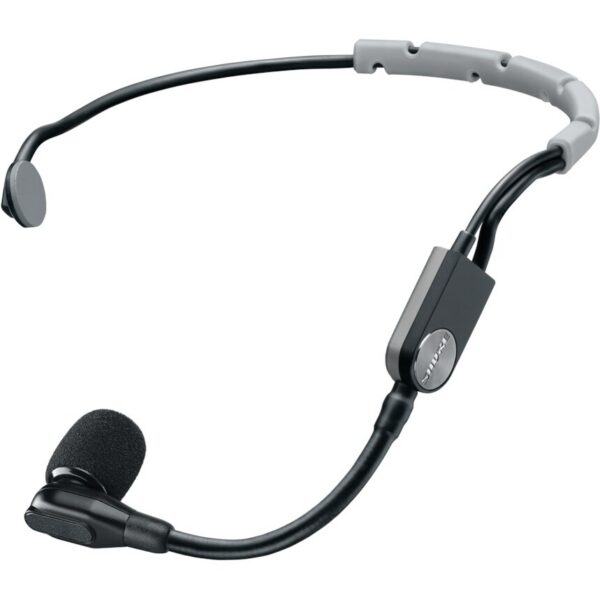

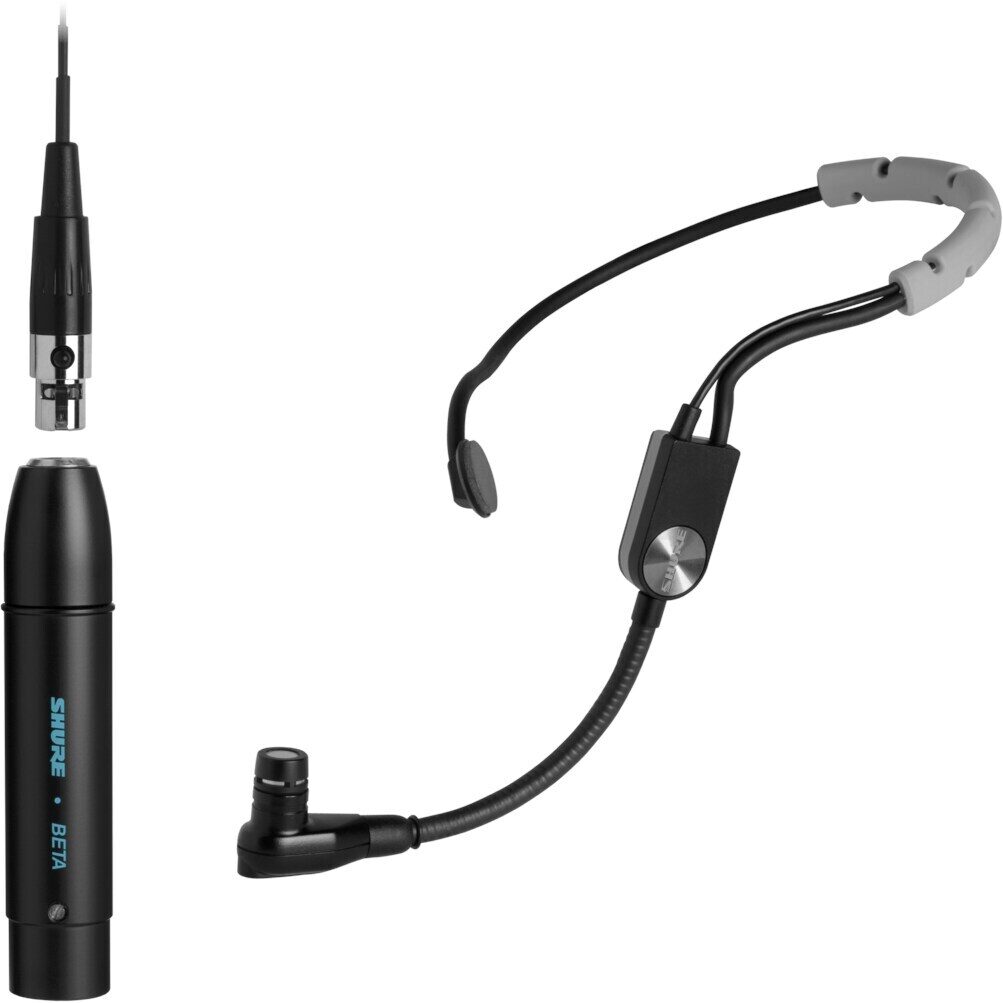

Shure’s SM35 is a practical, high-quality headset. A condenser microphone with a cardioid pickup pattern ensures great sound. It’s ideal for multi-instrumentalists and public speakers!
Product features
Microphone connectionTA4F/TQG (4 pin)
Microphone impedancenot specified
Includes headphonesno
Includes pop filter / capyes
Cable lengthnot specified
Colourblack
Maximum SPL150 dB – 159 dB
Maximum frequency20 – 20.9 kHz
Minimum frequency40 – 49 Hz
Polar patterncardioid
Moisture resistantNo
Weight and dimensions including packaging
Weight (incl. packaging)72 gr
Dimensions (incl. packaging)20.0 x 17.0 x 10.0 cm
Product specifications
headset
microphone capsule: condenser, cardioid pickup pattern
flexible gooseneck for optimal positioning
frequency range: 45 Hz – 20 kHz
sensitivity: -59 dBV/Pa
equivalent self-noise: 39 dB(A)
connector: TA4F
included: windshield
maximum sound pressure: 153 dB
weight: 2.5 oz (72 g)
