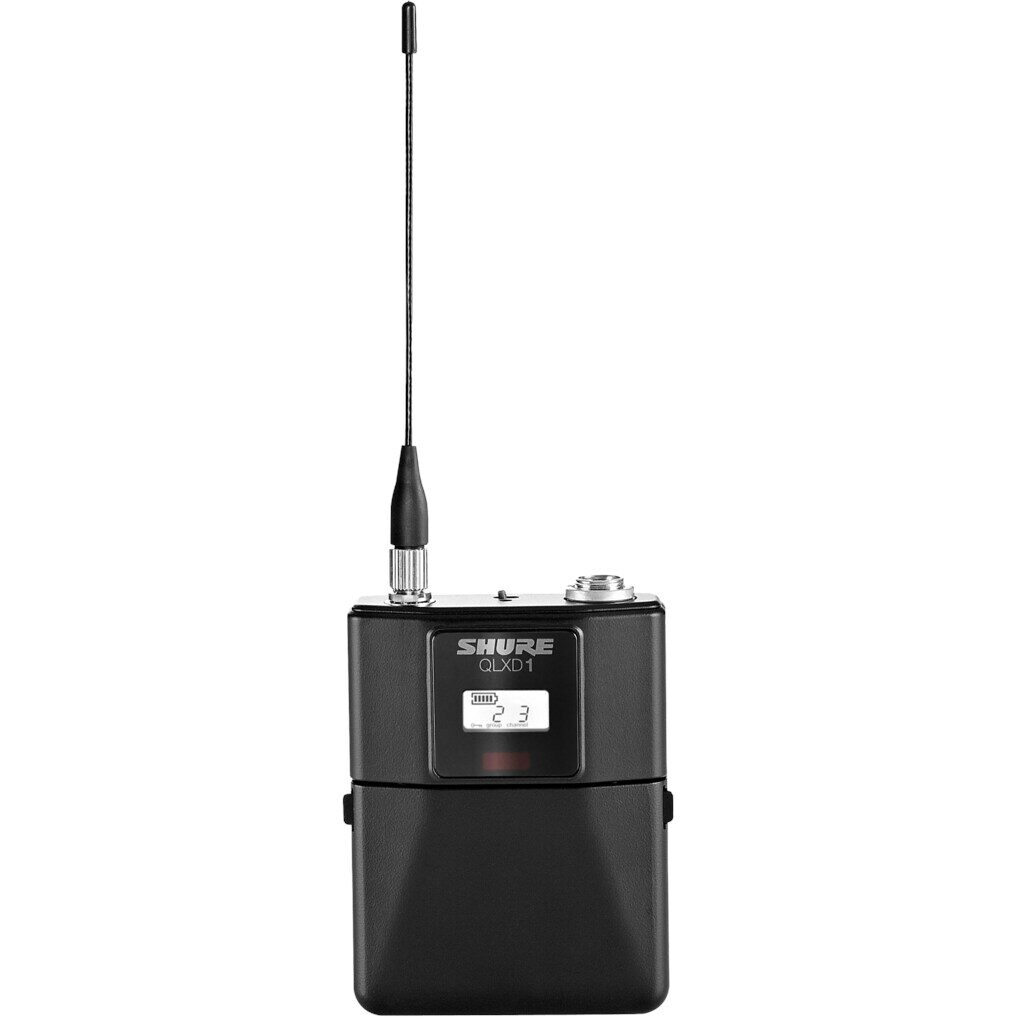

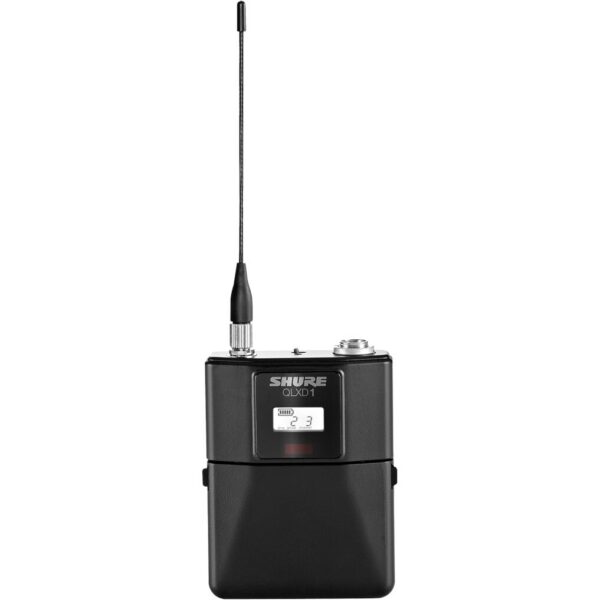

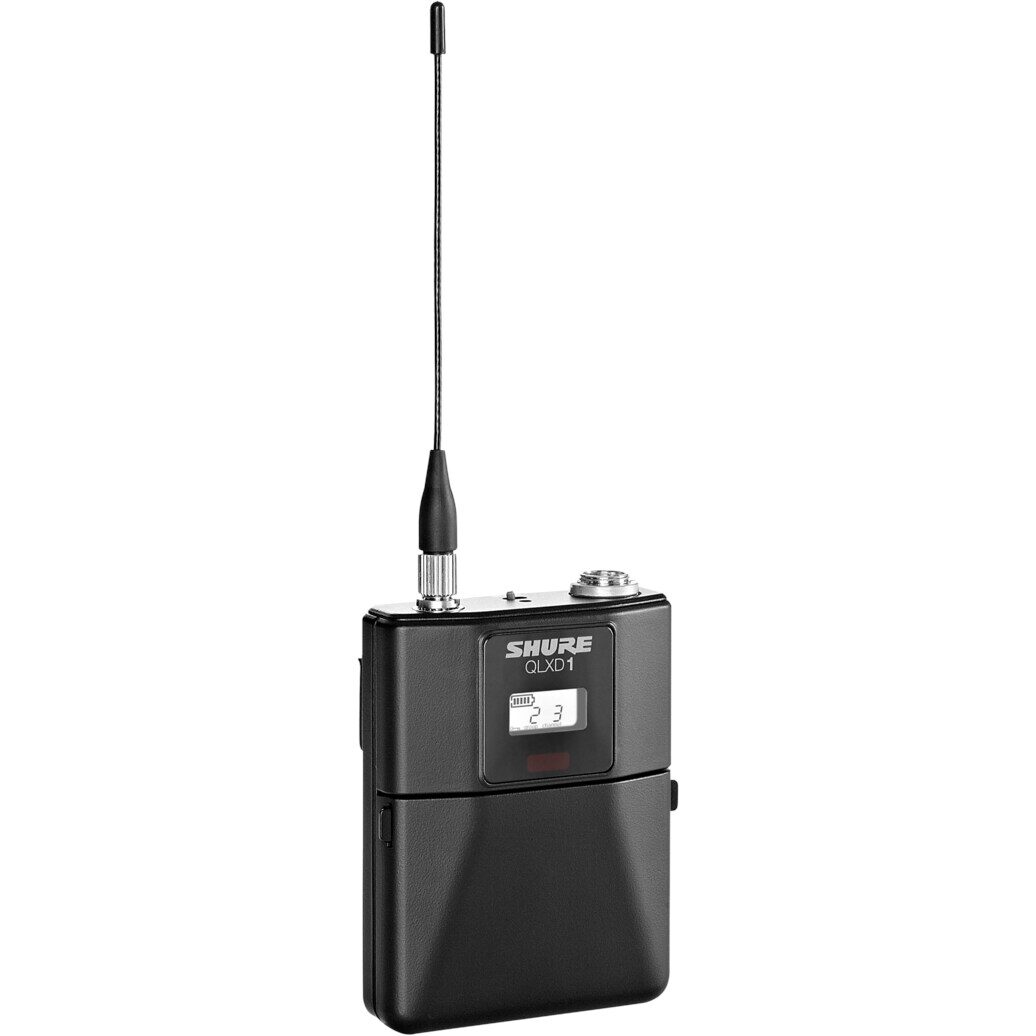

Shure QLXD1 (S50, 823-832 & 863-865 MHz) beltpack 1x Shure QLXD1 (S50, 823-832 & 863-865 MHz) beltpack
The Shure QLXD1 (S50, 823-832 & 863-865 MHz, for use in Germany) beltpack is compatible with any headset, instrument cable or lavalier mic with a TA4F connector.
Product features
Microphone connection TA4F/TQG (4 pin)
Battery type AA, SB 900 lithium-ion
Battery life (approx.)9 hours
Frequency band Shure S50 (823 – 832 + 863 – 865 MHz)
Channel 65 (822 – 830 MHz), 66 (830 – 838 MHz), ISM (863 – 865 MHz)
PAD switch yes
Type of frequency band 800 – 899 MHz
Volume control no
Equipped with display yes
Weight and dimensions including packaging
Weight (incl. packaging)500 gr
Dimensions (incl. packaging)33.0 x 13.0 x 9.0 cm
Product specifications
bodypack transmitter
frequency band: S50 (823-832 & 863-865 MHz), fit for use in Germany
range: up to 100 m
dynamic range: 120 dB
power supply: 2x AA batteries (included) or SB900 rechargeable battery (separately available)
battery life: up to nine hours (two AA batteries) or up to ten hours (rechargeable SB900 battery)
external charging contacts for dock chargers
backlit LCD display
user-friendly menus
connector: 4-pole male mini connector (TA4M)
synchronise with the receiver via infrared
robust metal housing
detachable lambda antenna
frequency and on/off locking mechanism
dimensions: 86 x 65 x 23 mm
weight: 138 grams (batteries not included)
including two AA batteries, carrying bag, manual

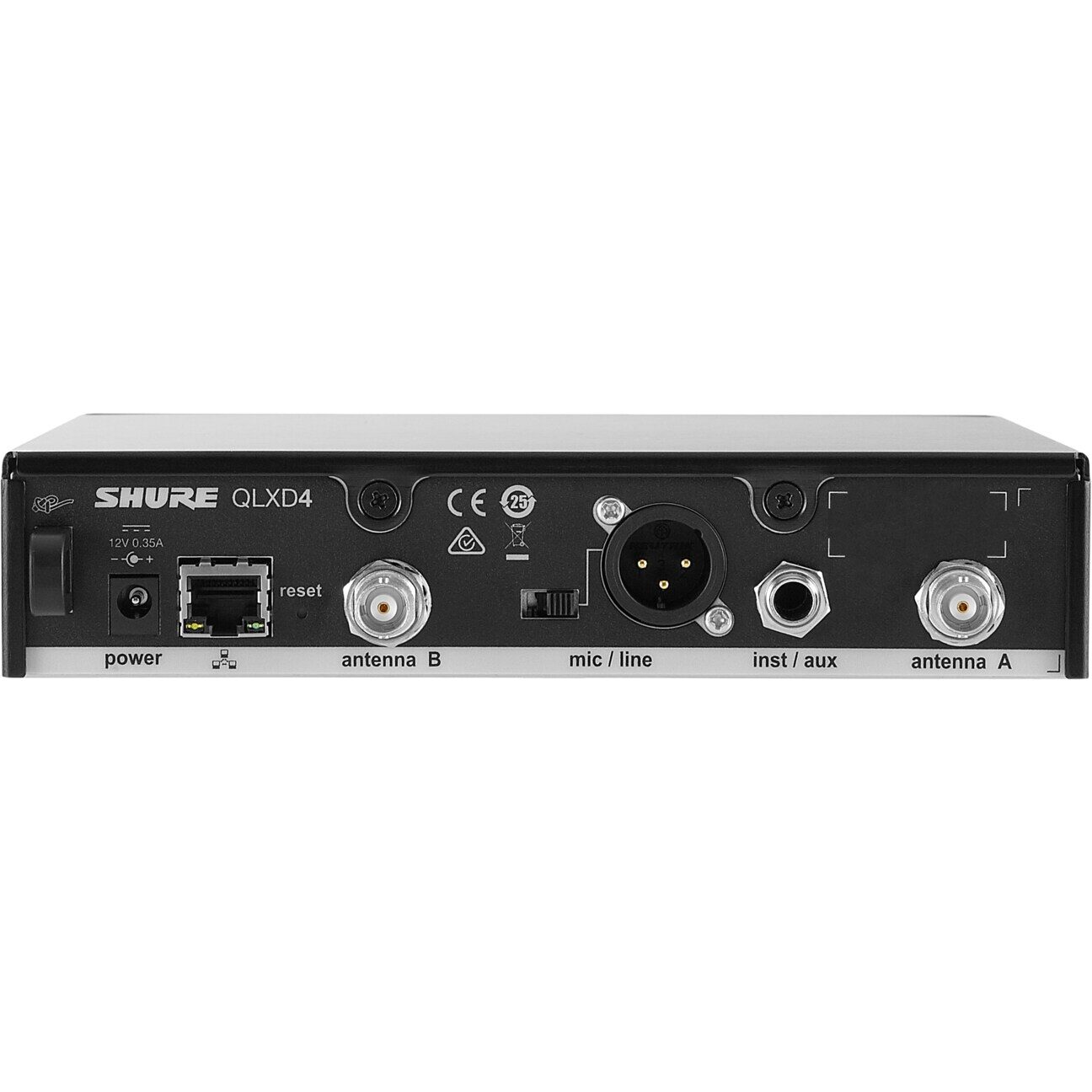

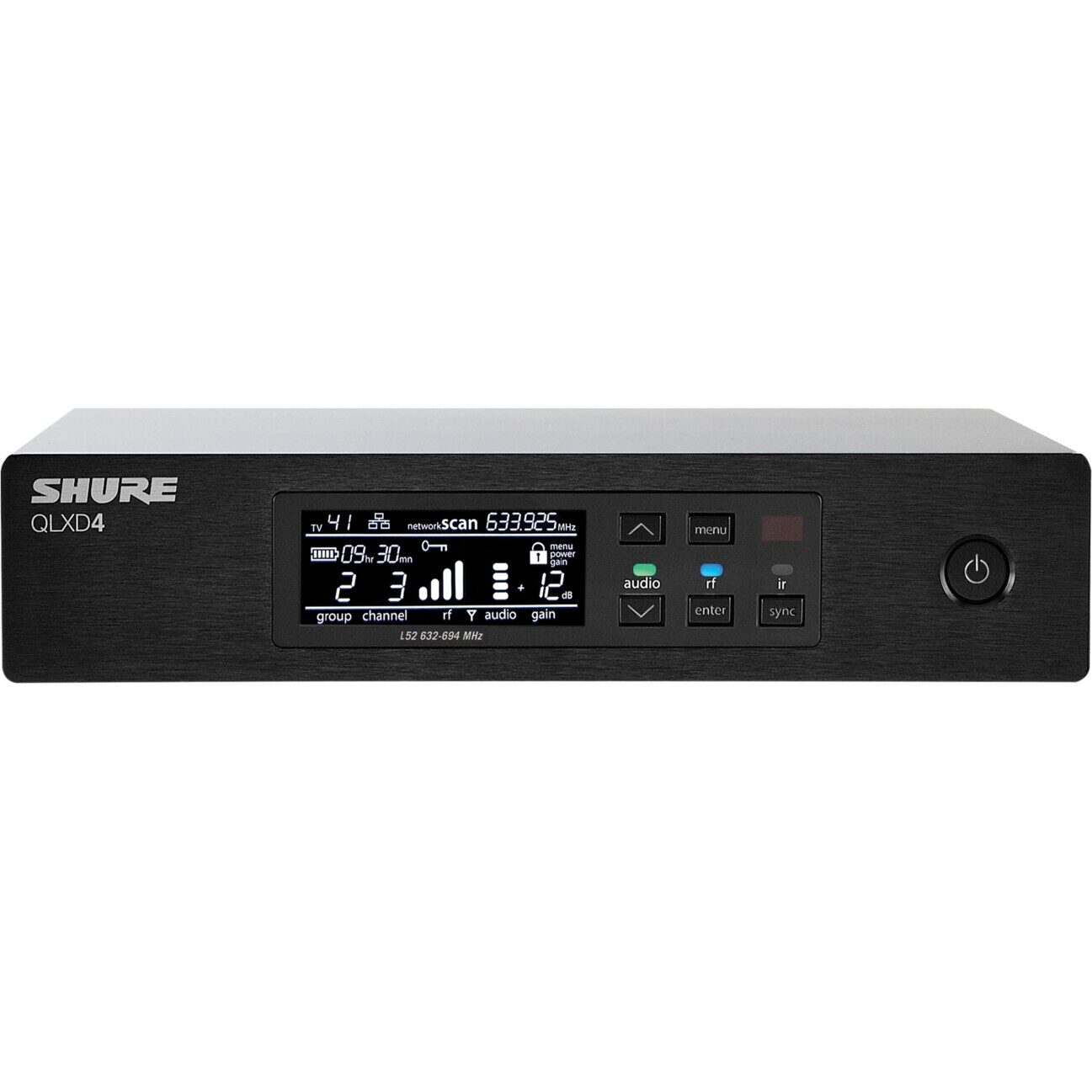

Shure QLXD4 (S50, 823-832 & 863-865 MHz) wireless receiver 1x Shure QLXD4 (S50, 823-832 & 863-865 MHz) wireless receiver
This wireless receiver, the QLXD4 (S50), operates within the 823-832 & 863-865 MHz frequency bands. Use in Germany.
Product features
19-inch rack size1U
Automatic frequency search functionyes
Battery life (approx.)not applicable
Energy sourceAC
Frequency bandShure S50 (823 – 832 + 863 – 865 MHz)
Built-in equaliserno
Channel65 (822 – 830 MHz), 66 (830 – 838 MHz), ISM (863 – 865 MHz)
Switchable frequenciesyes
Type of frequency band800 – 899 MHz
Output connectorjack (6.3 mm), XLR (3-pin)
Volume controlno
Power adapterungrounded flat Europlug
Weight and dimensions including packaging
Weight (incl. packaging)4.1 kg
Dimensions (incl. packaging)33.0 x 13.0 x 9.0 cm
Product specifications
wireless receiver
frequency band: S50 (823-832 & 863-865 MHz), fit for use in Germany
backlit LCD display
LED meters for audio and RF signals with peak indication
detachable antenna
outputs: XLR and 6.3mm jack
connect to transmitter via infrared
robust housing, brushed aluminium
19-inch rack-mountable (half-rack size)
2 antenna connectors (antennas included)
Ethernet connector
power supply: PS23E (included)
including:
rack mounting materials
power adapter
2x antenna
2x BNC cable
2x BNC bulkhead adapter
manual
dimensions: 41 x 197 x 151 mm (1.63 x 7.75 x 5.94 inches)
weight (antennas excluded): 777 g (1.71 lbs)

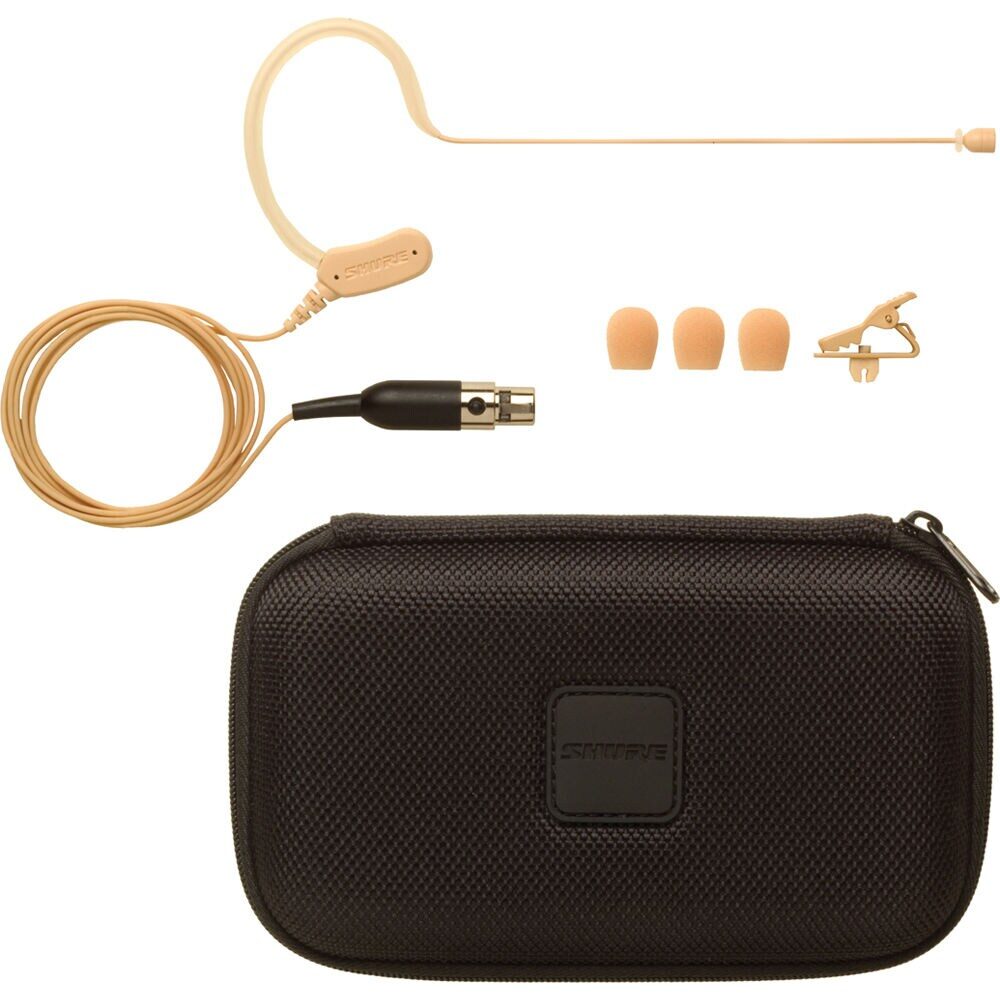

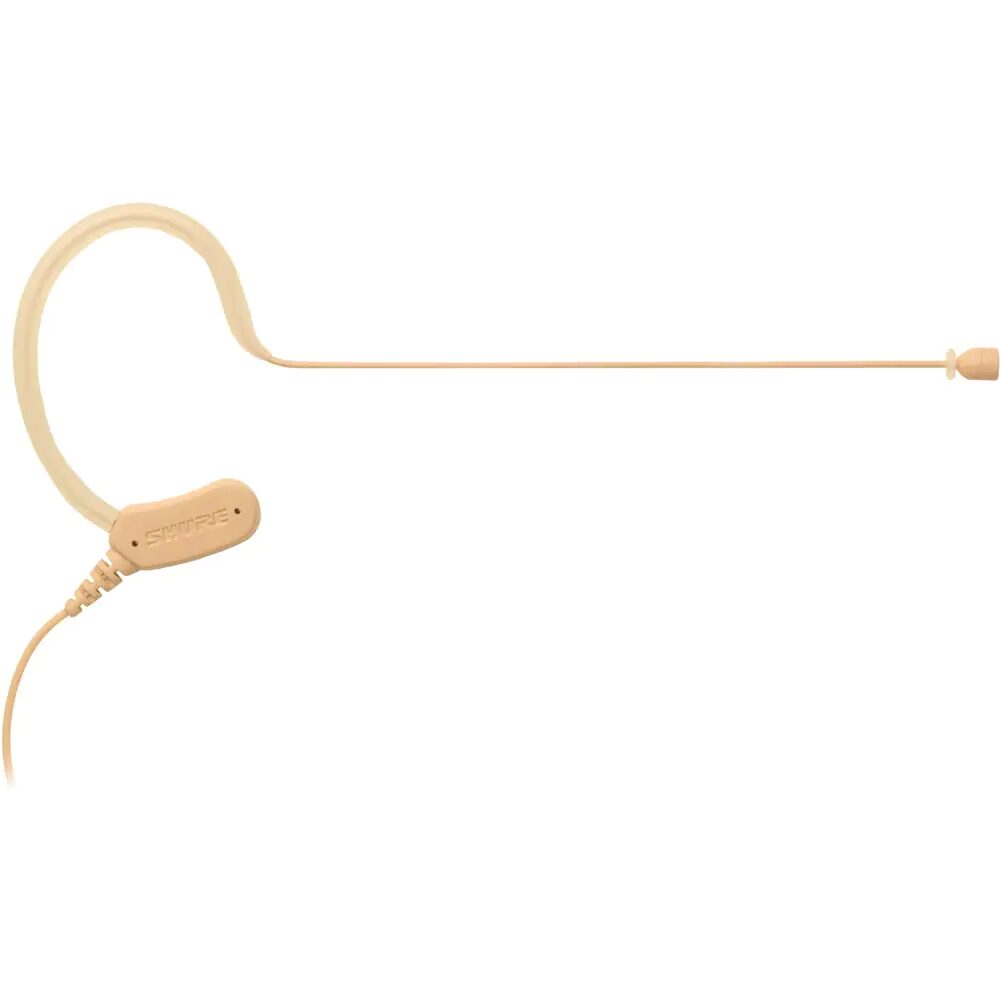

Shure MX153T/O TQG headset microphone tan 1x Shure MX153T/O TQG headset microphone tan
This Shure MX153 is the ultimate companion if you need a nearly invisible microphone. The T/O version has a tan, light skin colour.
Product features
Microphone connectionTA4F/TQG (4 pin)
Microphone impedancenot specified
Includes headphonesno
Includes pop filter / capyes
Cable length150-199 cm
Colourbeige
Maximum SPL100 dB – 109 dB
Maximum frequency20 – 20.9 kHz
Minimum frequency20 – 21 Hz
Polar patternomni-directional
Moisture resistantNo
Weight and dimensions including packaging
Weight (incl. packaging)3.0 kg
Dimensions (incl. packaging)26.0 x 13.0 x 9.0 cm
Product specifications
subminiature headset microphone
electret condenser
pickup pattern: omnidirectional
CommShield® technology prevents interference
Kevlar®-reinforced MicroFlex cable
comfortable, flexible design for great wearing comfort
TQG/TA4F connector for use with Shure beltpacks
frequency range: 20 Hz to 20 kHz
sensitivity: -41 dBV/Pa (9 mV) (open circuit, @1 kHz, typical)
max. SPL (1 kHz @ 1% THD): 107 dB
SNR: 60 dB
dynamic range @ 1 kHz: 73 dB SPL
power supply: 5V DC
colour: tan
cable length: 152 cm
microphone diameter: 5.8 mm
weight: 19.76 g
