Description
Specifications
Product features
Number of microphones 1 microphone
Battery type AA
Battery life (approx.)8 hours
Frequency suitable for Belgium yes, licence required
Frequency suitable for Netherlands yes, licence required
Frequency suitable for UK yes, with UK wireless microphone licence
Worldwide frequency use no
Frequency bandSennheiser ew G4 GBW (606 – 678 MHz)
Channel 38 (606 – 614 MHz), 39 (614 – 622 MHz), 40 (622 – 630 MHz), 41 (630 – 638 MHz), 42 (638 – 646 MHz), 43 (646 – 654 MHz), 44 (654 – 662 MHz), 45 (662 – 670 MHz), 46 (670 – 678 MHz)
Maximum SPL 140 dB – 149 dB
Maximum frequency 20 – 20.9 kHz
Minimum frequency 40 – 49 Hz
Polar pattern cardioid, super cardioid
Switchable frequencies yes
Analogue audio output type unbalanced line out (TS jack), balanced microphone out (XLR)
Type of frequency band 600 – 699 MHz
Transmission power 10 mW + 30 mW + 50 mW
Weight and dimensions including packaging
Weight (incl. packaging)3.1 kg
Dimensions (incl. packaging)41.0 x 35.0 x 7.5 cm
Product specifications

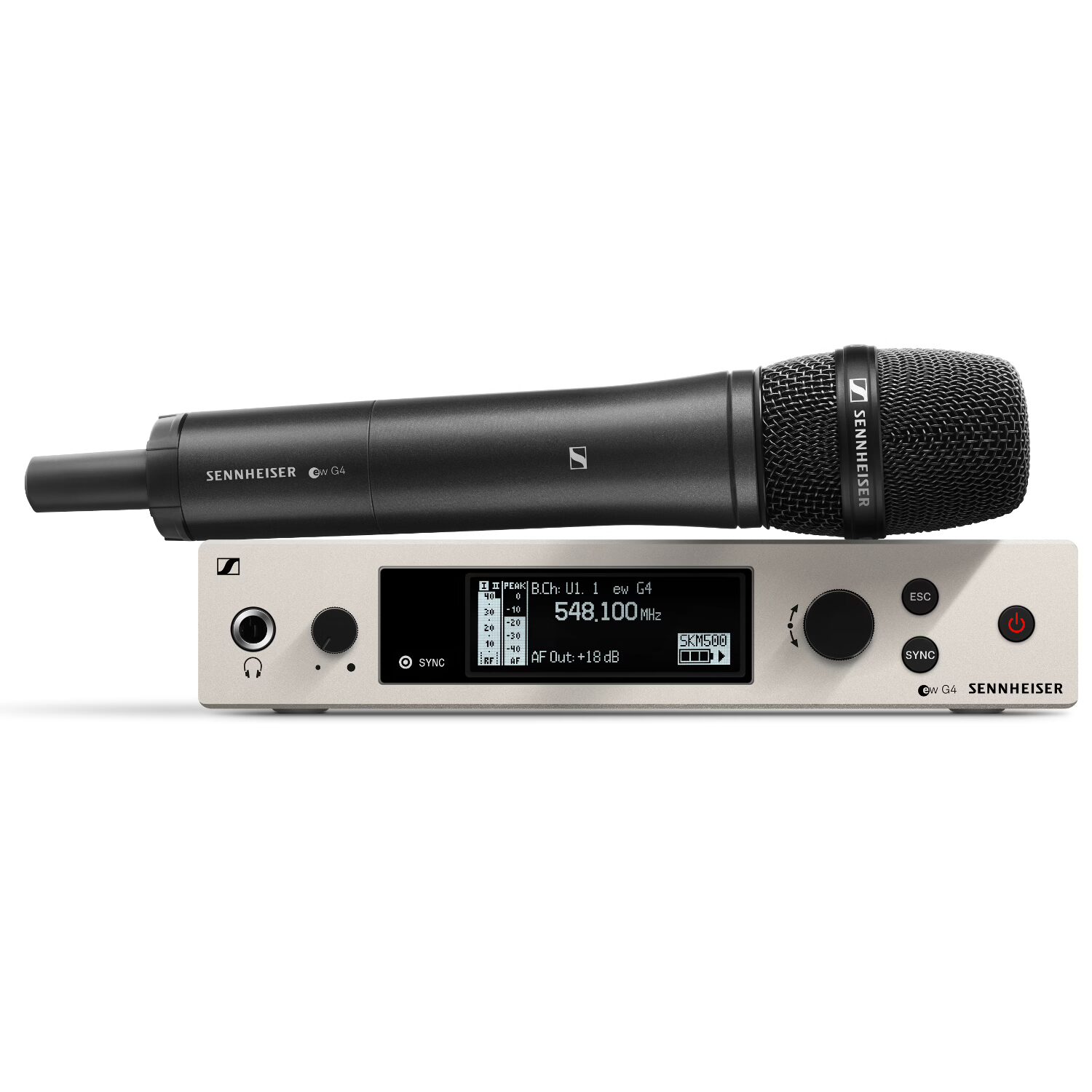

Sennheiser ew 500 G4-965-GBW
wireless vocal set
frequency band GBW: 606 – 678 MHz
system:
bandwidth: 88 MHz
range: max. 100 m
number of channels: 32

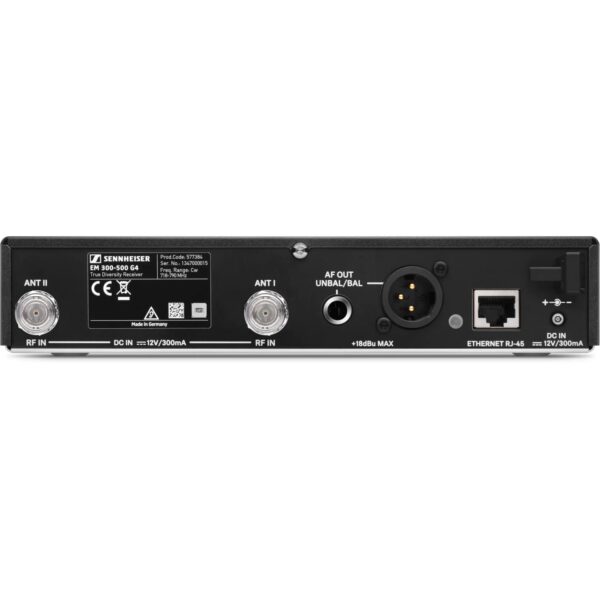

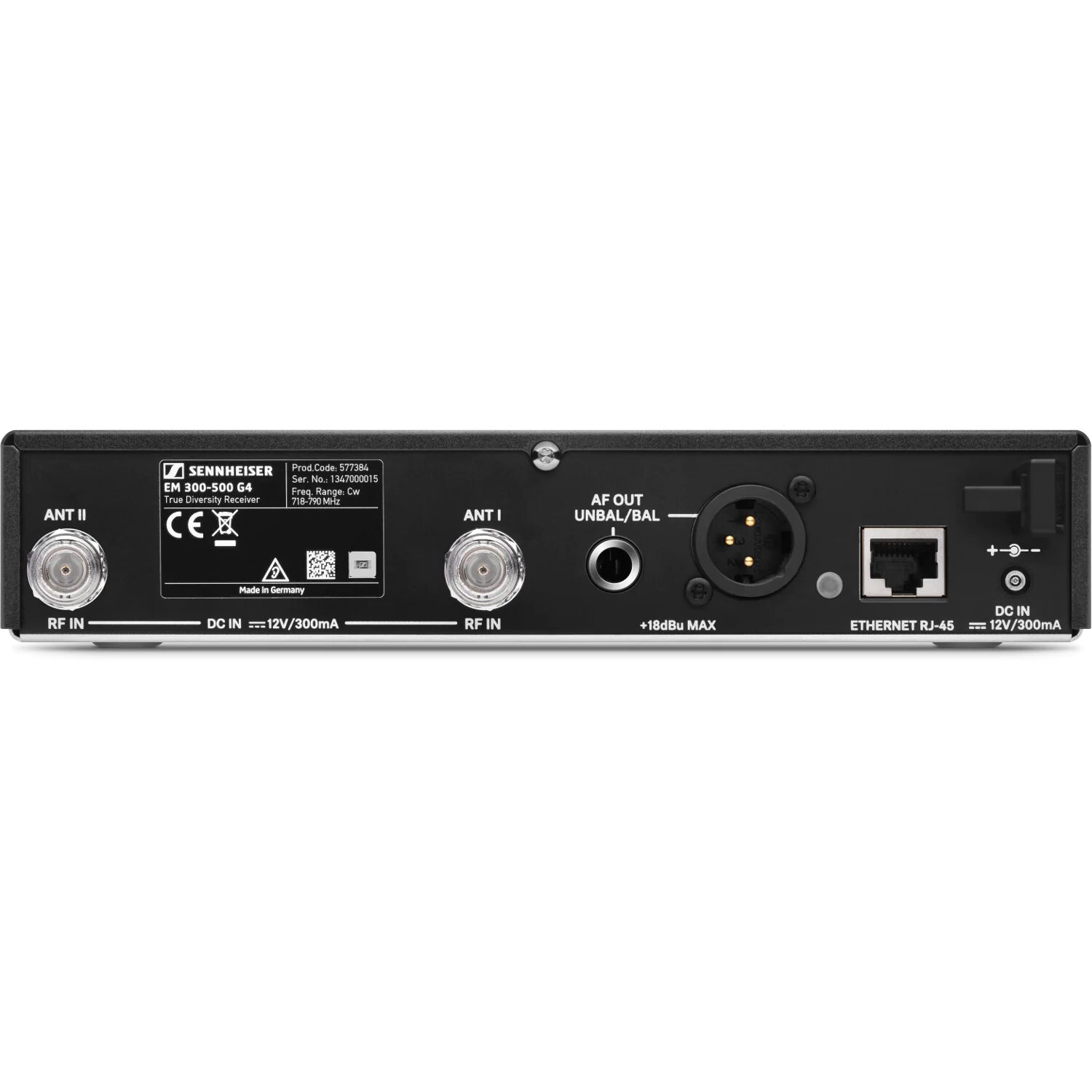

EM 300 G500 receiver:
outputs: XLR (balanced) jack (balanced or unbalanced)
Ethernet connection for frequency management
4x equalizer presets
dimensions: 202 x 212 x 43 mm
weight: 980 g

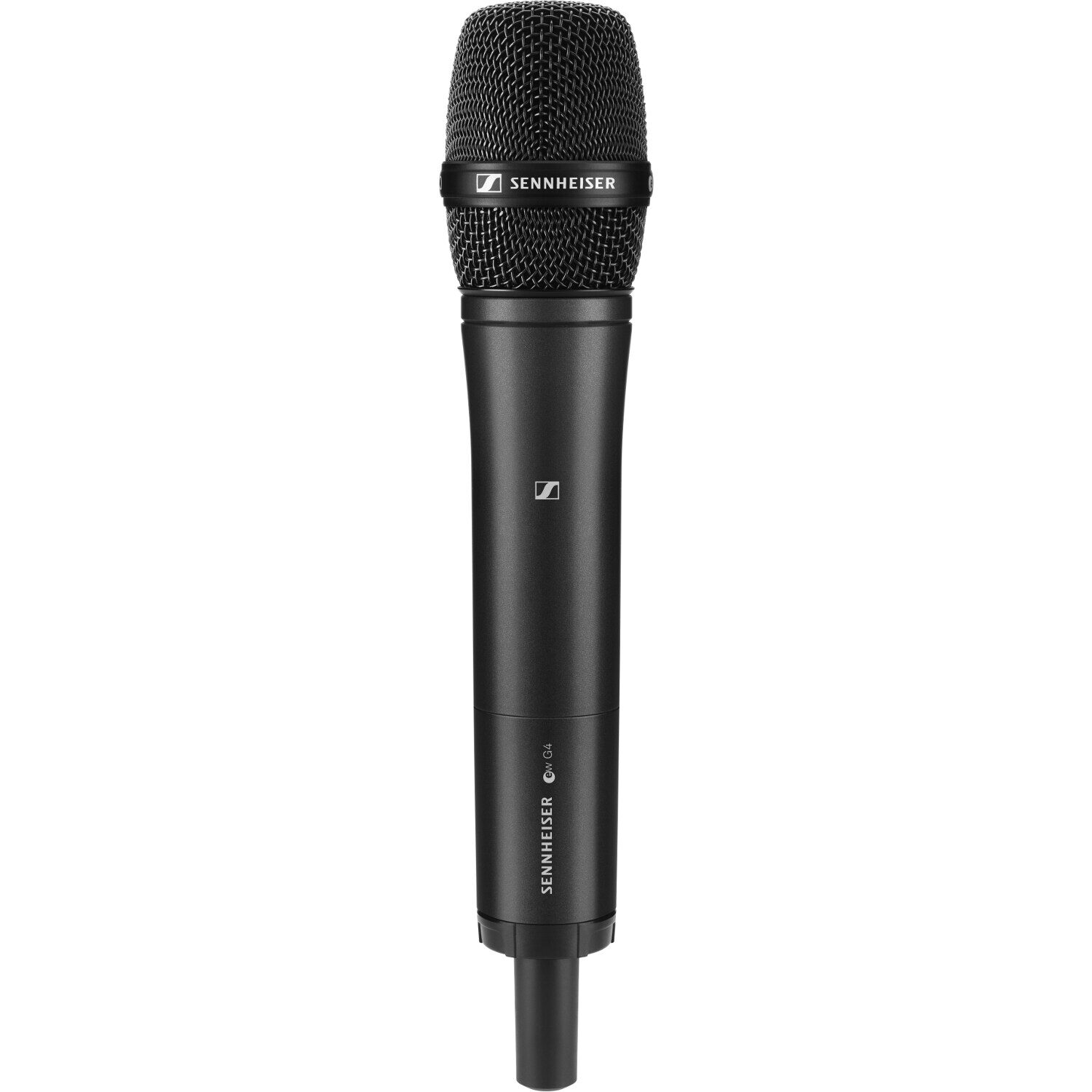

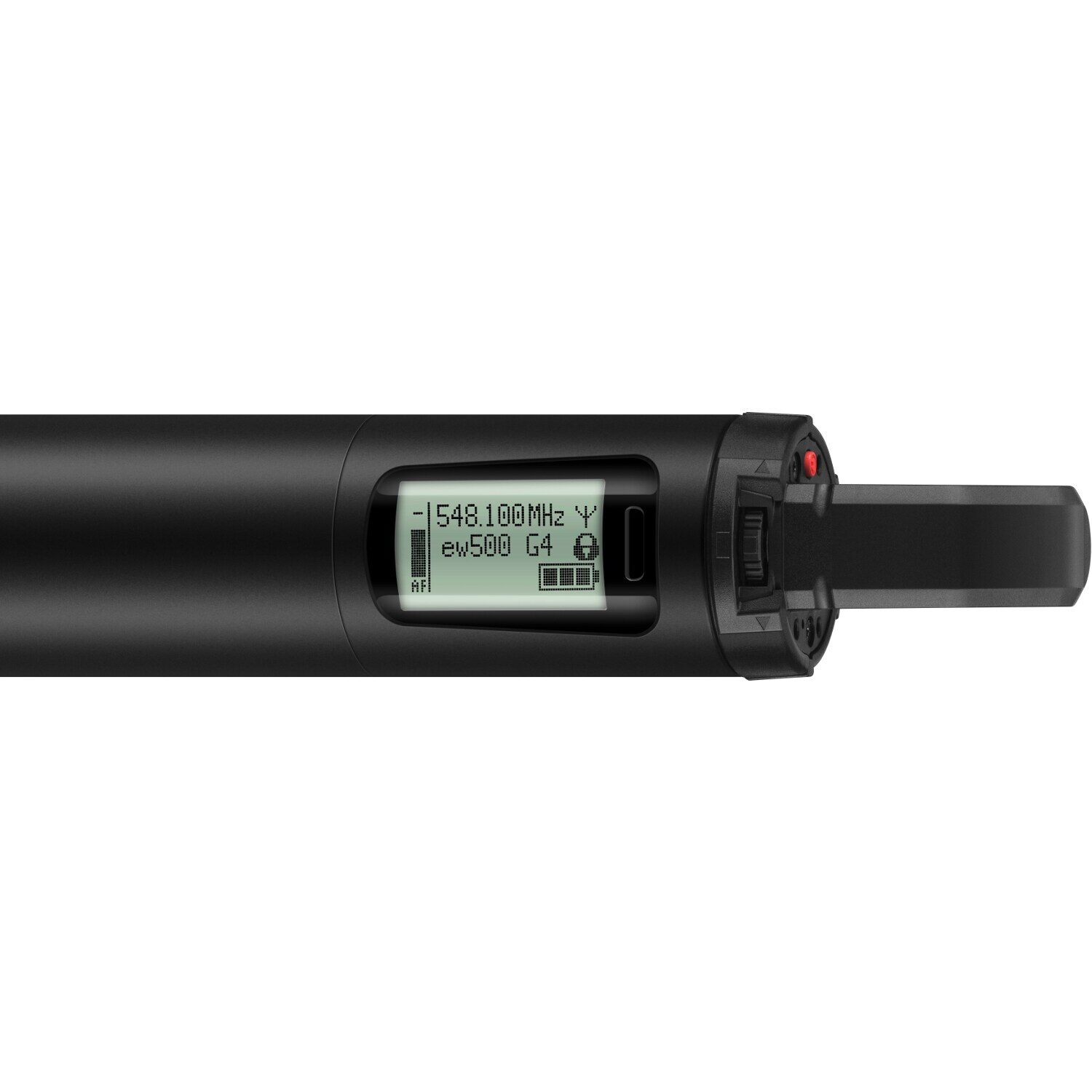

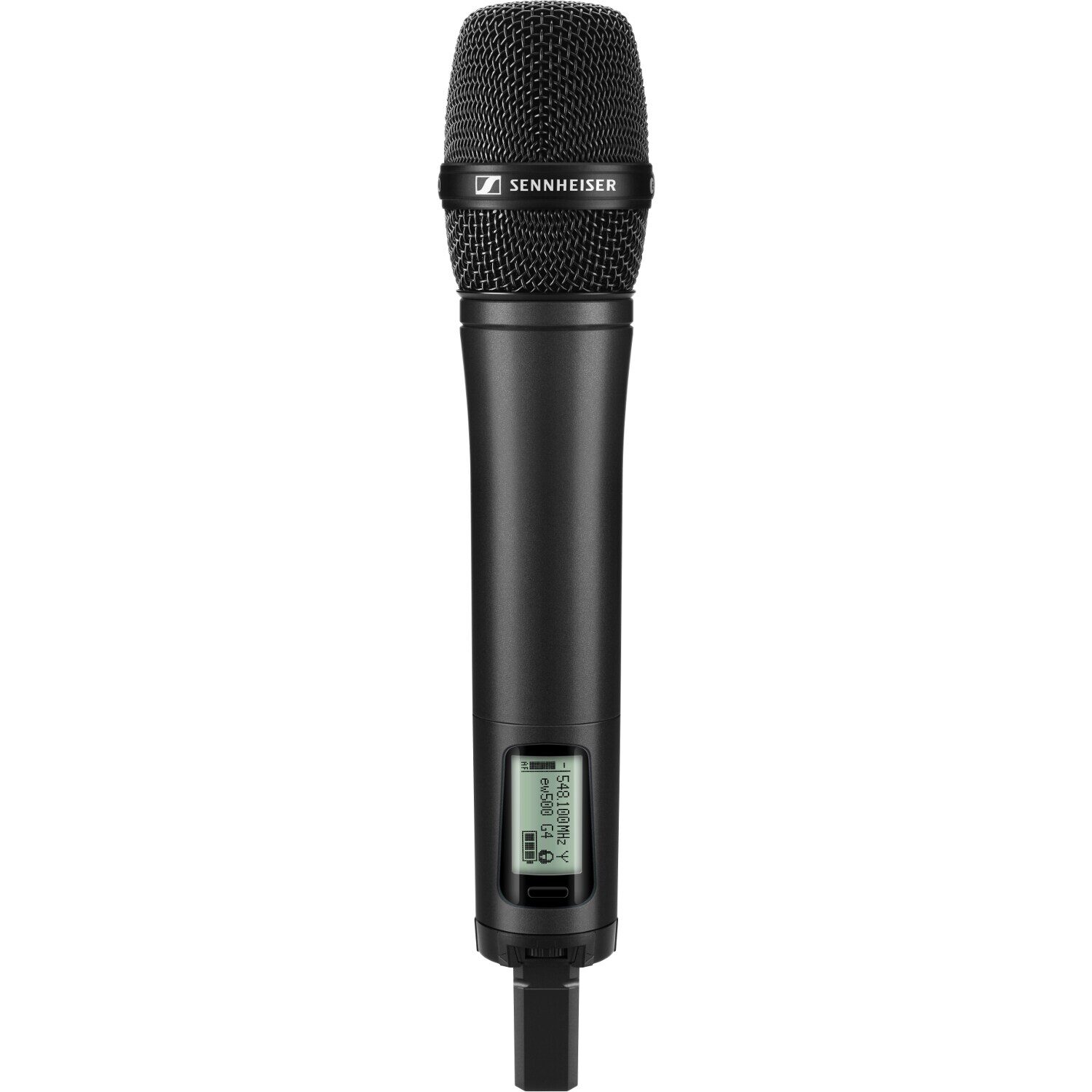

SKM 500 G4 handheld transmitter
MMD 965-1 capsule
frequency response: 40 Hz – 20 kHz
pickup pattern: can be switched between cardioid and super-cardioid
max. transmission capacity: 50 mW
equipped with mute button
power supply: 2x AA batteries or BA 2015 rechargeable battery
dimensions: 50 x 265 mm
weight: 450 g
included:
GA 3 rack mount set
MZQ 1 mic clip
mains power adapter for receiver
2x AA batteries
2x antennas
