Description
Specifications
Product features
19-inch rack size not applicable
Number of keys 88
Arpeggiator/sequencerarpeggiator, sequencer
Computer integration PC editor, Mac editor, functions as plug-in, functions as audio interface, functions as DAW controller
Control expression (input), other
Synthesizer inputs microphone input, line in
Sound source digital
MIDI & CV/gate MIDI in, MIDI out, MIDI over USB
Synthesizer outputs line out jack, headphone
Type of keys hammer action
Synthesizer type keyboard
Weight and dimensions including packaging
Weight (incl. packaging)17.0 kg
Dimensions (incl. packaging)155.0 x 47.0 x 24.0 cm
Product specifications

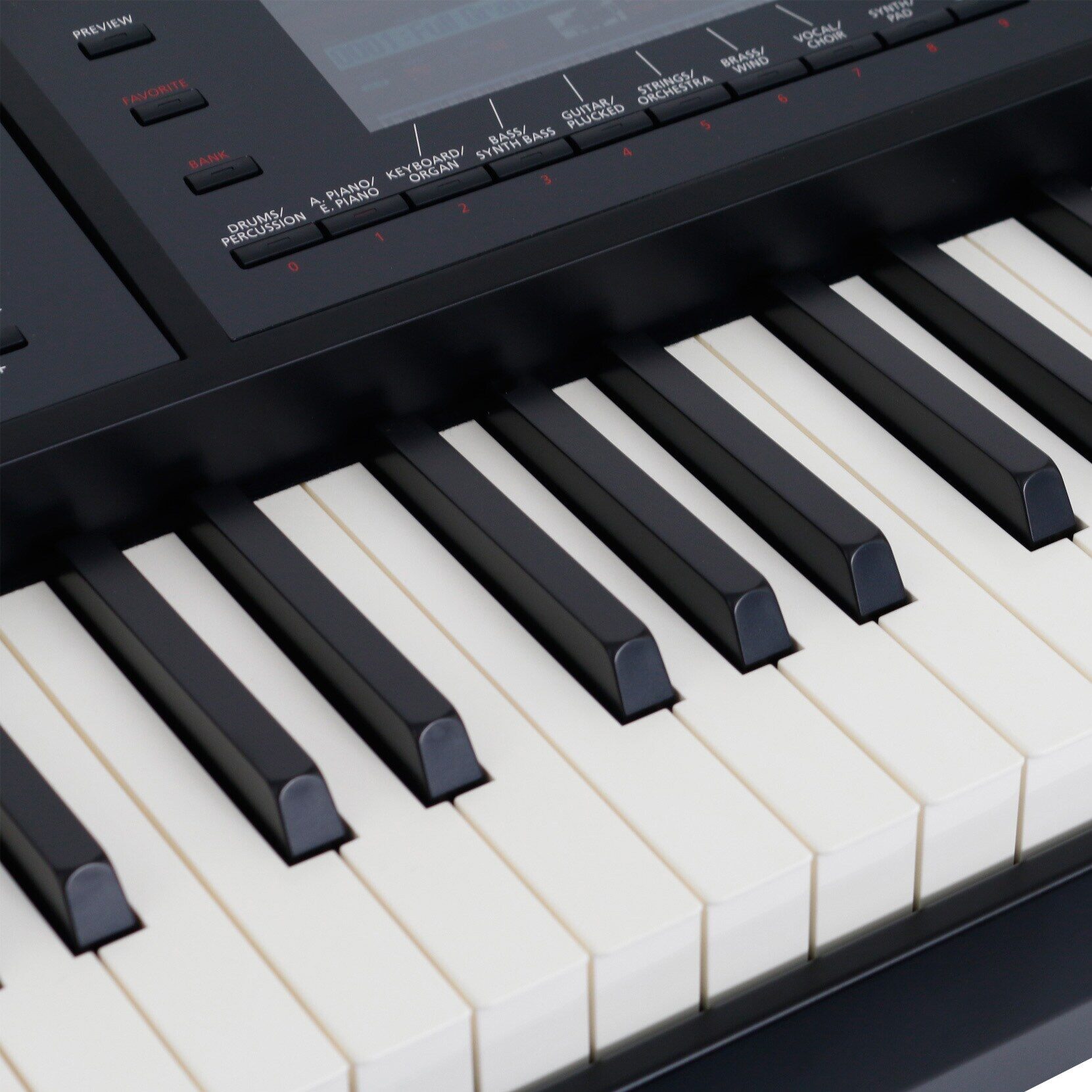

88 weighted keys
keyboard: Ivory Feel-G with Escapement
more than 2,000 sounds (including those of Integra-7)
SuperNATURAL synth engine
polyphony: 128 voices
Performance Sampler (via SDHC card)

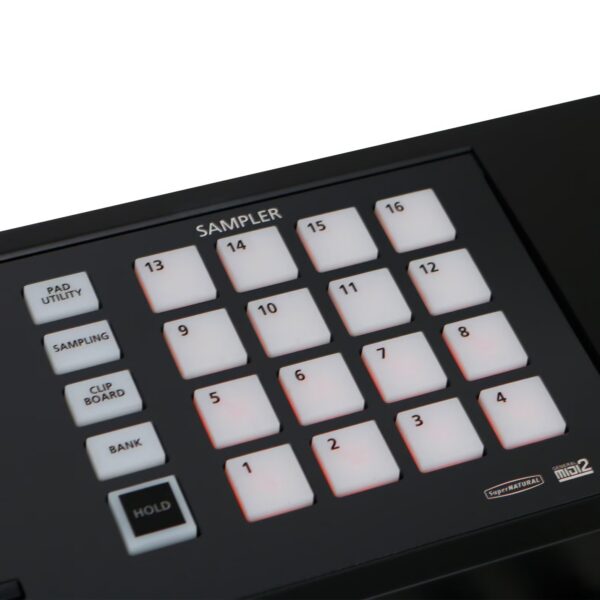

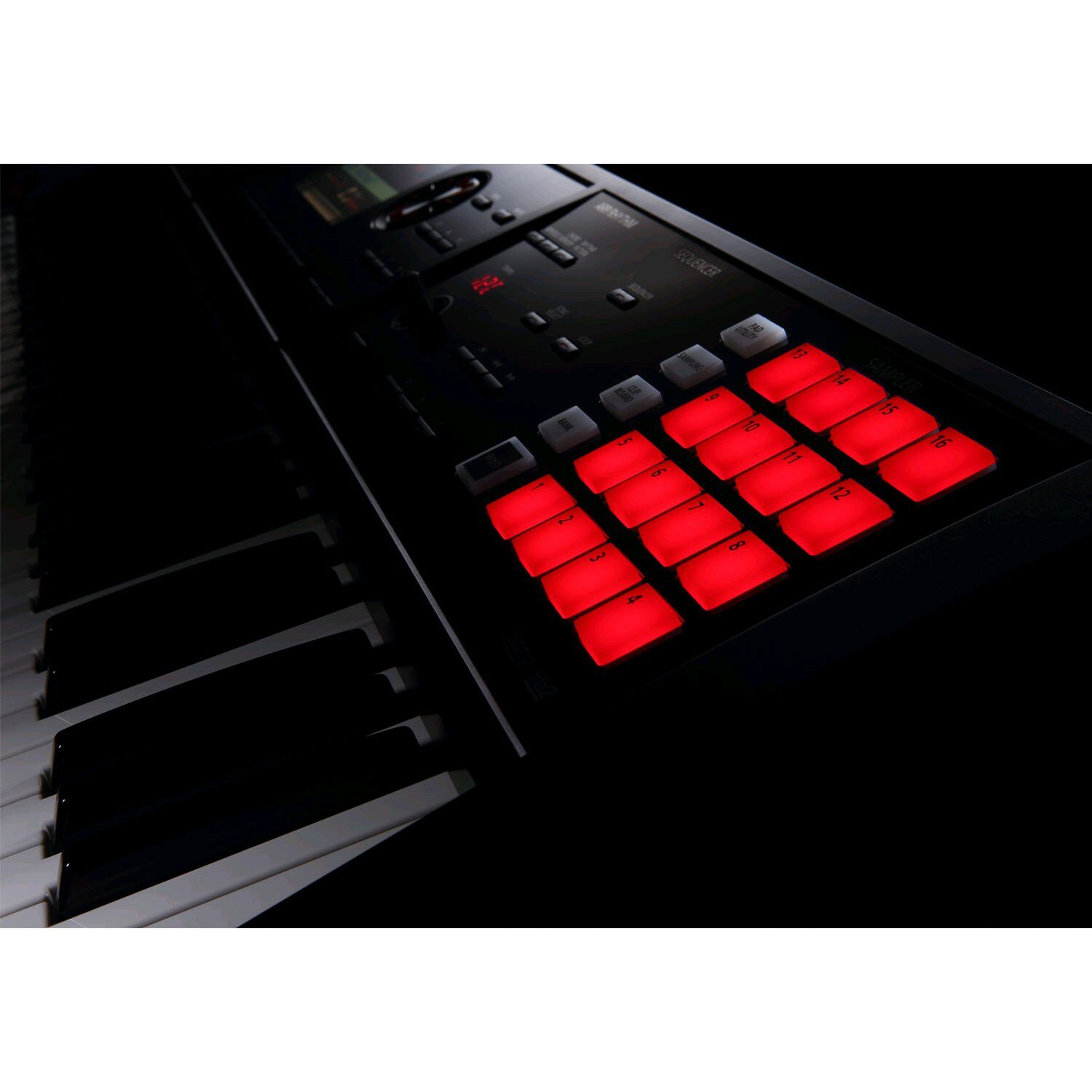

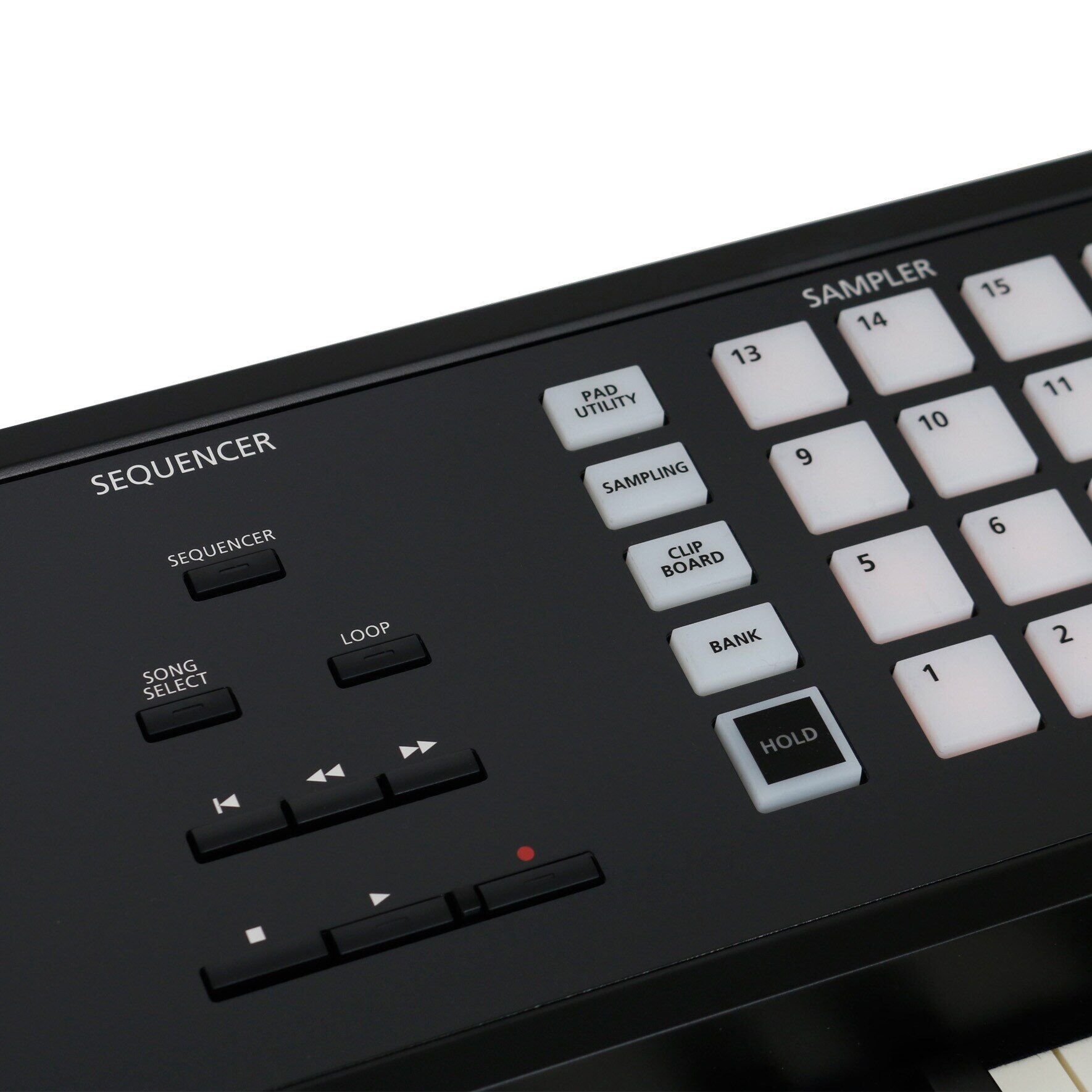

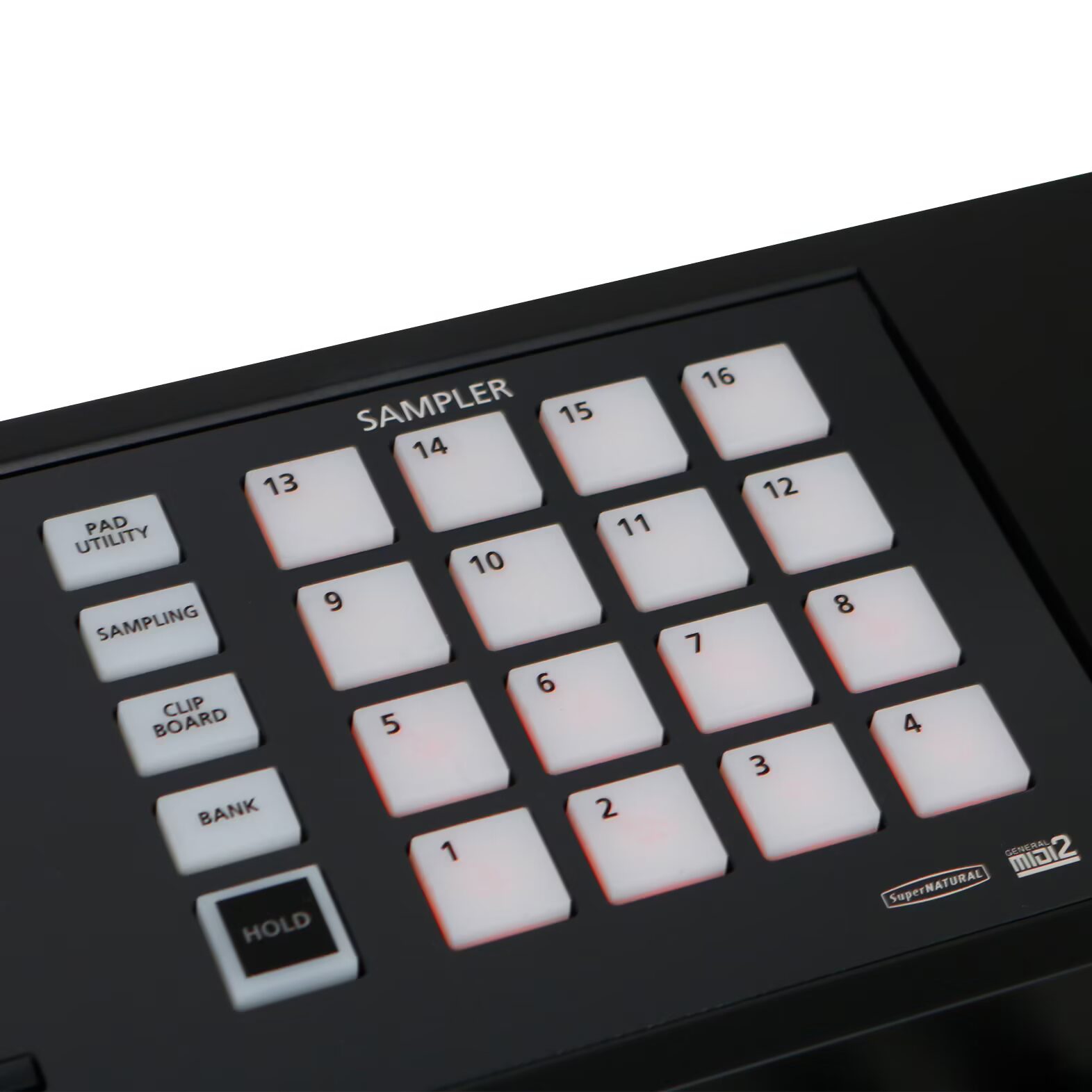

16 illuminated pads (for sample and MIDI triggering, etc.)
high-grade MFX effect processors
TFX Total Effects: high-grade master effects

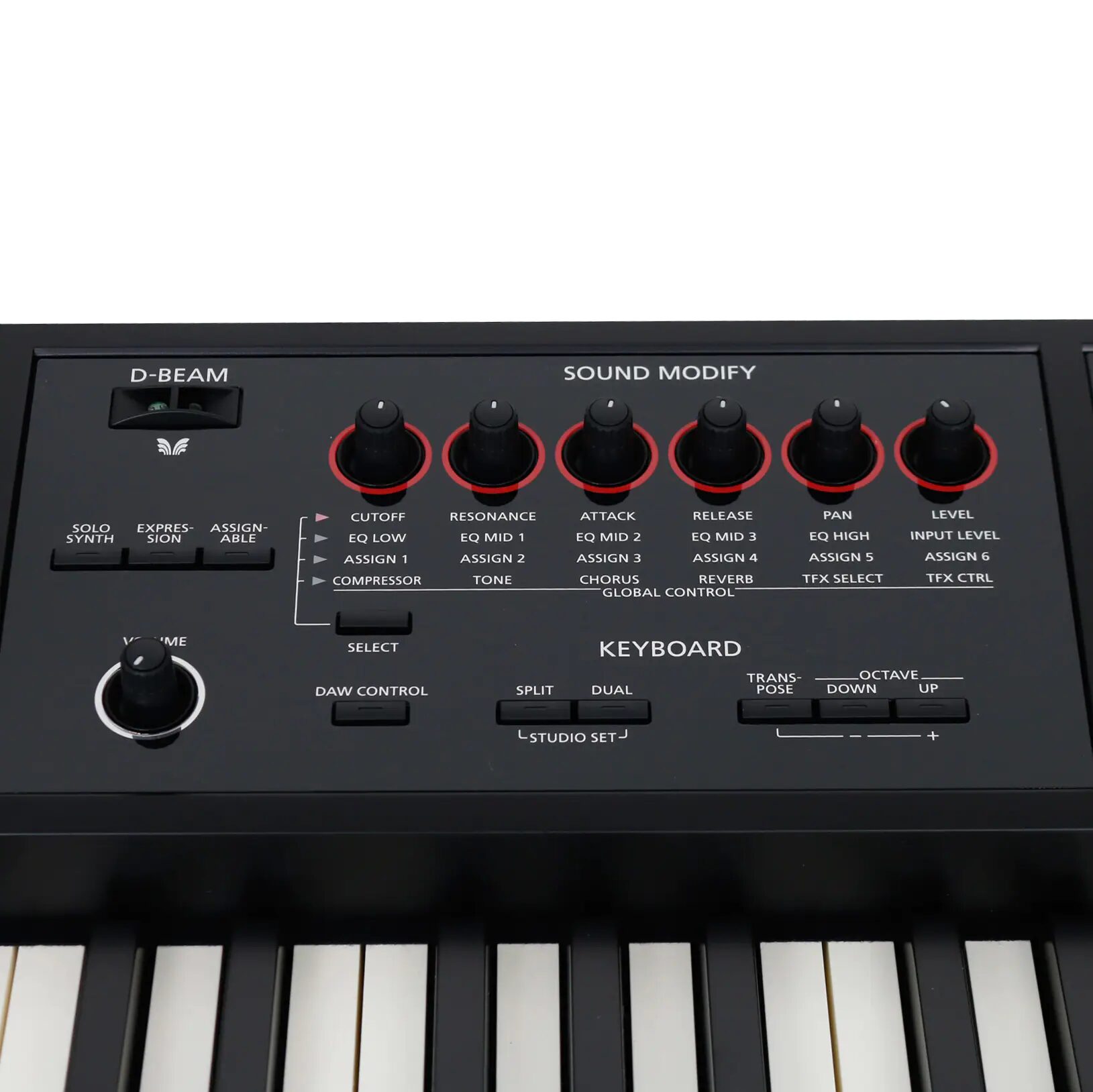

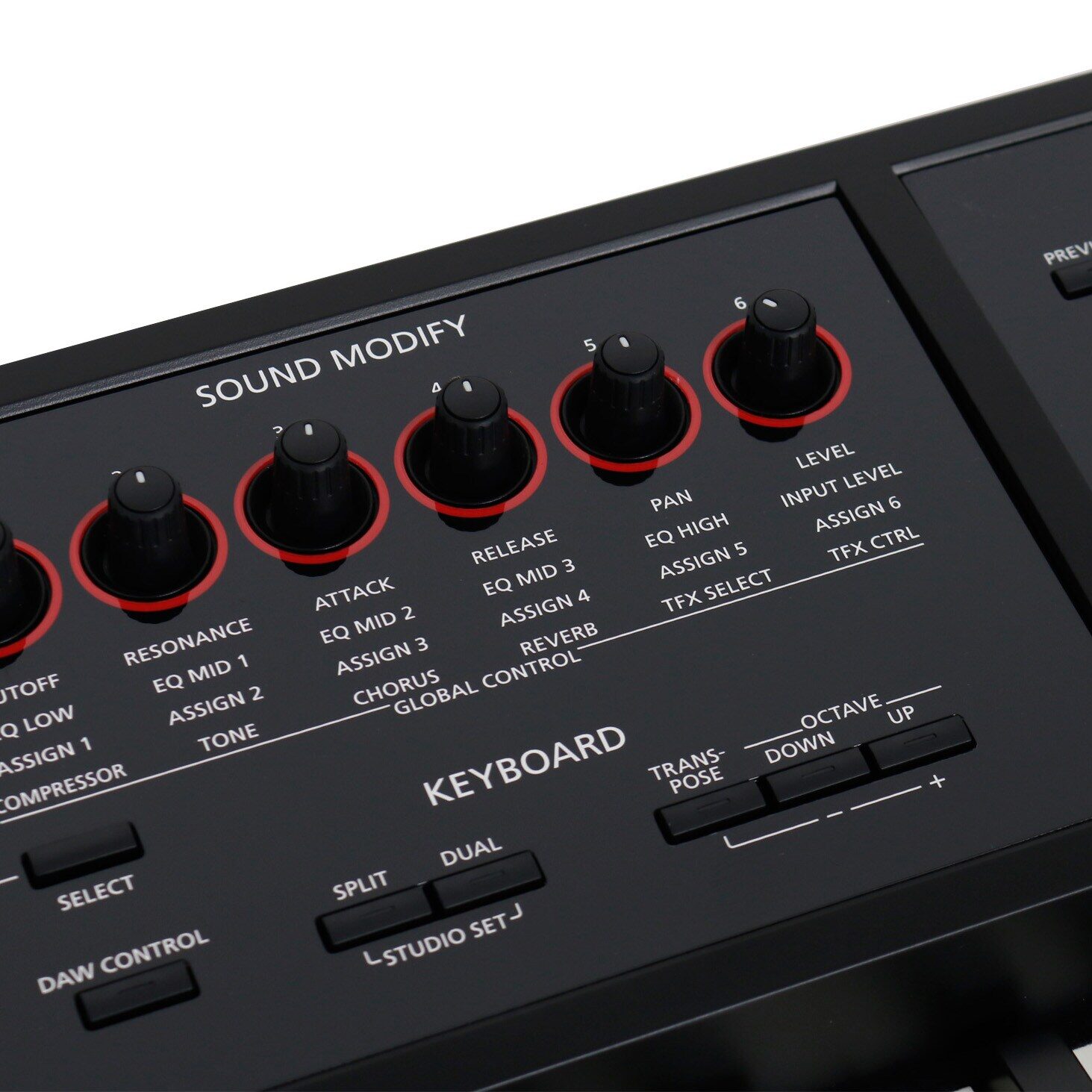

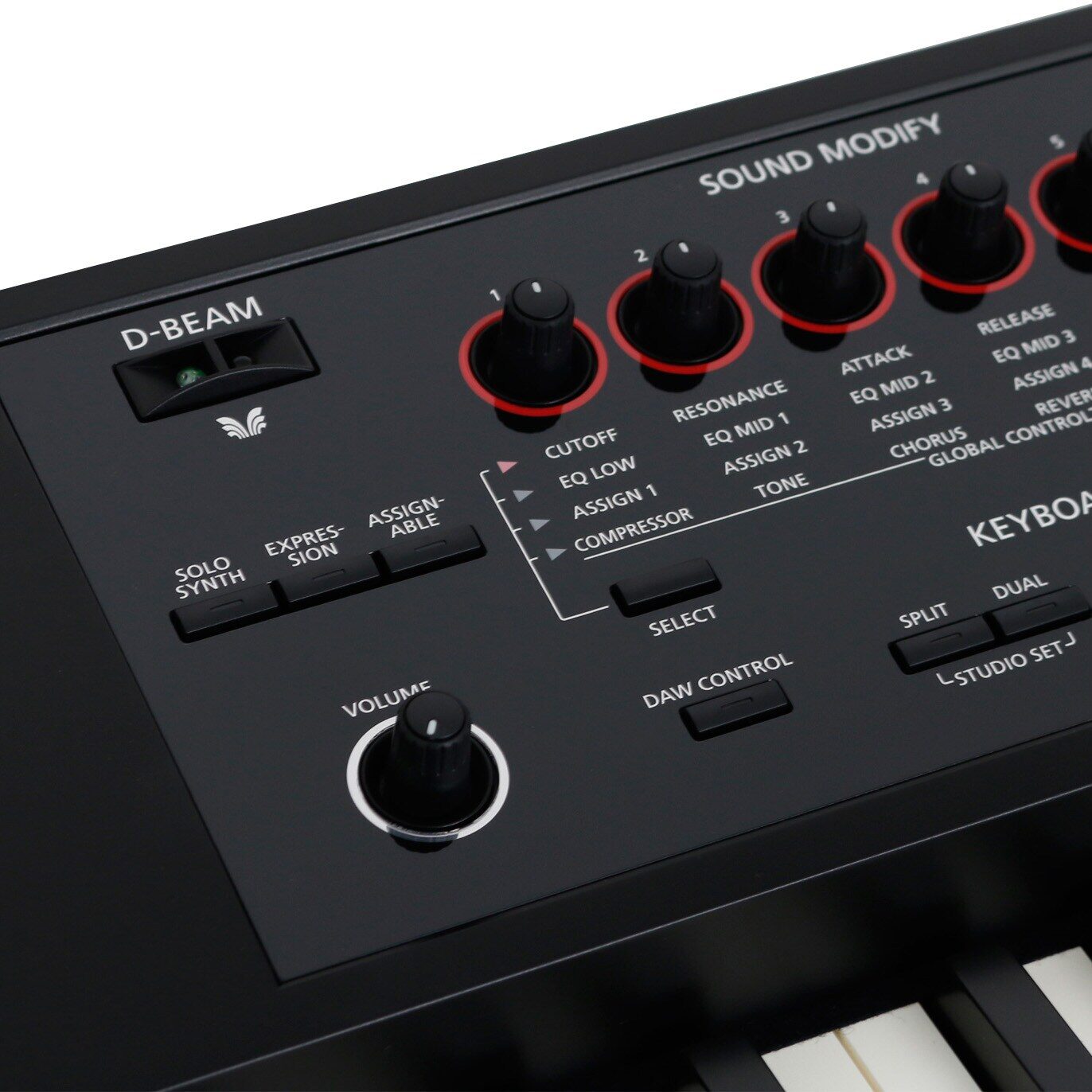

6 Sound Modify knobs

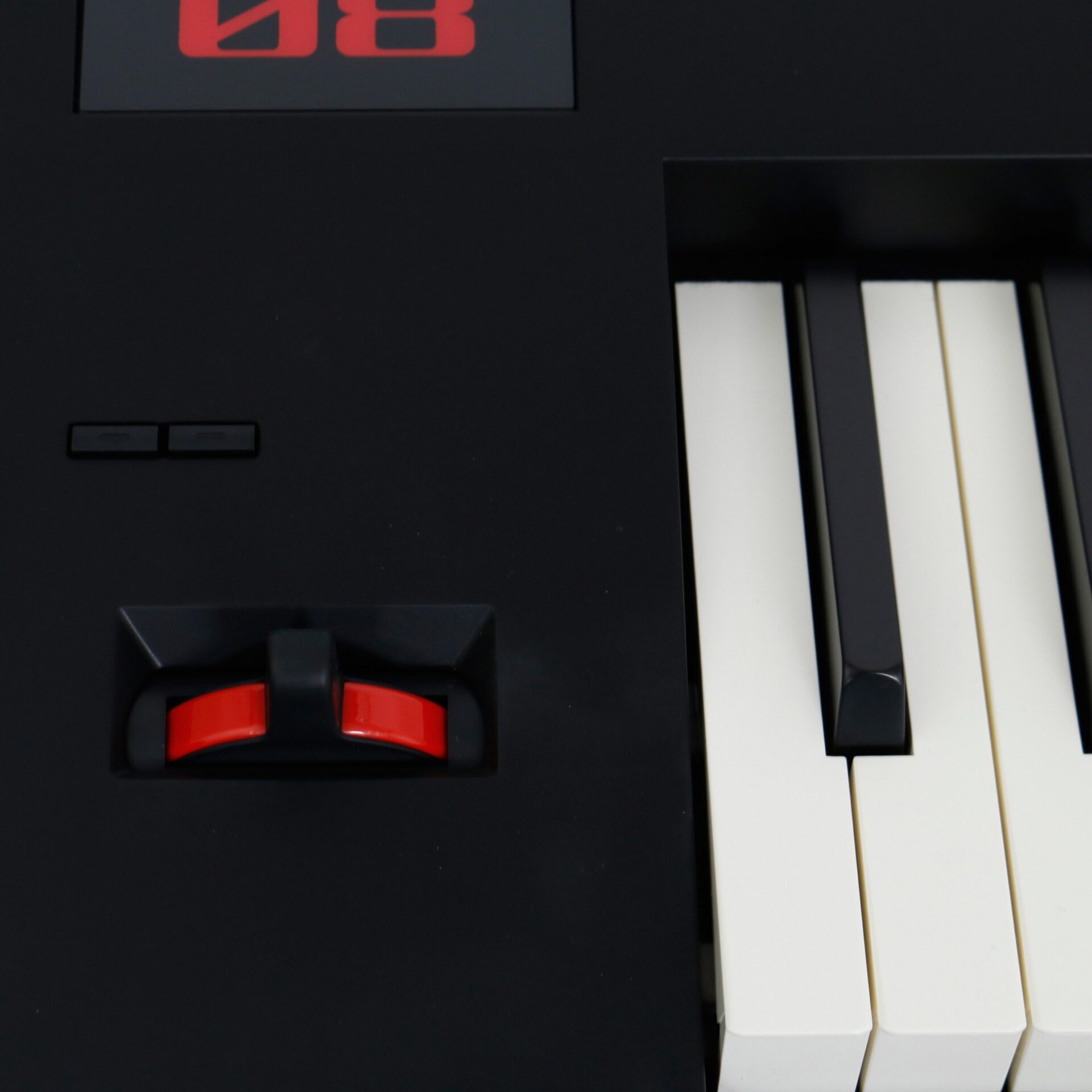

D-Beam controller
67 effect types x 16 parts
vocoder
USB audio interface
audio input (guitar/microphone/line)
DAW Control for seamless software integration

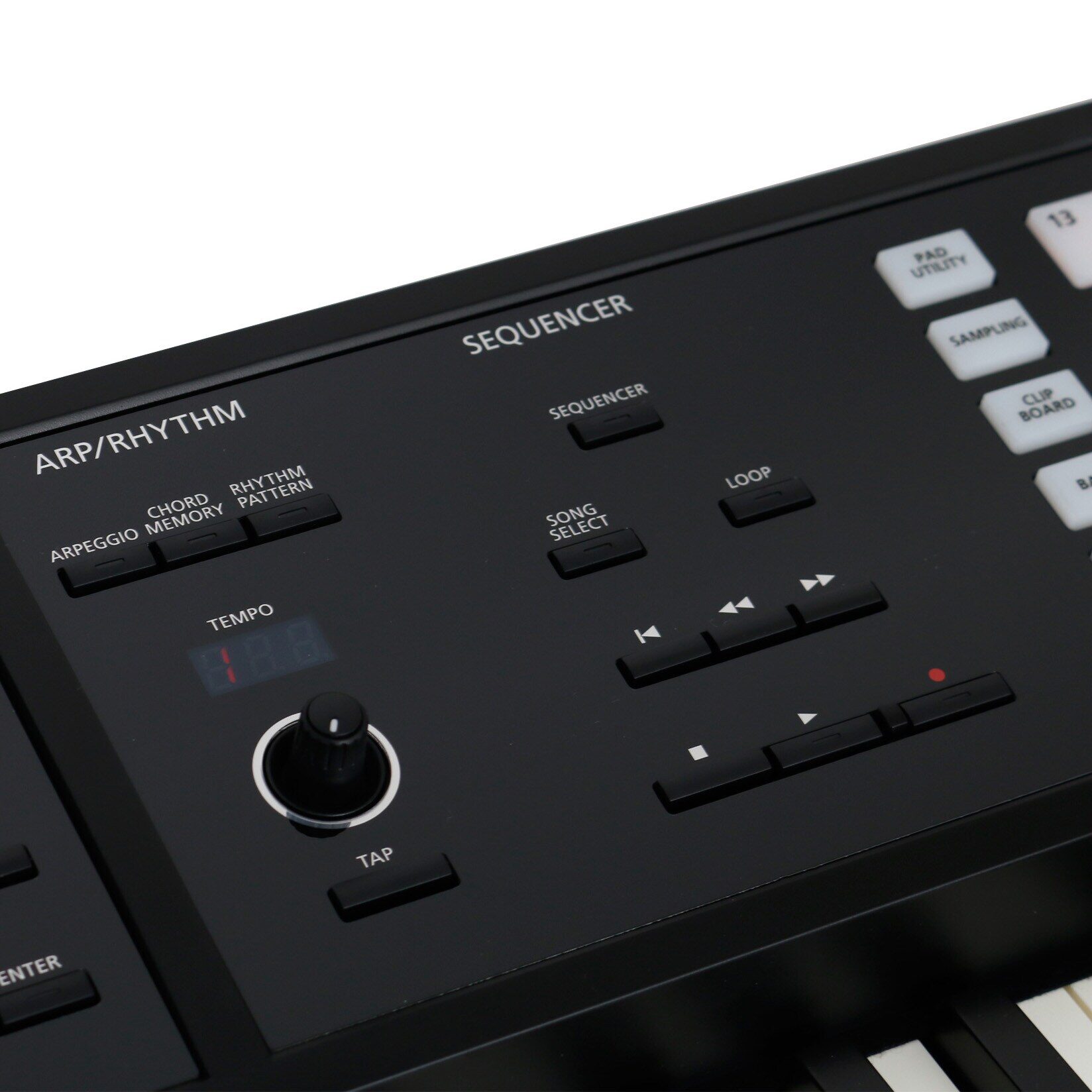

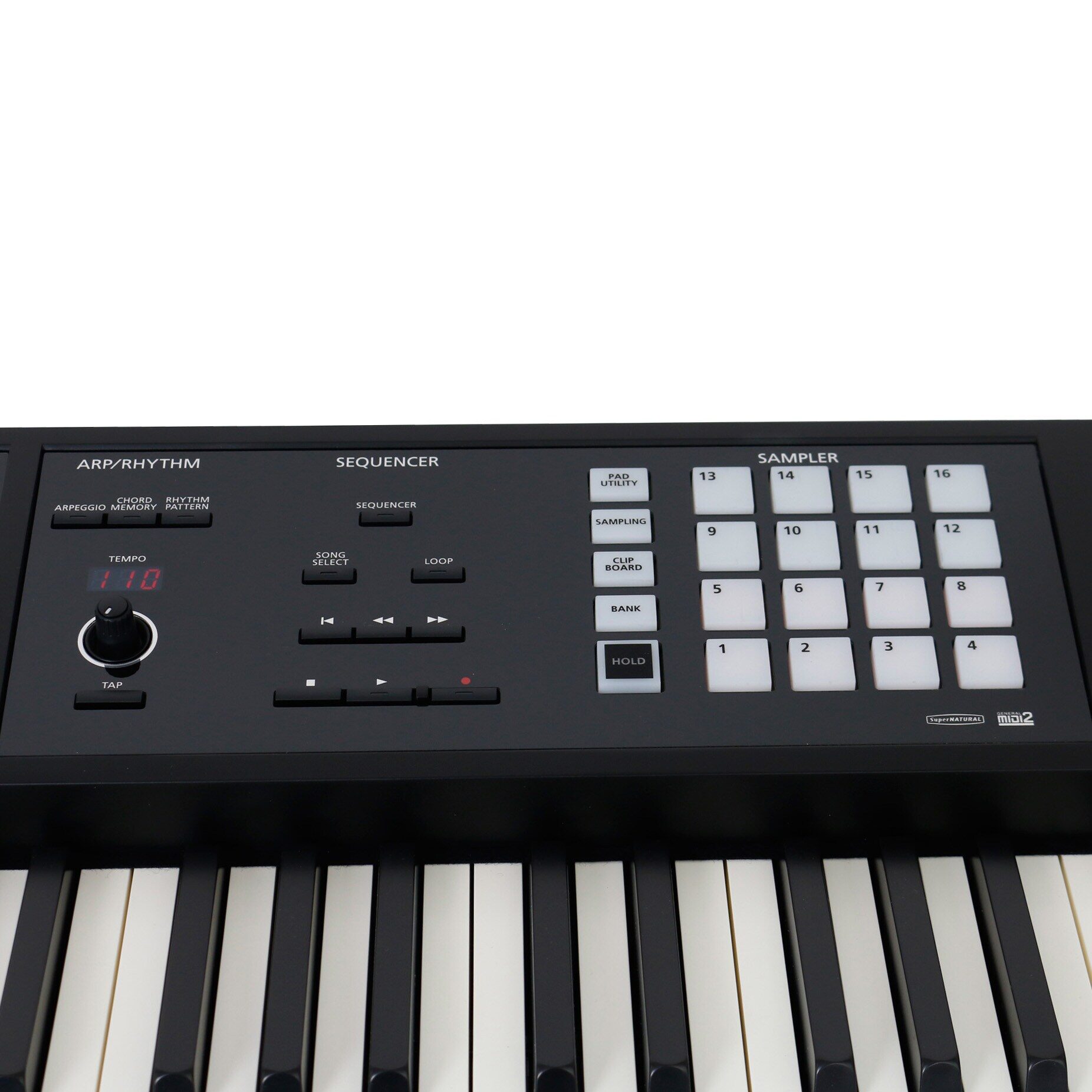

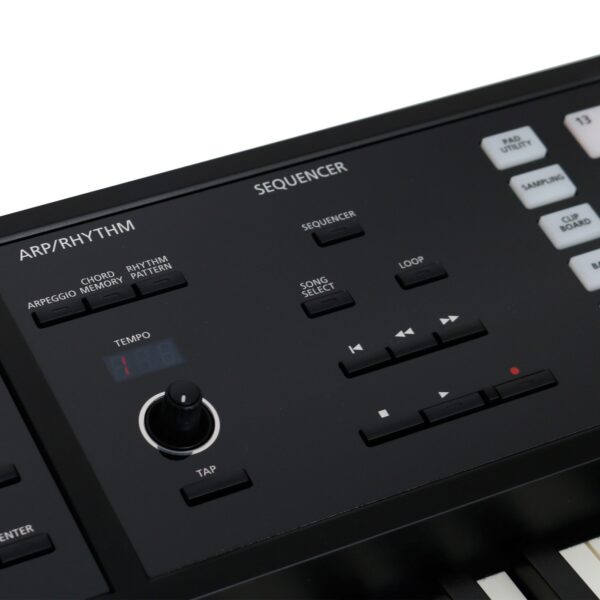

16-track sequencer

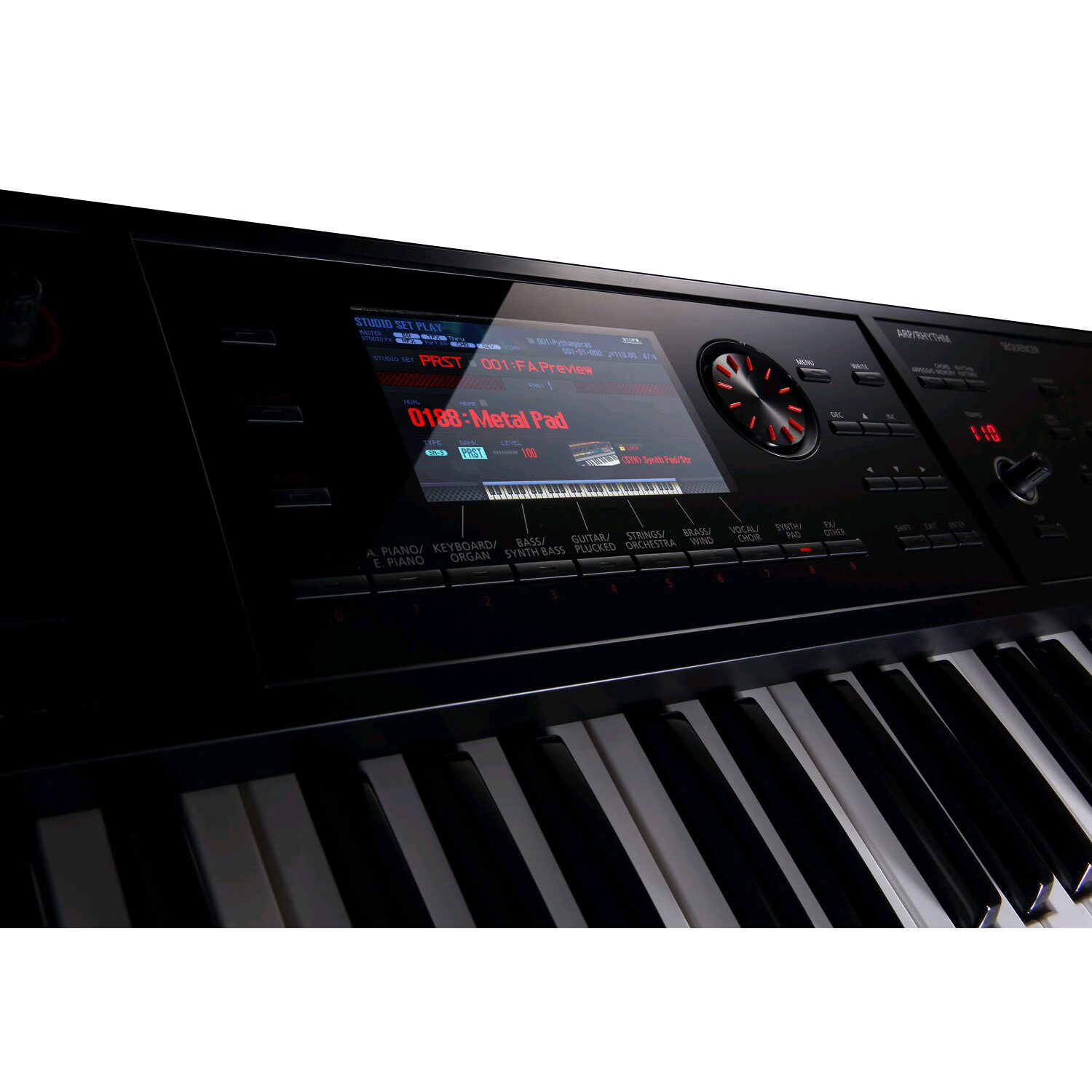

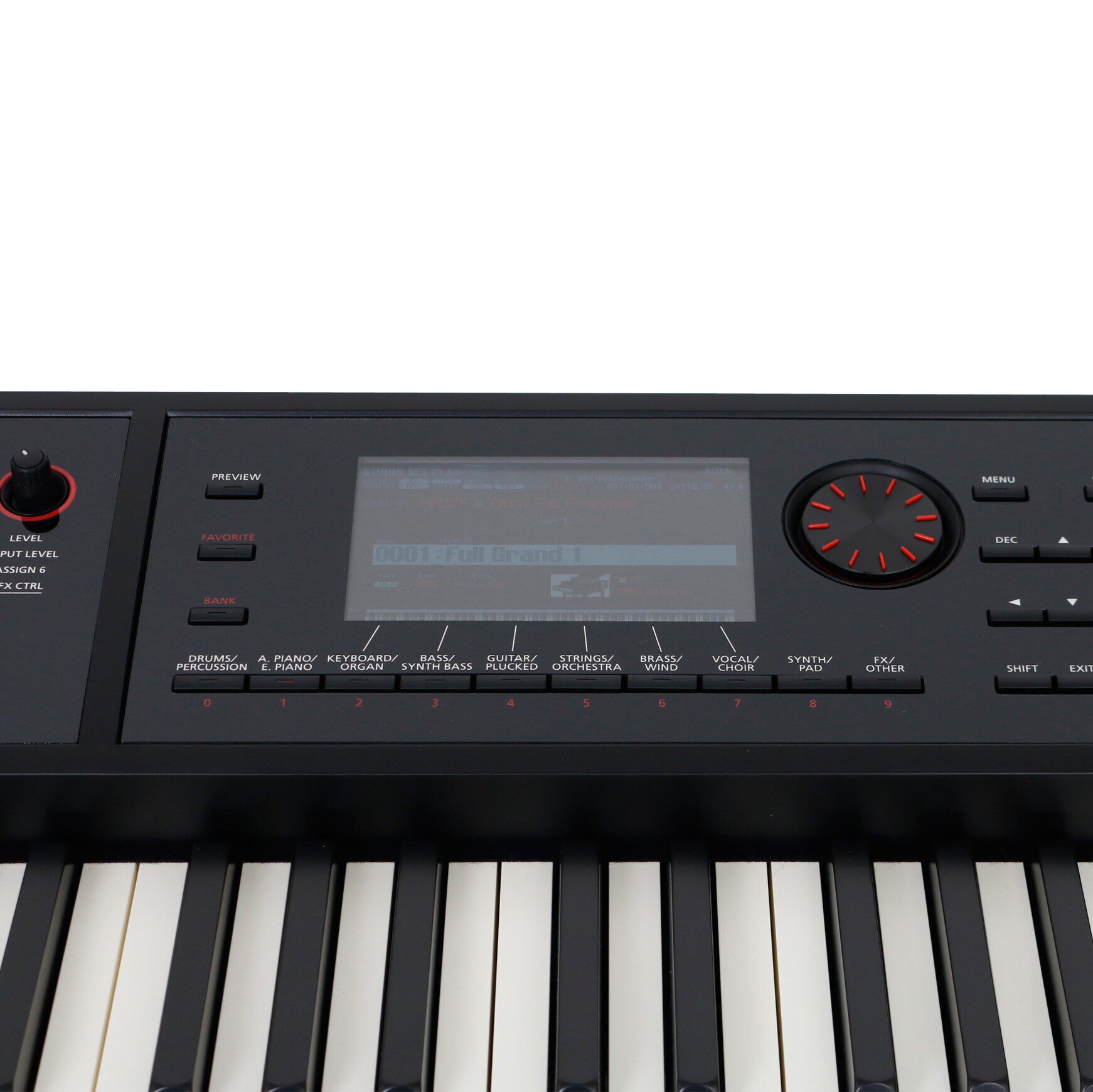

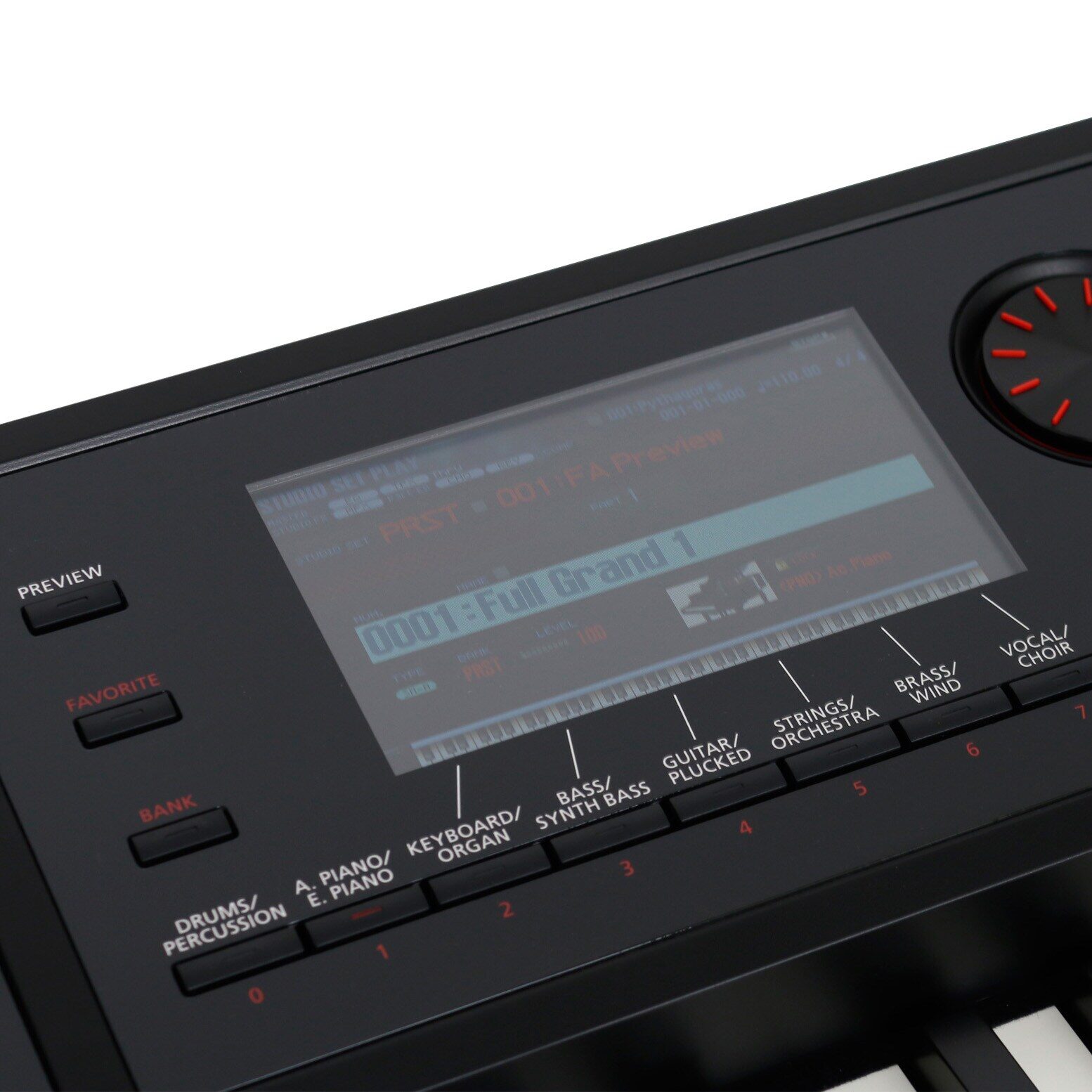

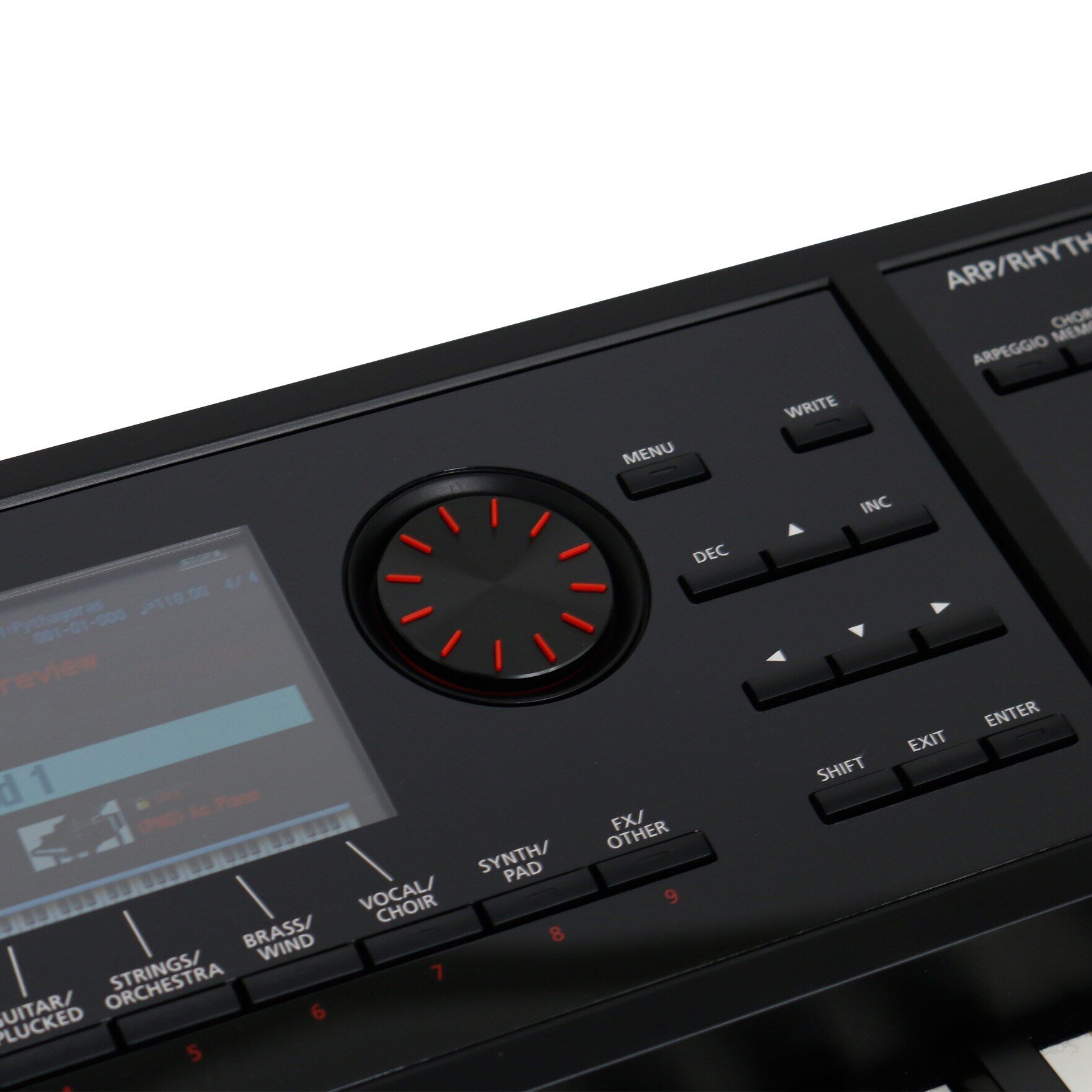

colour LCD display
power supply : AC adapter (current: 1,300 mA)
accessories: manual, SD card (installed in the product), adapter, power cable
dimensions: 1,415 x 340 x 142 mm
weight: 16.5 kg

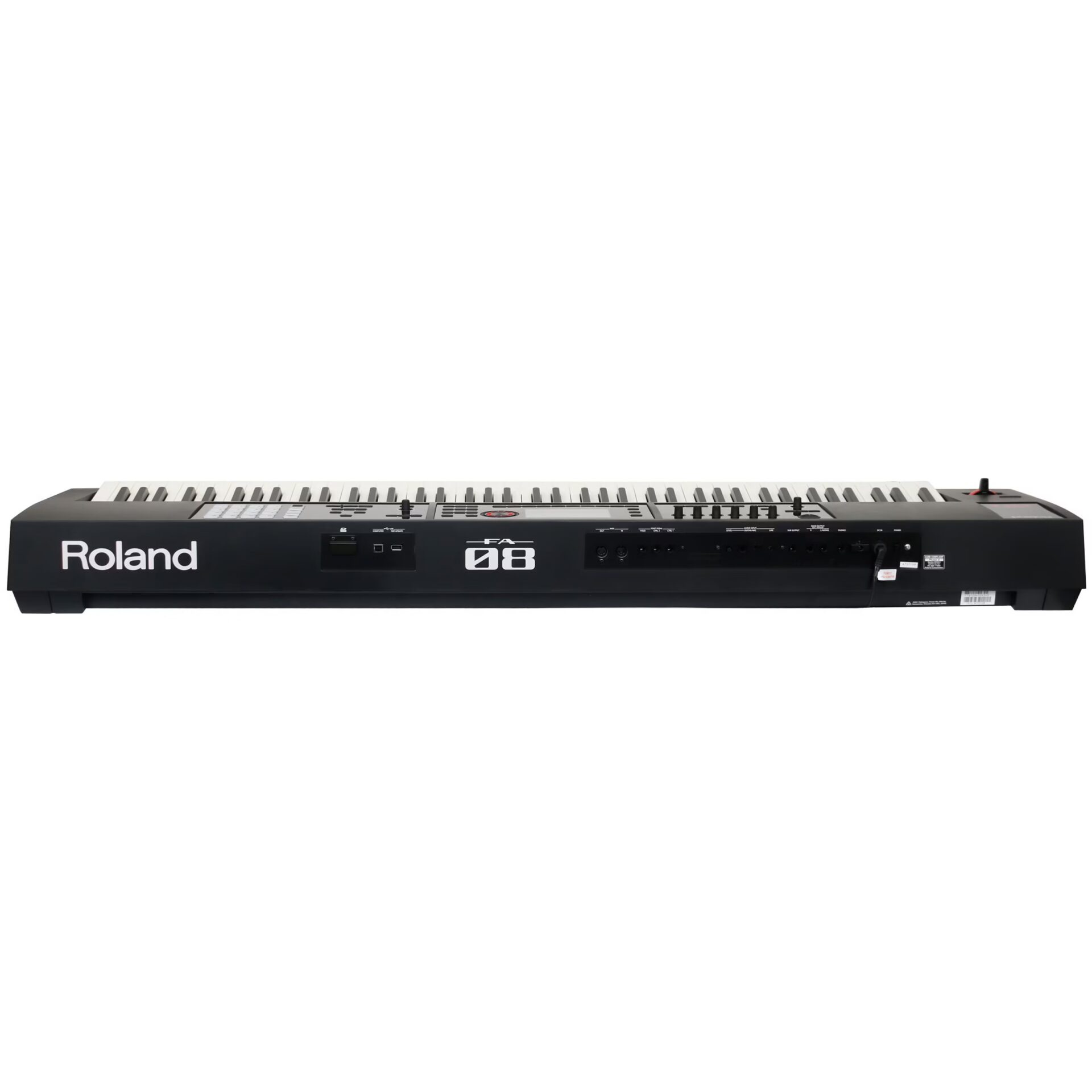

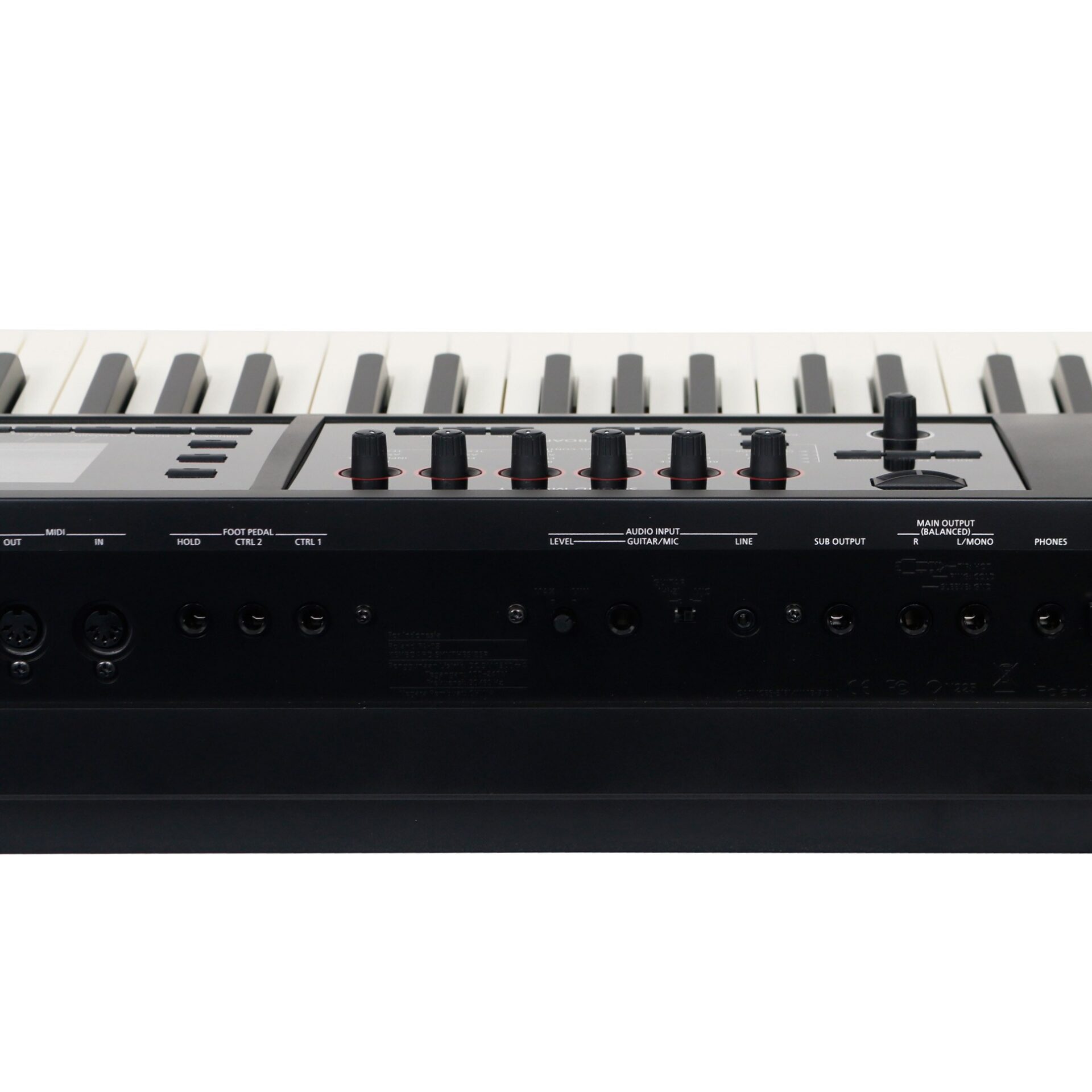

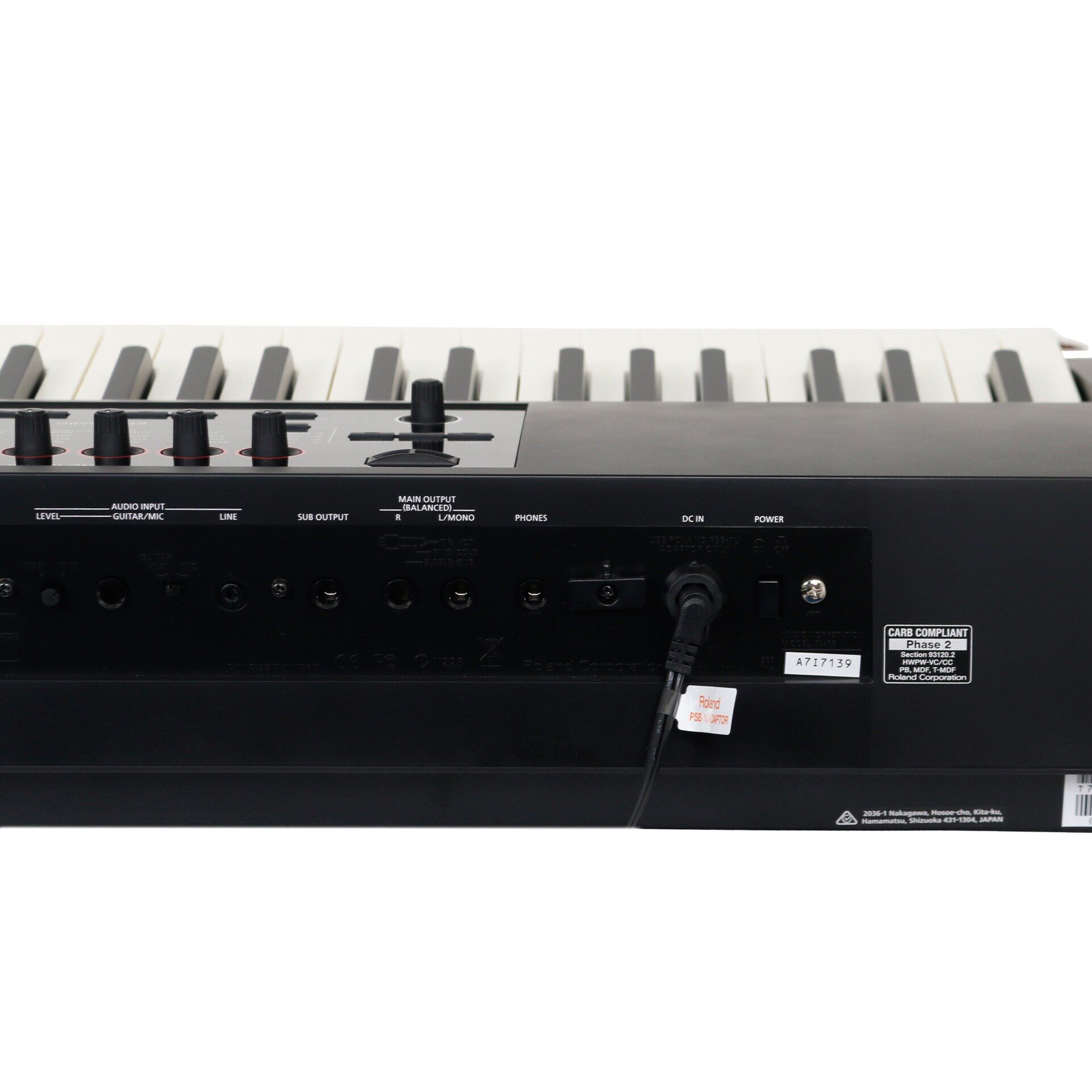

Connections:
audio input guitar/mic (6.3mm jack) with level control
audio input line (3.5mm mini jack)
headphone connector (6.3mm stereo jack)
main outputs (2x 6.3mm mono jack)
sub output (6.3mm jack)

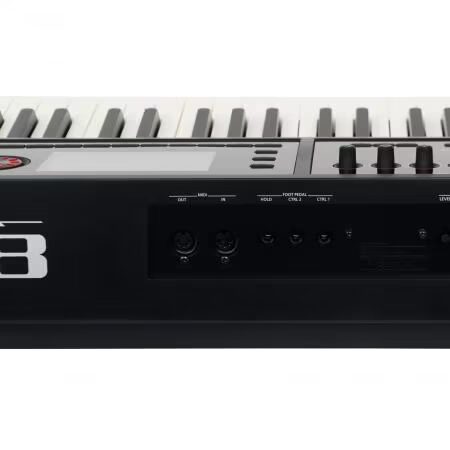

3x pedal input (CTRL1, CTRL2, Hold)

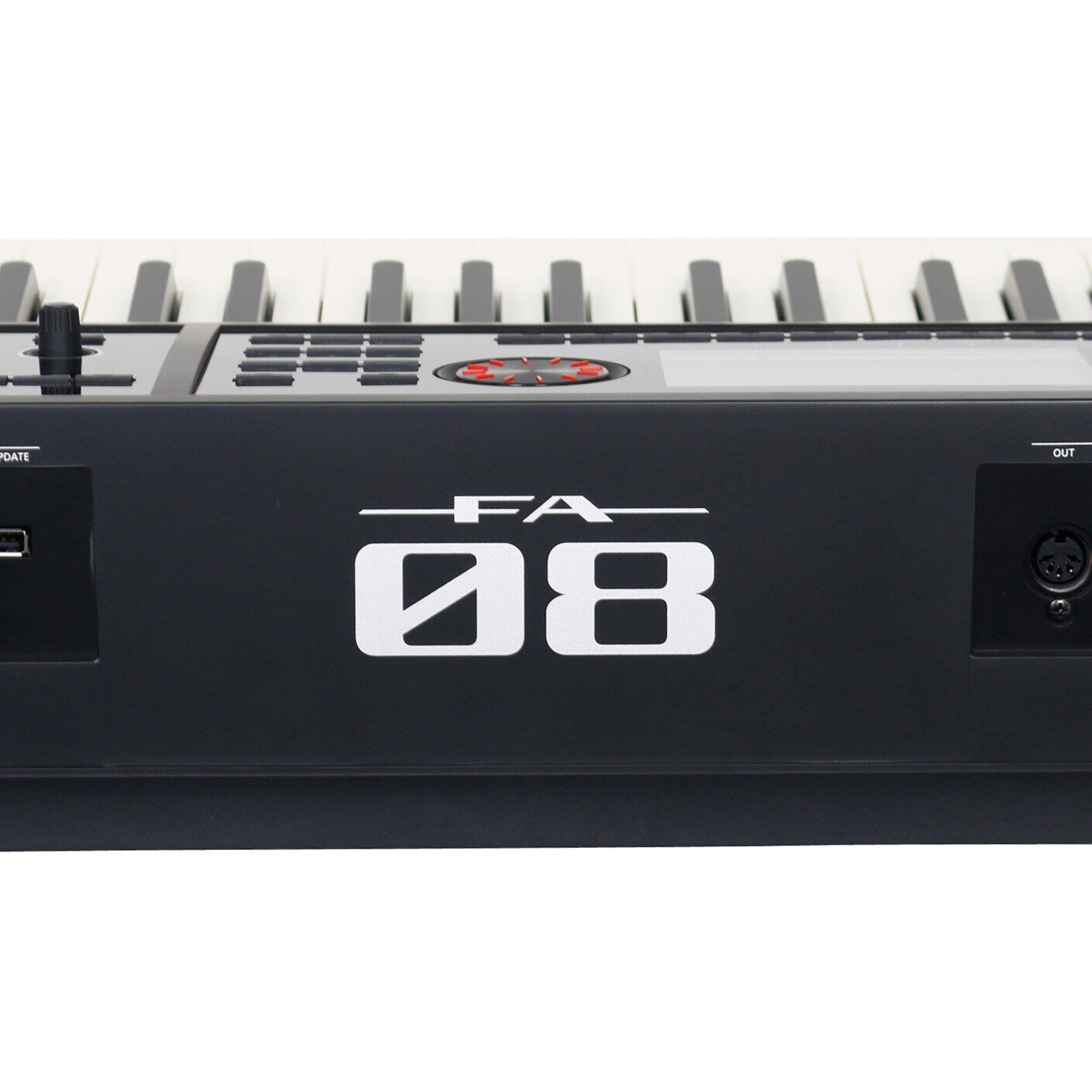

MIDI IN/OUT (DIN)

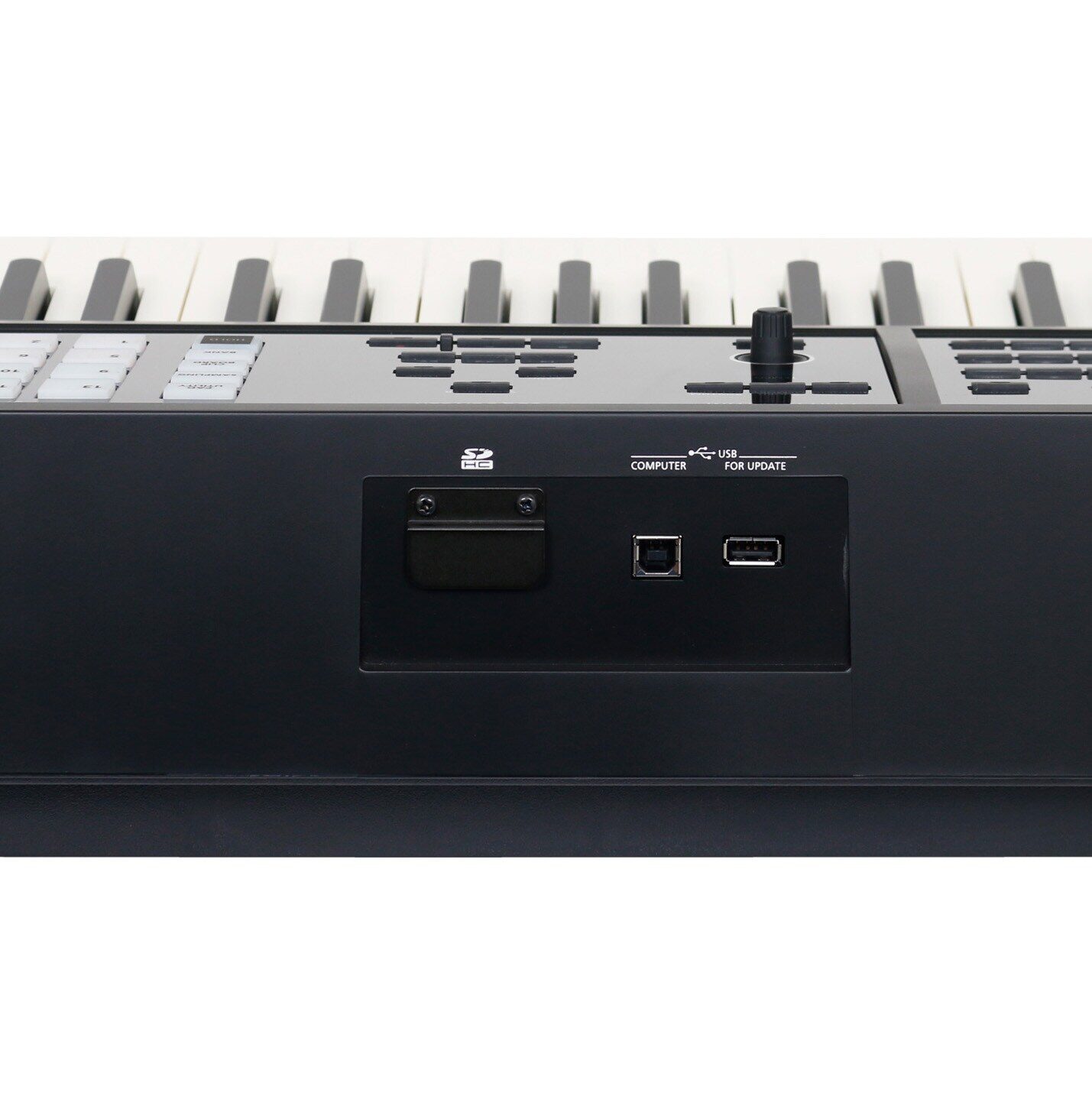

SDHC slot
USB-to-device (A)
USB-to-host (B)
