Description
Specifications
Product features
19-inch rack size not applicable
Number of keys 49
Arpeggiator/sequencerarpeggiator
Computer integration none
Control expression (input), ribbon, aftertouch
Synthesizer inputs none
Sound source digital
MIDI & CV/gate MIDI in, MIDI out, MIDI over USB
Synthesizer out putsline out jack
Type of keyskey board action
Synthesizer type keytar
Weight and dimensions including packaging
Weight (incl. packaging)8.1 kg
Dimensions (incl. packaging)140.0 x 45.0 x 20.0 cm
Product specifications

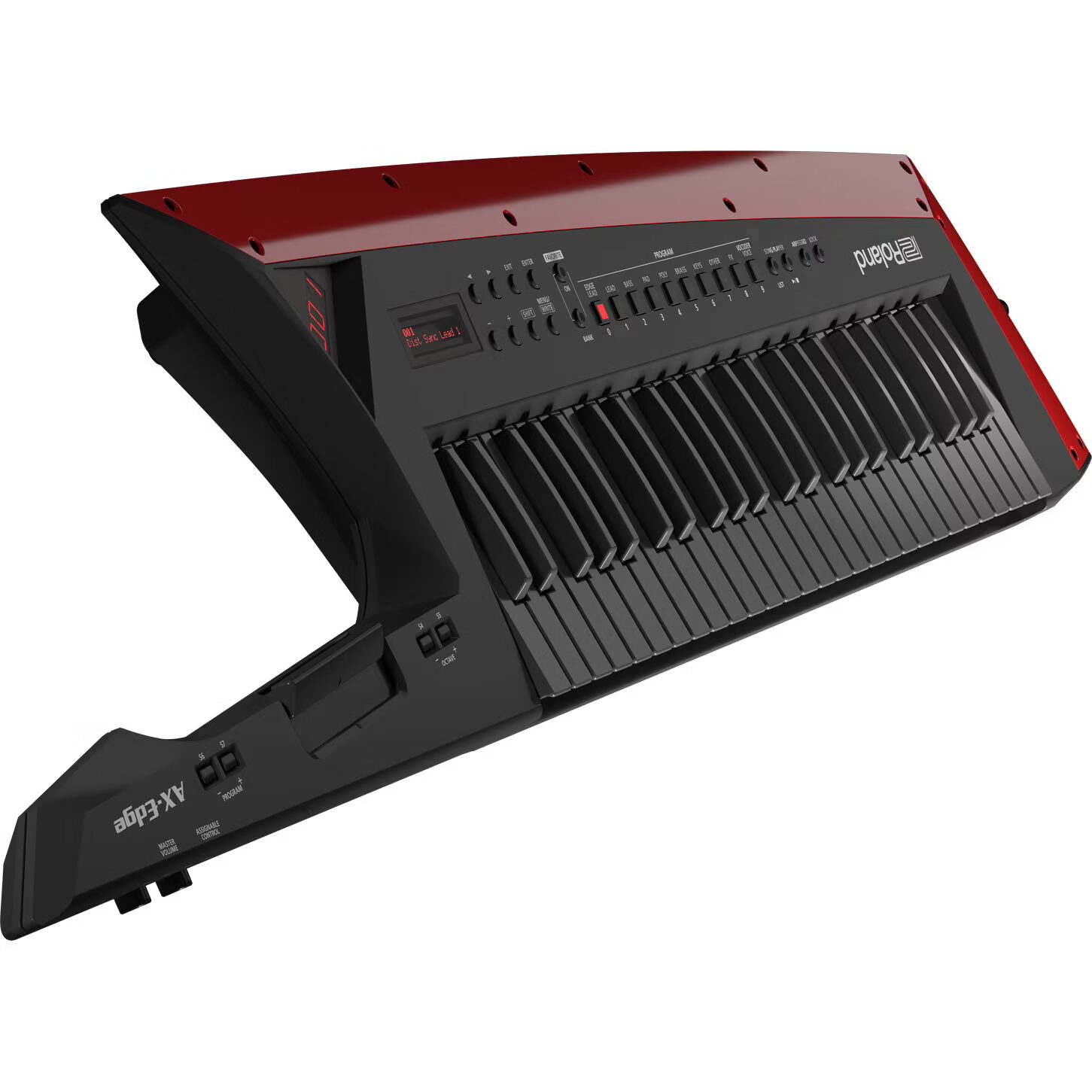

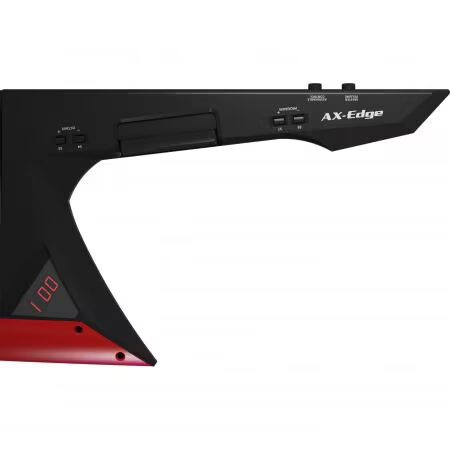

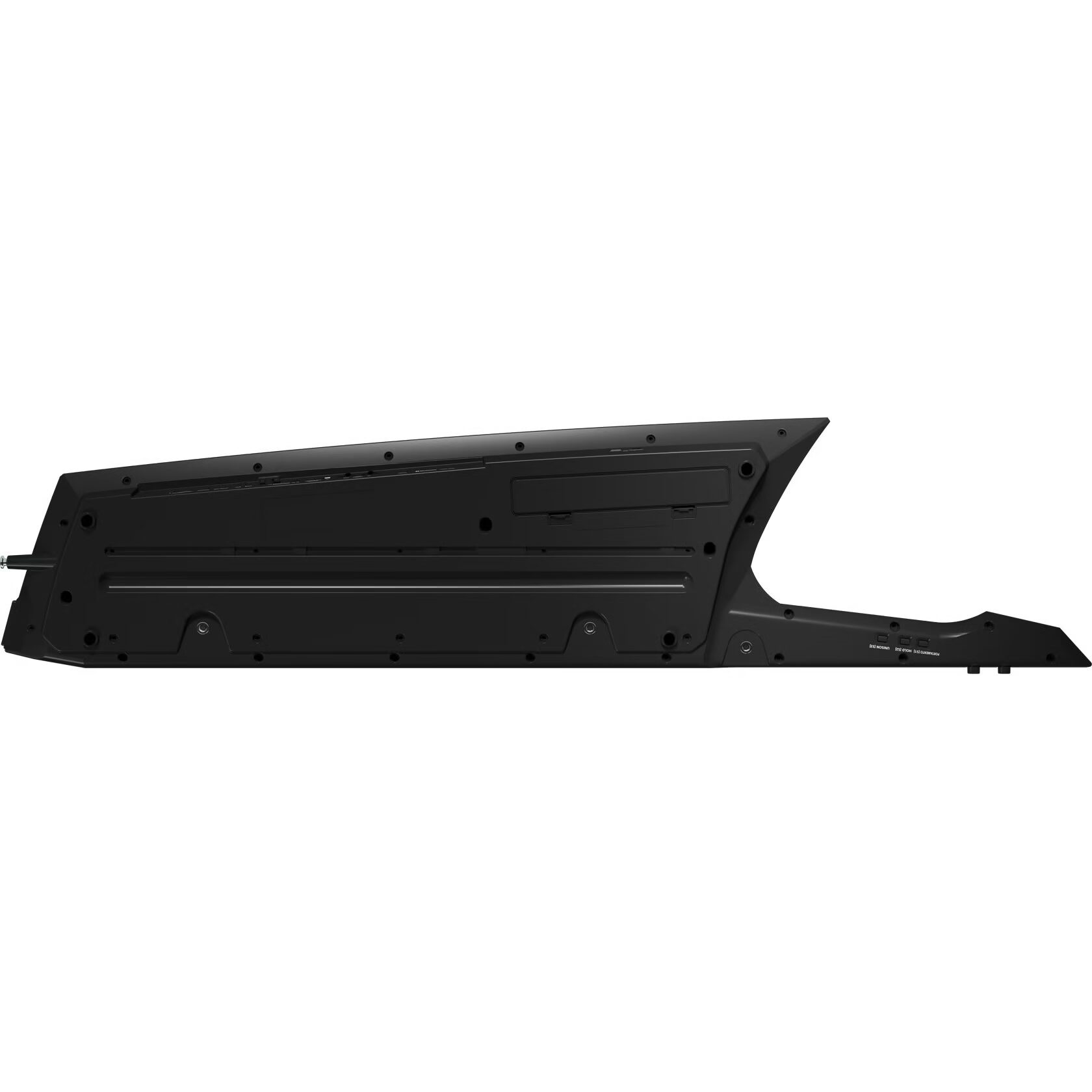

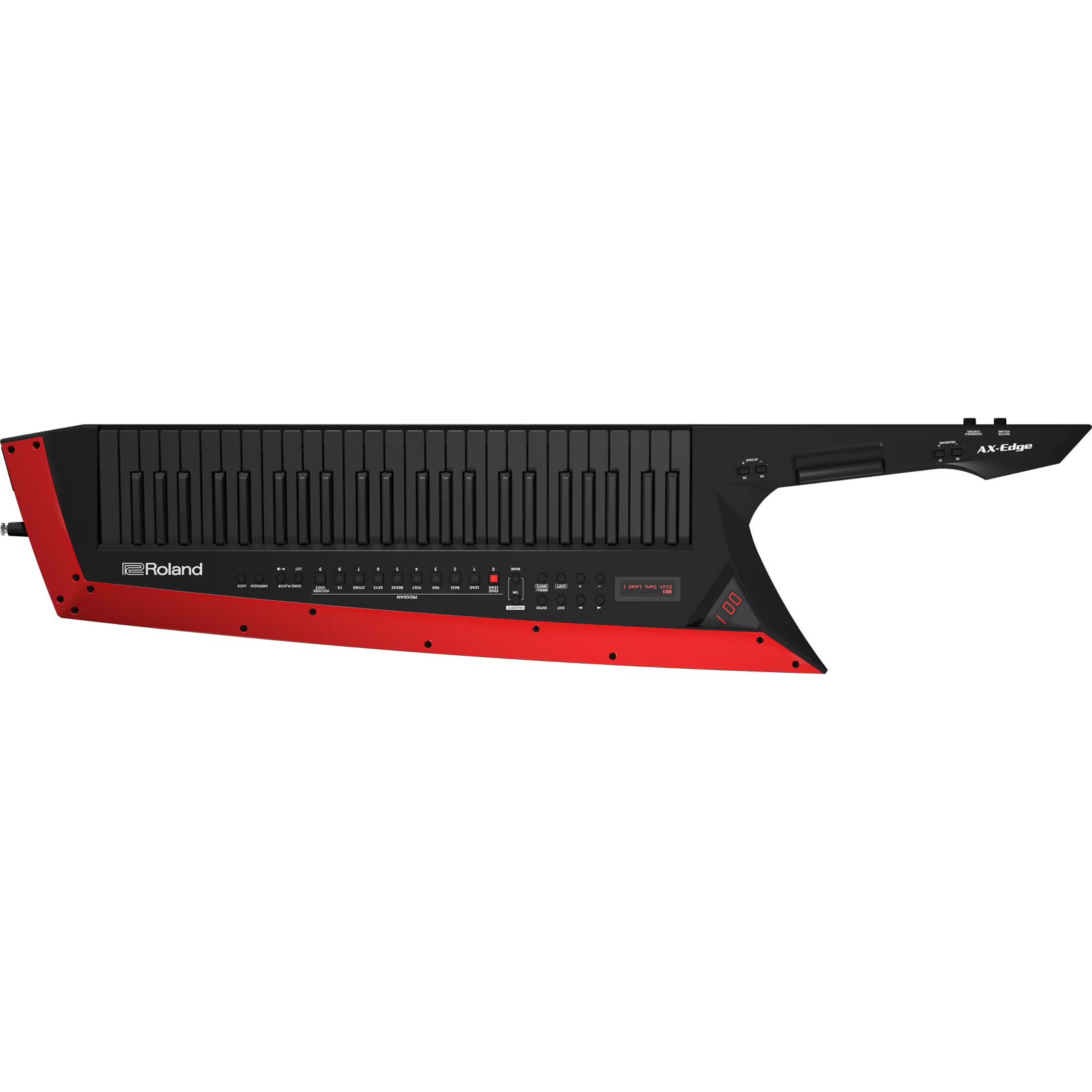

Roland Keytar
model: AX-Edge
keys: 49 (with velocity and channel aftertouch)
sound source: Synth-EX
maximum polyphony: 256 voices
parts: 4 + vocoder
sounds:
user program: 320
preset tone: 500+
user tone: 256
effects:
part multi-effects: 79 types
part EQ
vocoder
program multi-effects: 79 types
chorus: 8 types
reverb: 6 types
master compressor
master EQ
additional features:
favorite
song player
arpeggio
vocoder
MIDI master keyboard
sound edit

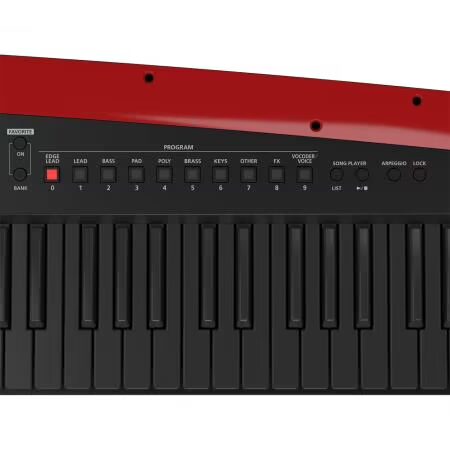

controllers:
ribbon controller
modulation bar

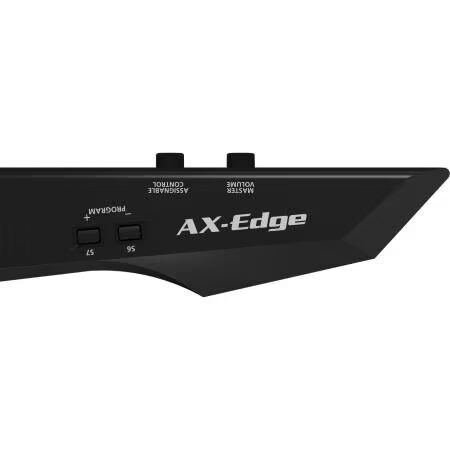

assignable control knob
master volume
assignable knobs: x7
expression pedal (not included)
aftertouch
Bluetooth: MIDI: Bluetooth Ver. 4.1

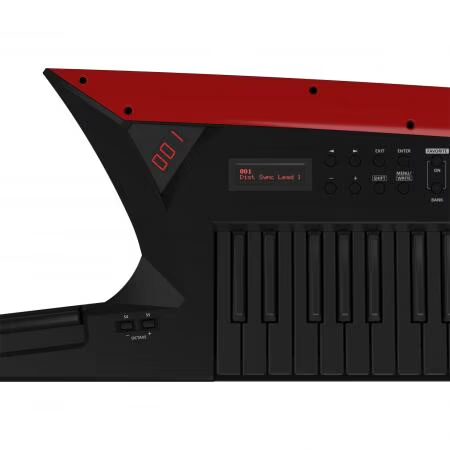

display: 16 characters, 2 line LCD
external storage: USB flash drive
connectors:
headphones: stereo jack
output (L/MONO, R): mono jack
MIC in: mono jack
expression pedal: mono jack
MIDI I/O

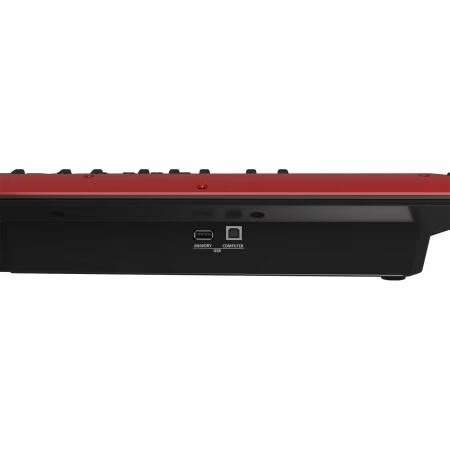

USB memory port
USB computer port (also for USB MIDI)
dimensions: 125.2 x 29.1 x 8.5 cm
weight: 4.2 kg

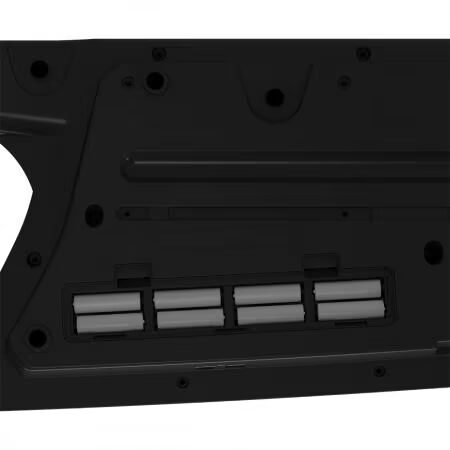

power supply: 9V adapter (included) or 8x AA battery (not included & not suitable for zinc carbon or alkaline batteries)

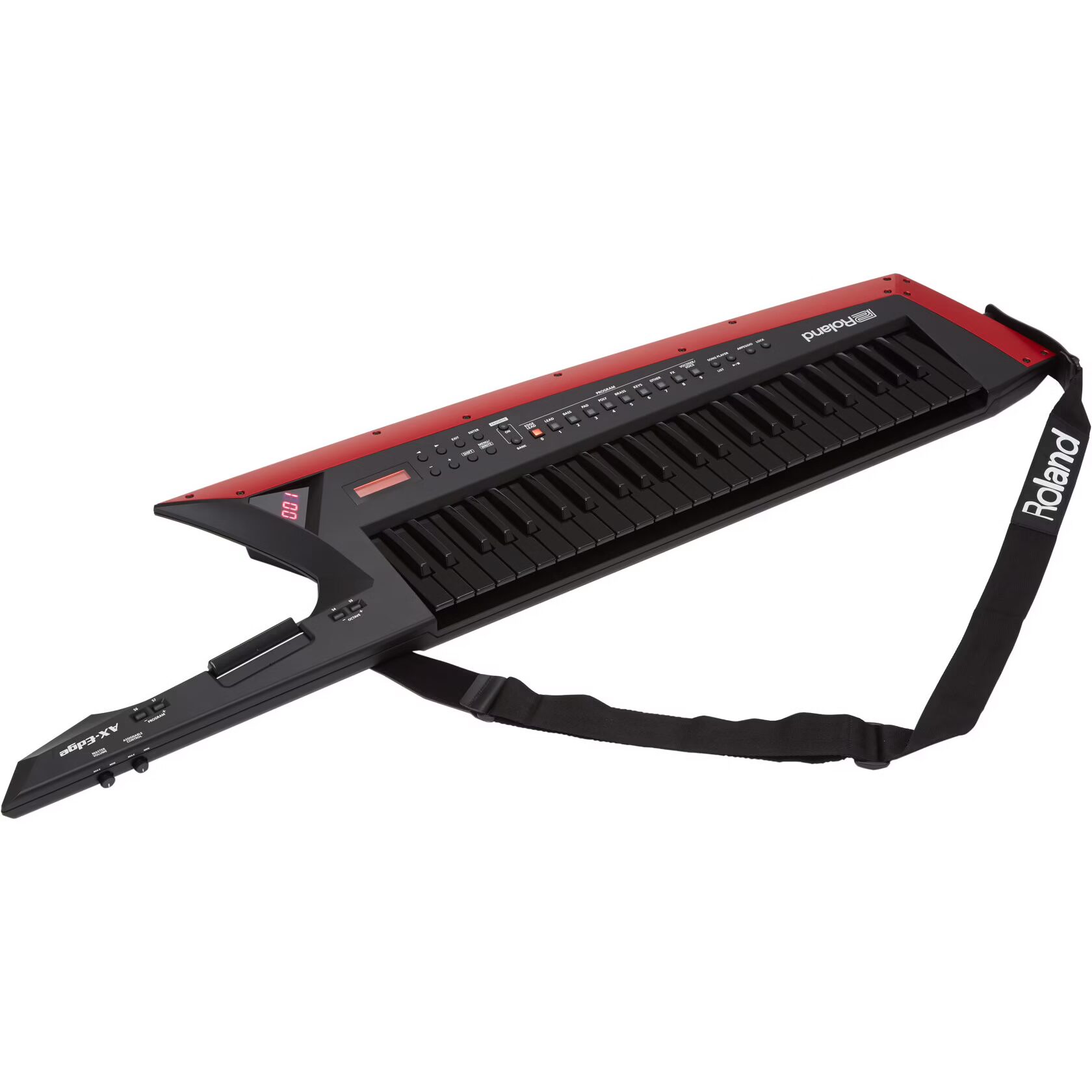

included: adapter, power cable, strap, blade panel (including screws and hex key)
