Description
Specifications
Product features
19-inch rack size not applicable
Number of keys 76
Arpeggiator/sequencerarpeggiator, sequencer
Computer integrationi OS editor, PC editor, Mac editor, functions as audio interface, functions as DAW controller
Control expression (input)
Synthesizer inputs microphone input, line in
Sound source digital
MIDI & CV/gate MIDI in, MIDI out, MIDI over USB
Synthesizer outputs line out jack, headphone
Type of key ssemi-weighted
Synthesizer type keyboard
Weight and dimensions including packaging
Weight (incl. packaging)12.5 kg
Dimensions (incl. packaging)136.0 x 43.5 x 19.0 cm
Product specifications

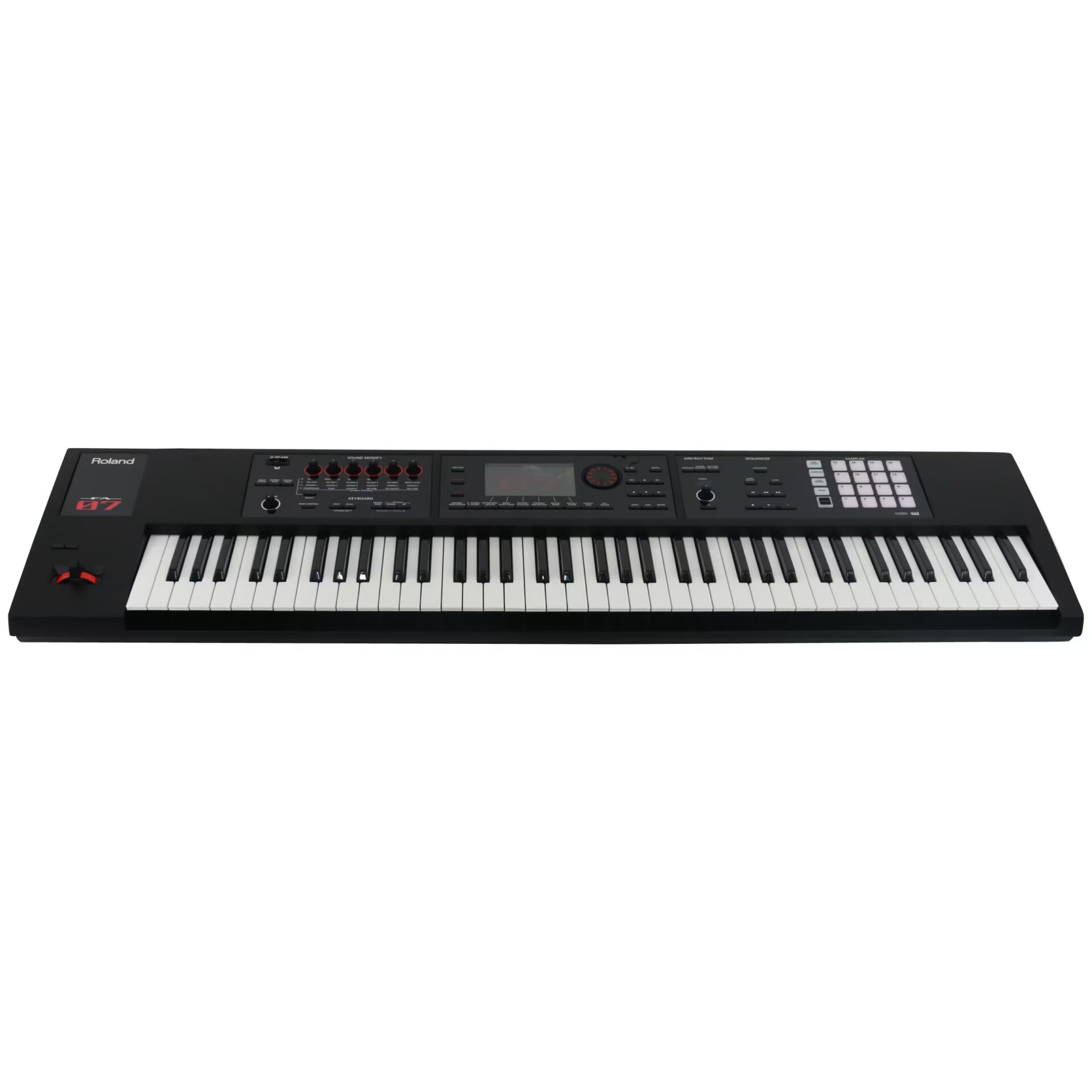

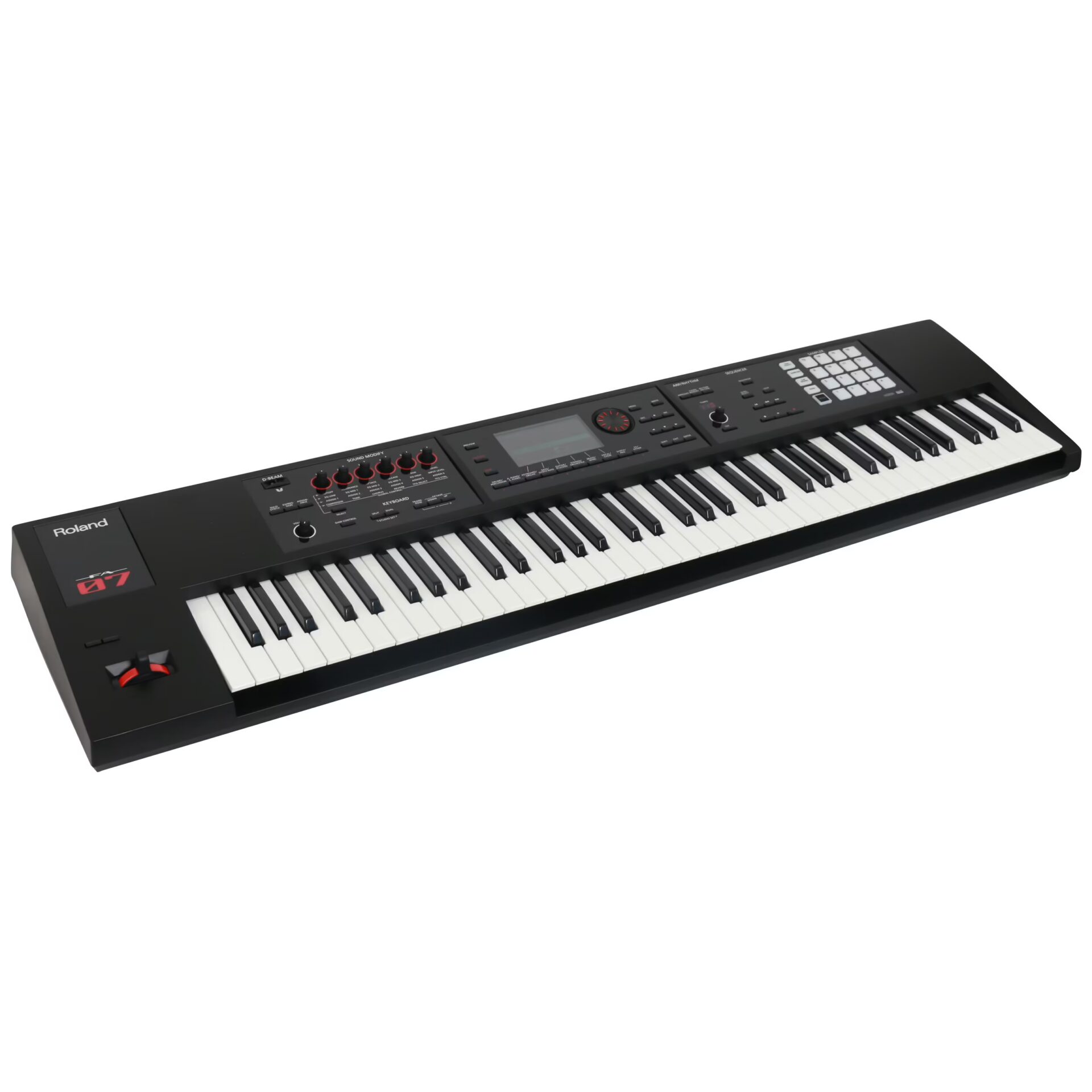

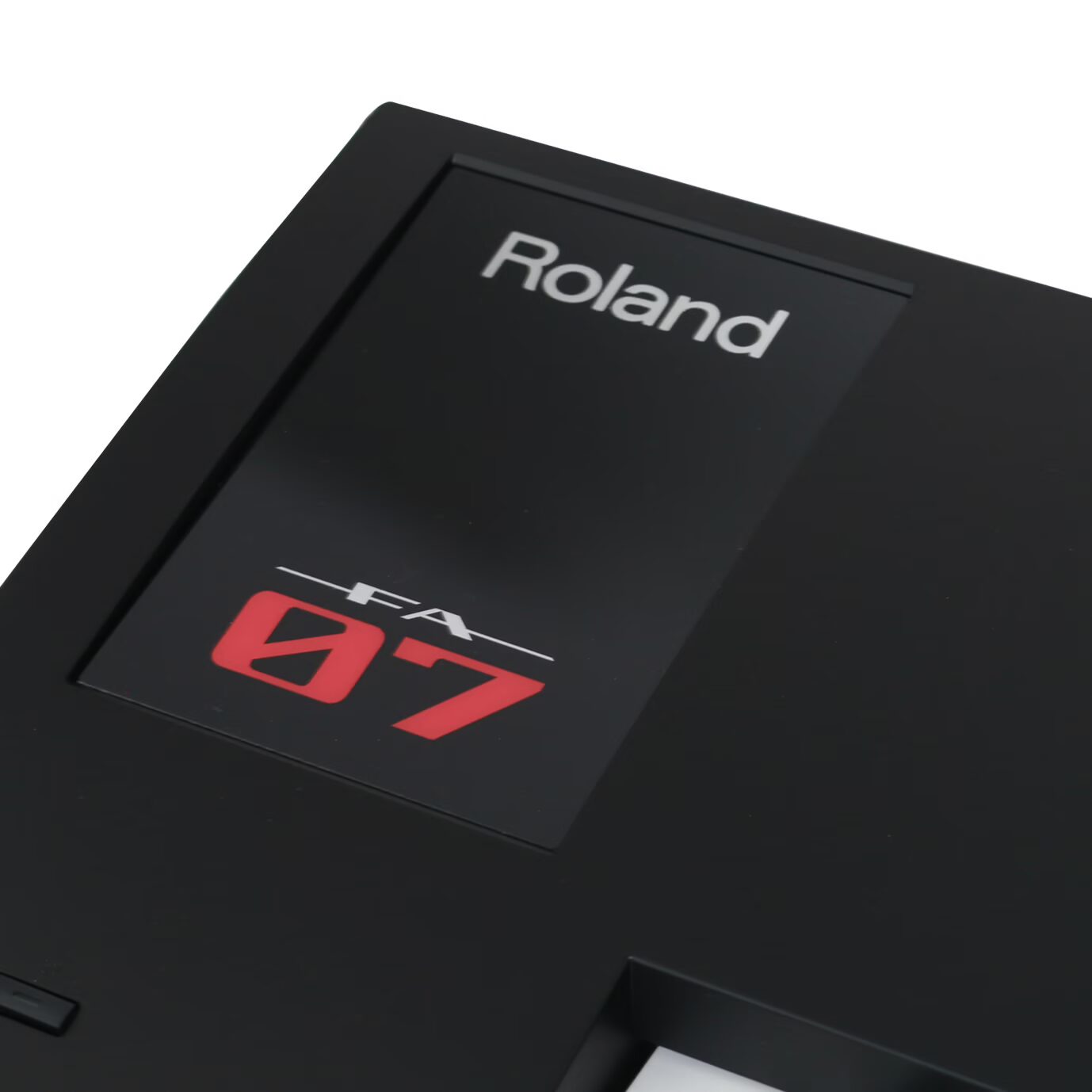

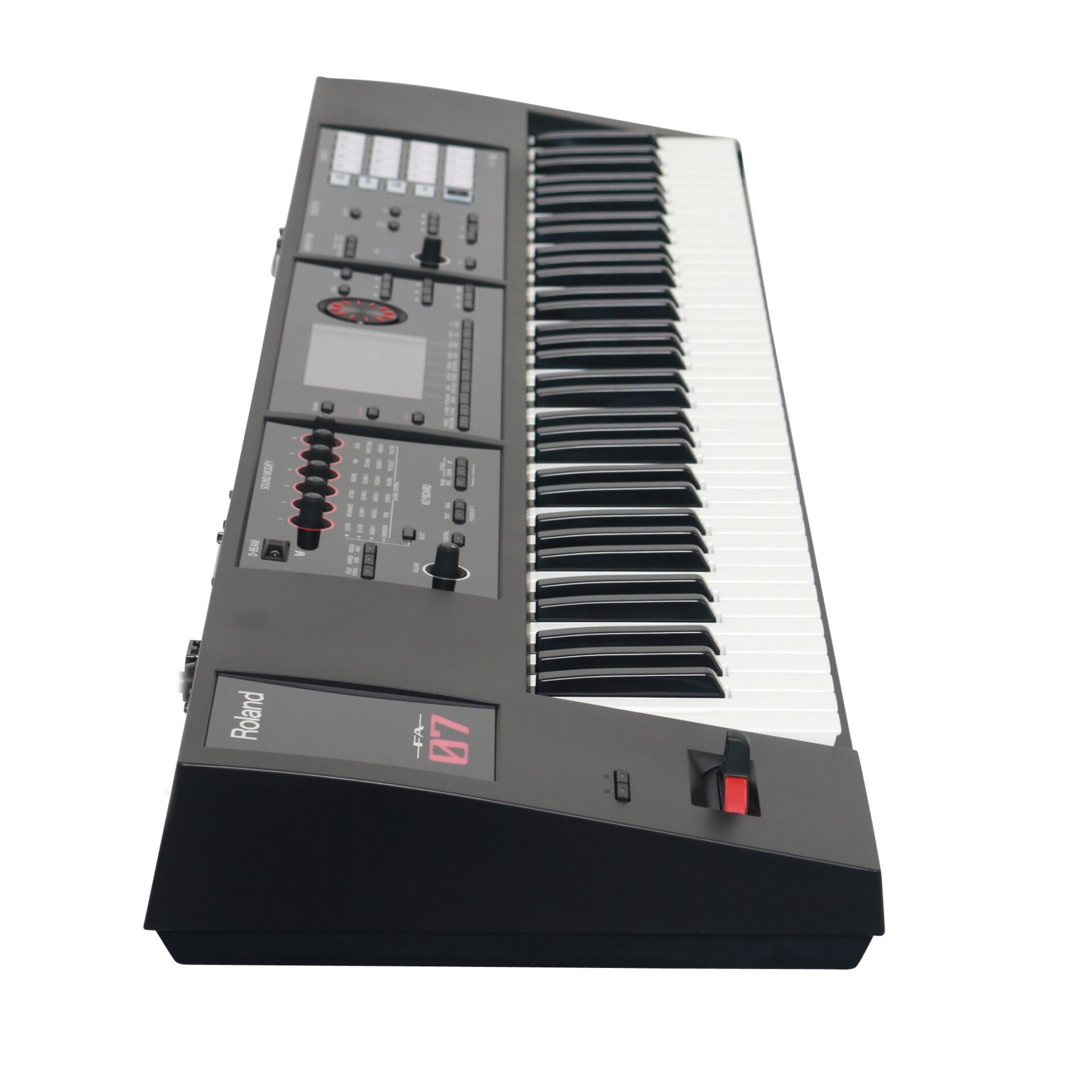

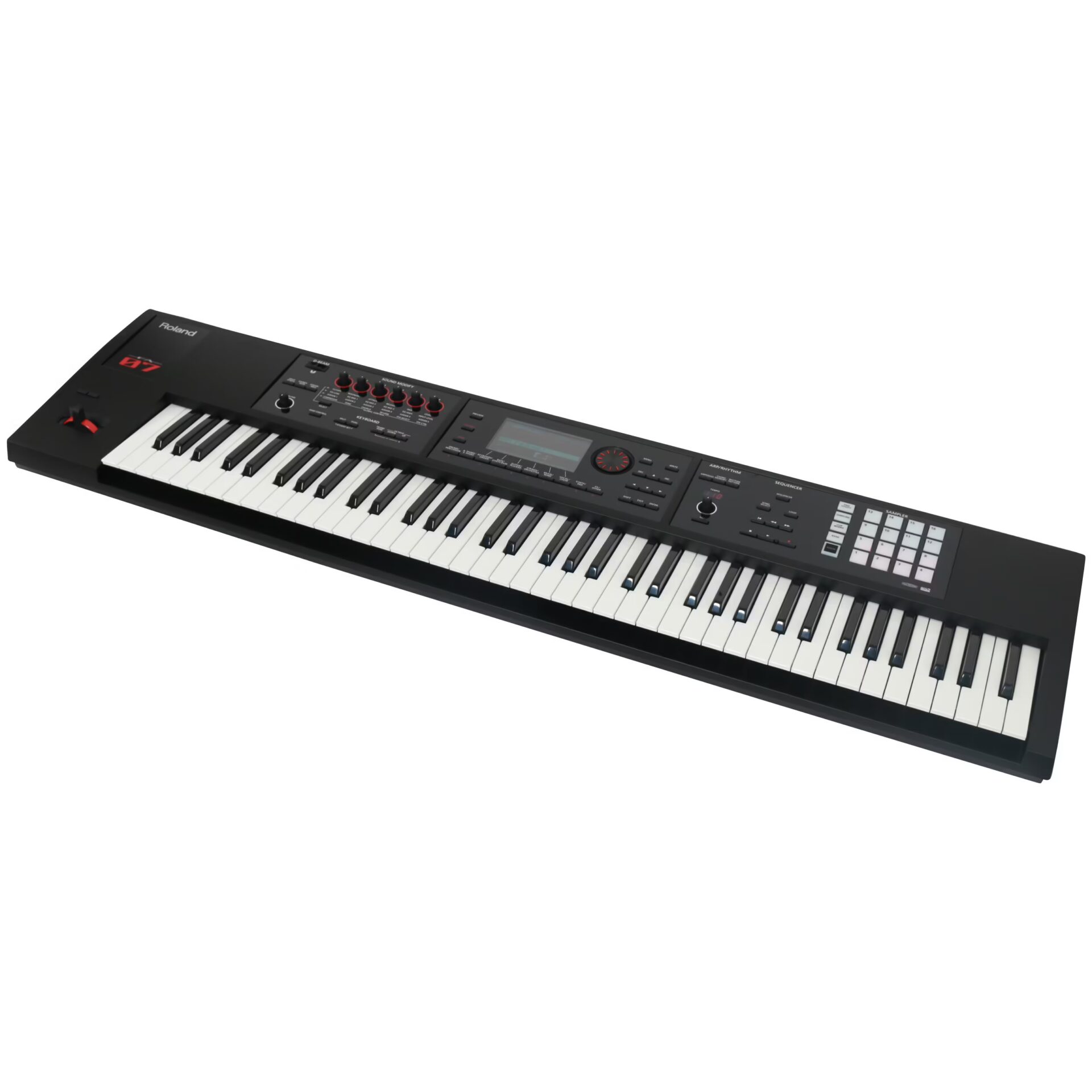

Roland synthesizer/workstation
76 keys velocity-sensitive
more than 2,000 sounds (including those from the Integra-7)
SuperNATURAL synth engine
XV-5080 PCM wave-forms
polyphony: 128 voices
Performance Sampler (via SDHC card)

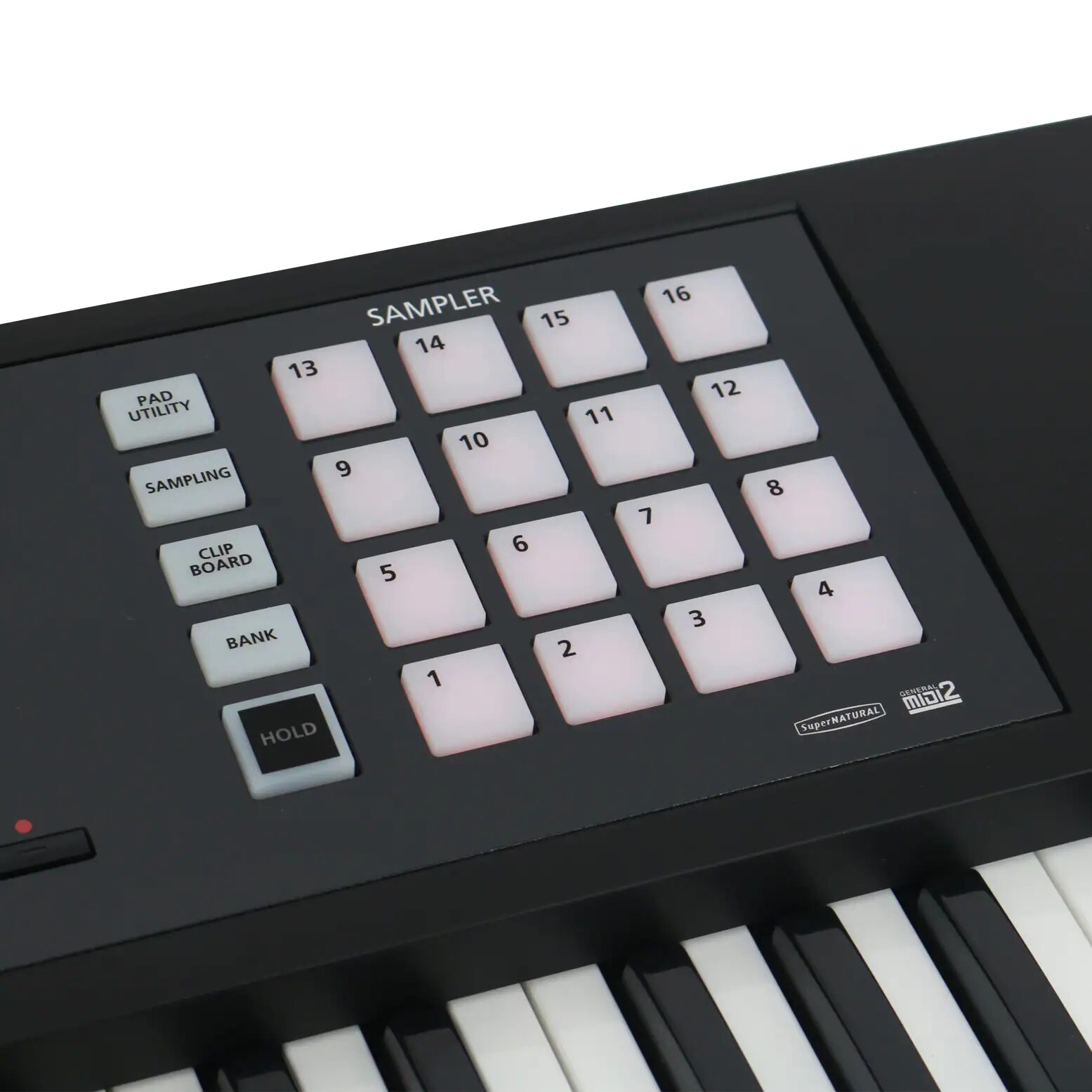

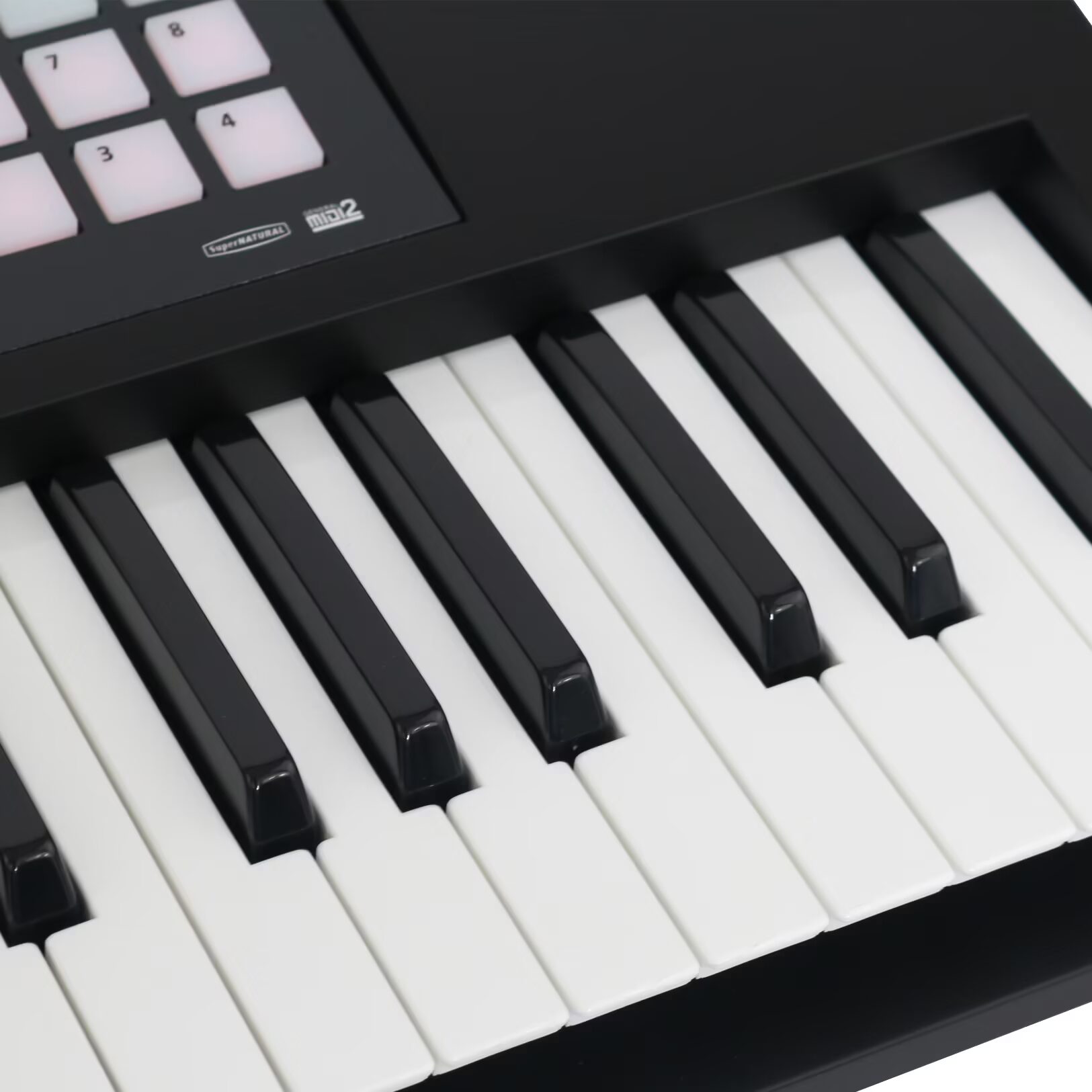

16 illuminated pads (for sample and MIDI triggering, etc.)
high-grade MFX effect processors
TFX Total Effects: high-grade master effects

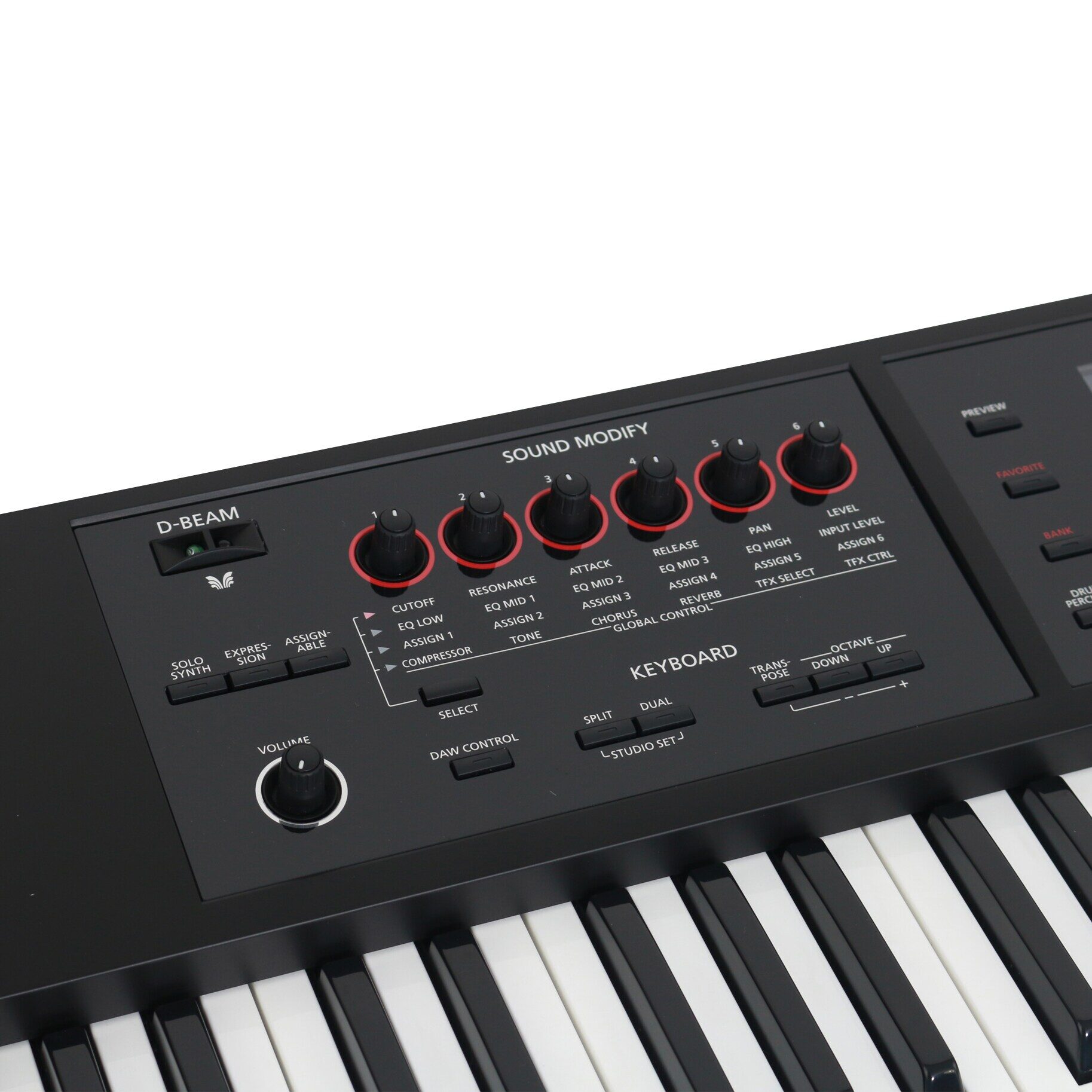

6 Sound Modify knobs

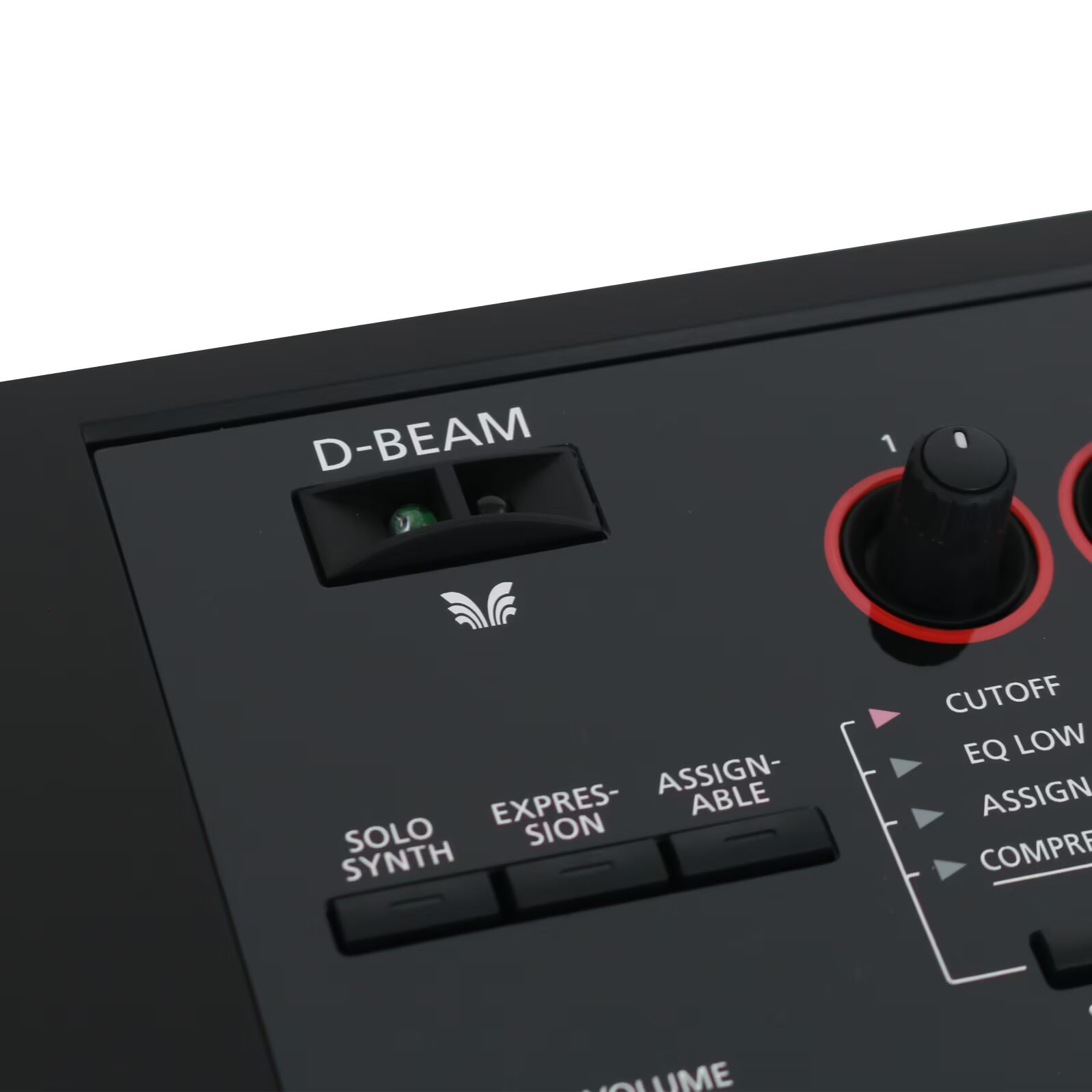

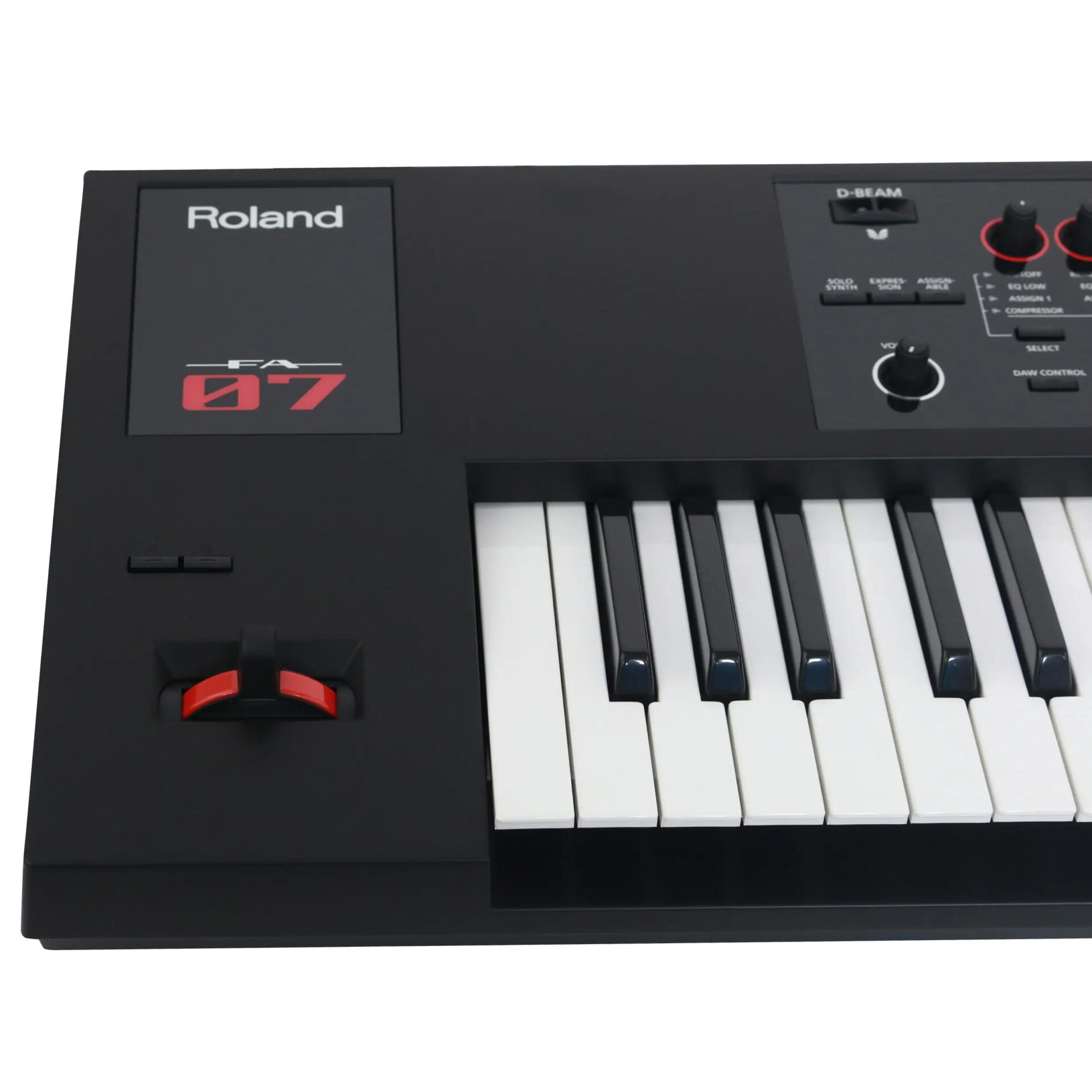

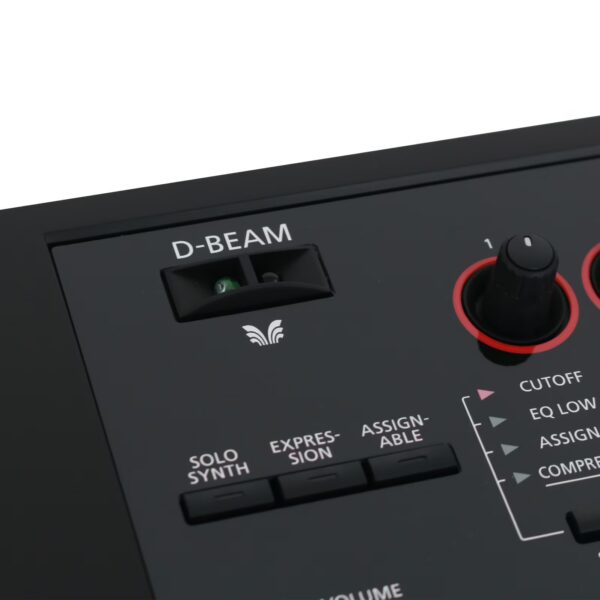

D-Beam controller
67 effect types x 16 parts
vocoder
USB audio interface
audio input (guitar/microphone/line)
DAW Control for seamless software integration

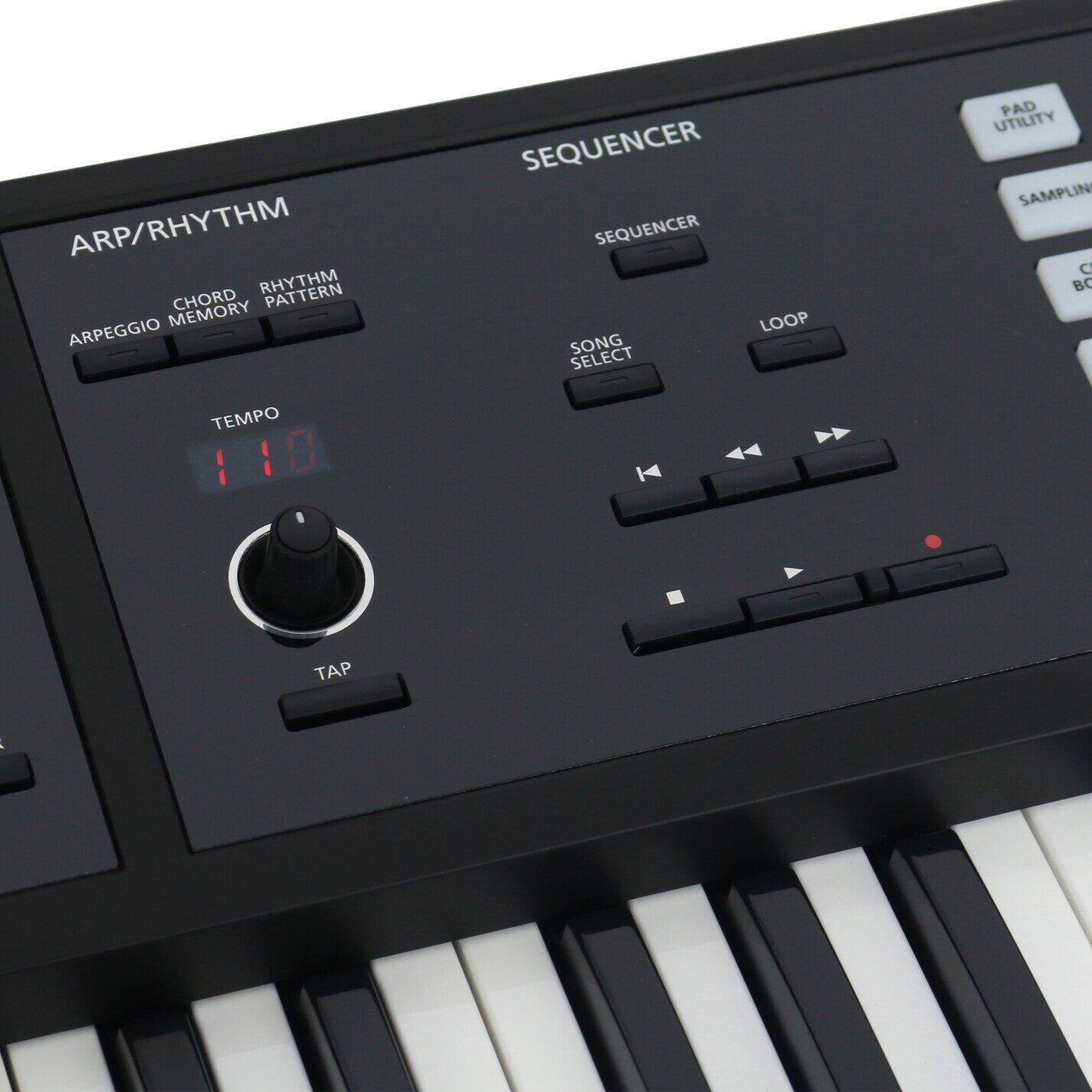

16-track sequencer

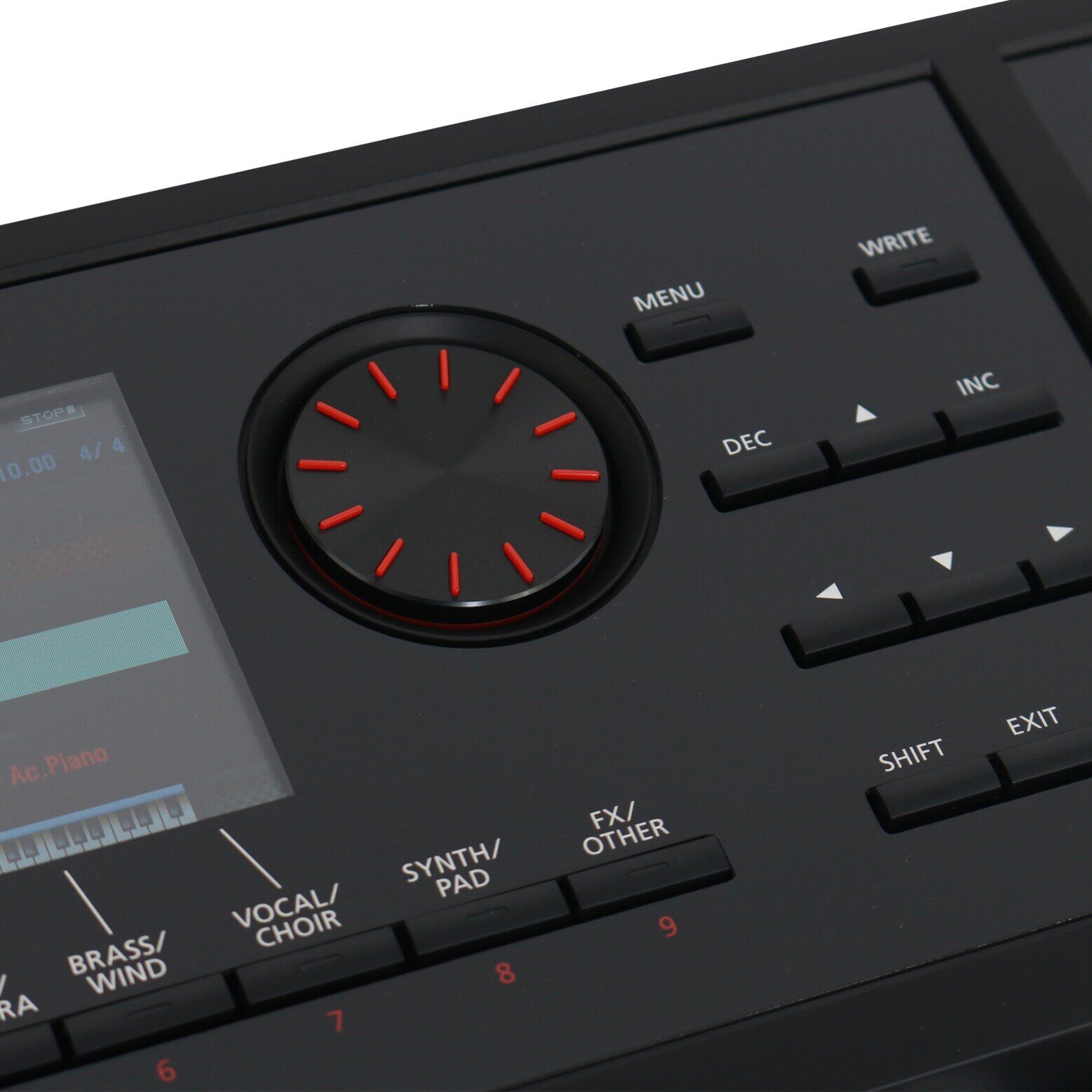

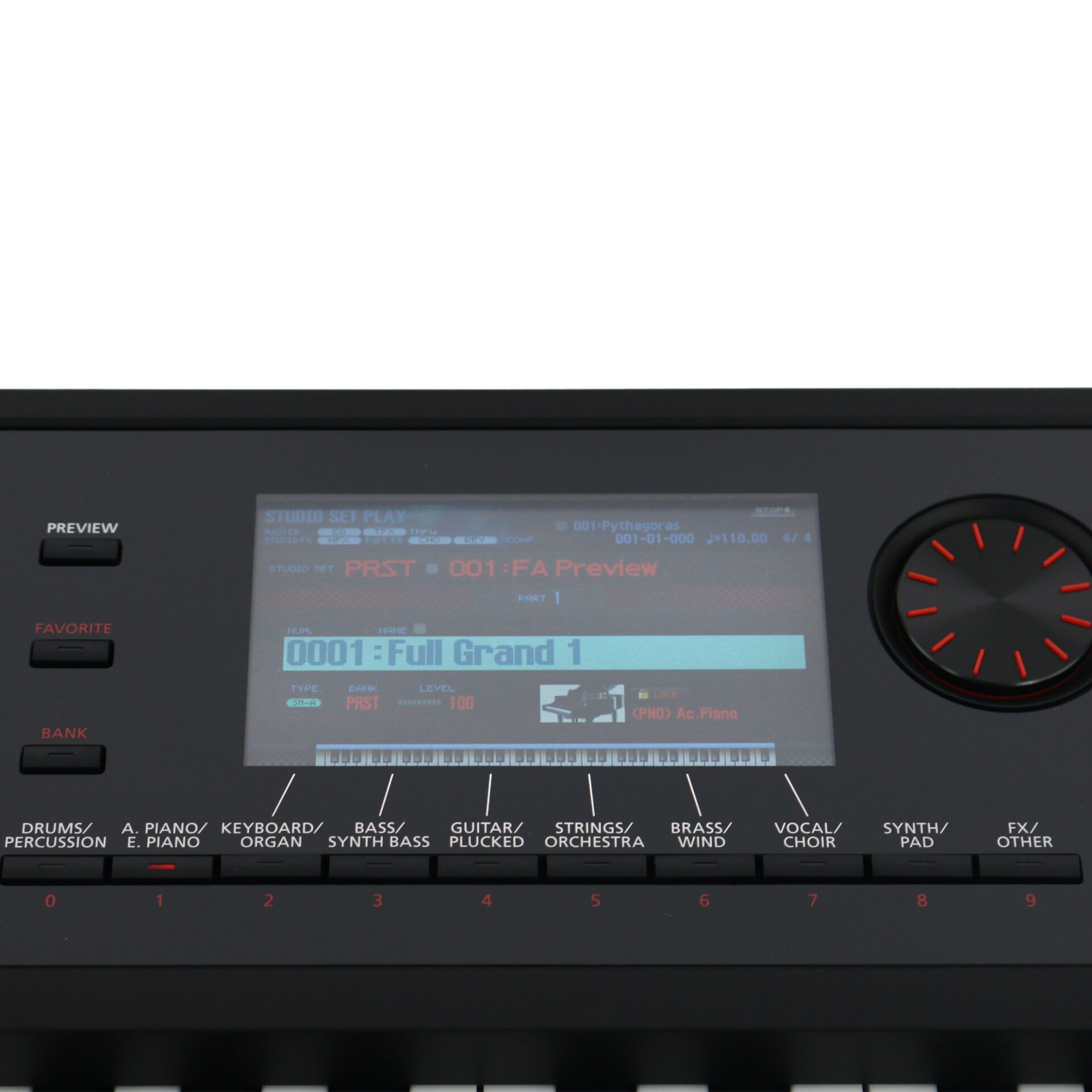

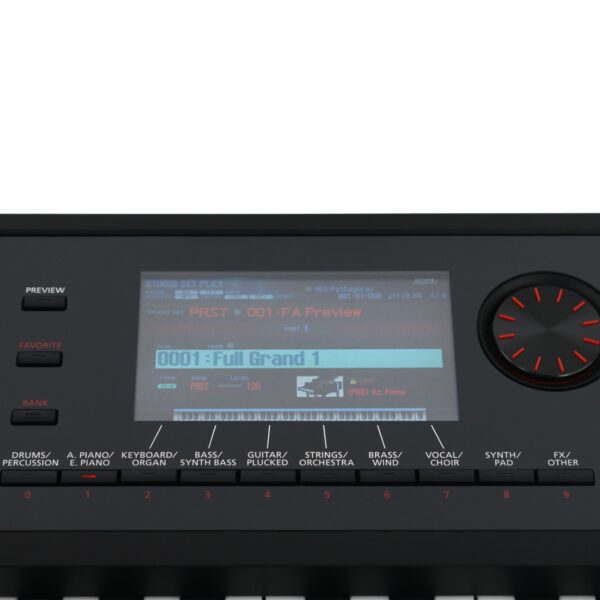

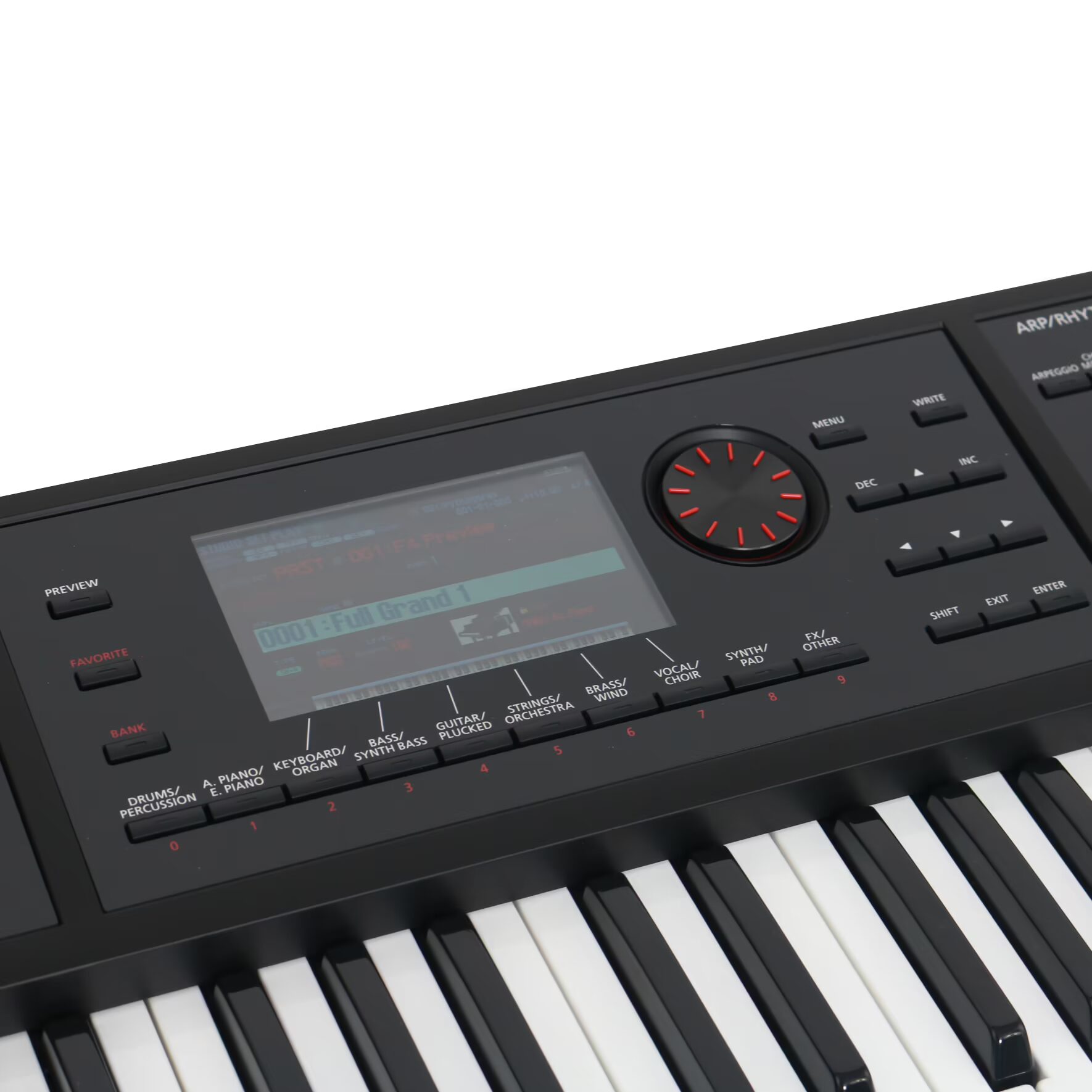

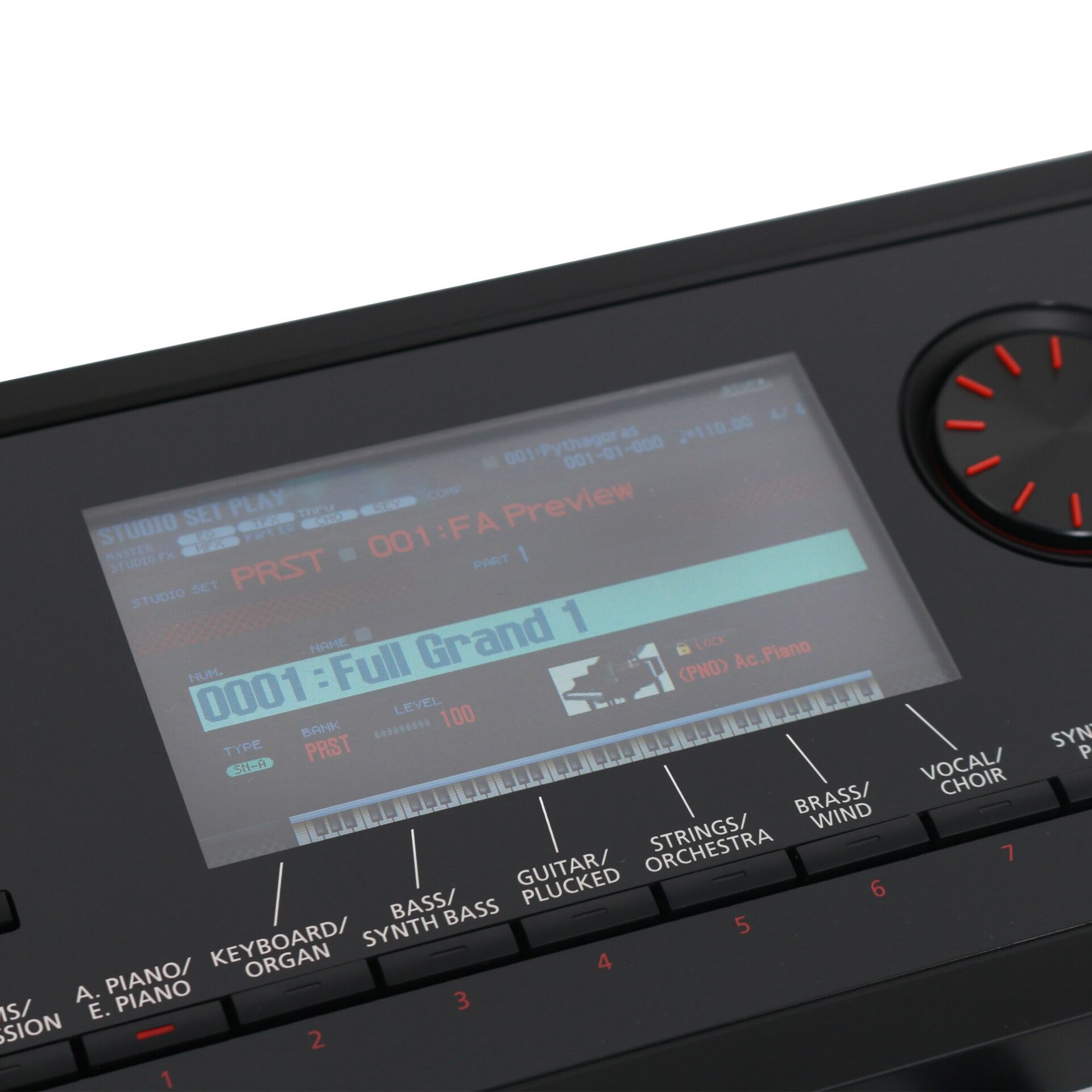

colour LCD display
power supply : AC adapter (current: 1,300 mA)
accessories: manual, SD card (installed in the product), adapter, power cable
dimensions: 1231 x 311 x 107 mm
weight: 8.5 kg

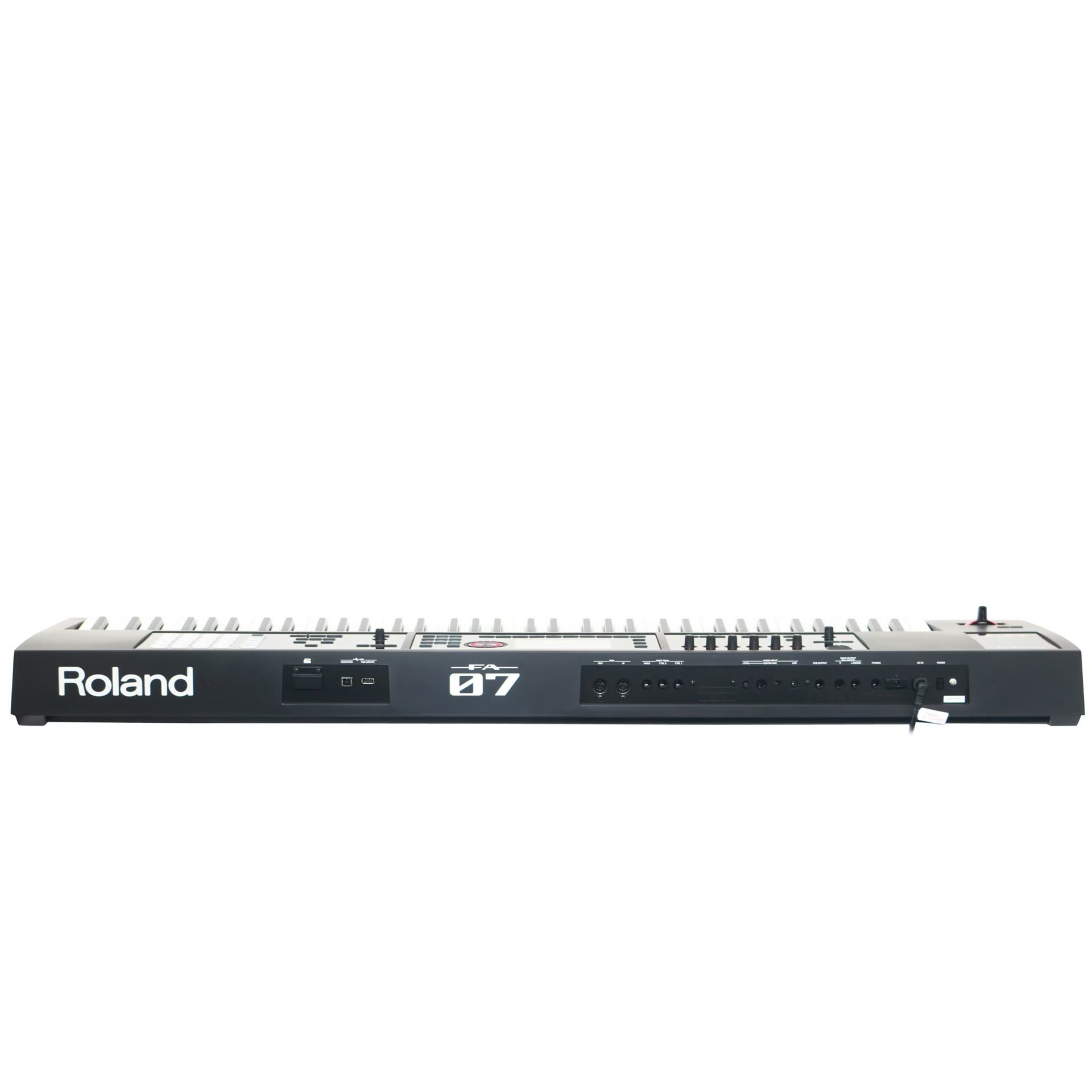

connectors:
audio input guitar/mic (jack) with level control
audio input line (mini jack)
headphone stereo jack
main outputs (2x mono jack)
sub output (jack)
3x pedal input (CTRL1, CTRL2, Hold)
MIDI IN/OUT (DIN)

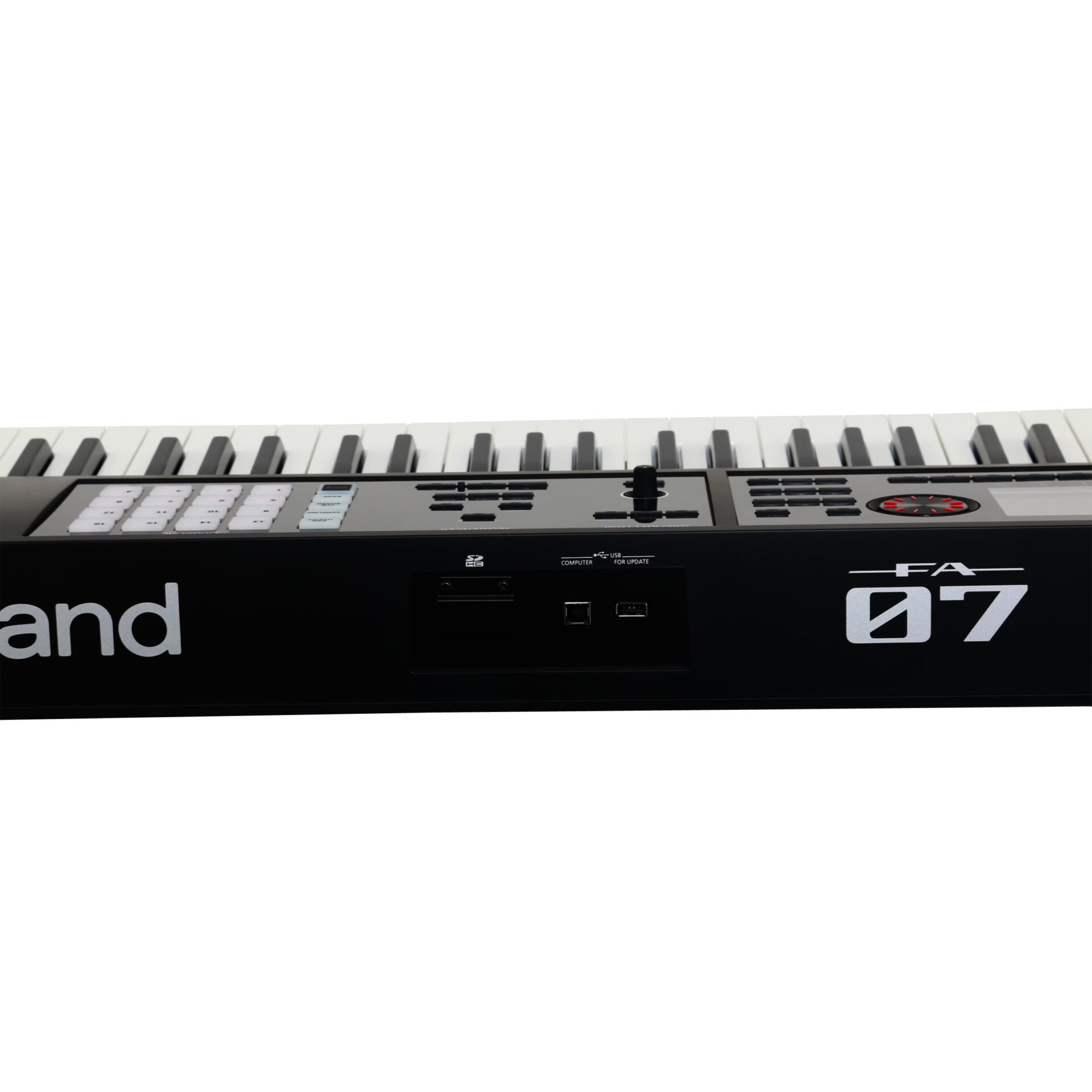

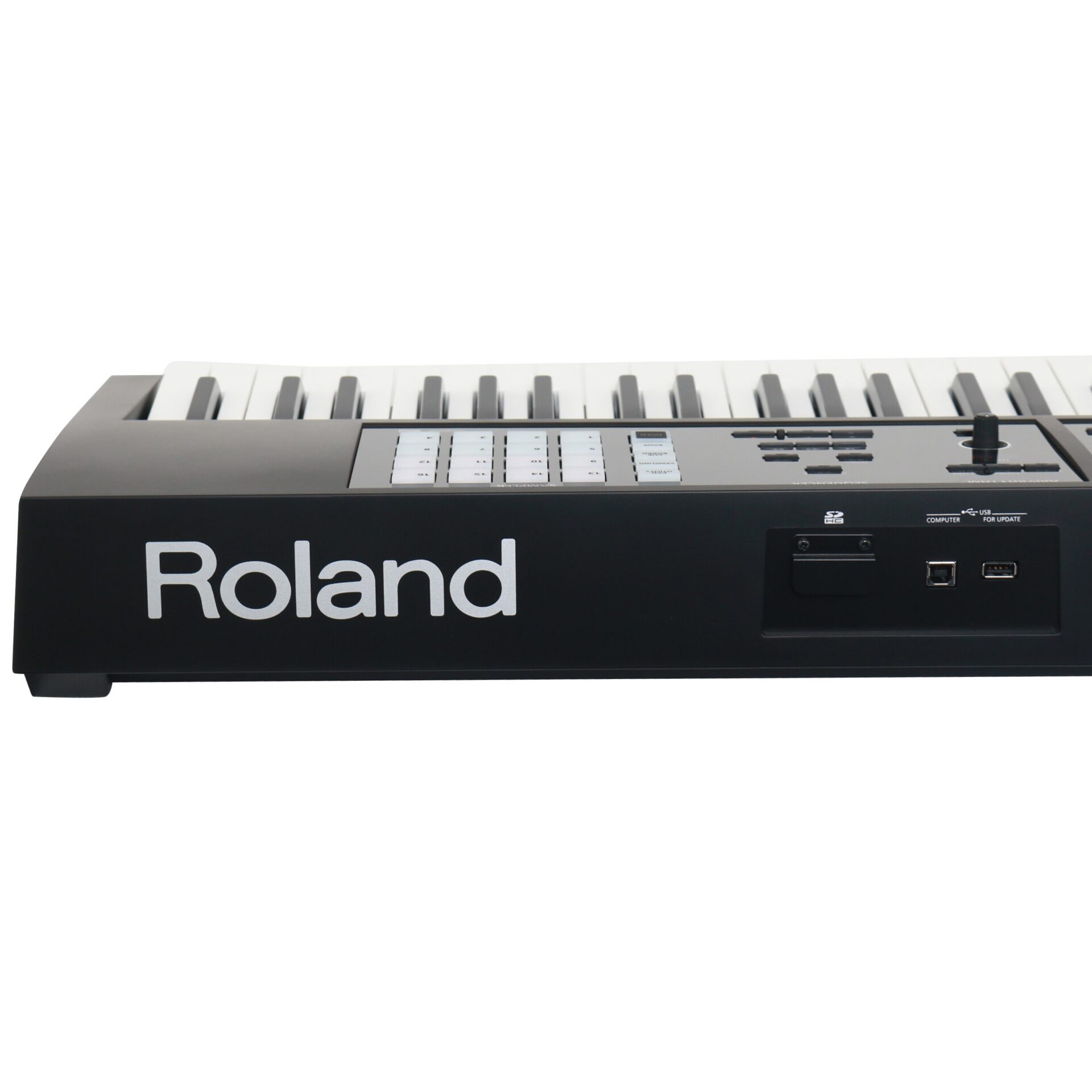

SDHC slot
USB-to-device (A)
USB-to-host (B)
