Description
Specifications
Product features
19 inches 19-inch rack mount (not included)
Number of analogue input channels 25 – 32
Number of analogue output channels 17 – 24
Number of channels 17-32
Number of microphone inputs 17 – 32
Digital inputs none
Digital snake no
Digital outputs none
Dynamics compressor, gate
Equalizer 4-band, Master EQ
Input connector jack (3.5 mm stereo), jack (6.3 mm stereo), jack (6.3 mm) + XLR, Ethernet (RJ45), XLR, USB

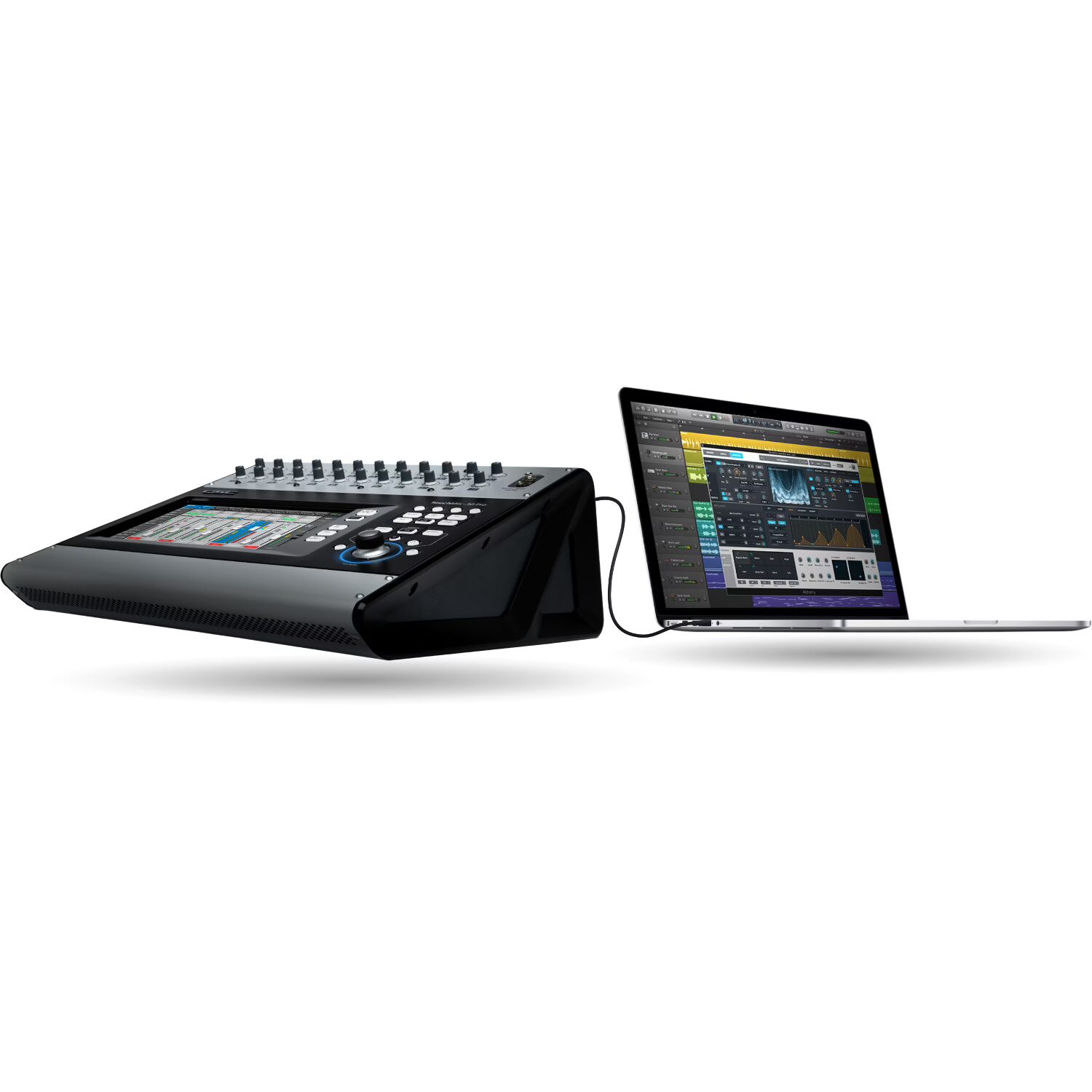

Built-in audio interface USB (multi track)
Built-in audio player USB
Built-in effects yes
Insert connectors no
Input level meters via built-in display, via iPad / iPhone / iPod, via Android Device

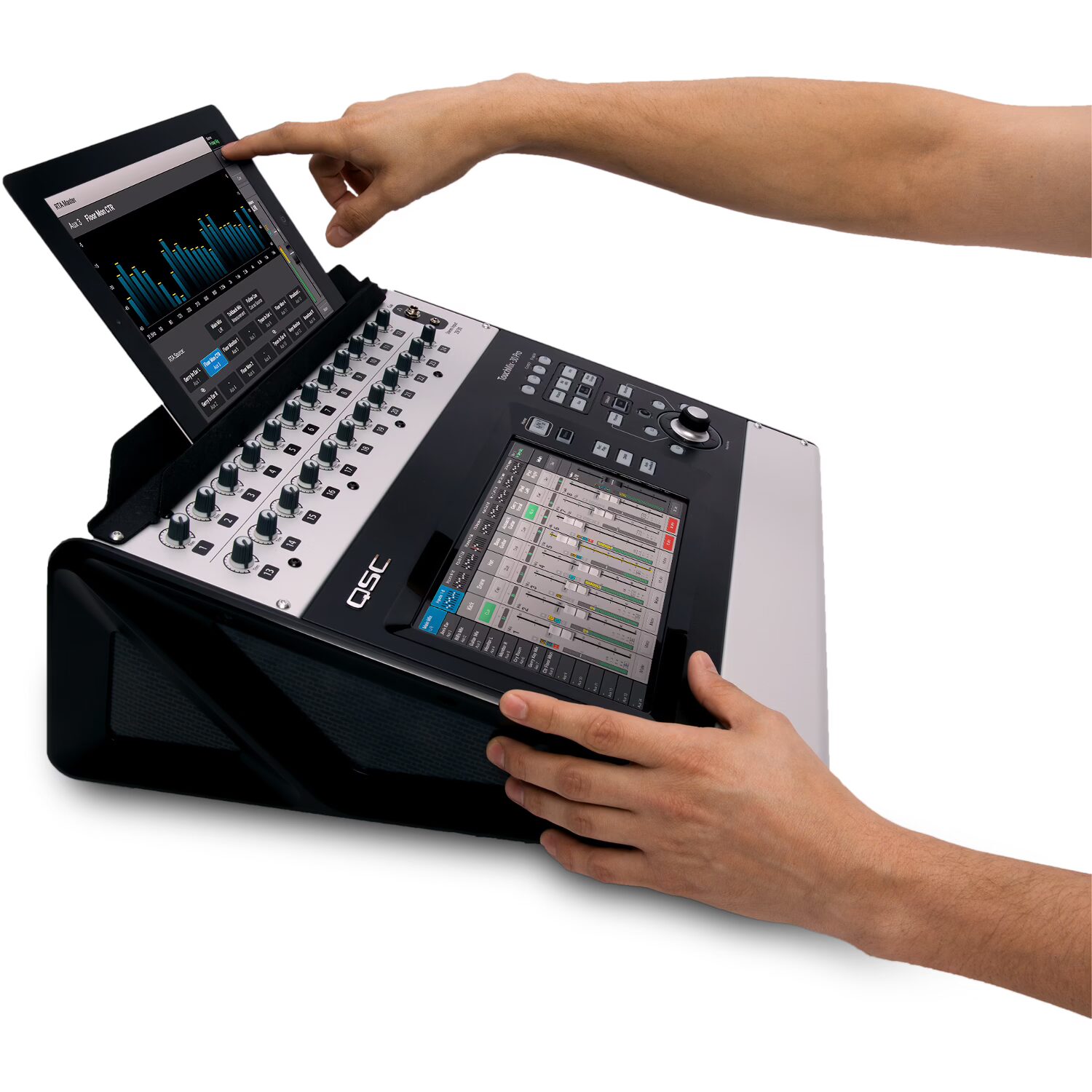

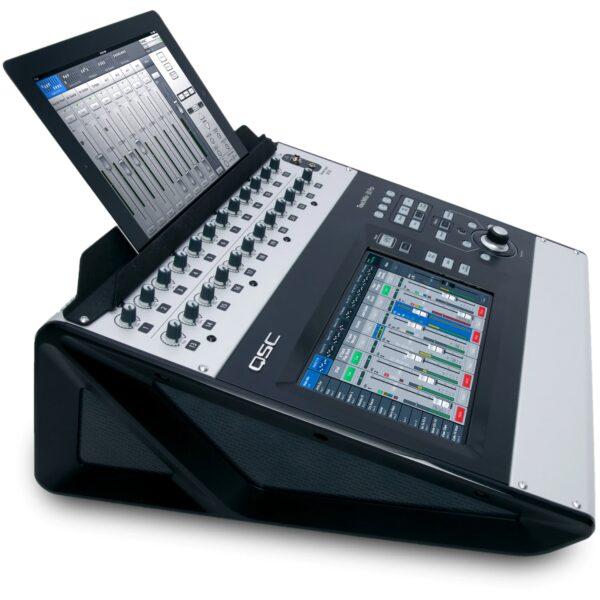

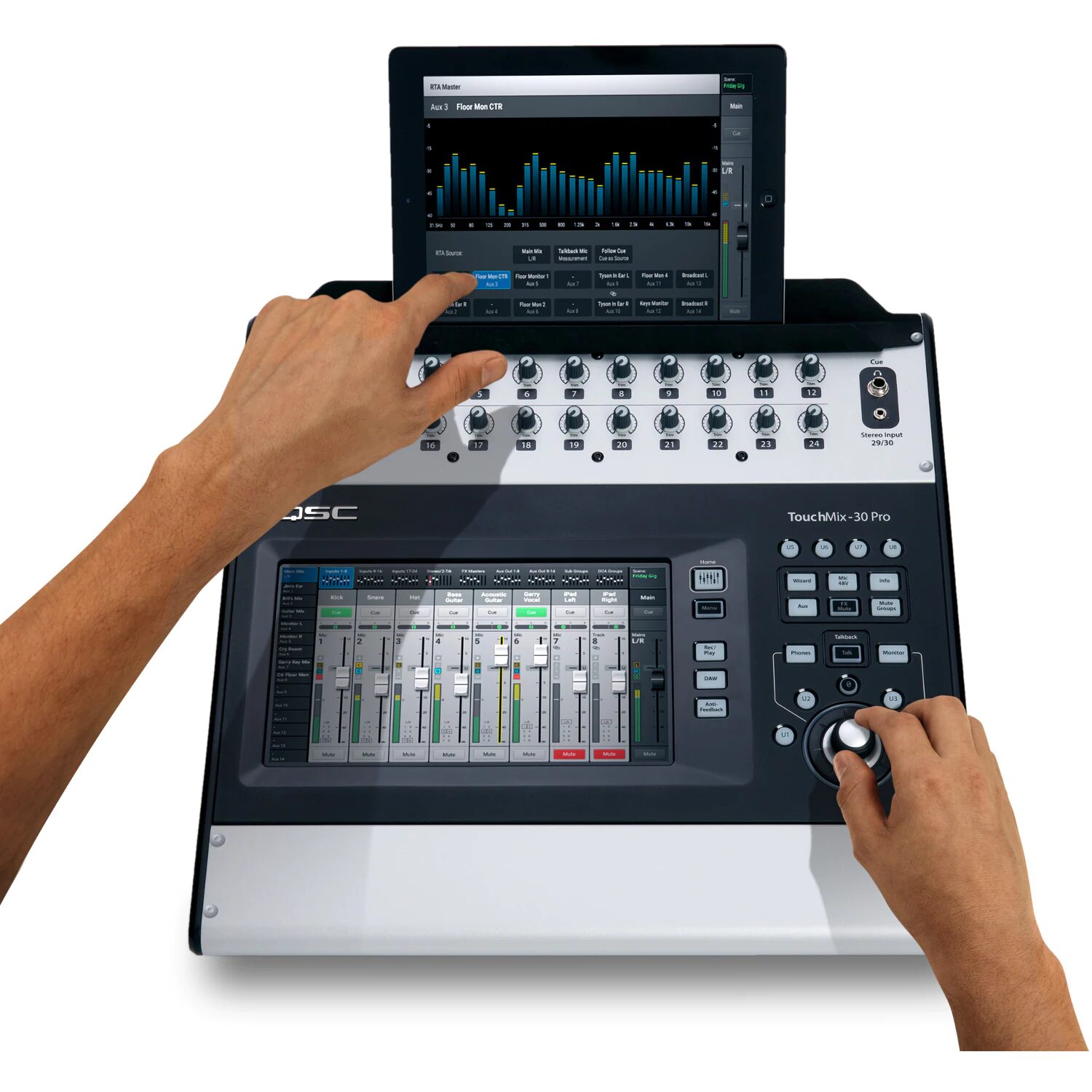

Remote control via iPad, via Android device, via Ethernet, via Wi-Fi
Connector position back
Type of display touch screen, colour
Expansion possibilities personal monitoring system, Wi-Fi dongle
Output connector jack (6.3 mm stereo), XLR (3-pin), Ethernet, USB connector
Mixer power power cable
Volume control knobs, via touchscreen
Weight and dimensions including packaging
Weight (incl. packaging)11.5 kg
Dimensions (incl. packaging)59.5 x 49.0 x 29.0 cm
Product specifications

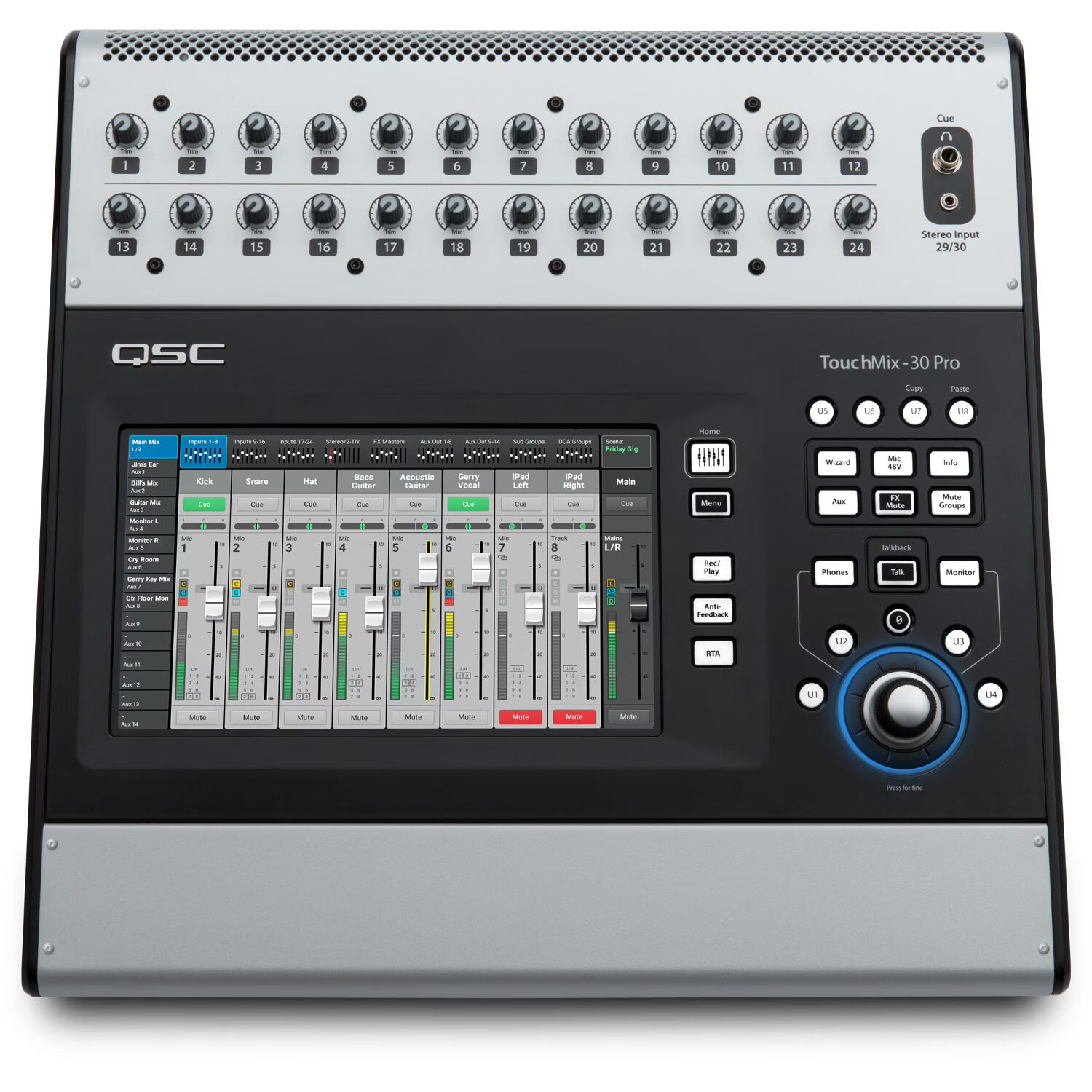

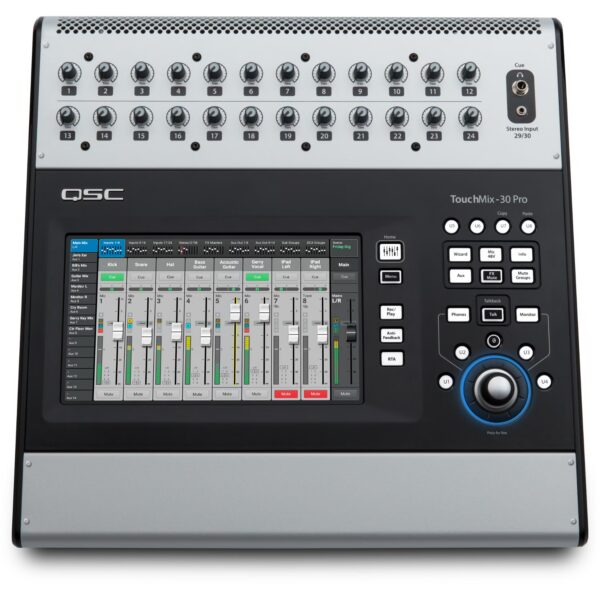

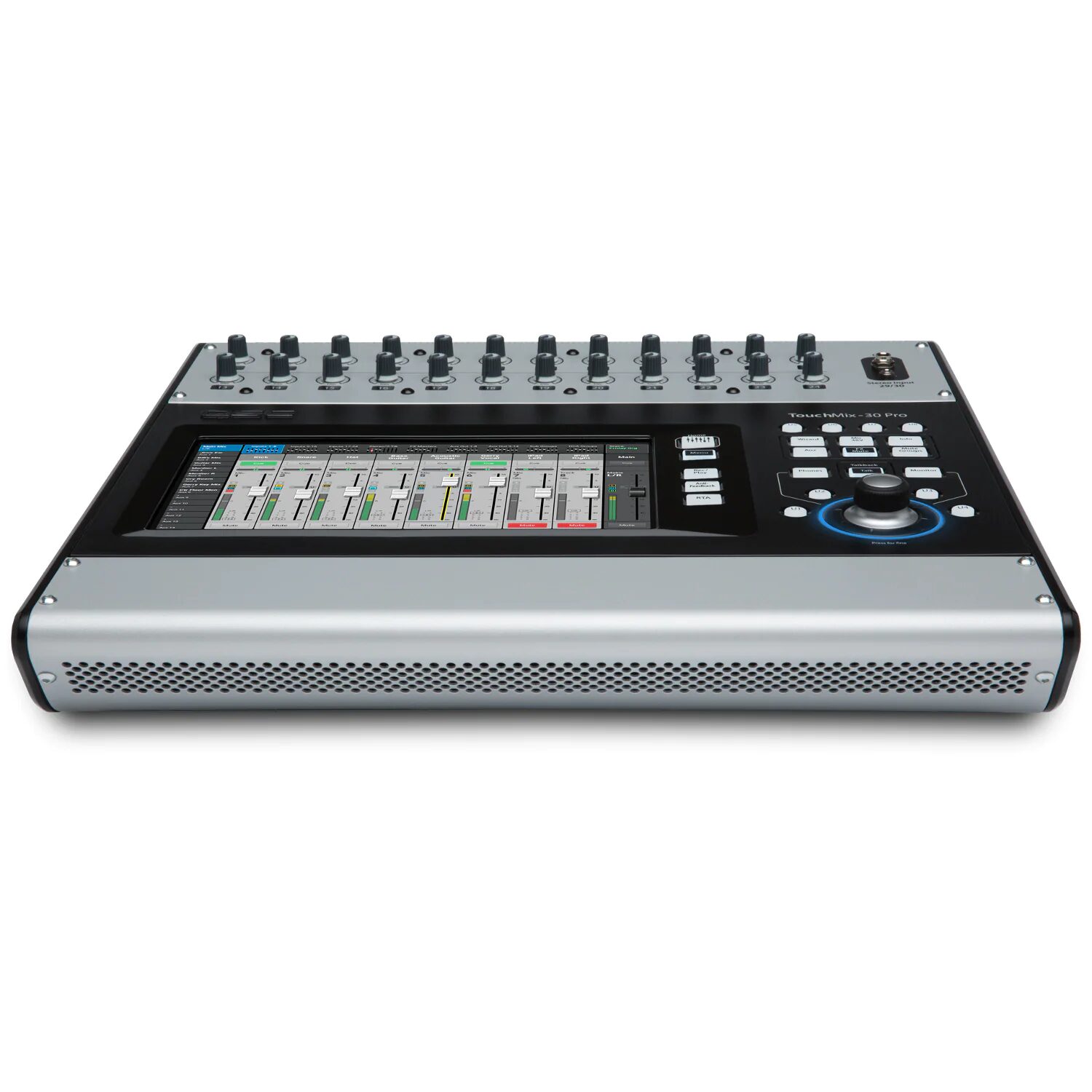

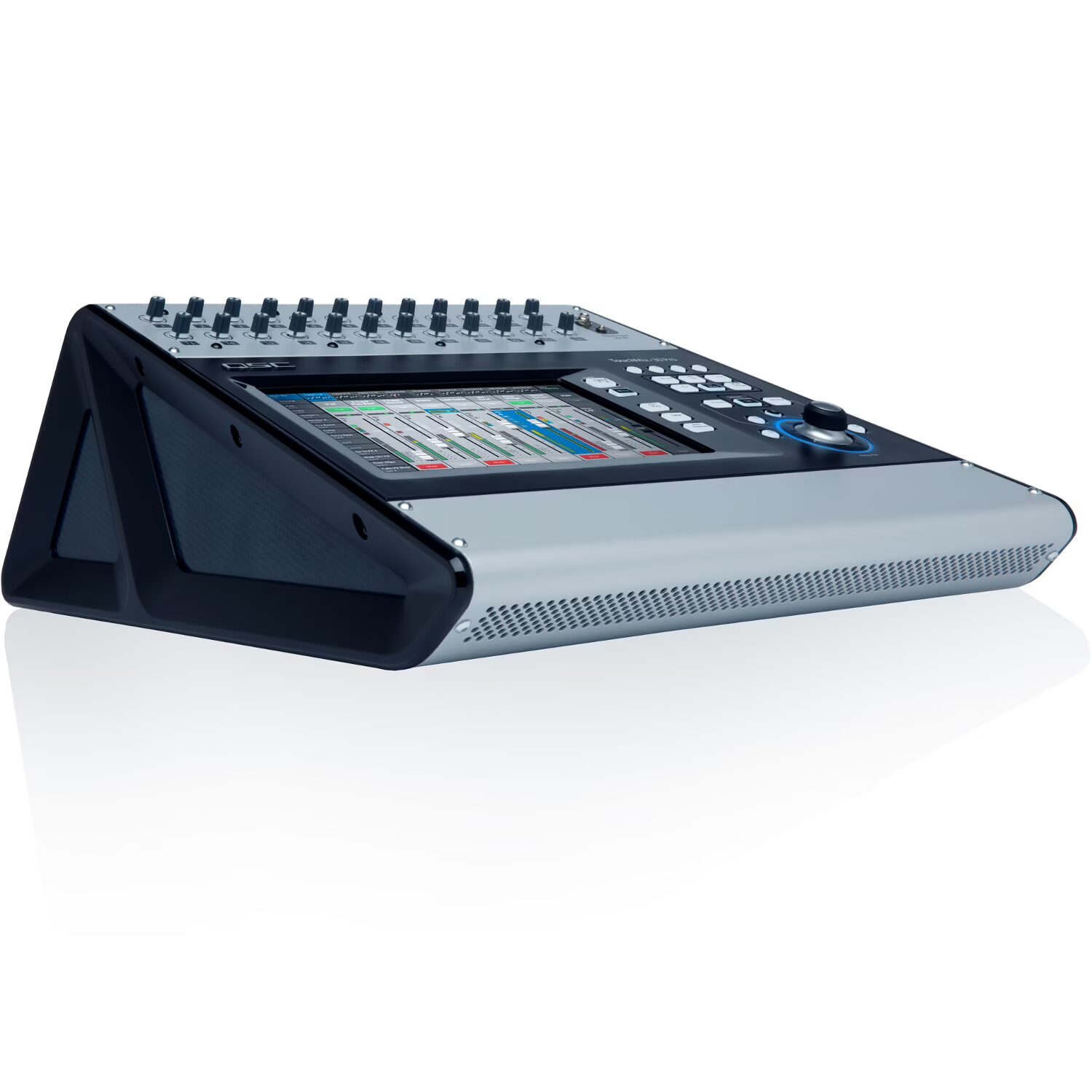

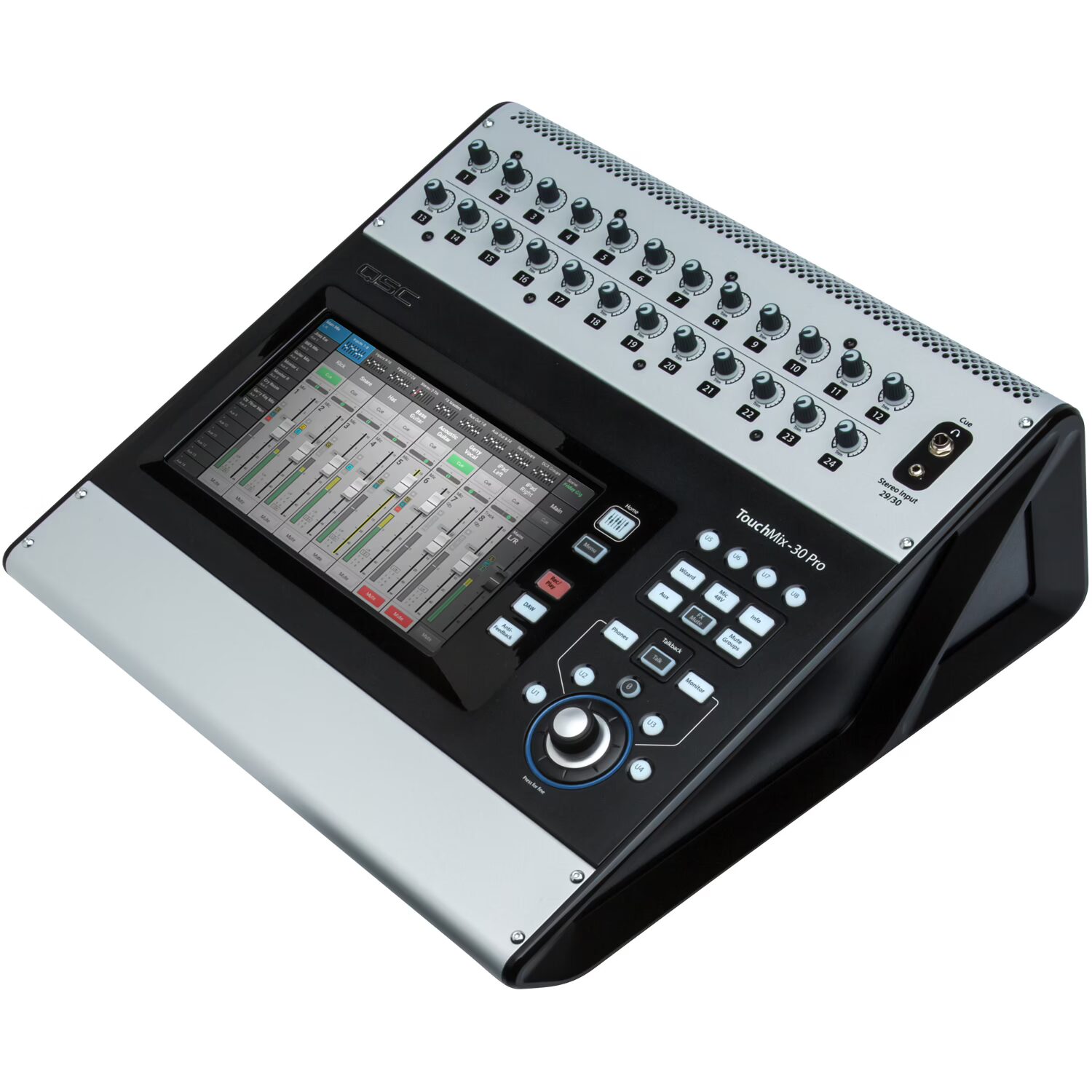

digital mixer

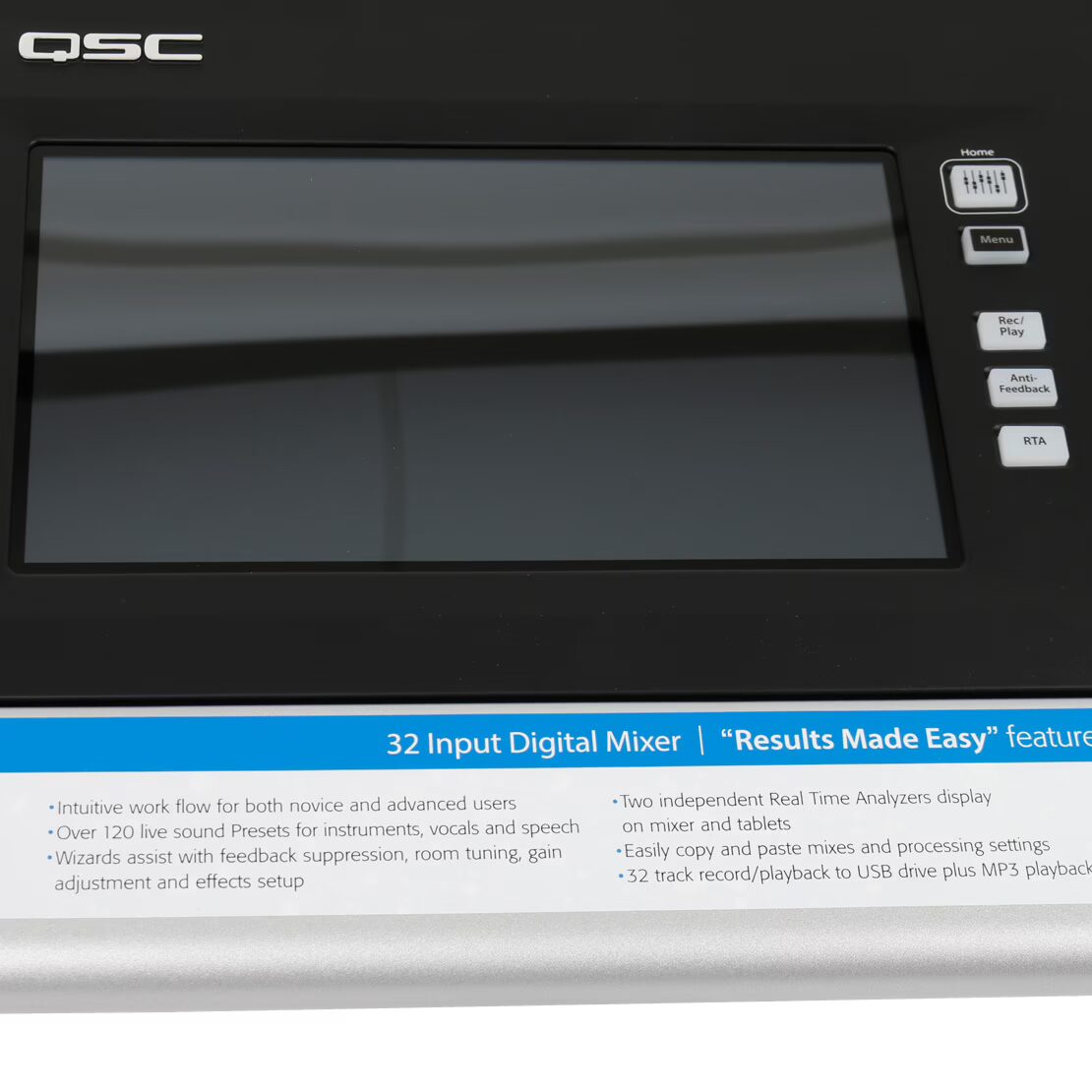

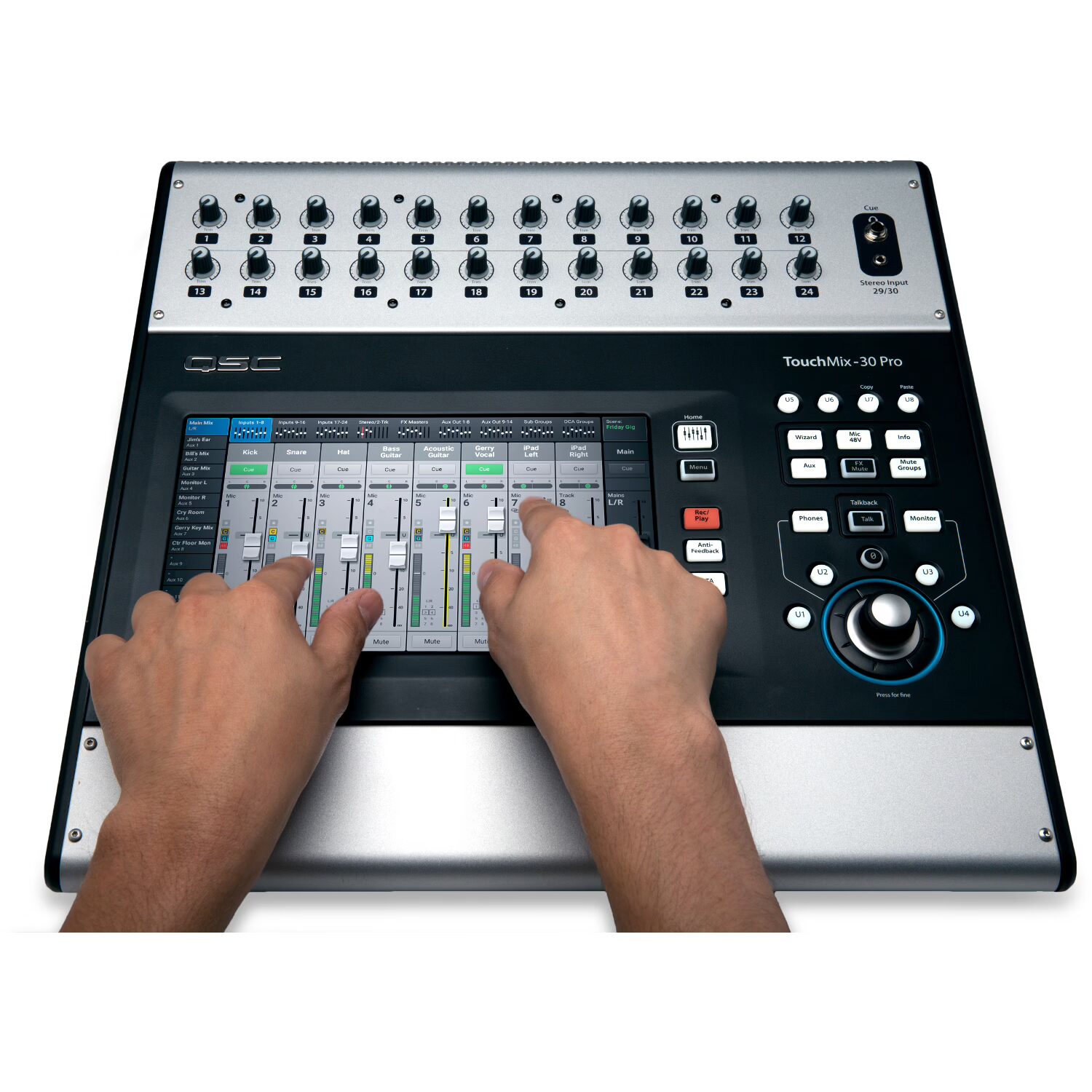

equipped with 10-inch full-colour touch screen
wi-fi available via dongle or Ethernet

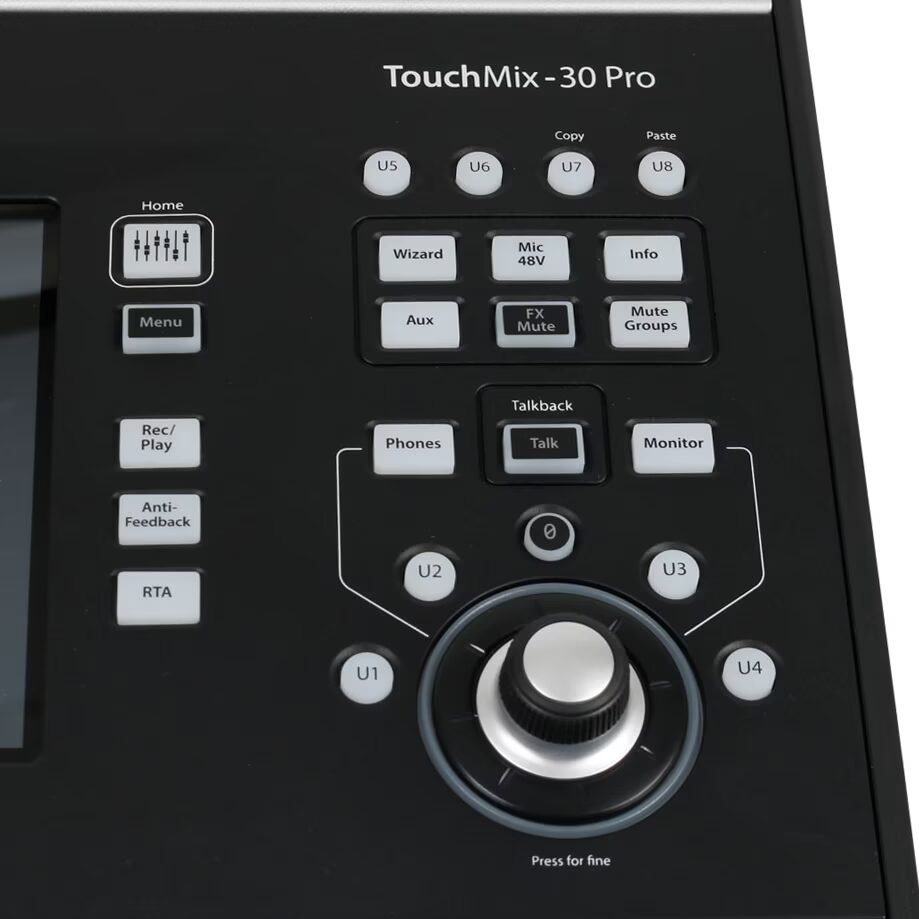

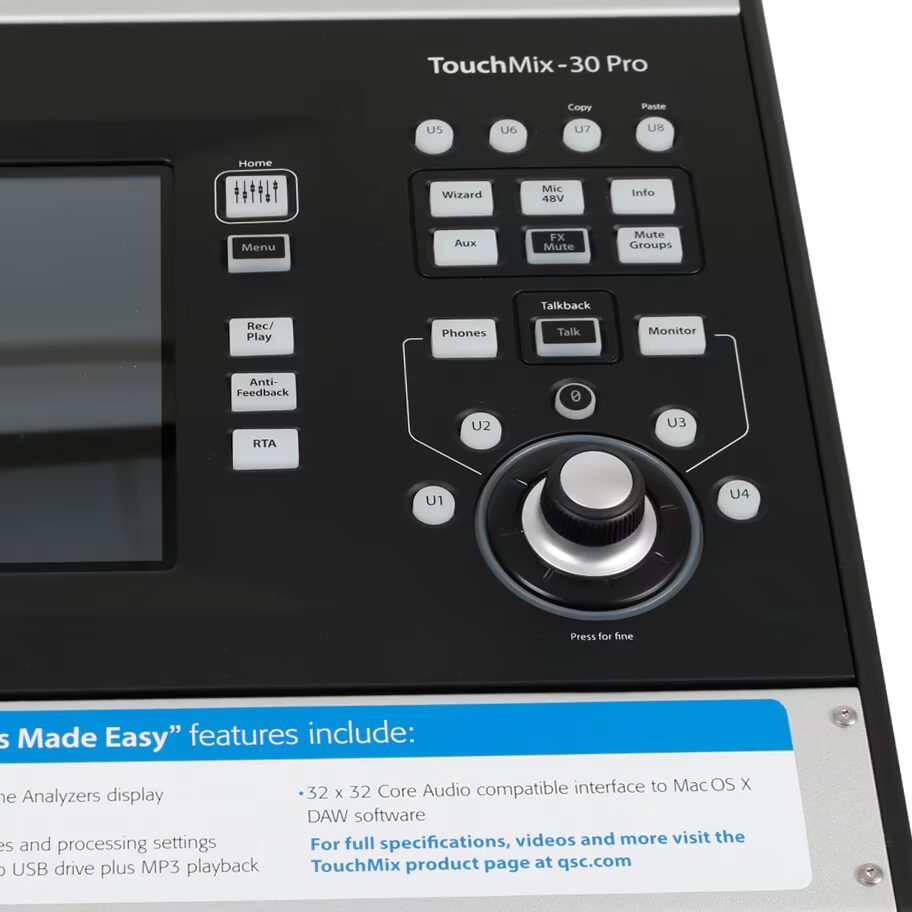

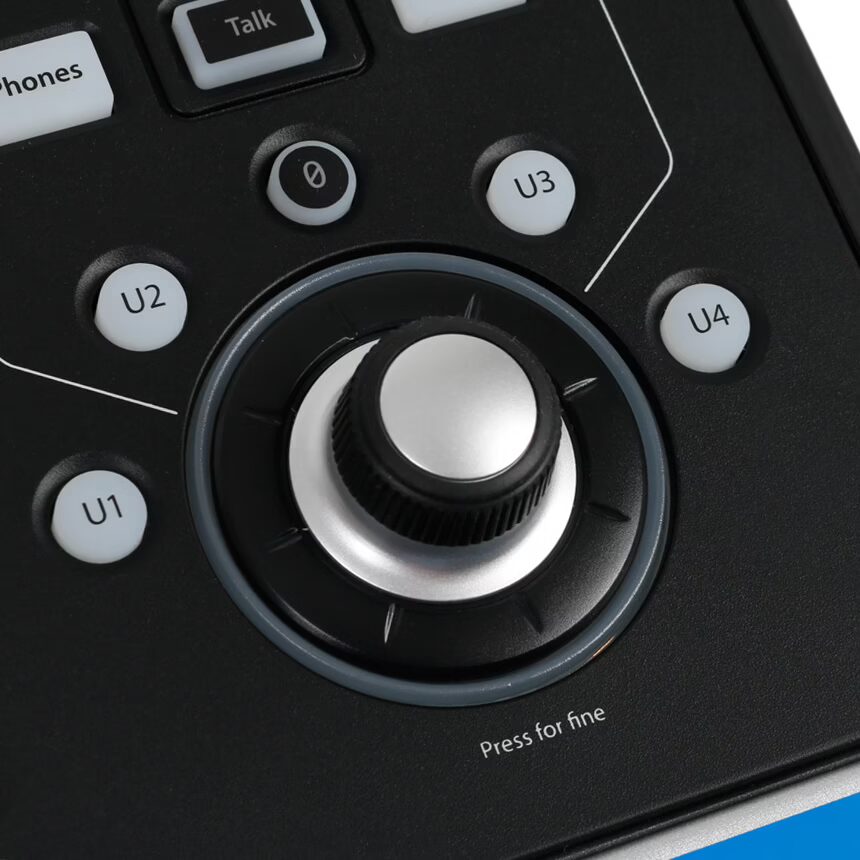

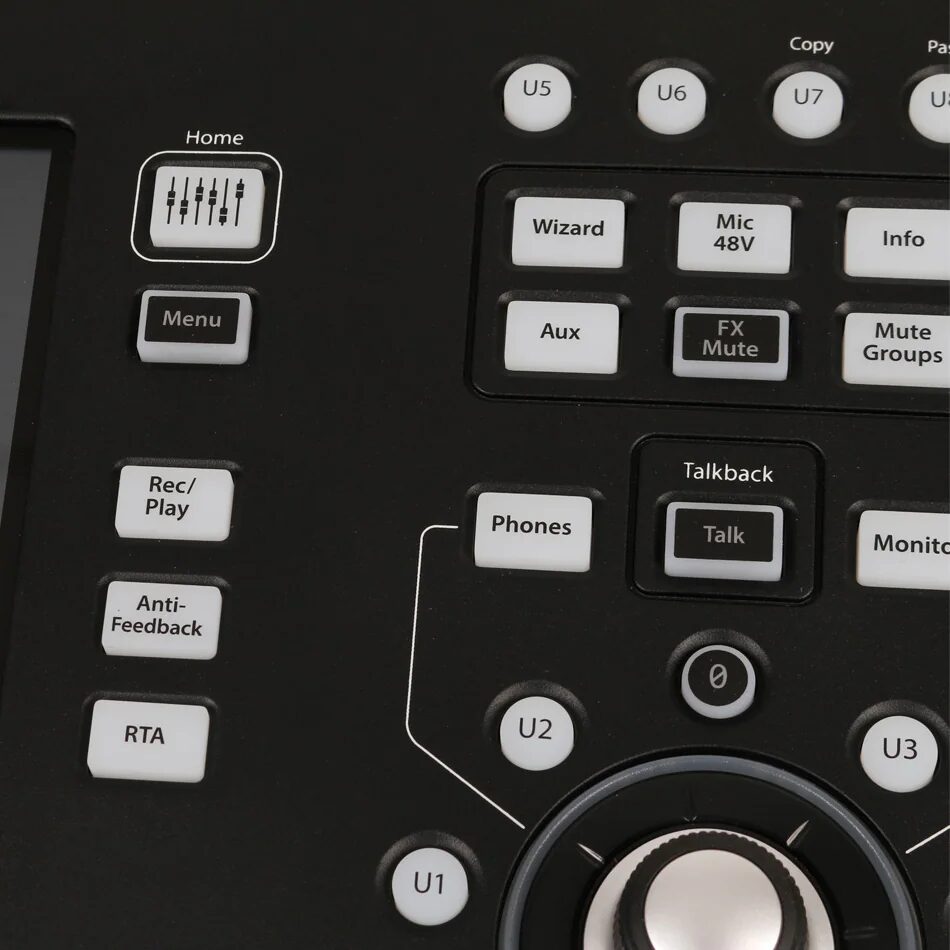

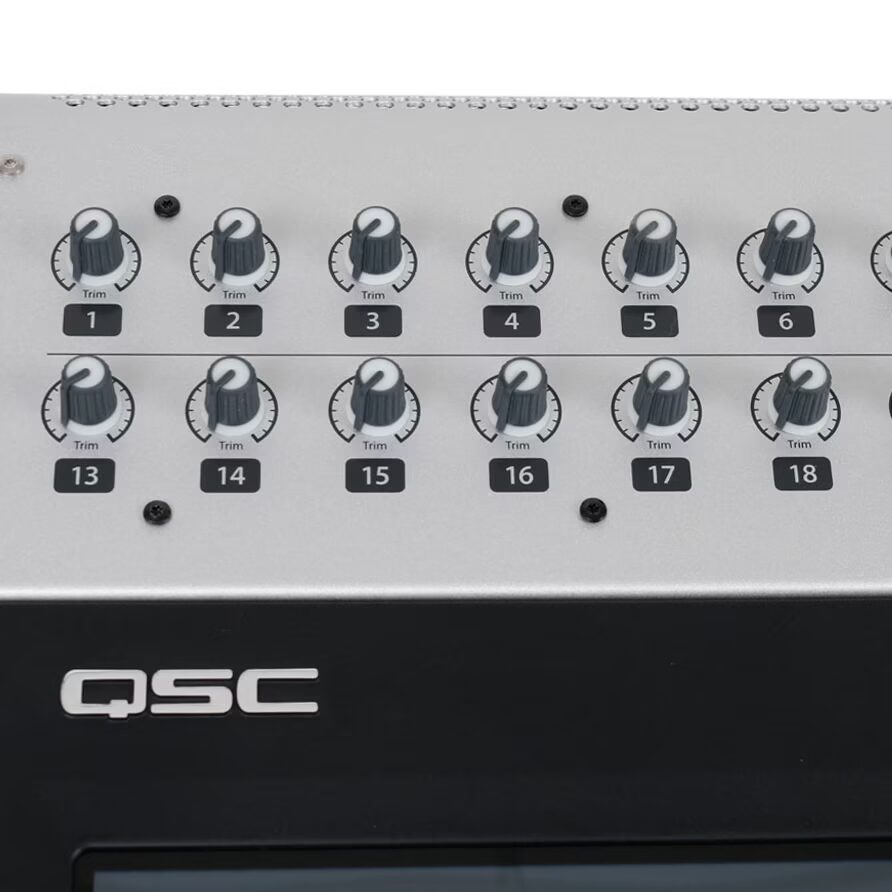

physical knobs for the most used controls
32 channels
4-band parametric EQ
2-band shevling EQ
variable 24 dB/octave HPF and LPF, gate, compressor and delay
number of groups: 8 DCA, 8 mute, 8 subgroups (stereo linkable)
effects: 6 professional engines (120 presets / 99 user / 99 user scenes)
built-in pitch correction
Real Time Analyser (2x 1/3 octave)
number of recordable tracks: 32
sample frequency: 44.1 / 48 kHz
dynamic range: 105 dB
signal to noise ratio: -94 dB
THD: <0.005%, +4 dBu
frequency range: 20 Hz – 20 kHz (+/- 0.5 dB)
max input level: +16 dB (XLR mic/line), +26 dB (TRS mic/line), +24 dB (line)
maximum output level: +22 dBu (line)
switchable 48V phantom power per input

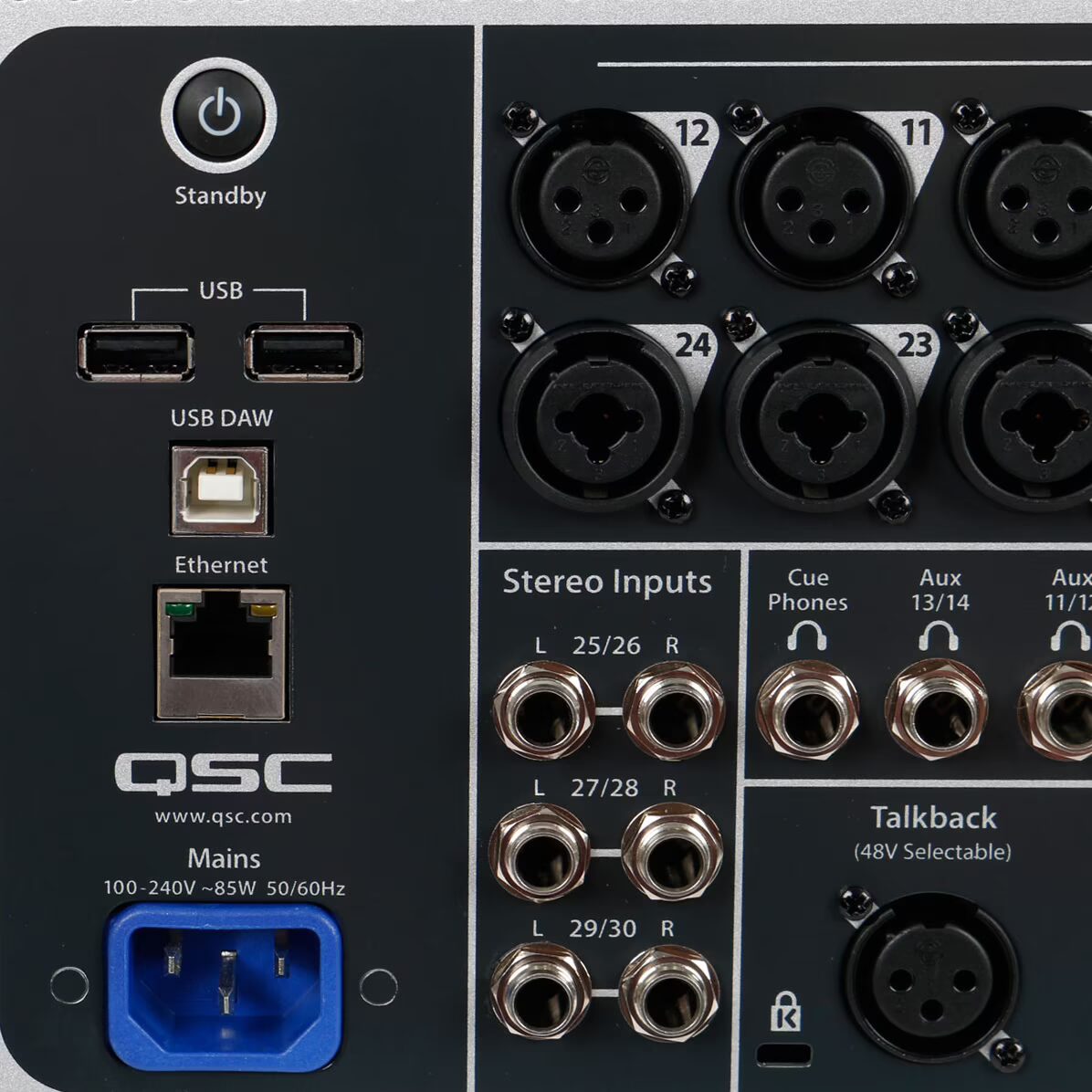

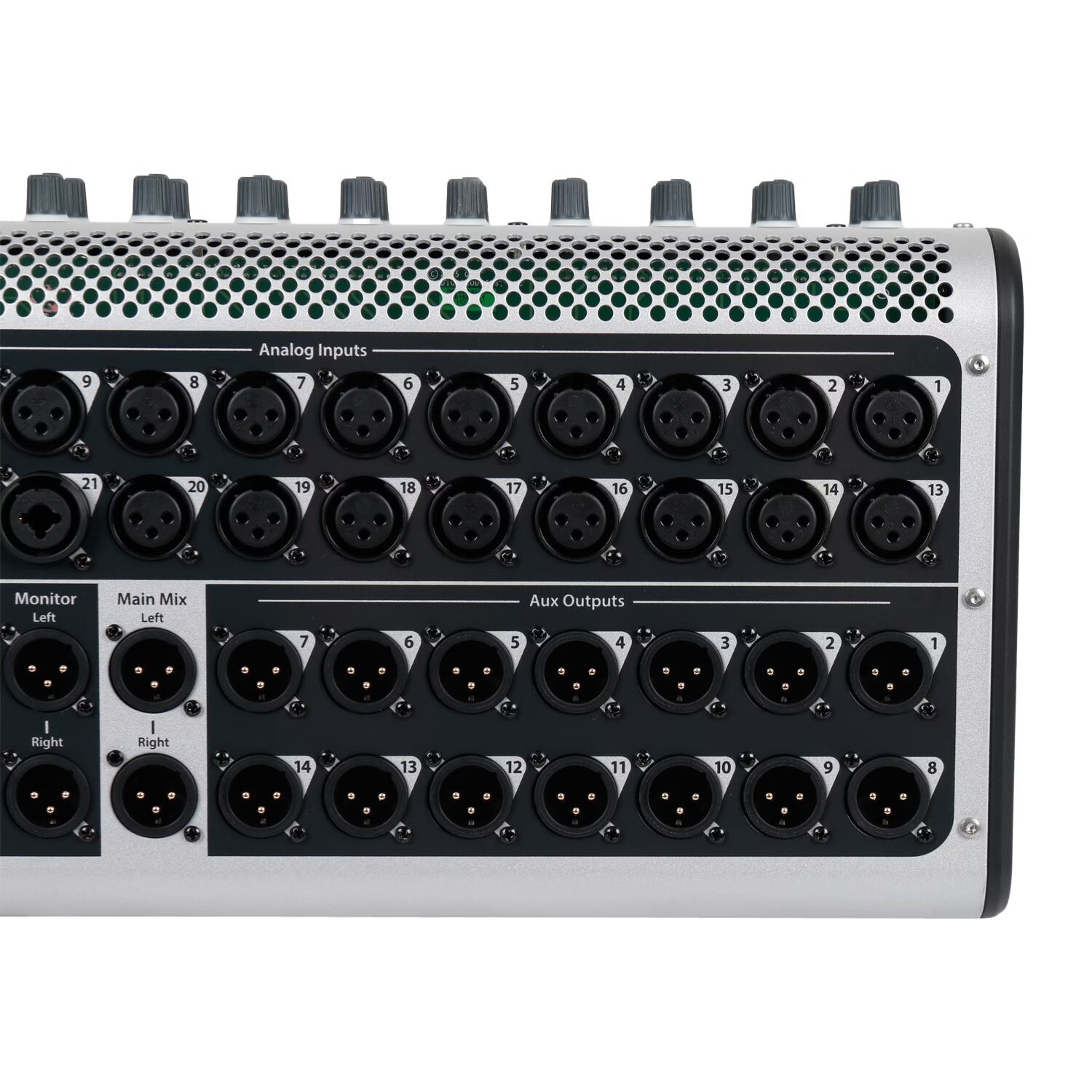

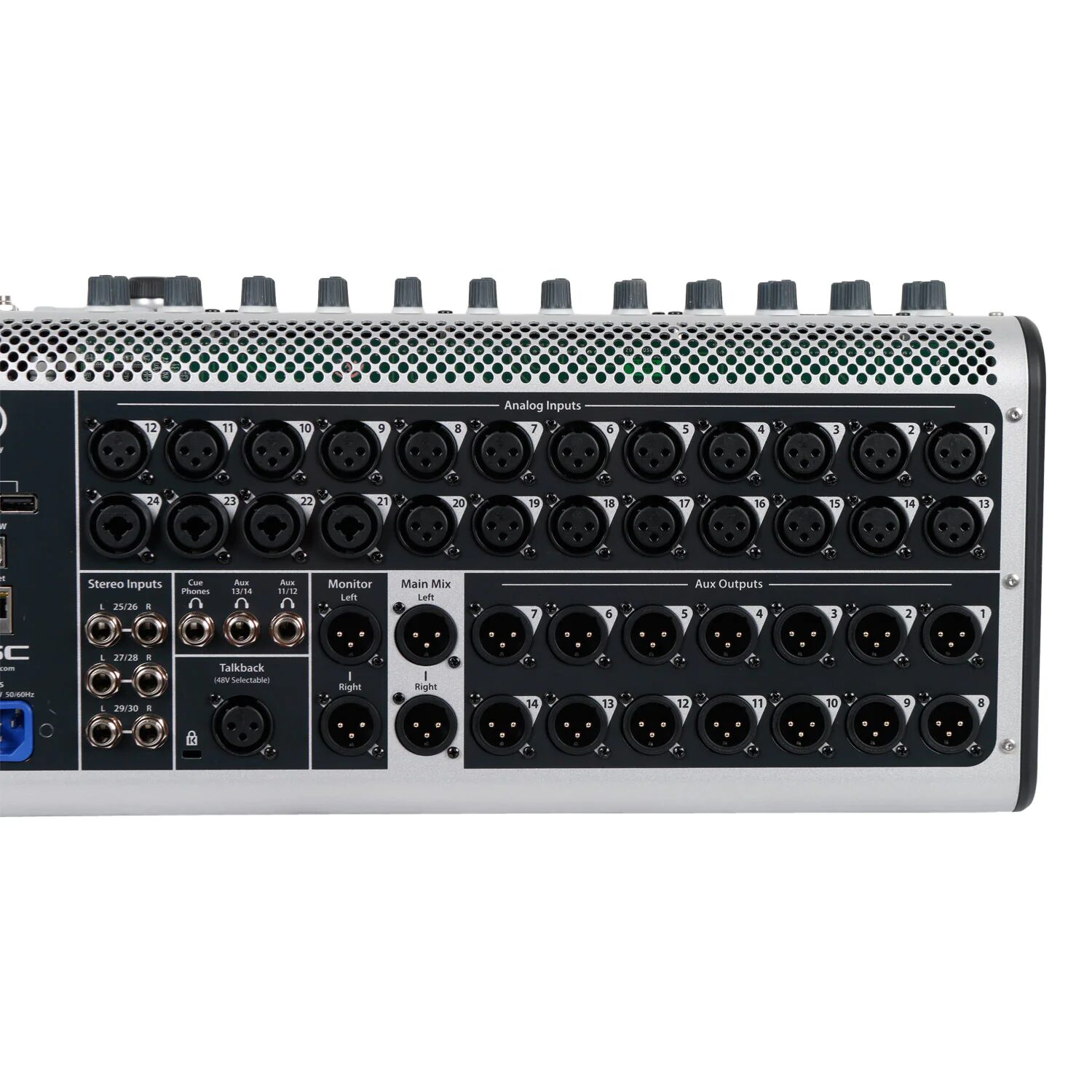

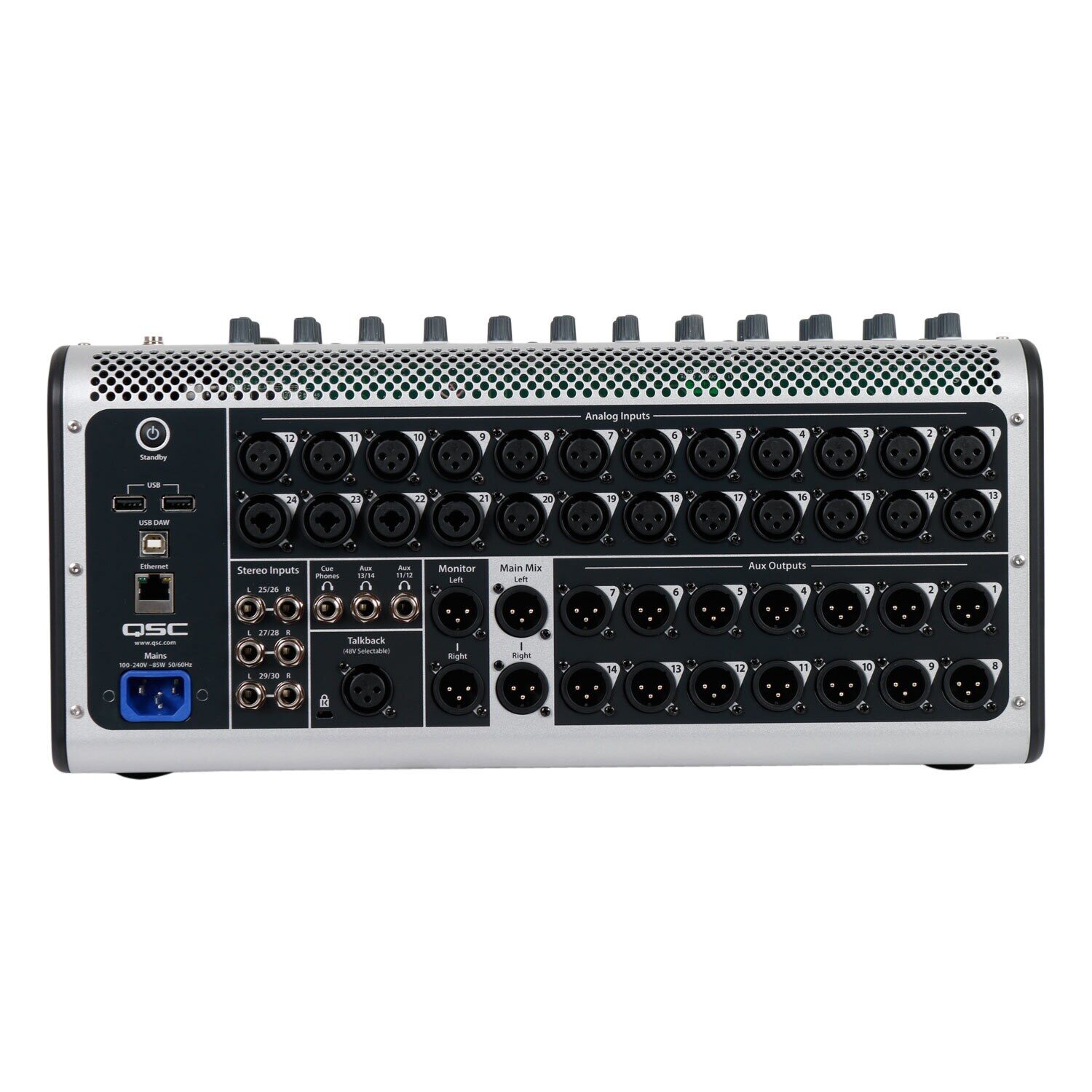

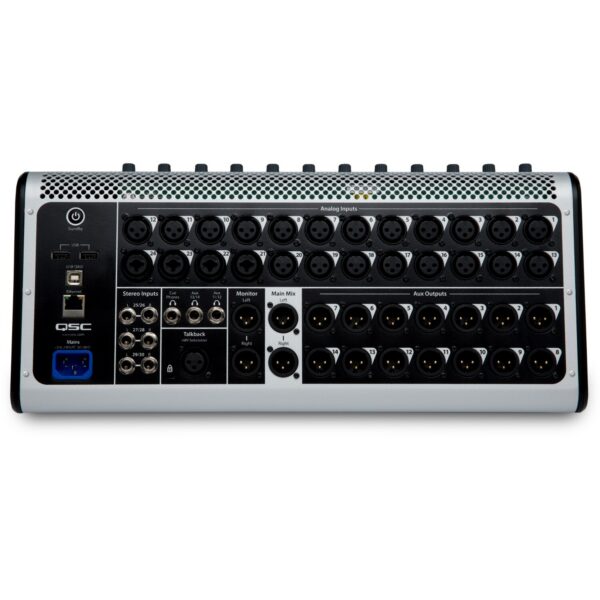

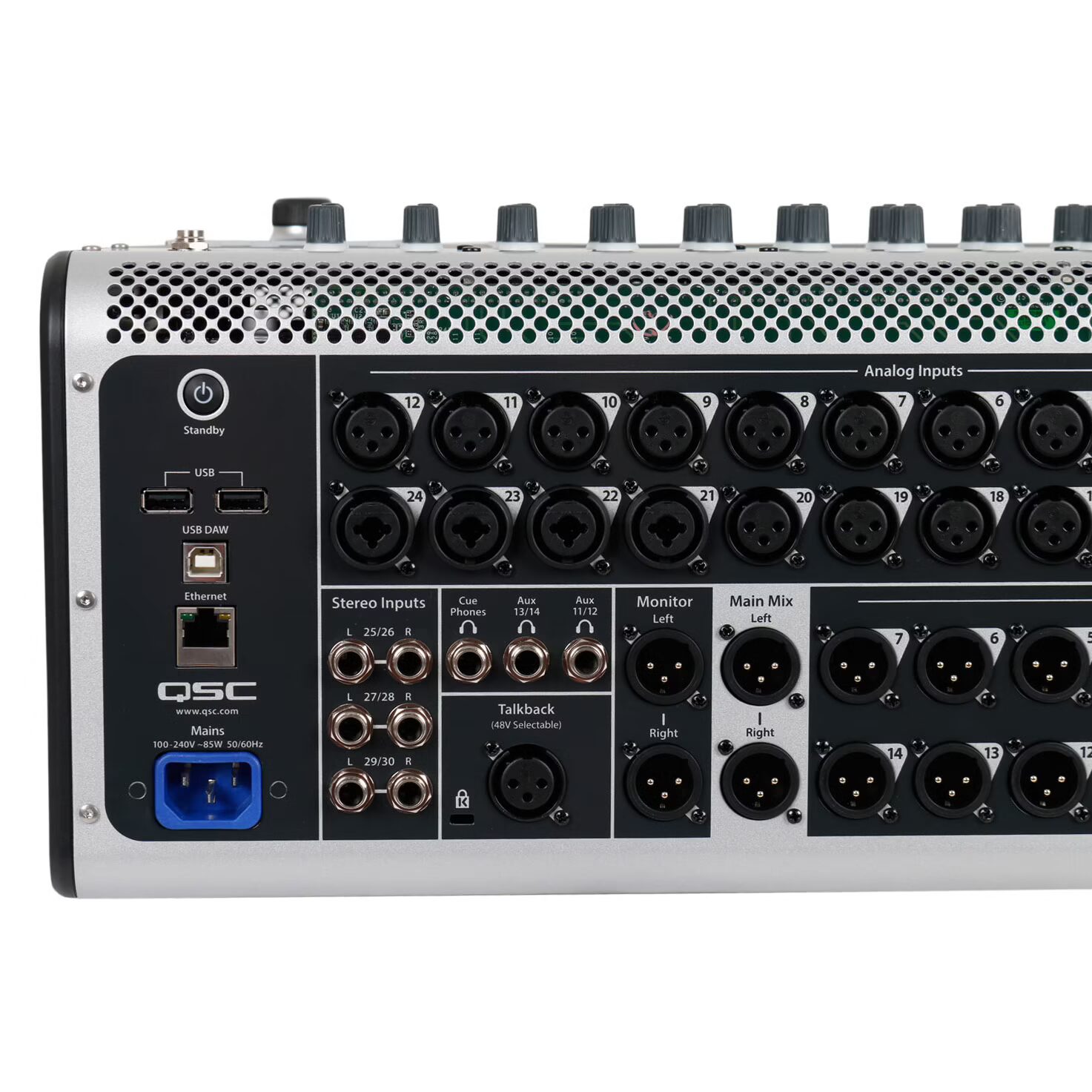

connectors:
4x XLR/TRS combo inputs
20x XLR inputs
3x stereo (TRS jack)
1x talkback (XLR female; 48V selectable)
1x main out (XLR male)
14x aux (XLR male)
3x stereo aux (2x TRS jack, 1x TRS jack on top)
1x stereo monitor (XLR male)
1x stereo cue (TRS jack)
2x stereo USB
1x USB B (DAW)
1x RJ45 (Ethernet)
1x headphone (TRS jack on top)
power cable
dimensions: 460 x 429 x 190 mm
weight: 7.9 kg
including: power cable
