19 inches 19-inch rack mount (not included)
Number of analogue input channels 25 – 32
Number of analogue output channels 17 – 24
Number of channels 17-32
Number of microphone inputs 17 – 32
Digital inputs AVB
Digital snake no
Digital outputs AES/EBU (AES3), AVB
Dynamics compressor, gate, limiter
Equalizer Master EQ
Input connector jack (6.3 mm) + XLR, RCA
Built-in audio interface USB (multi track)
Built-in audio player USB, SD(HC)
Built-in effects yes
Insert connectors yes
Input level meters LED VU meter
Remote control via iPad, via iPhone, via Ethernet

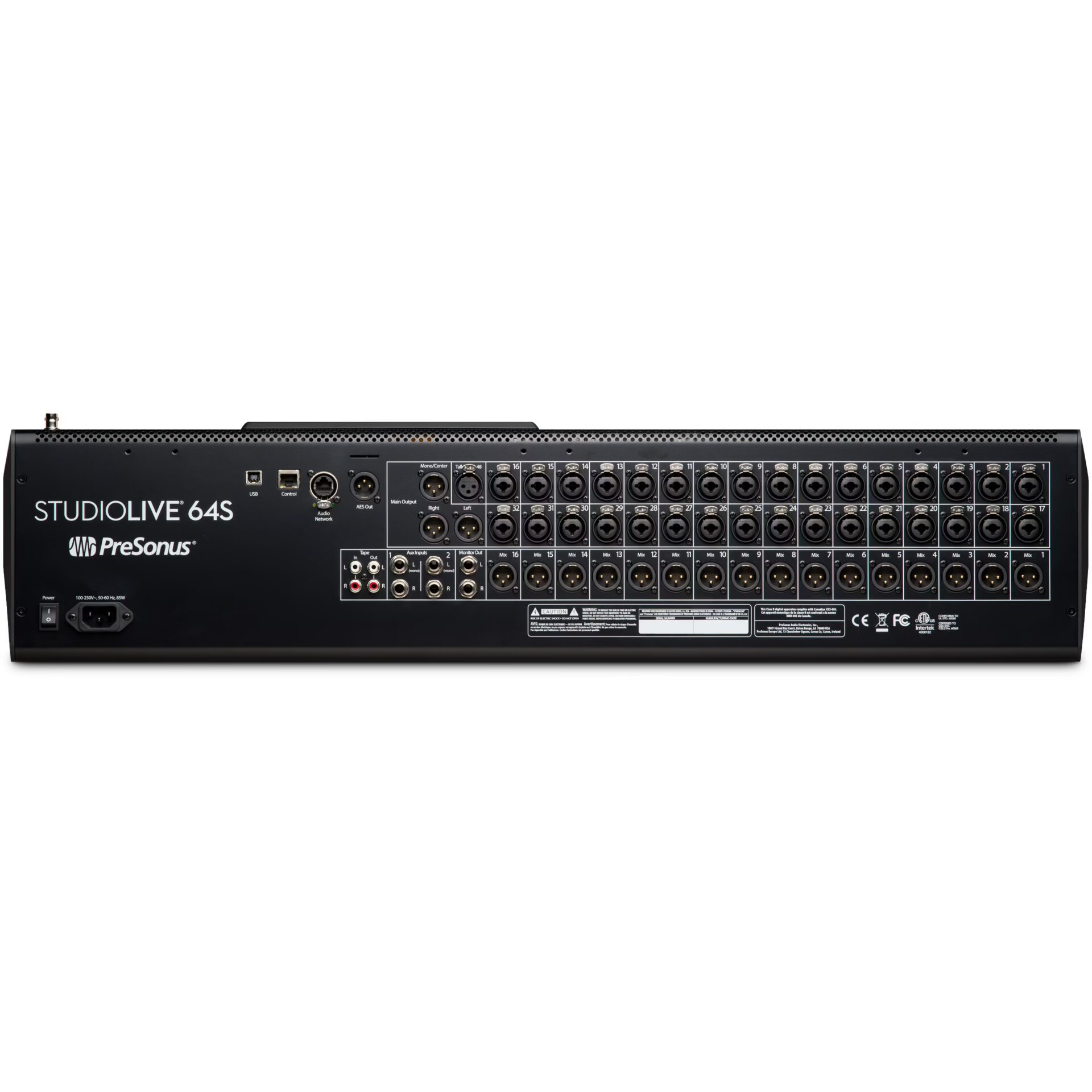

Connector position back
Type of display LED
Expansion possibilities AVB expansion card, personal monitoring system
Output connector jack (6.3 mm stereo), RCA, XLR (3-pin)
Mixer power power cable

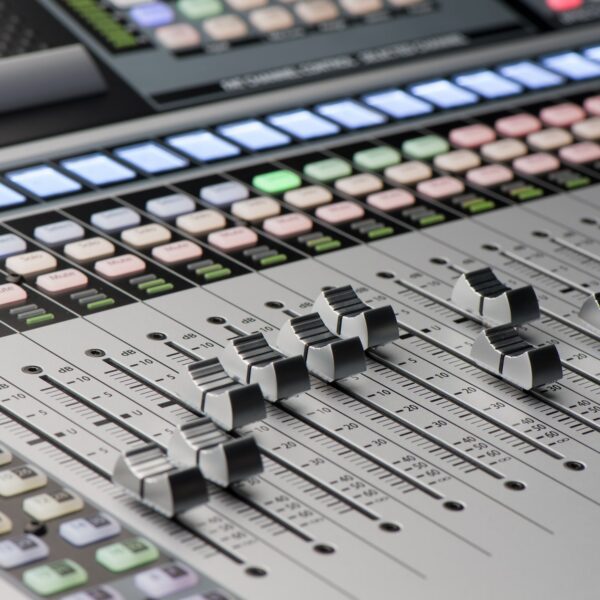

Volume control motorised faders, via iPad / iPhone / iPod
Weight and dimensions including packaging
Weight (incl. packaging)24.6 kg
Dimensions (incl. packaging)96.0 x 80.0 x 32.0 cm
Product specifications

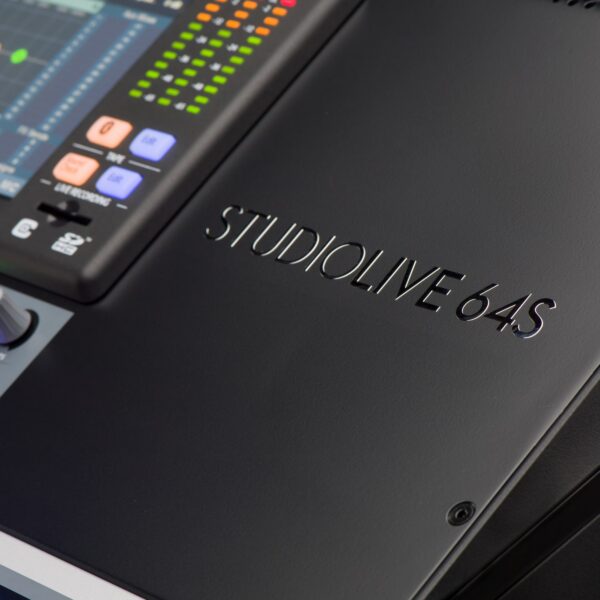

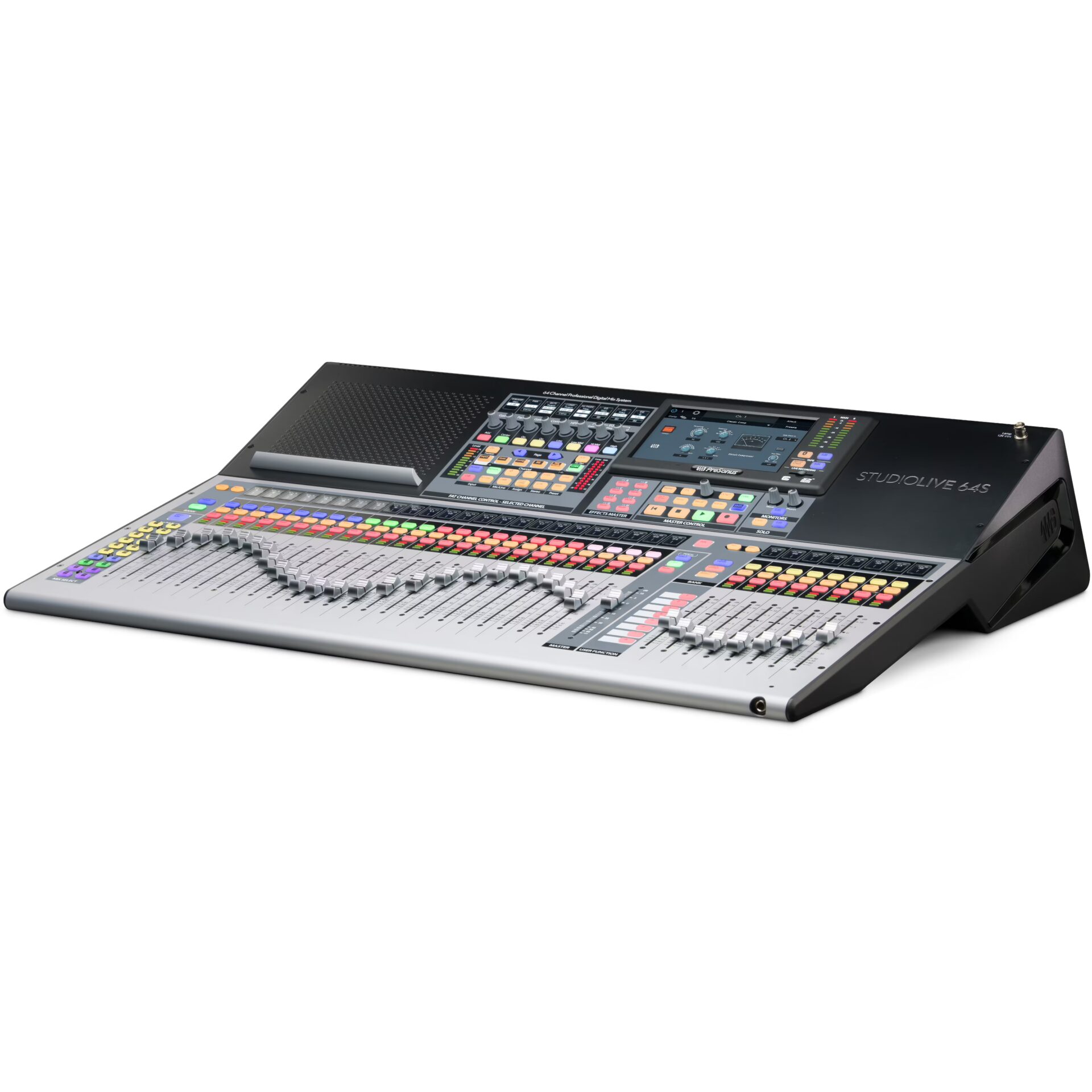

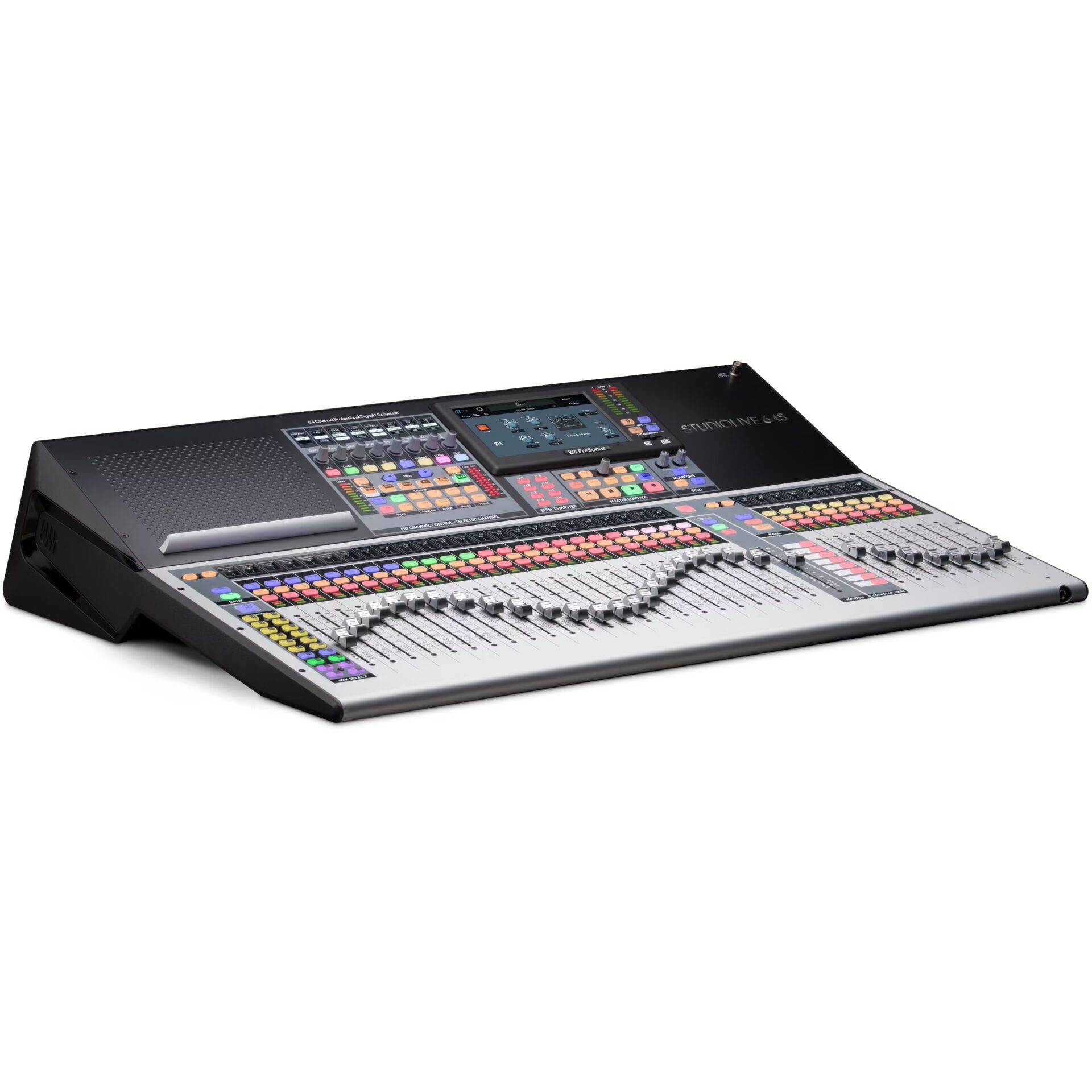

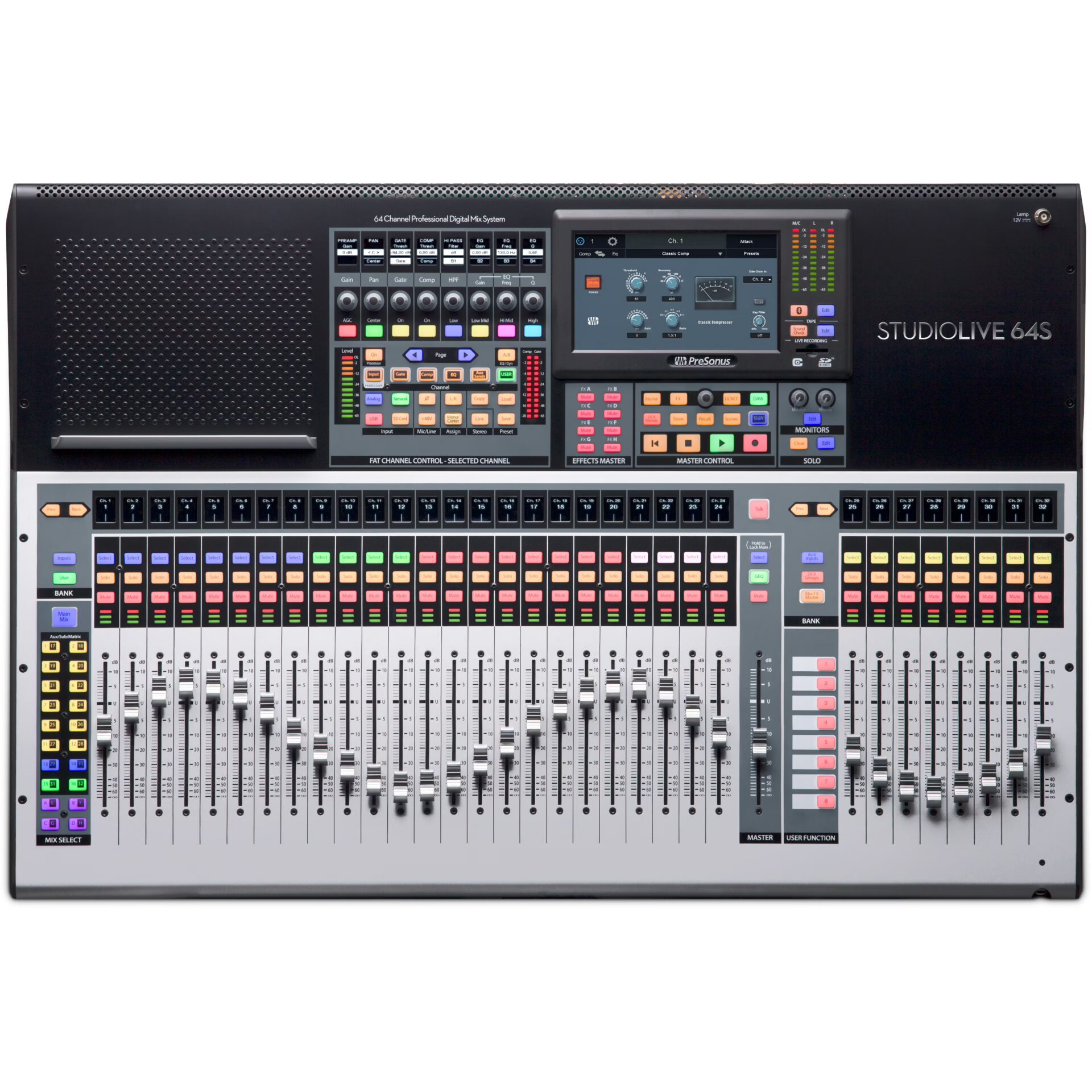

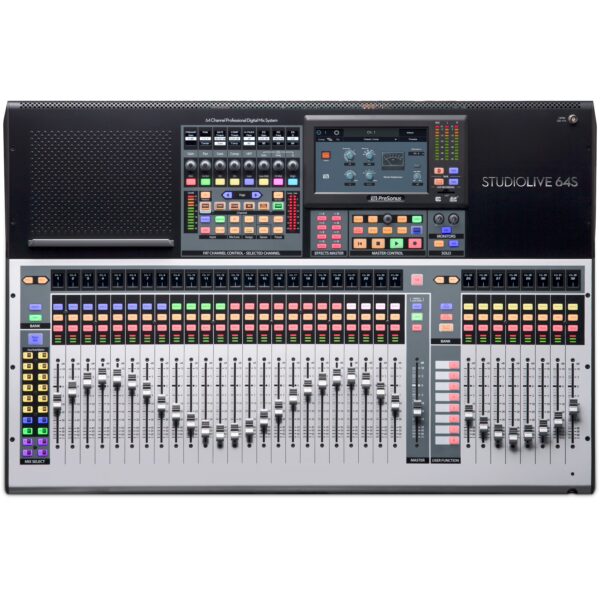

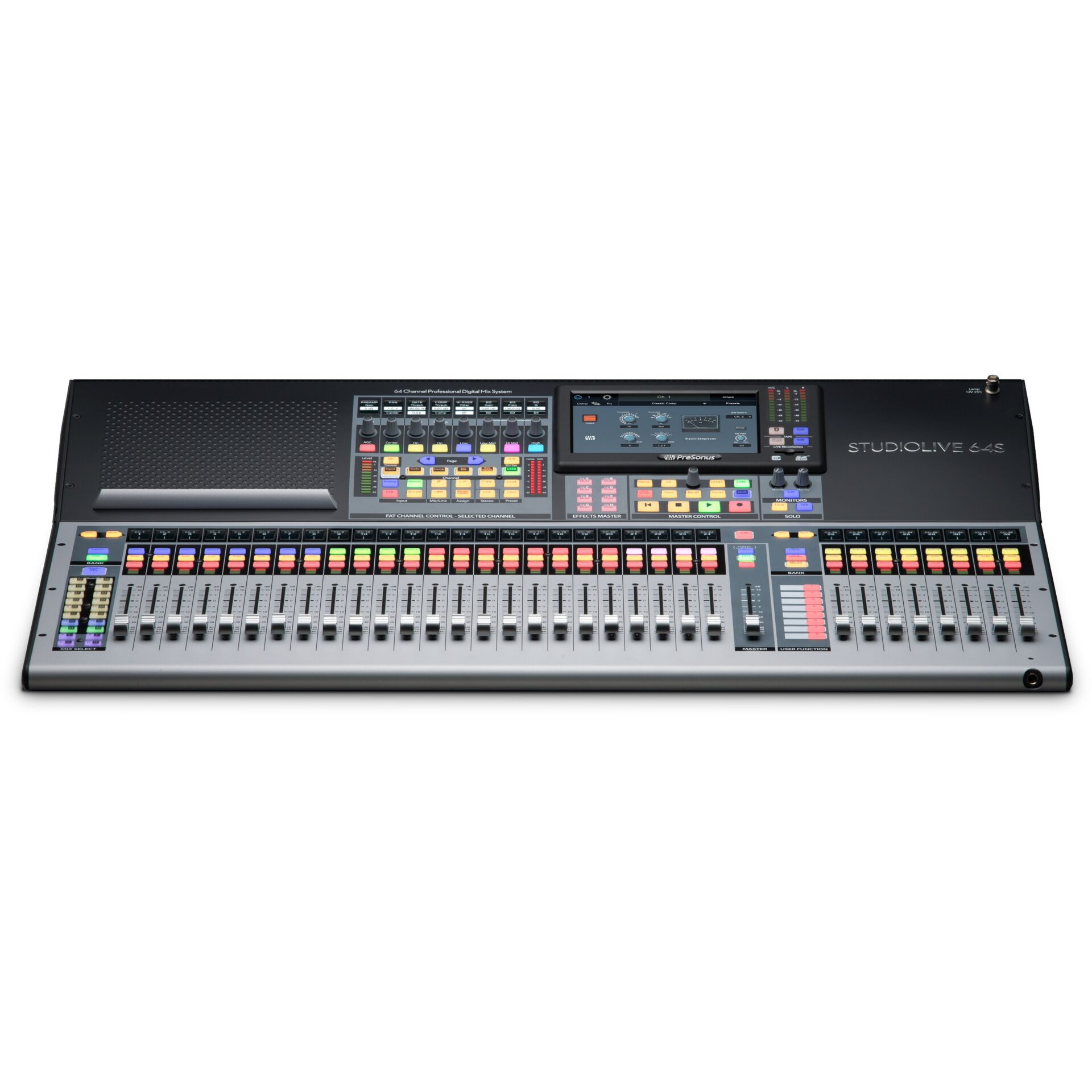

PreSonus StudioLive 64S III
digital mixer
microphone inputs: (preamplifiers):
type: 32 XLR female, balanced (combo)
frequency response on main output: 20 – 20 kHz, ± 0.5 dBu
input impedance: 1 kOhm
THD to main output: < 0.005%, +4 dBu, 20 – 20 kHz, unity gain, unprocessed
S/N ratio to main output: 94 dB
gain control range (± 1 dB): 0 dB to +60 dB
maximum input level (unity gain): +12 dBu
phantom power: (± 2V DC) 48V DC, switchable per channel
line inputs:
type: 32 TRS jack female, balanced (combo connectors)
frequency response on main output: 20 – 20 kHz, ± 0.5 dBu
input impedance: 10 kOhms
THD to main output: < 0.005%, +4 dBu, 0 – 20 kHz, unity gain, unprocessed
S/N ratio to main output: 94 dB
tape inputs:
type: RCA female, unbalanced (stereo pair)
maximum input level: +12 dBu, ± 0.5 dBu
FlexMix outputs:
type: 16 XLR male, balanced
maximum output level: +24 dBu, ± 0.5 dBu
output impedance: 100 ohms
main outputs:
type: 3 XLR male, balanced (stereo left / right, main mono / centre)
maximum output level: +24 dBu, ± 0.5 dBu
output impedance: 100 ohms
monitor outputs:
type: TRS jack female, balanced (stereo pair)
maximum output level: +18 dBu, ± 0.5 dBu
output impedance: 100 ohms
tape outputs:
type: RCA female, unbalanced (stereo pair)
maximum output level: +18 dBu, ± 0.5 dBu
output impedance: 100 ohms
headphone output:
type: TRS jack female, active stereo
maximum output: 100 mW / ch. @ 60 ohms
frequency response: 20 Hz – 20 kHz (+/- 0.5 dB)
THD + N: 0.01%, 1 kHz, maximum gain, 20 Hz BW, unprocessed
S/N ratio: 96 dB, 1 kHz, maximum gain, 20 Hz BW, unprocessed
system crosstalk:
input to output: -90 dB (Ref = +4 dBu, 20 Hz – 20 kHz, unprocessed)
adjacent channels: -87 dB (Ref = +4 dBu, 20 Hz – 20 kHz, unprocessed)
digital audio and control:
ADC dynamic range: 115 dB (A-wtd, 48 kHz)
DAC dynamic range: 115 dB (A-wtd, 48 kHz)
USB recording port: USB 2.0, type B
Bluetooth input: 4.1, stereo
AES / EBU output: XLR male
network management port: RJ-45
AVB audio network port: XLR Ethernet with locking system
internal processing: 32-bit
DSP Engine: quad-core FLEX DSP
sample rate: 44.1 and 48 KHz
A / D / A bit depth: 24
reference level for 0 dBFS: +18 dBu
total system latency: 1.9 ms (local routing, analogue in, analogue out, all active processing)
jitter: <20 ps RMS (20 Hz – 20 kHz)
jitter reduction: > 60 dB (1 ns in, 1 ps out)
power supply: IEC
voltage: 90 – 230V AC
power consumption: 85 W
dimensions: 165.36 x 822.21 x 583.48 mm
weight: 16.9 kg
