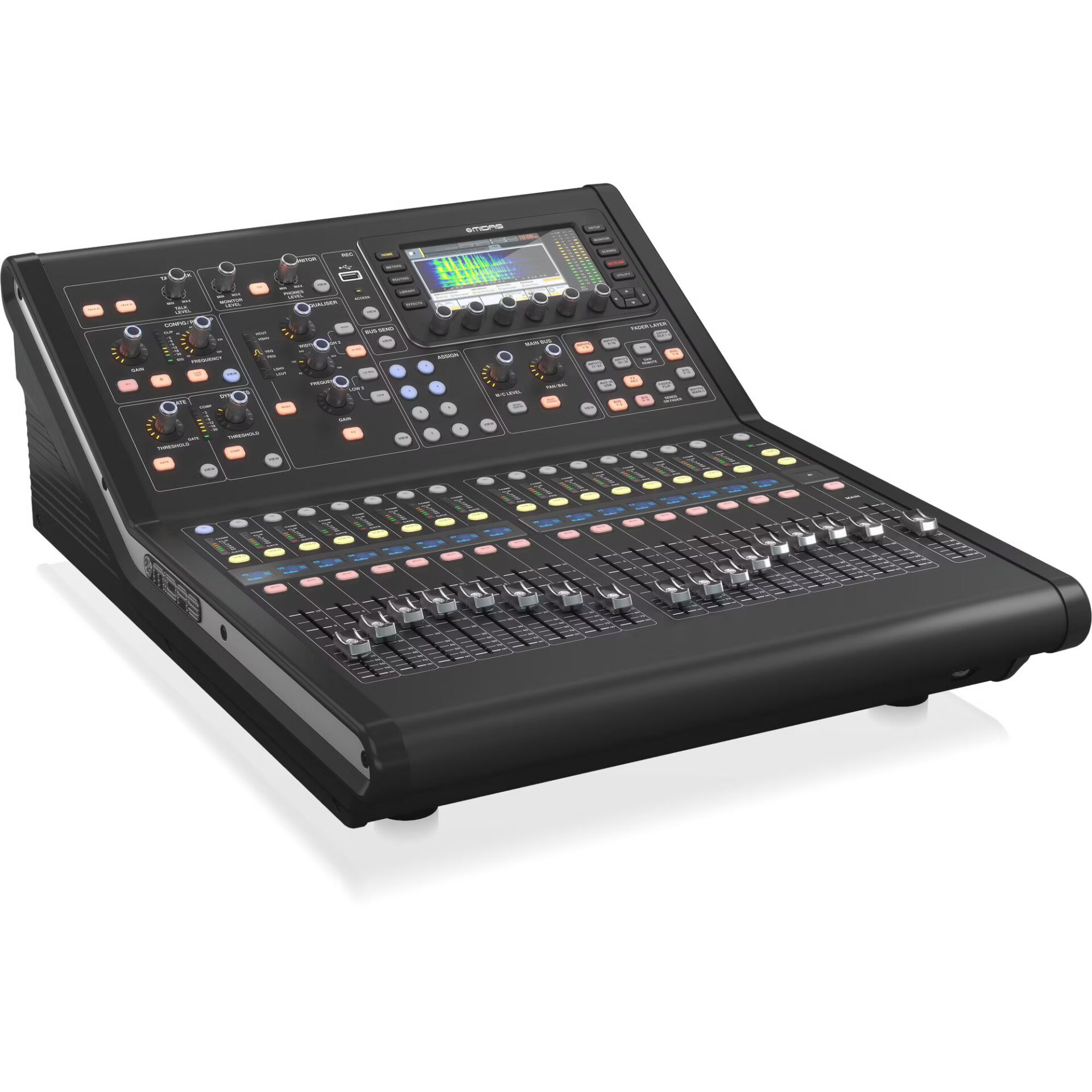

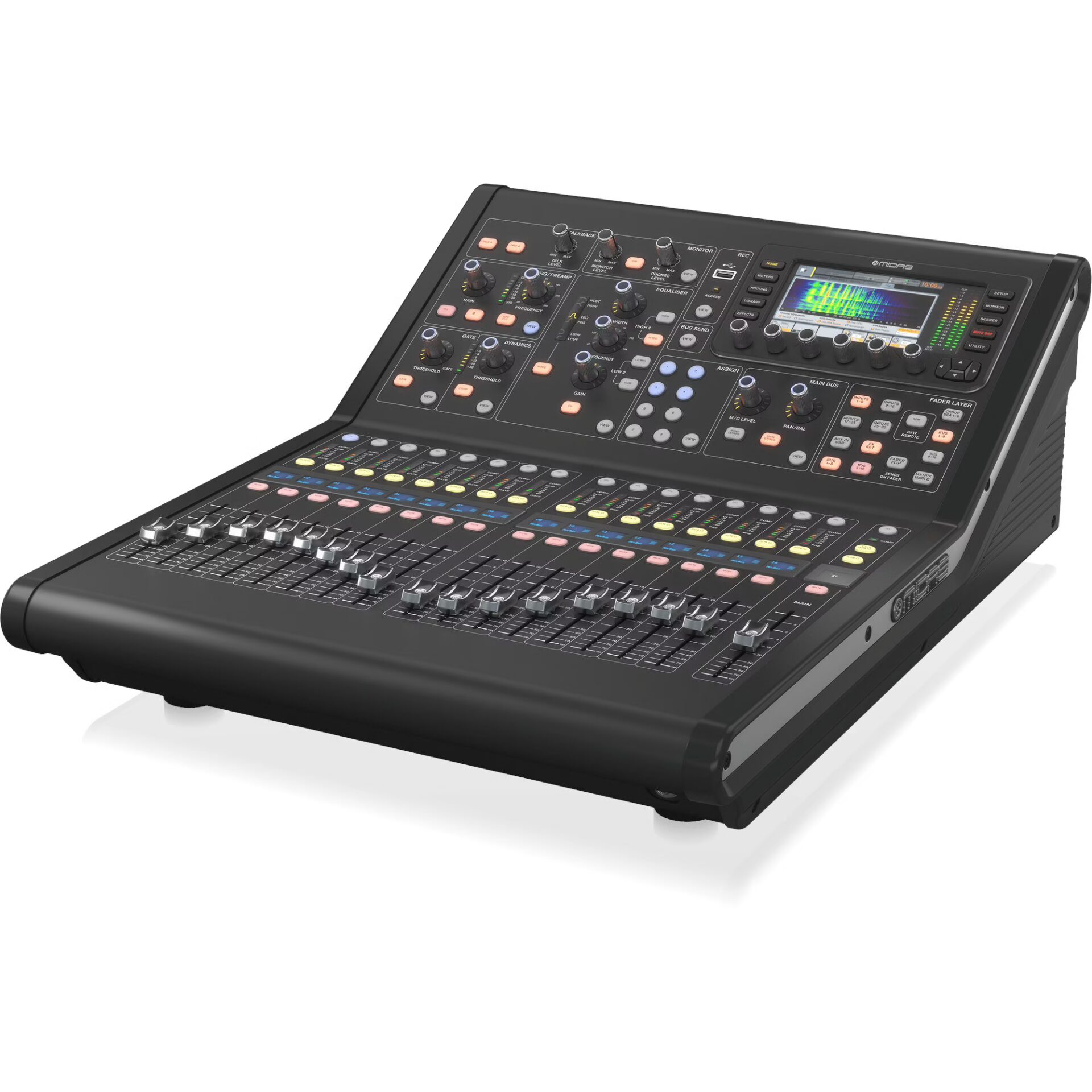

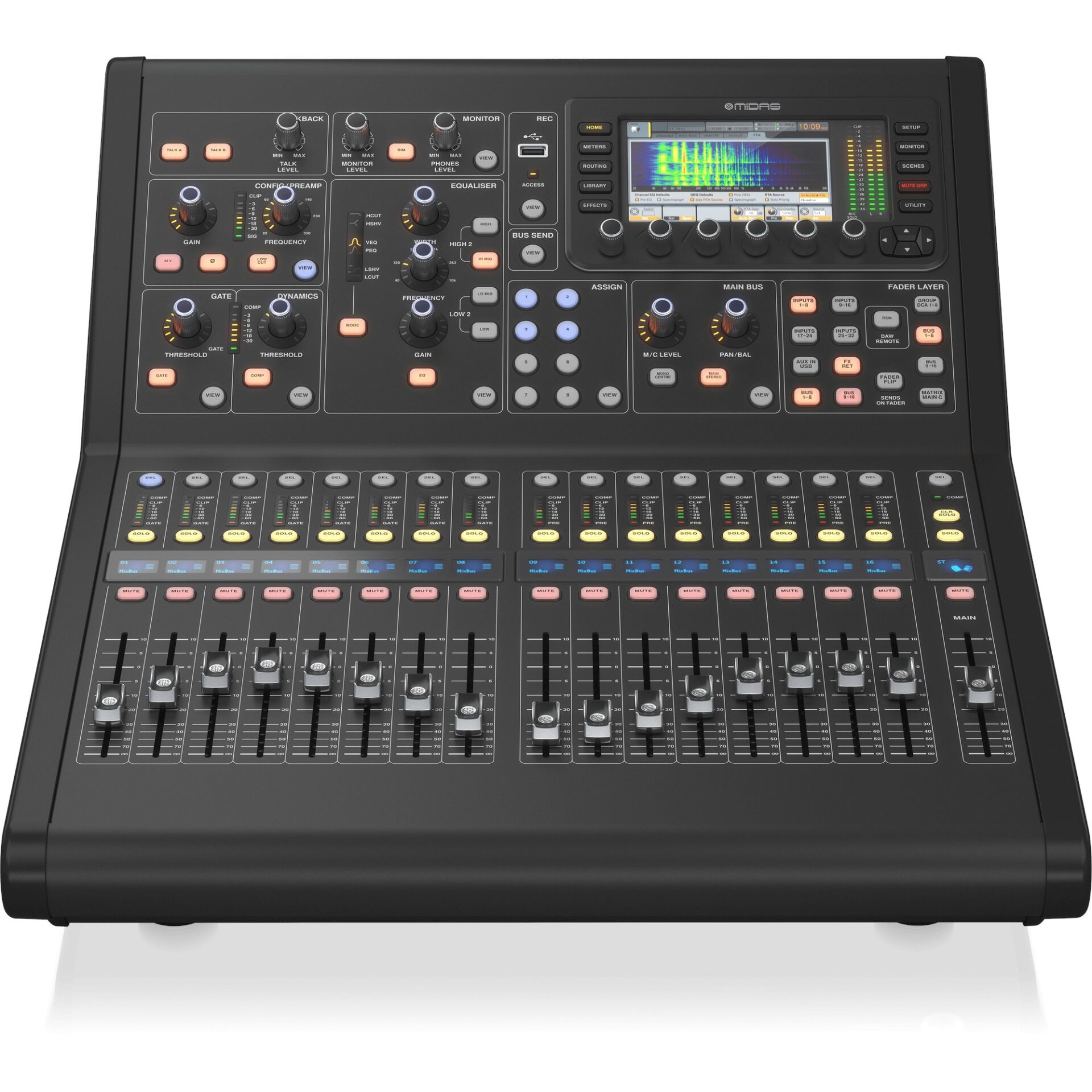

Midas M32R LIVE digital mixer

Original price was: €1,950.Current price is: €1,390.

The Midas M32R LIVE is a digital mixer and little brother to the M32 LIVE. With 40 input channels, 16 Midas PRO microphone preamplifiers and 25 mix buses, it’s definitely no less talented than its big brother. And that’s just the tip of the iceberg! When it comes to the M32R’s capabilities, there’s AES networking with up to 96 in and outputs, 32 bi-directional channels for play and recording sessions using SD-card slots or the USB port and you can use the Midas M32R LIVE as an audio interface and DAW controller.

M32R LIVE: A small feature-packed package!
The M32R LIVE features motorised faders that can be controlled wirelessly via an iPad or smartphone. You can find the appropriate apps in the different app stores. To spice up your soundmix, this mixer comes equipped with a bunch of internal FX such as multiple types of compressors and reverbs, all of which can be loaded into one of the 8 stereo FX-engines. All of the 4-band parametric EQ channels can even be loaded with compression or gate or stripped with the channel strip function. This mixer will take you anywhere you want to go!

Description

Specifications

Product features
19 inches 19-inch rack mount (included)
Number of analogue input channels 17 – 24
Number of analogue output channels 9 – 16
Number of channels 17-32
Number of microphone inputs 13 – 16
Digital inputs AES/EBU (AES3)
Digital snake yes, available separately
Digital outputs AES/EBU (AES3)
Dynamics compressor, expander, gate, limiter, multiband compressor
Equalizer 4-band parametric
Input connector jack (6.3 mm) + XLR + RCA
Built-in audio interfac eUSB (multi track)
Built-in audio player USB, SD(HC)
Built-in effects yes
Insert connectors no
Input level metersvia built-in display, via iPad / iPhone / iPod, via Android Device, via PC/Mac
Remote controlvia iPad, via iPhone, via Android device, via Ethernet, via Wi-Fi
Connector position back
Type of display TFT, colour
Expansion possibilities ADAT expansion card, DANTE expansion card, MADI expansion card, USB interface expansion card
Output connector jack (6.3 mm) + XLR + RCA
Mixer powe rpower cable
Volume control faders + knobs, motorised faders, via PC / Mac, via iPad / iPhone / iPod, via Android
Weight and dimensions including packaging
Weight (incl. packaging)15.2 kg
Dimensions (incl. packaging)80.0 x 50.0 x 40.0 cm
Product specifications
Midas M32R LIVE
digital mixer
inputs:
32 inputs
8 aux
8 FX return
outputs: 16
local inputs: 8 / 16
local outputs: 8 / 16
digital I/O: 32 bi-directional audio I/O channels (via USB 2.0)
internal effects processors: 8 true stereo, 16 mono
internal show automation (structured cues / snippets): 500 / 100
internal scenes: 100
main display: 7-inch TFT LCD, 800 x 480 resolution, 262k colours
channel display: 128 x 64 LCD with RGB colour backlight
VU meter: 24 segment (-57 dB to clip)
faders: 17 Midas PRO motorised
signal processing: 40-bit signal flow
number of mix buses: 25
DCA: 8 and 6 mute groups
RTA: 100-band
slots:
DN32 USB (replaceable)
USB (rear) for remote
2x SD(HC) (rear)
remote function:
DAW remote control emulator
with Mackie Control and HUI protocols

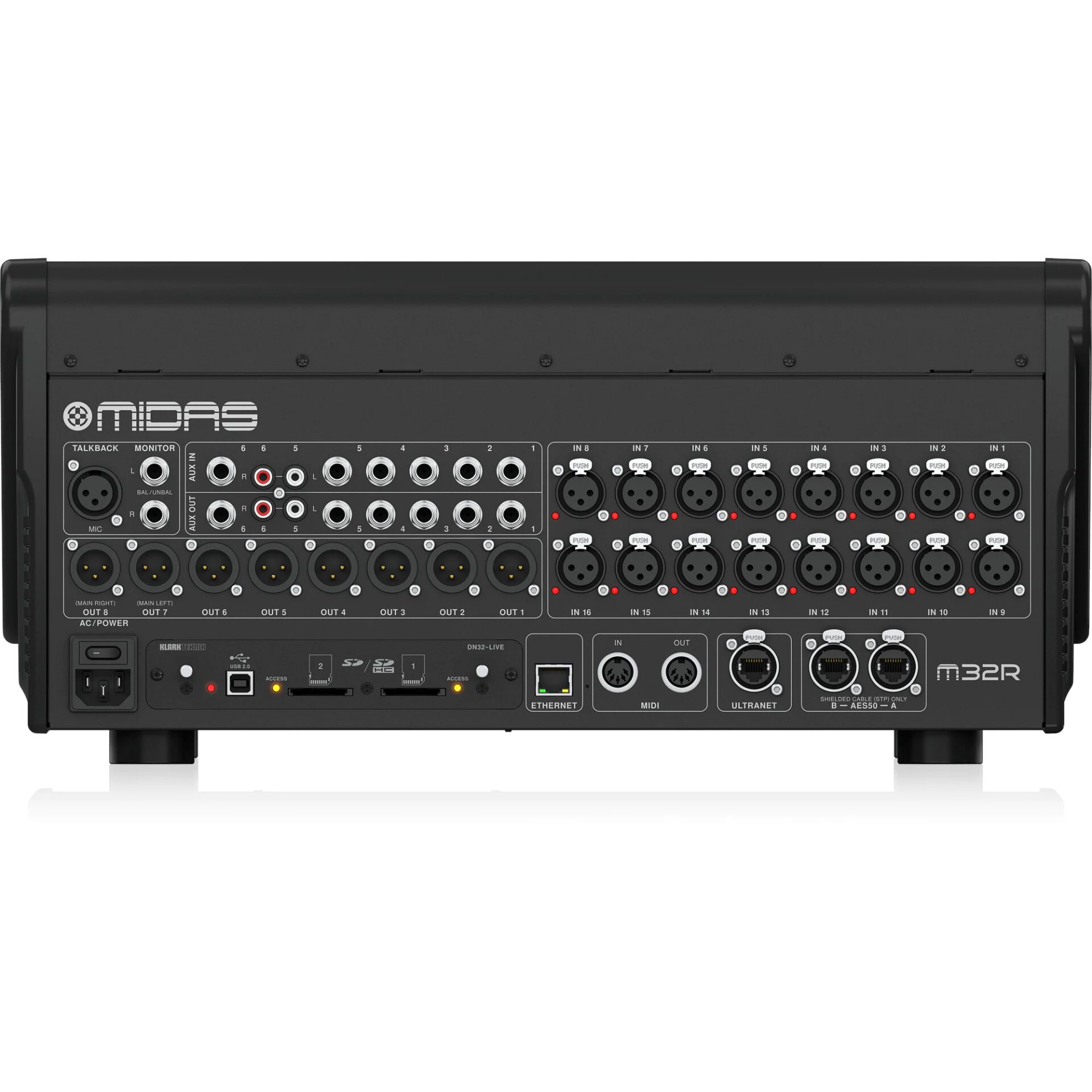

other connectors:
Midas PRO Series Microphone Preamplifier (XLR): 16
talkback microphone input (XLR): 1
RCA inputs/outputs: 2
monitoring outputs (XLR/jack, TRS balanced): 2
phones output (jack, TRS): 2 (stereo)
AES50 ports (Klark Teknik SuperMAC): 2
ULTRANET P-16 connector (no power supplied): 1
MIDI inputs/outputs: 1
Ethernet, RJ45, rear panel, for remote control: 1
dimensions: 478 x 617 x 208 mm
weight: 18.1 kg
