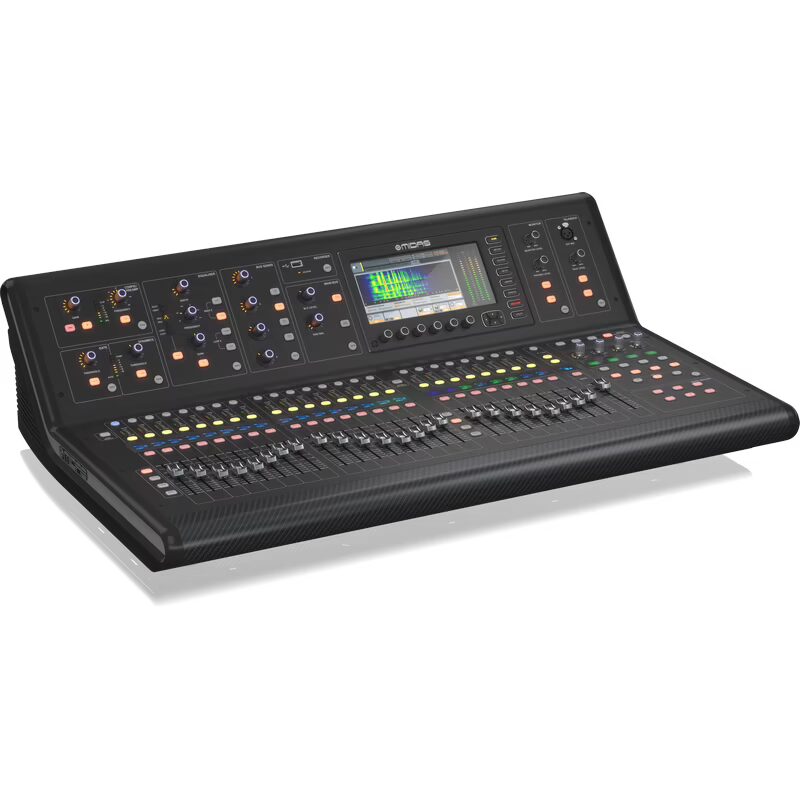

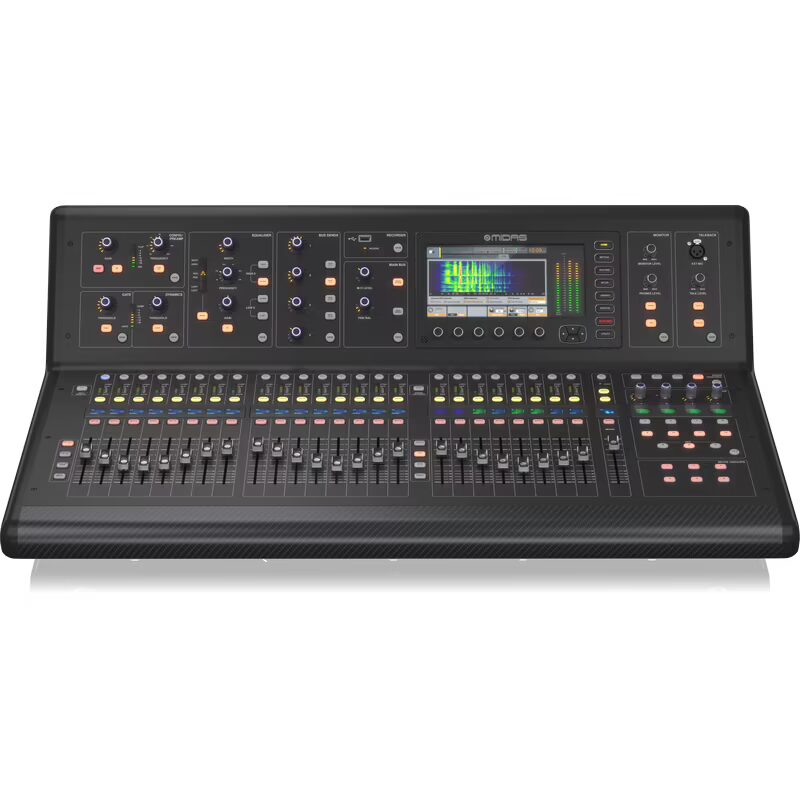

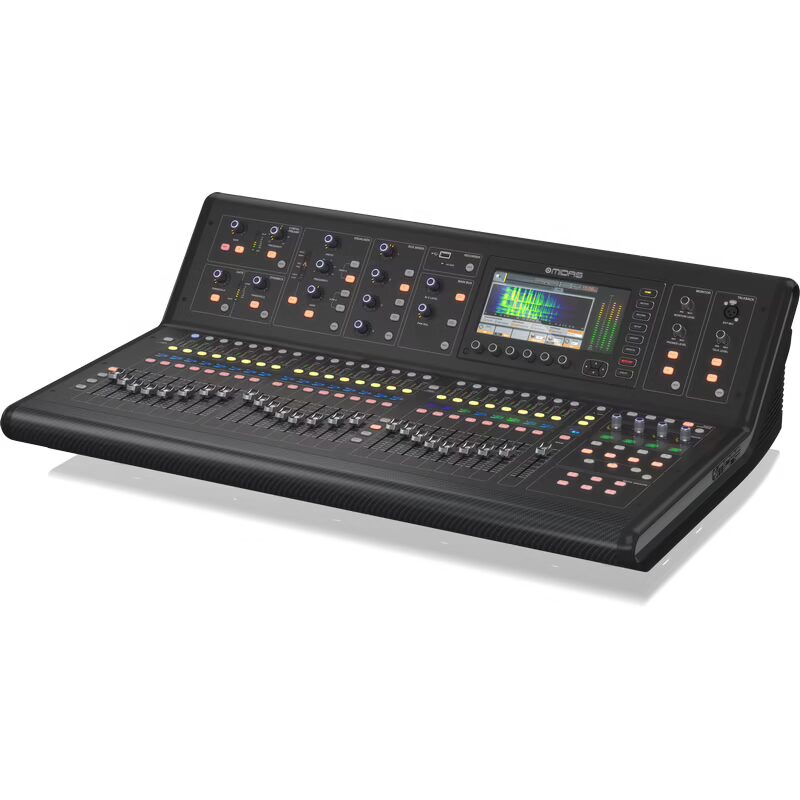

Midas M32 LIVE digital mixer

Name: Midas M32 LIVE digital mixer
SKU: 10527
Price: 2695 EUR
Availability: InStock

Original price was: €3,200.Current price is: €2,695.

The Midas M32 LIVE is a digital mixer that’s perfect for live use as well as work in the studio. In addition to up to 40 simultaneous input channels, 25 mix buses and 32 microphone preamplifiers, a total of 96 inputs and 96 outputs are available through an AES network. There are also 32 bi-directional channels for live recording or playback that work with USB or one of the double SD card slots on the back of the unit. Recordings can be up to 3 hours long! The M32 LIVE is also a 32 x 32-channel audio interface that can be used as a DAW controller and works with Mackie and HUI protocols.

M32 LIVE: operation and effects
While operating a mixer like the M32 LIVE may look complicated, it’s actually relatively straightforward. The motorised faders set the volume levels and they can even be controlled by a smartphone or tablet after you’ve downloaded a suitable app. The same goes for the on-board effects that include a compressor and reverb that can be set to one of the 8 stereo FX engines. Each channel has its own 4-band parametric EQ and a gate or compressor can be added to each channel individually. There’s a channel strip on board too giving you even more options. In short, the Midas M32 LIVE has it all!

Categories: Digital Mixing Desk, PA Mixers & Mixing Desks, Pro Audio Tag: Midas

Description

Description

Specifications

Product features
19 inches no
Number of analogue input channels 33 -40
Number of analogue output channels 25 – 32
Number of channels 33-64
Number of microphone inputs 17 – 32
Digital inputs AES50
Digital snake yes, available separately
Digital outputs AES/EBU (AES3), AES50, Ultranet
Dynamics compressor, expander, gate, limiter, multiband compressor
Equalizer 4-band parametric
Input connector jack (6.3 mm) + XLR + RCA
Built-in audio interface USB (multi track)
Built-in audio player USB, SD(HC)
Built-in effects yes
Insert connectors no
Input level metersvia built-in display, via iPad / iPhone / iPod, via Android Device, via PC/Mac
Remote controlvia iPad, via Ethernet, via Wi-Fi
Connector position back
Type of display TFT, colour
Expansion possibilities ADAT expansion card, DANTE expansion card, MADI expansion card, USB interface expansion card
Output connector jack (6.3 mm) + XLR + RCA
Mixer power power cable
Volume control faders + knobs, motorised faders, via PC / Mac, via iPad / iPhone / iPod, via Android
Weight and dimensions including packaging
Weight (incl. packaging)34.7 kg
Dimensions (incl. packaging)104.0 x 74.0 x 39.0 cm
Product specifications
Midas M32 LIVE
digital mixer
inputs:
32 inputs
8 aux
8 FX return
outputs: 16
local inputs: 16
local outputs: 16
digital I/O: 32 bi-directional audio I/O channels (via USB 2.0)
internal effects processors: 16
internal show automation (structured cues / snippets): 500 / 100
internal scenes: 100
main display: 7-inch TFT LCD, 800 x 480 resolution, 262k colours
channel display: 128 x 64 LCD with RGB colour backlight
VU meter: 24 segment (-57 dB to clip)
faders: 25 Midas PRO motorised
signal processing: 40-bit signal flow
number of mix buses: 25
DCA: 8 and 6 mute groups
RTA: 100-band
slots:
DN32 USB (replaceable)
USB (rear) for remote
2x SD(HC) (rear)
remote function:
DAW remote control emulator
with Mackie Control and HUI protocols

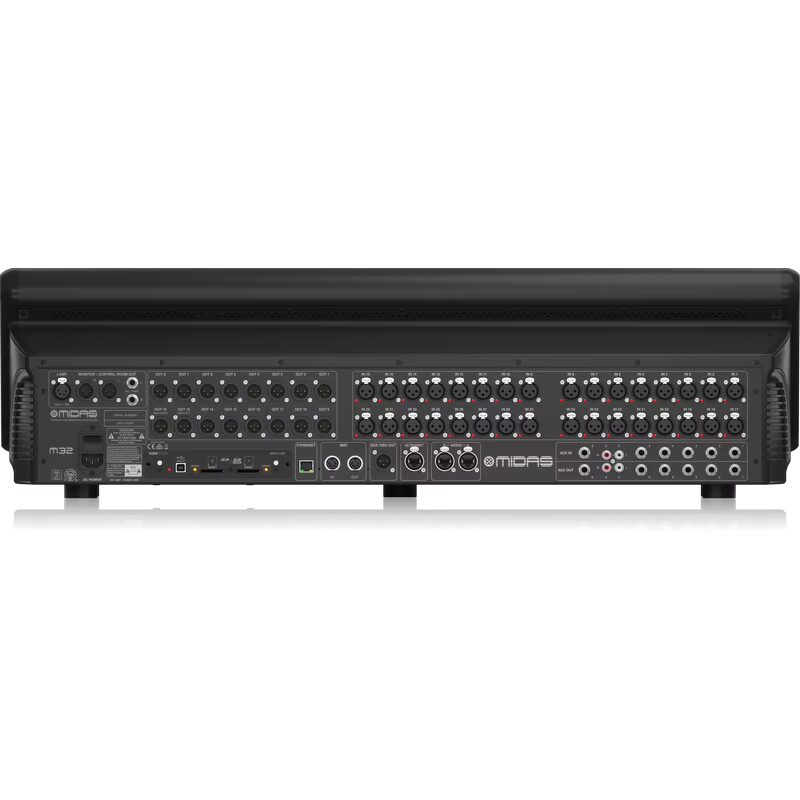

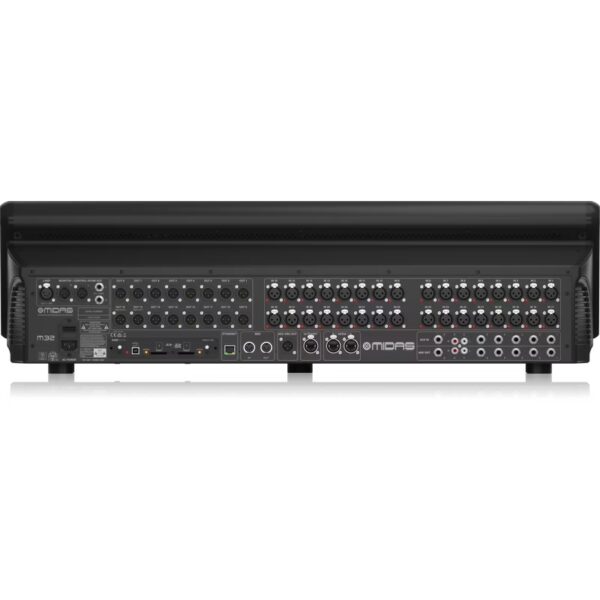

other connectors:
Midas PRO series microphone preamplifier (XLR): 32
talkback microphone input (XLR): 1
RCA inputs/outputs: 2
monitoring outputs (XLR/jack, TRS balanced): 2
phones output (jack, TRS): 2 (stereo)
AES50 ports (Klark Teknik SuperMAC): 2
ULTRANET P-16 connector (no power supplied): 1
MIDI inputs/outputs: 1
Ethernet, RJ45, rear panel, for remote control: 1
dimensions: 891 x 612 x 256 mm
weight: 25 kg
