Description
Specifications
Product features
Speaker connections XLR input, digital input, digital output / thru, USB for firmware updates, BNC for word clock
Active or passive active
Tweeter diameter 1 inch
Woofer diameter 1 x 7 inches + 1 x 4 inches
Maximum frequency 29 – 31.9 kHz
Minimum frequency 35 – 39 Hz
Monitor set single speaker
RMS power in watts 750 – 1,499 W
Type of studio monitor 3-way (tweeter + midrange + woofer)
Weight and dimensions including packaging
Weight (incl. packaging)0 gr
Dimensions (incl. packaging)52.5 x 49.0 x 41.0 cm
Product specifications

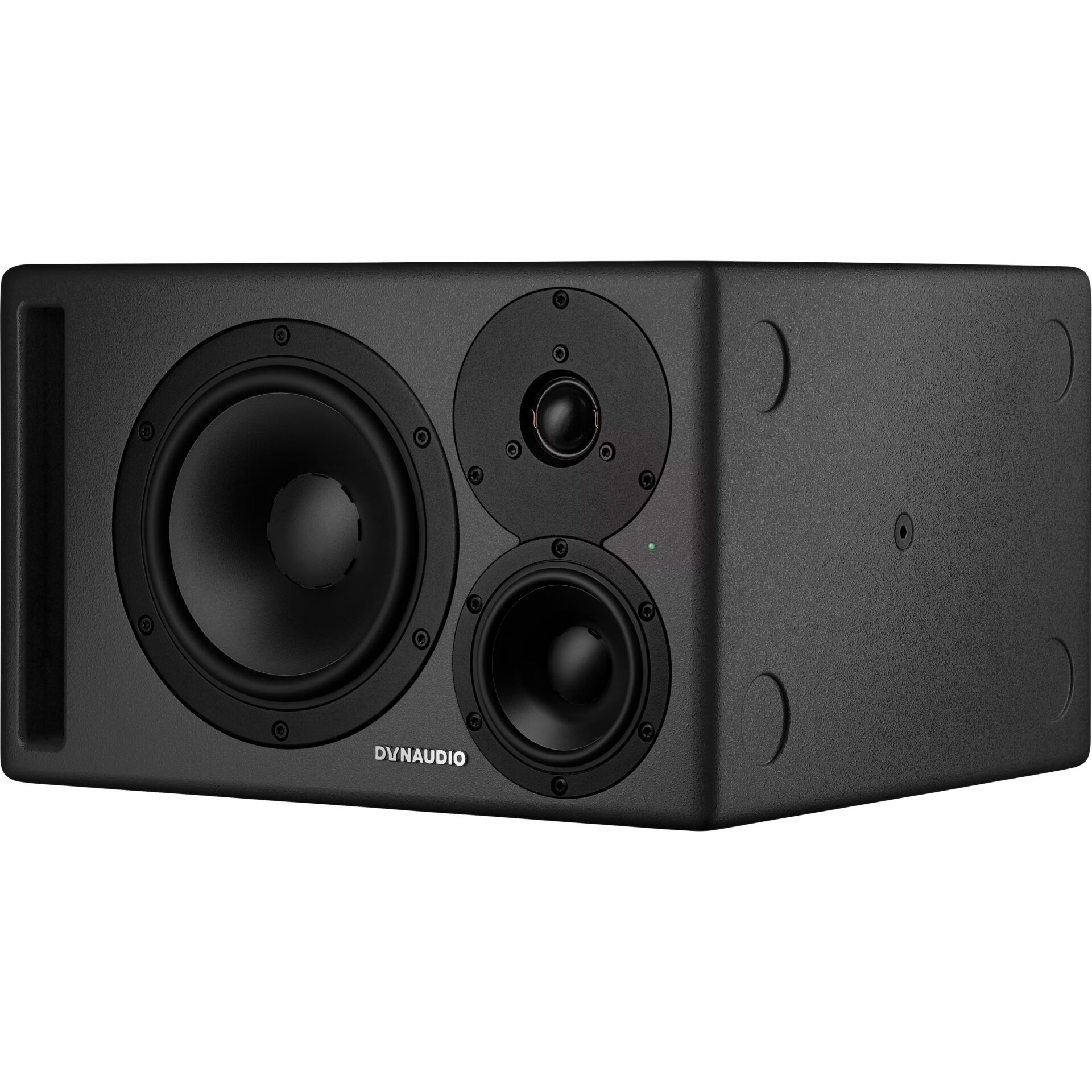

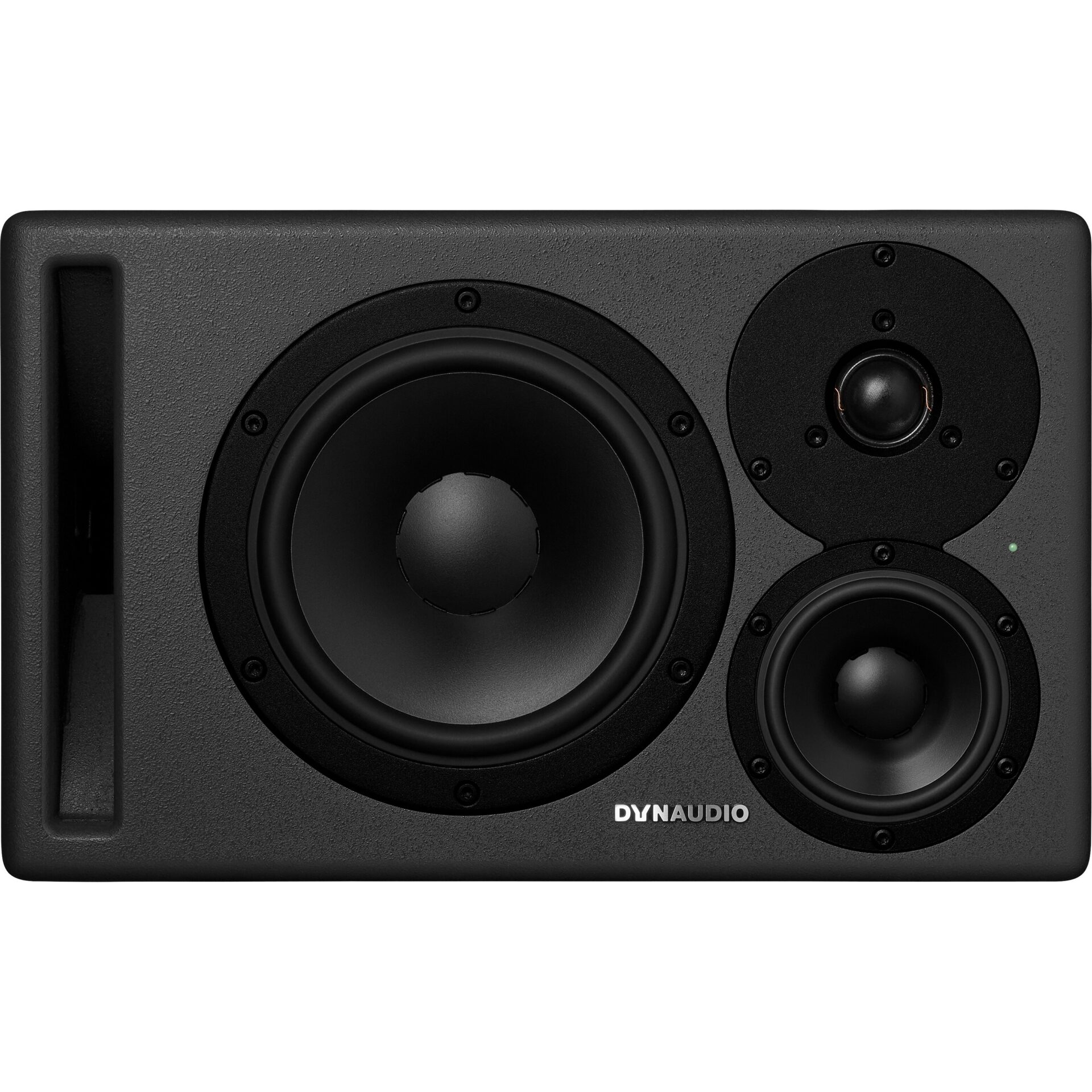

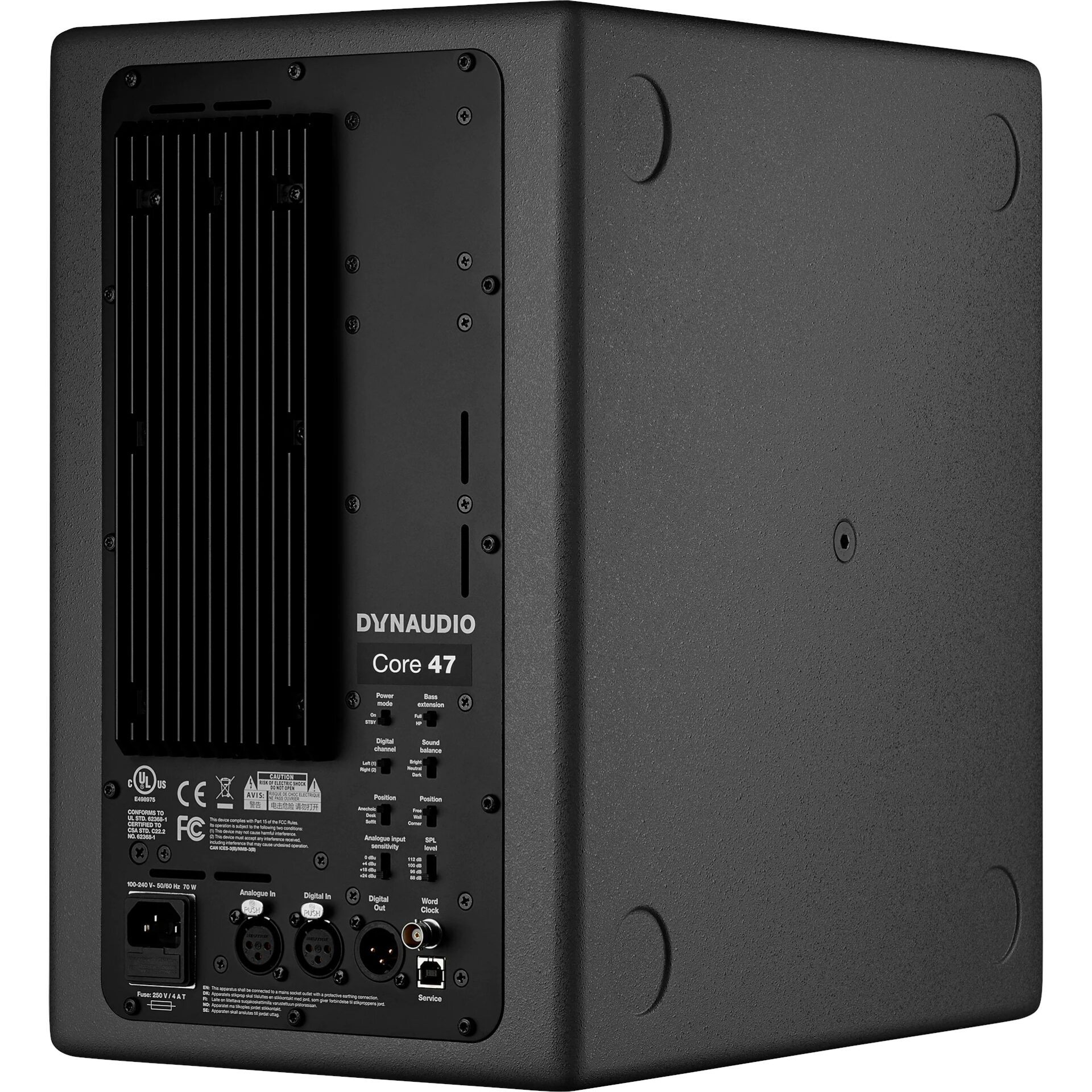

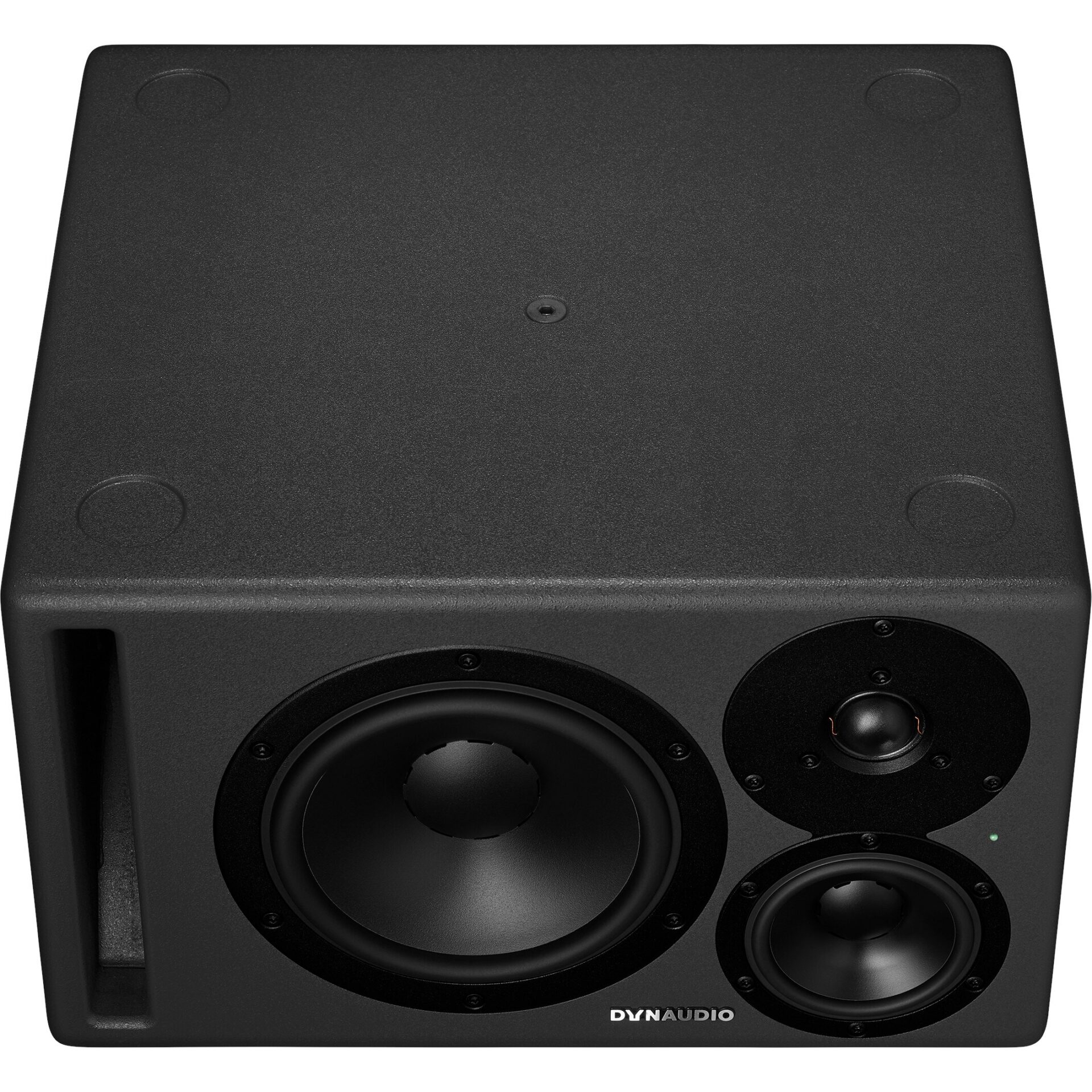

Dynaudio Core 47
active studio monitor
front-loaded bass reflex
frequency response:
44Hz – 27kHz (+/- 3dB)
37Hz – 31kHz (+/- 6dB)
crossovers:
475Hz
5250Hz
amplification (Pascal Class-D):
LF: 500W
MF: 500W
HF: 150W
max SPL: 112dB @ 1m
inputs: XLR, AES3
audio resolution:
analogue: 192kHz
digital: 32, 44.1, 48, 96, 192kHz
dimensions: 390 x 355 x 240mm
weight: 15.1 kg
