Description
Specifications

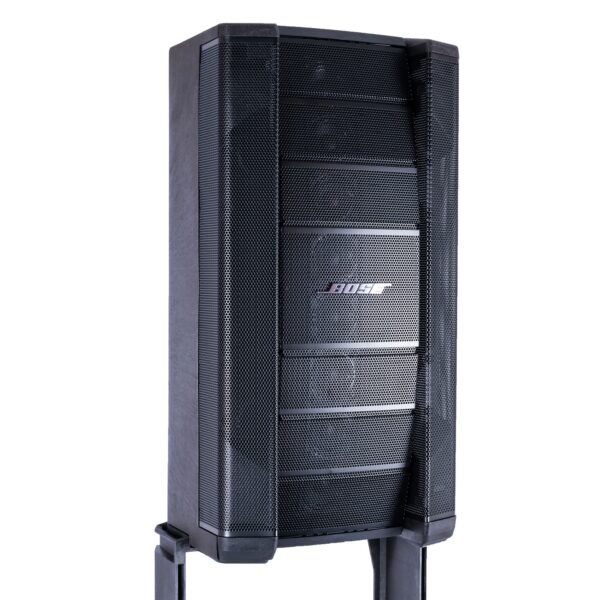

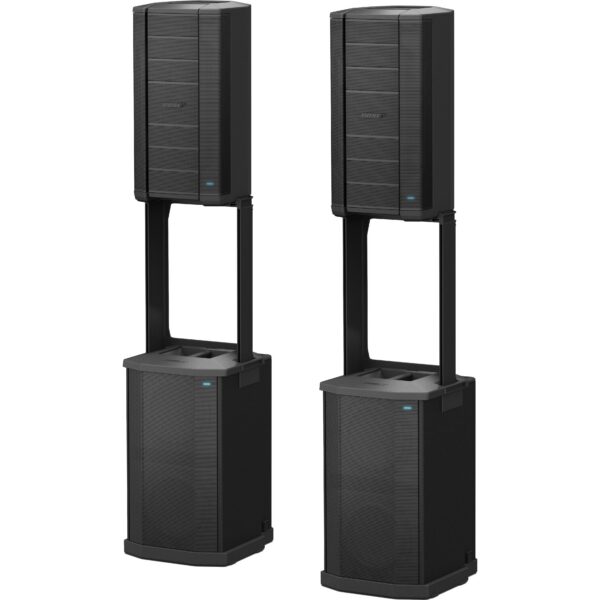

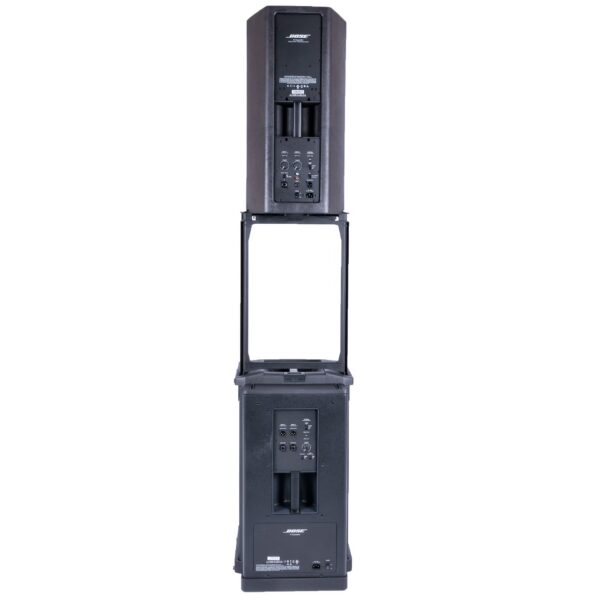

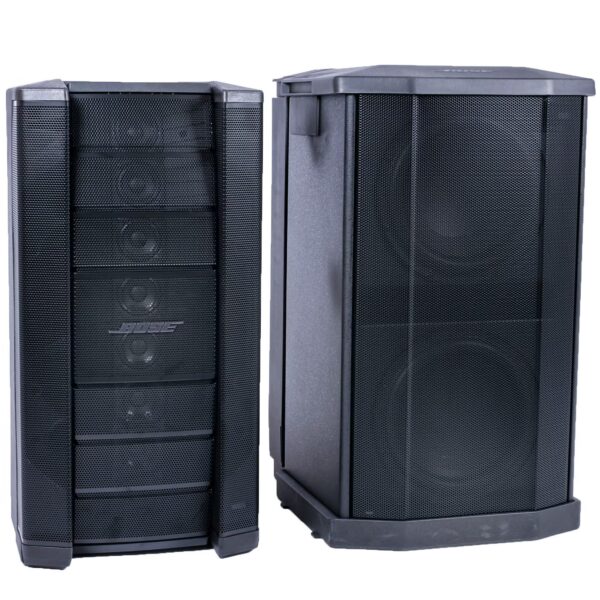

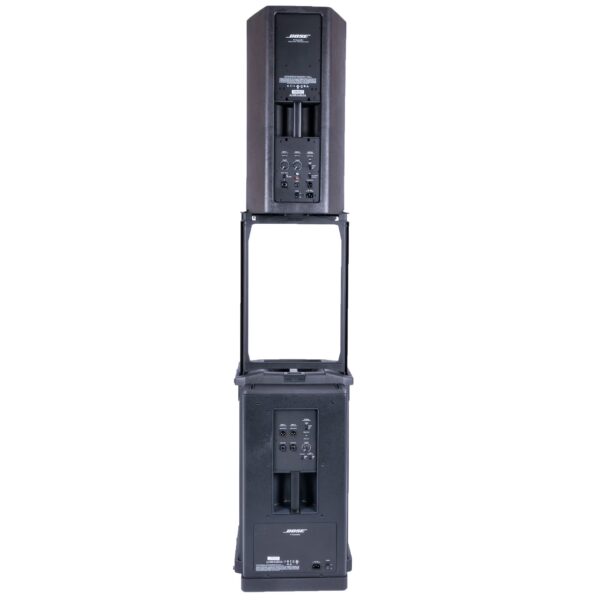

Bose F1 Model 812 Flexible Active Array Speaker 2x Bose F1 Model 812 Flexible Active Array Speaker
The F1 Model 812 is a special active speaker from Bose equipped with 8 drivers and four different vertical coverage patterns that can be adjusted to suit your environment.
Product features
Bluetooth no
Category Sound & PA
Tweeter diameter 8x 2.25 inches
Woofer diameter 12 inches
Suitable as monitor no
Weight per speaker 20 kg
Built-in equaliser no
Maximum SPL 130 dB – 139 dB
Maximum frequency 16 – 16.9 kHz
Minimum frequency 40 – 49 Hz
RMS power in watts 750 – 1,499 W

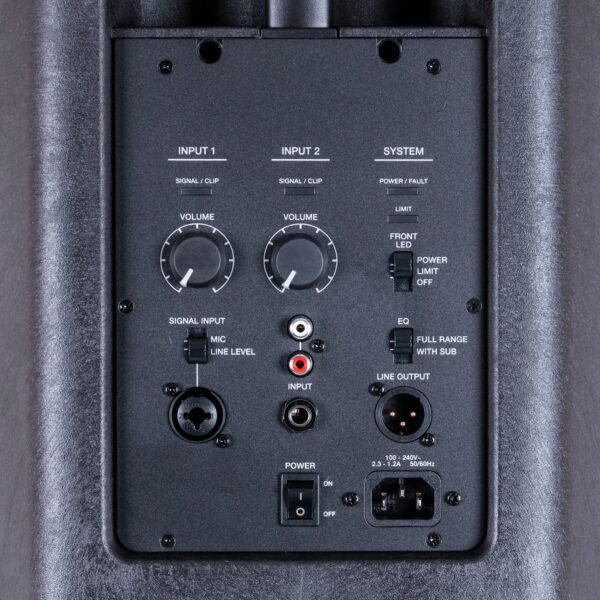

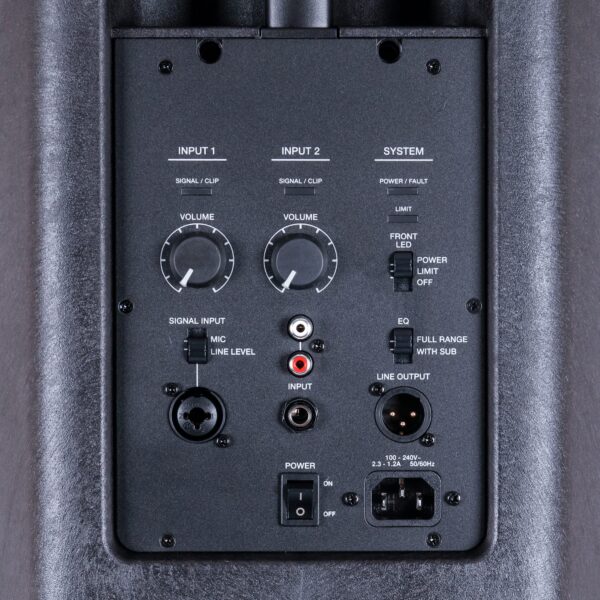

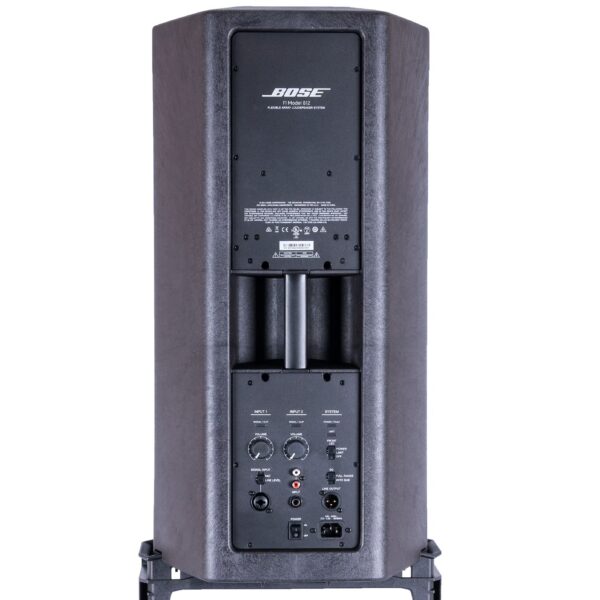

Analogue audio input type unbalanced line in (RCA/cinch), balanced line in (TRS jack), microphone input (XLR), Hi-Z instrument input (TS jack)
Analogue audio output type balanced mix out (XLR)
Passive speaker output no
Weight and dimensions including packaging
Weight (incl. packaging)23.8 kg
Dimensions (incl. packaging)81.1 x 50.3 x 46.8 cm
Product specifications
active speaker
power capacity: 1000 Watts
driver: 8x 2.25-inch driver in a flexible line configuration
woofer: 12 inches
maximum sound pressure: 132 dB SPL
frequency response: 48 Hz – 16 kHz
housing: plastic
channels: 2
inputs:
XLR/jack combo
RCA
TRS jack
outputs: XLR 3-pin
limiter: switch
dimensions: 665 x 334 x 373 mm
weight: 20.18 kg

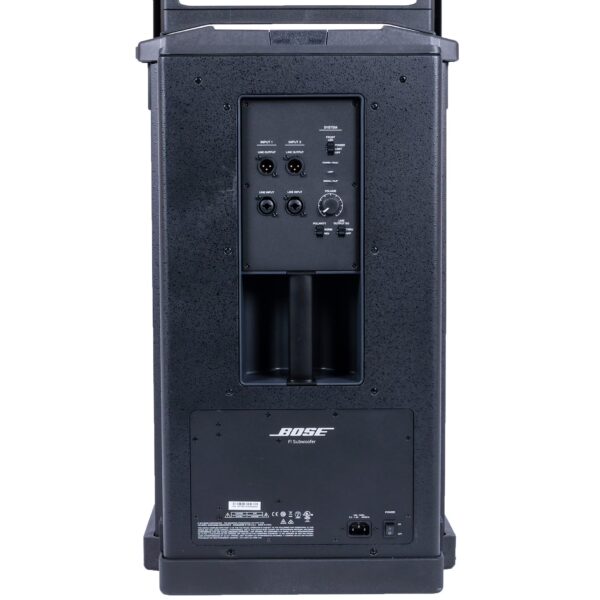

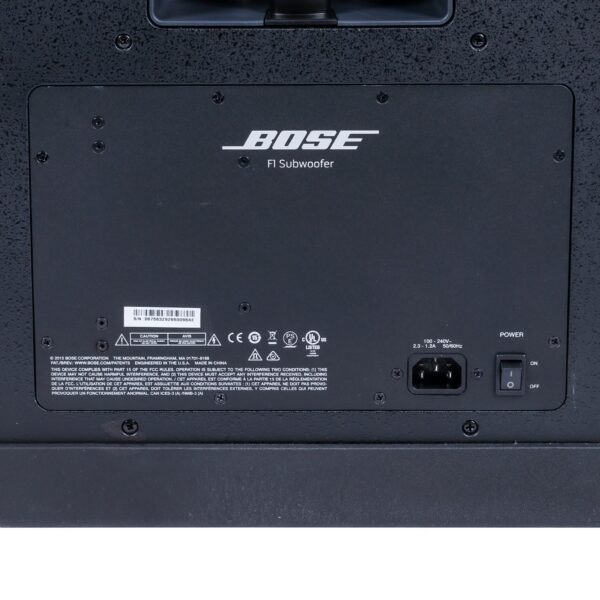

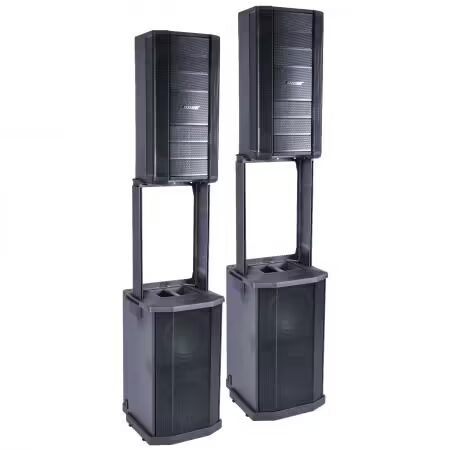

Bose F1 Subwoofer Active 2x Bose F1 Subwoofer Active
The Bose F1 subwoofer will take care of the lows in your F1 setup. It’s equipped with two 10-inch woofers driven by a 500 watt amp for 1000 watts of power! It even has a speaker stand built right in.
Product features
Speaker connectionsXLR / TRS combi input
CategorySound & PA
Woofer diameter2 x 10 inches
Weight per speaker24 kg
Maximum SPL130 dB – 139 dB
Maximum subwoofer frequency110 Hz
Minimum frequency30 – 34 Hz
RMS power in watts750 – 1,499 W
Locking speaker connectorsno
Weight and dimensions including packaging
Weight (incl. packaging)32.4 kg
Dimensions (incl. packaging)83.0 x 59.6 x 54.6 cm
Product specifications
active subwoofer
power capacity: 1000 Watts
woofer: 2x 10-inch
maximum sound pressure: 132 dB SPL
frequency range: 38 – 115 Hz
housing: plastic
channels: 2

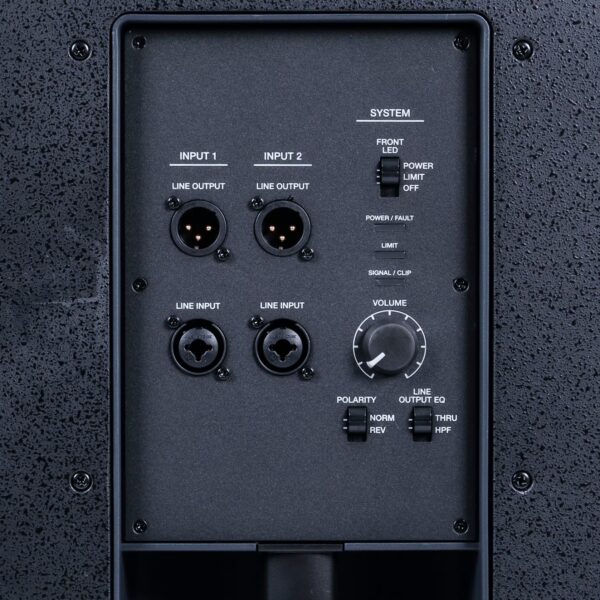

inputs: XLR/jack combo
outputs: XLR 3-pin
crossover: switchable
safety: limiter, thermal
built-in stand
dimensions: 688 x 410 x 449 mm
weight: 24.9 kg
2x

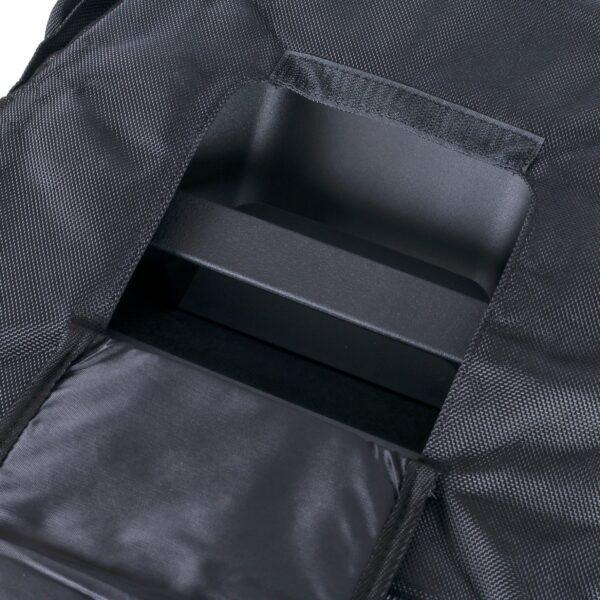

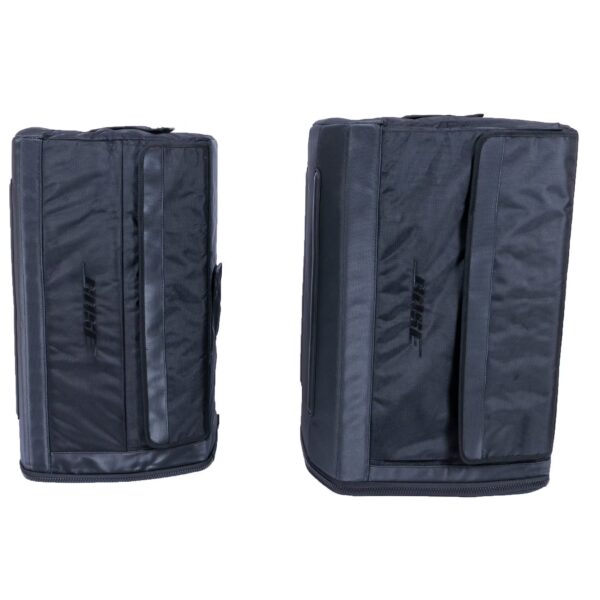

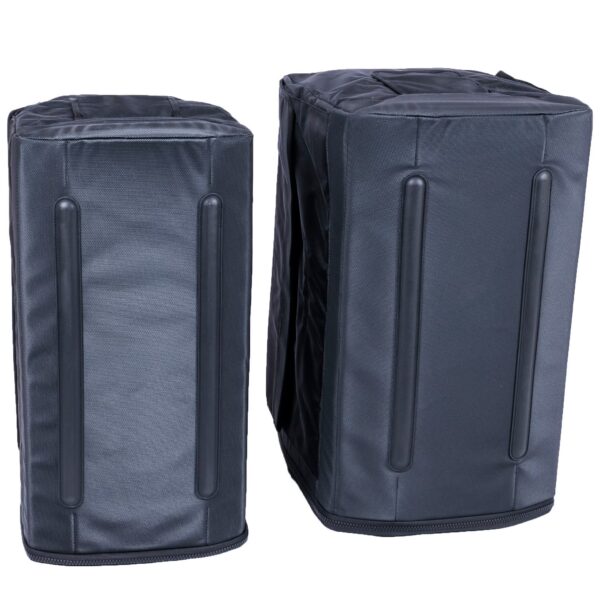

This travel bag by Bose protects your F1 Model 812 speaker from potential damage caused by UV light and moisture. It’s made of sturdy polyester and equipped with practical openings to access the handles and side pockets for various accessories.
Product features
Suitable for during useno
Speaker protection type12 inch speaker (specific brand/type)
Method of transportnot applicable
Weight and dimensions including packaging
Weight (incl. packaging)2.1 kg
Dimensions (incl. packaging)71.0 x 37.0 x 9.0 cm
Product specifications
Bose travel bag
made especially for the Bose F1 Model 812 speaker
official Bose accessory
material: polyester, 1680 D
protects speaker from UV light and water
padded lining
openings for handles
closes with a zip
2 side pockets
colour: black
features the Bose logo
2x

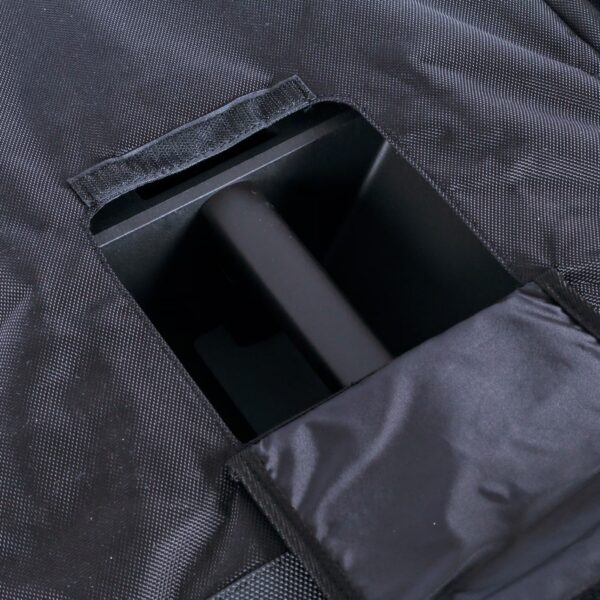

This Bose F1 travel bag is an official accessory for the F1 subwoofer. The bag is made of durable polyester that is designed to protect the F1 from harmful UV rays and moisture. A convenient flap gives you easy handle access.
Product features
Suitable for during useno
Speaker protection type10 inch subwoofer (specific brand/type)
Method of transportnot applicable
Weight and dimensions including packaging
Weight (incl. packaging)3.0 kg
Dimensions (incl. packaging)72.5 x 43.0 x 8.5 cm
Product specifications
Bose travel bag
specially designed for the Bose F1 subwoofer
official Bose accessory
material: polyester, 1680 D
protects speaker from UV light and water
padded lining
opening for handle
closes with a zip
closeable sides
colour: black
features the Bose logo
Devine MIC100/3 XLR Microphone/Signal Cable, 3m 2x Devine MIC100/3 XLR Microphone/Signal Cable, 3m
Fitted with robust plugs and wrapped up inside a flexible yet durable outer shell, the Devine MIC100 is the ideal cable for optimally transferring any XLR audio signal from point A to point B. This is the 3-metre model.
Product features
(partially) coiledno
Right angled or straightstraight – straight
Colourblack
Length3.00 m
Setno
Type of audio connector3-pin XLR
Vlog accessory typecable
Weight and dimensions including packaging
Weight (incl. packaging)100 gr
Dimensions (incl. packaging)18.0 x 14.0 x 4.0 cm
Product specifications
XLR male – XLR female
can be used as a microphone cable or as an all-round signal cable
supple, rugged cable
high-grade connectors with locking option
connectors with pull relief to retain contact integrity
length: 3m
filling: cotton
oxygen-free copper
isolation diameter: 1.4mm
isolation colours: red and white
number of conductors: 2
inner conductor diameter: 0.226mm²
conductor dimensions: 20 x 0.12mm
helical sheathing: 0.12 x 64
cable diameter: 6mm
sheathing material: flexible PVC
operating temperature: -20 – +70°C
capacity @ 1 kHz:
cond.-cond.: 131pF/m
cond.-shield.: 178pF/m
