Description
Specifications
Product features
6.3mm TRS connector no
Tweeter diameter 1 inch
Woofer diameter 12 inches
Wire clamp outputs no
Sensitivity 98 dB
Weight per speaker 25 kg
Installation speaker / 100 Vno
Maximum SPL 130 dB – 139 dB
Maximum frequency 20 – 20.9 kHz
Minimum frequency 60 – 79 Hz
Nominal impedance 8 ohms
Peak power in watts 1,500 – 3,000 watts
RMS capacity in watts 350 – 499 W
Set no
Locking speaker connectors yes
Weight and dimensions including packaging
Weight (incl. packaging)0 gr
Product specifications

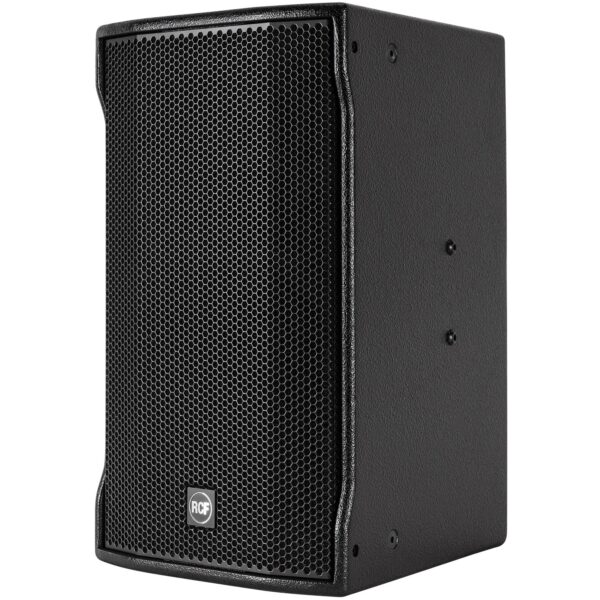

RCF C MAX 4112 passive speaker
max. SPL: 130 dB
recommended amplifier capacity: 800 W
frequency range: 60 Hz – 20,000 kHz
Hi-Resolution Custom RCF Precision Transducer

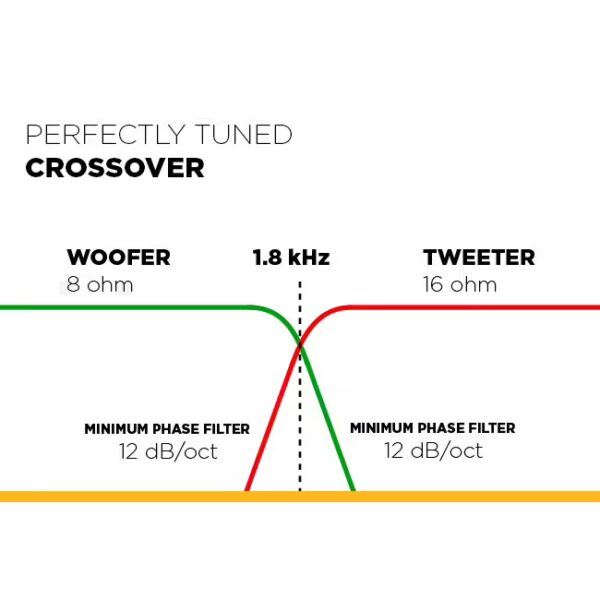

perfectly tuned crossover

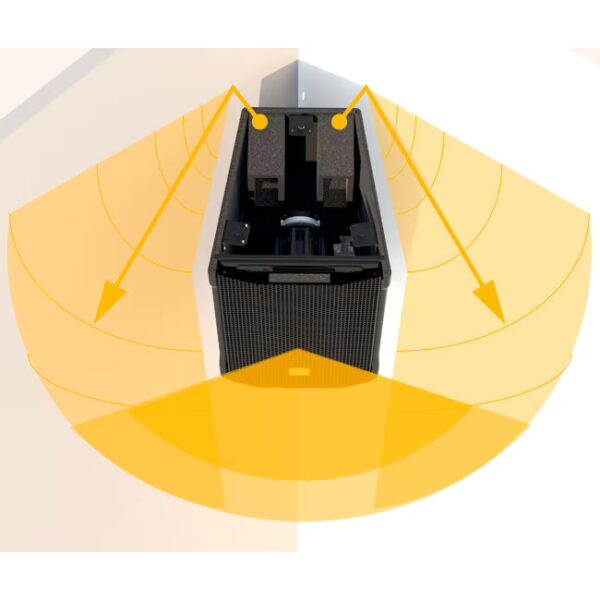

acoustic specifications:
horizontal dispersion angle: 90°
vertical dispersion angle: 70°
directivity index; Q: 11
sensitivity: -98 dB
nominal impedance: 8 ohms
power capacity: 400 W
peak capacity: 1600 W
crossover frequency: 1800 Hz
transducers:
compression driver: 1.0 in neo, 1.75-inch voice coil
nominal impedance: 16 ohms
power capacity: 60 W (RMS)
sensitivity: 106 dB
woofer: 12 in, 3-inch voice coil
nominal impedance: 8 ohms
output capacity: 350 W (RMS)
sensitivity: -98 dB
connections:
input: SpeakOn NL4
output: SpeakOn NL4
housing:
material: Baltic birch
hardware: 12x M10
handle: 1x at the top
distance rod mounting: yes
grille: steel
colour: black
dimensions: 60 x 36.3 x 40.7 cm
weight: 24.5 kg
