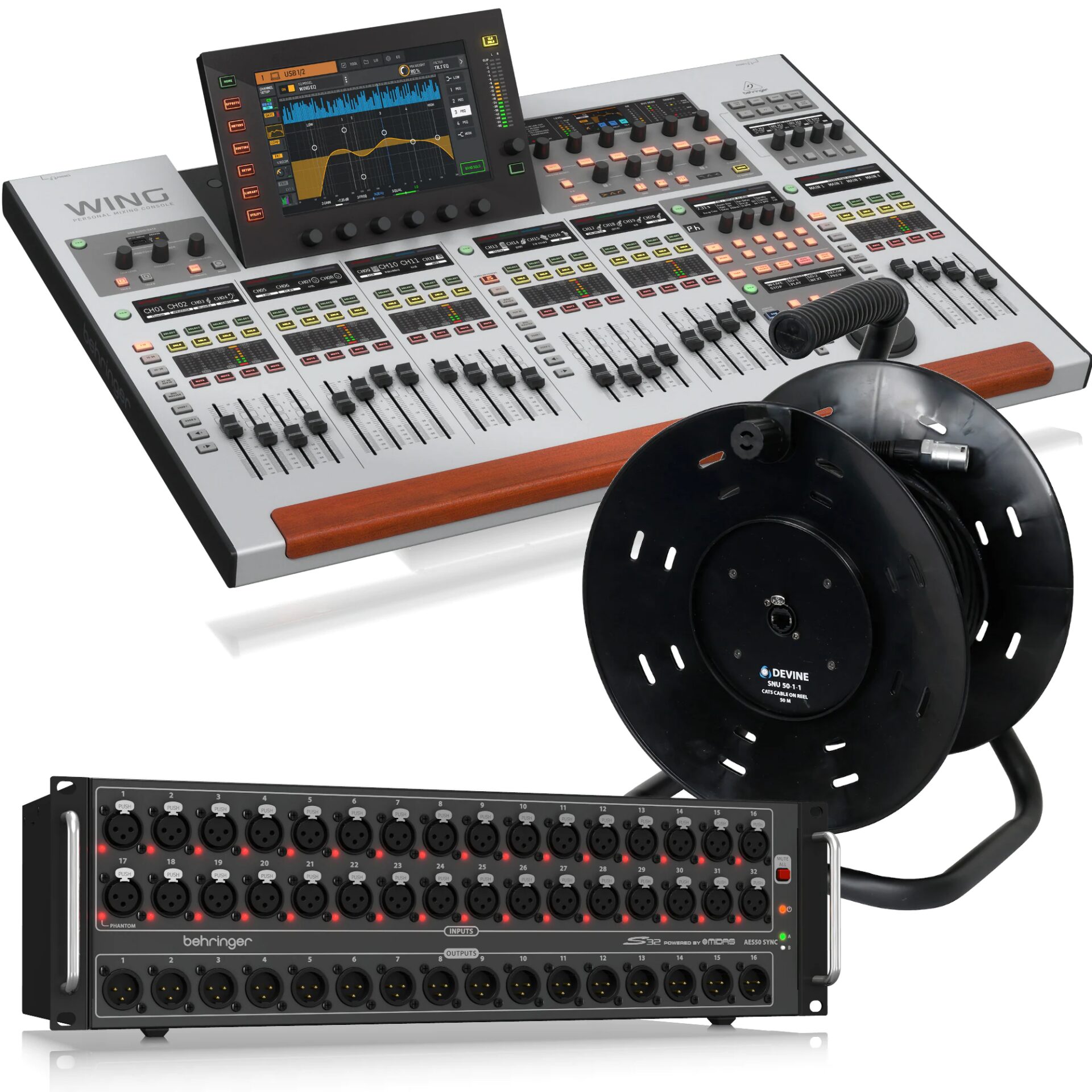

Behringer Wing Digital Mixer 1x Behringer Wing Digital Mixer
The Behringer Wing is an extensive 48 channel mixer complete with a stack of analogue and digital ports. While this audio workhorse comes with endless potential, Behringer knows how to keep things simple.
Product features
19 inches no
Number of analogue input channels 8
Number of analogue output channels 8
Number of channels 33-64
Number of microphone inputs 5 – 8
Digital inputs AES/EBU (AES3)
Digital snake yes, available separately
Digital outputs AES/EBU (AES3)
Dynamics compressor, expander, gate, limiter
Equalizer 6-band parametric
Input connector jack (6.3 mm), XLR
Built-in audio interface USB (multi track)
Built-in audio player USB
Built-in effects yes
Insert connectors no
Input level meters via built-in display
Remote control via iPad, via iPhone
Connector position back
Type of display touch screen, colour
Expansion possibilities ADAT expansion card, DANTE expansion card, MADI expansion card
Output connector XLR (3-pin)
Mixer power power cable
Volume control motorised faders, via iPad / iPhone / iPod, via touchscreen
Weight and dimensions including packaging
Weight (incl. packaging)32.0 kg
Dimensions (incl. packaging)99.0 x 69.0 x 34.0 cm
Product specifications
Behringer Wing
digital mixer
8 Midas microphone preamplifiers
24 motorised faders in 3, freely assignable groups
digital connectors:
3 x AES
StageCONNECT
AES/EBU
2x ethernet with built-in switch for remote network control
many optional possibilities including MADI, ADAT and DANTE
10-inch colour touch screen
48 x 48 audio interface via usb
two SD card slots
standard FX rack with Behringer effects
premium FX rack effects including TC Electronic and Lexicon effects
dimensions: 201 x 870 x 575 mm
weight: 24 kg
Devine SNU-50-1-1 CAT5 Cable on Reel, 50m 1x Devine SNU-50-1-1 CAT5 Cable on Reel, 50m
Devine’s SNU-50-1-1 is a 50-metre long CAT5 Ethernet cable that comes on a reel. It features a Neutrik NE8FAH lockable RJ-45 port on the reel itself and a male etherCON Neutrik NE8MC-1 plug at the end of the cable.
Product features
Length50.00 m
Type of data connectorRJ-45 EtherCON (not the regular RJ45!)
Type of UTP cableCAT5
Weight and dimensions including packaging
Weight (incl. packaging)3.0 kg
Dimensions (incl. packaging)37.0 x 30.0 x 22.5 cm
Product specifications
Devine CAT5 cable on reel
type of cable: CAT5 Ethernet
connectors:
1x female RJ45, Neutrik NE8FAH
1x male etherCON, Neutrik NE8MC-1
colour: black
length: 50m
Behringer S32 Digital Snake I/O Multi 1x Behringer S32 Digital Snake I/O Multi
The Behringer S32 is a digital I/O box. This 19-inch 3U digital rack snake is equipped with 32 legendary Midas preamps, 16 outputs, 2 AES50 network ports and Ultranet connectivity.
Product features
19-inch rack size3U
Number of analogue input channels25 – 32
Number of analogue output channels9 – 16
CategorySound & PA
Weight and dimensions including packaging
Weight (incl. packaging)5.6 kg
Dimensions (incl. packaging)54.6 x 31.1 x 21.6 cm
Product specifications
I/O box
32 remote-controllable Midas preamps
16 analogue XLR outputs
two AES-3 network ports (AES/EBU)
remote operation up to 100m via CAT-5E cable (not included)
dual AES50 port (no router required)
dual ADAT outputs for use in splitter mode and stand alone digital multi-cord applications
MIDI I/O for bi-directional communication between FOH console and on-stage MIDI devices
USB connector for system updates via PC
universal power supply for maximum flexibility: 110 V, 240 V
noise-free audio
low energy consumption
extremely robust housing
mute-all-inputs function for patching inputs on stage
