Description
Specifications
Product features
19-inch rack size not applicable
Number of keys 49
Arpeggiator/sequencer arpeggiator
Computer integration PC editor, Mac editor
Control sustain (input), expression (input)
Synthesizer inputs none
Sound sourcevirtual analogue
MIDI & CV/gate MIDI in, MIDI out, MIDI over USB
Synthesizer outputs line out jack, headphone
Type of keys keyboard action
Synthesizer typ ekeyboard
Weight and dimensions including packaging
Weight (incl. packaging)4.2 kg
Dimensions (incl. packaging)100.0 x 38.0 x 19.0 cm
Product specifications

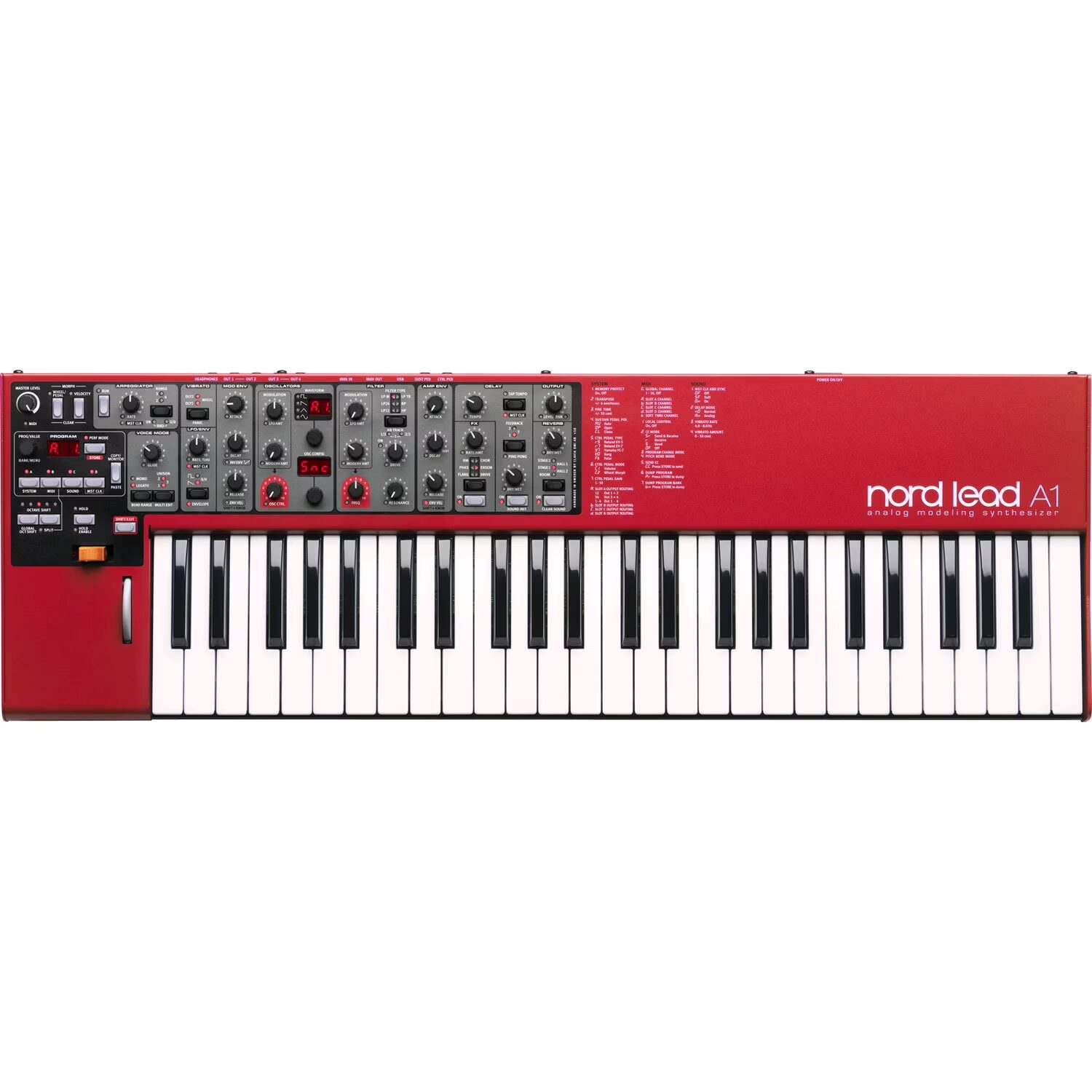

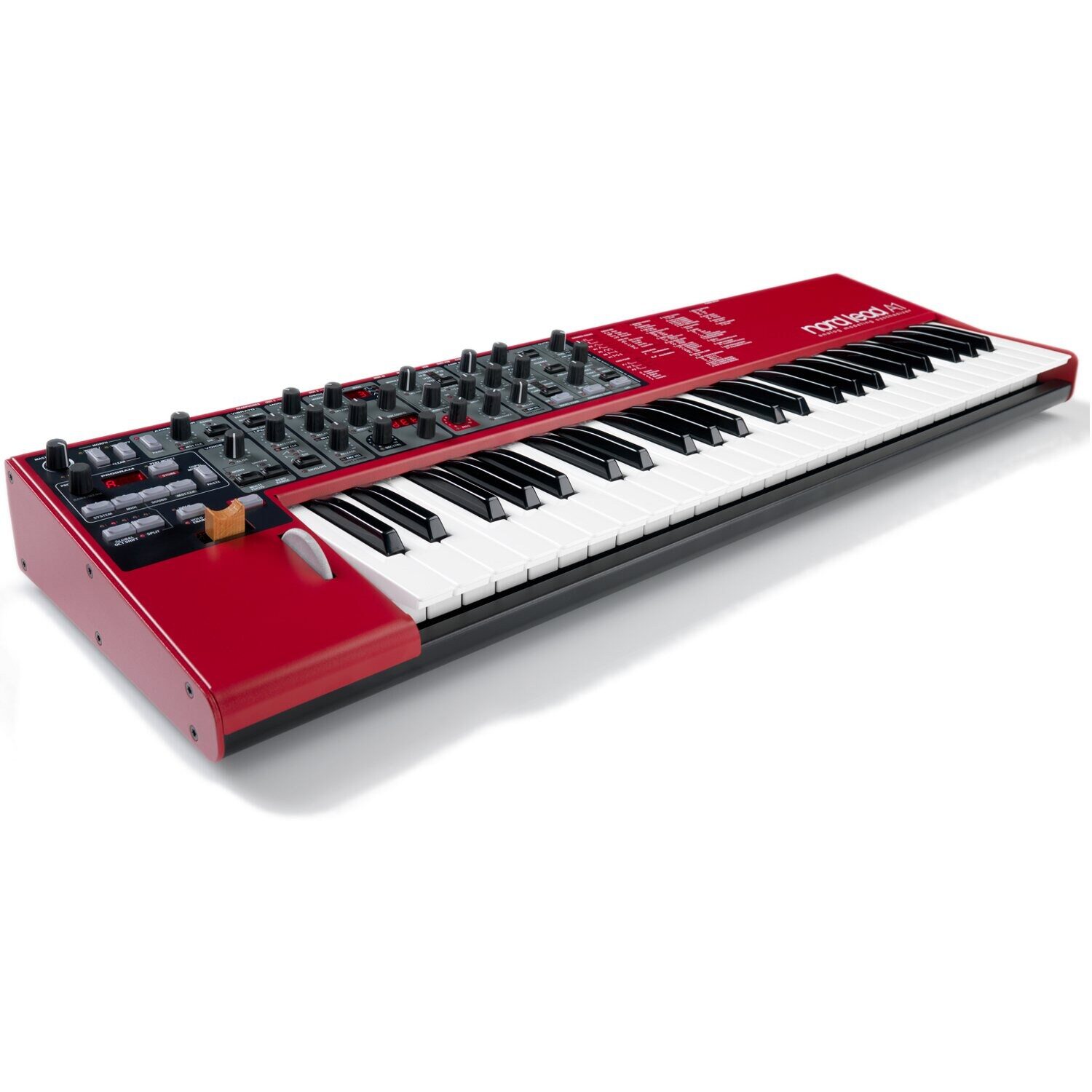

polyphone virtual analogue synthesizer
49 velocity-sensitive keys
synth engine: 96 kHz / 32 bits
polyphony: 24 voices
4-part multi-timbral
wooden pitch stick
modulation wheel
Octave Shift function

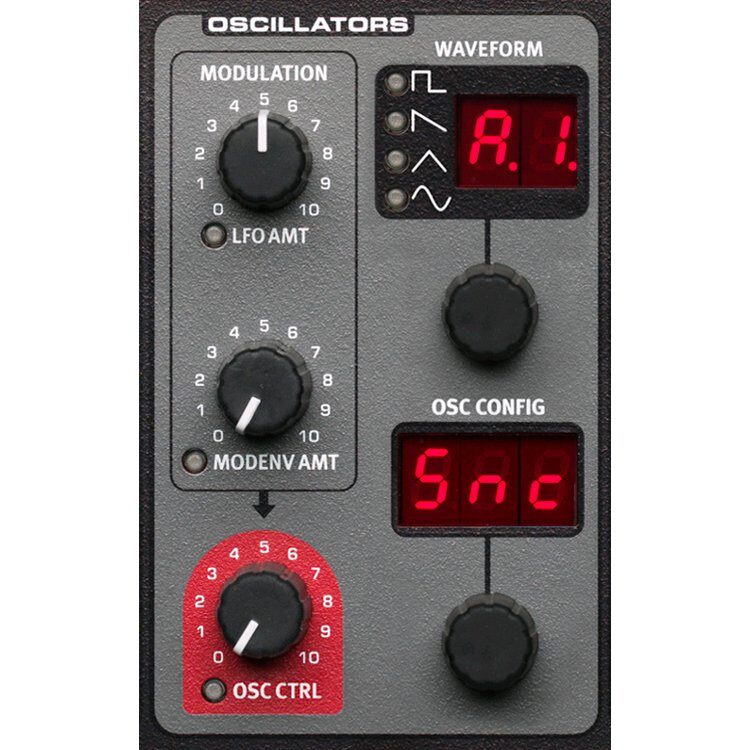

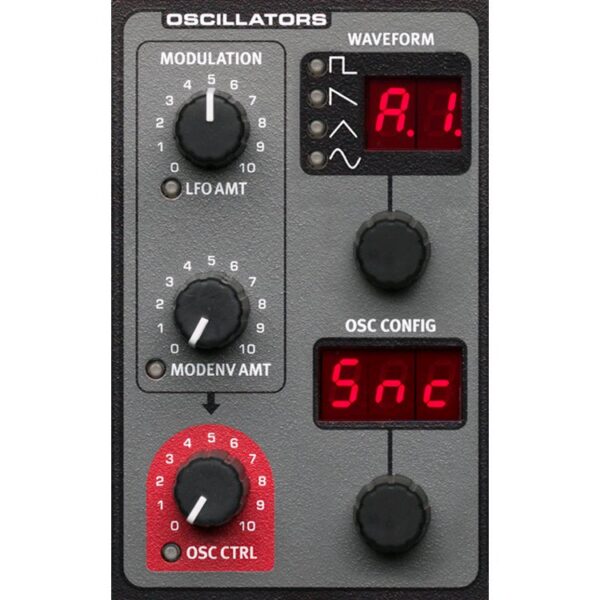

virtual analogue subtractive synthesis
Morph function (via velocity and modulation wheel)
filters: multi-mode with 12 dB LPF / 24 dB LPF / HPF / Ladder M / Ladder TB
LFO, arpeggiator and delay can be synchronised with master clock
ADSR envelope

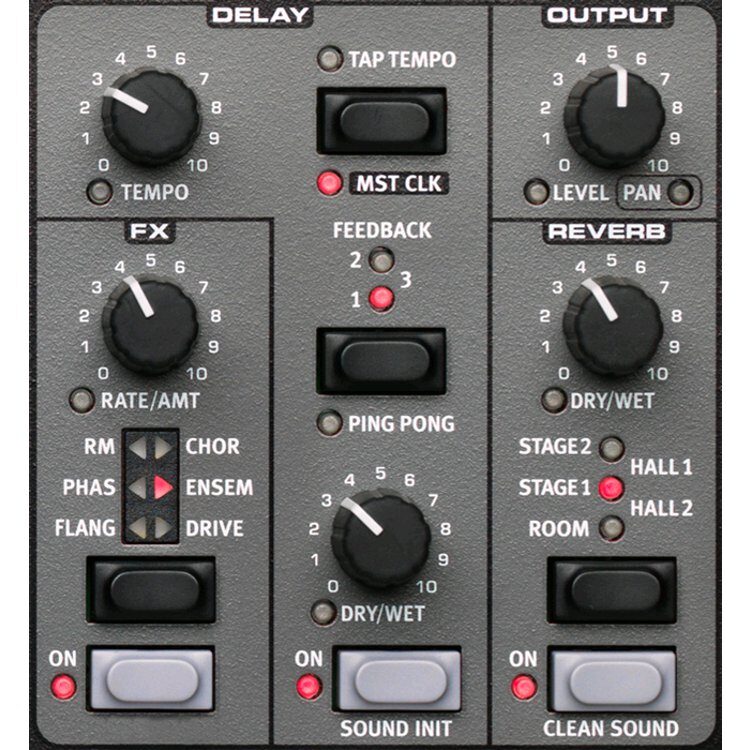

effects per part: flanger, phaser, ring modulation, chorus, ensemble, drive
delay section with tap tempo, feedback, ping-pong, dry/wet
reverb: 5 algorithms (room, stage 1, stage 2, hall 1, hall 2)
program memory: 8x 50
performance memory: 4x 50
audio converters: 24-bit low-noise DACs
MIDI support (DIN and USB)
includes user manual, power cable and Nord sound Manager CD-ROM
dimensions: 802 x 92 x 260 mm
weight: 4.85 kg

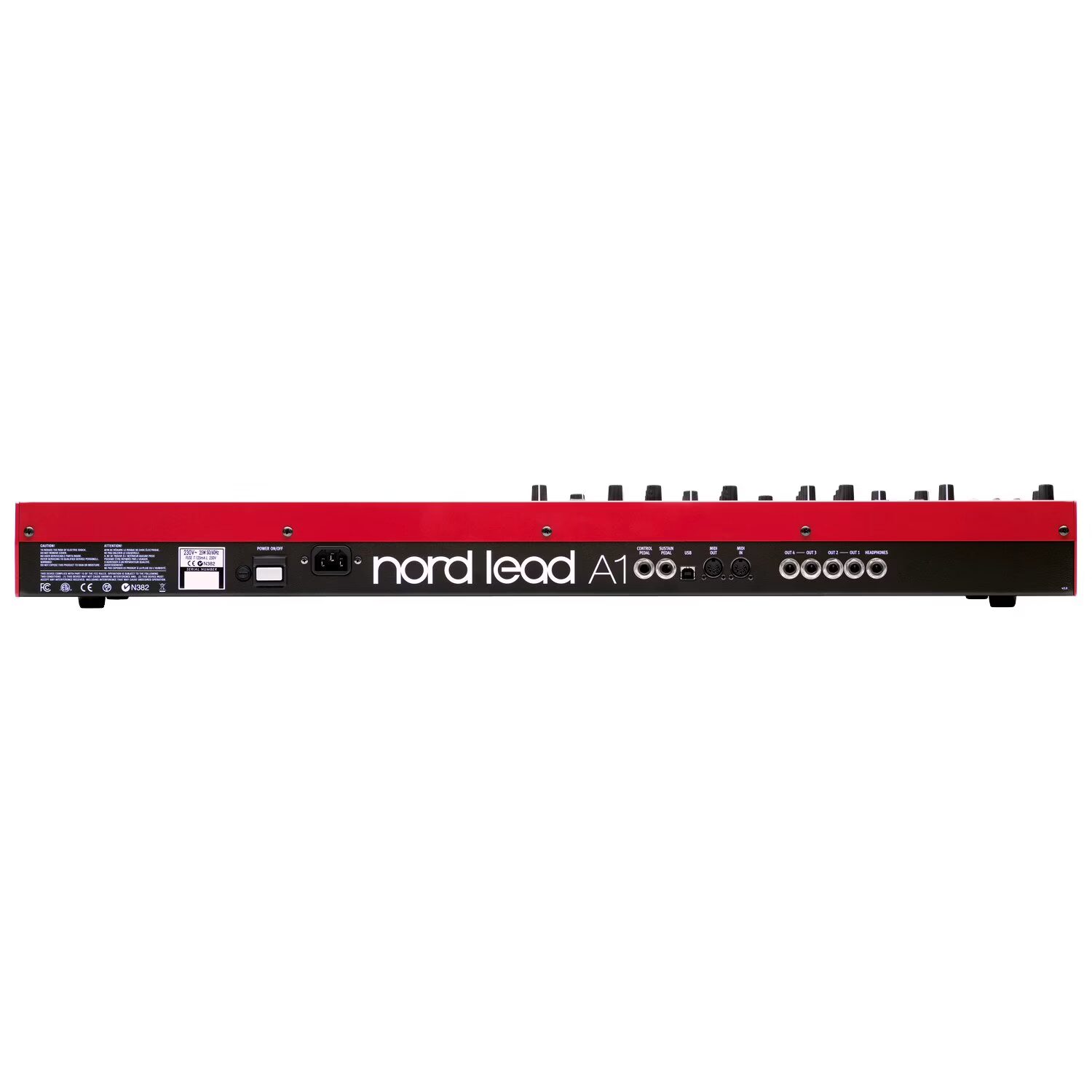

Connectors:
Out 1, Out 2, Out 3, Out 4 (4x 6.3mm jack)
headphone output (6.3mm stereo jack)
MIDI IN/OUT (5-pin DIN)
USB To Host (MIDI)
sustain pedal (6.3mm jack)
control pedal (6.3mm jack)
