Description
Specifications
Product features
19-inch rack size not applicable
Number of keys 61
Arpeggiator/sequencer arpeggiator, sequencer
Computer integration functions as DAW controller
Control sustain (input), expression (input), switch pedal (input), ribbon, aftertouch
Synthesizer inputs line in
Sound sourcesample player, FM
MIDI & CV/gate MIDI in, MIDI out, MIDI thru, MIDI over USB
Synthesizer outputs line out jack, headphone
Type of keys keyboard action
Synthesizer type keyboard
Weight and dimensions including packaging
Weight (incl. packaging)20.0 kg
Dimensions (incl. packaging)122.0 x 48.0 x 25.0 cm
Product specifications

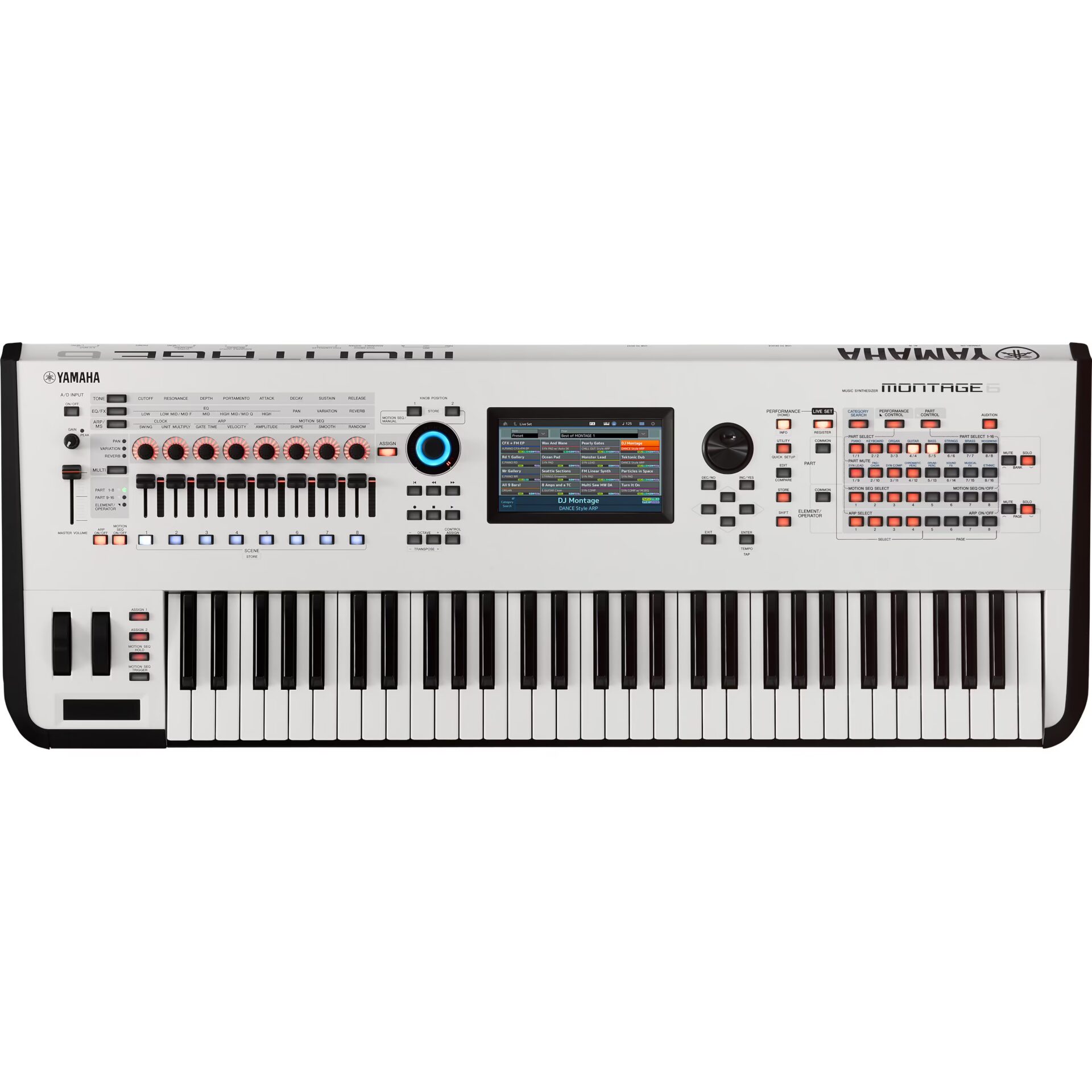

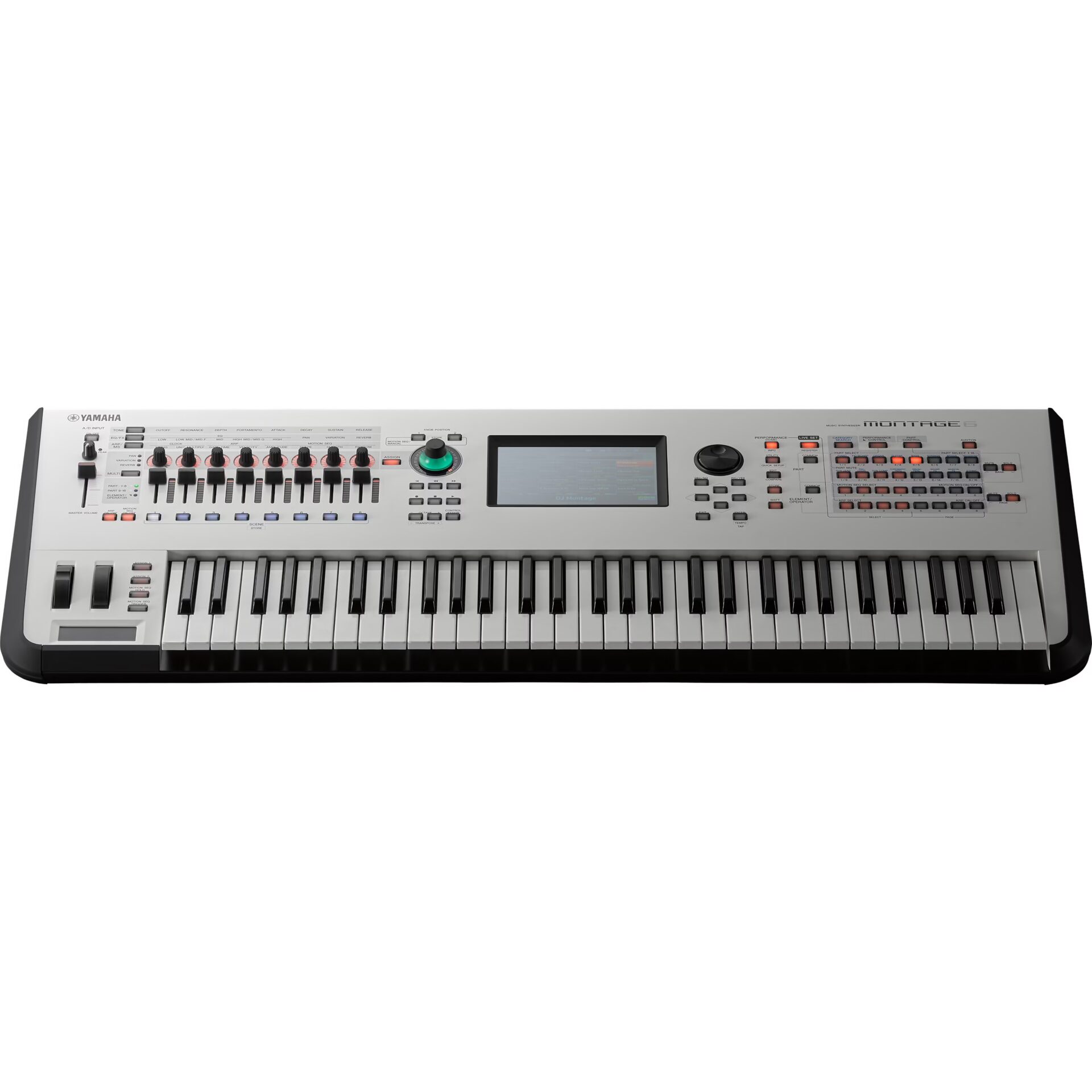

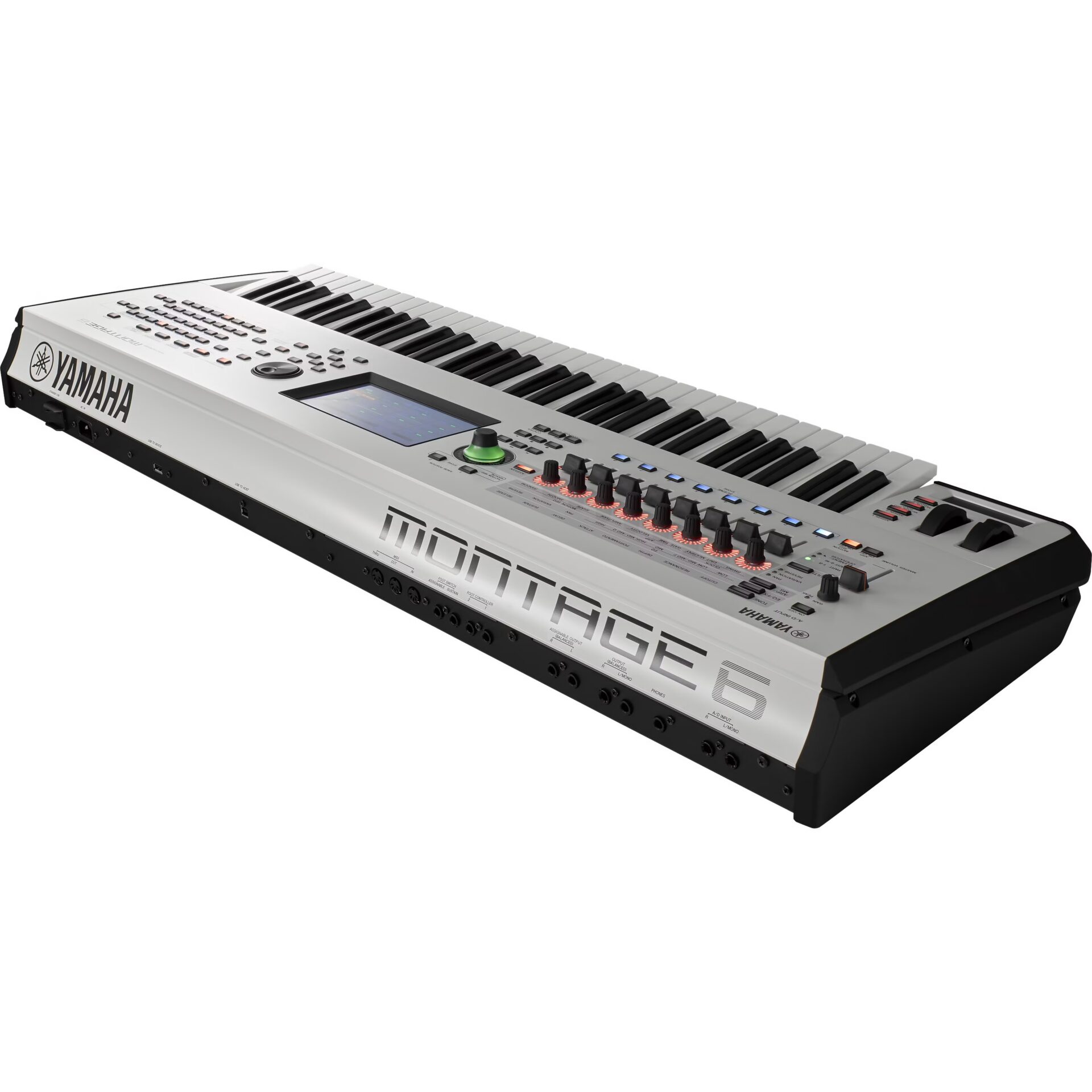

Yamaha Montage 6
synthesizer
keyboard:
FSX keyboard
keys: 61
initial touch
aftertouch
sound generator:
AWM2
preset waves: 5.67 GB
user waves: 1.75 GB
polyphony: 128
FM-X
8 operators
88 algorithms
polyphony: 128
multitimbral: 16x + audio input parts (A/D, USB)
performances: +/- 1,900
effects section:
reverb: 12 types
variation: 76 types
insert (A,B): 76 types
master effect: 15 types
A/D part insert: 71 types
master EQ: 5 bands
filters: 18 types
Motion Control
super knob (macro controller)
tempo-sync control sequences
envelope follower (converts audio to controller data)
pitch bend wheel
modulation wheel
ribbon controller
control sliders 8x with LED strip
control knobs 8x with LED ring
display: 7″ TFT, colour, touch screen
recorder:
16 tracks
tempo track
scene track
capacity: +/- 130,000 notes
64 songs
arpeggio
power consumption: 27 W
includes:
power cable
user manual
Cubase AI (download)

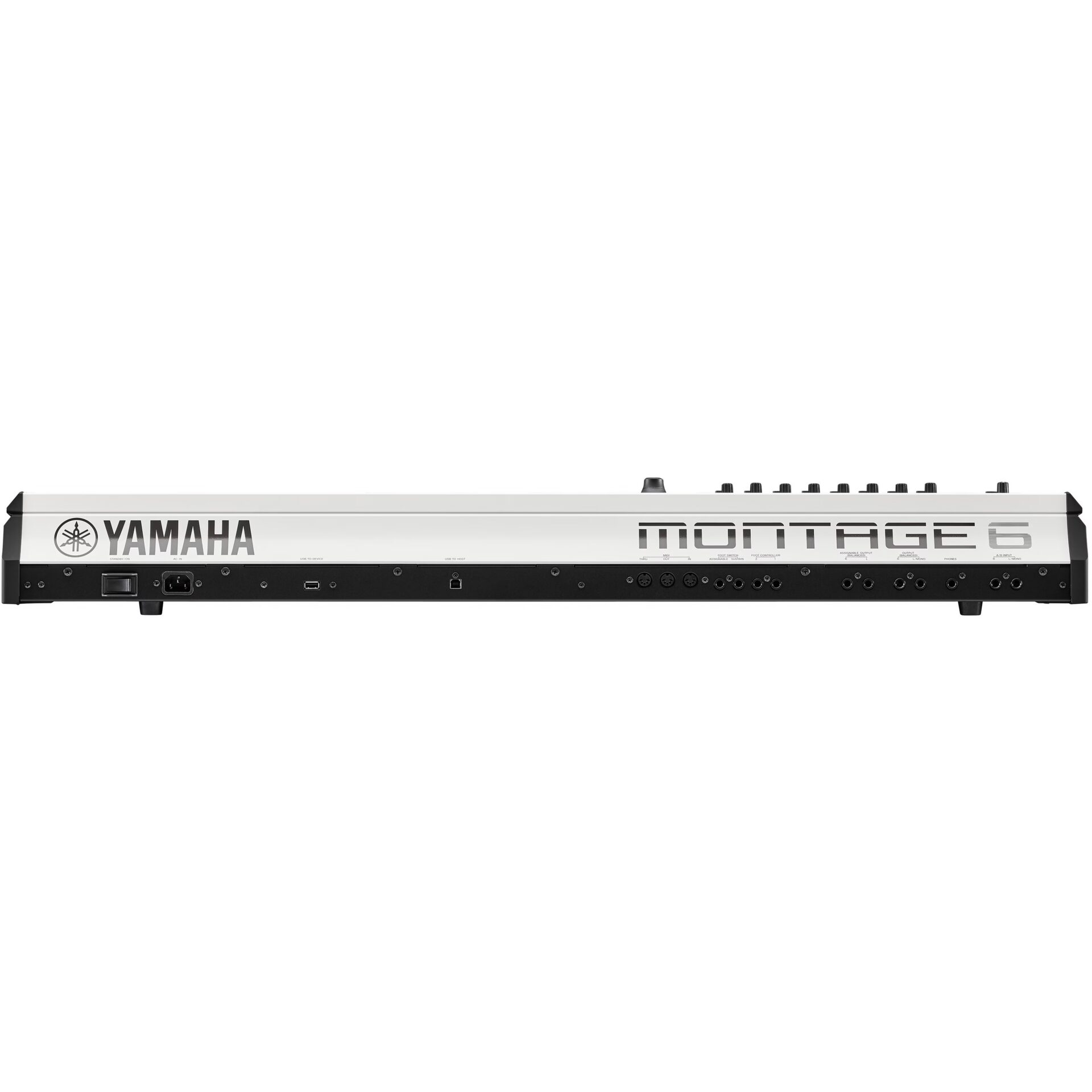

connectors:
USB (stick)
USB MIDI
MIDI I/O/THRU
foot controller 1/2
foot switch assignable/sustain
jack outputs balanced
assignable outputs: jack balanced
headphone jack
A/D inputs: jack
dimensions: 1037 x 131 x 396 mm
weight: 15 kg
colour: white
