Description
Specifications
Product features
Number of microphones 1 microphone
Battery type AA, SB 900 lithium-ion
Battery life (approx.)9 hours
Frequency suitable for Belgium yes, no licence required
Frequency suitable for Netherlands yes, no licence required
Frequency suitable for UK yes, with standard licence
Worldwide frequency use no
Frequency band Shure S50 (823 – 832 + 863 – 865 MHz)
Channel 65 (822 – 830 MHz), 66 (830 – 838 MHz), ISM (863 – 865 MHz)
Maximum SPL 150 dB – 159 dB
Maximum frequency 20 – 20.9 kHz
Minimum frequency 50 – 59 Hz
Polar pattern cardioid, super cardioid
Switchable frequencies yes
Analogue audio output type unbalanced line out (TS jack), balanced line out (XLR), balanced microphone out (XLR)
Type of frequency band 800 – 899 MHz
Transmission power 10 mW
Power adapter ungrounded flat Europlug
Weight and dimensions including packaging
Weight (incl. packaging)4.1 kg
Dimensions (incl. packaging)50.0 x 44.0 x 11.0 cm
Product specifications

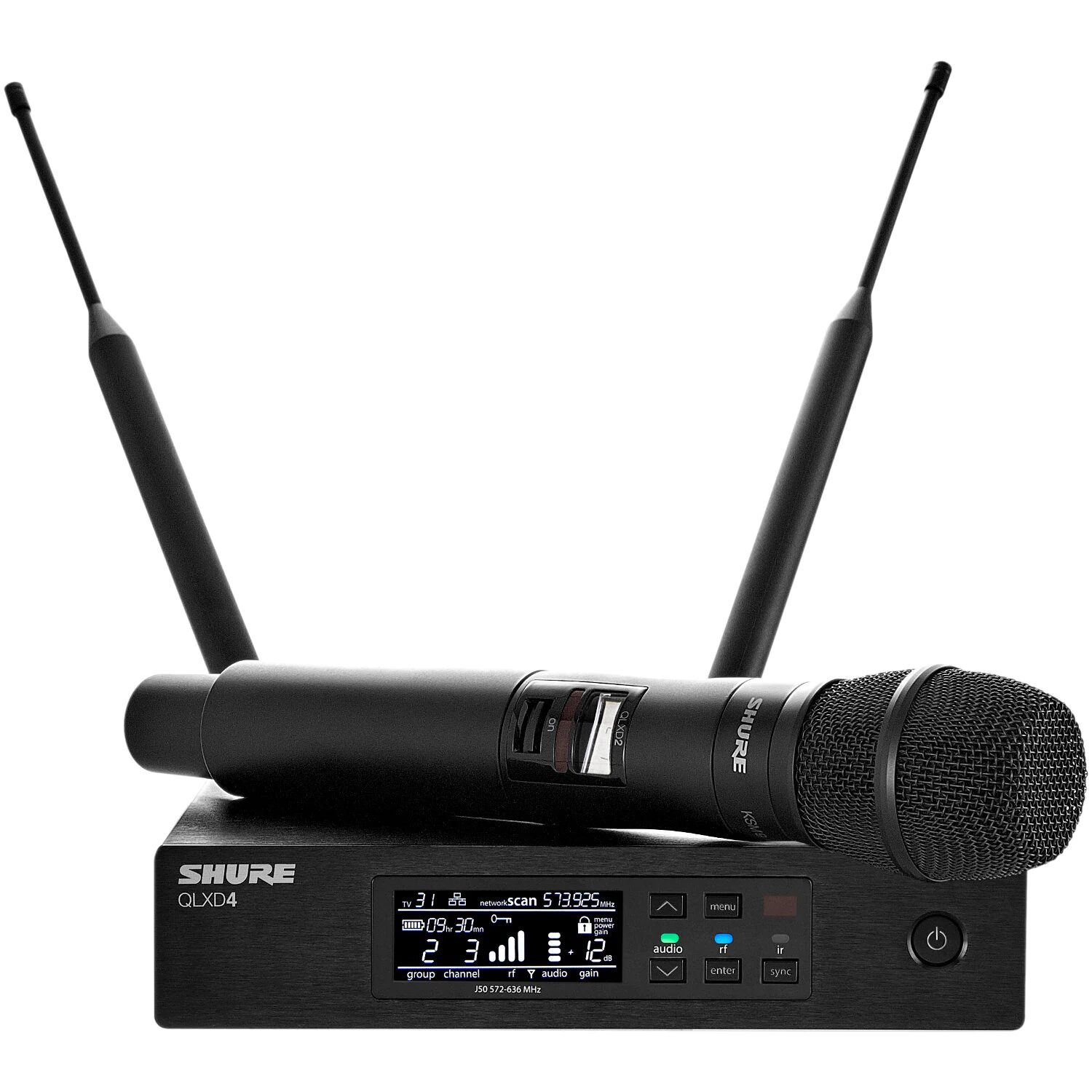

wireless handheld system
frequency band: S50 (823-832 & 863-865 MHz)
consists of:
handheld (KSM9)
receiver (QLXD4)
digital system
ideal for medium-sized applications
easy installation and controls
22 systems per 8MHz channel
selectable frequencies: up to 2,880
easy synchronisation of transmitter and receiver
over 60 preset channels per frequency band (region-dependent)
Automatic Channel Scan, Network Scan and infrared synchronisation
AES-256 encryption
tuning bandwidth: 64 MHz
predictive digital diversity switch
frequency range: 20 Hz – 20 kHz (microphone dependent)
Ethernet communication for multiple receivers
compatible with Shure Wireless Workbench 6 software (PC/Mac)
monitoring and controls with mobile iOS devices via ShurePlus Channels app
including:
power adapter
manual
rackmount kit
2x BNC bulkhead adapter
2x BNC cable
2x AA battery
QLXD4 receiver
backlit LCD display
LED meters for audio and RF signals with peak indication
detachable antenna
outputs: XLR and 6.3mm jack
robust housing, brushed aluminium
19-inch rack-mountable (half-rack size)
2 antenna connectors (antennas included)
Ethernet connector
power supply: PS23E (included)
KSM 9
pickup pattern: cardioid & super-cardioid
capsule: condenser
24-bit audio quality
frequency range: 50 Hz – 20 kHz
easy to link via infrared
rugged metal housing
illuminated LCD display for easy navigation
