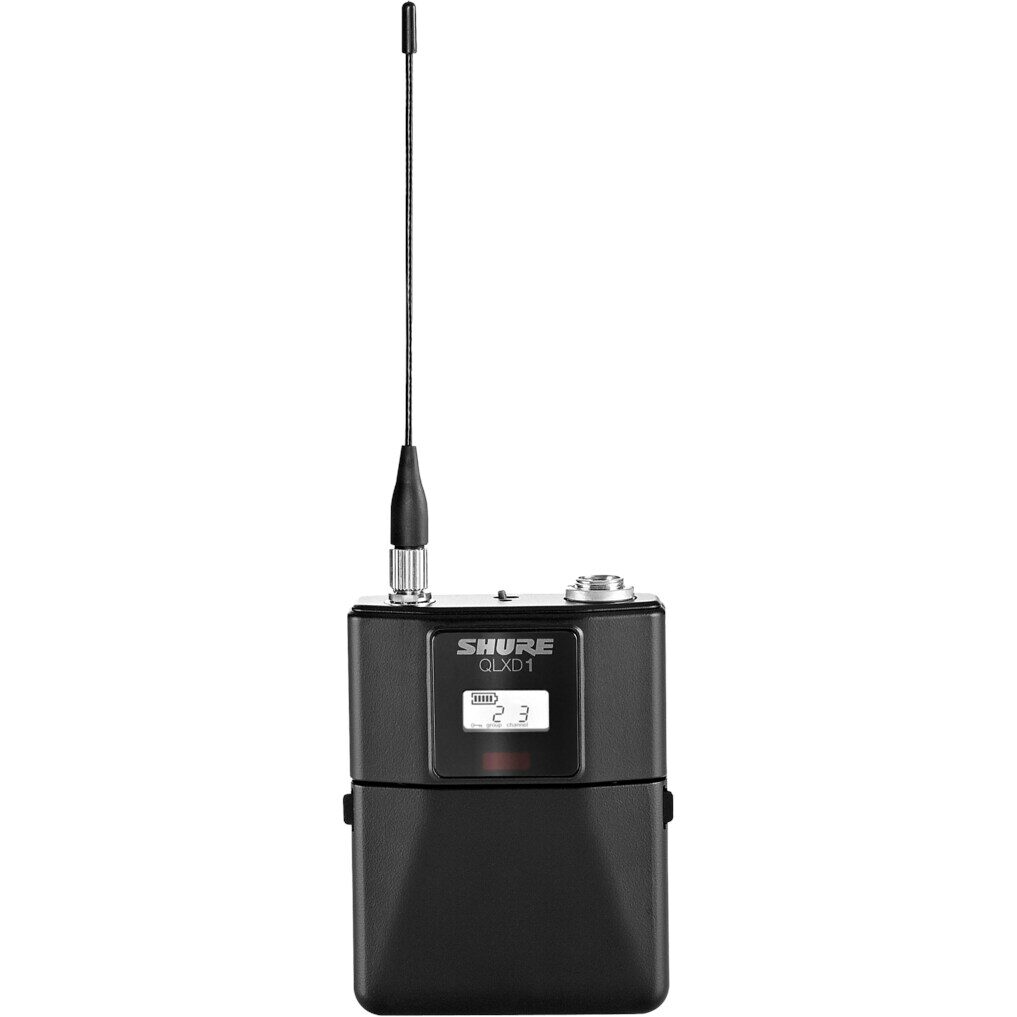

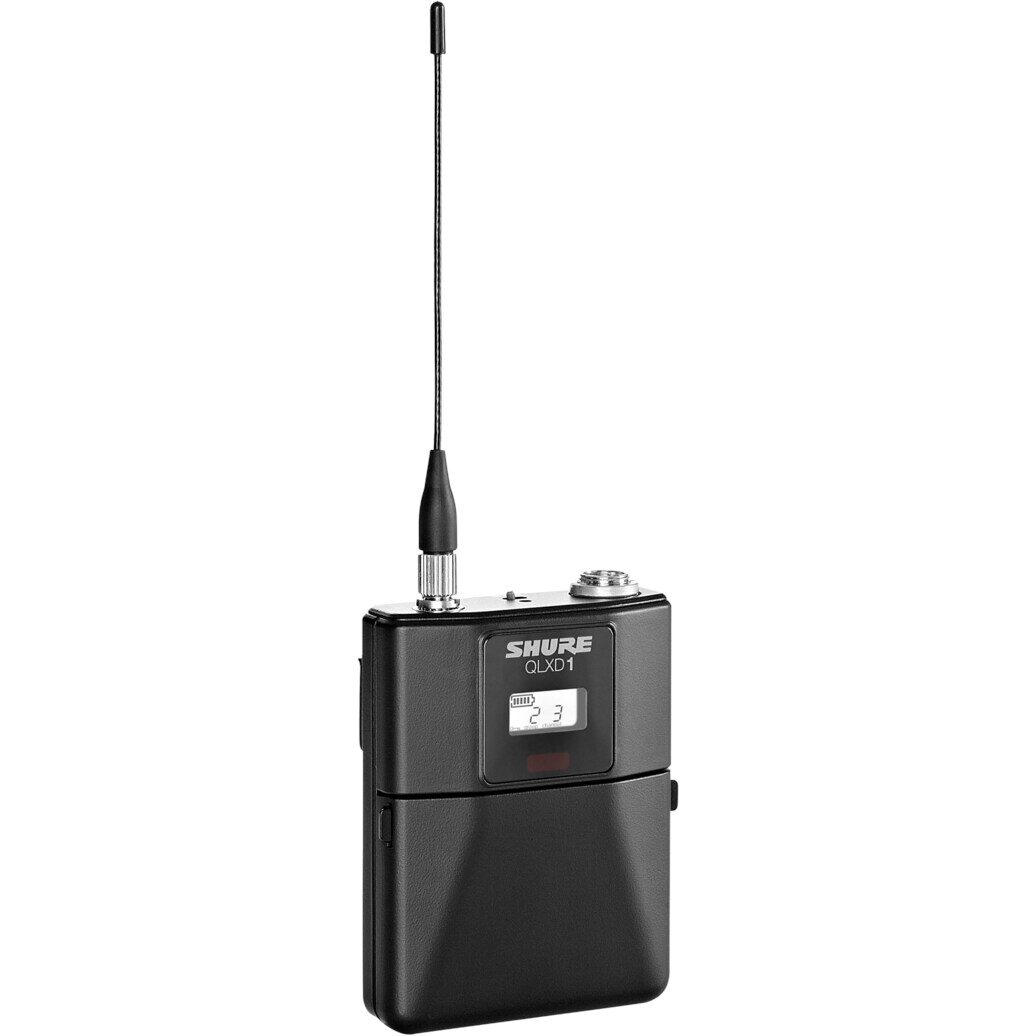

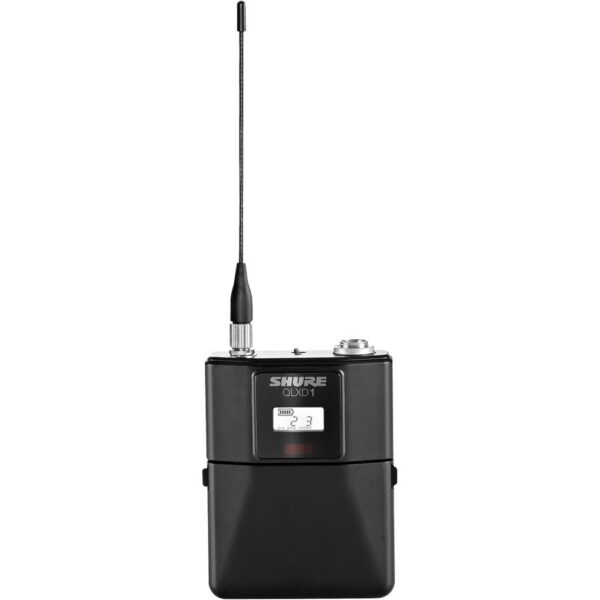

Shure QLXD1 (H51, 534-598 MHz) beltpack 1x Shure QLXD1 (H51, 534-598 MHz) beltpack
The QLXD1 (H51, 534-598 MHz) beltpack is designed for use in Belgium. Provided with TA4M input and can be combined with receivers from the QLX-D series.
Product features
Microphone connection TA4F/TQG (4 pin)
Battery typeAA, SB 900 lithium-ion
Battery life (approx.)9 hours
Frequency band Shure H51 (534 – 598 MHz)
Channel 29 (534 – 542 MHz), 30 (542 – 550 MHz), 31 (550 – 558 MHz), 32 (558 – 566 MHz), 33 (566 – 574 MHz), 34 (574 – 582 MHz), 35 (582 – 590 MHz), 36 (590 – 598 MHz)
PAD switch yes
Type of frequency band 500 – 599 MHz
Volume control no
Equipped with display yes
Weight and dimensions including packaging
Weight (incl. packaging)700 gr
Dimensions (incl. packaging)33.0 x 13.0 x 9.0 cm
Product specifications
bodypack transmitter
frequency band: H51 (534-598 MHz), fit for use in Belgium
range: up to 100 m
dynamic range: 120 dB
power supply: 2x AA batteries (included) or SB900 rechargeable battery (separately available)
battery life: up to nine hours (two AA batteries) or up to ten hours (rechargeable SB900 battery)
external charging contacts for dock chargers
backlit LCD display
user-friendly menus
connector: 4-pole male mini connector (TA4M)
synchronise with the receiver via infrared
robust metal housing
detachable lambda antenna
frequency and on/off locking mechanism
dimensions: 86 x 65 x 23 mm
weight: 138 grams (batteries not included)
including two AA batteries, carrying bag, manual

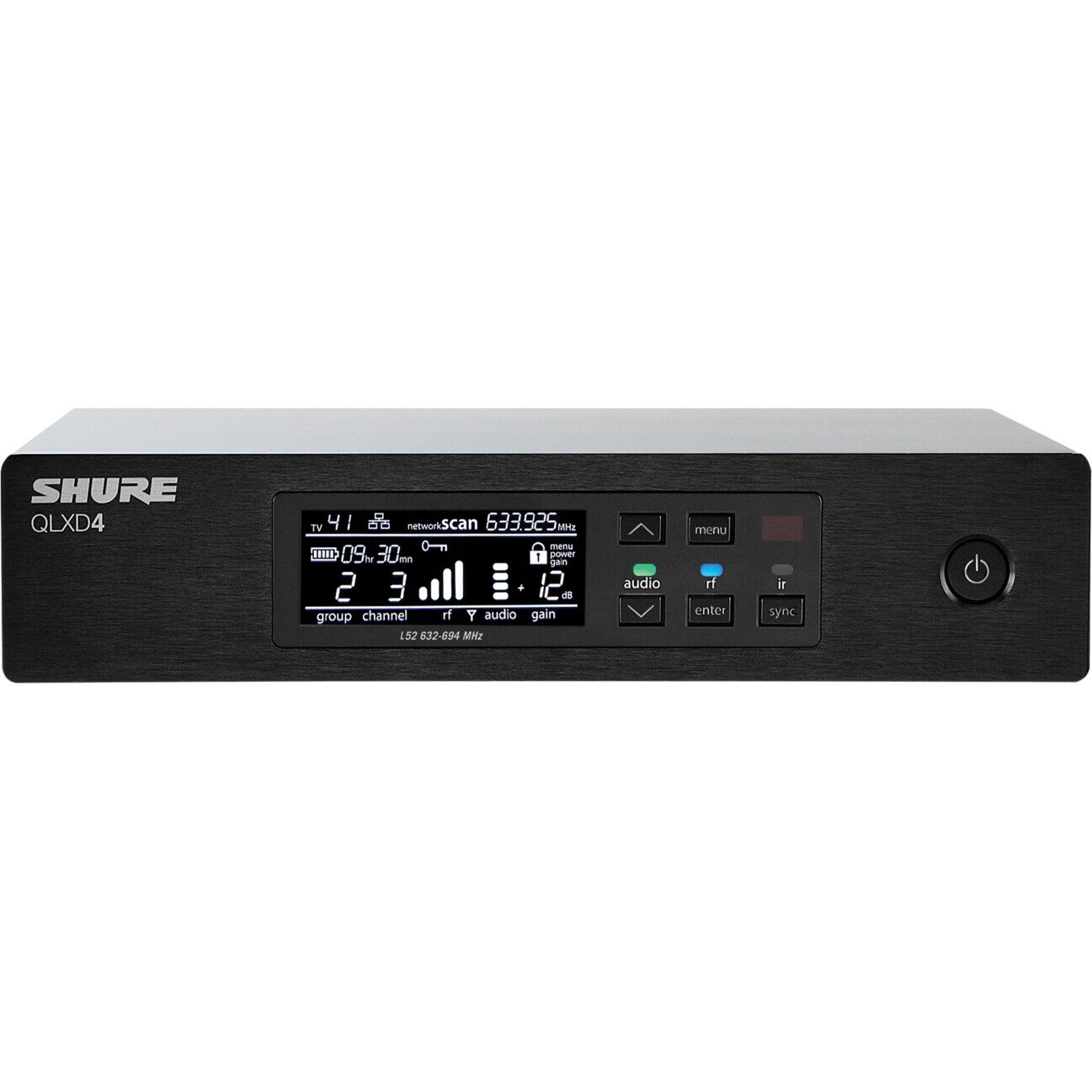

Shure QLXD4 (H51, 534-598 MHz) wireless receiver 1x Shure QLXD4 (H51, 534-598 MHz) wireless receiver
The H51 version of the Shure QLXD4 uses the 534-598 MHz frequency band.
Product features
19-inch rack size1U
Automatic frequency search functionyes
Battery life (approx.)not applicable
Energy sourceAC
Frequency bandShure H51 (534 – 598 MHz)
Built-in equaliserno
Channel29 (534 – 542 MHz), 30 (542 – 550 MHz), 31 (550 – 558 MHz), 32 (558 – 566 MHz), 33 (566 – 574 MHz), 34 (574 – 582 MHz), 35 (582 – 590 MHz), 36 (590 – 598 MHz)
Switchable frequenciesyes
Type of frequency band500 – 599 MHz
Output connectorjack (6.3 mm), XLR (3-pin)
Volume controlno
Power adapterungrounded flat Europlug
Weight and dimensions including packaging
Weight (incl. packaging)4.1 kg
Dimensions (incl. packaging)50.0 x 44.0 x 11.0 cm
Product specifications
wireless receiver
frequency band: K51 (534-598 MHz)
backlit LCD display
LED indicators for audio and RF signals with peak indication
detachable antenna

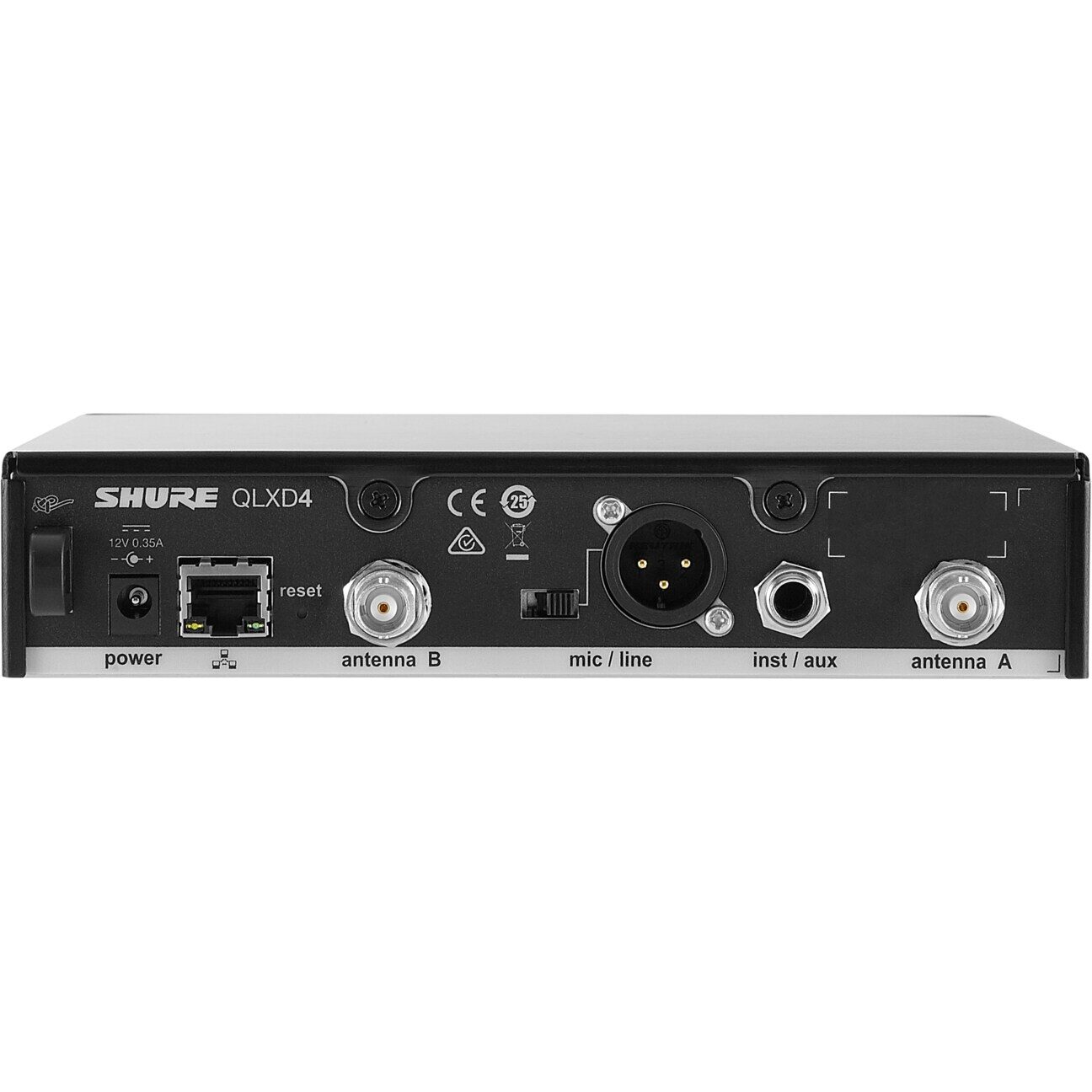

outputs: XLR and 6.3mm jack
connect to transmitter via infrared
robust housing, brushed aluminium
19-inch rack-mountable (half-rack size)
2 antenna connectors (antennas included)
Ethernet connector
power supply: PS23E (included)
includes:
rack mount materials
power adapter
2x antenna
2x BNC cable
2x BNC bulkhead adapter
manual
dimensions: 1.63 x 7.75 x 5.94 inches (41 x 197 x 151 mm)
weight (antennas excluded): 777 g (1.71 lbs)

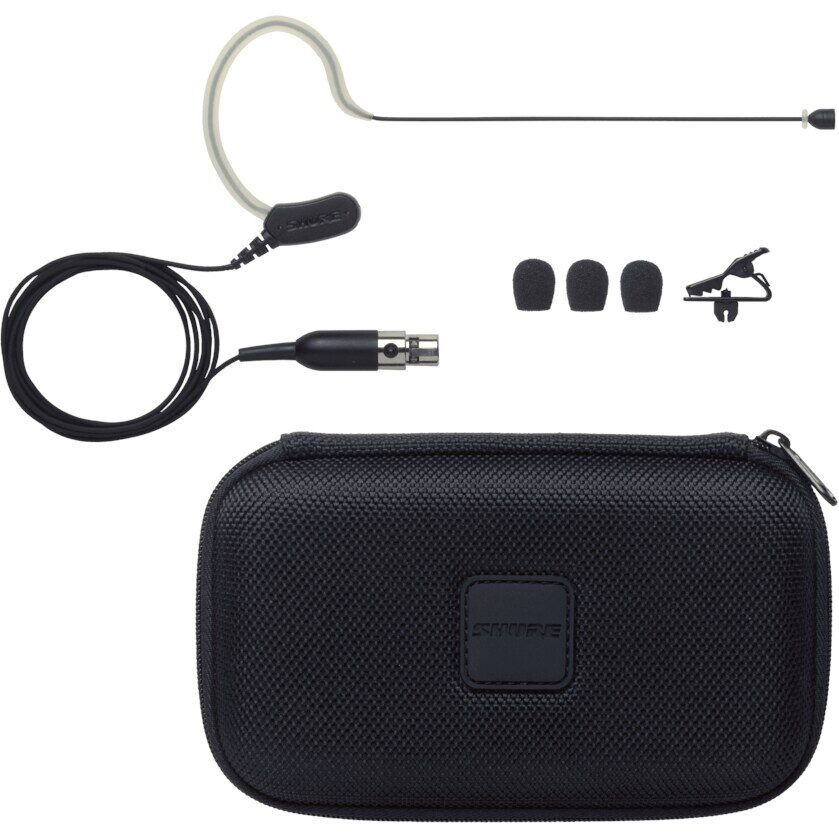

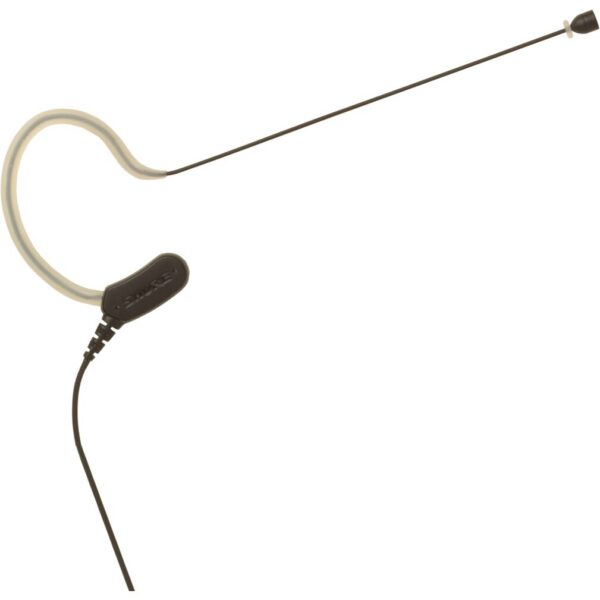

Shure MX153B/O-TQG Headset Microphone 1x Shure MX153B/O-TQG Headset Microphone
Product features
Microphone connectionTA4F/TQG (4 pin)
Microphone impedancenot specified
Includes headphonesno
Includes pop filter / capyes
Cable length150-199 cm
Colourblack
Maximum SPL100 dB – 109 dB
Maximum frequency20 – 20.9 kHz
Minimum frequency20 – 21 Hz
Polar patternomni-directional
Moisture resistantNo
Weight and dimensions including packaging
Weight (incl. packaging)3.0 kg
Dimensions (incl. packaging)26.0 x 13.0 x 9.0 cm
