Description
Specifications
Product features
19-inch rack size not applicable
Number of keys 49
Arpeggiator/sequencer arpeggiator, sequencer
Computer integration none
Control sustain (input), expression (input)
Synthesizer inputs none
Sound source analogue
MIDI & CV/gate MIDI in, MIDI out, MIDI thru, MIDI over USB
Synthesizer outputs line out jack, headphone
Type of keys keyboard action
Synthesizer type keyboard
Weight and dimensions including packaging
Weight (incl. packaging)12.2 kg
Dimensions (incl. packaging)96.0 x 48.0 x 22.0 cm
Product specifications

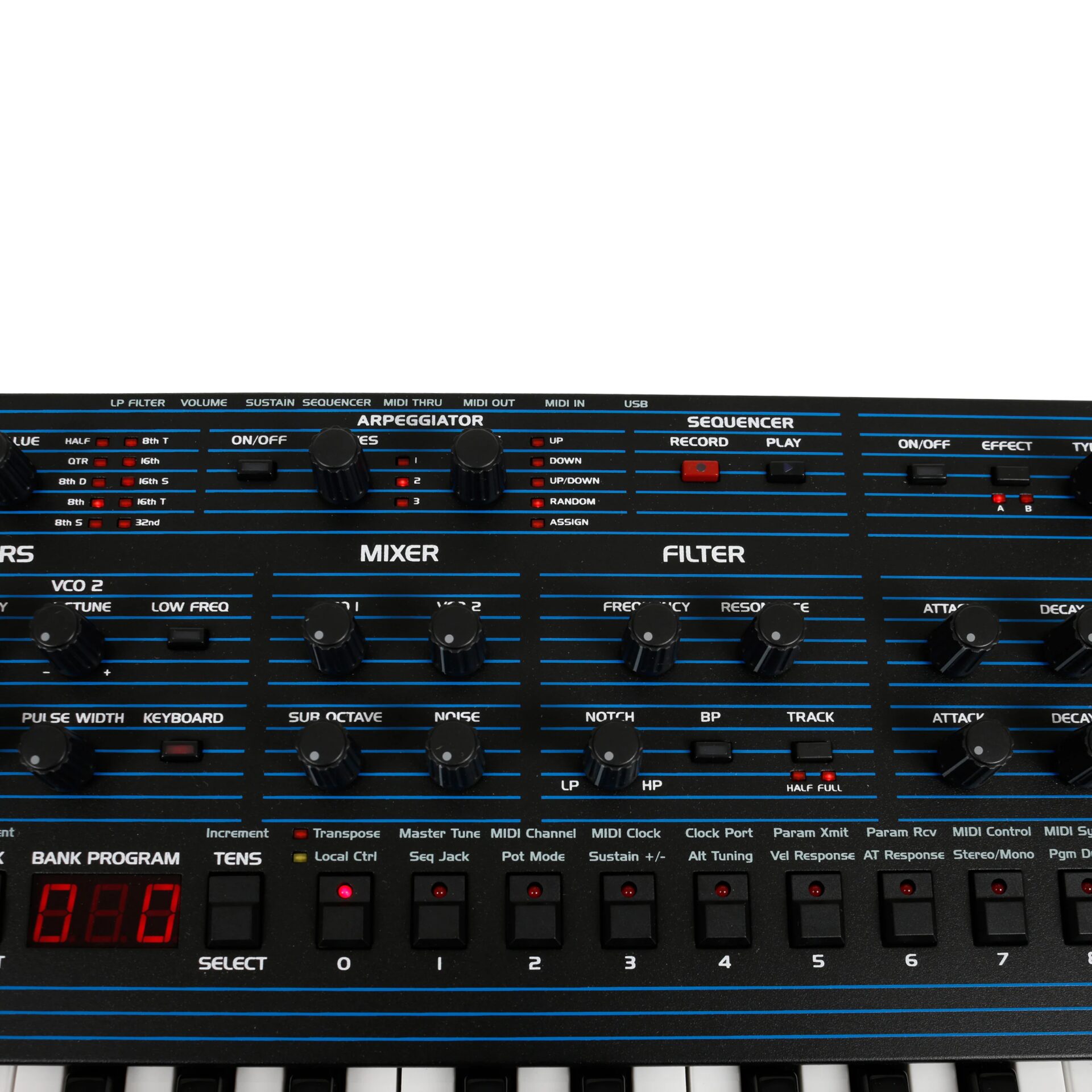

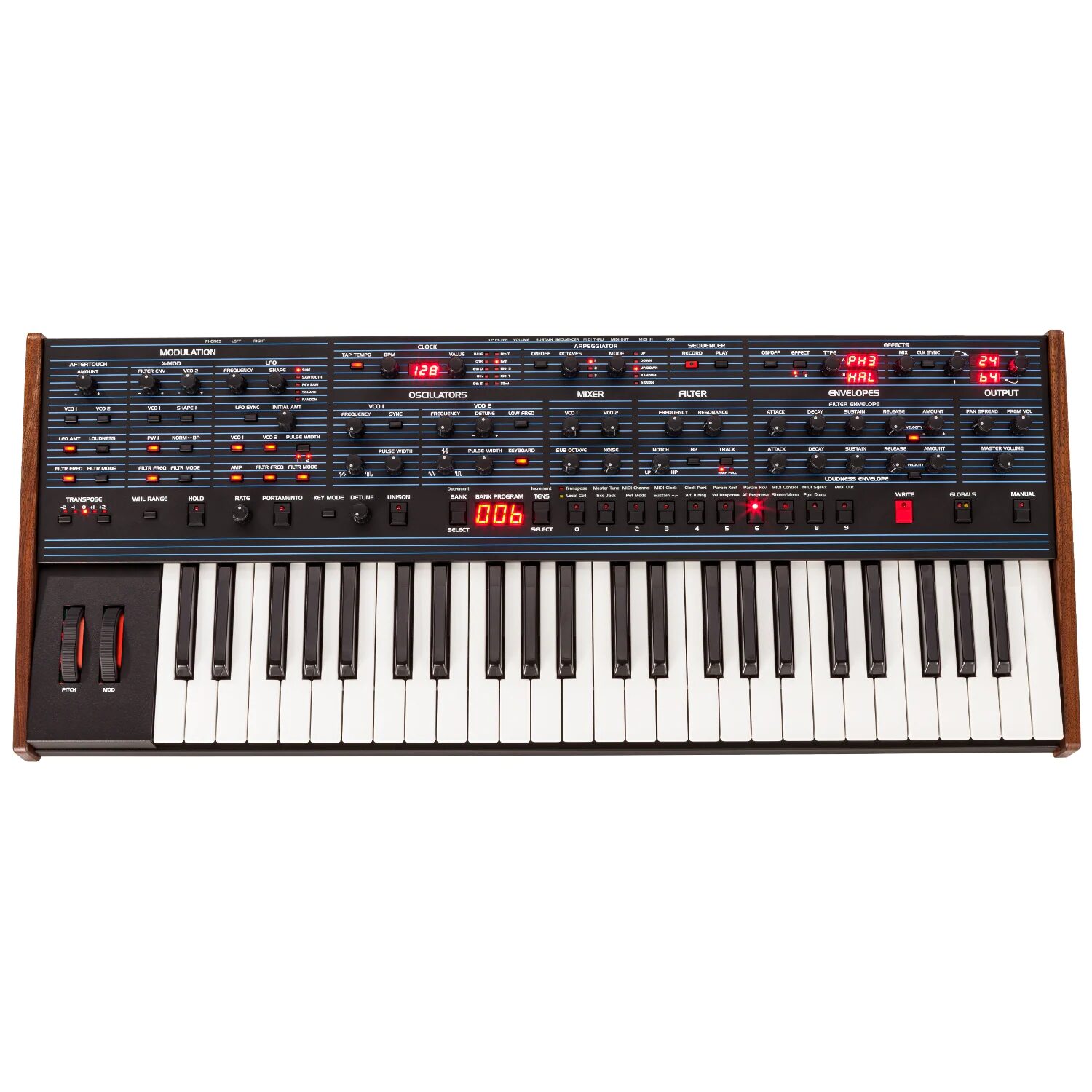

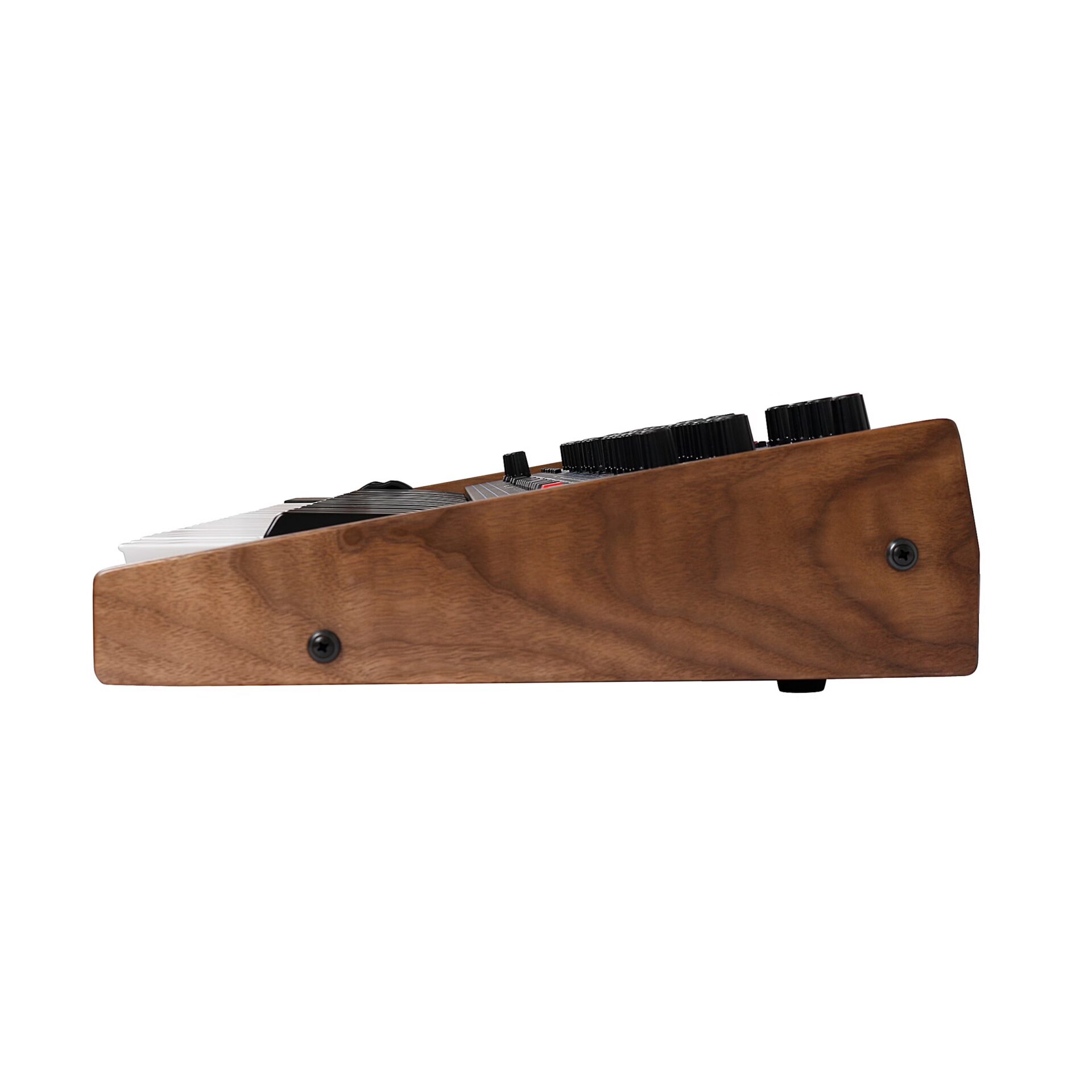

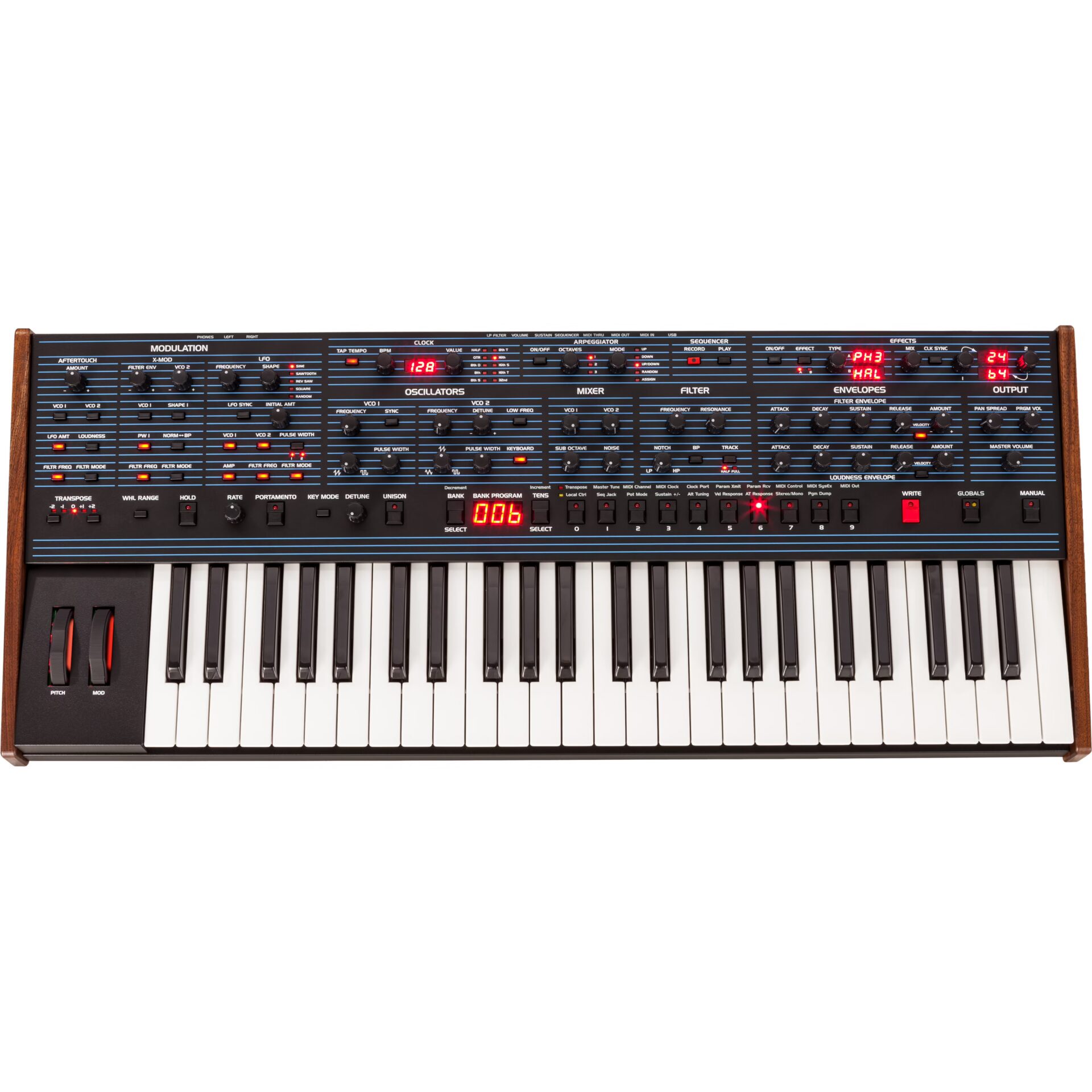

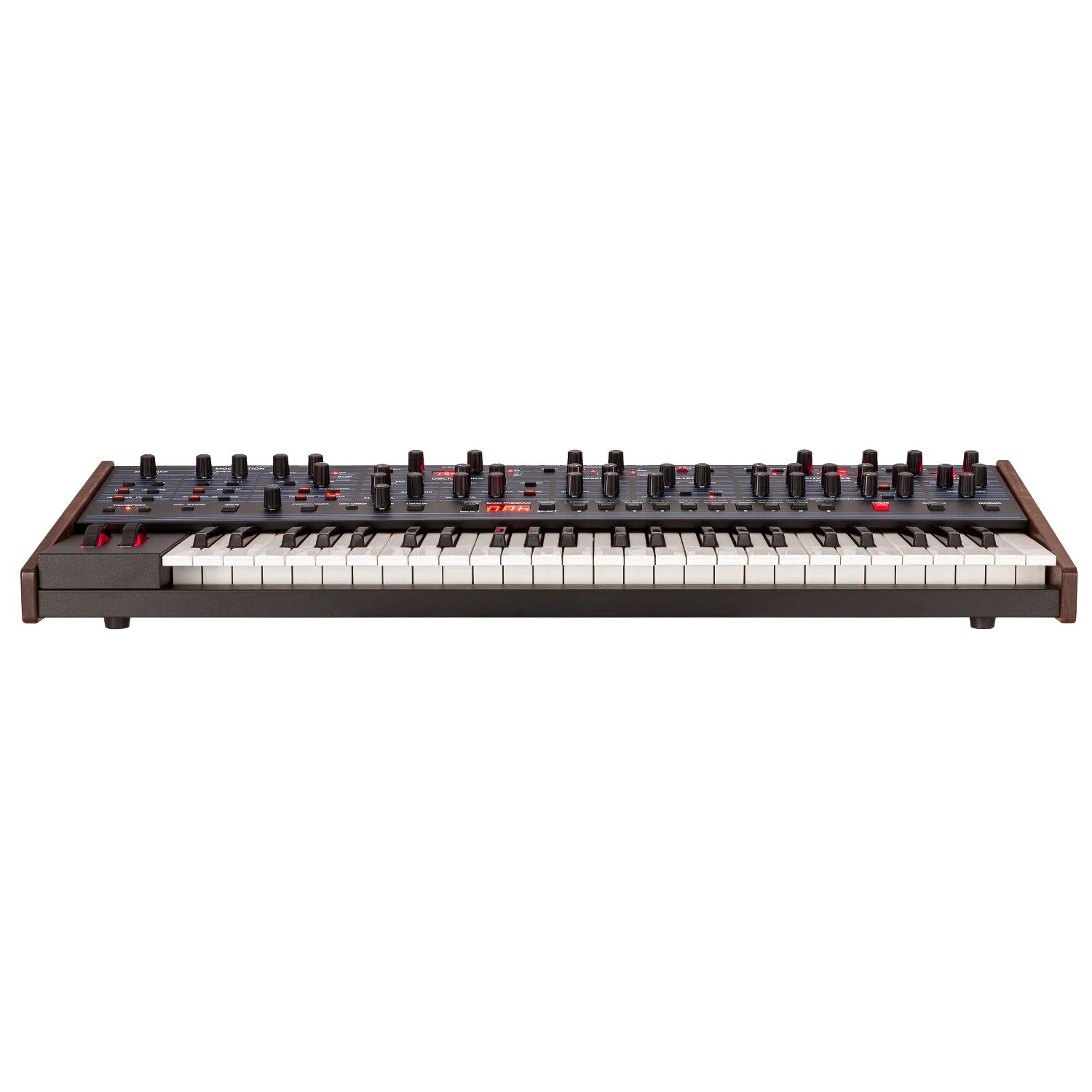

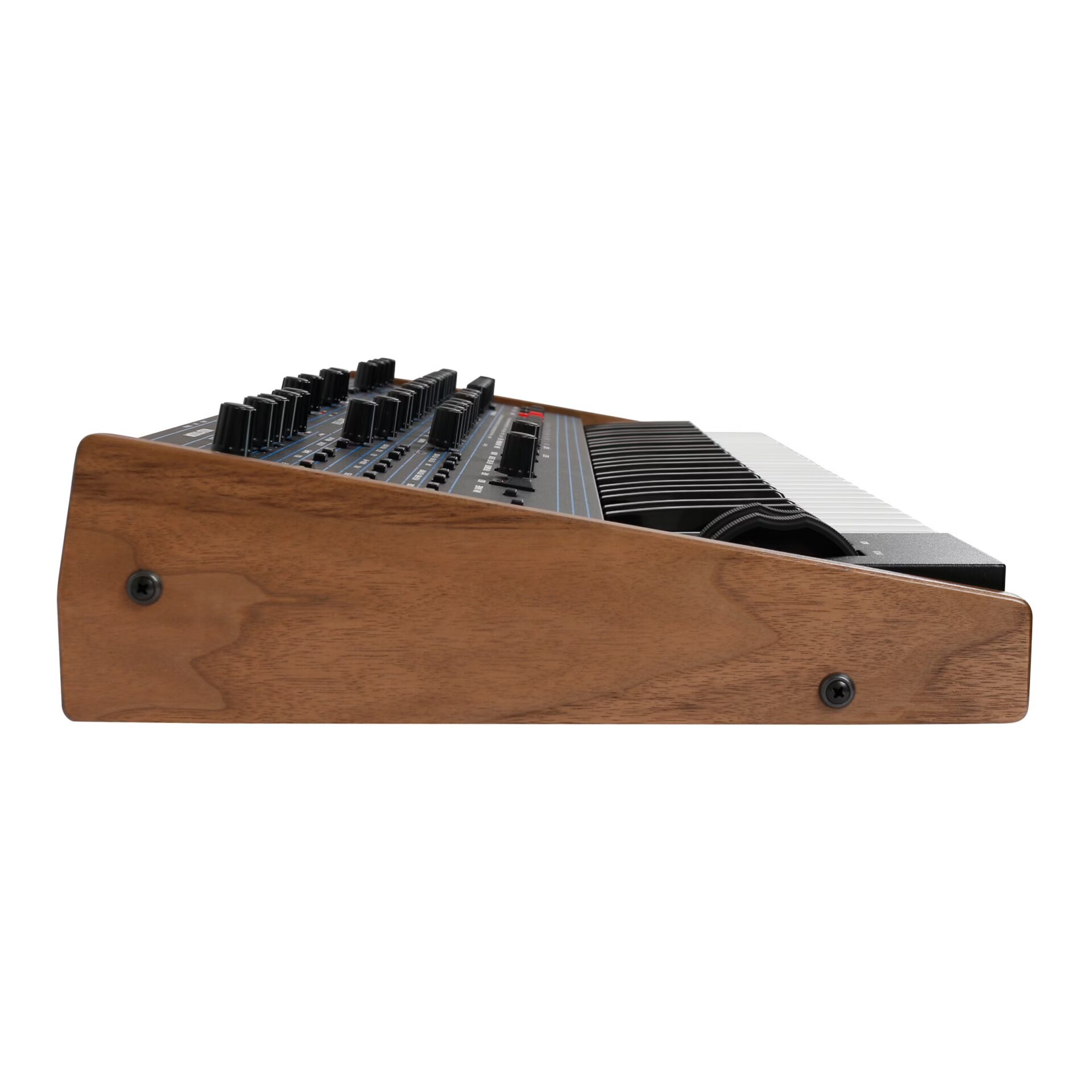

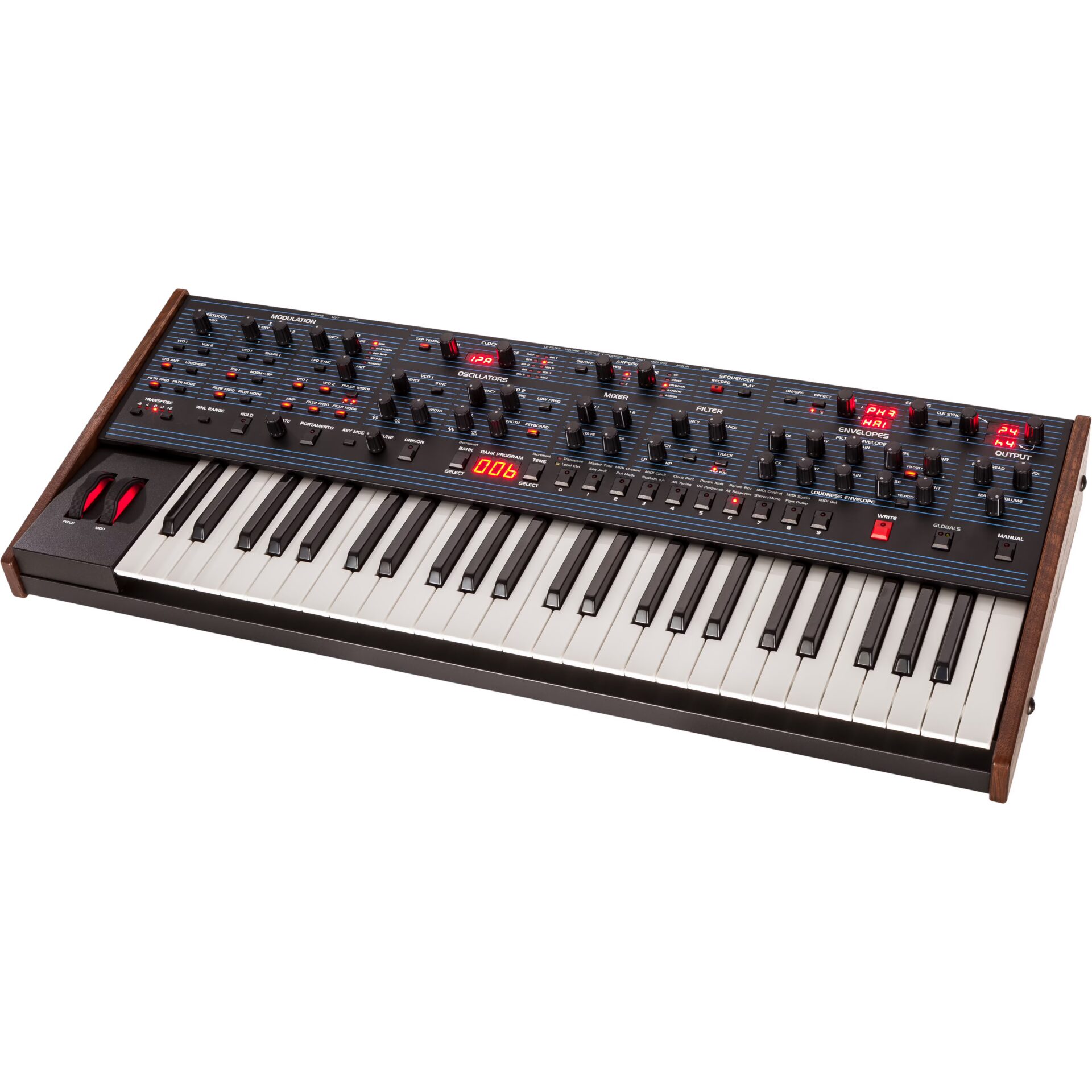

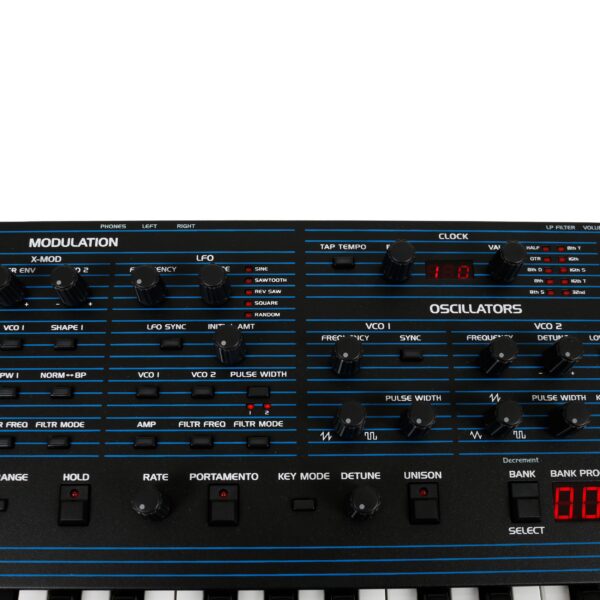

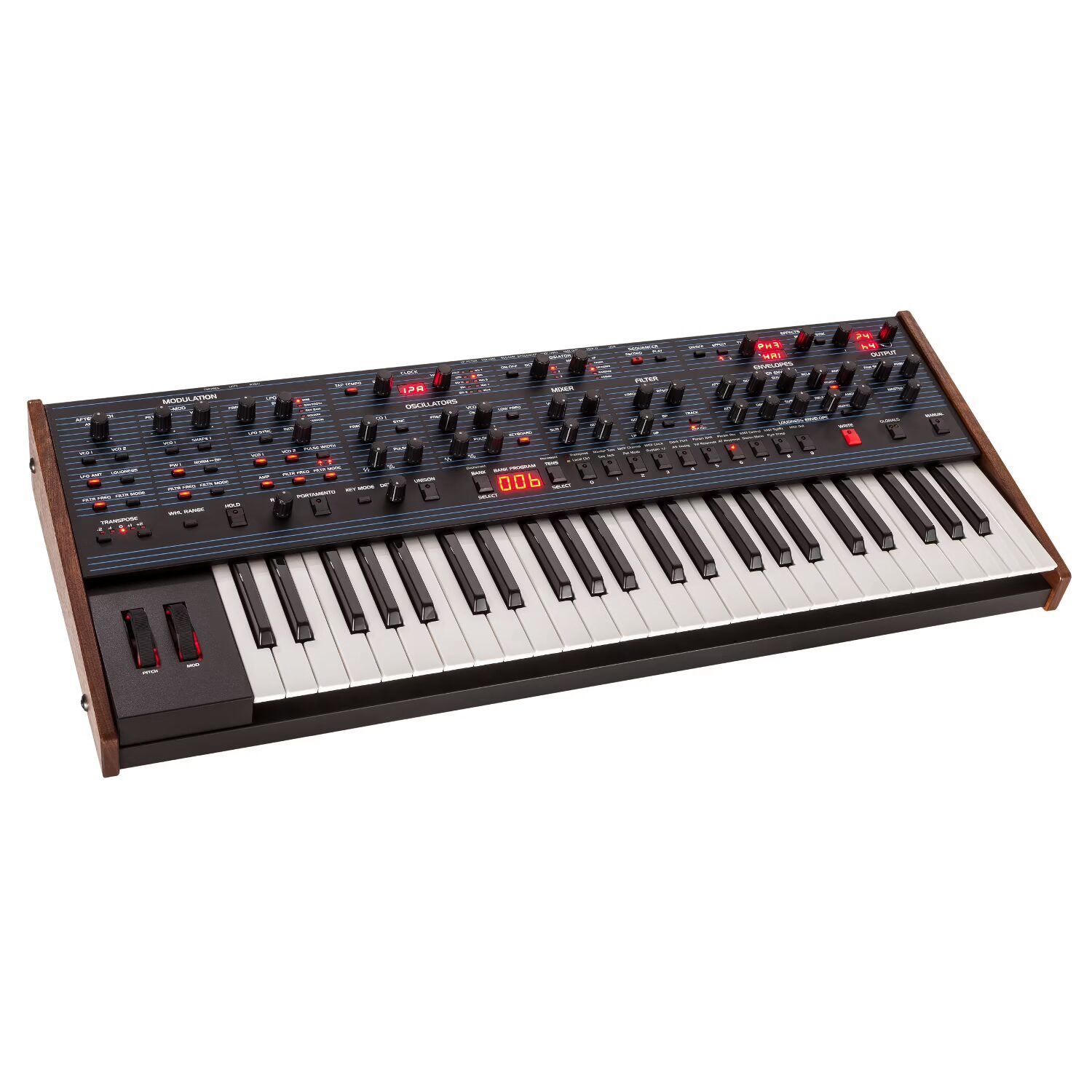

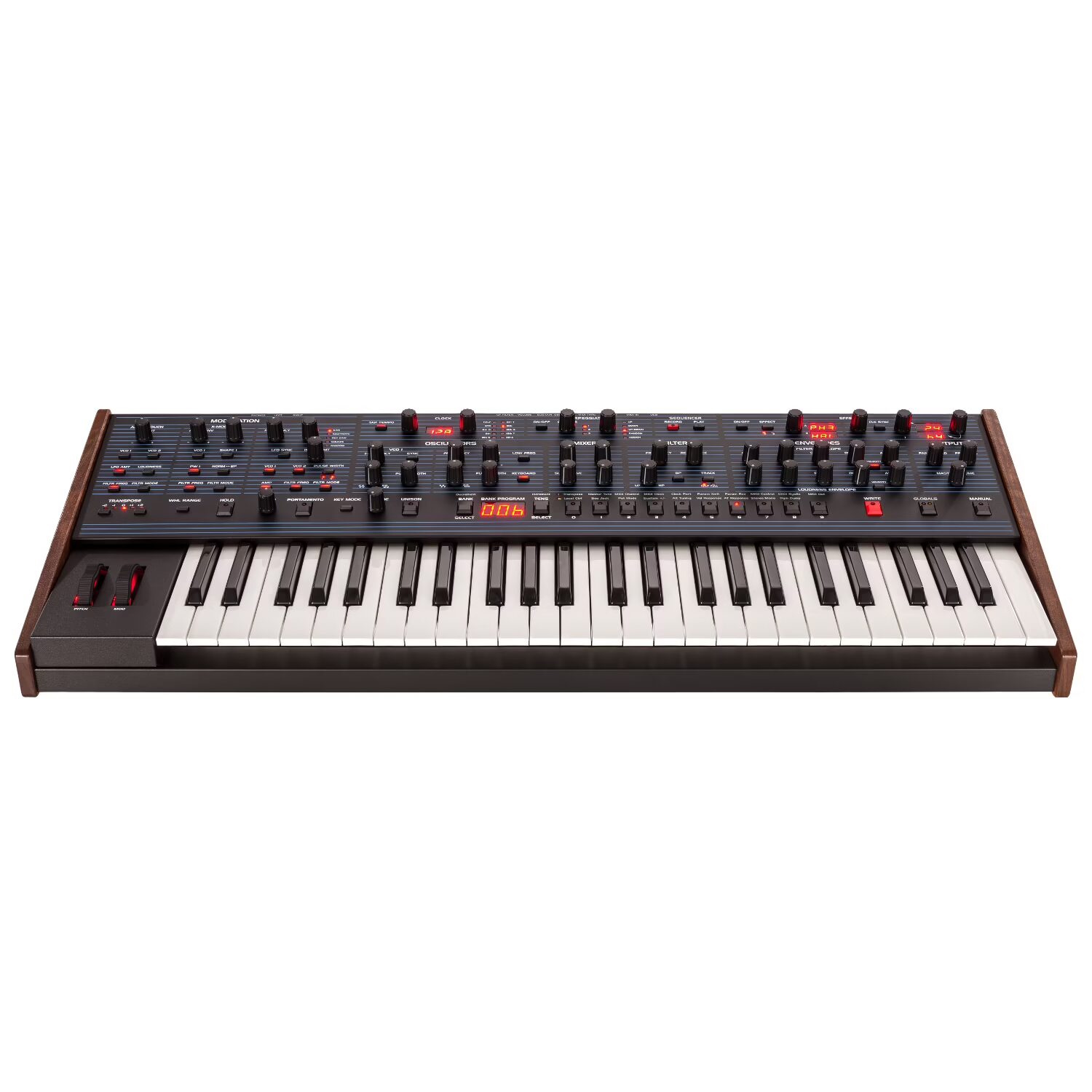

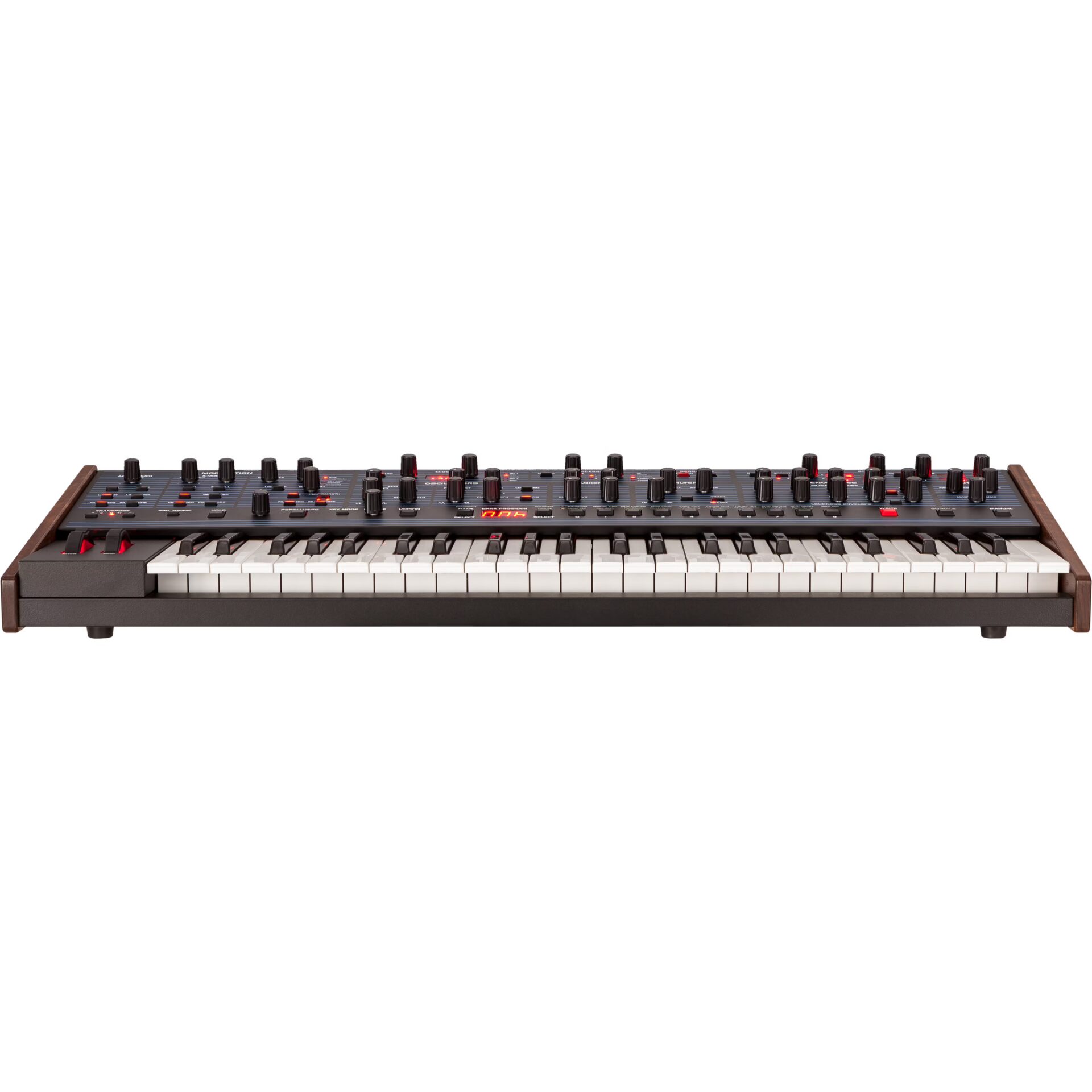

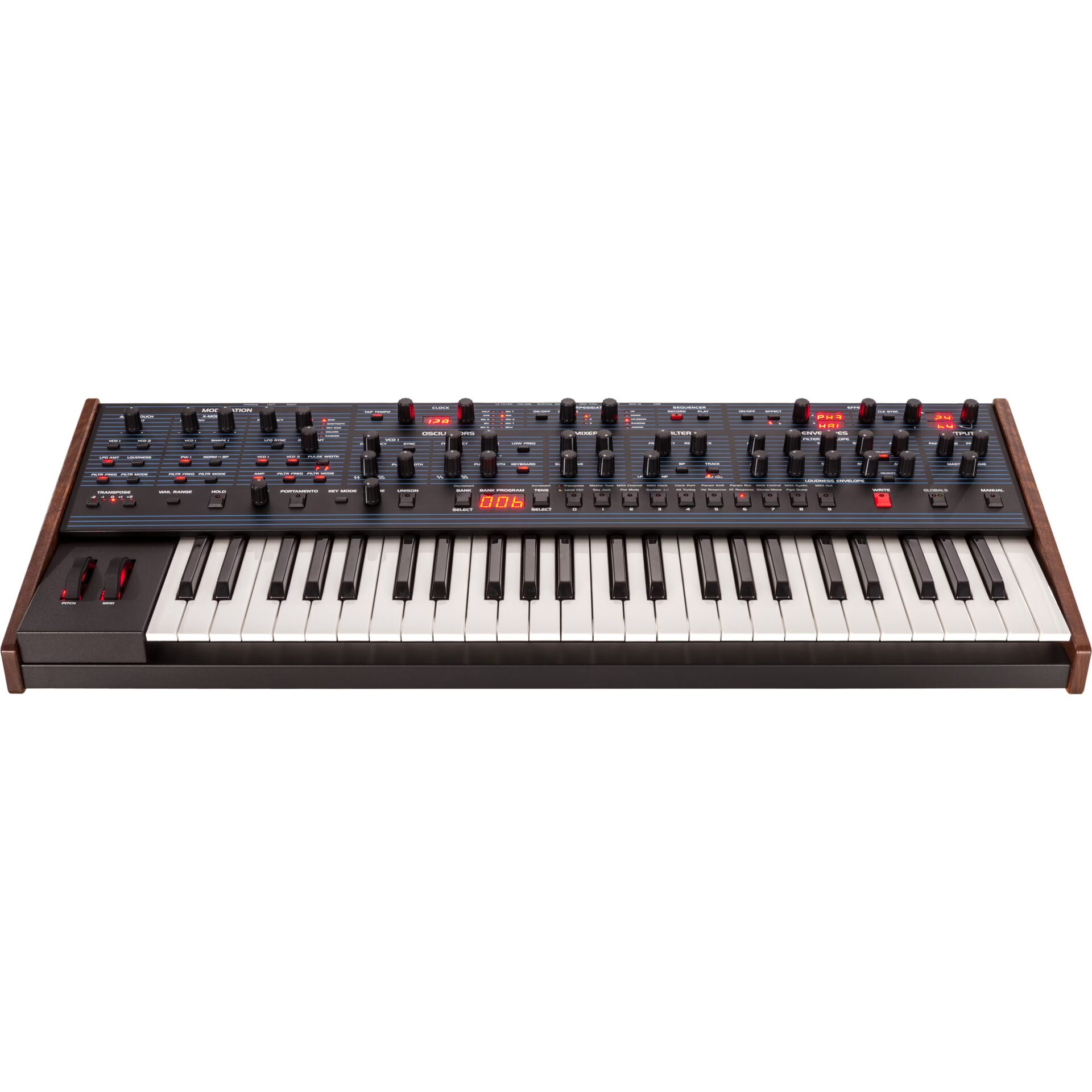

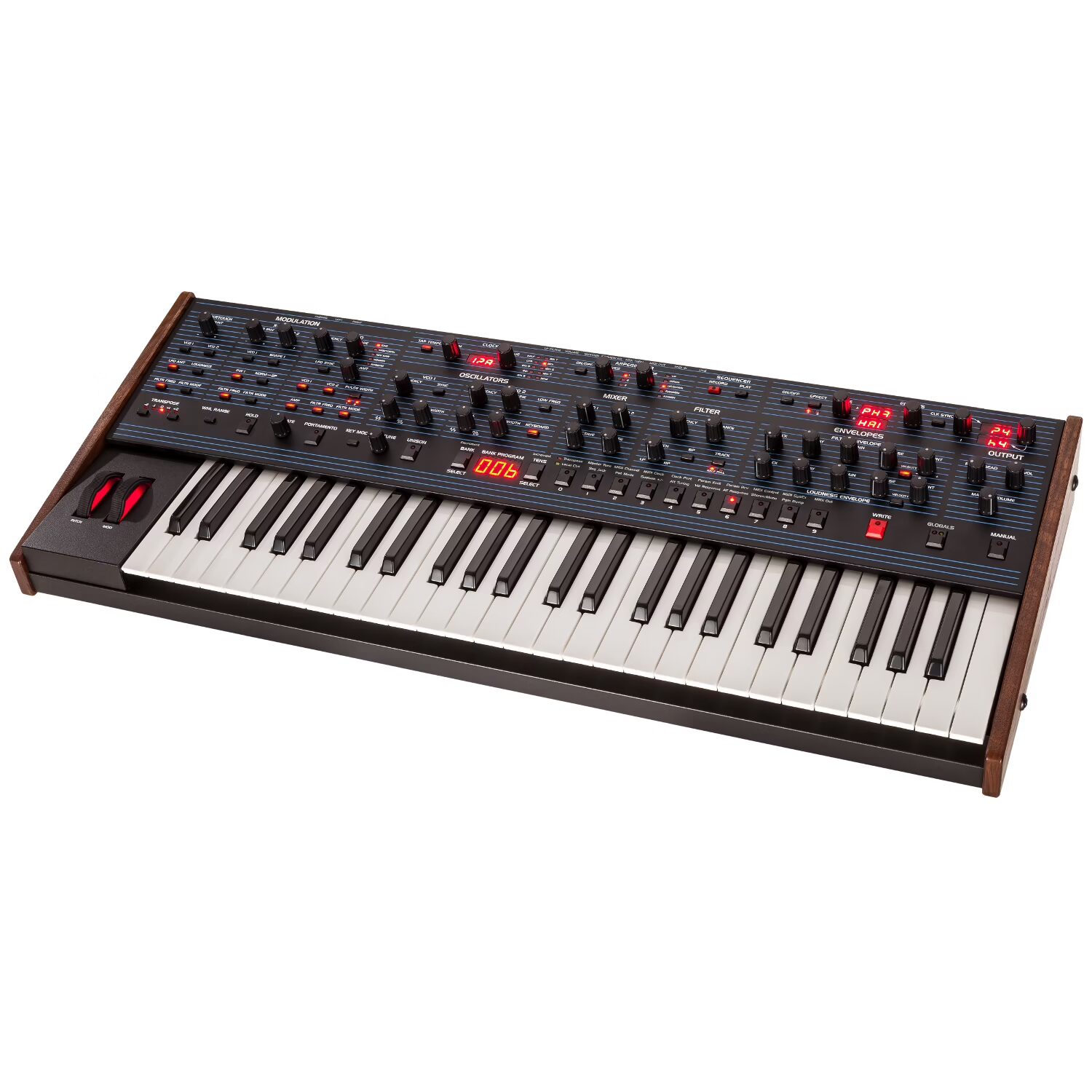

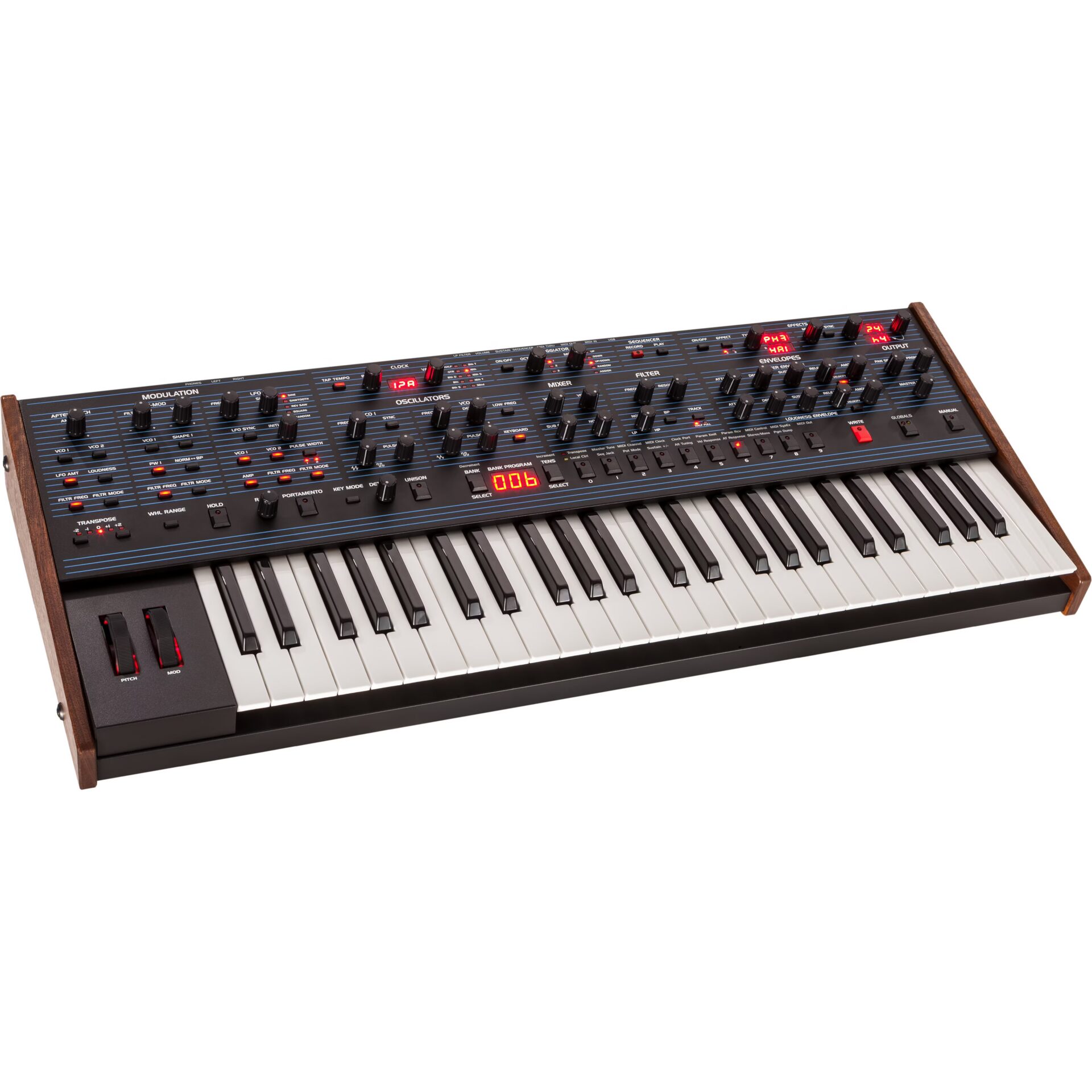

Sequential OB-6
polyphonic analogue synthesizer
polyphony: 6 voices

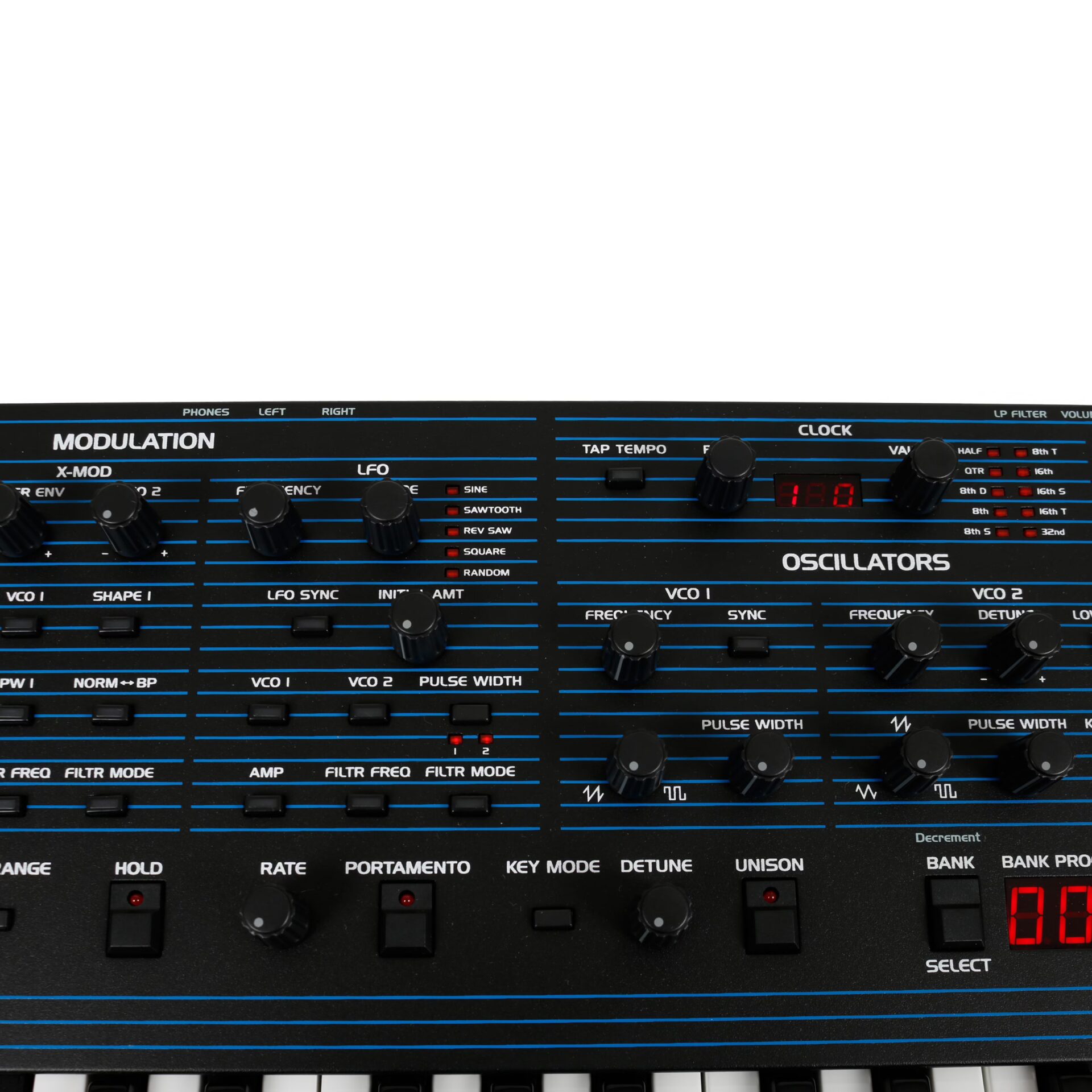

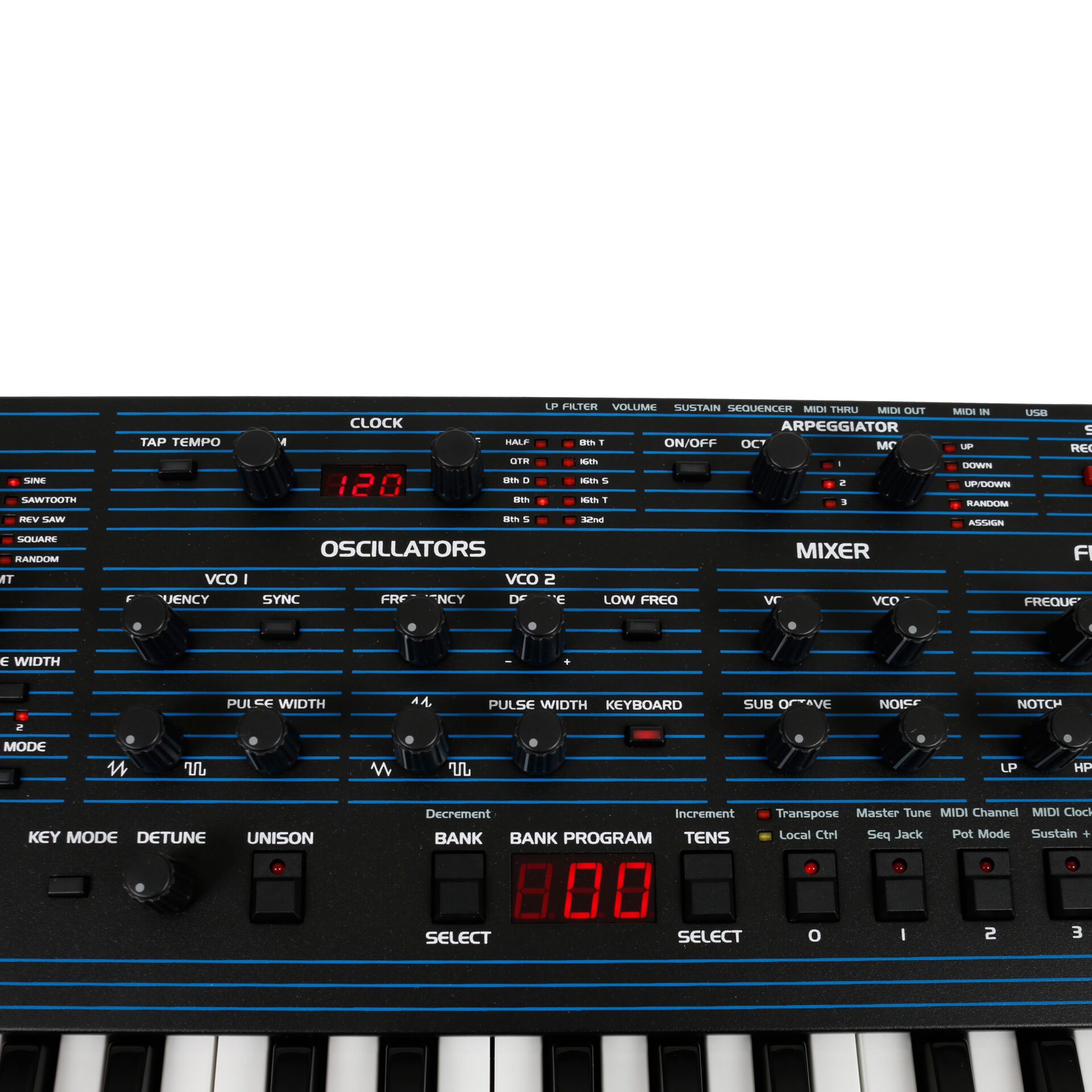

oscillators:
VCOs per voice: 2
sub octave oscillator (osc 1)
low-frequency mode for osc 2
mixer for osc1, osc2, sub and noise
filter:
LPF, BPF, HPF, notch (12dB) based on Oberheim SEM filter
ADSR
velocity modulation of envelope amount
VCA:
ADSR
velocity modulation of envelope amount

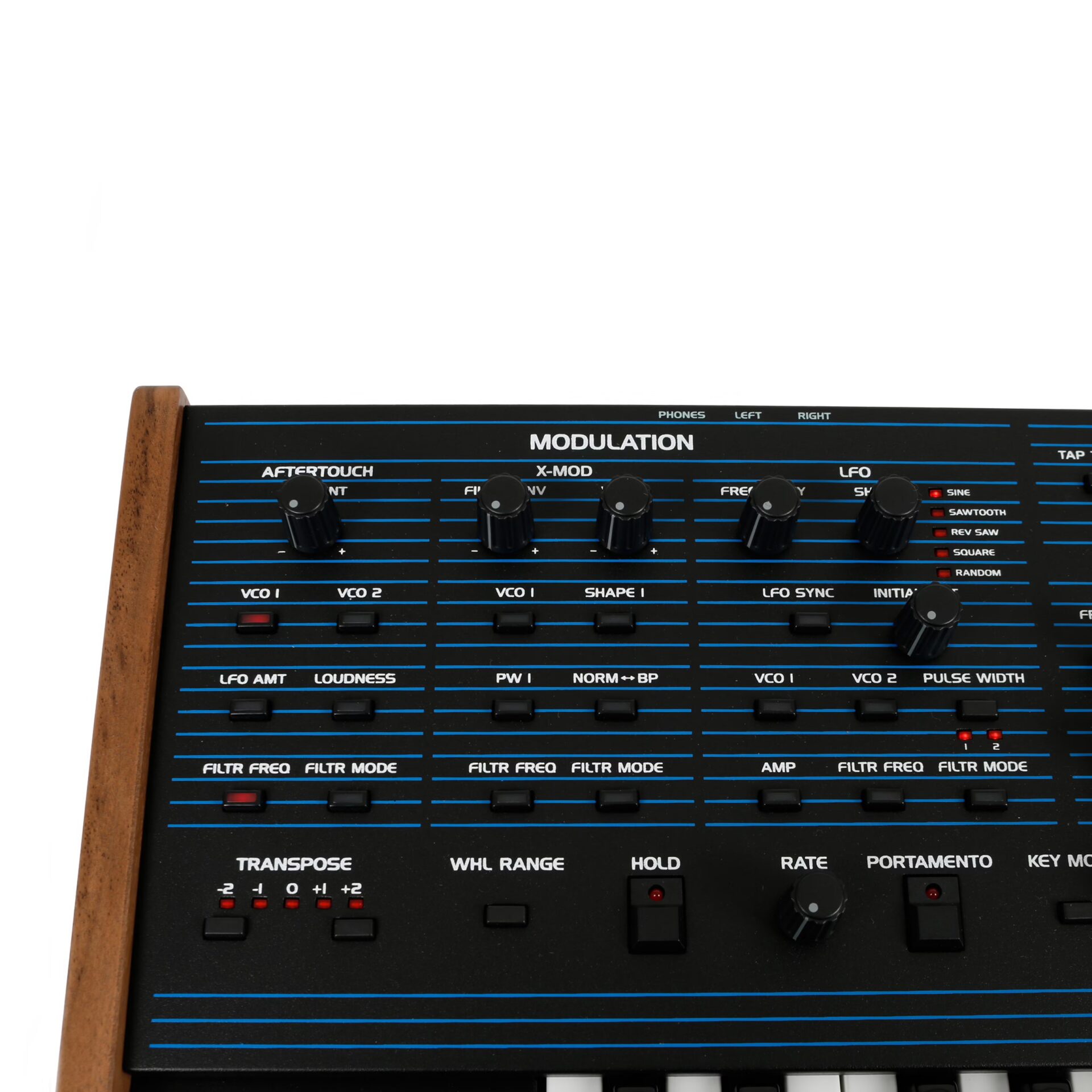

LFO:
waveform: sine, sawtooth, reverse sawtooth, square, random (sample & hold)
clock sync (internal or external MIDI clock)
elaborate routing
modulation matrix
arpeggiator
polyphonic step sequencer (64 steps)

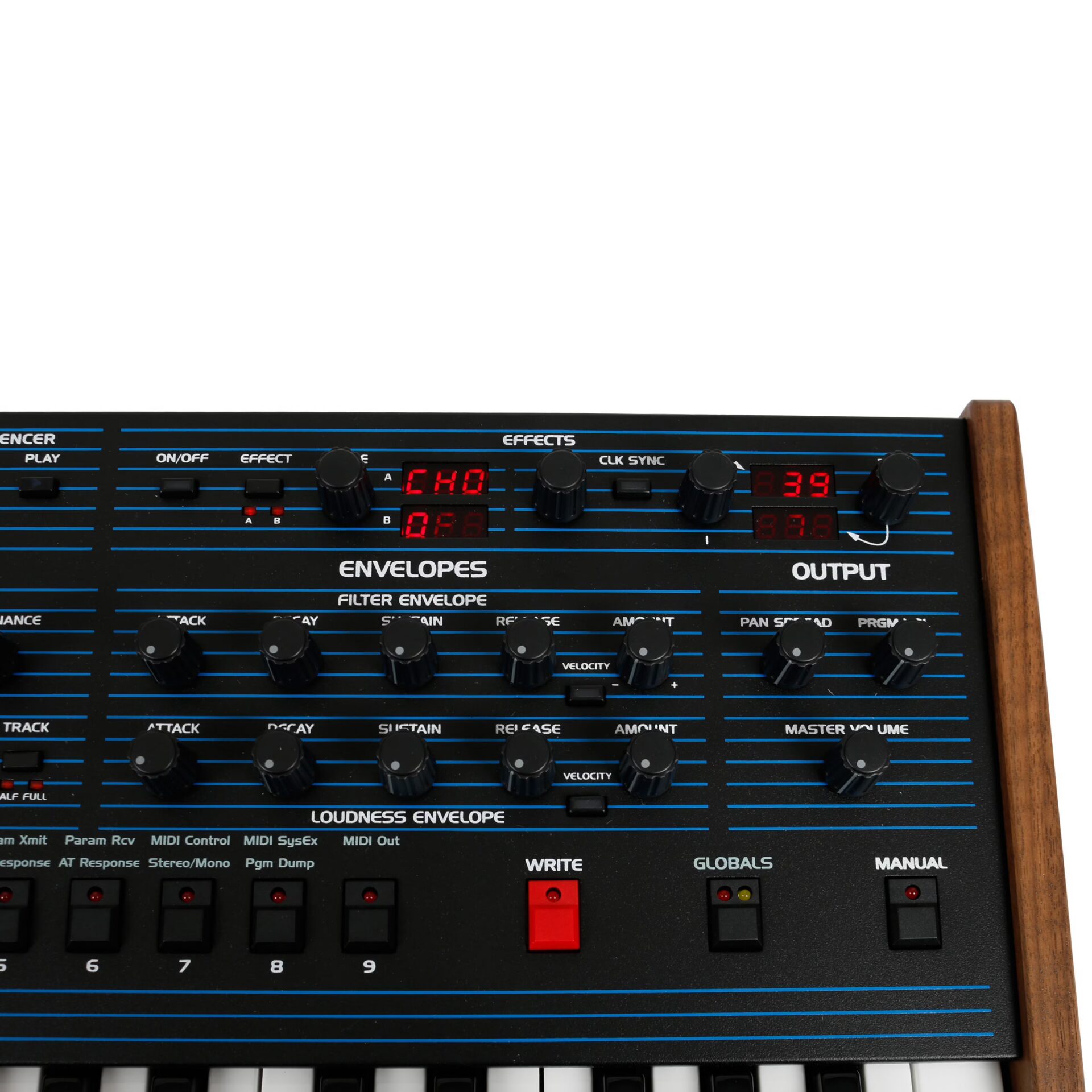

effects:
stereo analogue distortion
24-bit 48kHz DSP – including reverb, delay, emulated BBD, chorus, flanger, phaser, ring modulator
delay sync
true bypass
keyboard: 49 keys, velocity-sensitive, aftertouch
pitch and modulation wheels (backlit)
polyphonic portamento
patch memory: 500 user programs, 500 factory programs

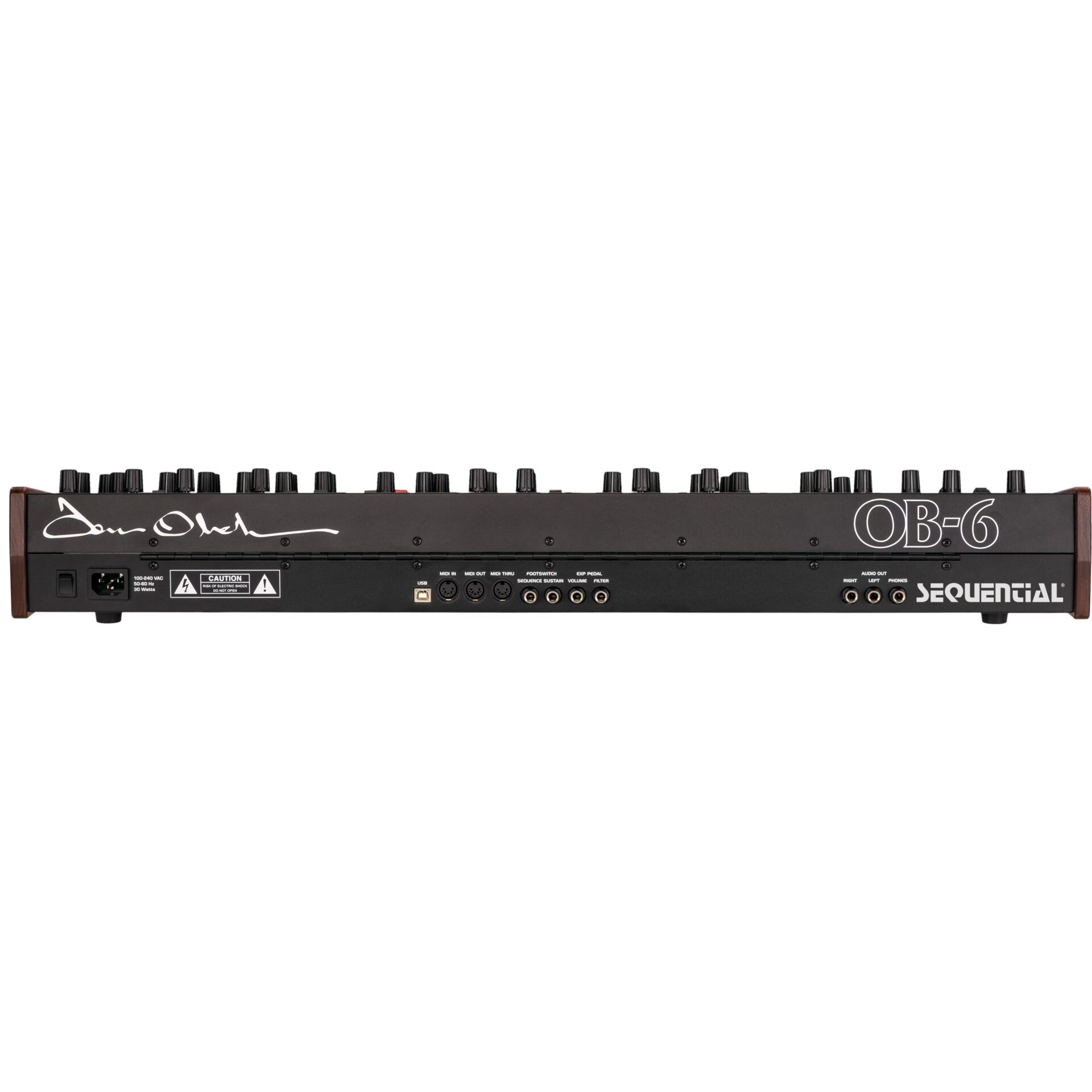

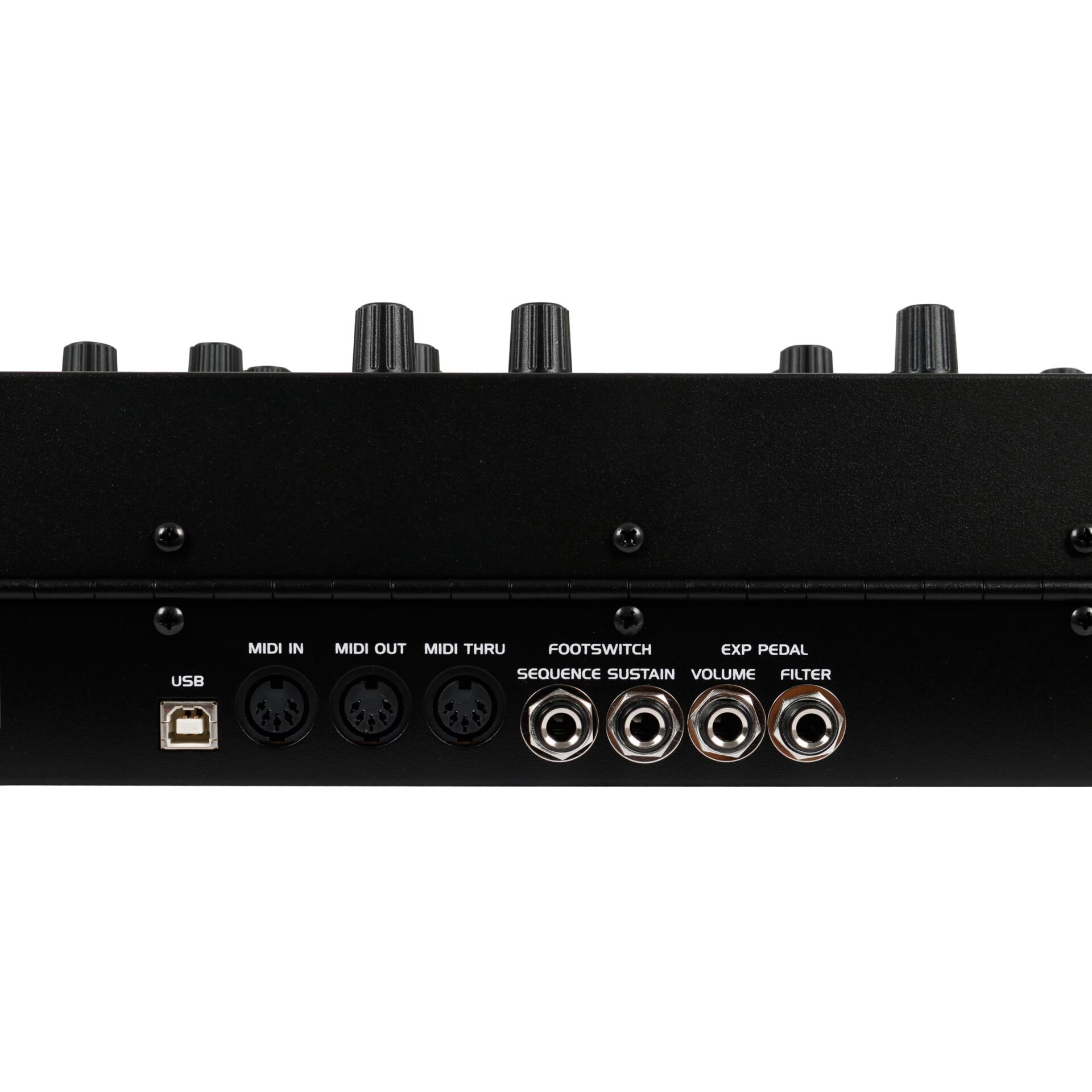

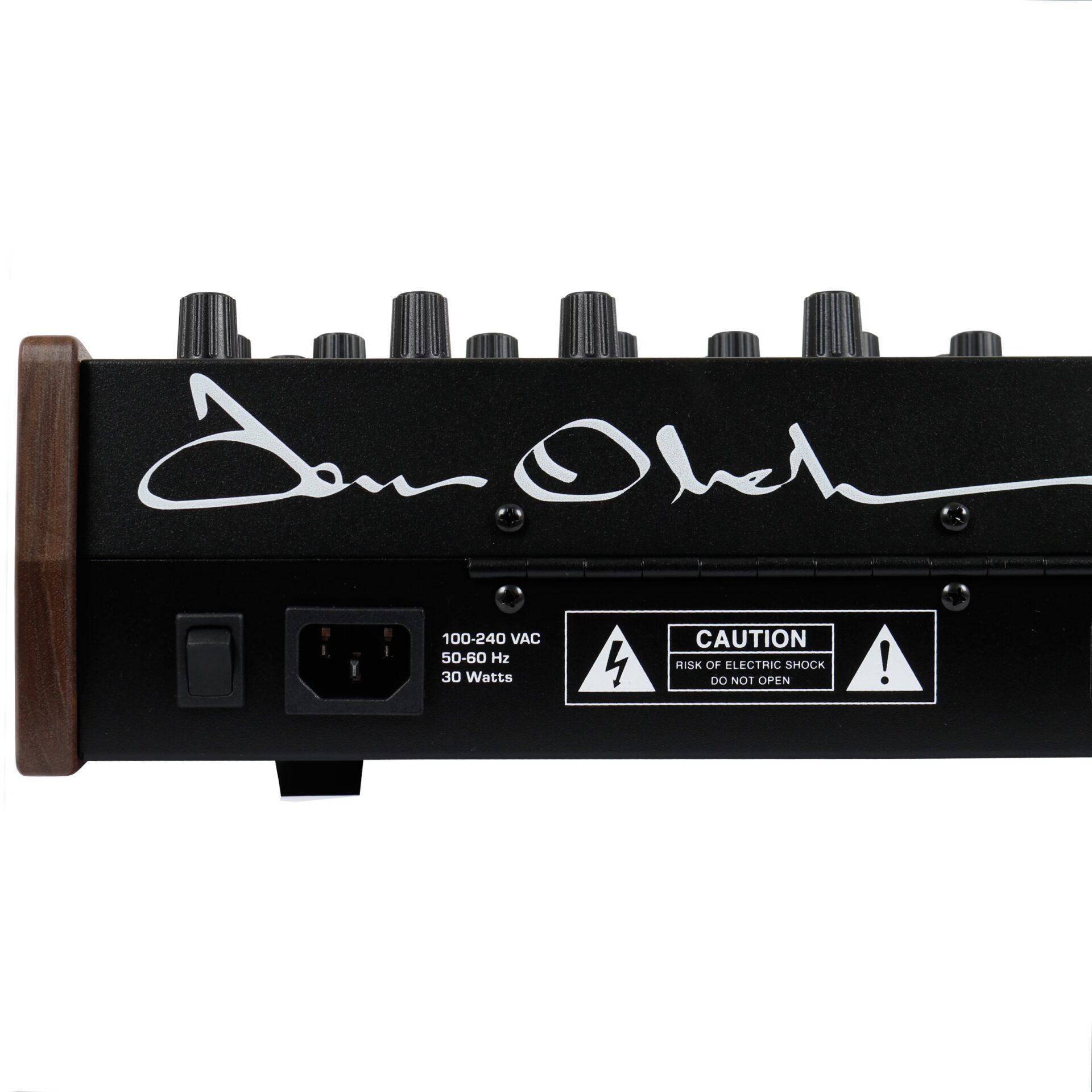

connectors:
output: 2x jack
headphone output: jack
MIDI in, out, thru
USB MIDI
filter cutoff expression pedal input
volume expression pedal input
sustain foot switch input
sequencer start/stop foot switch input
dimensions: 813 x 323 x 117mm
weight: 9.5kg
