Description
Specifications
Product features
Speaker connections XLR input, out / link / thru
Woofer diameter 2 x 15 inches
Weight per speaker 55 kg
Maximum SPL 130 dB – 139 dB
Maximum subwoofer frequency 160 Hz
Minimum frequency 40 – 49 Hz
RMS power in watts 750 – 1,499 W
Locking speaker connectors no
Weight and dimensions including packaging
Weight (incl. packaging)63.8 kg
Dimensions (incl. packaging)90.0 x 84.5 x 62.0 cm
Product specifications
active subwoofer
audio
woofer (2x)
15″
600 W
frequency range: 40 – 160 Hz
dispersion: 90 x 60 degrees (rotatable)
max SPL @ 1 m: 135 dB
adjustable crossover frequency: 80, 100, 120 or 150 Hz
Master Level volume knob
phase switch, 0/180 degrees
thermal limiter
over-temperature muting
input voltage limiter (peak/RMS)
DC offset removal
overvoltage/overcurrent protection on primary AC mains
amplifier
type: class D, bi-amped
power
RMS: 1,200 W
peak: 2,400 W
input impedance: 10 kOhms

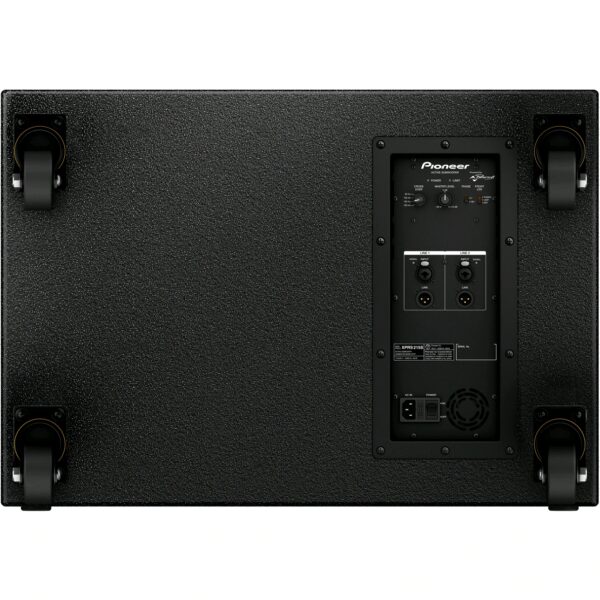

connectors:
combo XLR/jack input (2x)
XLR link output (2x)
power supply: AC 100-240 V 50/60 Hz, auto adjust
power consumption: 240 W
housing

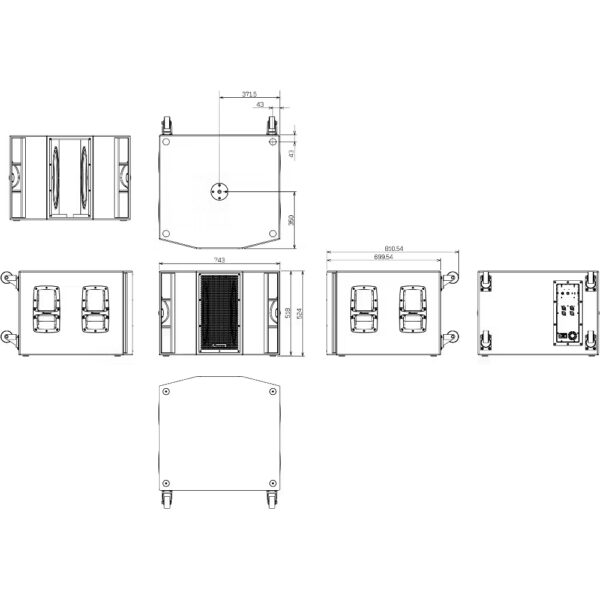

dimensions: 743 x 524 x 811 mm
weight: 55.9 kg
material: 15mm birch
finish: matte black, scratch-proof
M20 threaded flange for a speaker pole
