Description
Specifications
Product features
Tube microphoneno
Microphone sensitivity (dBV/PA)-37
Microphone impedance 50-99 ohms
Low-cut filterno
Maximum SPL 110 dB – 119 dB
Maximum frequency 20 – 20.9 kHz
Microphone accessories shock mount
Minimum frequency 20 – 21 Hz
Pad switch no
Polar pattern cardioid
Stereo no
Weight and dimensions including packaging
Weight (incl. packaging)825 gr
Dimensions (incl. packaging)20.0 x 16.0 x 13.0 cm
Product specifications

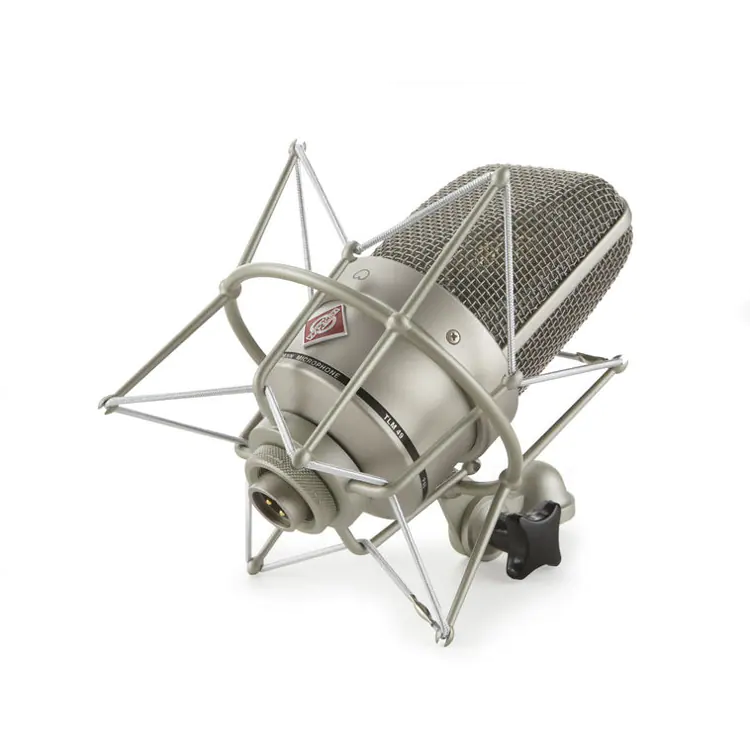

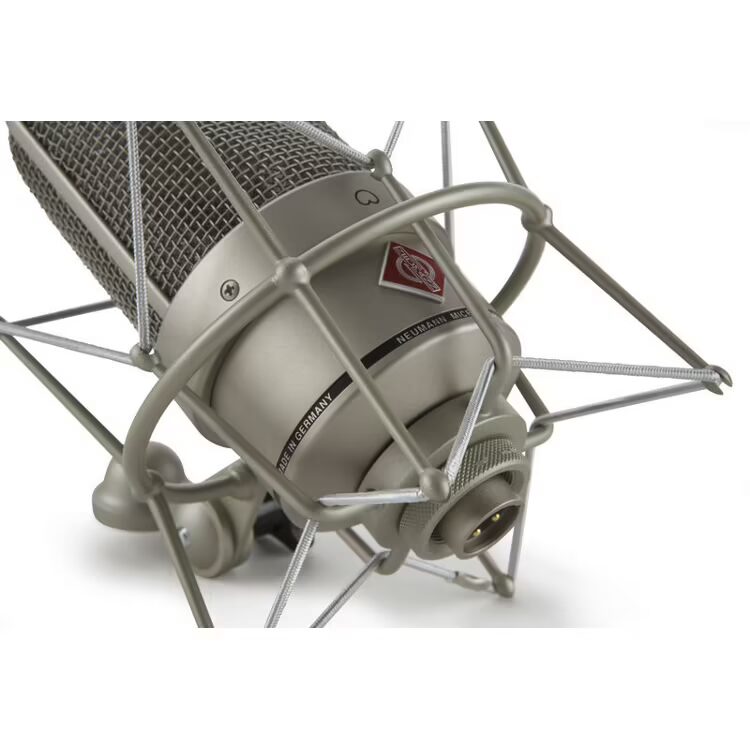

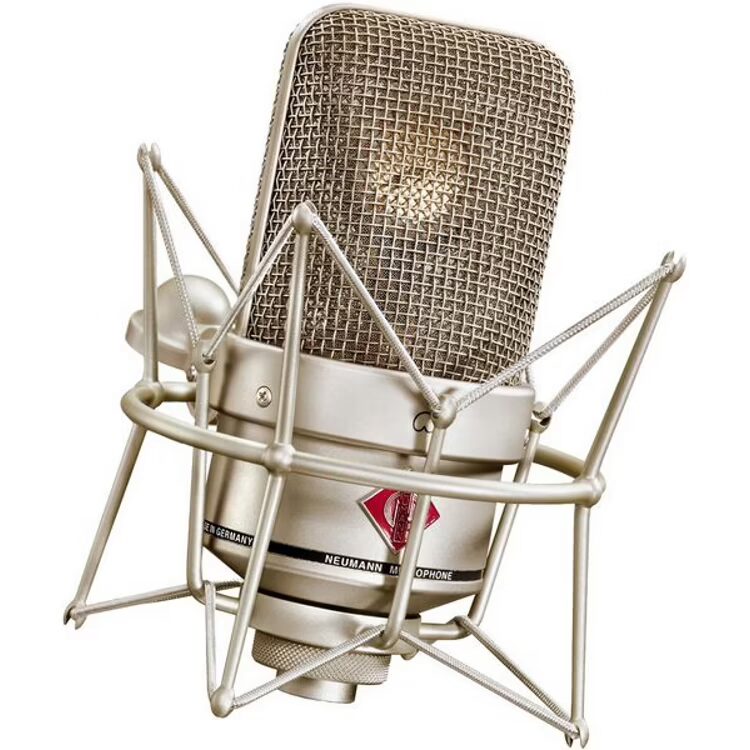

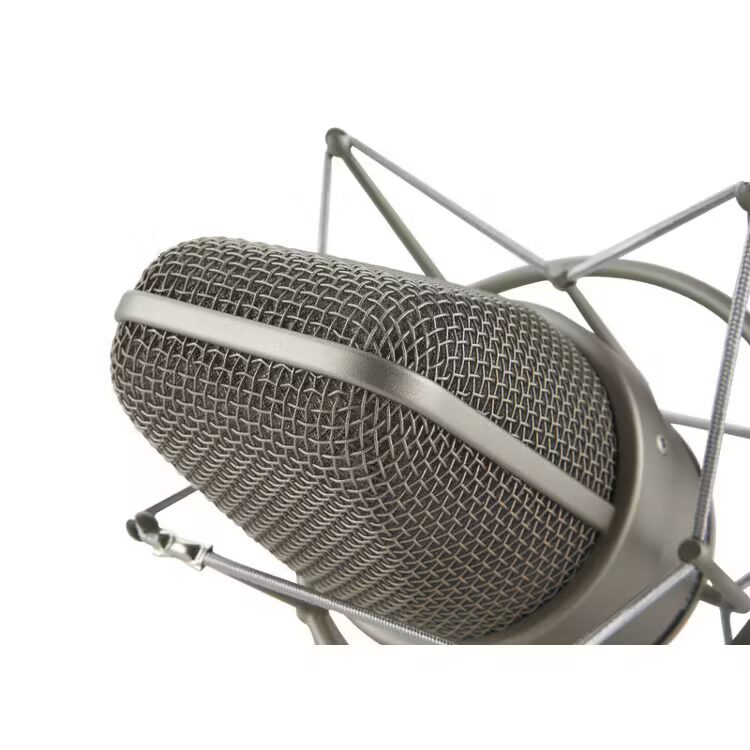

TLM49 large-diaphragm studio microphone
acoustic processing principle: pressure-gradient transducer
pickup pattern: cardioid
frequency range: 20 Hz – 20 kHz
sensitivity: at 1 KHz, 1 kOhm: 13 mV/Pa
nominal impedance: 50 Ohms
measured nominal impedance: 1 kOhm
equivalent sound level: 23 dB
signal/noise ratio: 71 dB
max. SPL at THD 0.5%: 110 dB
maximum output level: 1 dBu
power voltage: 48 V ± 4 V
power consumption: 3.2 mA

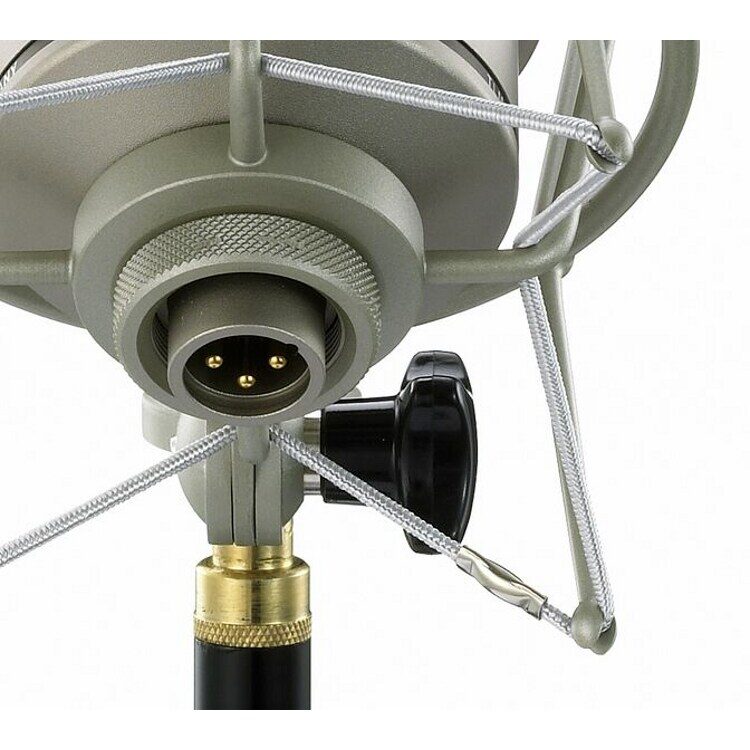

matching connector: XLR3F
colour: nickel
weight: 825 grams
diameter: 78 mm
length: 165 mm
