Description
Specifications
Product features
Touch-sensitive keys Yes
ConnectorsHeadphone (jack), Line-in (2x jack), Line-in (mini jack), Line-out (2x jack), Sustain pedal
Number accompaniment styles 501 >
Number of keys 61
Aftertouch yes, monophonic
Arpeggiator/sequencer sequencer, style maker
Weight 10 – 14.9 kg
Built-in sampler yes
Built-in speakers yes
Built-in amplifier 2x 20 W + 40 W
Lyrics/score display lyrics
MIDI I/Oin, out, thru, USB in / out
Pitch and modulation wheel yes
Polyphony (max.)128
Type of displayTFT, colour
Vocal harmony yes
Vocoder no
Weight and dimensions including packaging
Weight (incl. packaging)26.2 kg
Dimensions (incl. packaging)112.0 x 56.0 x 49.0 cm
Product specifications

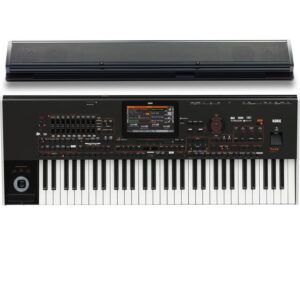

Korg Pa4X 61 Oriental
including hifi amplifier system PaAS (amplifier + speakers)
arranger workstation
Oriental version of the Pa4X with extra sounds, drum kits, styles, keyboard sets and pads from Turkey, Iran and Lebanon
number of keys: 61, touch-sensitive with aftertouch
polyphony: 128
tiltable 7″ TouchView TFT display
redesigned EDS-X Enhanced sound engine
sizeable PCM ROM for high-grade sounds
RAM for own samples: 400 MB
samples can be recorded and edited
over 1500 factory sounds
512 user memories + 128 for drum kits
over 500 built-in styles with 4 variations each and 4 fills + break
MIDI file to style converter
special controllers: 3 assignable switches, 4-way joystick and ribbon controller
special sound engine for drawbar organs
professional graphic interface with search function
memory banks for edited/new styles/settings: 13 internal, 13 on USB stick
Enhanced Guitar Mode 2 for realistic guitar parts
Chord Sequencer with loop function records on-the-fly chord progressions or imports them from SMF files
comprehensive effects processor (142 types)
style/song
4x insert
3x master
keyboard tracks
1x insert
2x master
mastering
Waves Audio (MaxxEQ, MaxxBass, MaxxTreble, MaxxStereo, MaxxVolume)
TC-Helicon Vocal Processor with four-voice vocals, vocal correction, hardtune, FX processor, Adaptive Mic Setting for automatic EQ/compressor/gate adjustments, etc.
record MP3 files, including styles, SMF, MP3 songs, keyboard tracks, pads, microphone and effects
2 MP3/MIDI players with crossfader and advanced voice remover
song lyric compatibility in graphic format (+G) of MIDI and MP3 files
programmable songbook: styles + SMF + karaoke + MP3
keyboard set library
styles and keyboard sets can be accessed directly from USB stick
storage and protection by means of MicroSD card
improved compatibility GM and XG songs
optionally available: internal SATA hard disk
housing: aluminium
included
music stand
AC power cable
quick-start guide
CD-ROM with videos manuals and software
dimensions: 980 x 364 x 126 mm
weight: 13.9 kg
PaAS
speaker system
tweeters: 2x
mid speakers: 2x (80 mm)
subwoofer: 1x (130 mm)
2x 20 W + 1x 40 W
easy assembly
