Description
Specifications
Product features
6.3mm TRS connector no
Woofer diameter 2 x 18 inches
Wire clamp outputs no
Sensitivity 96 dB
Weight per speaker 61 kg
Maximum SPL 140 dB – 149 dB
Maximum subwoofer frequency 150 Hz
Minimum frequency 30 – 34 Hz
Nominal impedance 4 ohms
Peak power in watts> 3,000 watts
RMS capacity in watts 1,000 – 1,249 W
Locking speaker connectors yes
Weight and dimensions including packaging
Weight (incl. packaging)65.0 kg
Dimensions (incl. packaging)133.0 x 80.0 x 62.0 cm
Product specifications

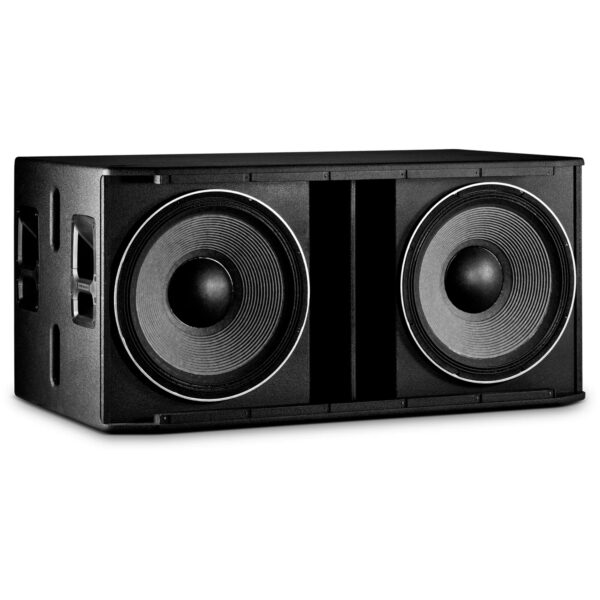

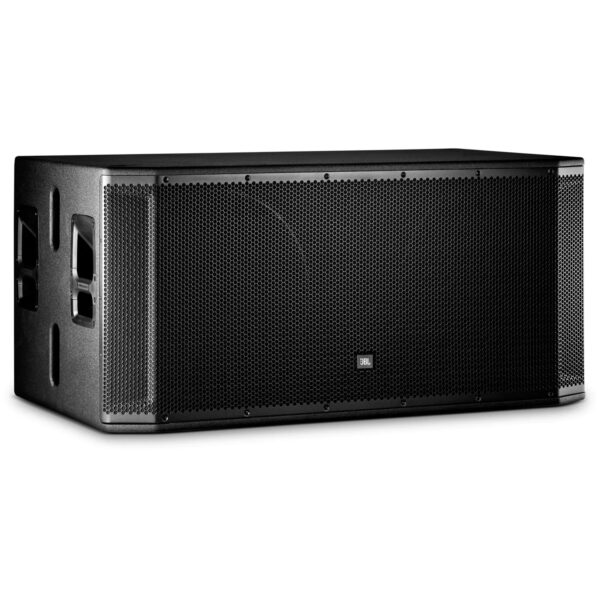

JBL SRX828S
double passive subwoofer
technical information
woofer: 2x 2279H, 18 in
output capacity: 1200 W (continuous), 2400 W (program), 4800 W (peak)
frequency range: 30 Hz – 150 kHz
crossover frequency: 80 Hz
sensitivity: 96 dB
impedance: 4 Ohms
max. SPL: 141 dB

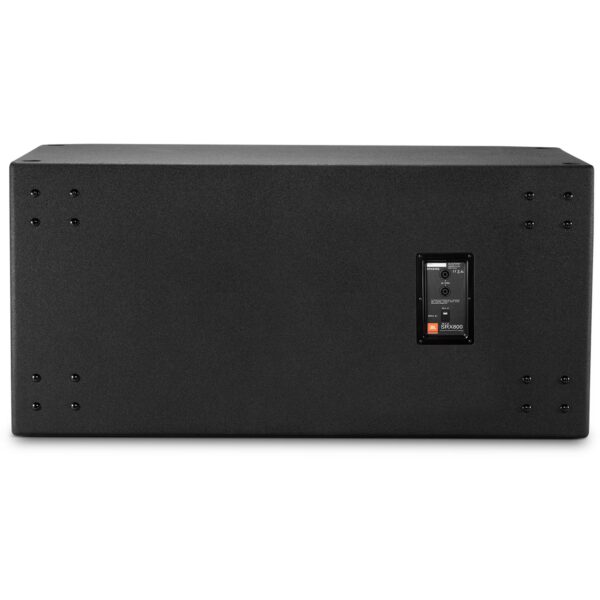

connections: 2x SpeakOn
cabinet:
material: 18mm plywood with Obsidian Duraflex finish

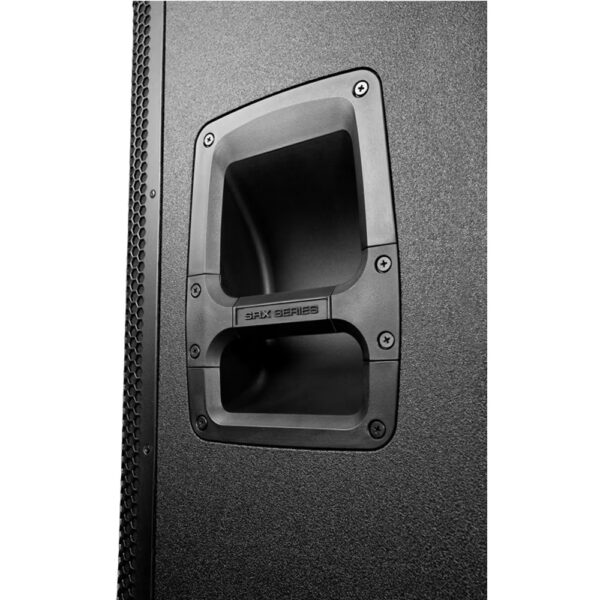

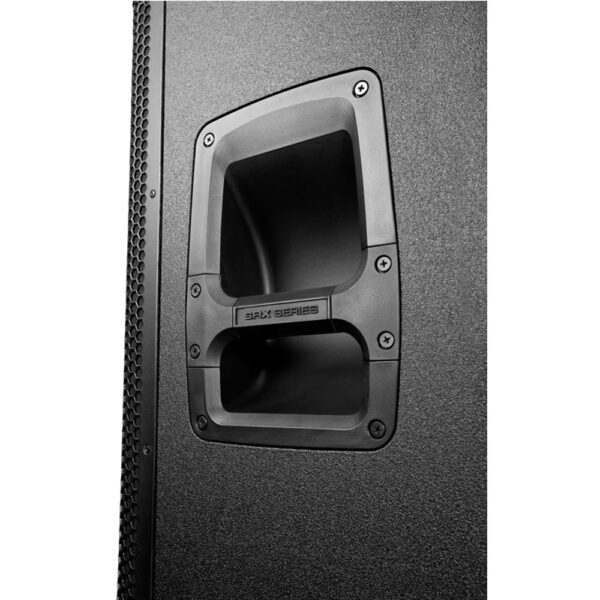

handles: 8x recessed

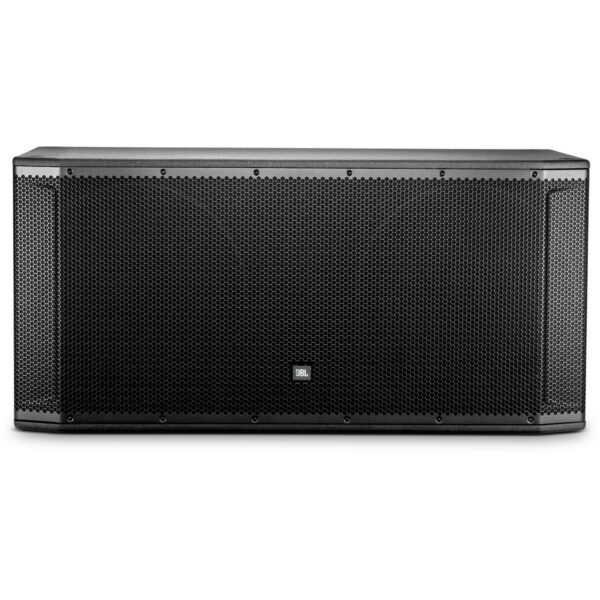

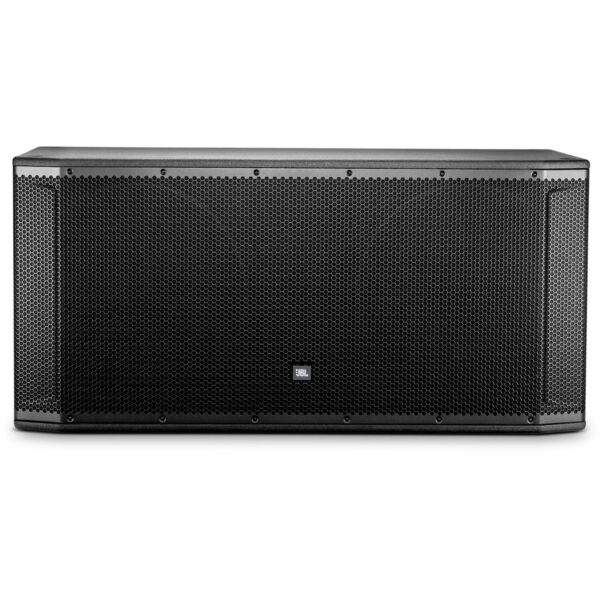

grille: perforated steel with black acoustic speaker cloth
option to attach wheels underneath (wheels not inc;uded)
dimensions: 681 x 1205 x 574 mm
weight: 62.1 kg
