Description
Specifications
Product features
Number of keys 61
Includes chassis no
Includes pedals no
MIDI I/Oin/out
Pitch and modulation wheel no
Weight and dimensions including packaging
Weight (incl. packaging)8.0 kg
Dimensions (incl. packaging)113.0 x 38.0 x 28.0 cm
Product specifications
digital drawbar keyboard
lightweight and compact design
sound engine: VASE III
keyboard: 61 waterfall keys

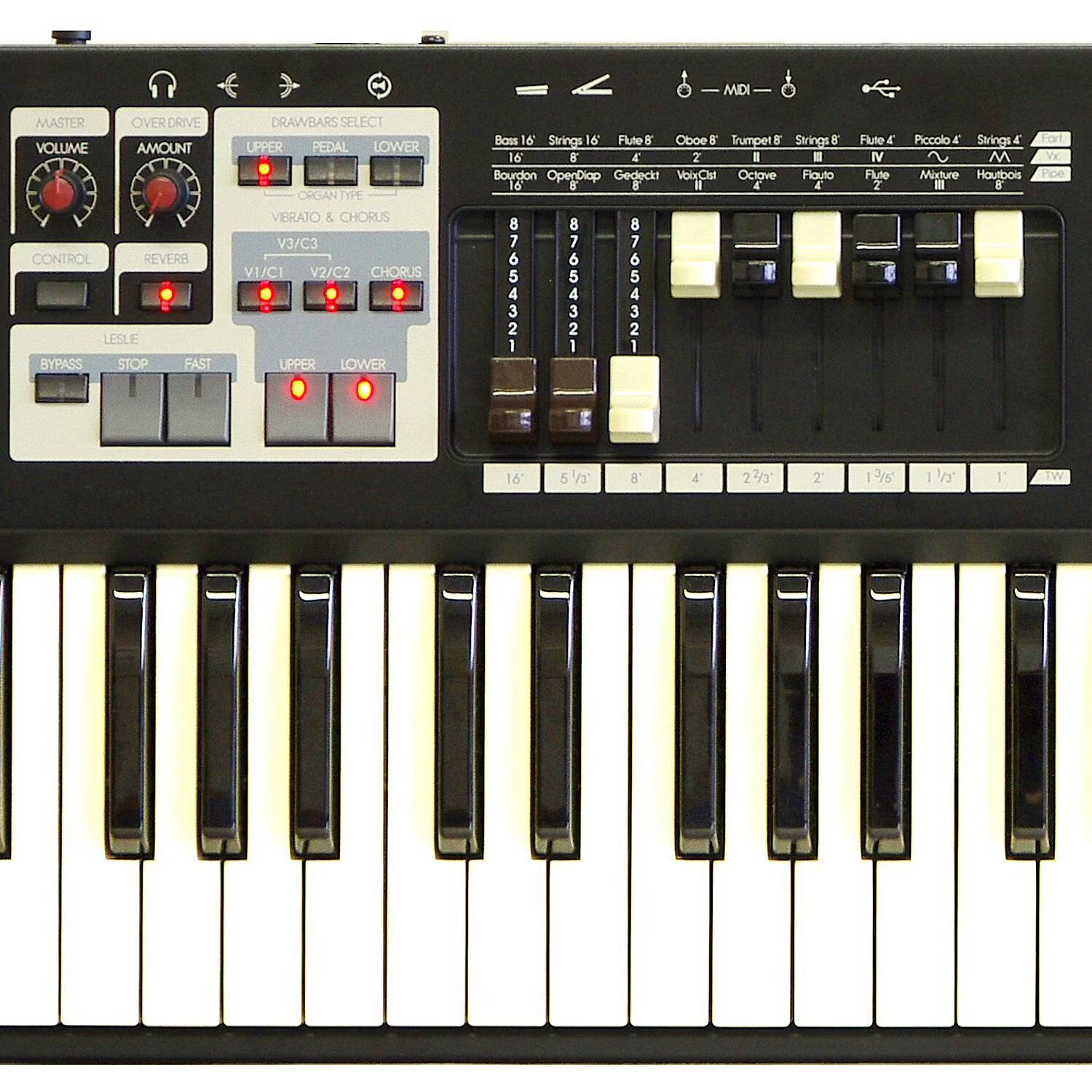

number of drawbars: 9 (16, 5 1/3, 8, 4, 2 2/3, 2, 1 3/5, 1 1/3, 1)
Hammond polyphony: 61 voices (manual) / 8 voices (pedal)
pipe organ polyphony: 63 voices
voices: B-Type1, B-Type2, Mellow, Vx, Farf, Pipe
variable key click
pedal: 4 settings (Normal, Muted, Synth1, Synth2)
built-in effects (vibrato, chorus, overdrive, multi-effects)
equalizer
internal Leslie simulation (Advanced Digital, two rotors)
patches: 64 (presets) + 64 (user)
USB storage possible via a flash drive
LCD display (2×20 characters)
MIDI: 8 templates, 3 assignable external zones
power adapter included (AD3-1250)
dimensions: 958 x 305 x 101 mm
weight: 7.5 kg
Connectors:
MIDI IN/OUT (DIN)
line out (L/R): 2x jack)
headphone connector (jack)
Leslie connector (8-pin)
foot switch: jack
expression pedal (jack)
USB connector (for flash drive)
