Description
Specifications
Product features
19 inchesyes
Number of analogue Inputs 16
Number of analogue outputs 16
Computer connectors Thunderbolt 3 (USB C), Ethernet
Digital inputs S/PDIF, ADAT, DigiLink, DANTE
Digital outputs S/PDIF, ADAT, DigiLink, DANTE
Phantom power yes
Suitable for operating system Apple OSX / Mac OS
Headphone output yes
Input(s) with Hi-Z yes
Maximum sample rate 192 kHz
Included data cable Thunderbolt cable
Included softwarenone
Number of microphone inputs 2
MIDI I/O (din connector)none
Software included yes, download
Weight and dimensions including packaging
Weight (incl. packaging)0 gr
Product specifications

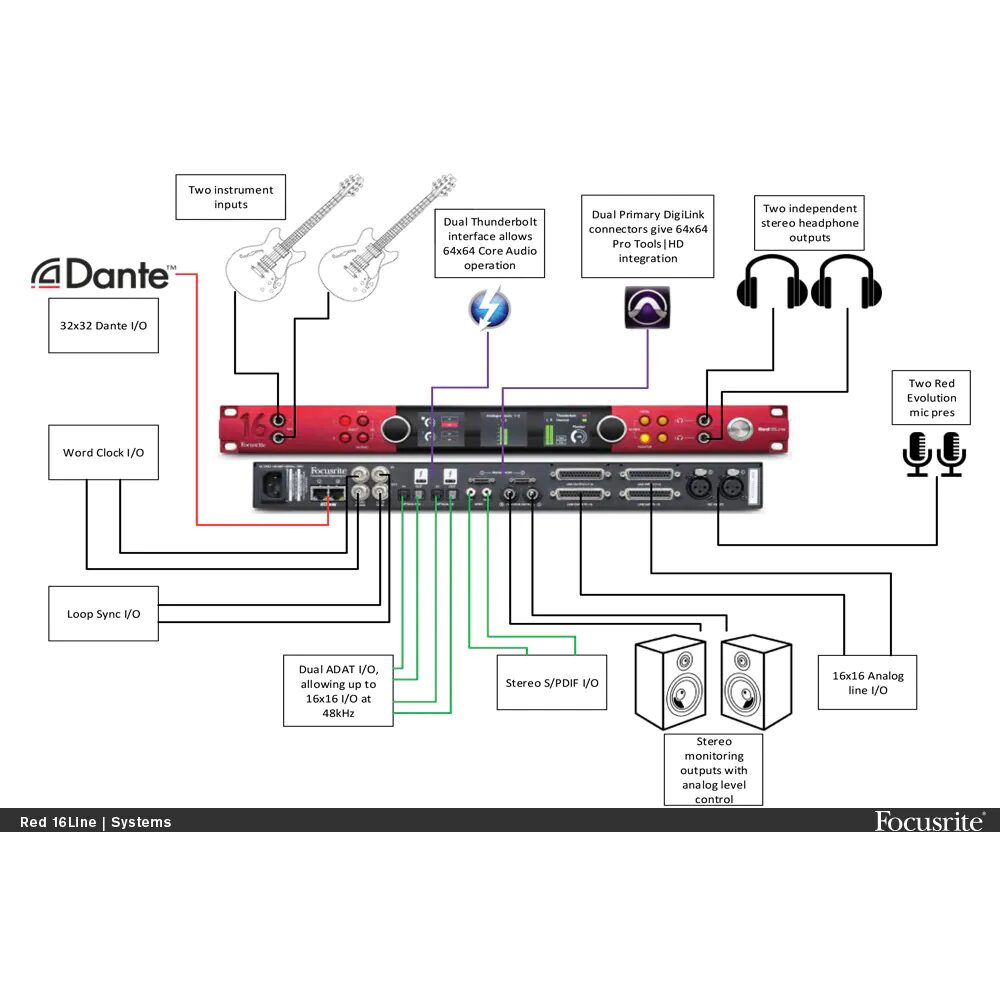

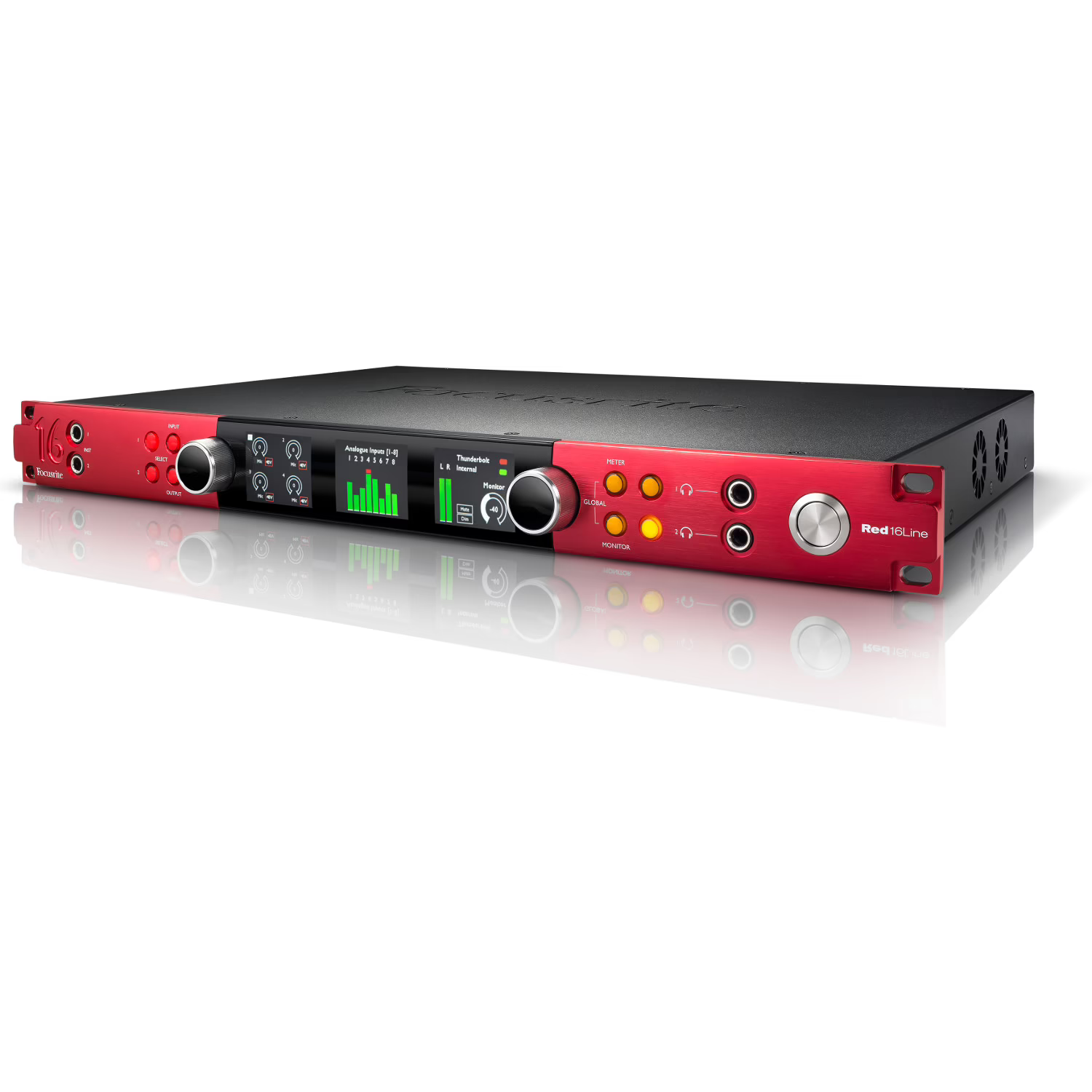

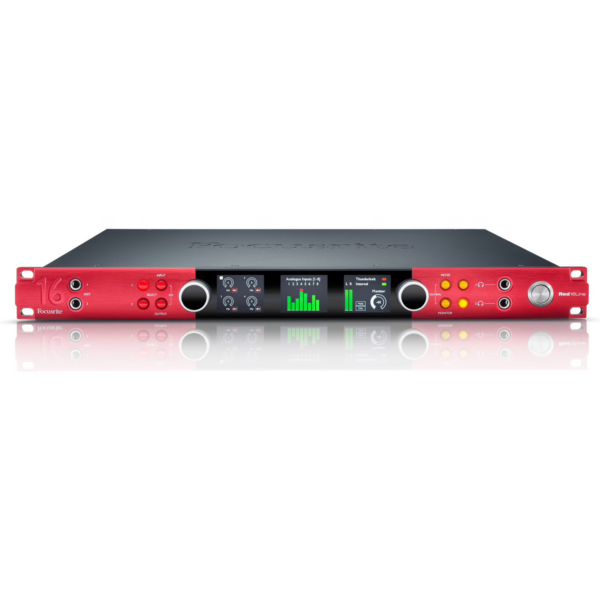

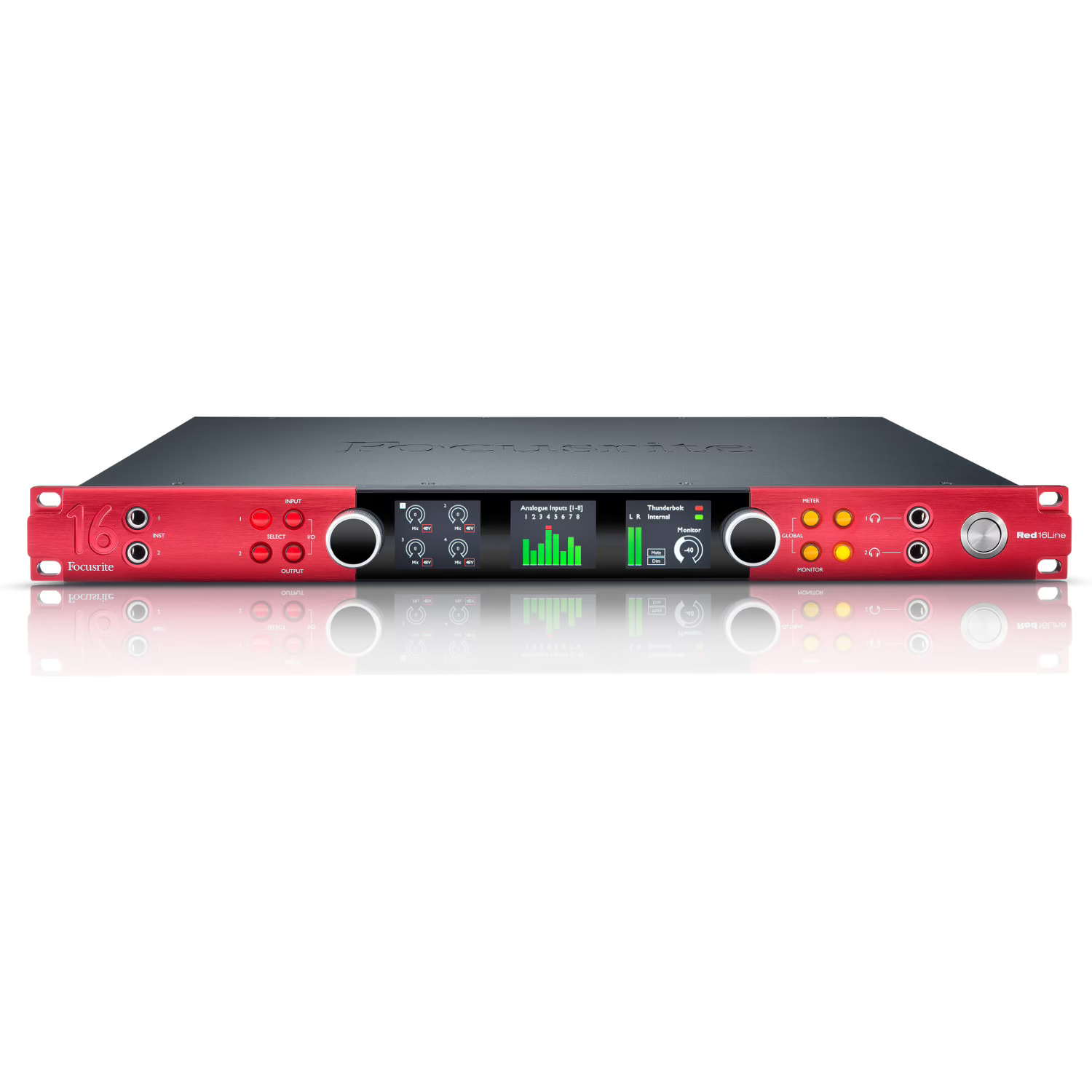

audio interface with Thunderbolt and Pro Tools HD

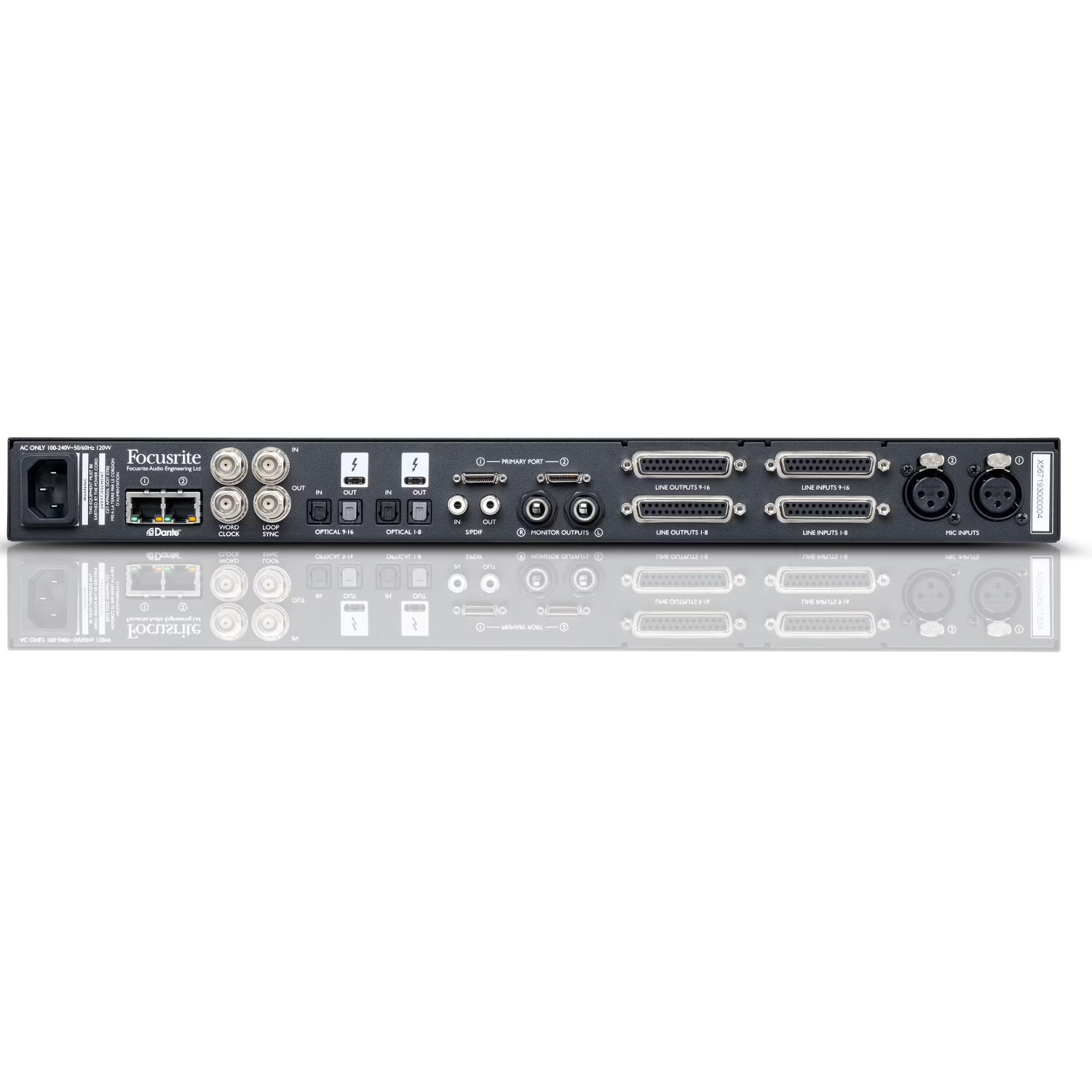

inputs:
2x jack instrument inputs
2x Dante (32 x 32 channels)
1x word clock
1x loop sync
2x ADAT
1x S/PDIF
2x D-sub (16 x 16 channels)
1x word clock
outputs:
2x Dante (32 x 32 channels)
1x word clock
1x loop sync
2x ADAT
2x Thunderbolt
2x DigiLink (Pro Tools HD connector)
2x jack monitor
2x headphone sockets
preamps:
2x Red Evolution female XLR
in the box:
power cable
Focusrite plugin suite
frequency response: 20 kHz – 35 kHz (+/- 0.2 dB)
phantom power: +48 V, adjustable per channel
system requirements: Mac with available Thunderbolt, Thunderbolt 2 or Thunderbolt 3 port
dimensions: 483 x 340 x 44mm
weight: 5.04 kg
included:
Thunderbolt cable (2m)
power cable
product registration card
Included software:
Ableton Live Lite
Pro Tools ® | First Focusrite Creative Pack
Splice Sounds
Hitmaker Expansion

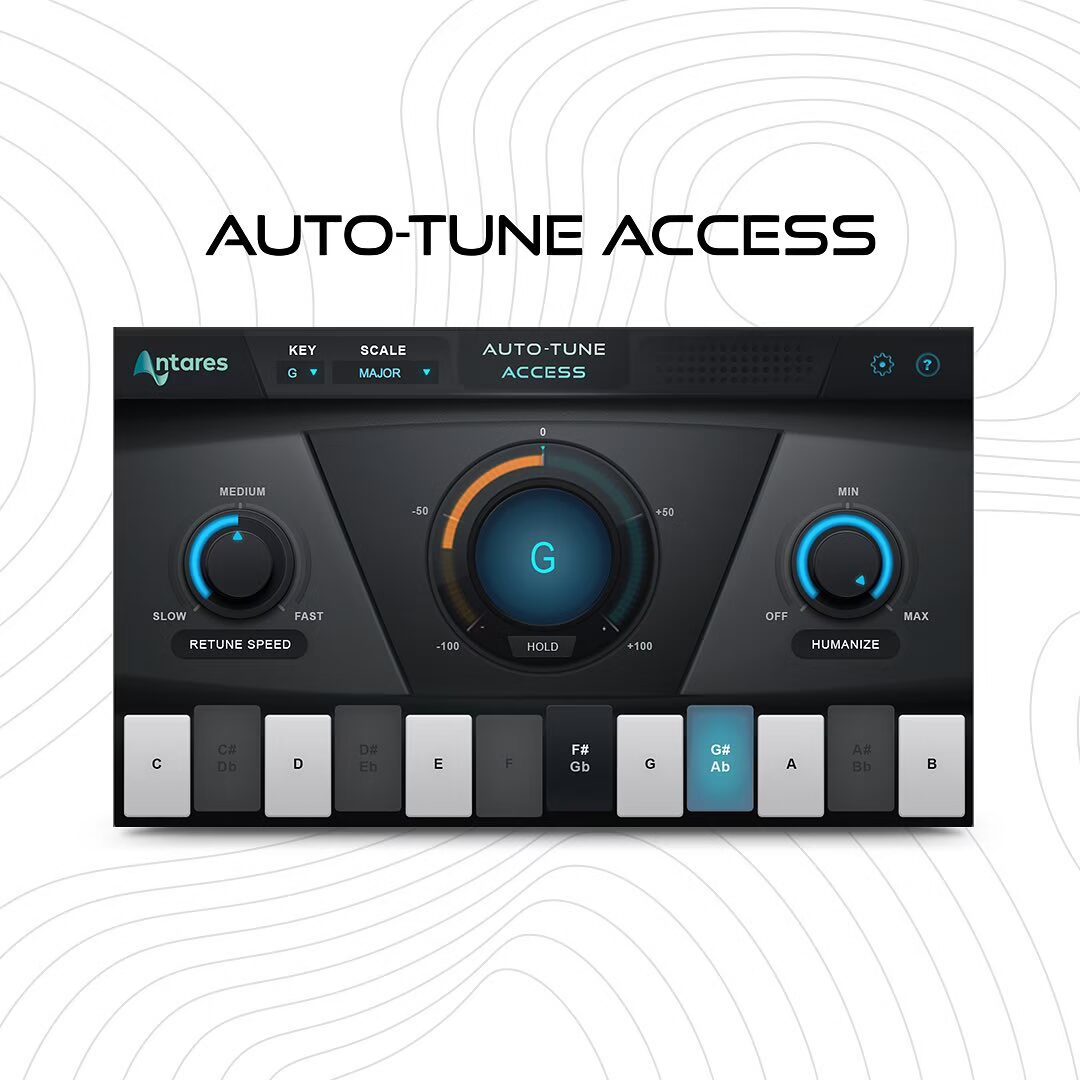

Antares® Auto-Tune® Access

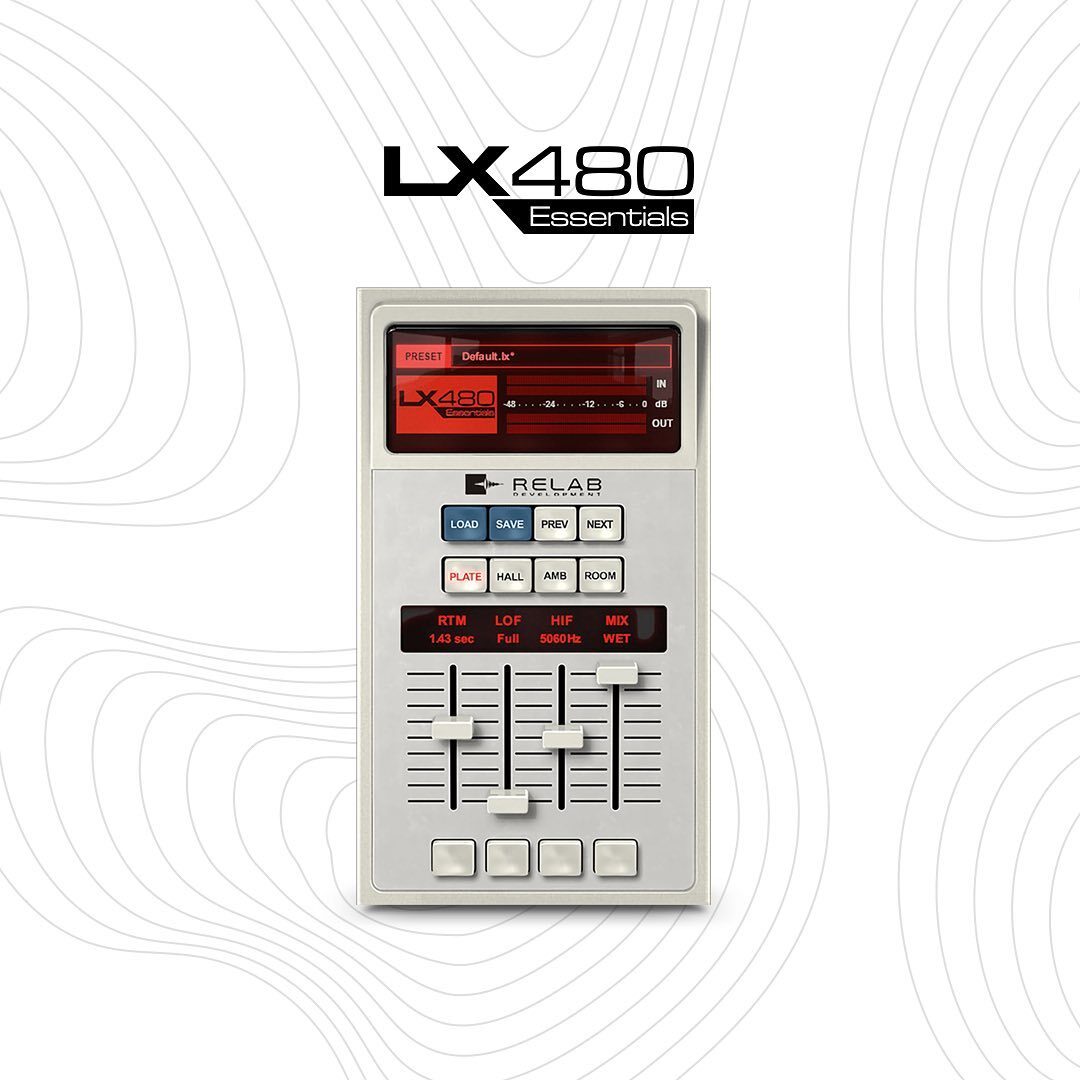

Relab’s LX480 Essentials

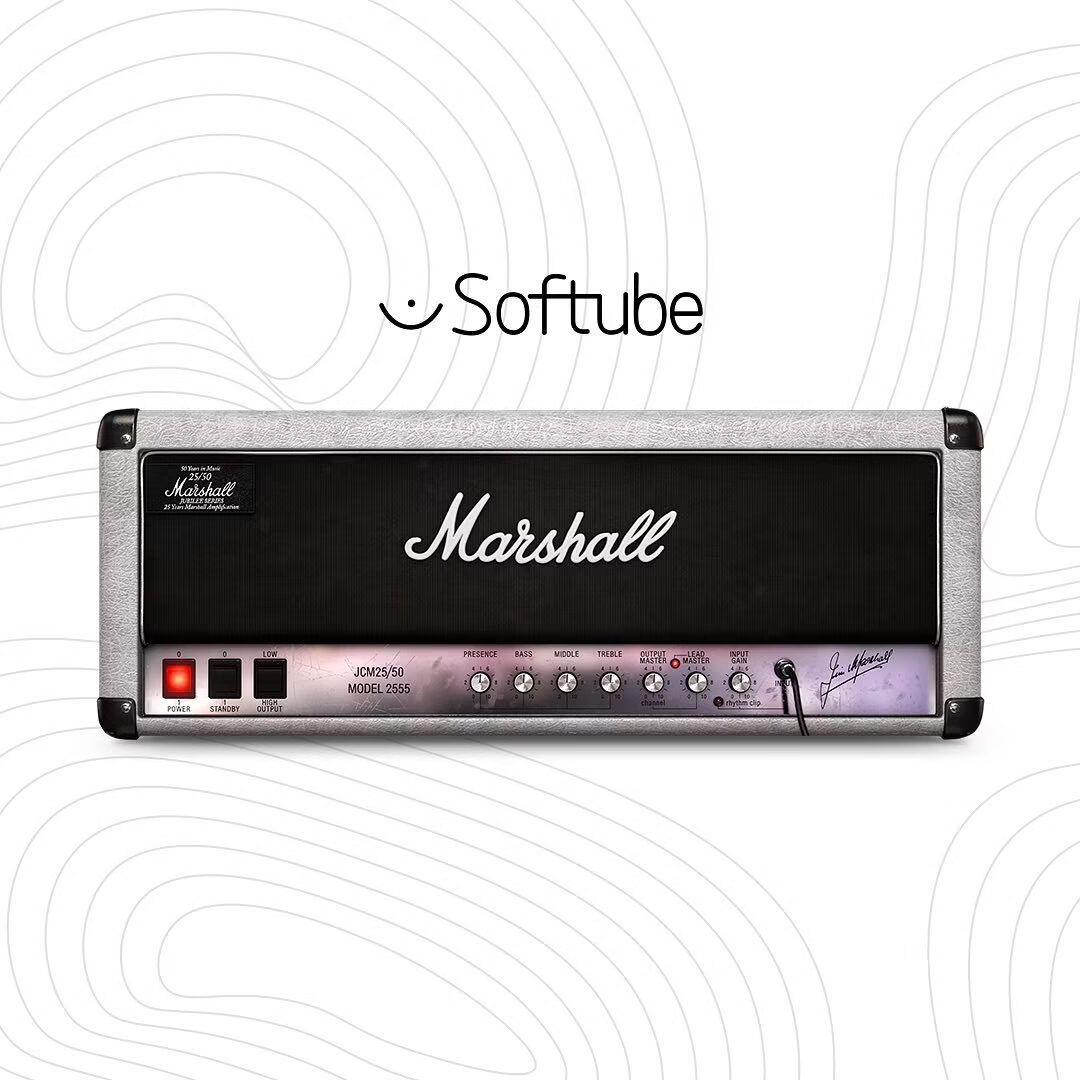

Softube® Marshall® Silver Jubilee 2555

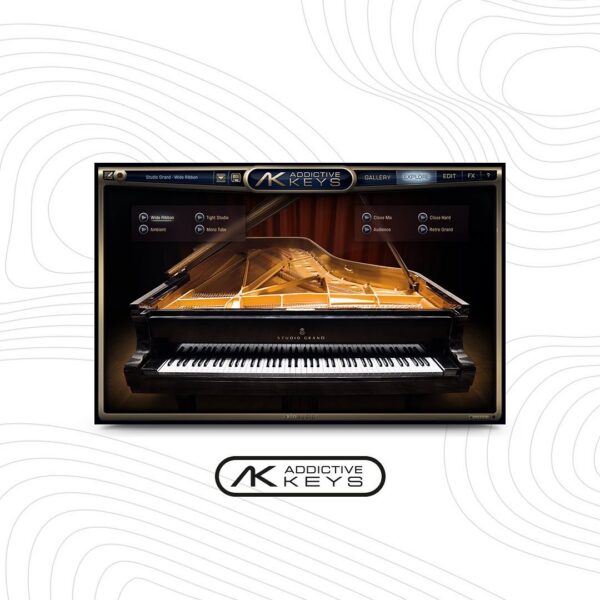

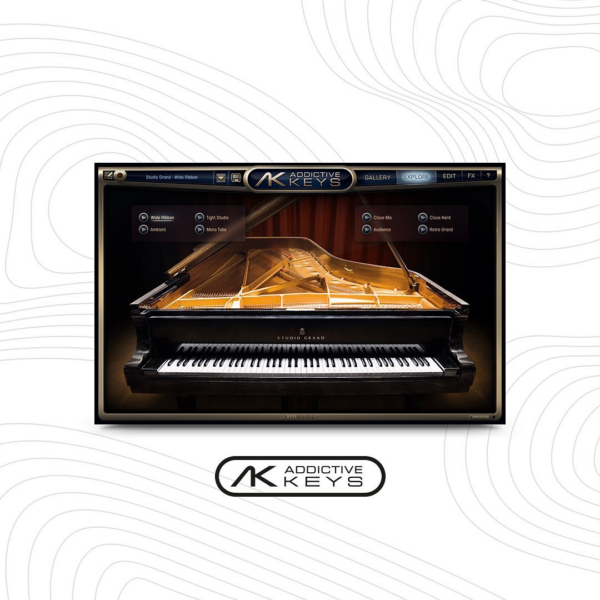

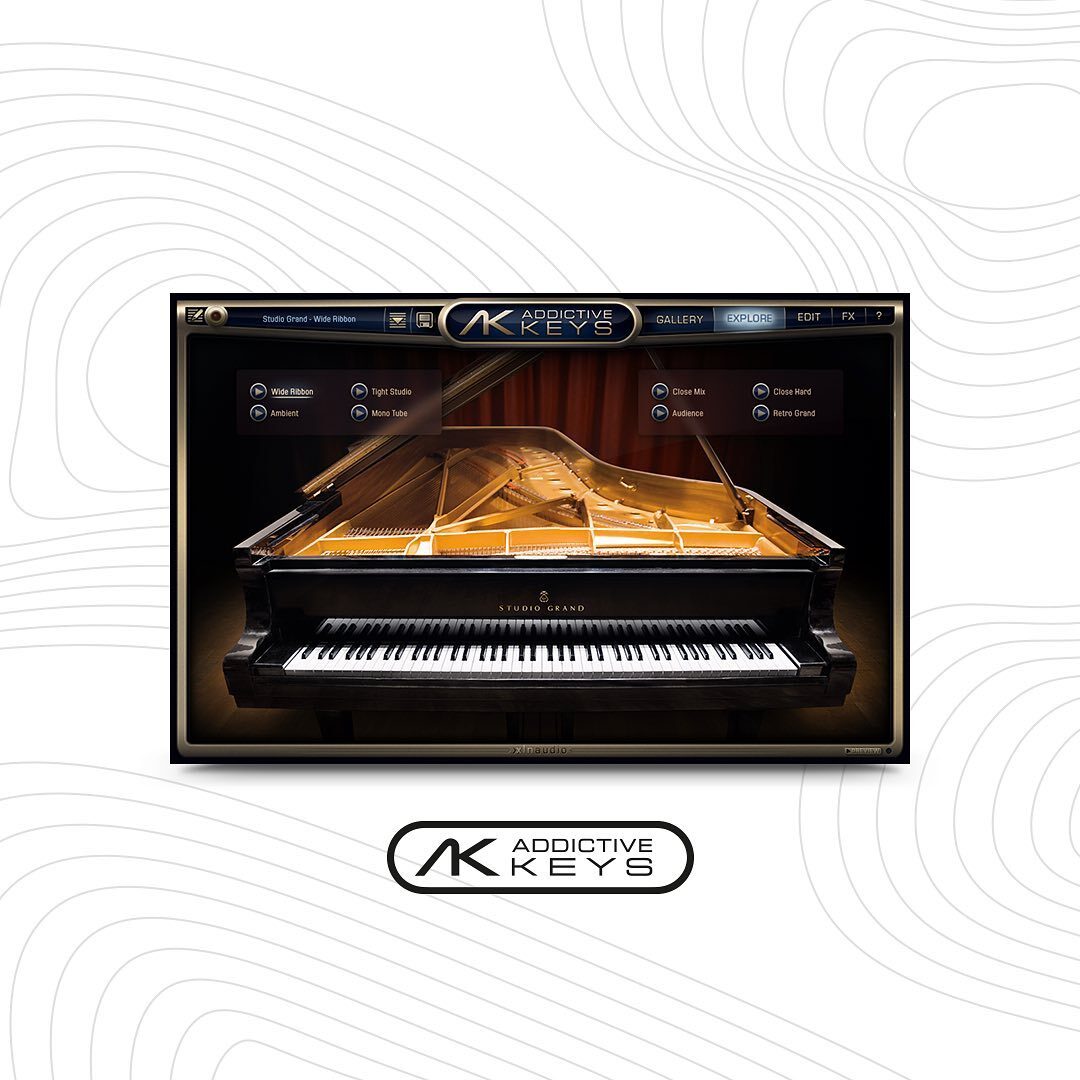

XLN Audio® Addictive Keys

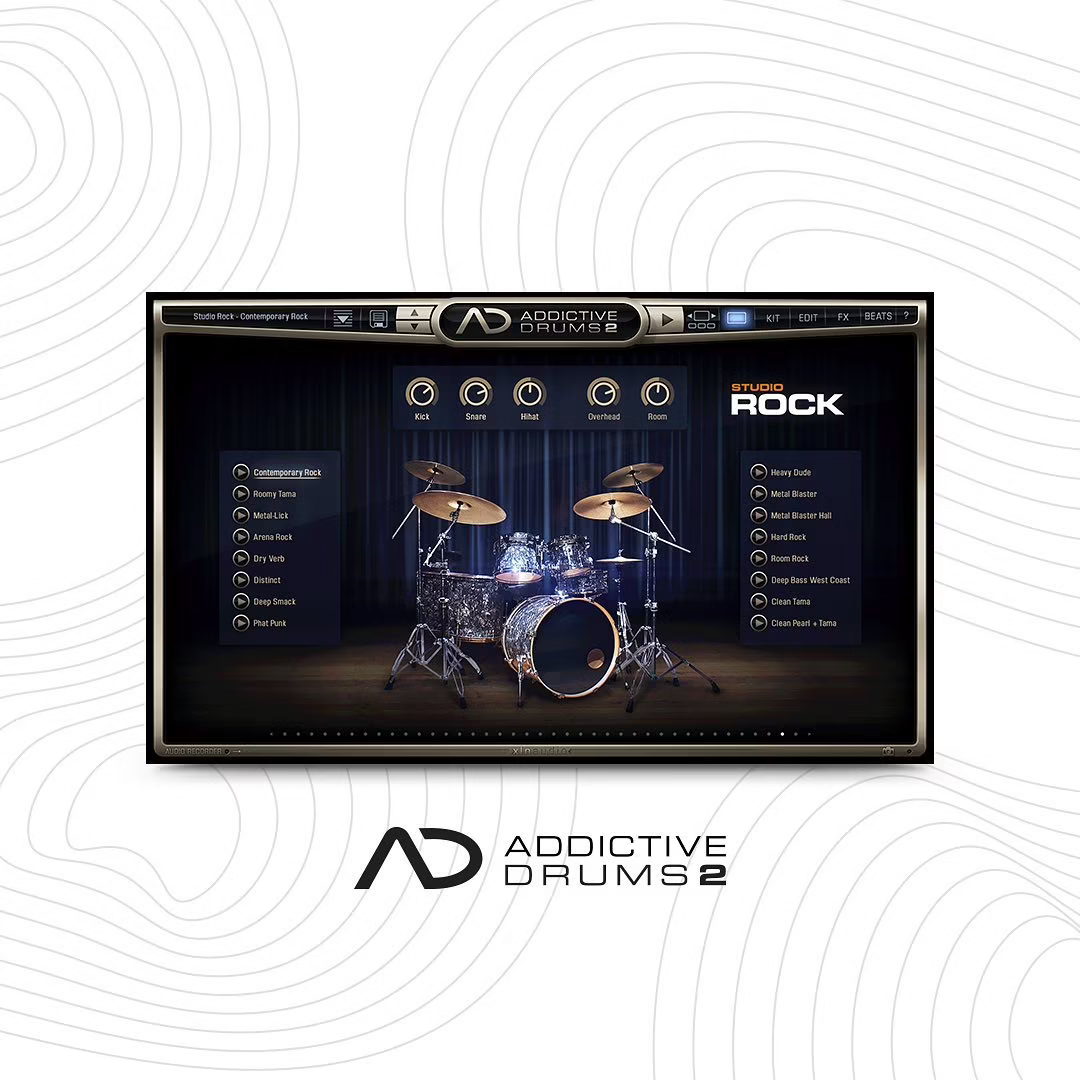

XLN Audio® Addictive Drums 2: Studio Rock

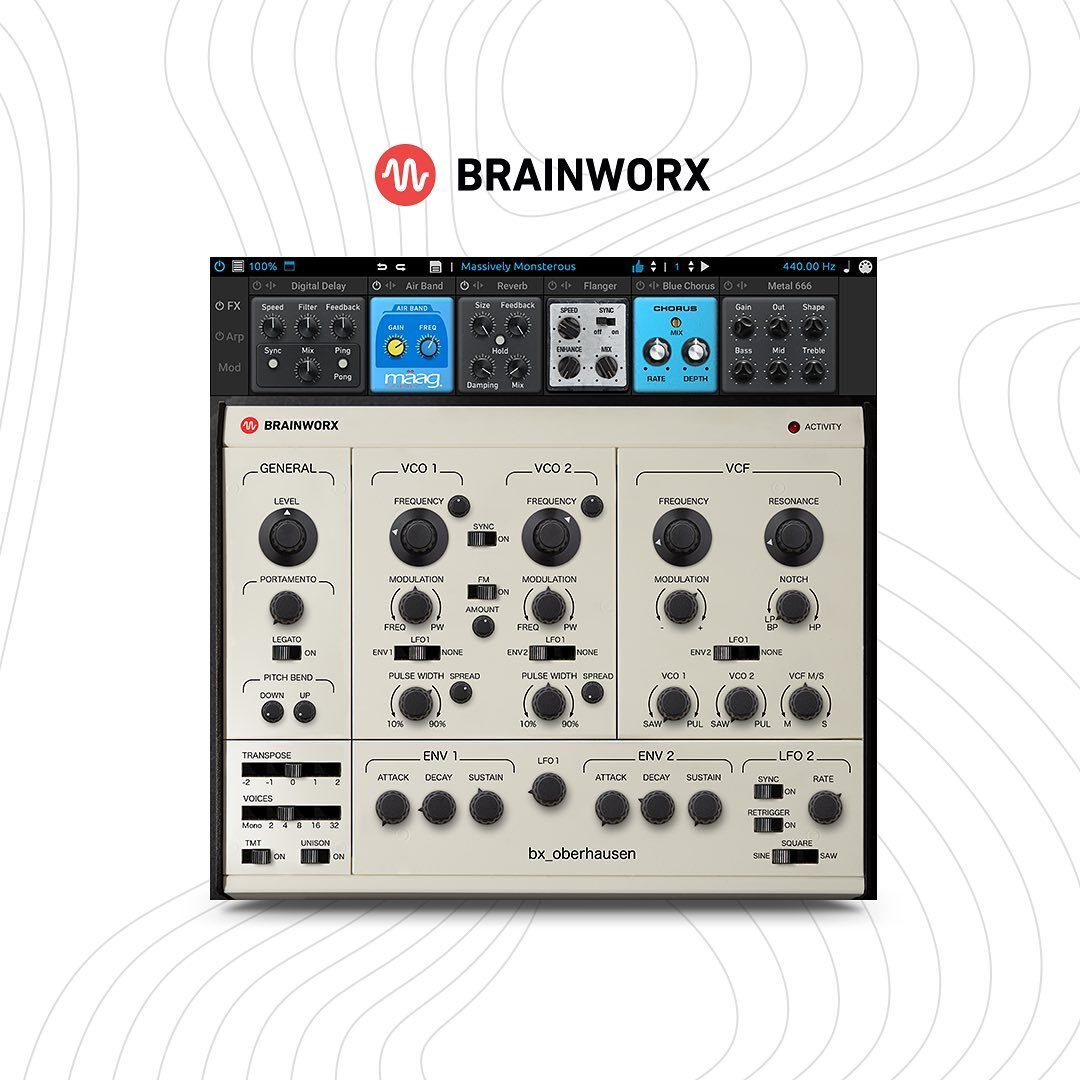

Brainworx® bx_oberhausen

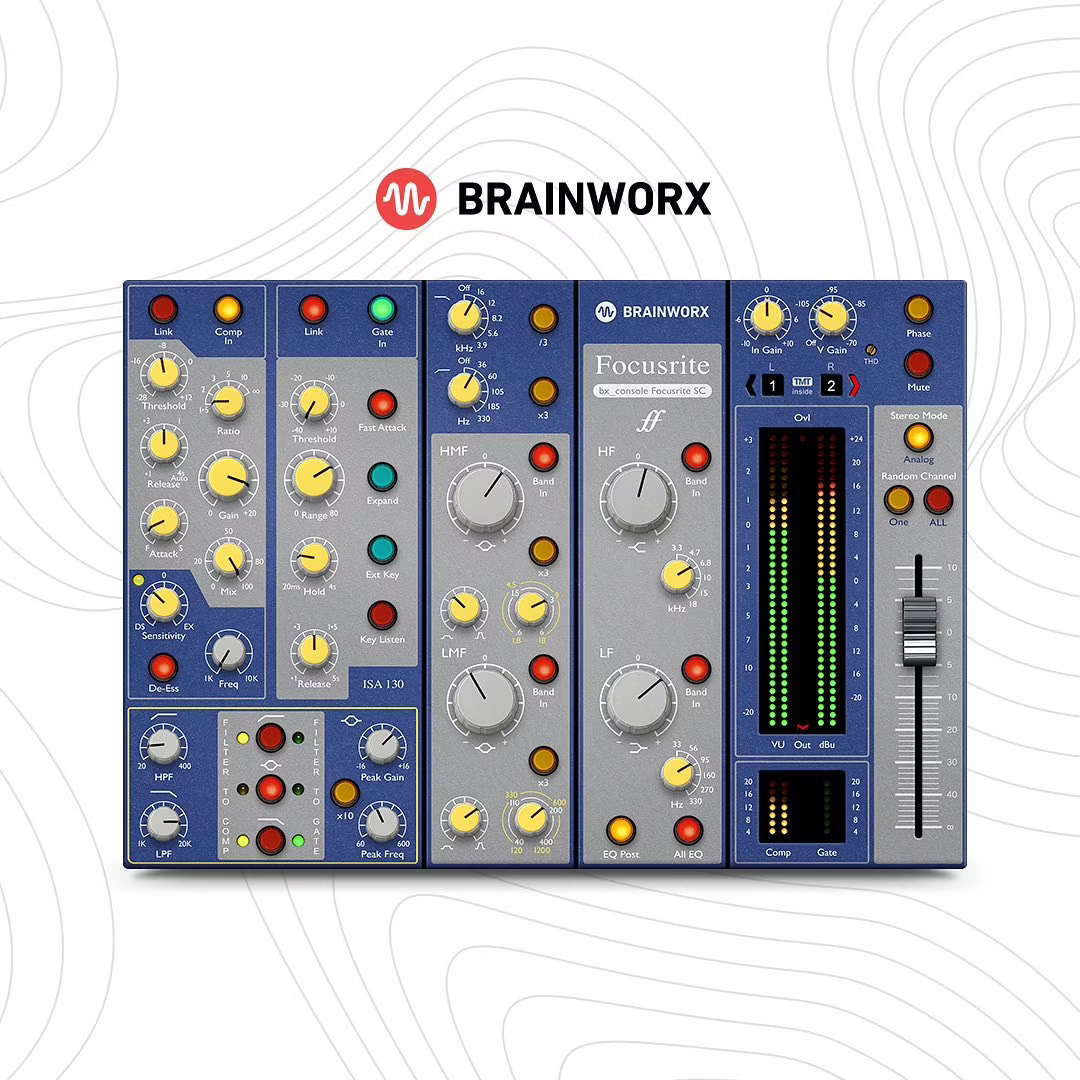

Brainworx® bx_console Focusrite SC

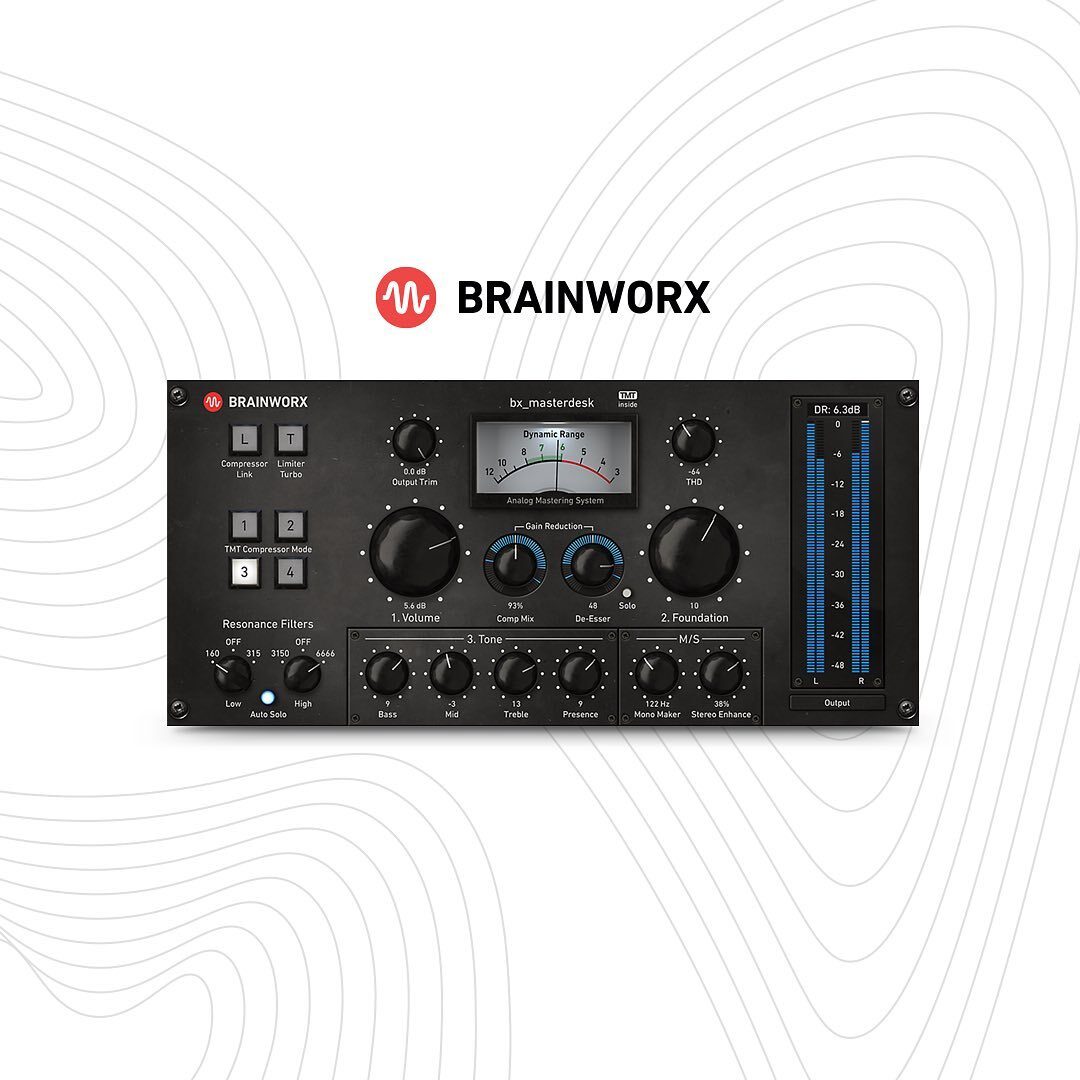

Brainworx® bx_masterdesk

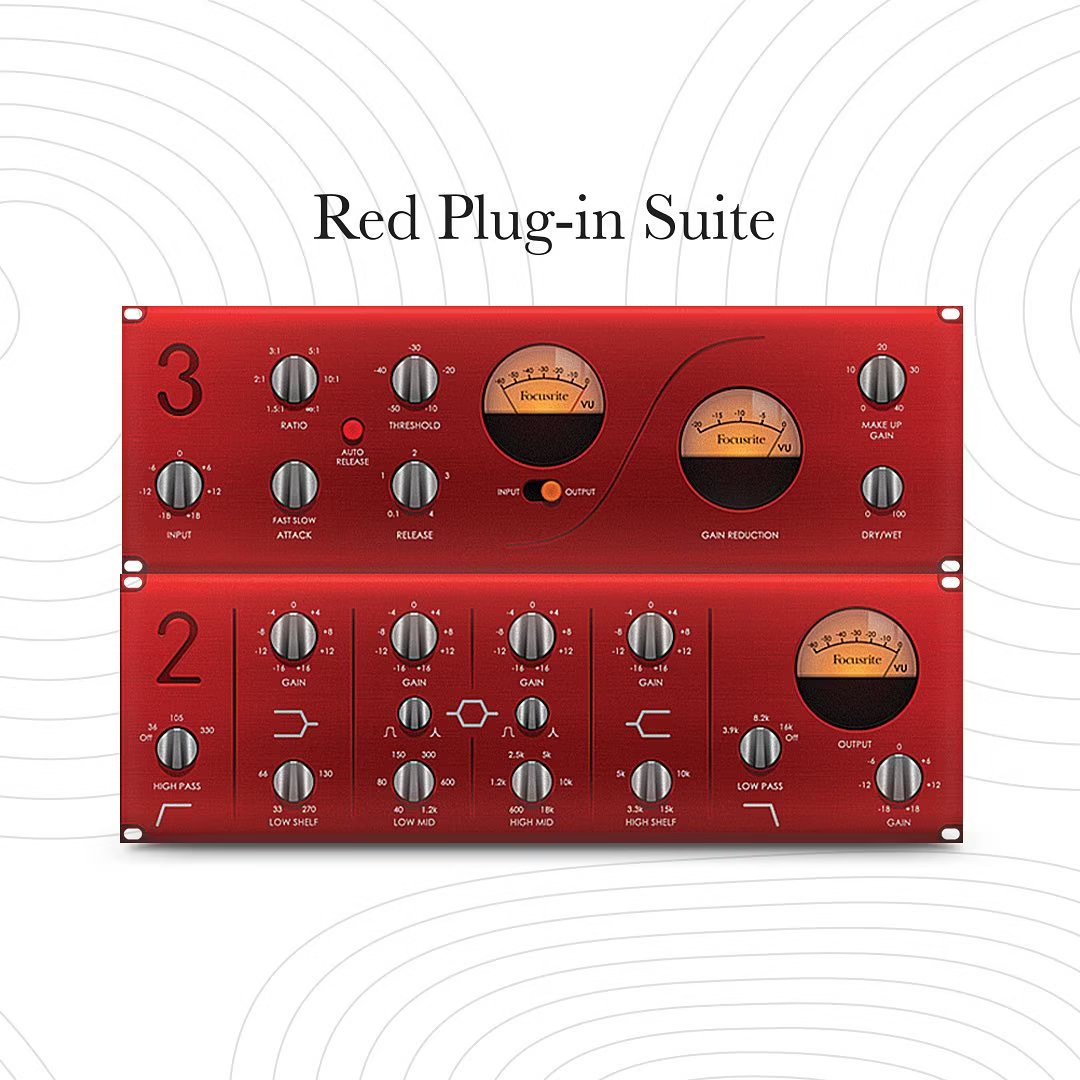

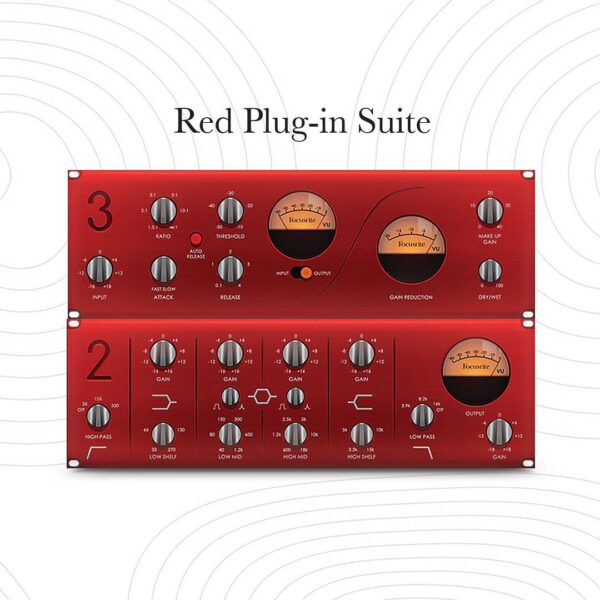

Focusrite Red 2 & 3 Plug-in Suite
