Description
Specifications
Product features
Number of subwoofers 1
Number of speakers 2
Active or passive active
Speaker set including not applicable
Weight and dimensions including packaging
Weight (incl. packaging)48.8 kg
Dimensions (incl. packaging)98.0 x 67.0 x 48.0 cm
Product specifications

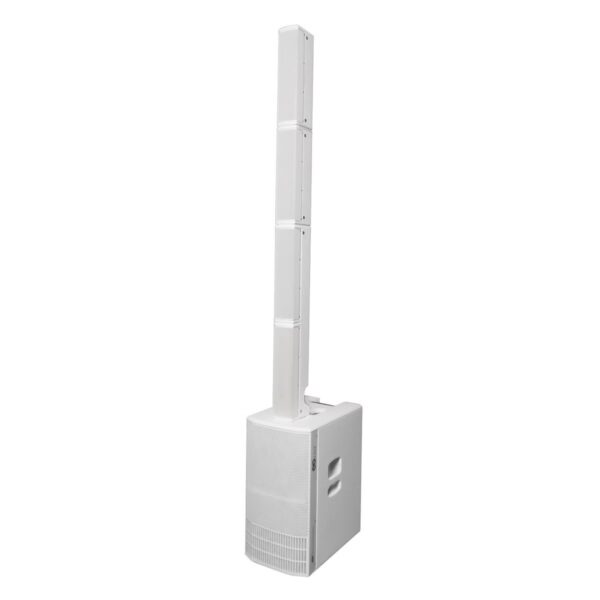

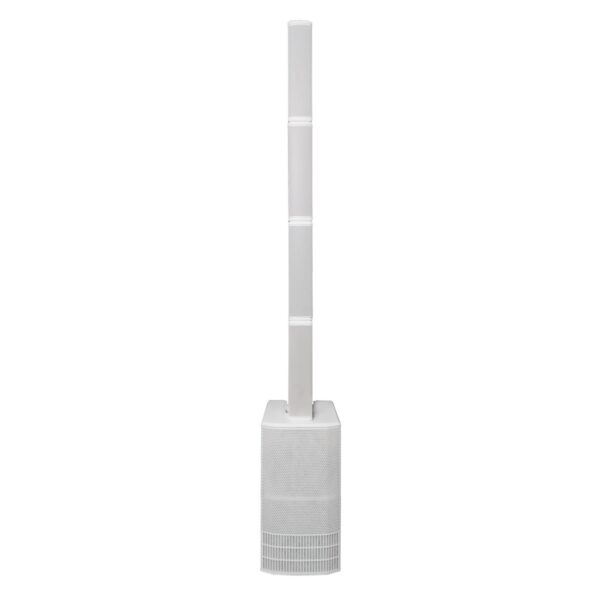

dB Technologies ES1203 stereo speaker set
3-amped stereo system with 2x full-range speakers and 1x subwoofer
acoustic information:
frequency response: 35 Hz – 20 kHz
max. SPL: 132 dB
MF – HF: 4x 4 in, 1 in VC
MF – HF type: neodymium
LF: 2x 12 in
dispersion: 97 x 60°
amplifier:
technology: Digipro G4
class: D
peak power: 2400 W
controls:
1x OLED display with rotary encoder and button
1x audio signal monitoring LED
1x USB port (service data)
power: IEC C14
cooling: convection
processor:
controller: DSP 56-bit
converter: AD/DA 24-bit/48 Hz
limiter: peak, RSM, thermal
LF – MF crossover frequency: 160 Hz
digital steering: Up/Down/Far
connectors:
input channels:
1x XLR/jack mic/instrument
2x XLR/jack mic/line
1x Bluetooth receiver (built-in)
output: 1x XLR balanced
housing cabinet:
material: plywood with metal grille
stand flange: 36 mm (M20 thread)
handles (sub): 1x top, 1x side
speaker dimensions: 11 x 46 x 16 cm
sub dimensions: 36 x 68 x 54.5 cm
speaker weight: 3.3 kg
sub weight: 29.3 kg
included:
subwoofer protective cover
gig bag for array speakers
35mm distance rod
2.7m SpeakON cables
power supply unit
